Part 8: Evolutionary Developmental Biology (Evo-Devo)

Foundations of Evo-Devo

Evolutionary Developmental Biology (Evo-Devo) is the field that bridges two great biological disciplines: evolutionary biology (how species change over time) and developmental biology (how a single fertilised egg becomes a complex organism). Its central revelation is breathtaking: animals as different as flies, mice, and humans share a remarkably conserved genetic toolkit — the same master control genes that were present in their common ancestor over 500 million years ago.

Hox Genes & the Genetic Toolkit

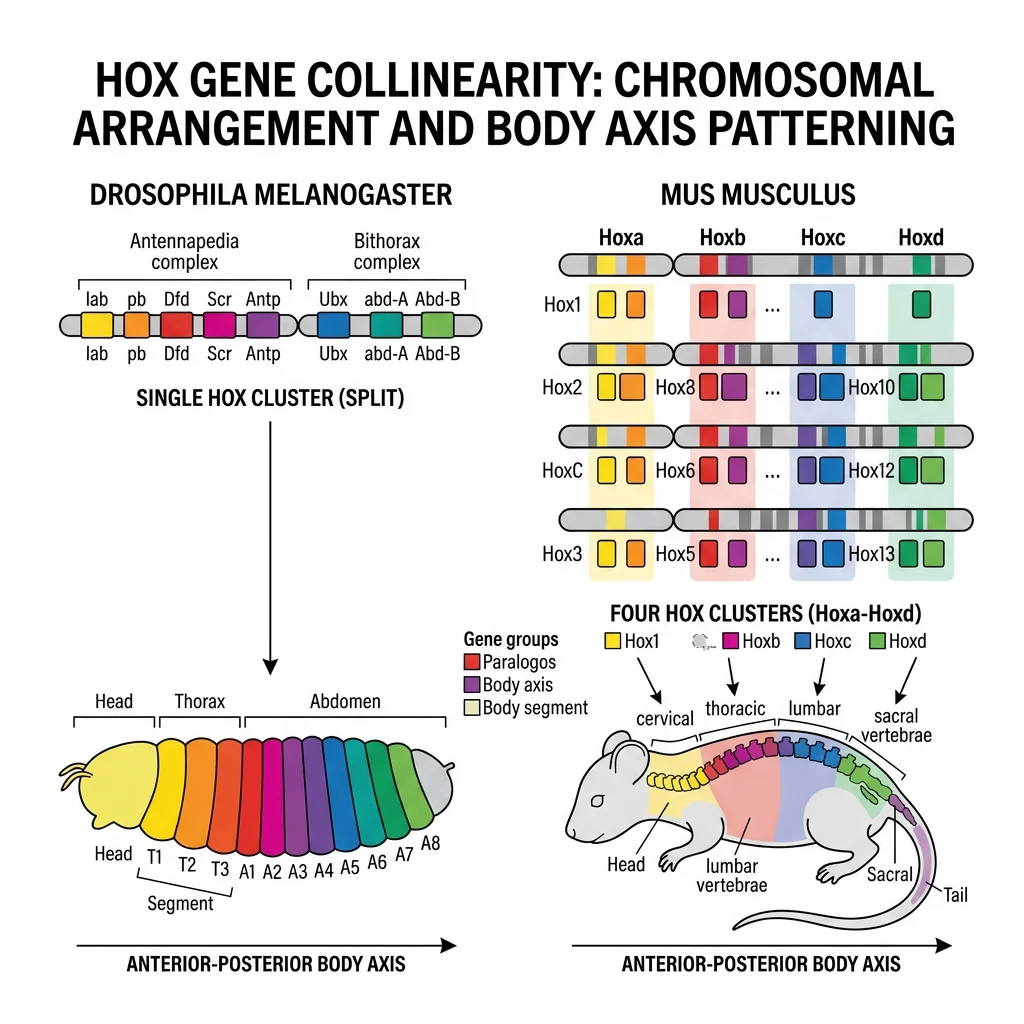

Hox genes are the most famous members of the genetic toolkit. They are homeotic selector genes — master switches that specify the identity of body segments along the head-to-tail (anterior-posterior) axis. They were first discovered in Drosophila melanogaster (fruit fly), where mutations in Hox genes caused dramatic homeotic transformations: legs growing where antennae should be, or an extra pair of wings replacing halteres.

Key toolkit genes beyond Hox:

Gene Regulatory Networks (GRNs)

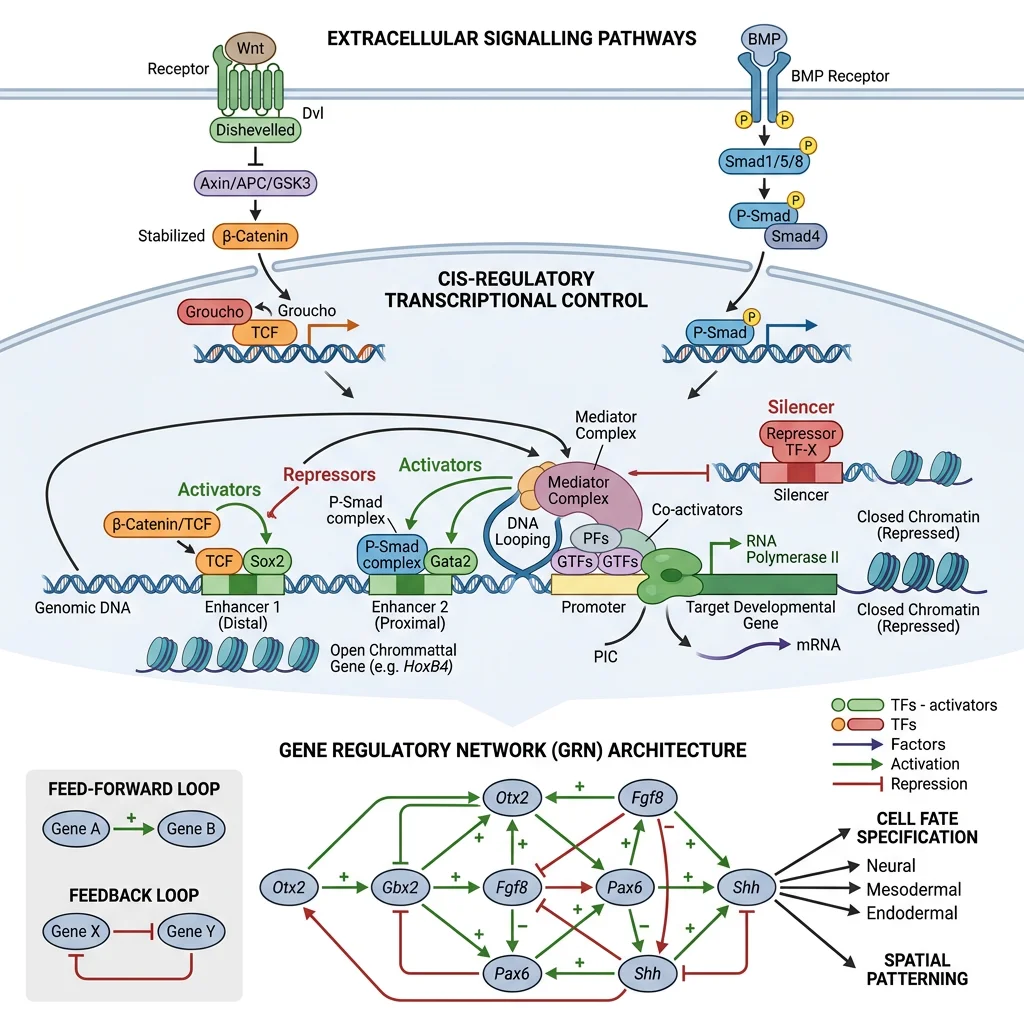

Toolkit genes don't act alone — they operate within Gene Regulatory Networks (GRNs), complex circuits of transcription factors, signalling molecules, and cis-regulatory elements (enhancers, silencers, promoters) that control when and where genes are expressed. GRNs are the "wiring diagrams" of development.

import matplotlib.pyplot as plt
import matplotlib.patches as mpatches

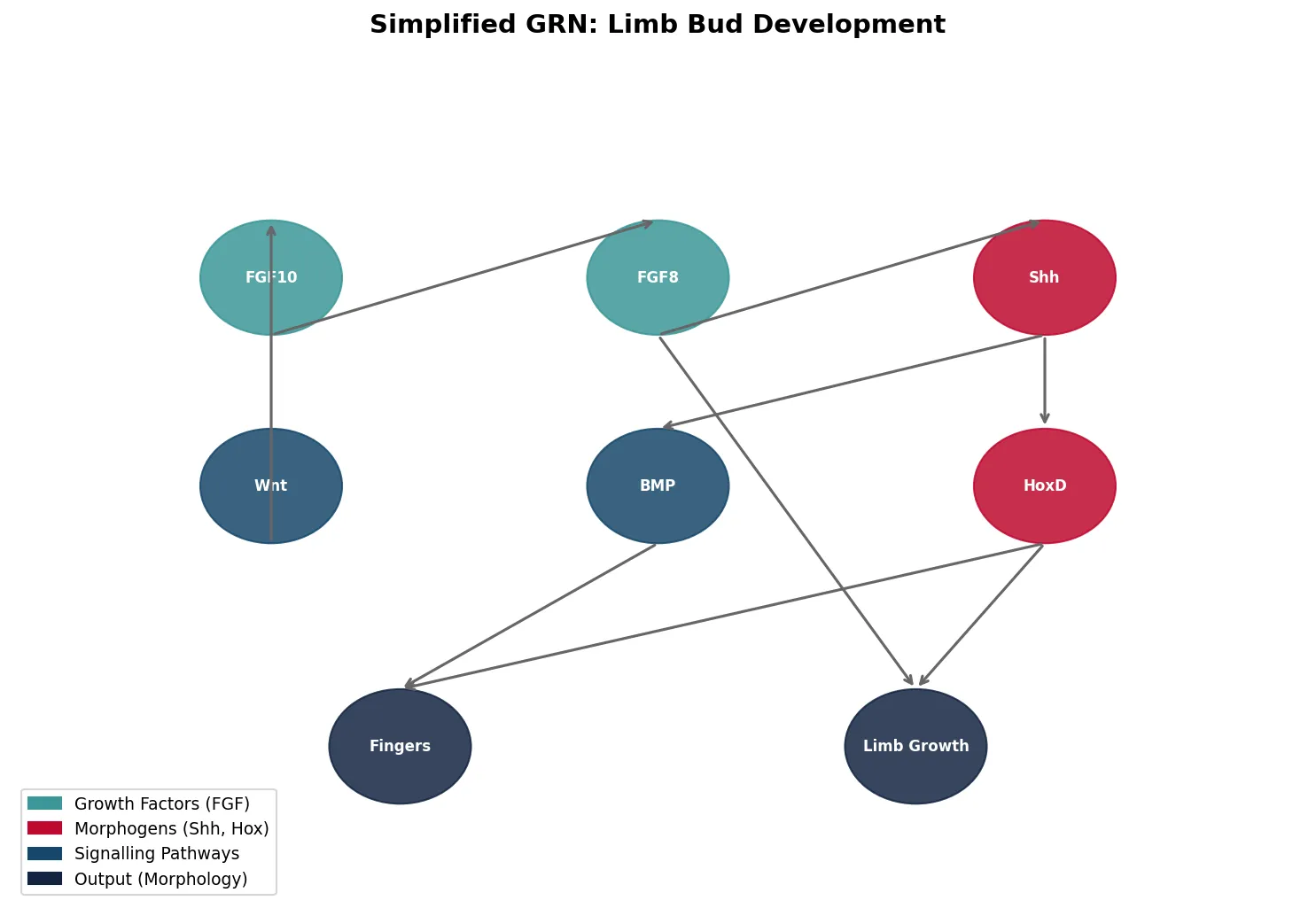

# Simplified Gene Regulatory Network for limb development
fig, ax = plt.subplots(figsize=(10, 7))
ax.set_xlim(0, 10)
ax.set_ylim(0, 8)
ax.axis('off')
ax.set_title('Simplified GRN: Limb Bud Development', fontsize=14,
             fontweight='bold', pad=20)

# Draw nodes (genes/signals)
nodes = {
    'FGF10': (2, 6), 'FGF8': (5, 6), 'Shh': (8, 6),
    'Wnt': (2, 4), 'BMP': (5, 4), 'HoxD': (8, 4),
    'Fingers': (3, 1.5), 'Limb Growth': (7, 1.5)
}
colors_map = {'FGF10': '#3B9797', 'FGF8': '#3B9797', 'Shh': '#BF092F',
              'Wnt': '#16476A', 'BMP': '#16476A', 'HoxD': '#BF092F',
              'Fingers': '#132440', 'Limb Growth': '#132440'}

for name, (x, y) in nodes.items():
    circle = plt.Circle((x, y), 0.55, color=colors_map[name], alpha=0.85)
    ax.add_patch(circle)
    ax.text(x, y, name, ha='center', va='center', fontsize=8,
            color='white', fontweight='bold')

# Draw arrows (regulatory connections)
arrows = [
    ('FGF10', 'FGF8'), ('FGF8', 'Shh'), ('Shh', 'BMP'),
    ('Shh', 'HoxD'), ('Wnt', 'FGF10'), ('BMP', 'Fingers'),
    ('HoxD', 'Fingers'), ('FGF8', 'Limb Growth'), ('HoxD', 'Limb Growth')
]
for src, tgt in arrows:
    sx, sy = nodes[src]
    tx, ty = nodes[tgt]
    ax.annotate('', xy=(tx, ty+0.55 if ty > sy else ty+0.55),
                xytext=(sx, sy-0.55 if sy > ty else sy-0.55),
                arrowprops=dict(arrowstyle='->', color='#666', lw=1.5))

legend_elements = [
    mpatches.Patch(color='#3B9797', label='Growth Factors (FGF)'),
    mpatches.Patch(color='#BF092F', label='Morphogens (Shh, Hox)'),
    mpatches.Patch(color='#16476A', label='Signalling Pathways'),
    mpatches.Patch(color='#132440', label='Output (Morphology)')
]
ax.legend(handles=legend_elements, loc='lower left', fontsize=9)
plt.tight_layout()
plt.show()

Modularity in Development

Modularity is the principle that complex organisms are built from semi-independent units — modules — that can evolve independently without disrupting the whole. In development, modules include individual body segments, limbs, organs, and even sub-components like individual teeth or feathers.

• Developmental modules — each limb bud is a module; a mutation affecting the forelimb doesn't necessarily change the hindlimb
• Evolutionary consequence — modularity enables "mix and match" evolution. Bat wings evolved by modifying the forelimb module (elongating digits) without changing the hindlimb
• Serial homology — repeated structures (vertebrae, ribs, insect segments) are serial modules. Hox genes can give each module a distinct identity while sharing the same basic developmental programme

Morphological Innovation

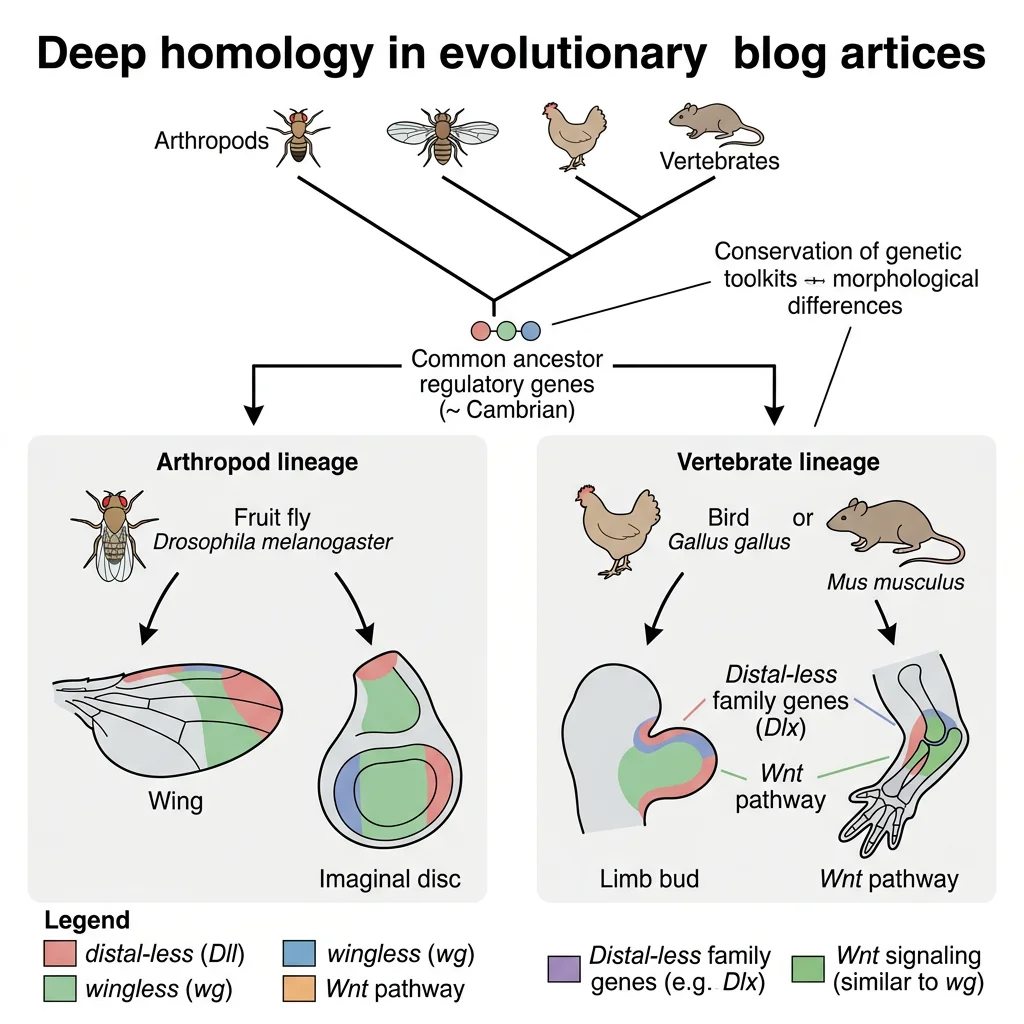

How do entirely new body structures — wings, eyes, jaws, flowers — evolve? Evo-Devo reveals that most "novelties" arise not from new genes, but from redeployment of existing toolkit genes in new developmental contexts. Evolution is a tinkerer, not an engineer.

Body Plan Evolution — The Cambrian Explosion

The Cambrian Explosion (~540–520 Mya) saw the rapid appearance of nearly all major animal body plans (phyla) within ~20 million years. Evo-Devo provides a framework for understanding this burst: the toolkit genes were already in place in pre-Cambrian ancestors, but the evolution of new regulatory connections between them enabled novel body architectures.

Novel Structures — Co-option and Exaptation

True evolutionary novelties rarely arise de novo. Instead, they emerge through co-option (or exaptation) — repurposing existing structures and gene networks for new functions:

Developmental Constraints

Developmental constraints are biases in the range of phenotypic variation that development can produce. They explain why certain body plans are common and others are impossibly rare — not because natural selection forbids them, but because the underlying developmental programme cannot generate them.

• Physical constraint — diffusion limits cell size; gravity limits body mass on land; the laws of physics constrain wing shape for flight

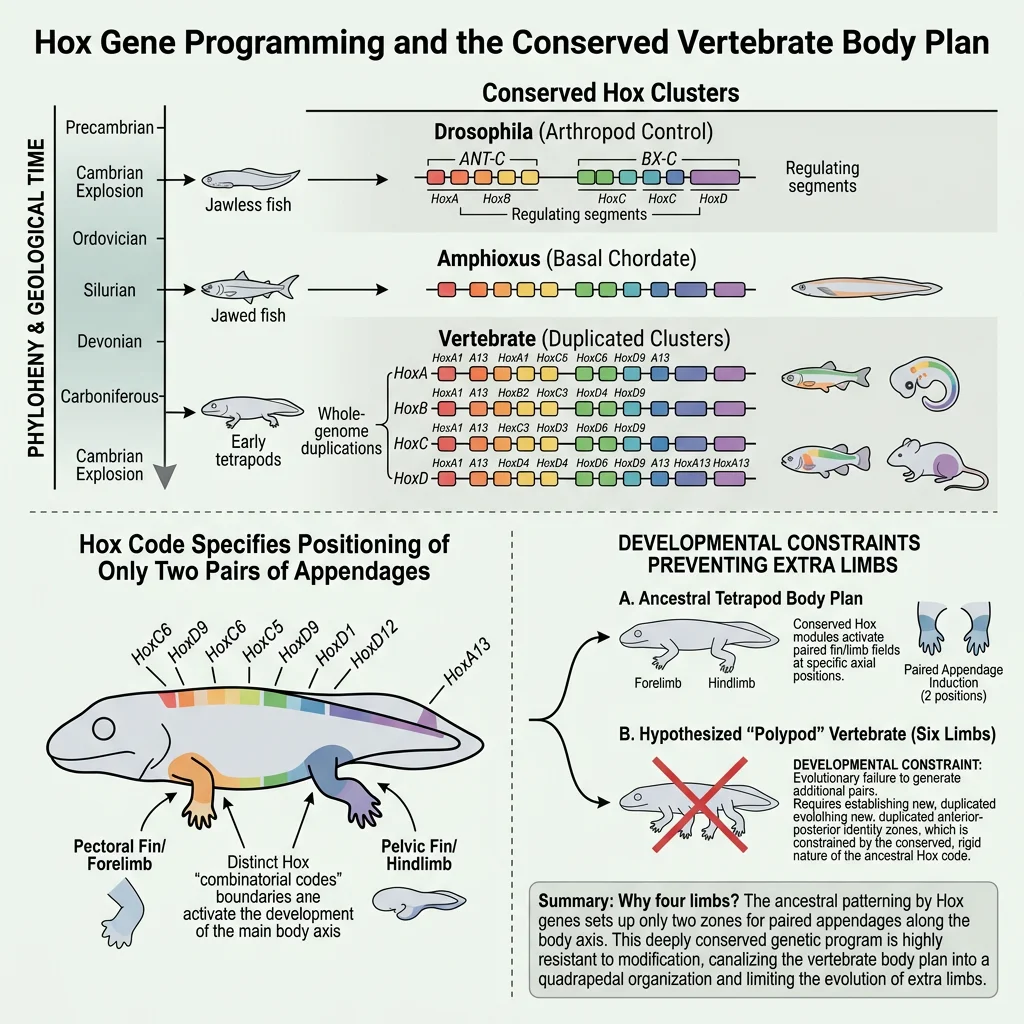

• Phylogenetic constraint — vertebrates always have a maximum of 4 limbs because their common ancestor's developmental programme specified 4 limb buds. No vertebrate has evolved 6 legs

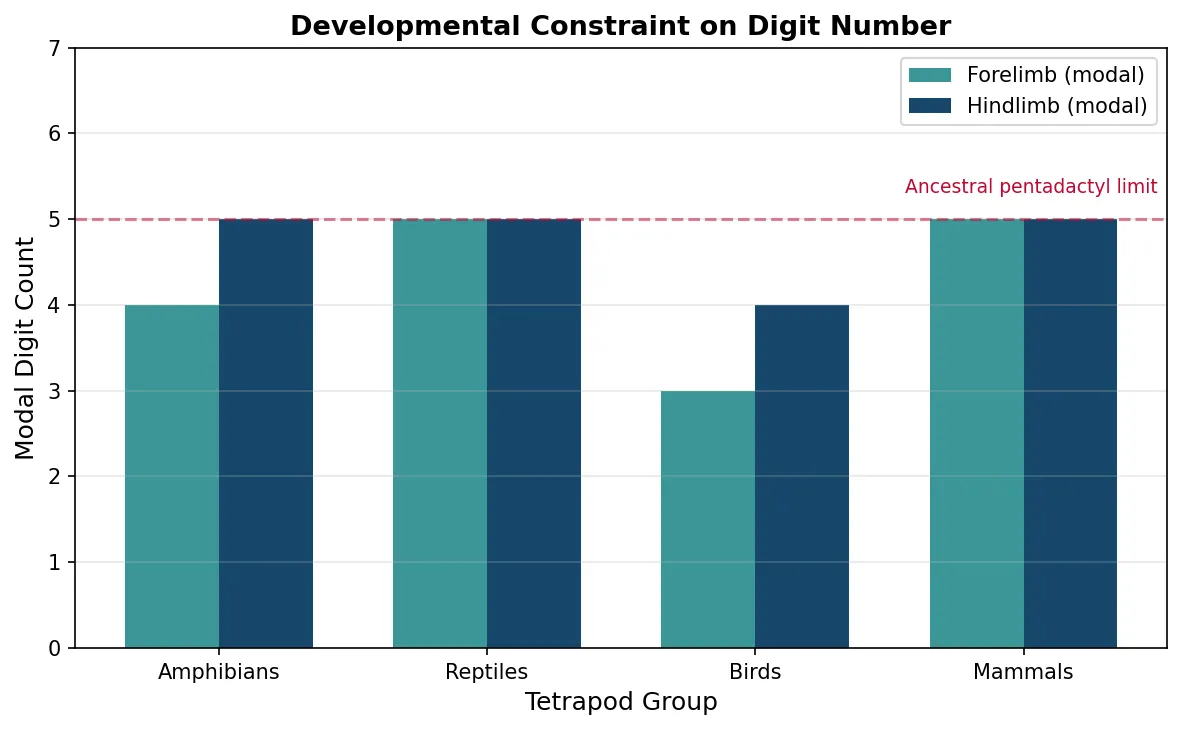

• Developmental channelling — digit number in tetrapods is constrained by the Shh signalling gradient. Most tetrapods have 5 or fewer digits; polydactyly (more digits) is rare because it requires bypassing conserved GRN wiring

import numpy as np
import matplotlib.pyplot as plt

# Digit number distribution across tetrapod orders
groups = ['Amphibians', 'Reptiles', 'Birds', 'Mammals']
digit_fore = [4, 5, 3, 5]   # Modal forelimb digit count
digit_hind = [5, 5, 4, 5]   # Modal hindlimb digit count

fig, ax = plt.subplots(figsize=(8, 5))
x = np.arange(len(groups))
width = 0.35
bars1 = ax.bar(x - width/2, digit_fore, width, label='Forelimb (modal)',
               color='#3B9797')
bars2 = ax.bar(x + width/2, digit_hind, width, label='Hindlimb (modal)',
               color='#16476A')

ax.set_ylabel('Modal Digit Count', fontsize=12)
ax.set_xlabel('Tetrapod Group', fontsize=12)
ax.set_title('Developmental Constraint on Digit Number',
             fontsize=13, fontweight='bold')
ax.set_xticks(x)
ax.set_xticklabels(groups)
ax.set_ylim(0, 7)
ax.legend()
ax.grid(axis='y', alpha=0.3)

# Annotate constraint
ax.axhline(y=5, color='#BF092F', linestyle='--', alpha=0.5)
ax.text(3.5, 5.3, 'Ancestral pentadactyl limit', fontsize=9,
        color='#BF092F', ha='right')
plt.tight_layout()
plt.show()

Heterochrony & Plasticity

Some of the most profound evolutionary changes involve not what develops, but when it develops and how flexibly organisms respond to their environment. Heterochrony and phenotypic plasticity are two powerful mechanisms that generate morphological diversity without requiring new genes.

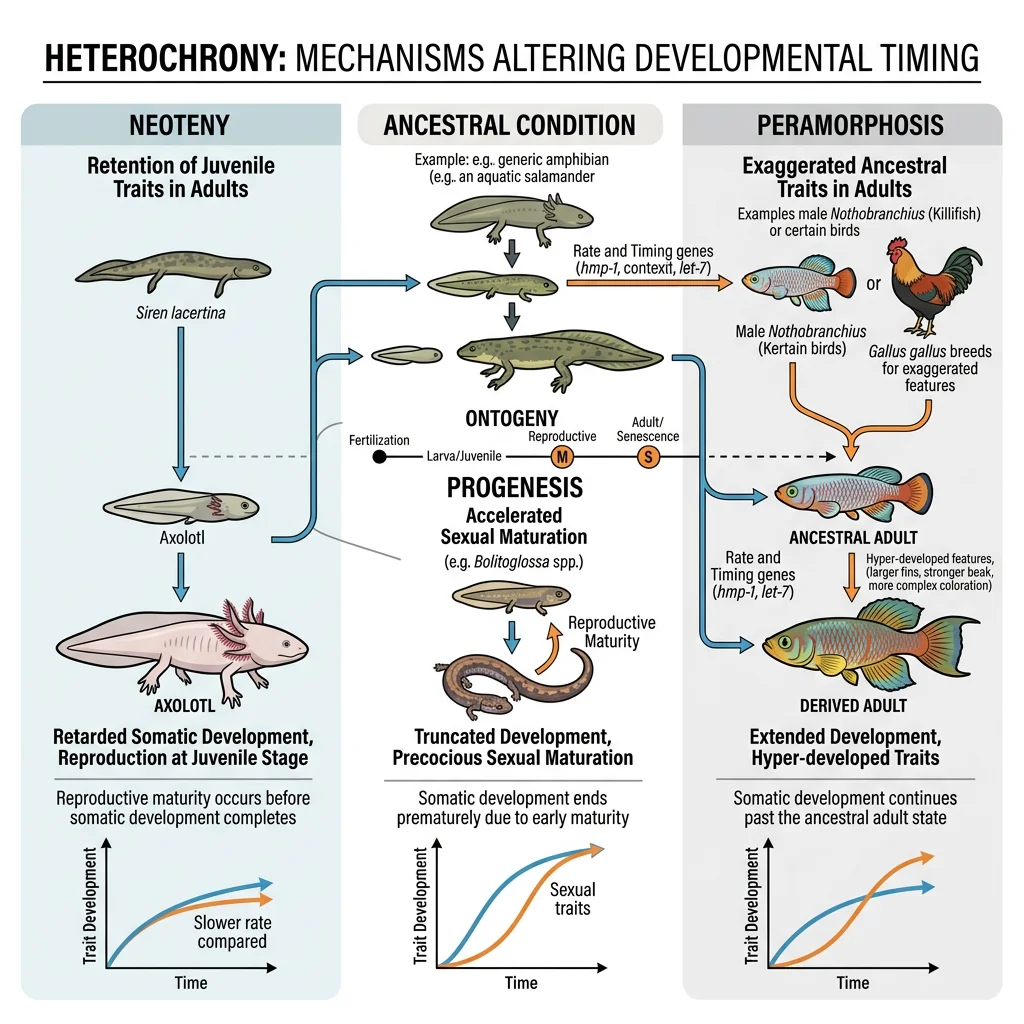

Changes in Developmental Timing — Heterochrony

Heterochrony is evolutionary change in the timing or rate of developmental events. Small shifts in when a process starts, stops, or speeds up can produce dramatic differences in adult form.

Phenotypic Plasticity

Phenotypic plasticity is the ability of a single genotype to produce different phenotypes in response to environmental conditions. Rather than being "hard-wired," development is conditionally responsive — the same DNA can build different bodies depending on temperature, nutrition, predator presence, or social environment.

• Polyphenism — discrete alternative phenotypes from one genotype. Caterpillars of Nemoria arizonaria look like oak catkins in spring (matching catkin-rich diet cues) but like twigs in summer
• Reaction norms — the continuous range of phenotypes a genotype can produce across an environmental gradient (e.g., plant height varies with water availability)
• Developmental plasticity — Daphnia (water fleas) grow protective spines and helmets only when they detect chemical cues from predators (fish kairomones)

Environmental Influence on Development

Environmental factors can directly alter developmental trajectories through several mechanisms:

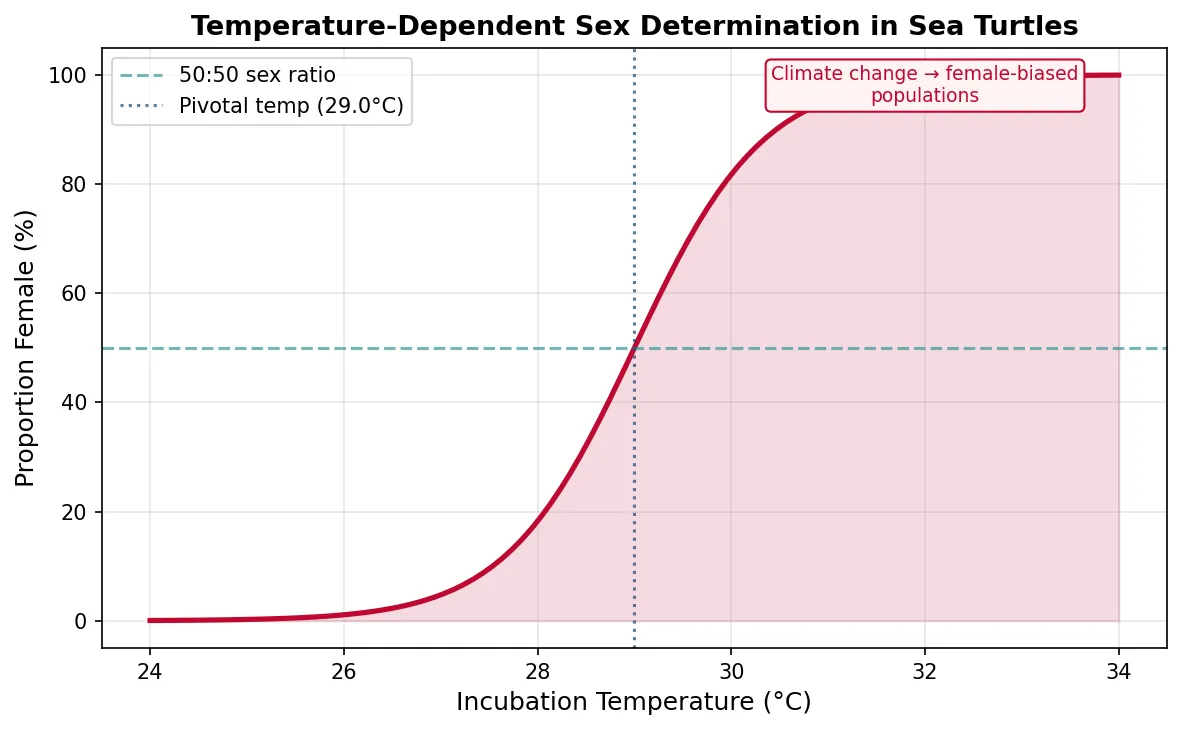

• Temperature-dependent sex determination (TSD) — in many reptiles (turtles, crocodilians), the incubation temperature of eggs determines offspring sex. This is an ancient developmental mechanism now threatened by climate change — warmer temperatures in some sea turtle populations are producing almost exclusively female hatchlings
• Epigenetics — environmental signals (nutrition, stress, toxins) modify gene expression through DNA methylation, histone modification, and non-coding RNA, without altering the DNA sequence. Some epigenetic marks can be inherited across generations (transgenerational epigenetic inheritance)
• Maternal effects — mother's environment influences offspring phenotype. Stressed mothers may produce offspring with altered stress responses (e.g., cortisol sensitivity), shaping development before the offspring's own genes are fully active

import numpy as np
import matplotlib.pyplot as plt

# Temperature-dependent sex determination in sea turtles
temperatures = np.linspace(24, 34, 100)
# Logistic function: proportion female increases with temperature
pivotal_temp = 29.0
k = 1.5
proportion_female = 1 / (1 + np.exp(-k * (temperatures - pivotal_temp)))

fig, ax = plt.subplots(figsize=(8, 5))
ax.plot(temperatures, proportion_female * 100, color='#BF092F', linewidth=2.5)
ax.fill_between(temperatures, proportion_female * 100, alpha=0.15, color='#BF092F')
ax.axhline(y=50, color='#3B9797', linestyle='--', alpha=0.7, label='50:50 sex ratio')
ax.axvline(x=pivotal_temp, color='#16476A', linestyle=':', alpha=0.7,
           label=f'Pivotal temp ({pivotal_temp}°C)')

ax.set_xlabel('Incubation Temperature (°C)', fontsize=12)
ax.set_ylabel('Proportion Female (%)', fontsize=12)
ax.set_title('Temperature-Dependent Sex Determination in Sea Turtles',
             fontsize=13, fontweight='bold')
ax.legend(fontsize=10)
ax.set_ylim(-5, 105)
ax.grid(alpha=0.3)

# Annotate climate concern
ax.annotate('Climate change → female-biased\npopulations', xy=(32, 95),
            fontsize=9, color='#BF092F', ha='center',
            bbox=dict(boxstyle='round', facecolor='#FFF3F3', edgecolor='#BF092F'))
plt.tight_layout()
plt.show()

Exercises & Review

Downloadable Worksheet

Conclusion & Next Steps

Evo-Devo has fundamentally reshaped our understanding of evolution. The discovery that a deeply conserved genetic toolkit — Hox genes, signalling pathways, and gene regulatory networks — underlies the staggering diversity of animal body plans means that evolution is less about inventing new genes and more about rewiring the switches that control existing ones. Through co-option, heterochrony, and phenotypic plasticity, organisms can explore morphological space in ways that neither pure genetics nor classical natural selection theory alone could predict.
