Manufacturing Engineering Series Part 9: Industry 4.0 & Smart Factories

CPS & Industrial IoT

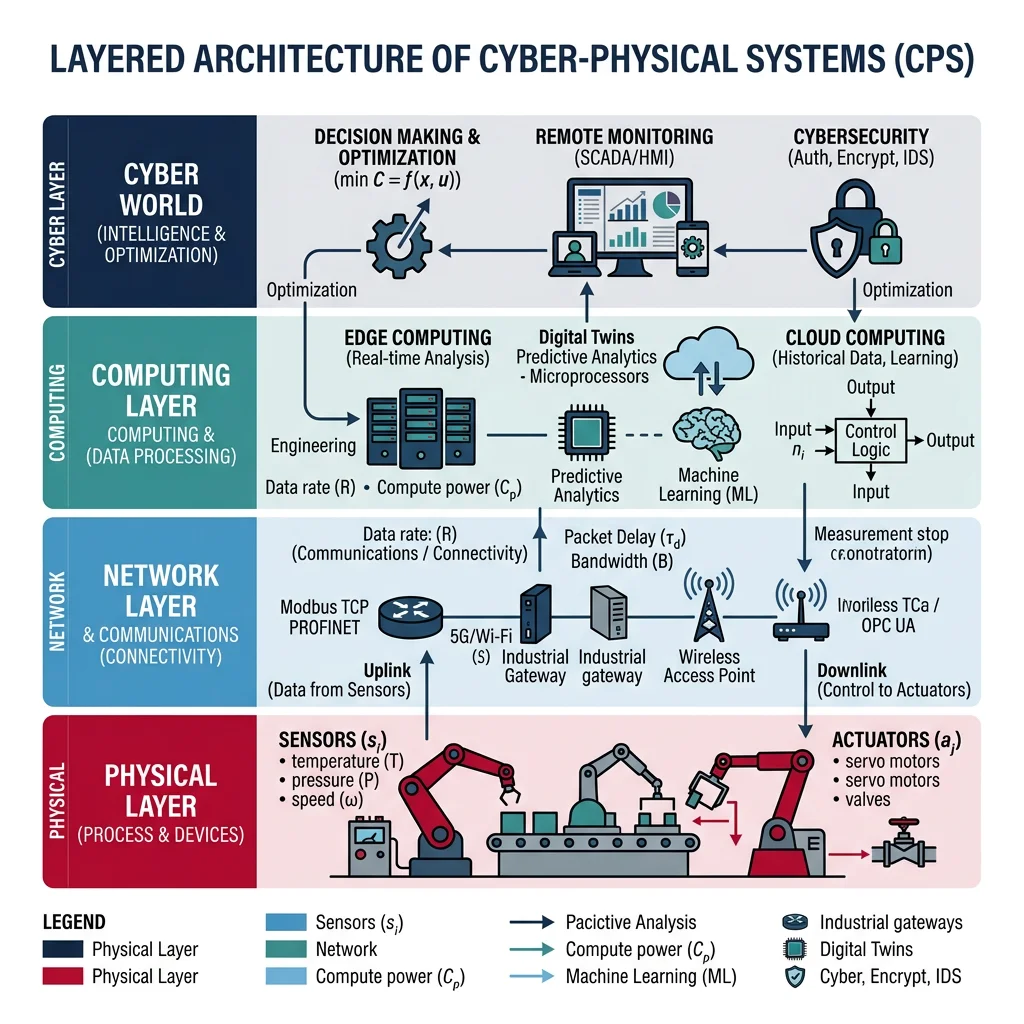

Cyber-Physical Systems (CPS) are the technological foundation of Industry 4.0 — systems where physical manufacturing processes are monitored, controlled, and optimized by computational algorithms through tight feedback loops. A CPS integrates sensors, actuators, embedded computing, and network communication into a unified system that bridges the physical and digital worlds.

IIoT Protocols (OPC-UA, MQTT)

The Industrial Internet of Things (IIoT) connects machines, sensors, and systems across the factory floor. The challenge: legacy equipment speaks different languages (Modbus, PROFINET, EtherNet/IP, DeviceNet). IIoT protocols provide a unified communication layer:

Edge Computing & Fog Architecture

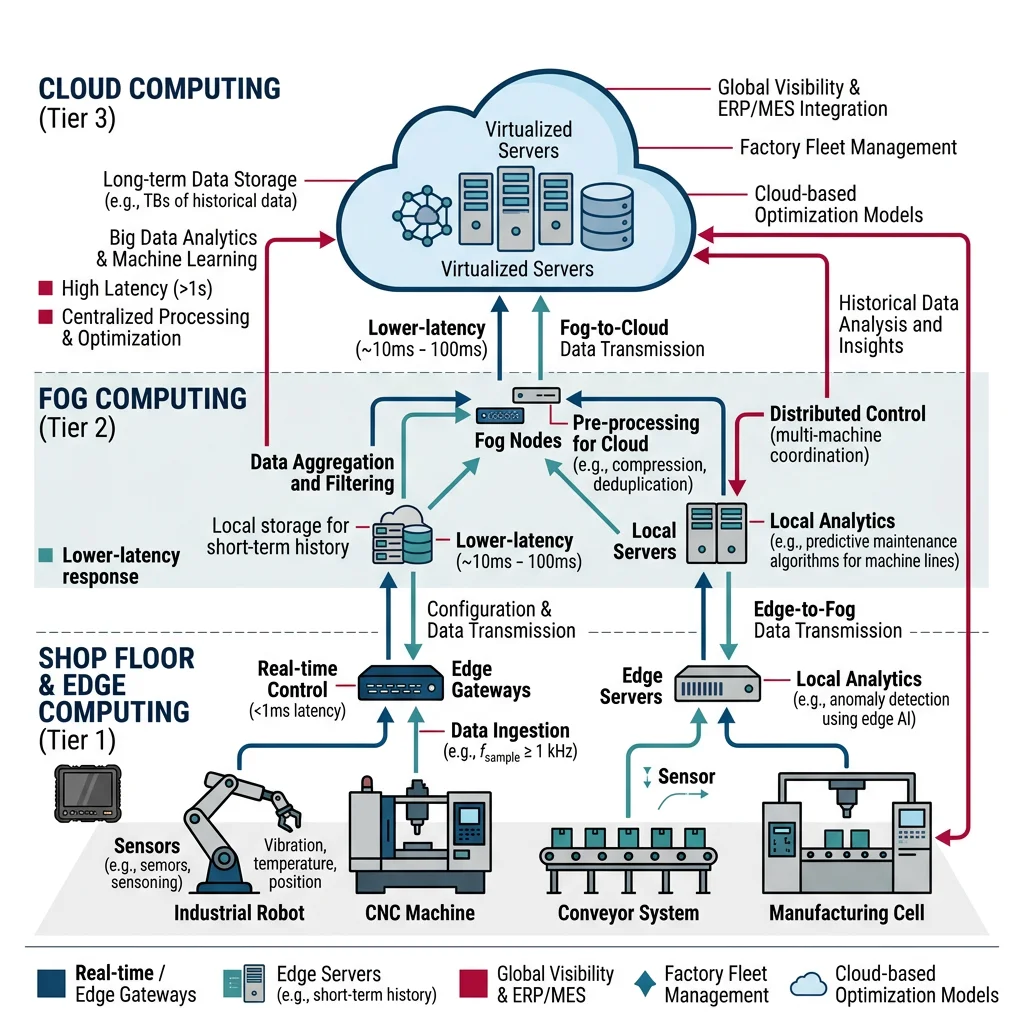

Edge computing processes data locally — at or near the machine — rather than sending everything to the cloud. When a CNC machine generates sensor data at 10 kHz (10,000 readings/second) across 20 sensors, that's 7 GB/day per machine. Sending it all to the cloud is impractical and unnecessary. Edge devices filter, aggregate, and analyze data locally, sending only insights upward.

Digital Twins & Simulation

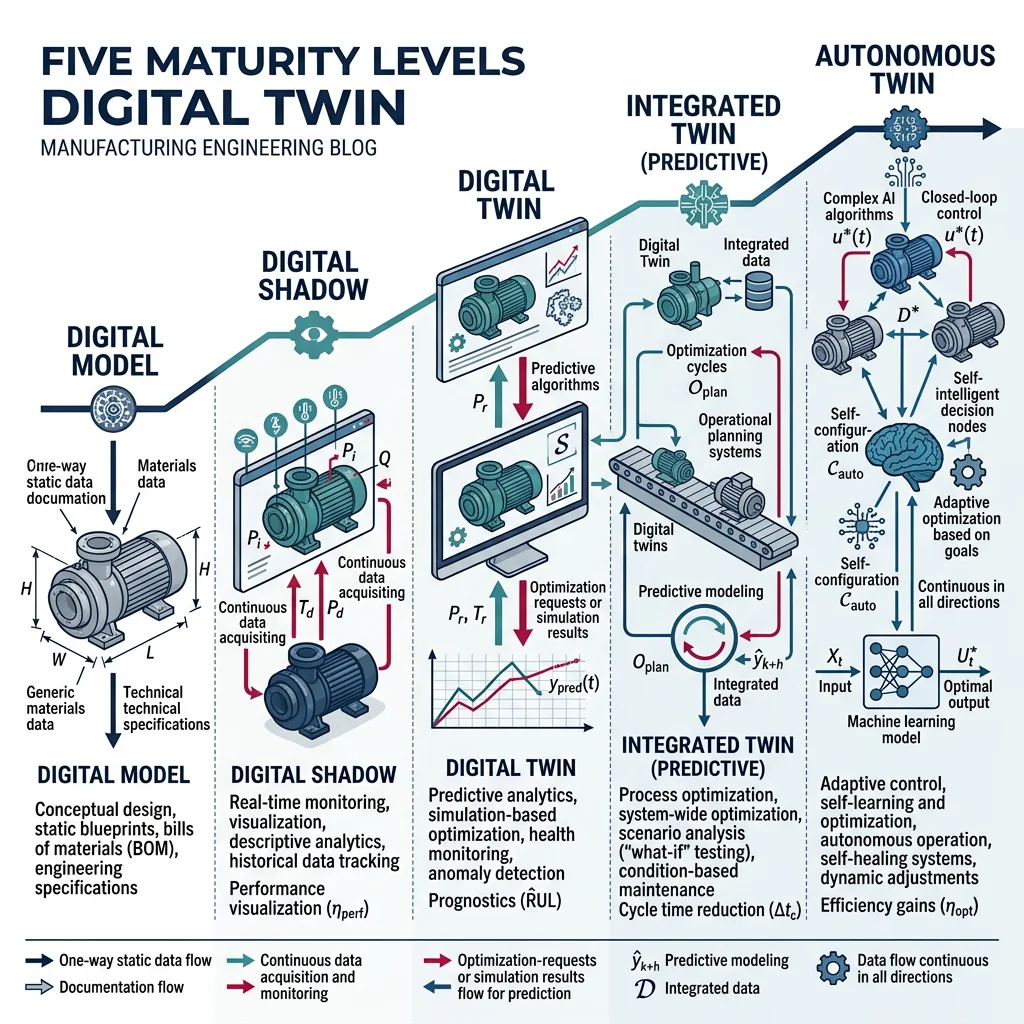

A digital twin is a virtual replica of a physical asset, process, or system that is continuously updated with real-time data from its physical counterpart. The concept originated at NASA (Apollo 13 — ground-based spacecraft replica used to simulate rescue scenarios) and has evolved through five maturity levels:

Virtual Commissioning

Virtual commissioning tests and validates automated production systems entirely in simulation before physical installation. The PLC code, robot programs, and HMI screens are connected to a virtual plant model — engineers debug control logic, verify cycle times, and test error handling without building anything physical.

Process Simulation & Optimization

Discrete-event simulation (DES) models manufacturing systems as sequences of events (part arrives, machining starts, machining ends, part moves to next station). Tools like Siemens Plant Simulation, FlexSim, and AnyLogic enable engineers to test "what-if" scenarios before committing capital:

import numpy as np

# Simple Factory Discrete-Event Simulation
# 3-station serial production line with stochastic processing times

np.random.seed(42)
n_parts = 100

# Processing times (minutes) - normal distribution
stations = {
    "CNC Lathe":    {"mean": 5.0, "std": 0.5},
    "CNC Mill":     {"mean": 7.0, "std": 1.0},
    "Inspection":   {"mean": 3.0, "std": 0.3},
}

# Simulate each part flowing through 3 stations
part_completion = []
station_busy_until = {name: 0.0 for name in stations}

for part in range(n_parts):
    arrival = part * 7.5  # new part every 7.5 min (takt time)
    current_time = arrival

    for name, params in stations.items():
        # Part must wait if station is still busy
        start = max(current_time, station_busy_until[name])
        proc_time = max(1.0, np.random.normal(params["mean"], params["std"]))
        finish = start + proc_time
        station_busy_until[name] = finish
        current_time = finish

    part_completion.append(current_time)

# Performance metrics
throughput_time = np.array(part_completion)
lead_times = throughput_time - np.arange(n_parts) * 7.5
cycle_times = np.diff(throughput_time)

print("Factory Simulation Results — 3-Station Line")
print("=" * 55)
print(f"Parts simulated:  {n_parts}")
print(f"Takt time:        7.5 min (target)")
print(f"\nThroughput:")
print(f"  Actual cycle time:  {np.mean(cycle_times):.2f} min (avg)")
print(f"  Throughput rate:    {60/np.mean(cycle_times):.1f} parts/hour")
print(f"\nLead Time (arrival → completion):")
print(f"  Average:  {np.mean(lead_times):.1f} min")
print(f"  Min:      {np.min(lead_times):.1f} min")
print(f"  Max:      {np.max(lead_times):.1f} min")
print(f"  Std Dev:  {np.std(lead_times):.1f} min")

# Identify bottleneck
print(f"\nBottleneck Analysis:")
for name, params in stations.items():
    utilization = params["mean"] / 7.5 * 100
    print(f"  {name:15s}: {params['mean']:.1f} min avg, {utilization:.0f}% utilization")
print(f"\n  Bottleneck: CNC Mill (highest utilization)")
print(f"  Action: Add parallel CNC Mill to break bottleneck")

Predictive Analytics & ML

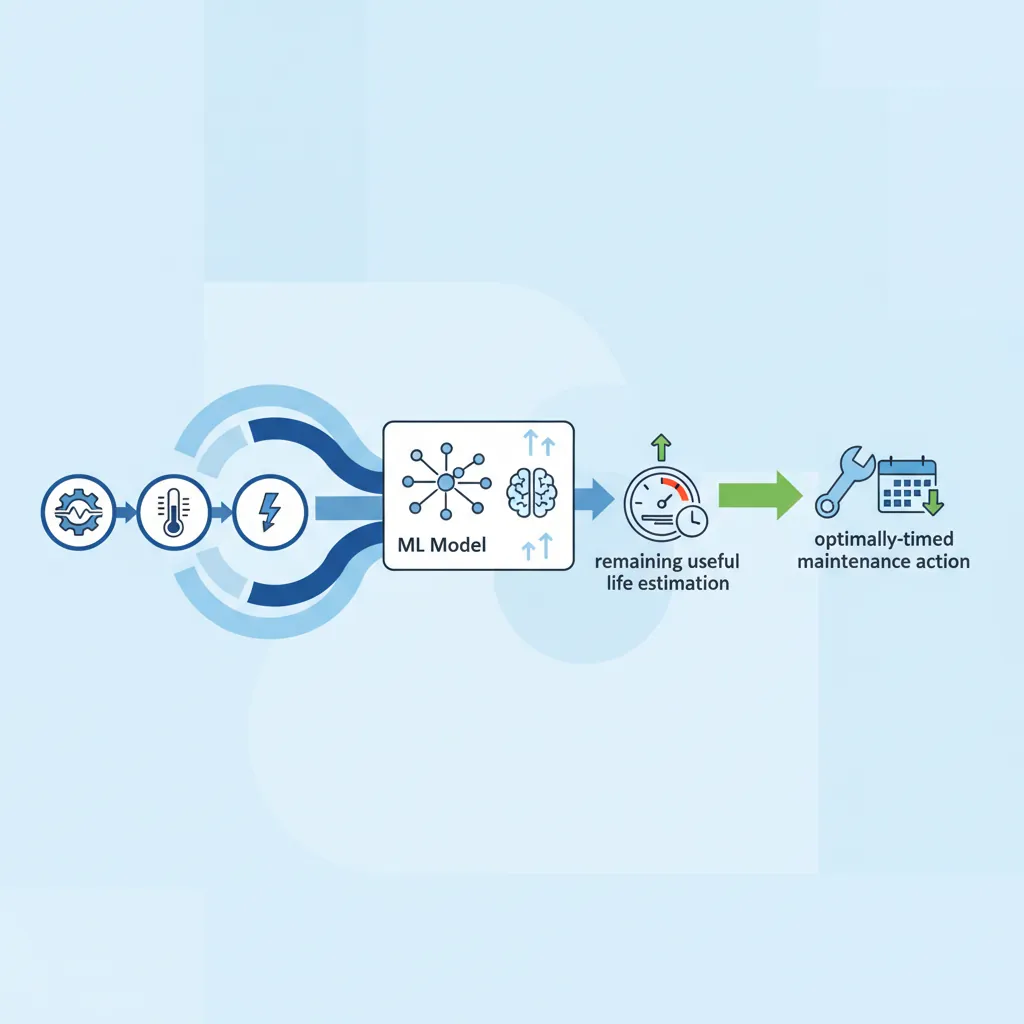

Predictive maintenance (PdM) uses sensor data and machine learning to predict when equipment will fail — enabling maintenance to be scheduled just before failure occurs. This replaces both reactive maintenance (fix after failure — expensive downtime) and preventive maintenance (fixed schedule — often replacing parts too early, wasting 30-40% of component life).

ML-Driven Quality Control

Machine learning transforms quality control from reactive inspection to proactive defect prevention:

Real-Time Adaptive Control

Adaptive control modifies process parameters in real-time based on sensor feedback — the machine continuously optimizes itself. In CNC machining, adaptive control monitors spindle power, vibration, and acoustic emission, then adjusts feed rate and spindle speed to maintain optimal cutting conditions:

MES, ERP & Cloud Manufacturing

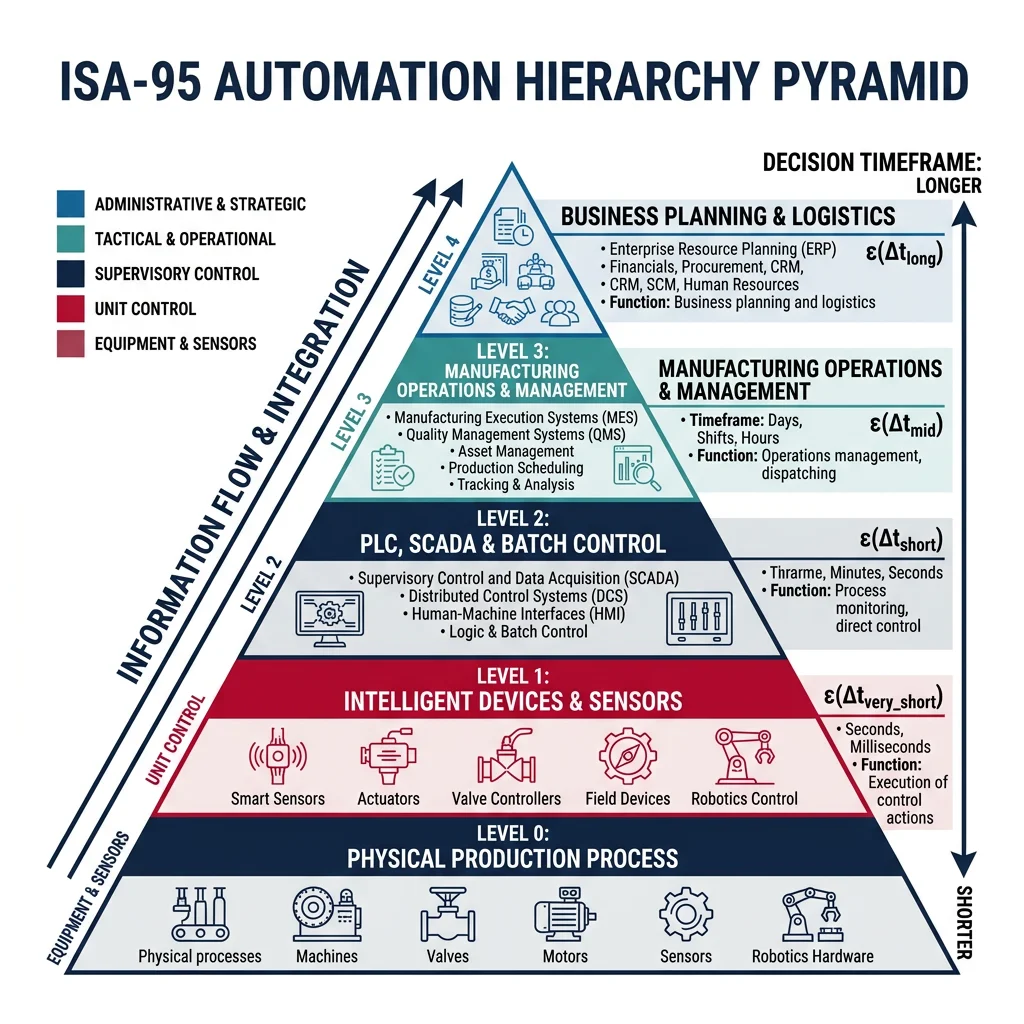

A Manufacturing Execution System (MES) bridges the gap between the factory floor (PLCs, robots, sensors) and business systems (ERP). Defined by the ISA-95 standard (now IEC 62264), MES occupies Level 3 of the automation hierarchy:

Cloud Manufacturing Platforms

Cloud manufacturing (CMfg) transforms manufacturing from isolated factories into a networked service — production capabilities (machines, materials, software, skills) are shared via cloud platforms. Think "Uber for manufacturing" — a startup with a design but no factory can access CNC machines, injection molders, and 3D printers from qualified suppliers worldwide with a few clicks.

Autonomous & Self-Optimizing Factories

The ultimate vision of Industry 4.0: the lights-out factory — a facility that runs autonomously with minimal or zero human intervention. While fully autonomous factories remain rare, several elements are operational today:
