Manufacturing Engineering Series Part 3: Machining & CNC Technology

Cutting Mechanics & Chip Formation

Machining is the most versatile manufacturing process — virtually any material can be machined, virtually any geometry can be produced, and tolerances of ±0.001mm are achievable. Globally, machining accounts for ~$300 billion annually and is the final step for over 80% of precision-engineered components.

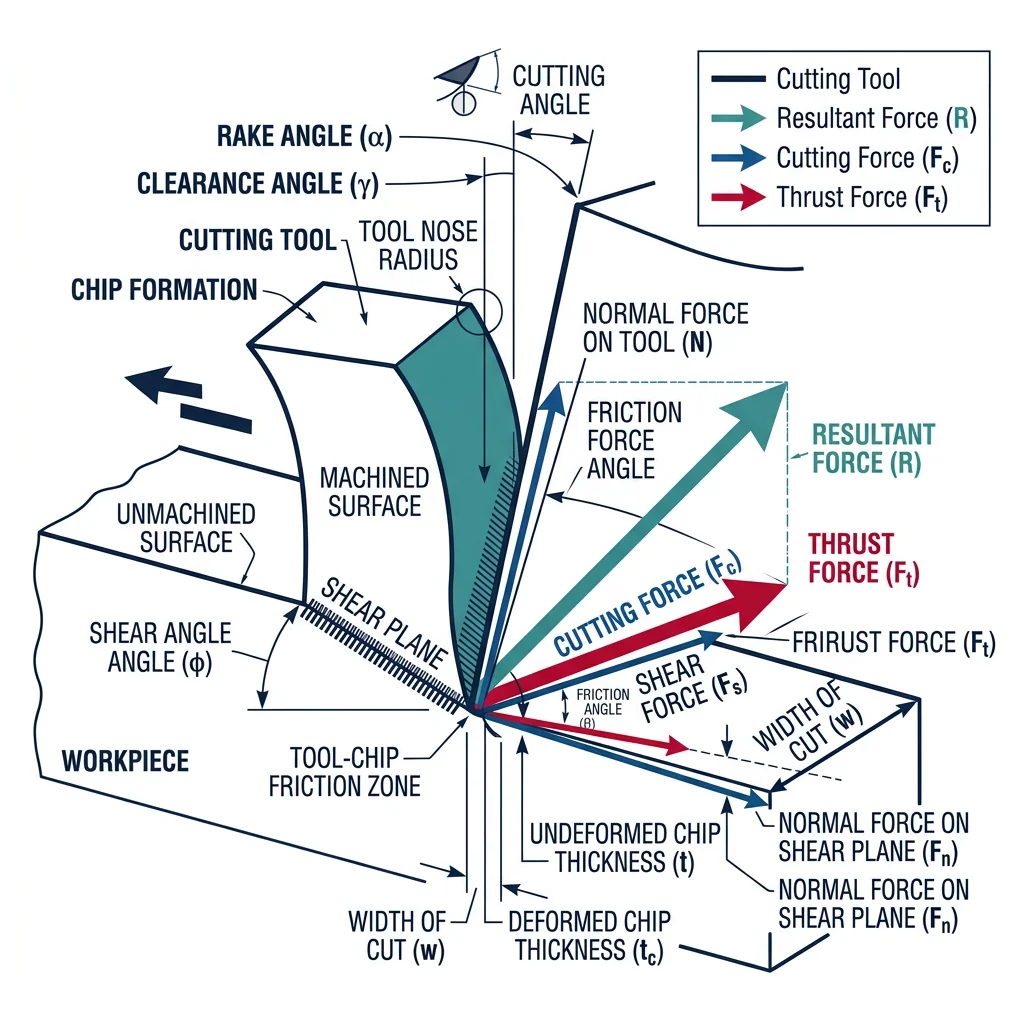

Orthogonal cutting is the simplified 2D model where the cutting edge is perpendicular to the cutting direction. While real machining is almost always oblique (3D), the orthogonal model captures the fundamental physics and is essential for understanding chip formation mechanics.

Chip Formation Theory

Chips are classified into four types based on material ductility, cutting conditions, and tool geometry:

Cutting Forces & Power

Merchant's Circle is the foundational force diagram for orthogonal cutting. It resolves forces into cutting force (Fc), thrust force (Ft), shear force (Fs), normal force to shear plane (Fn), friction force (F), and normal force to tool face (N).

import numpy as np

# Merchant's Circle - Cutting Force Analysis
# Given parameters
alpha = np.radians(10)      # Rake angle (degrees)
phi = np.radians(25)        # Shear angle (degrees)
tau_s = 350                 # Shear strength of material (MPa)
w = 3.0                     # Width of cut (mm)
t1 = 0.25                   # Uncut chip thickness (mm)

# Shear plane area
A_s = (w * t1) / np.sin(phi)

# Shear force
F_s = tau_s * A_s  # N

# Friction angle beta from Merchant's equation: 2*phi + beta - alpha = pi/2
beta = np.pi/2 - 2*phi + alpha  # Merchant's minimum energy condition

# Cutting force (Fc) and Thrust force (Ft) from Merchant's circle
F_c = F_s * np.cos(beta - alpha) / np.cos(phi + beta - alpha)
F_t = F_s * np.sin(beta - alpha) / np.cos(phi + beta - alpha)

# Friction coefficient
mu = np.tan(beta)

# Specific cutting energy
k_c = F_c / (w * t1)

# Power calculation
V = 200  # Cutting speed (m/min)
P = F_c * V / (60 * 1000)  # kW

# Chip thickness ratio
r = t1 / (t1 * np.cos(alpha) / np.sin(phi) + t1 * np.sin(alpha) * np.cos(alpha) / np.sin(phi))

print("Merchant's Circle — Cutting Force Analysis")
print("=" * 55)
print(f"Material shear strength:  {tau_s} MPa")
print(f"Rake angle:               {np.degrees(alpha):.1f}°")
print(f"Shear angle:              {np.degrees(phi):.1f}°")
print(f"Friction angle (β):       {np.degrees(beta):.1f}°")
print(f"Friction coefficient (μ): {mu:.3f}")
print(f"\nShear plane area:         {A_s:.2f} mm²")
print(f"Shear force (Fs):         {F_s:.0f} N")
print(f"Cutting force (Fc):       {F_c:.0f} N")
print(f"Thrust force (Ft):        {F_t:.0f} N")
print(f"Resultant force:          {np.sqrt(F_c**2 + F_t**2):.0f} N")
print(f"\nSpecific cutting energy:  {k_c:.0f} MPa")
print(f"Cutting power @ {V} m/min: {P:.2f} kW")

Tool Materials, Wear & Coatings

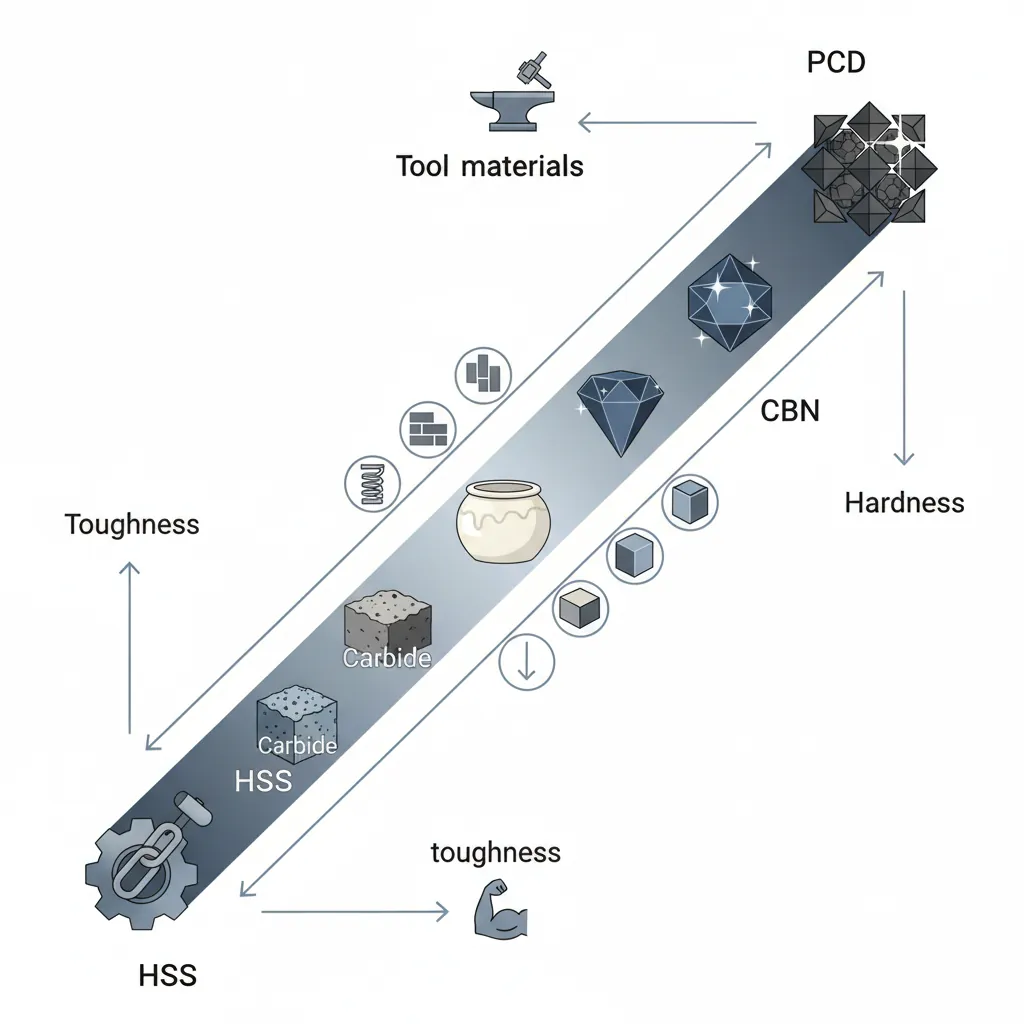

Tool material selection is a balancing act between hardness (wear resistance) and toughness (fracture resistance). Harder tools maintain their edge longer and cut faster, but they're brittle and prone to chipping. Tougher tools survive interrupted cuts and shock loads, but they wear quickly at high speeds.

Tool Wear Mechanisms & Taylor's Equation

Every cutting tool eventually fails. Understanding how tools wear is critical for predicting tool life, scheduling replacements, and optimizing machining economics.

import numpy as np

# Taylor's Tool Life Equation: V * T^n = C
# Extended Taylor: V * T^n * f^a * d^b = C_ext

# Taylor parameters for different tool/workpiece combinations
tools = {
    "HSS on mild steel":       {"n": 0.125, "C": 120},
    "Carbide on mild steel":   {"n": 0.25,  "C": 400},
    "Carbide on stainless":    {"n": 0.20,  "C": 200},
    "Ceramic on cast iron":    {"n": 0.50,  "C": 800},
    "CBN on hardened steel":   {"n": 0.40,  "C": 350},
}

print("Taylor's Tool Life Analysis")
print("=" * 75)

# Calculate tool life for various speeds
speeds = [100, 150, 200, 300, 400]

for name, params in tools.items():
    n = params["n"]
    C = params["C"]
    print(f"\n{name} (n={n}, C={C}):")
    print(f"  {'Speed (m/min)':<15} {'Tool Life (min)':<18} {'Parts @ 2min/part':<20}")
    print(f"  {'-'*53}")
    for V in speeds:
        if V <= C:
            T = (C / V) ** (1/n)
            parts = T / 2
            print(f"  {V:<15} {T:<18.1f} {parts:<20.0f}")
        else:
            print(f"  {V:<15} {'< 1 min':<18} {'N/A':<20}")

# Optimal cutting speed (minimum cost per part)
print(f"\n--- Economic Optimization ---")
C_tool = 15       # Tool + change cost ($)
C_machine = 60    # Machine hourly rate ($/hr)
t_c = 0.5         # Tool change time (min)
n = 0.25
C_taylor = 400

# V_opt = C / ((1/n - 1) * (C_tool / C_machine * 60 + t_c))^n
T_opt = (1/n - 1) * (C_tool / (C_machine/60) + t_c)
V_opt = C_taylor / T_opt**n

print(f"Tool cost:        ${C_tool}/edge")
print(f"Machine rate:     ${C_machine}/hour")
print(f"Optimal speed:    {V_opt:.0f} m/min")
print(f"Optimal tool life: {T_opt:.1f} min")

PVD/CVD Coatings & Surface Engineering

Tool coatings extend tool life by 200-500% by adding thin (2-20 μm), extremely hard layers that reduce friction, resist diffusion, and act as thermal barriers. Two coating technologies dominate:

Tolerancing, GD&T & Surface Finish

Tolerancing answers the fundamental manufacturing question: "How much variation is acceptable?" No part can be made to an exact dimension — every machining process introduces variability from tool wear, thermal expansion, machine deflection, and material inconsistency. Tolerancing quantifies these limits.

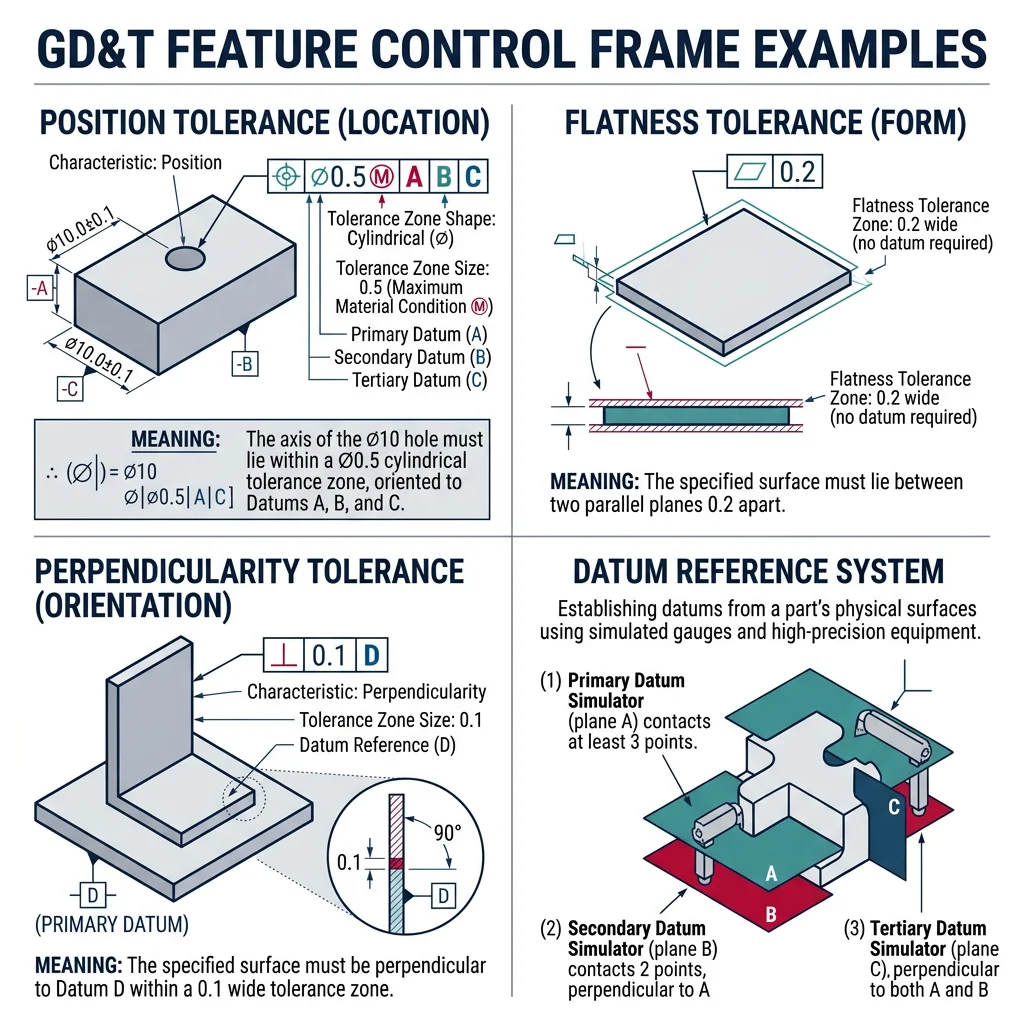

GD&T (Geometric Dimensioning & Tolerancing) extends traditional ±tolerancing by controlling the geometry of features — flatness, straightness, roundness, perpendicularity, position, and runout. GD&T uses datum references (A, B, C) to establish a coordinate system and feature control frames to specify allowable geometric variation.

Surface Roughness Prediction

Surface roughness is a critical functional property — it affects friction, wear, fatigue life, sealing, corrosion, and aesthetics. In turning, the theoretical surface roughness depends primarily on feed rate and tool nose radius:

import numpy as np

# Surface Roughness Prediction in Turning
# Ra_theoretical = f^2 / (32 * r)

# Parameters
feed_rates = [0.05, 0.08, 0.10, 0.15, 0.20, 0.30, 0.40]  # mm/rev
nose_radius = [0.4, 0.8, 1.2, 1.6]  # mm

print("Theoretical Surface Roughness Ra (μm) vs. Feed Rate and Nose Radius")
print("=" * 70)

# Header
header = f"{'Feed (mm/rev)':<15}"
for r in nose_radius:
    header += f"r={r}mm{'':<8}"
print(header)
print("-" * 70)

for f in feed_rates:
    row = f"{f:<15.2f}"
    for r in nose_radius:
        Ra = (f**2 / (32 * r)) * 1000  # Convert to μm
        row += f"{Ra:<14.2f}"
    print(row)

print(f"\nKey Insight: Halving the feed rate improves Ra by 4× (quadratic relationship)")
print(f"Doubling nose radius improves Ra by 2× (linear relationship)")
print(f"For fine finishing: use f < 0.1 mm/rev and r ≥ 1.2 mm")

# Surface finish tolerance classes
print(f"\n--- Common Surface Finish Specifications ---")
finishes = {
    "N12 (Ra 50)": "Rough sawing, flame cutting",
    "N10 (Ra 12.5)": "Rough turning, rough milling",
    "N8 (Ra 3.2)": "Semi-finish turning, general milling",
    "N7 (Ra 1.6)": "Finish turning, precision milling",
    "N6 (Ra 0.8)": "Fine turning, cylindrical grinding",
    "N5 (Ra 0.4)": "Precision grinding, honing",
    "N4 (Ra 0.2)": "Lapping, superfinishing",
    "N1 (Ra 0.025)": "Diamond polishing, optical finishing",
}
for grade, process in finishes.items():
    print(f"  {grade:<18} → {process}")

Machining Metrology

Dimensional measurement in machining ranges from simple hand gauges to million-dollar coordinate measuring machines (CMMs). The choice depends on tolerance level, production volume, and measurement uncertainty requirements.

Advanced Machining & CAM

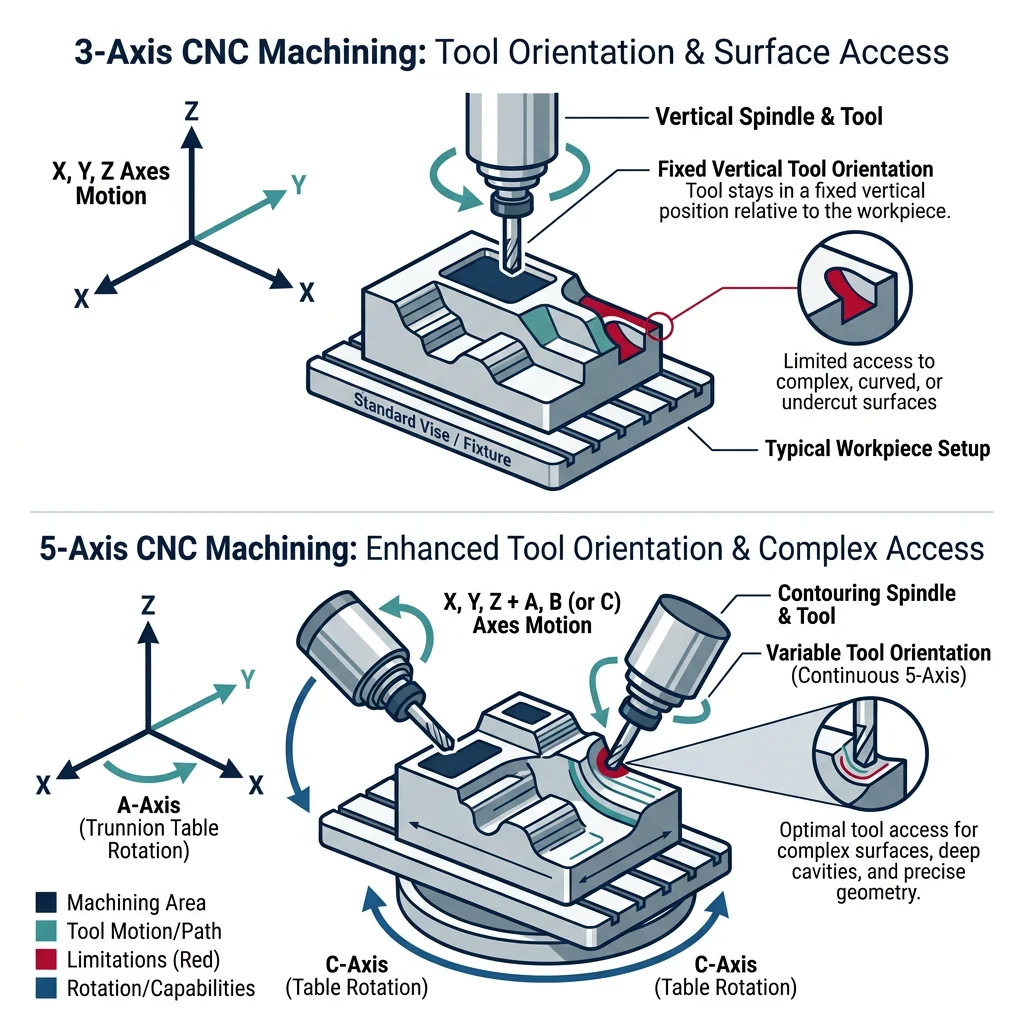

Multi-axis CNC machining is the pinnacle of subtractive manufacturing — 5-axis machines can orient the tool relative to the workpiece in virtually any direction, enabling single-setup machining of the most complex aerospace, medical, and mold components.

High-Speed Machining (HSM) operates at spindle speeds of 15,000-60,000 RPM with light depths of cut and high feed rates. The strategy is "thin chips at high speed" — removing material at extreme rates while keeping cutting forces (and therefore deflection/heat) low. This produces excellent surface finishes directly from milling — often eliminating subsequent grinding or polishing.

Micro-Machining & Hard Turning

Hard turning uses CBN or ceramic tools to machine hardened steel (45-65 HRC) on a lathe, replacing cylindrical grinding for many applications. Benefits include faster cycle times (30-50% vs grinding), better surface integrity (no grinding burn), and single-setup capability (turn + hard-turn on the same machine).

Micro-machining produces features from 1μm to 1mm using miniaturized tools (end mills as small as Ø50μm — thinner than a human hair). Applications include microfluidic channels for lab-on-chip devices, MEMS components, watch components, and micro-mold cavities for plastic injection of medical device connectors.

CAM Software & AI-Based Tool Wear Prediction

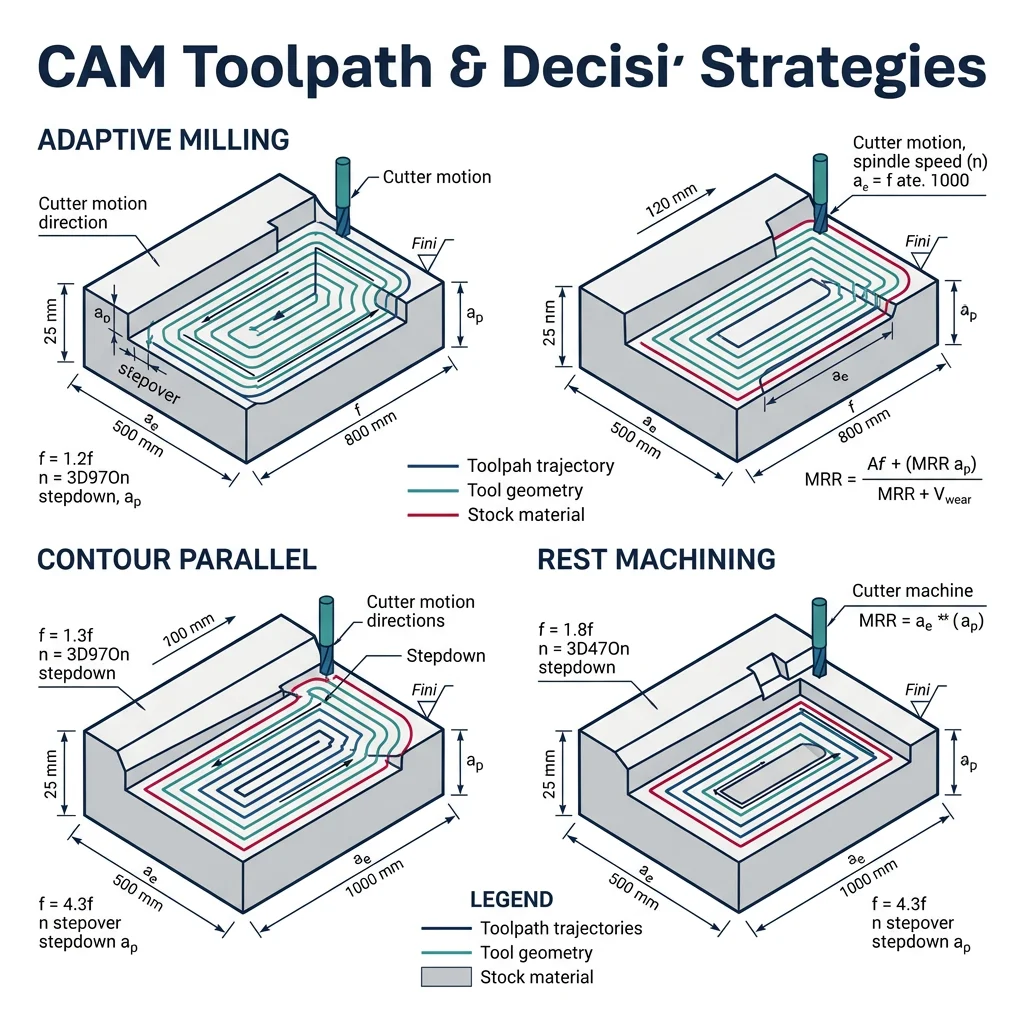

CAM (Computer-Aided Manufacturing) software translates CAD geometry into machine tool instructions (G-code). Modern CAM systems optimize tool paths for surface quality, machining time, and tool life:

AI-Based Tool Wear Prediction is transforming CNC operations. Machine learning models analyze real-time sensor data (spindle current, vibration, acoustic emission) to predict remaining tool life and detect anomalies before catastrophic failure:

import numpy as np

# Simplified AI-Based Tool Wear Prediction Model
# Using vibration + spindle current features to predict flank wear VB

# Simulated sensor data: [vibration_rms (g), spindle_current (A), cutting_time (min)]
np.random.seed(42)
n_samples = 20
cutting_time = np.linspace(0, 60, n_samples)
vibration_rms = 0.5 + 0.03 * cutting_time + np.random.normal(0, 0.05, n_samples)
spindle_current = 12 + 0.08 * cutting_time + np.random.normal(0, 0.3, n_samples)
flank_wear_vb = 0.02 + 0.004 * cutting_time + 0.00005 * cutting_time**2

# Simple linear regression for tool wear prediction
# VB = a0 + a1*vibration + a2*current + a3*time
X = np.column_stack([np.ones(n_samples), vibration_rms, spindle_current, cutting_time])
y = flank_wear_vb

# Least squares solution
coeffs = np.linalg.lstsq(X, y, rcond=None)[0]

# Predict and evaluate
y_pred = X @ coeffs
residuals = y - y_pred
rmse = np.sqrt(np.mean(residuals**2))
r_squared = 1 - np.sum(residuals**2) / np.sum((y - np.mean(y))**2)

# Predict remaining useful life
VB_limit = 0.3  # mm (ISO 3685 tool life criterion)

print("AI-Based Tool Wear Prediction")
print("=" * 55)
print(f"Model: VB = {coeffs[0]:.4f} + {coeffs[1]:.4f}×Vib + {coeffs[2]:.4f}×I + {coeffs[3]:.4f}×t")
print(f"R² score:  {r_squared:.4f}")
print(f"RMSE:      {rmse:.4f} mm")
print(f"\nSample predictions:")
print(f"{'Time (min)':<12} {'VB actual':<12} {'VB predicted':<14} {'Status':<15}")
print("-" * 55)
for i in [0, 5, 10, 15, 19]:
    status = "OK" if y[i] < VB_limit else "REPLACE TOOL"
    if y[i] > 0.25:
        status = "⚠ WARNING"
    print(f"{cutting_time[i]:<12.1f} {y[i]:<12.4f} {y_pred[i]:<14.4f} {status:<15}")

print(f"\nTool life criterion: VB = {VB_limit} mm")
print(f"Estimated tool replacement at: ~{cutting_time[np.argmax(flank_wear_vb > VB_limit)]:.0f} min" if np.any(flank_wear_vb > VB_limit) else f"Tool life exceeds test duration")
