Manufacturing Engineering Series Part 11: Sustainability & Green Manufacturing

Life Cycle Assessment

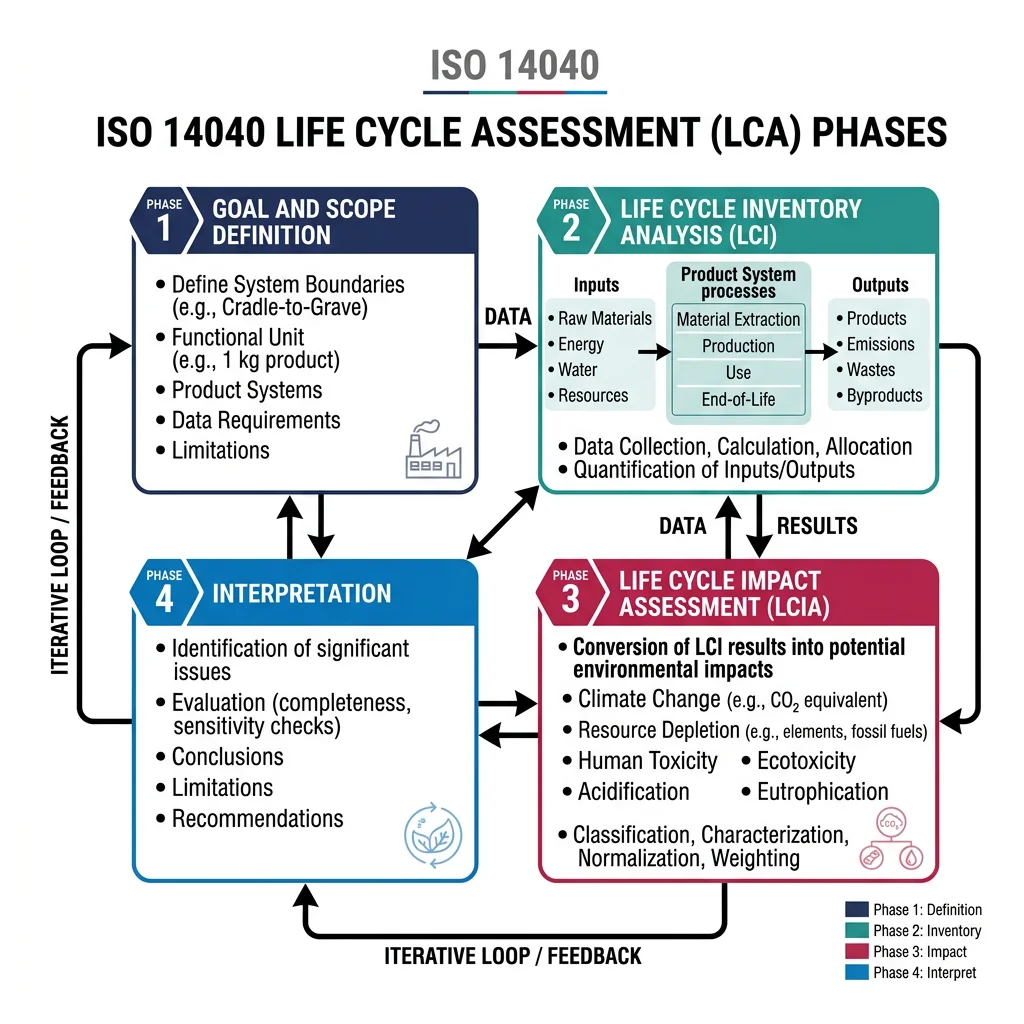

Life Cycle Assessment (LCA) is the gold-standard methodology for quantifying environmental impacts across a product's entire life — from raw material extraction through manufacturing, use, and end-of-life disposal or recycling. Governed by ISO 14040/14044, LCA provides the scientific basis for sustainable manufacturing decisions.

import numpy as np

# Simplified LCA — Manufacturing CO2 Footprint Calculator
# Compares environmental impact of CNC machining vs Additive Manufacturing

# Functional unit: 1 aerospace bracket (titanium Ti-6Al-4V, 0.8 kg finished)

# CNC Machining
cnc_raw_material = 5.2      # kg stock (buy-to-fly ratio 6.5:1)
cnc_energy_kwh = 85.0       # kWh machining energy
cnc_coolant_liters = 0.5    # liters cutting fluid consumed
cnc_chip_recycled = 0.90    # 90% chips recycled

# Additive Manufacturing (SLM/LPBF)
am_powder = 1.1             # kg powder used (including support, 1.375:1 ratio)
am_energy_kwh = 120.0       # kWh laser + inert gas + post-processing
am_argon_liters = 50.0      # liters argon shielding gas
am_powder_recycled = 0.95   # 95% unfused powder recycled

# Emission factors
ti_production_co2 = 36.0    # kg CO2 per kg titanium sponge production
electricity_co2 = 0.40      # kg CO2 per kWh (US grid average)
coolant_co2 = 2.5           # kg CO2 per liter cutting fluid
argon_co2 = 0.5             # kg CO2 per liter argon production

# CNC carbon footprint
cnc_material_co2 = cnc_raw_material * ti_production_co2
cnc_recycling_credit = (cnc_raw_material - 0.8) * cnc_chip_recycled * ti_production_co2 * 0.30  # 30% credit
cnc_energy_co2 = cnc_energy_kwh * electricity_co2
cnc_coolant_co2 = cnc_coolant_liters * coolant_co2
cnc_total = cnc_material_co2 - cnc_recycling_credit + cnc_energy_co2 + cnc_coolant_co2

# AM carbon footprint
am_material_co2 = am_powder * ti_production_co2
am_recycling_credit = (am_powder - 0.8) * am_powder_recycled * ti_production_co2 * 0.30
am_energy_co2 = am_energy_kwh * electricity_co2
am_argon_co2 = am_argon_liters * argon_co2
am_total = am_material_co2 - am_recycling_credit + am_energy_co2 + am_argon_co2

# Comparison
print("LCA Carbon Footprint — Titanium Aerospace Bracket")
print("=" * 60)
print(f"Functional unit: 1 bracket, 0.8 kg Ti-6Al-4V")
print(f"\n{'Category':<25} {'CNC (kg CO₂)':<16} {'AM (kg CO₂)':<16}")
print("-" * 57)
print(f"{'Material production':<25} {cnc_material_co2:<16.1f} {am_material_co2:<16.1f}")
print(f"{'Recycling credit':<25} {-cnc_recycling_credit:<16.1f} {-am_recycling_credit:<16.1f}")
print(f"{'Process energy':<25} {cnc_energy_co2:<16.1f} {am_energy_co2:<16.1f}")
print(f"{'Consumables':<25} {cnc_coolant_co2:<16.1f} {am_argon_co2:<16.1f}")
print(f"{'─'*25} {'─'*15} {'─'*15}")
print(f"{'TOTAL':<25} {cnc_total:<16.1f} {am_total:<16.1f}")
print(f"\n{'Reduction with AM:':<25} {(1-am_total/cnc_total)*100:.1f}%")
print(f"\nHotspot Analysis:")
print(f"  CNC: Material dominates ({cnc_material_co2/cnc_total*100:.0f}%) — high buy-to-fly ratio")
print(f"  AM:  Energy dominates ({am_energy_co2/am_total*100:.0f}%) — long build times")
print(f"\nKey Insight: AM reduces material waste by {(1 - am_powder/cnc_raw_material)*100:.0f}% "
      f"but uses {am_energy_kwh/cnc_energy_kwh*100-100:.0f}% more energy")

Environmental Impact Categories

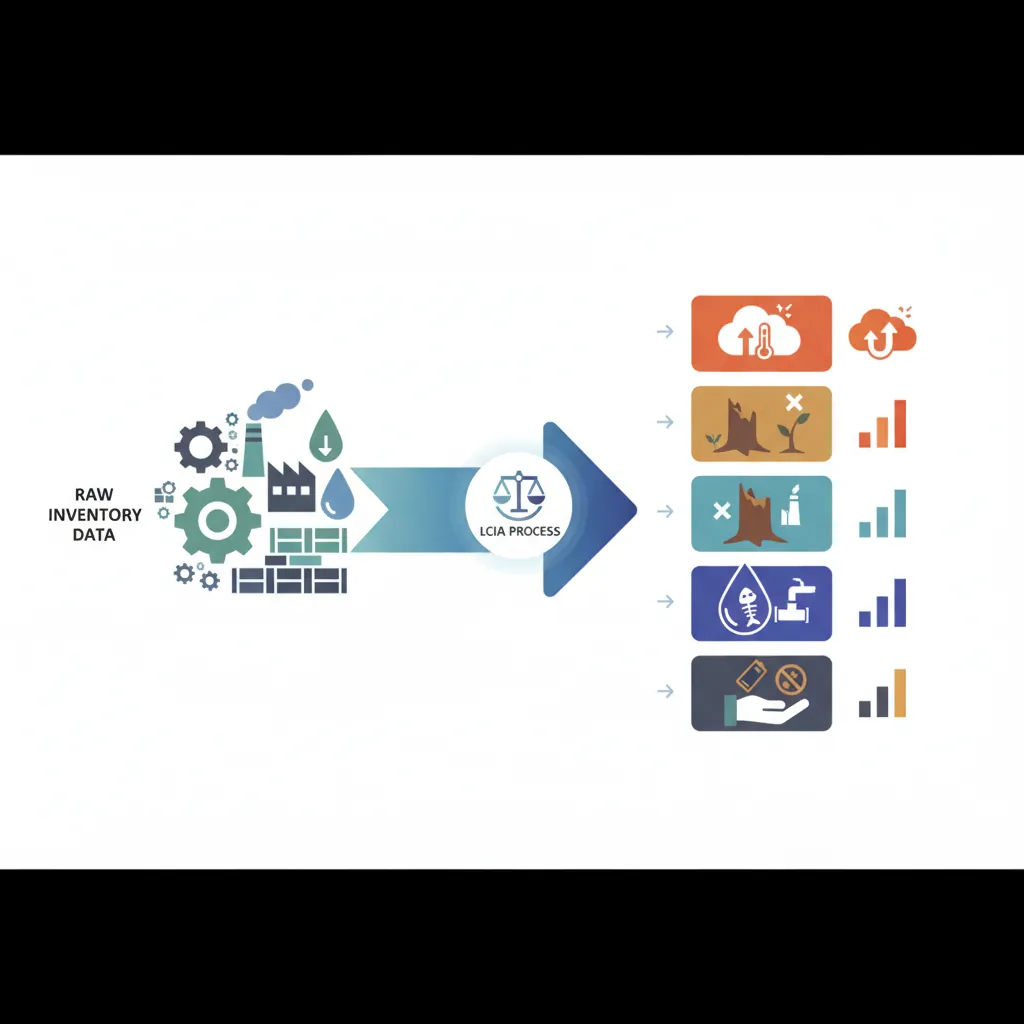

LCIA translates inventory data (kg of CO₂, MJ of energy) into environmental impact categories — standardized metrics that quantify different types of environmental harm:

Life Cycle Inventory & Databases

The Life Cycle Inventory (LCI) phase is the most data-intensive — it requires tracking every material input, energy flow, and emission for all processes within the system boundary. Professional LCA practitioners rely on established databases:

Circular Economy & Recycling

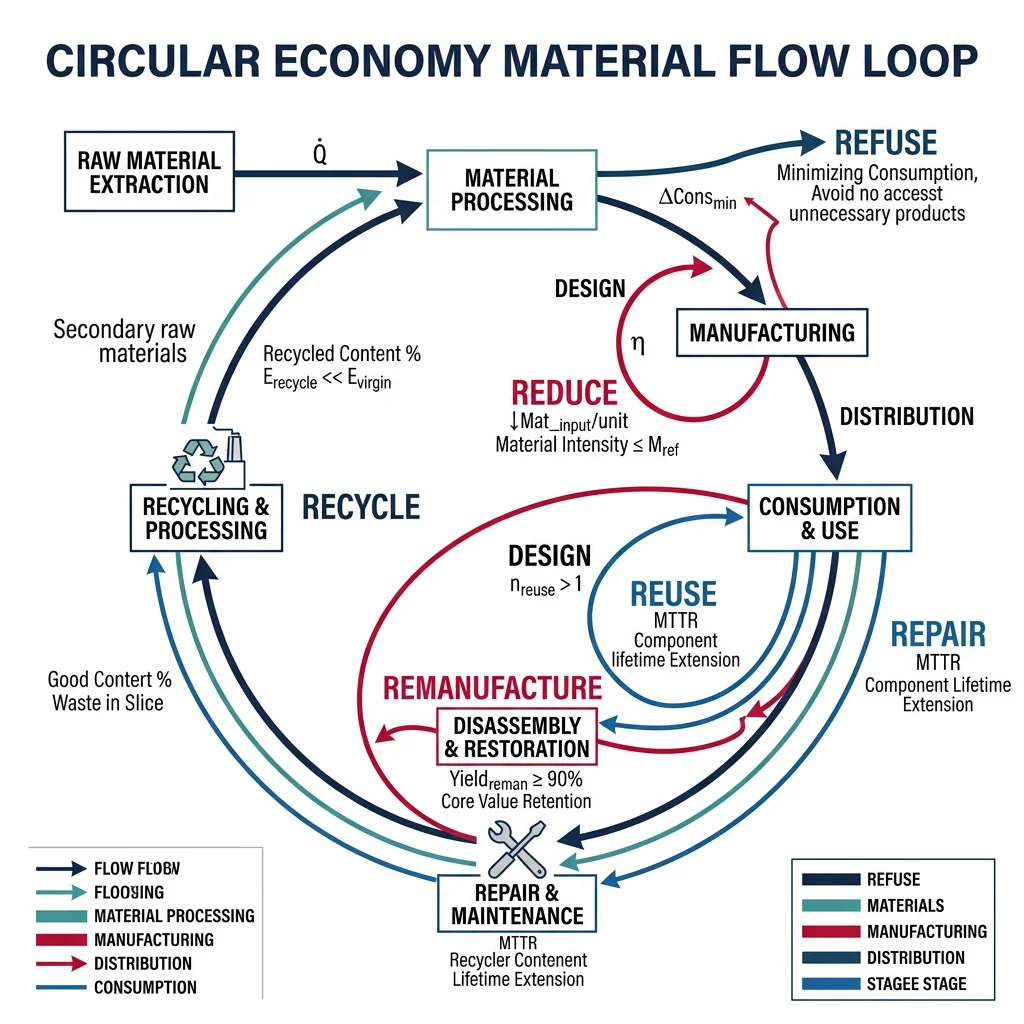

The circular economy fundamentally reimagines manufacturing — moving from the traditional linear model (take → make → dispose) to a circular model where materials cycle continuously. The Ellen MacArthur Foundation estimates circularity could unlock $4.5 trillion in economic value by 2030 while reducing global GHG emissions by 39%.

Closed-Loop Recycling Systems

Closed-loop recycling recovers manufacturing waste and end-of-life products back into the same material stream, maintaining material quality. This contrasts with downcycling where recycled material goes to lower-value applications:

Remanufacturing & Refurbishment

Remanufacturing restores used products to original performance specifications through a controlled industrial process of disassembly, cleaning, inspection, component replacement, reassembly, and testing. It differs from repair (fixing a specific failure) and refurbishment (cosmetic restoration) by returning the product to same-as-new condition with equivalent warranty.

Energy & Carbon Management

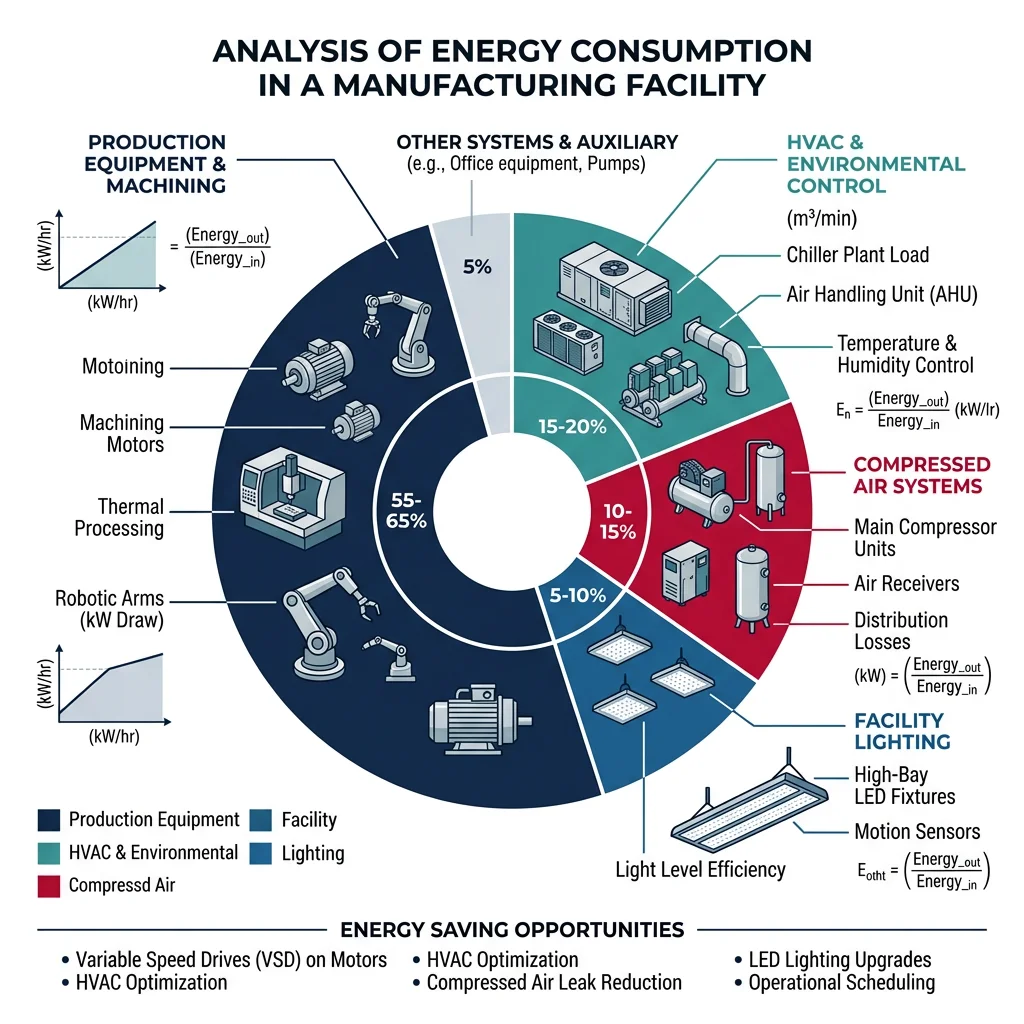

Manufacturing accounts for ~33% of global energy consumption and ~20% of direct CO₂ emissions. Energy management — governed by ISO 50001 — is both an environmental imperative and a business opportunity: energy typically represents 15-40% of operating costs in energy-intensive industries (metals, cement, glass, chemicals).

import numpy as np

# Manufacturing Energy Audit — CNC Machine Shop
# Identifies energy waste and savings opportunities

# Facility parameters
operating_hours = 4_000      # hours/year (2 shifts × 250 days)
electricity_rate = 0.12      # $/kWh
co2_factor = 0.40            # kg CO2/kWh (grid average)

# Equipment energy consumption (measured via power monitoring)
equipment = {
    "5-axis CNC center (×4)":    {"power_kw": 35, "utilization": 0.72, "qty": 4},
    "3-axis CNC lathe (×3)":     {"power_kw": 18, "utilization": 0.65, "qty": 3},
    "EDM wire (×1)":             {"power_kw": 8,  "utilization": 0.30, "qty": 1},
    "Compressed air system":     {"power_kw": 55, "utilization": 0.85, "qty": 1},
    "HVAC & lighting":           {"power_kw": 45, "utilization": 1.00, "qty": 1},
    "Coolant pumps & filtration": {"power_kw": 12, "utilization": 0.75, "qty": 1},
}

# Energy savings opportunities
savings = {
    "VFD on compressed air":    {"saving_pct": 0.25, "target": "Compressed air system"},
    "LED lighting retrofit":    {"saving_pct": 0.50, "target": "HVAC & lighting", "portion": 0.30},
    "Spindle idle reduction":   {"saving_pct": 0.15, "target": "5-axis CNC center (×4)"},
    "High-efficiency coolant":  {"saving_pct": 0.20, "target": "Coolant pumps & filtration"},
}

print("Manufacturing Energy Audit Report")
print("=" * 70)

total_kwh = 0
total_cost = 0
print(f"\n{'Equipment':<30} {'kW':<8} {'Util':<8} {'kWh/yr':<14} {'Cost/yr':<12} {'CO₂ (t)'}")
print("-" * 70)

equip_kwh = {}
for name, data in equipment.items():
    kwh = data["power_kw"] * data["qty"] * data["utilization"] * operating_hours
    cost = kwh * electricity_rate
    co2 = kwh * co2_factor / 1000
    total_kwh += kwh
    total_cost += cost
    equip_kwh[name] = kwh
    print(f"{name:<30} {data['power_kw']*data['qty']:<8} {data['utilization']:<8.0%} {kwh:<14,.0f} ${cost:<11,.0f} {co2:.1f}")

print(f"\n{'TOTAL':<30} {'':8} {'':8} {total_kwh:<14,.0f} ${total_cost:<11,.0f} {total_kwh*co2_factor/1000:.1f}")

print(f"\n\n--- SAVINGS OPPORTUNITIES ---")
total_savings_kwh = 0
total_savings_cost = 0
for measure, data in savings.items():
    base = equip_kwh[data["target"]]
    portion = data.get("portion", 1.0)
    saved = base * data["saving_pct"] * portion
    cost_saved = saved * electricity_rate
    total_savings_kwh += saved
    total_savings_cost += cost_saved
    print(f"  {measure:<30} saves {saved:>10,.0f} kWh/yr = ${cost_saved:>8,.0f}/yr")

print(f"\n  TOTAL SAVINGS:               {total_savings_kwh:>10,.0f} kWh/yr = ${total_savings_cost:>8,.0f}/yr")
print(f"  Energy reduction:            {total_savings_kwh/total_kwh*100:.1f}%")
print(f"  CO₂ reduction:               {total_savings_kwh*co2_factor/1000:.1f} tonnes/yr")

Waste Heat Recovery

Waste heat recovery (WHR) captures thermal energy that would otherwise be lost to the environment and converts it to useful work — heating, cooling, or electricity. In manufacturing, 20-50% of input energy is typically lost as waste heat from furnaces, compressors, exhaust gases, and cooling systems.

Carbon Footprint Reduction

Manufacturing carbon footprint reduction follows a prioritization hierarchy: (1) Avoid — eliminate unnecessary processes, (2) Reduce — improve energy efficiency, (3) Switch — renewable energy and low-carbon materials, (4) Offset — carbon credits (last resort).

Green Materials & Standards

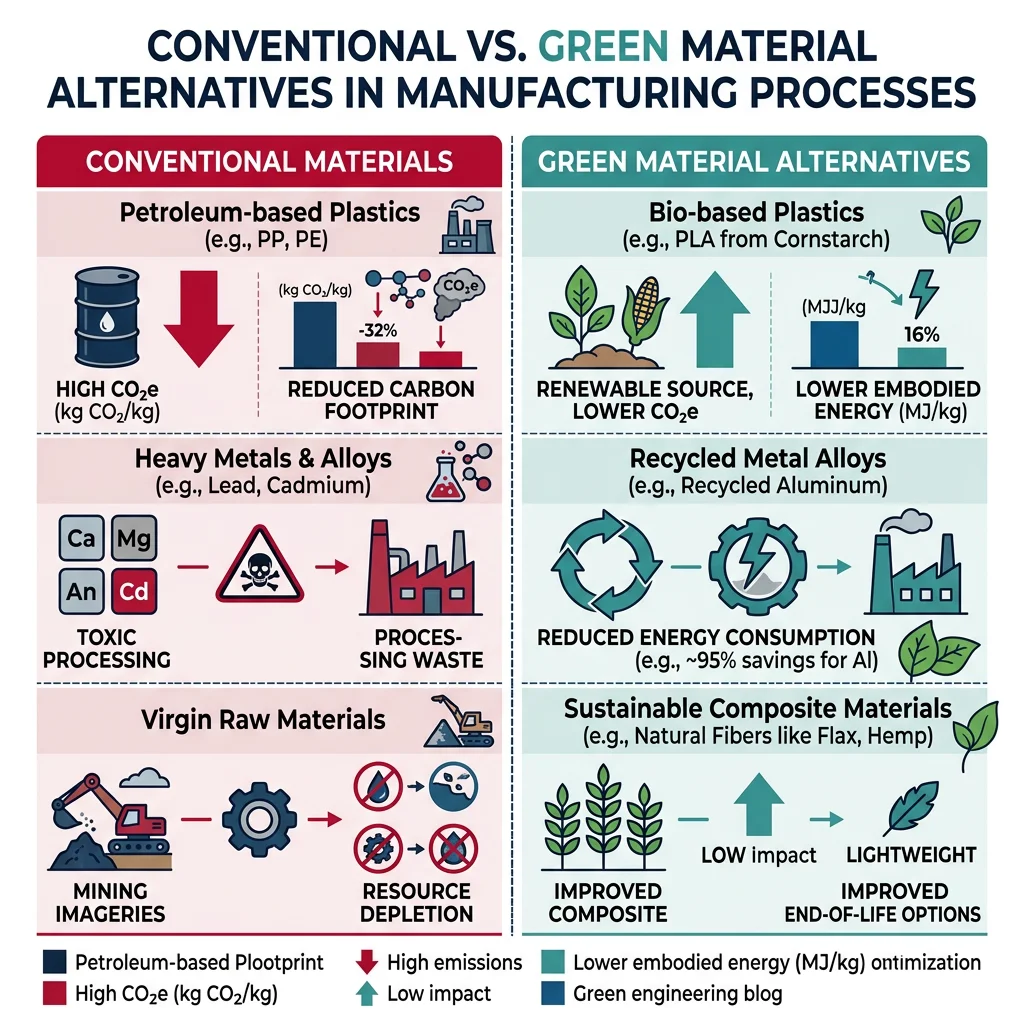

Green manufacturing materials reduce environmental impact through lower toxicity, renewable sourcing, recyclability, or reduced energy intensity. Regulatory drivers — EU REACH (Registration, Evaluation, Authorisation of Chemicals), RoHS (Restriction of Hazardous Substances), and emerging PFAS bans — are accelerating the shift.

ISO 14001 & EMS

ISO 14001 is the international standard for Environmental Management Systems (EMS) — a systematic framework for identifying, managing, and continuously improving an organization's environmental performance. Over 400,000 organizations worldwide are ISO 14001 certified.

ESG Reporting & Compliance

ESG (Environmental, Social, Governance) reporting has moved from voluntary disclosure to mandatory compliance in many jurisdictions. Manufacturers face reporting requirements under the EU's CSRD (Corporate Sustainability Reporting Directive), the SEC's climate disclosure rules, and customer-driven standards like CDP (Carbon Disclosure Project).
