1. Introduction

A dashboard is a visual display of the most important information needed to achieve objectives, consolidated on a single screen so it can be monitored at a glance. Great dashboards turn data into decisions—bad ones create confusion and distrust.

2. Dashboard Purpose

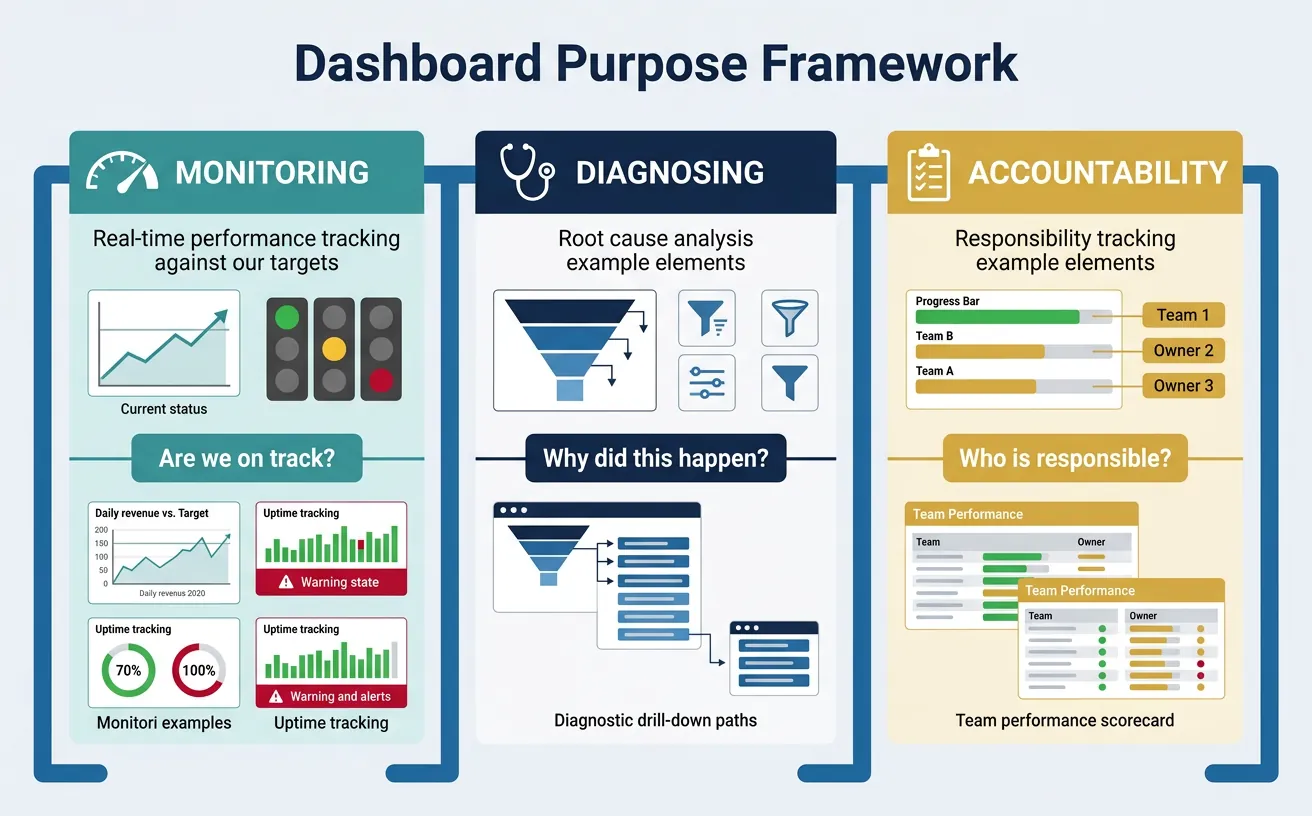

Every dashboard should serve at least one of these three purposes. Before building, ask: What action will this enable?

Monitoring

Monitoring dashboards track ongoing performance against targets. They answer: "Are we on track?"

• Daily revenue vs. target
• System uptime and error rates
• Marketing campaign performance

Key features: Real-time or near real-time data, clear thresholds (red/yellow/green), trend lines.

Diagnosing

Diagnostic dashboards help identify the cause of problems. They answer: "Why did this happen?"

• Drill-down from high-level metrics to contributing factors
• Segment comparisons (by region, product, customer type)
• Time series with anomaly highlighting

Key features: Filters, drill-through capability, segment breakdowns, correlation views.

Accountability

Accountability dashboards track progress against commitments. They answer: "Who is responsible and how are they doing?"

• OKR/goal tracking by team or individual
• Sales pipeline by rep
• Project milestone tracking

Key features: Owner names, progress indicators, historical trend vs. commitment.

3. Dashboard Types

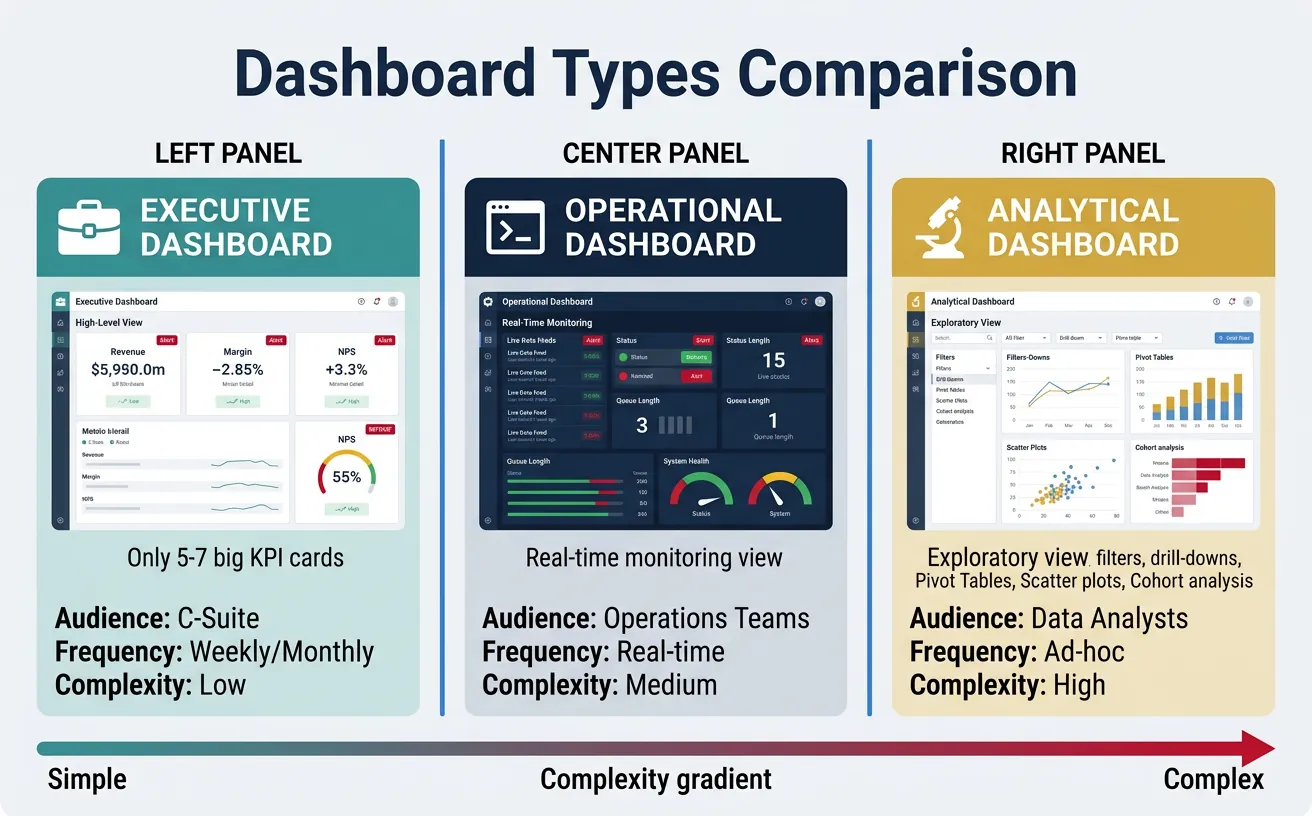

Match the dashboard type to the audience and use case.

Executive Dashboards

Designed for C-suite and senior leadership:

• Scope: Company-wide or business unit level
• Frequency: Weekly or monthly updates
• Metrics: High-level KPIs (revenue, margin, NPS, churn)
• Design: Simple, minimal, no more than 5-7 key metrics

Operational Dashboards

Designed for managers and frontline teams:

• Scope: Team or process level
• Frequency: Real-time to daily
• Metrics: Operational KPIs (throughput, queue depth, response time)
• Design: Dense, actionable, with clear alerts

Analytical Dashboards

Designed for analysts and data teams:

• Scope: Exploratory, often cross-functional
• Frequency: On-demand
• Metrics: Varied, often ad-hoc
• Design: Interactive, with filters, drill-downs, and segmentation

4. Design Principles

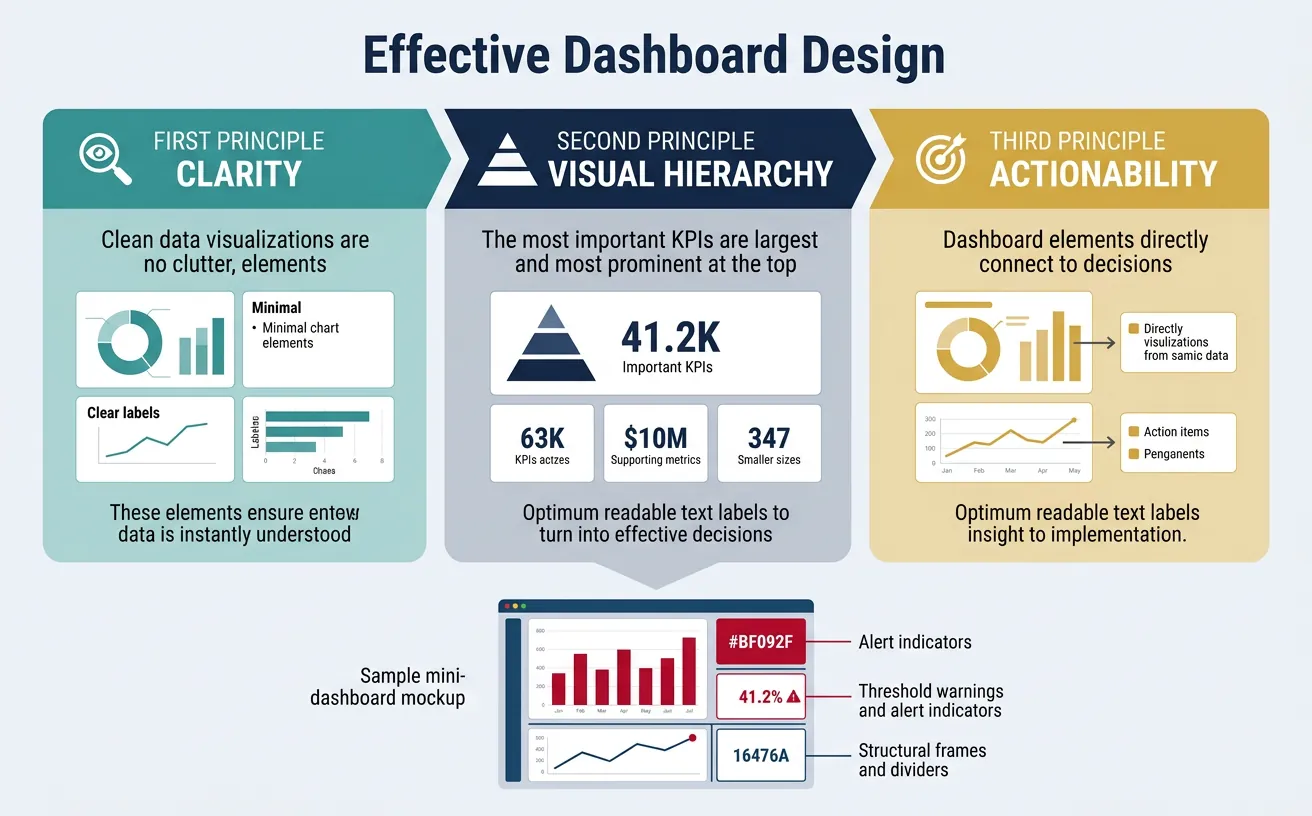

Great dashboards follow universal design principles that maximize comprehension and minimize cognitive load.

Clarity First

Remove everything that doesn't contribute to understanding:

• No chart junk: Remove 3D effects, unnecessary gridlines, decorative elements
• Clear labels: Every chart needs a title, axis labels, and units
• Meaningful titles: "Revenue by Region" is better than "Chart 1"
• Data-ink ratio: Maximize the proportion of ink used for data vs. decoration

Visual Hierarchy

Guide the eye to what matters most:

• Position: Top-left is seen first (in LTR languages)
• Size: Larger elements are more important
• Color: Use color to highlight exceptions, not decorate
• Grouping: Related metrics should be visually grouped

┌─────────────────────────────────────────────────────┐

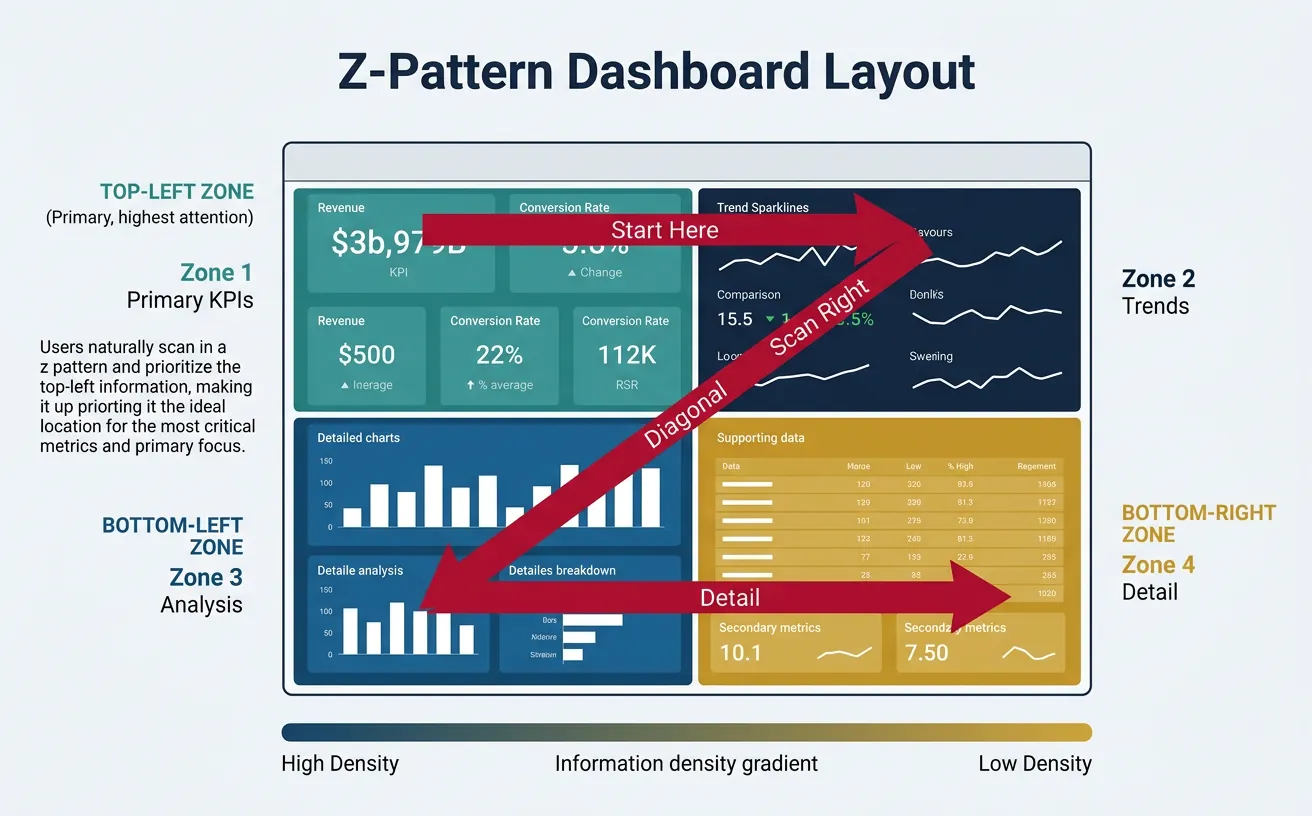

│  [1] PRIMARY KPI          [2] SECONDARY KPIs        │
│  (Revenue, Users)         (Growth %, Trend)         │
│                                                     │
├─────────────────────────────────────────────────────┤
│  [3] SUPPORTING DETAIL    [4] CONTEXT / SEGMENTS    │
│  (Breakdown by segment)   (Comparisons, filters)    │
│                                                     │
└─────────────────────────────────────────────────────┘
Eye follows: 1 → 2 → 3 → 4 (Z-pattern)

One Key Insight Per Screen

Every dashboard should have a clear answer to: What is the one thing I should take away?

• Lead with the headline: Put the most important metric prominently
• Support with evidence: Surrounding charts explain the headline
• Avoid cognitive overload: 7±2 elements per screen maximum

5. Visualization Best Practices

Choosing Chart Types

Match the chart to the question being answered:

Color Usage

Color is powerful but easily misused:

• Semantic meaning: Red = bad/danger, green = good, yellow = warning
• Limit palette: 5-7 colors maximum
• Accessibility: Test for colorblind users (use patterns or labels as backup)
• Consistency: Same color = same meaning across all dashboards

6. BI Tools Comparison

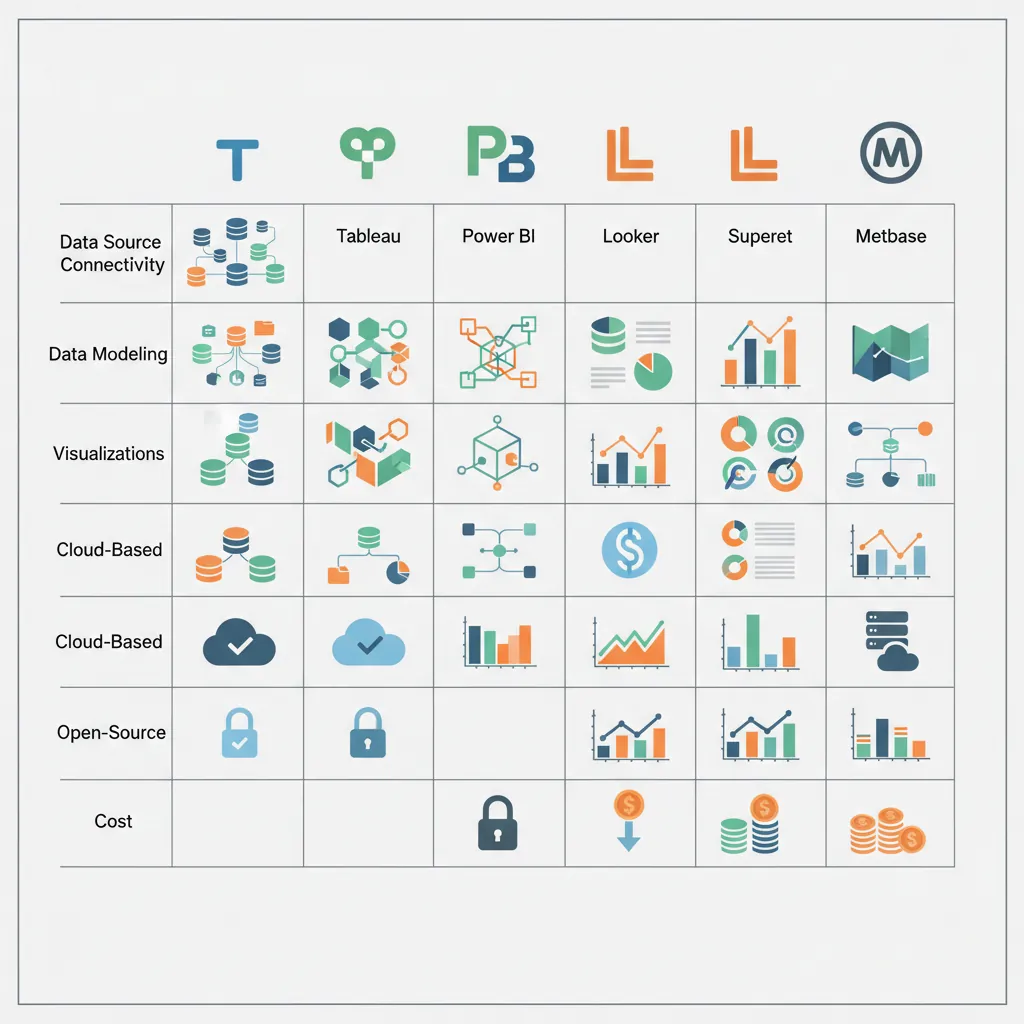

The right tool depends on your data stack, team skills, and budget.

Tableau

• Best for: Visual exploration, complex visualizations
• Strengths: Beautiful charts, intuitive drag-and-drop, strong community
• Weaknesses: Expensive, limited semantic layer, governance challenges
• Pricing: $70/user/month (Creator), $15/user/month (Viewer)

Power BI

• Best for: Microsoft shops, self-service BI
• Strengths: Affordable, excellent Excel integration, strong DAX language
• Weaknesses: Less flexible visualizations, Windows-centric
• Pricing: $10/user/month (Pro), $20/user/month (Premium per user)

Looker (Google Cloud)

• Best for: Data teams wanting strong governance and semantic layer
• Strengths: LookML modeling language, embedded analytics, Git integration
• Weaknesses: Steep learning curve, less ad-hoc exploration
• Pricing: Custom pricing (typically $3K-$5K/month starting)

Superset & Metabase

Apache Superset:

• Best for: Open-source, technical teams
• Strengths: Free, SQL-native, good for data teams
• Weaknesses: Requires self-hosting, less polished UX

Metabase:

• Best for: Small teams, self-service
• Strengths: Easy setup, good free tier, natural language queries
• Weaknesses: Limited advanced features

7. Real-time vs Batch Dashboards

Not every dashboard needs real-time data. Match refresh frequency to decision frequency.

8. Function-Specific Dashboards

Different functions have different dashboard needs:

9. Conclusion & Next Steps

In the next article, we'll cover Experimentation & A/B Testing—how to design rigorous experiments that prove causation, not just correlation.
