GNU Make Mastery Part 4: Automatic Variables & Pattern Rules

Sample Source Files

main.c

/* main.c — calls helpers from all modules */
#include <stdio.h>
#include "utils.h"

int main(void) {
    utils_greet("Pattern Rules");
    return 0;
}

main.h

/* main.h — top-level application declarations */
#ifndef MAIN_H
#define MAIN_H

#define APP_VERSION "1.0.0"

#endif /* MAIN_H */

utils.h

/* utils.h — utility declarations */
#ifndef UTILS_H
#define UTILS_H

void utils_greet(const char *name);
int  utils_add(int a, int b);

#endif /* UTILS_H */

utils.c

/* utils.c */
#include <stdio.h>
#include "utils.h"

void utils_greet(const char *name) {
    printf("Hello, %s!\n", name);
}

int utils_add(int a, int b) { return a + b; }

network.c

/* network.c — stub network layer */
#include <stdio.h>

void net_connect(const char *host, int port) {
    printf("Connecting to %s:%d\n", host, port);
}

void net_send(const char *data) {
    printf("Sending: %s\n", data);
}

foo.c

/* foo.c — placeholder module used in pattern-rule examples */
#include <stdio.h>

void foo(void) {
    printf("foo() called\n");
}

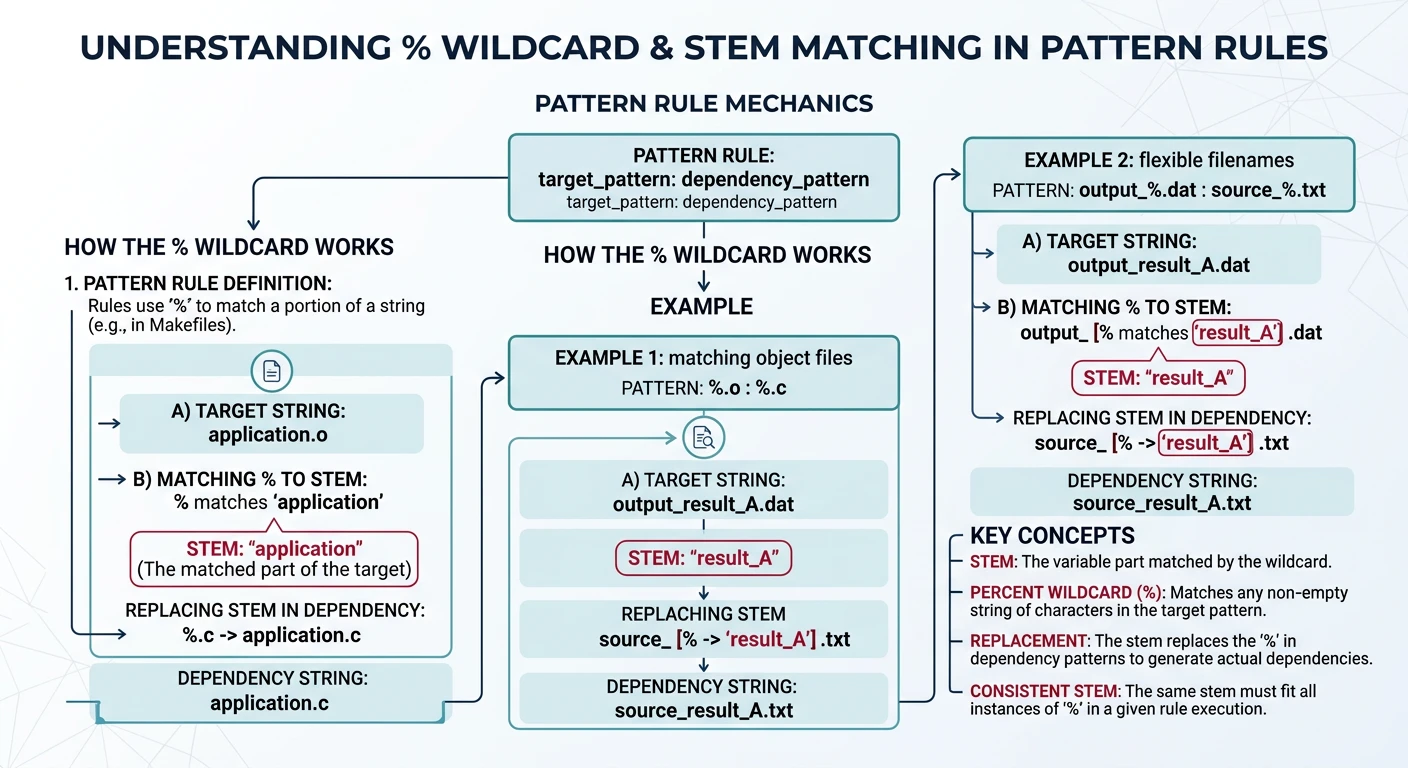

Pattern Rules

A pattern rule uses % as a wildcard in both the target and prerequisite. Make matches any target of the right shape and substitutes the stem into the prerequisite. Write one rule to compile all your C files.

Basic Pattern Rules

CC      := gcc
CFLAGS  := -Wall -Wextra -std=c11

# Pattern rule: compile every .c → .o
%.o: %.c
	$(CC) $(CFLAGS) -c $< -o $@      # $< = the .c source, $@ = the .o target

# Pattern rule: link every single-file binary
%: %.o
	$(CC) $(LDFLAGS) -o $@ $<         # $@ = binary name (stem), $< = its .o file

# With separate build directory:
BUILDDIR := build
OBJ      := $(BUILDDIR)/main.o $(BUILDDIR)/utils.o

$(BUILDDIR)/%.o: src/%.c
	@mkdir -p $(BUILDDIR)              # create build/ if it doesn't exist (@ = silent)
	$(CC) $(CFLAGS) -c $< -o $@       # $< = src/foo.c, $@ = build/foo.o

Static Pattern Rules

A static pattern rule restricts which targets the pattern applies to. This prevents Make from applying the pattern to unintended file names.

CC    := gcc
SRCS  := main.c utils.c network.c
OBJS  := $(SRCS:.c=.o)         # → main.o utils.o network.o

# Static pattern: targets : target-pattern : prereq-pattern
# ONLY apply %.c→%.o for items listed in $(OBJS)
$(OBJS): %.o: %.c
	$(CC) $(CFLAGS) -c $< -o $@   # $< = matching .c file, $@ = matching .o

Chained Pattern Rules

Pattern rules can chain: if Make can't find a direct prerequisite but can build it by applying rules in sequence, it will.

# Chain: .proto → .c → .o
%.c: %.proto
	protoc --c_out=. $<

%.o: %.c
	$(CC) $(CFLAGS) -c $< -o $@

# Make will go: message.proto → message.c → message.o automatically

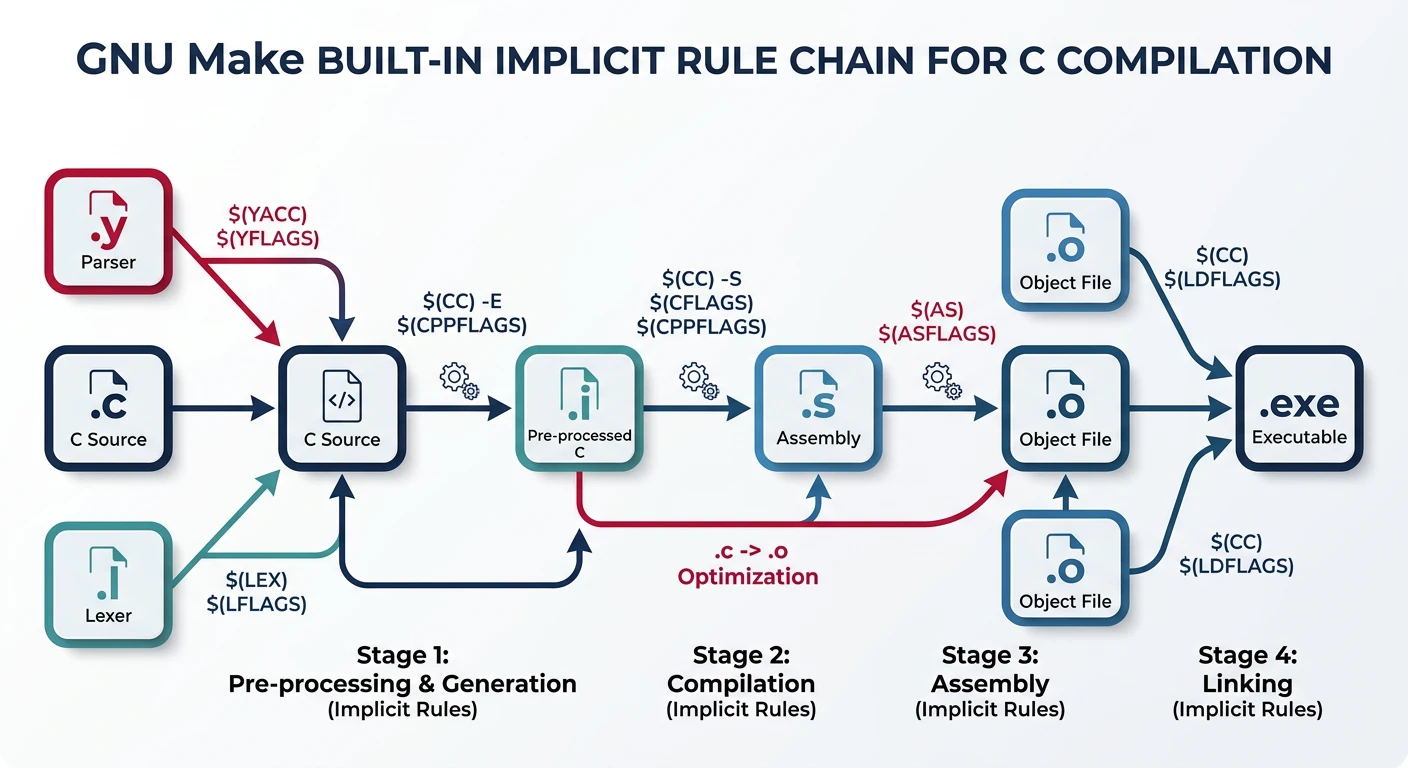

Built-in Implicit Rules

GNU Make ships with a library of implicit rules for common compilation patterns (C, C++, Fortran, Yacc, Lex, etc.). These use CC, CFLAGS, CXX, CXXFLAGS from your Makefile or environment.

# You can rely on implicit rules — Make knows %.o: %.c already
CC     = gcc
CFLAGS = -Wall -O2

main.o: main.h utils.h   # only list extra headers the .c needs
# No recipe needed — Make's built-in %.o: %.c rule takes care of it

# See all built-in implicit rules:
make -p | grep -A2 "^%.o"

# Disable ALL implicit rules to speed up large builds:
MAKEFLAGS += -r      # in Makefile
# or
make -r              # from CLI

Hands-On Milestone

# Zero-repetition Makefile — pattern rules + automatic variables

# ── Variables ────────────────────────────────────────
CC       := gcc
CFLAGS   := -Wall -Wextra -std=c11 -O2
LDFLAGS  :=

TARGET   := myapp
SRCDIR   := src
BUILDDIR := build

SRCS     := $(wildcard $(SRCDIR)/*.c)                  # auto-discover all .c files
OBJS     := $(SRCS:$(SRCDIR)/%.c=$(BUILDDIR)/%.o)       # map src/foo.c → build/foo.o

.PHONY: all clean

# ── Default target ──
all: $(TARGET)

# ── Link: combine all .o files into the binary ──
$(TARGET): $(OBJS)
	$(CC) $(LDFLAGS) -o $@ $^          # $@ = myapp, $^ = all .o files
	@echo "Linked: $@"

# ── Compile: static pattern rule with automatic variables ──
$(OBJS): $(BUILDDIR)/%.o: $(SRCDIR)/%.c
	@mkdir -p $(BUILDDIR)               # ensure build/ exists
	$(CC) $(CFLAGS) -c $< -o $@        # $< = src/foo.c, $@ = build/foo.o
	@echo "  CC  $(@F)"                  # $(@F) = filename part of $@ (e.g. foo.o)

clean:
	rm -rf $(BUILDDIR) $(TARGET)

info:
	@echo "CC       = $(CC)"
	@echo "CFLAGS   = $(CFLAGS)"
	@echo "LDFLAGS  = $(LDFLAGS)"
	@echo "TARGET   = $(TARGET)"
	@echo "SRCDIR   = $(SRCDIR)"
	@echo "BUILDDIR = $(BUILDDIR)"
	@echo "SRCS     = $(SRCS)"
	@echo "OBJS     = $(OBJS)"

# --- Setup: create source files and Makefile ---
mkdir -p src

cat > src/main.c << 'EOF'
#include <stdio.h>
#include "utils.h"

int main(void) {
    utils_greet("Pattern Rules");
    return 0;
}
EOF

cat > src/utils.h << 'EOF'
#ifndef UTILS_H
#define UTILS_H
void utils_greet(const char *name);
int  utils_add(int a, int b);
#endif
EOF

cat > src/utils.c << 'EOF'
#include <stdio.h>
#include "utils.h"
void utils_greet(const char *name) { printf("Hello, %s!\n", name); }
int  utils_add(int a, int b)       { return a + b; }
EOF

cat > src/network.c << 'EOF'
#include <stdio.h>
void net_connect(const char *host, int port) {
    printf("Connecting to %s:%d\n", host, port);
}
EOF

cat > src/foo.c << 'EOF'
#include <stdio.h>
void foo(void) { printf("foo() called\n"); }
EOF

# --- Try it ---
make info     # display all variable values
make          # compiles src/*.c → build/*.o → links myapp
make          # nothing rebuilt (up-to-date)
touch src/utils.c
make          # only recompiles utils.c and re-links
make clean    # remove build artifacts
