GNU Make Mastery Part 14: CI/CD Integration

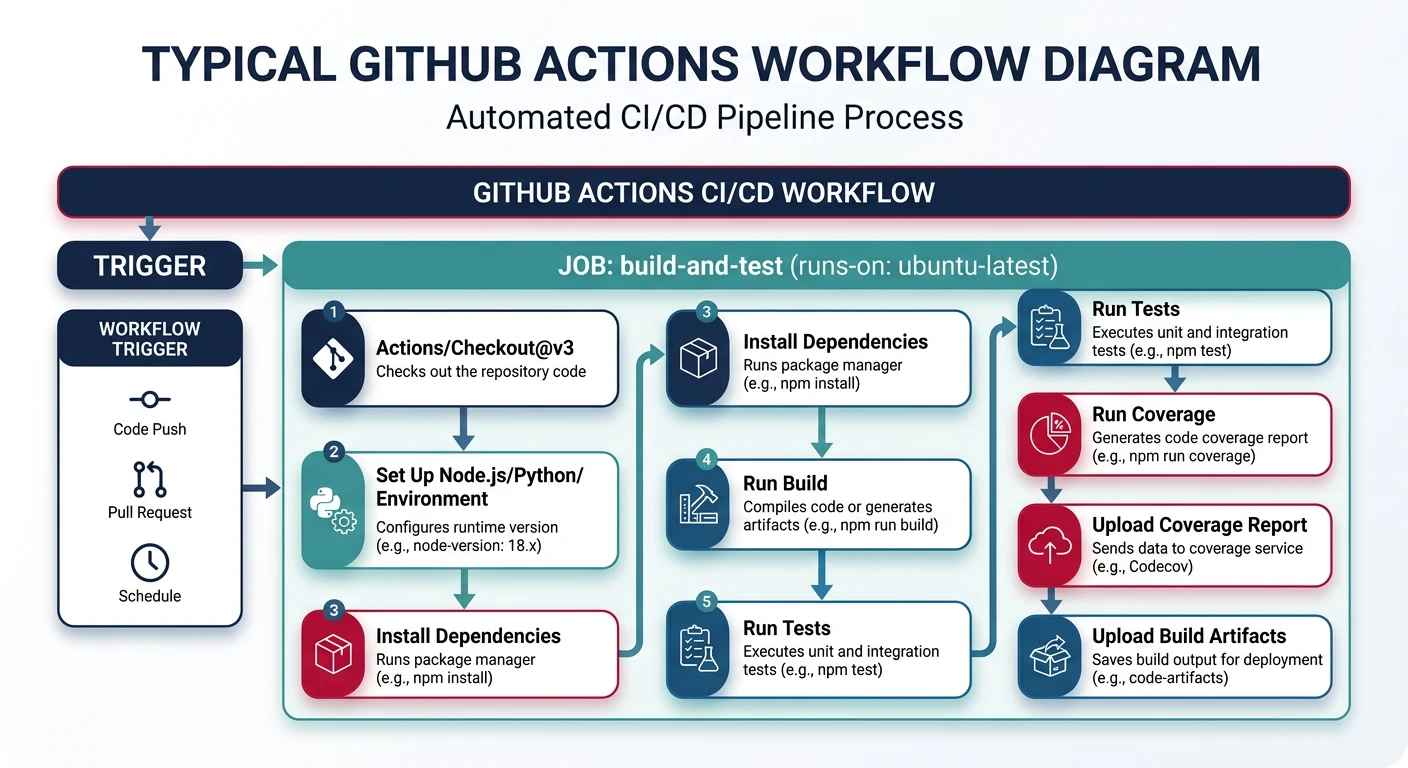

GitHub Actions

Basic Workflow

# .github/workflows/build.yml
name: Build and Test

on: [push, pull_request]

jobs:
  build:
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v4

      - name: Install build dependencies
        run: sudo apt-get install -y gcc make lcov

      - name: Build
        run: make -j$(nproc) all

      - name: Run tests
        run: make check

      - name: Coverage report
        run: make coverage

      - name: Upload coverage to Codecov
        uses: codecov/codecov-action@v4
        with:
          files: coverage.info

Matrix Builds

jobs:
  matrix-build:
    strategy:
      matrix:
        compiler: [gcc, clang]
        os: [ubuntu-latest, ubuntu-22.04]
        arch: [x86_64]
    runs-on: ${{ matrix.os }}

    steps:
      - uses: actions/checkout@v4

      - name: Build with ${{ matrix.compiler }}
        # Pass CC as Makefile variable override from CLI:
        run: make -j$(nproc) CC=${{ matrix.compiler }} all

      - name: Test
        run: make test CC=${{ matrix.compiler }}

Object File Caching

      - name: Cache ccache directory
        uses: actions/cache@v4
        with:
          path: ~/.cache/ccache
          # Key includes OS, compiler, and a weekly date so it refreshes regularly:
          key: ccache-${{ runner.os }}-${{ matrix.compiler }}-${{ hashFiles('**/*.c', '**/*.h') }}
          restore-keys: |
            ccache-${{ runner.os }}-${{ matrix.compiler }}-
            ccache-${{ runner.os }}-

      - name: Build with ccache
        env:
          CCACHE_DIR: ~/.cache/ccache
        run: |
          ccache --zero-stats
          make -j$(nproc) CC="ccache ${{ matrix.compiler }}" all
          ccache --show-stats

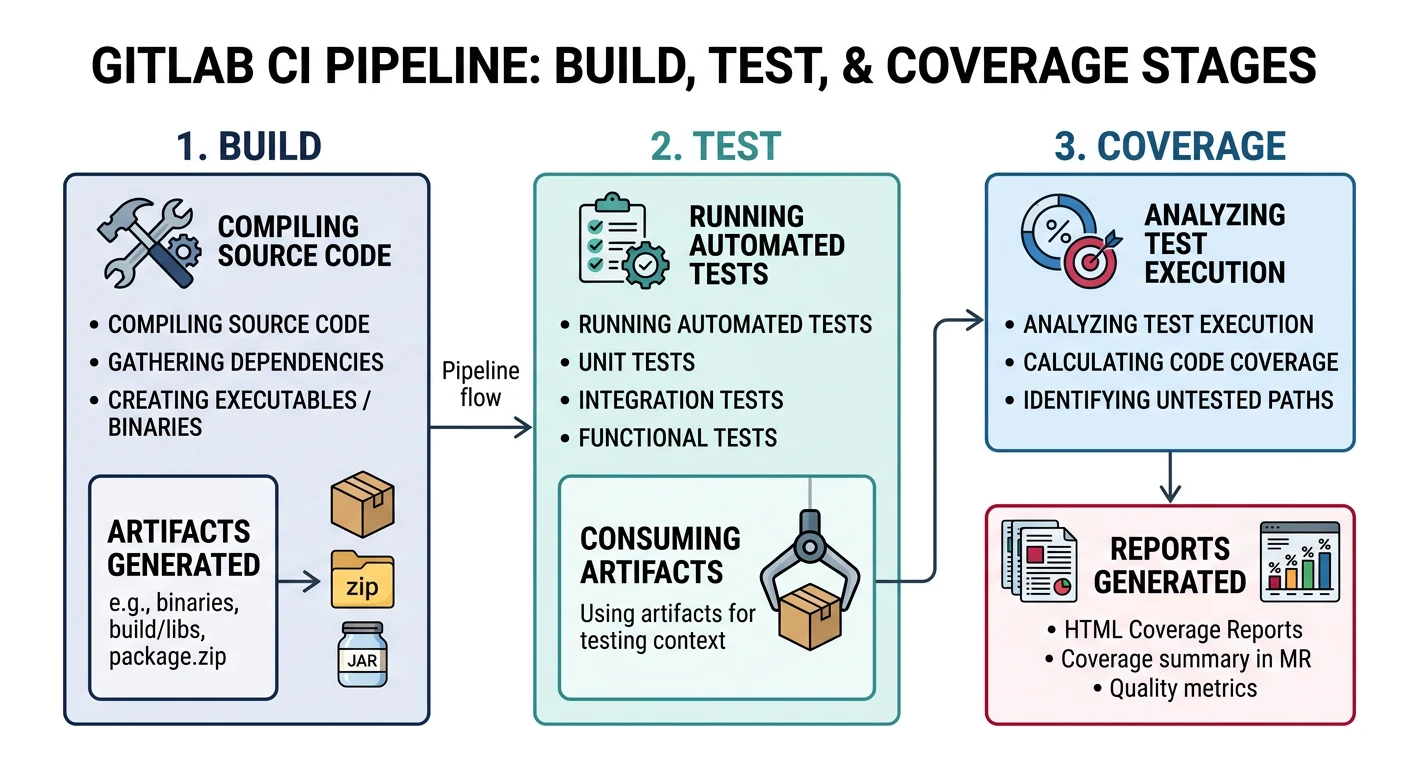

GitLab CI

# .gitlab-ci.yml
image: gcc:latest

variables:
  NPROC: "4"

stages:
  - build
  - test
  - coverage

build:
  stage: build
  script:
    - make -j$NPROC all
  artifacts:
    paths:
      - build/
    expire_in: 1 hour

test:
  stage: test
  dependencies:
    - build
  script:
    - make test

coverage:
  stage: coverage
  dependencies:
    - build
  script:
    - apt-get install -y lcov
    - make coverage
  coverage: '/lines\.*: \d+\.\d+%/'
  artifacts:
    paths:
      - coverage-html/
    reports:
      coverage_report:
        coverage_format: cobertura
        path: coverage.xml

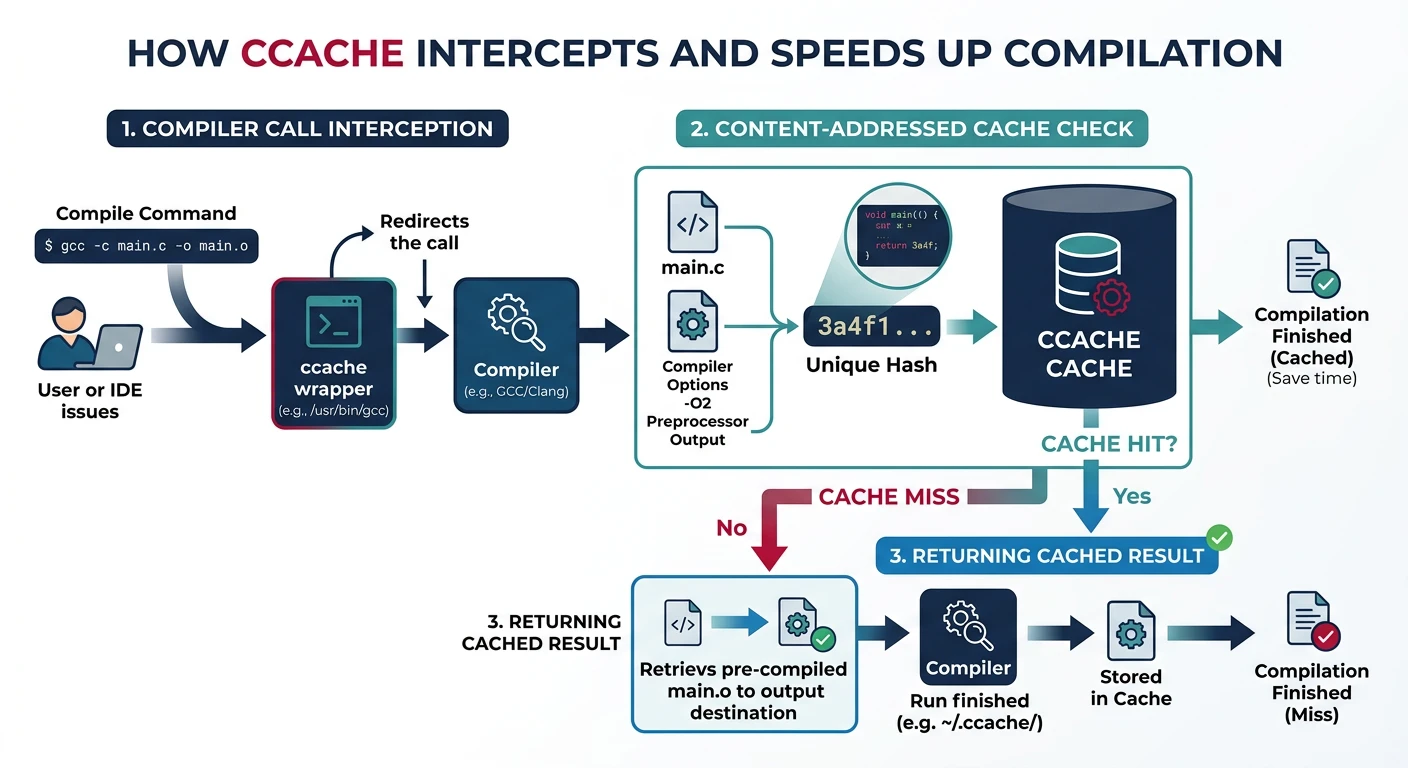

ccache Integration

# Optional wrapper: use ccache if available on the system
CCACHE  := $(shell command -v ccache 2>/dev/null)  # find ccache in $PATH
ifneq ($(CCACHE),)                                 # if ccache was found...
    CC := ccache $(CC)                              # prefix compiler with ccache
    CXX := ccache $(CXX)                            # same for C++
endif

# Share cache across git worktrees:
# CCACHE_BASEDIR normalises paths so different clones get cache hits.
export CCACHE_BASEDIR := $(shell git rev-parse --show-toplevel 2>/dev/null || echo .)

# Show cache statistics after build:
.PHONY: ccache-stats
ccache-stats:
	ccache --show-stats

Artifact Management

VERSION  ?= $(shell git describe --tags --always)     # e.g. v1.2.3 or abc1234
ARTIFACT := myapp-$(VERSION)-linux-amd64.tar.gz

.PHONY: artifact
artifact: all ## Create CI artifact archive
	mkdir -p artifact/bin artifact/lib artifact/include
	cp build/$(TARGET)      artifact/bin/
	cp build/lib$(PROJECT).a artifact/lib/ 2>/dev/null || true   # || true: ignore if no lib
	cp include/*.h          artifact/include/ 2>/dev/null || true # || true: ignore if none
	tar czf $(ARTIFACT) -C artifact .
	sha256sum $(ARTIFACT) > $(ARTIFACT).sha256   # checksum for download verification
	@echo "Artifact: $(ARTIFACT)"

.PHONY: artifact-clean
artifact-clean:
	rm -rf artifact/ $(ARTIFACT) $(ARTIFACT).sha256

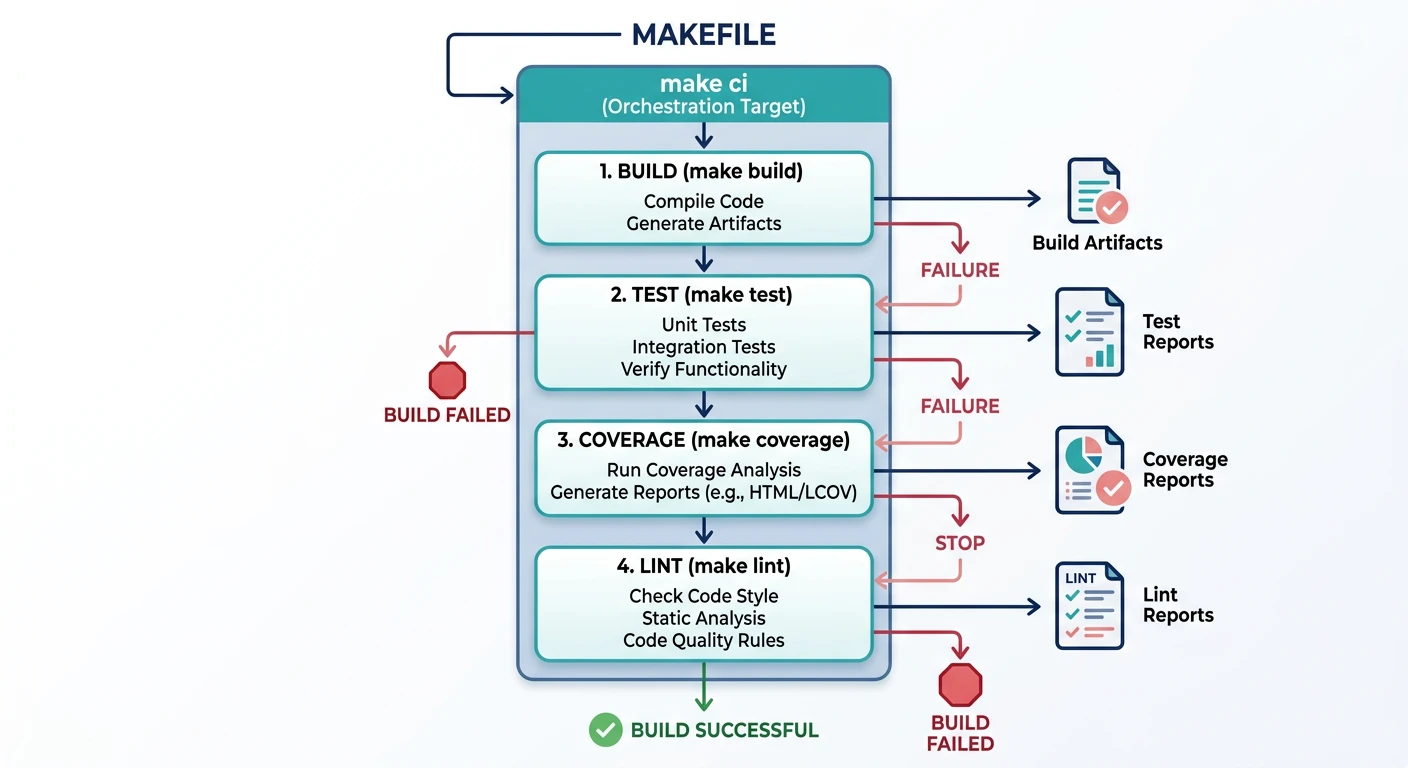

Try It — CI-Style Build & Artifact

Create a project with CI targets and artifact packaging:

mkdir -p src include
git init -q   # VERSION uses git describe

cat > include/app.h << 'EOF'
#ifndef APP_H
#define APP_H
void greet(void);
#endif
EOF

cat > src/main.c << 'EOF'
#include <stdio.h>
#include "app.h"
void greet(void) { printf("Hello from CI build\n"); }
int main(void) { greet(); return 0; }
EOF

cat > Makefile << 'EOF'
CC       := gcc
CFLAGS   := -Wall -Wextra -Iinclude -O2
TARGET   := myapp
PROJECT  := myapp
VERSION  ?= $(shell git describe --tags --always 2>/dev/null || echo 0.0.1)
ARTIFACT := $(PROJECT)-$(VERSION)-linux-amd64.tar.gz

.PHONY: all ci artifact artifact-clean clean info

all: build/$(TARGET)

build/$(TARGET): src/main.c
	@mkdir -p build
	$(CC) $(CFLAGS) -o $@ $^

ci: clean all ## CI gate target
	@echo "CI build passed — version $(VERSION)"

artifact: all ## Create CI artifact archive
	mkdir -p artifact/bin artifact/include
	cp build/$(TARGET) artifact/bin/
	cp include/*.h artifact/include/ 2>/dev/null || true
	tar czf $(ARTIFACT) -C artifact .
	sha256sum $(ARTIFACT) > $(ARTIFACT).sha256
	@echo "Artifact: $(ARTIFACT)"

artifact-clean:
	rm -rf artifact/ $(ARTIFACT) $(ARTIFACT).sha256

clean: artifact-clean
	rm -rf build

info:
	@echo "CC       = $(CC)"
	@echo "CFLAGS   = $(CFLAGS)"
	@echo "VERSION  = $(VERSION)"
	@echo "TARGET   = $(TARGET)"
	@echo "ARTIFACT = $(ARTIFACT)"
EOF

make info
make ci
make artifact
tar tzf myapp-*.tar.gz       # inspect archive contents
cat myapp-*.sha256           # verify checksum
make clean
