GNU Make Mastery Part 9: Project Architecture & Multi-Directory Builds

Sample Source Files

main.c

/* main.c — entry point */
#include <stdio.h>
#include "logger.h"

int main(void) {
    log_info("Application started");
    return 0;
}

logger.h

/* logger.h */
#ifndef LOGGER_H
#define LOGGER_H
void log_info(const char *msg);
void log_error(const char *msg);
#endif

logger.c

/* logger.c — simple logging helpers */
#include <stdio.h>
#include "logger.h"

void log_info(const char *msg)  { printf("[INFO]  %s\n", msg); }
void log_error(const char *msg) { fprintf(stderr, "[ERROR] %s\n", msg); }

net.c

/* net.c — minimal networking stub */
#include <stdio.h>

void net_connect(const char *addr, int port) {
    printf("Connecting to %s:%d\n", addr, port);
}

void net_disconnect(void) { printf("Disconnected\n"); }

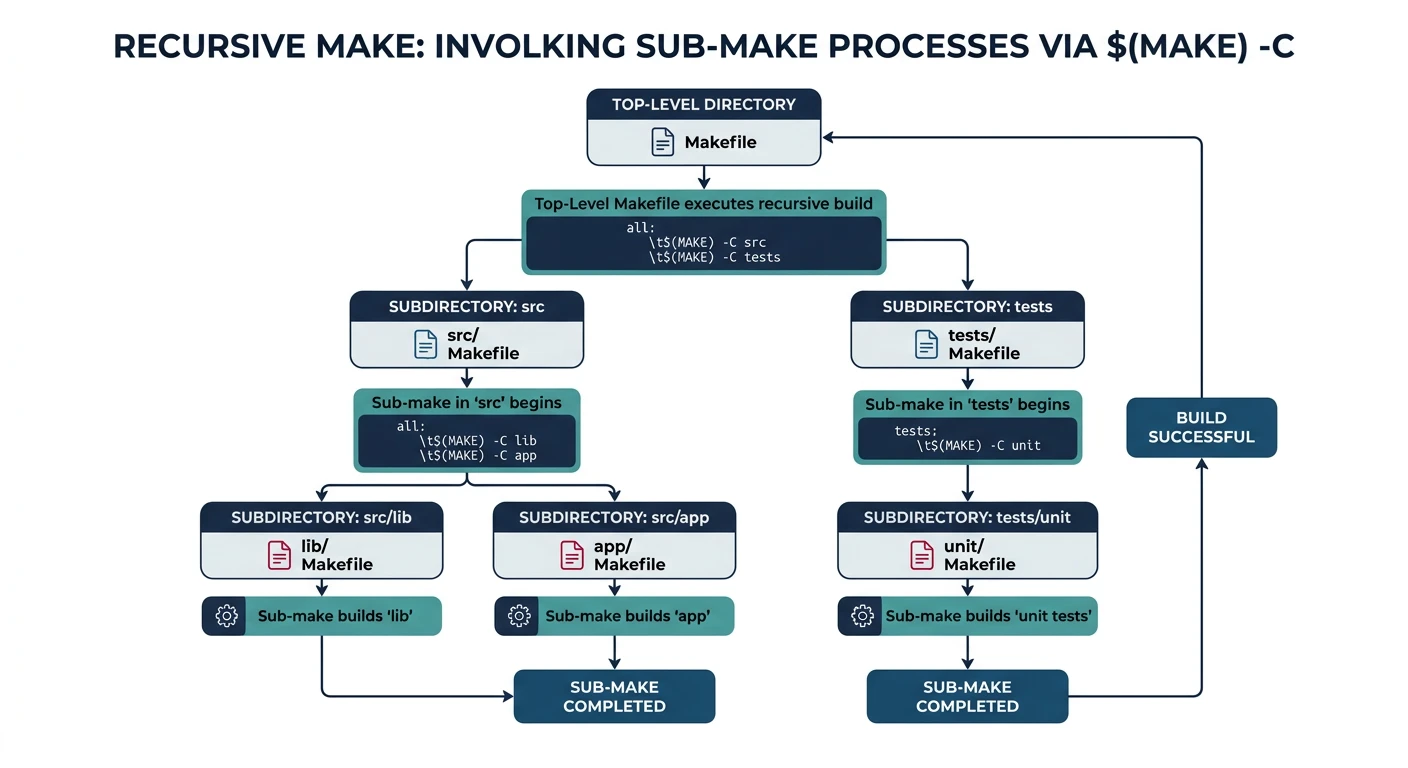

Recursive Make

$(MAKE) -C Pattern

$(MAKE) -C dir changes into dir and invokes a new Make process there. Always use $(MAKE) (not make) so the same Make binary and jobserver options propagate.

graph TD
    subgraph Recursive["Recursive Make"]
        TOP["Top Makefile"] -->|"$(MAKE) -C src"| SRC["src/Makefile"]
        TOP -->|"$(MAKE) -C lib"| LIB["lib/Makefile"]
        TOP -->|"$(MAKE) -C test"| TEST["test/Makefile"]
        SRC --> SOBJ["src/*.o"]
        LIB --> LOBJ["lib/*.o"]
        TEST --> TOBJ["test/*.o"]
    end

    subgraph NonRecursive["Non-Recursive Make"]
        SINGLE["Single Makefile"] --> SRCMK["include src/Module.mk"]
        SINGLE --> LIBMK["include lib/Module.mk"]
        SINGLE --> TESTMK["include test/Module.mk"]
        SRCMK --> UNIFIED["Unified\nDependency Graph"]
        LIBMK --> UNIFIED
        TESTMK --> UNIFIED
    end


# Top-level Makefile (recursive approach)
SUBDIRS := src/core src/net tests

.PHONY: all clean $(SUBDIRS)

all: $(SUBDIRS)

# Each subdir target triggers a sub-make in that directory
$(SUBDIRS):
	$(MAKE) -C $@              # -C changes to subdir; $(MAKE) propagates jobserver

# Pass build config down to each sub-make
$(SUBDIRS): BUILD ?= release
$(SUBDIRS):
	$(MAKE) -C $@ BUILD=$(BUILD)

clean:
	for dir in $(SUBDIRS); do $(MAKE) -C $$dir clean; done  # $$dir: escape $ for shell

Classic Pitfalls

Passing Variables to Sub-makes

# Method 1: export (makes variable visible to all child processes)
export CC := arm-linux-gnueabihf-gcc
export CFLAGS := -Wall -O2

# Method 2: pass on command line (overrides child Makefile vars)
$(MAKE) -C src/core CC=$(CC) CFLAGS="$(CFLAGS)"

# Method 3: export all variables (use sparingly — can cause surprises)
export

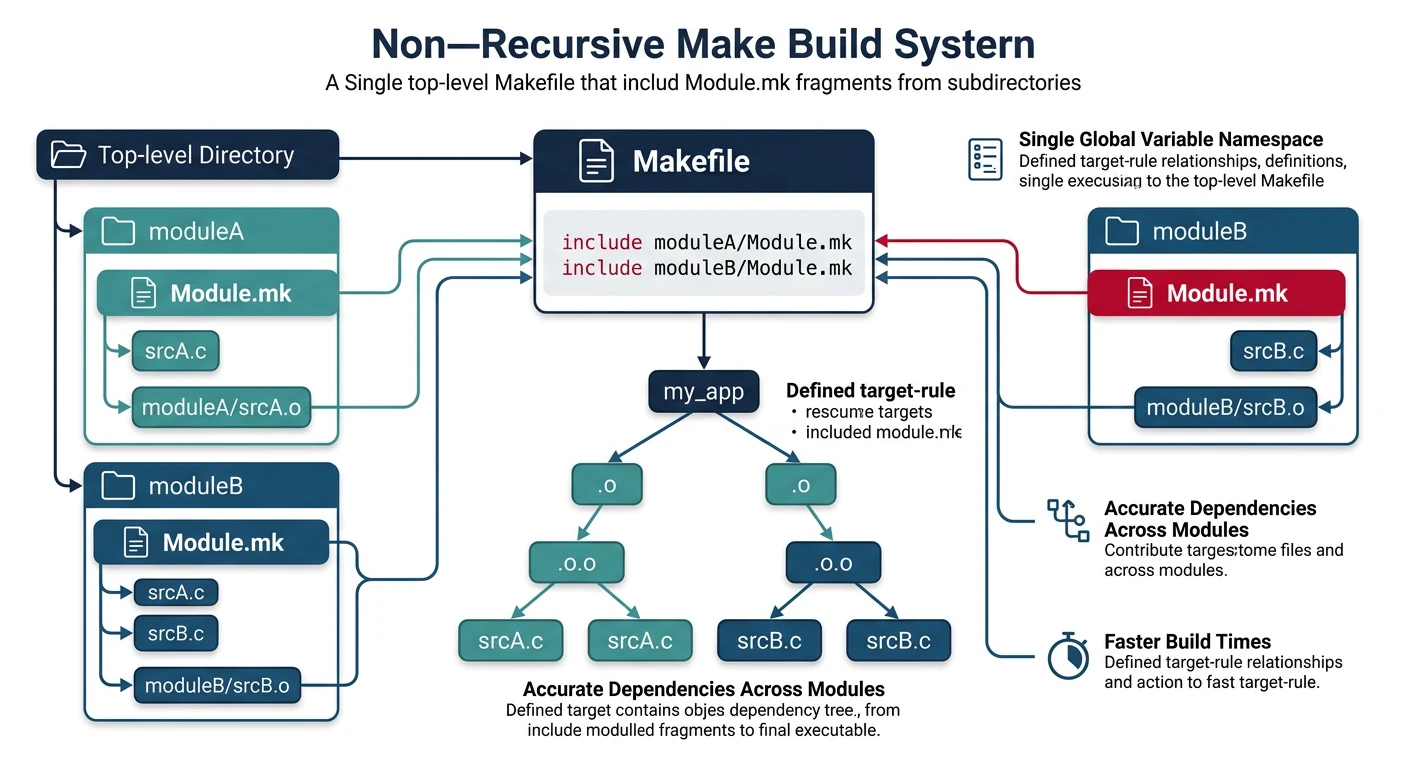

Non-Recursive Make

In the non-recursive approach, a single top-level Makefile includes per-directory fragments (Module.mk) that append to global variable lists. Make has a single, complete dependency graph — enabling correct parallelism and cross-directory deps.

include Module.mk Pattern

# src/core/Module.mk — note use of $(d) for current dir prefix
d := src/core

CORE_SRCS := $(d)/allocator.c $(d)/logger.c $(d)/config.c
CORE_OBJS := $(patsubst $(d)/%.c,build/$(d)/%.o,$(CORE_SRCS))

# Append to global lists
SRCS += $(CORE_SRCS)
OBJS += $(CORE_OBJS)

# Module-specific compile flags
$(CORE_OBJS): CFLAGS += -DCORE_MODULE

build/$(d)/%.o: $(d)/%.c
	@mkdir -p $(dir $@)
	$(CC) $(CFLAGS) -MMD -MP -c $< -o $@

# Top-level Makefile (non-recursive: single Make process)
CC      := gcc
CFLAGS  := -Wall -Wextra -std=c11 -O2
BUILDDIR := build
TARGET  := myapp

# Include all module fragments — they append to SRCS and OBJS
include src/core/Module.mk
include src/net/Module.mk

DEPS := $(OBJS:.o=.d)              # .o → .d for dependency tracking

.PHONY: all clean

all: $(TARGET)

$(TARGET): $(OBJS)
	$(CC) $(LDFLAGS) -o $@ $^          # single link step sees all objects

-include $(DEPS)                       # pull in auto-generated .d files

clean:
	rm -rf $(BUILDDIR) $(TARGET)

Advantages & Trade-offs

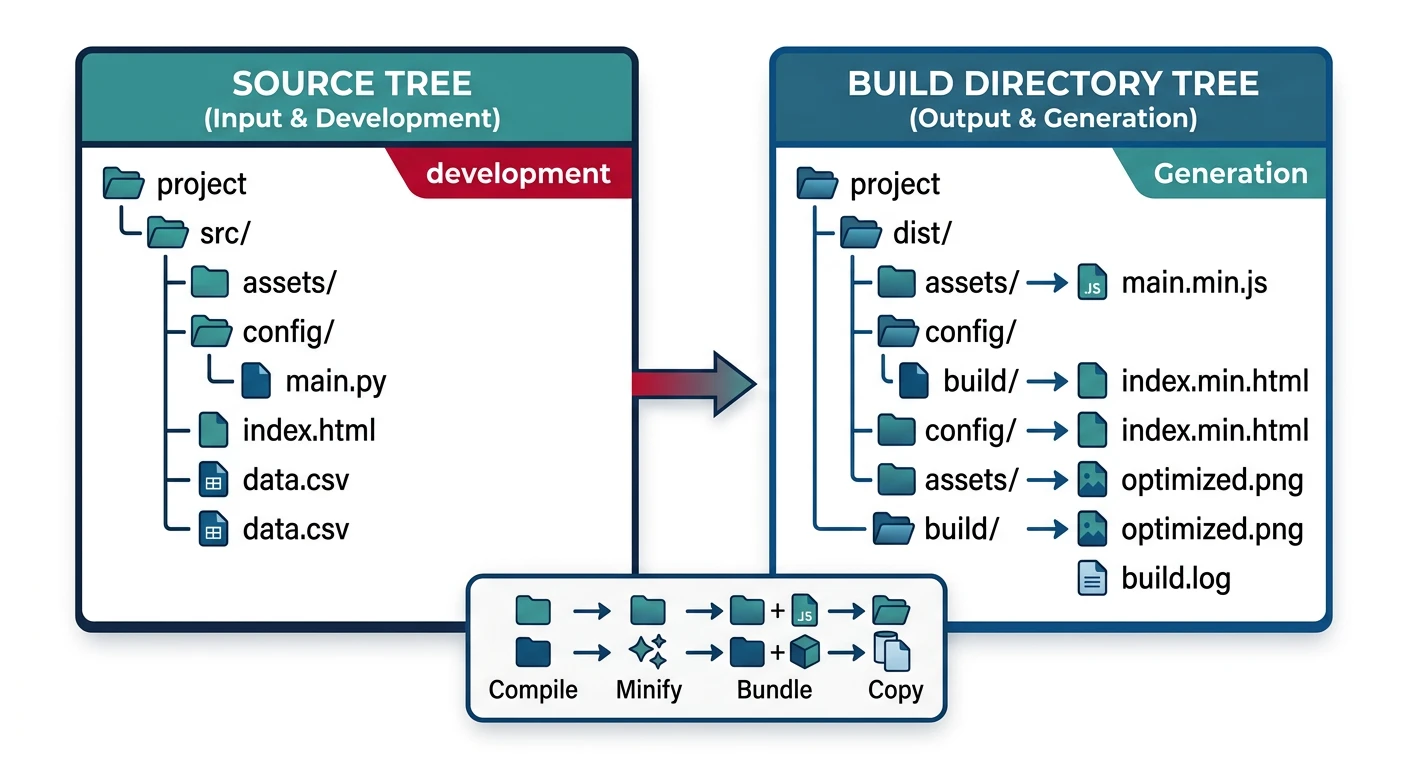

Out-of-Source Builds

Never pollute your source tree with build artifacts. Keep all .o, .d, and output files in a separate build/ tree, mirroring the source structure:

SRCDIR   := src
BUILDDIR := build

# Mirror src/ tree under build/ so source stays clean
# e.g. src/core/allocator.c → build/src/core/allocator.o
SRCS := $(shell find $(SRCDIR) -name '*.c')                    # recursive file discovery
OBJS := $(patsubst $(SRCDIR)/%.c,$(BUILDDIR)/%.o,$(SRCS))      # remap paths to build/

$(BUILDDIR)/%.o: $(SRCDIR)/%.c
	@mkdir -p $(dir $@)                # create matching subdirectory under build/
	$(CC) $(CFLAGS) -MMD -MP -c $< -o $@

BUILD    ?= release
BUILDDIR := build/$(BUILD)

ifeq ($(BUILD),debug)
    CFLAGS += -g3 -O0 -DDEBUG
else
    CFLAGS += -O2 -DNDEBUG
endif

# Now:  build/debug/src/core/allocator.o
#       build/release/src/core/allocator.o

Complete Non-Recursive Project Example

# =============================================================
# Top-level Makefile — non-recursive, out-of-source
# =============================================================
CC       := gcc
CFLAGS   := -Wall -Wextra -std=c11 -Iinclude
BUILD    ?= release
BUILDDIR := build/$(BUILD)
TARGET   := $(BUILDDIR)/myapp

ifeq ($(BUILD),debug)
CFLAGS   += -g3 -O0 -DDEBUG
else
CFLAGS   += -O2 -DNDEBUG
endif

# Accumulator variables — populated by Module.mk files
SRCS :=
OBJS :=

# Include per-directory build fragments
include src/core/Module.mk
include src/net/Module.mk

DEPS := $(OBJS:.o=.d)

.PHONY: all clean

all: $(TARGET)

$(TARGET): $(OBJS)
	@mkdir -p $(dir $@)
	$(CC) $(LDFLAGS) -o $@ $^
	@echo "Built: $@"

$(BUILDDIR)/%.o: src/%.c
	@mkdir -p $(dir $@)
	$(CC) $(CFLAGS) -MMD -MP -c $< -o $@

-include $(DEPS)

clean:
	rm -rf build $(TARGET)

# ── Variable Inspector ──────────────────────────────────────
.PHONY: info
info:
	@echo "CC       = $(CC)"
	@echo "CFLAGS   = $(CFLAGS)"
	@echo "BUILD    = $(BUILD)"
	@echo "BUILDDIR = $(BUILDDIR)"
	@echo "TARGET   = $(TARGET)"
	@echo "SRCS     = $(SRCS)"
	@echo "OBJS     = $(OBJS)"
	@echo "DEPS     = $(DEPS)"

Create Source & Module Files

The Makefile uses non-recursive include src/*/Module.mk fragments that append to accumulator variables. Create the full directory layout:

mkdir -p src/core src/net include

cat > include/app.h << 'EOF'
#ifndef APP_H
#define APP_H
void core_init(void);
void net_connect(const char *host);
#endif
EOF

cat > src/core/main.c << 'EOF'
#include <stdio.h>
#include "app.h"
int main(void) {
    core_init();
    net_connect("localhost");
    return 0;
}
EOF

cat > src/core/init.c << 'EOF'
#include <stdio.h>
#include "app.h"
void core_init(void) { printf("Core initialized\n"); }
EOF

# Module.mk — appends sources to accumulator variable
cat > src/core/Module.mk << 'EOF'
SRCS += src/core/main.c src/core/init.c
OBJS += $(BUILDDIR)/core/main.o $(BUILDDIR)/core/init.o
EOF

cat > src/net/client.c << 'EOF'
#include <stdio.h>
#include "app.h"
void net_connect(const char *host) { printf("Connecting to %s\n", host); }
EOF

cat > src/net/Module.mk << 'EOF'
SRCS += src/net/client.c
OBJS += $(BUILDDIR)/net/client.o
EOF

Try It

# Inspect accumulated variables
make info
make BUILD=debug info    # different build dir

# Build the project
make
./build/release/myapp     # "Core initialized" + "Connecting to localhost"

# Debug build
make BUILD=debug
./build/debug/myapp

make clean
