GNU Make Mastery Part 8: Compilation Workflow & Libraries

Sample Source Files

crypto.h

/* crypto.h — public API for the crypto library */
#ifndef CRYPTO_H
#define CRYPTO_H

/* Simple XOR-based hash (demo only — not cryptographically secure) */
void  crypto_hash(const char *input, char *output, int outlen);
int   crypto_verify(const char *a, const char *b);

#endif /* CRYPTO_H */

crypto.c

/* crypto.c — crypto library implementation */
#include <string.h>
#include <stdio.h>
#include "crypto.h"

void crypto_hash(const char *input, char *output, int outlen) {
    int i;
    for (i = 0; i < outlen - 1 && input[i]; i++)
        output[i] = (char)(input[i] ^ 0x5A);   /* trivial XOR */
    output[i] = '\0';
}

int crypto_verify(const char *a, const char *b) {
    return strcmp(a, b) == 0;
}

main.c

/* main.c — uses the crypto library */
#include <stdio.h>
#include "crypto.h"

int main(void) {
    char hash[64];
    crypto_hash("hello world", hash, sizeof(hash));
    printf("Hash: %s\n", hash);
    printf("Verify: %s\n", crypto_verify(hash, hash) ? "OK" : "FAIL");
    return 0;
}

Static Libraries

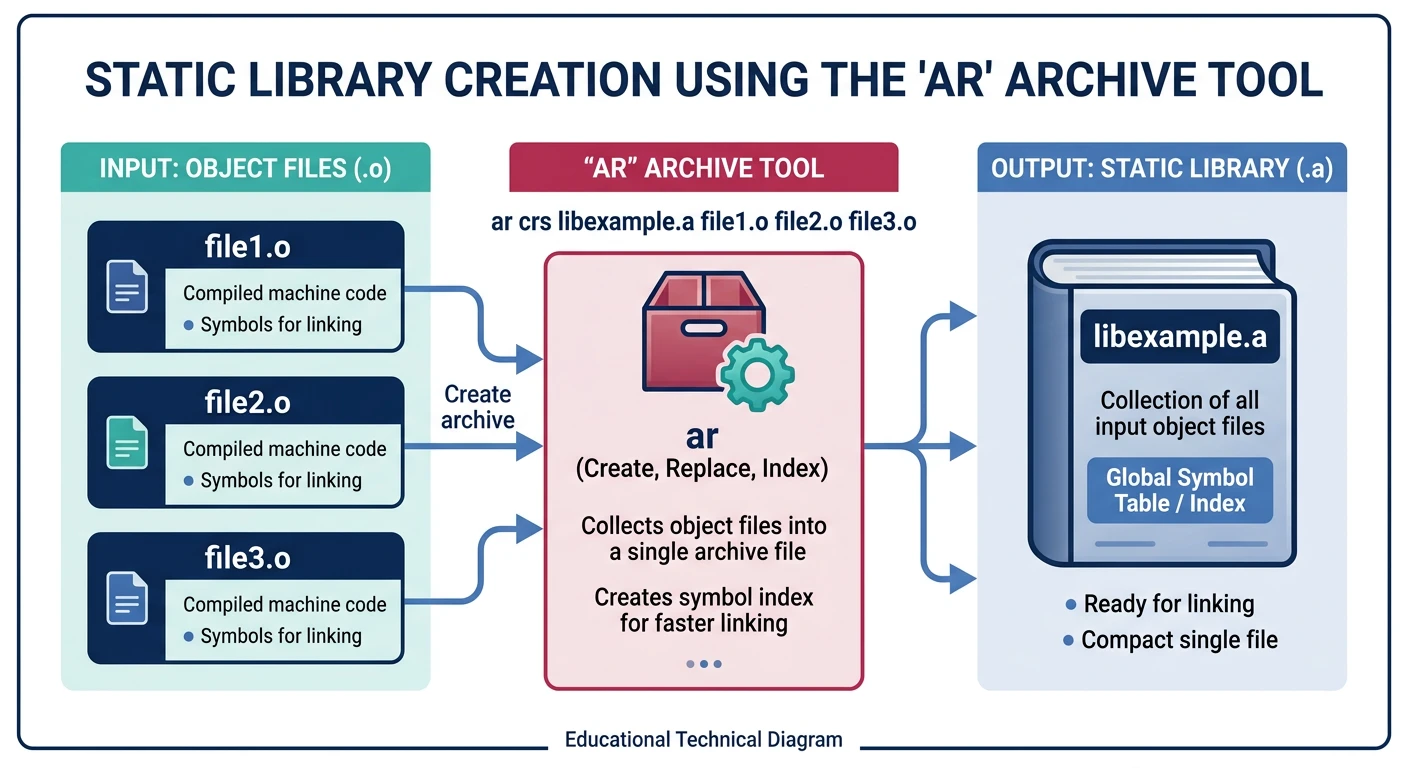

The ar Archive Tool

A static library is an archive of .o files. The ar command manages these archives.

# ar rcs syntax:
# r = insert/replace members
# c = create archive if it doesn't exist
# s = write an index (equivalent to ranlib)
ar rcs libmath.a add.o sub.o mul.o div.o

Static Library Makefile

CC      := gcc
CFLAGS  := -Wall -Wextra -std=c11 -O2
AR      := ar                    # archive tool (creates static libraries)
ARFLAGS := rcs                   # r=replace, c=create, s=write index

LIBDIR  := lib
SRCDIR  := src
BUILDDIR := build

LIB_SRCS := $(wildcard $(SRCDIR)/math/*.c)                          # find all .c under src/math/
LIB_OBJS := $(patsubst $(SRCDIR)/%.c,$(BUILDDIR)/%.o,$(LIB_SRCS))   # src/math/foo.c → build/math/foo.o
STATIC_LIB := $(LIBDIR)/libmath.a                                   # output archive name

.PHONY: all clean

all: $(STATIC_LIB)

# ── Create static library from object files ──
$(STATIC_LIB): $(LIB_OBJS)
	@mkdir -p $(LIBDIR)
	$(AR) $(ARFLAGS) $@ $^           # $@ = libmath.a, $^ = all .o files

# ── Compile ──
$(BUILDDIR)/%.o: $(SRCDIR)/%.c
	@mkdir -p $(dir $@)               # $(dir $@) = directory part of target path
	$(CC) $(CFLAGS) -MMD -MP -c $< -o $@

-include $(LIB_OBJS:.o=.d)           # pull in auto-generated dependency files

clean:
	rm -rf $(BUILDDIR) $(LIBDIR)

# Link app against static lib:
gcc -Wall main.c -Llib -lmath -Iinclude -o myapp

# The linker pulls only the .o modules it actually needs from libmath.a

Shared Libraries

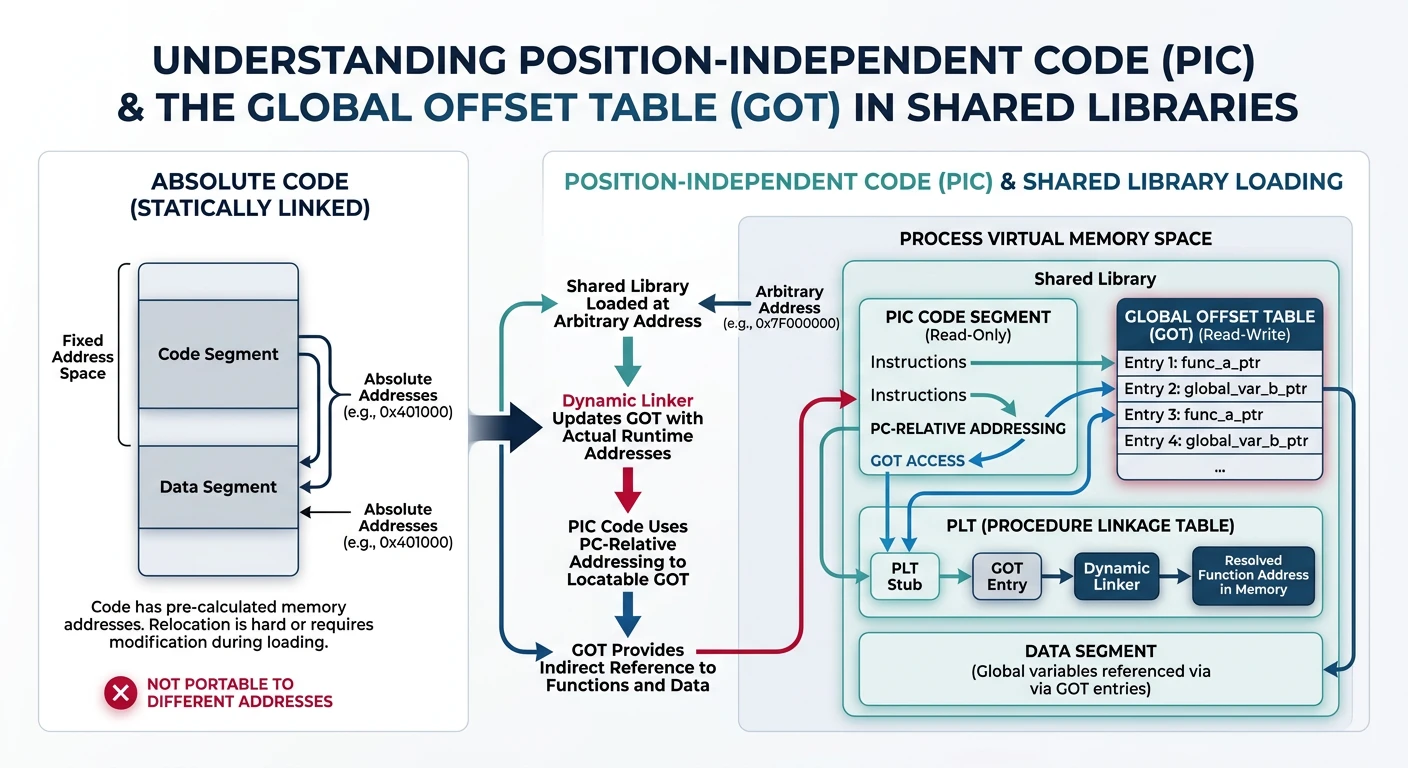

-fPIC — Position Independent Code

Shared libraries may be mapped to different virtual addresses in each process. -fPIC generates code that uses a Global Offset Table (GOT) for data references, making it address-independent. Forgetting -fPIC causes a link error when building .so on most Linux targets:

# Compile with -fPIC for shared library objects:
gcc -Wall -O2 -fPIC -c src/crypto.c -o build/crypto.o

# Create the shared library:
gcc -shared -Wl,-soname,libcrypto.so.1 \
    -o lib/libcrypto.so.1.0.0 build/crypto.o

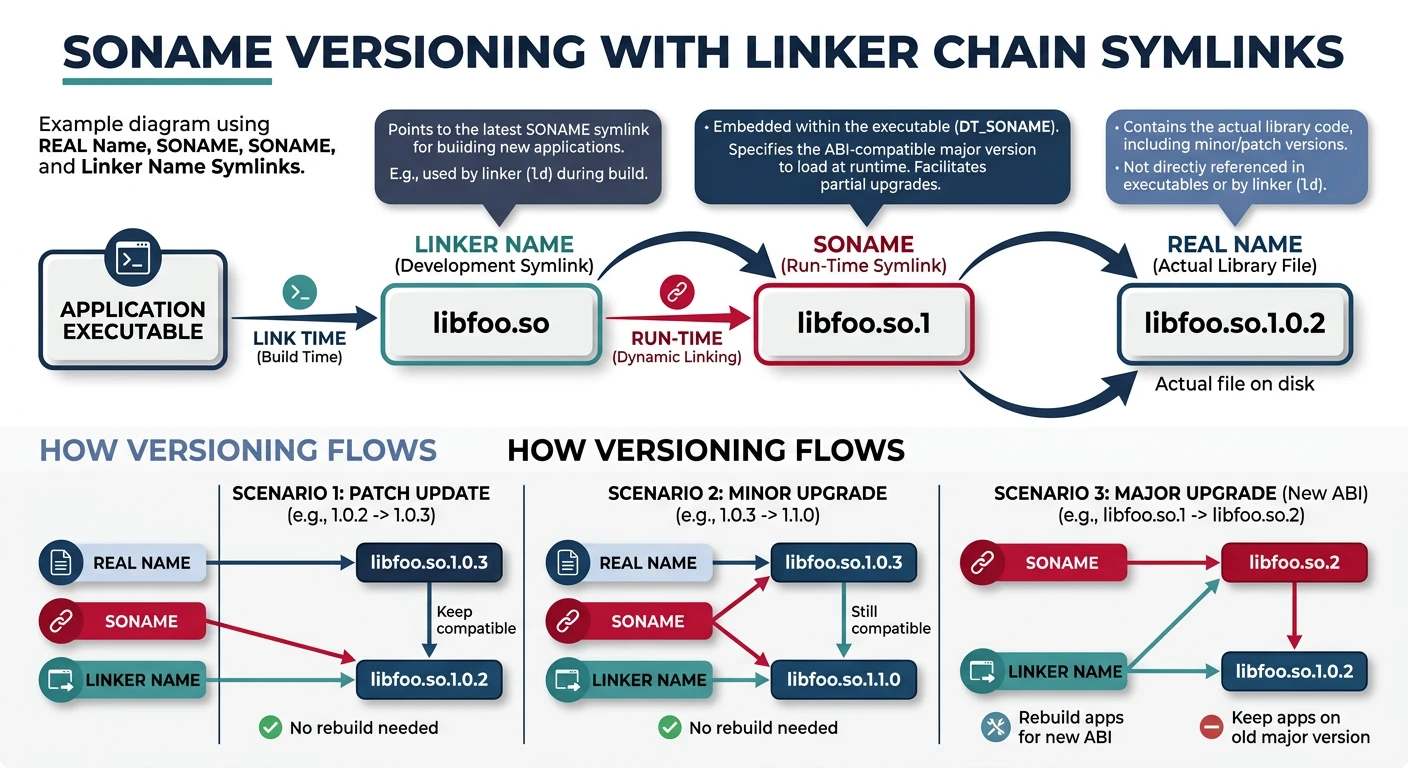

SONAME Versioning

Linux shared library versioning uses three components embedded via the linker:

# Real name:  libcrypto.so.1.0.0  (full version, what's on disk)
# SONAME:     libcrypto.so.1       (ABI version, embedded in the .so)
# Linker name: libcrypto.so        (used during -lcrypto lookup at build time)

# Create symlinks (ldconfig does this automatically on install):
ln -sf libcrypto.so.1.0.0 lib/libcrypto.so.1    # SONAME symlink
ln -sf libcrypto.so.1     lib/libcrypto.so       # linker name symlink

# Read the SONAME embedded in an existing .so:
readelf -d lib/libcrypto.so.1.0.0 | grep SONAME

Shared Library Makefile

CC      := gcc
CFLAGS  := -Wall -Wextra -std=c11 -O2 -fPIC    # -fPIC = position-independent code (required for .so)
LDFLAGS := -shared                              # tell linker to produce a shared library

# ── Versioning ──
LIBNAME := myutil
LIBVER  := 1.0.0                                # full version (real name on disk)
SONAME  := lib$(LIBNAME).so.1                   # ABI version (embedded in the .so)
REALNAME := lib$(LIBNAME).so.$(LIBVER)          # libmyutil.so.1.0.0
LINKNAME := lib$(LIBNAME).so                    # linker name (used by -lmyutil)

LIBDIR   := lib
BUILDDIR := build
SRCDIR   := src

LIB_SRCS := $(wildcard $(SRCDIR)/$(LIBNAME)/*.c)
LIB_OBJS := $(patsubst $(SRCDIR)/%.c,$(BUILDDIR)/%.o,$(LIB_SRCS))

.PHONY: all clean

all: $(LIBDIR)/$(REALNAME) symlinks

# ── Build the shared library with embedded SONAME ──
$(LIBDIR)/$(REALNAME): $(LIB_OBJS)
	@mkdir -p $(LIBDIR)
	$(CC) $(LDFLAGS) -Wl,-soname,$(SONAME) -o $@ $^   # -Wl passes option to linker

# ── Create SONAME and linker symlinks ──
symlinks: $(LIBDIR)/$(REALNAME)
	cd $(LIBDIR) && ln -sf $(REALNAME) $(SONAME) && ln -sf $(SONAME) $(LINKNAME)

$(BUILDDIR)/%.o: $(SRCDIR)/%.c
	@mkdir -p $(dir $@)
	$(CC) $(CFLAGS) -MMD -MP -c $< -o $@

-include $(LIB_OBJS:.o=.d)

clean:
	rm -rf $(BUILDDIR) $(LIBDIR)

# Link app against the shared library:
gcc main.c -Llib -Wl,-rpath,lib -lmyutil -Iinclude -o myapp

# -Wl,-rpath embeds the library search path into the binary for development.
# In production use ldconfig or LD_LIBRARY_PATH.

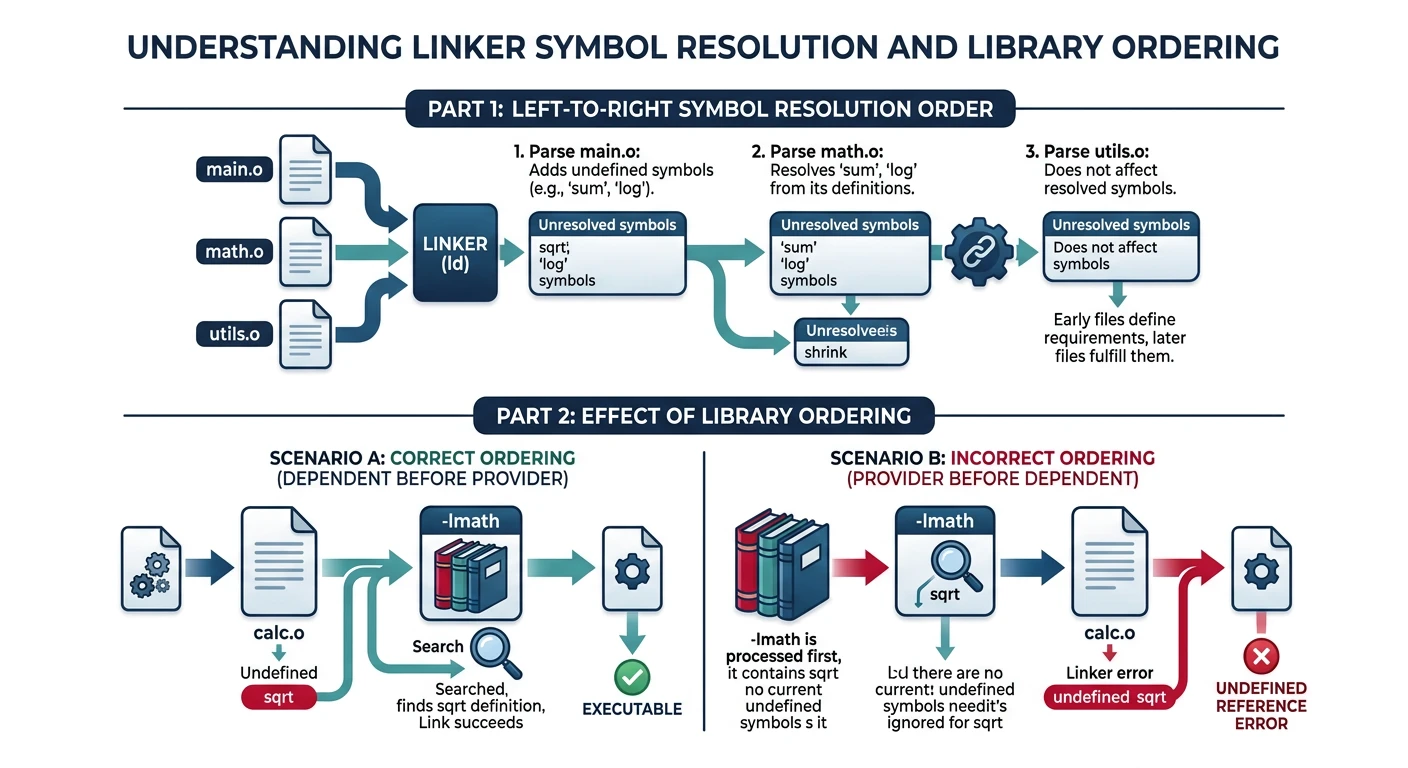

Link Order

# WRONG — libapp.a uses symbols from libcore.a, but libcore.a listed first:
gcc main.c -lcore -lapp -o myapp
# => undefined reference to `app_function`

# CORRECT — list libraries in dependency order (dependers first):
gcc main.c -lapp -lcore -o myapp

# In your Makefile, define LIBS in dependency order:
LIBS := -lapp -lcore -lplatform -lpthread -lm

$(TARGET): $(OBJS)
	$(CC) $(LDFLAGS) -o $@ $^ -L$(LIBDIR) $(LIBS)

For circular dependencies between archives, use the --start-group / --end-group linker options (or the shorthand -( / -)):

# Linker rescans grouped archives until all references are resolved:
gcc main.c -Wl,--start-group -la -lb -lc -Wl,--end-group -o myapp

# Note: this is slower; fix circular deps if possible

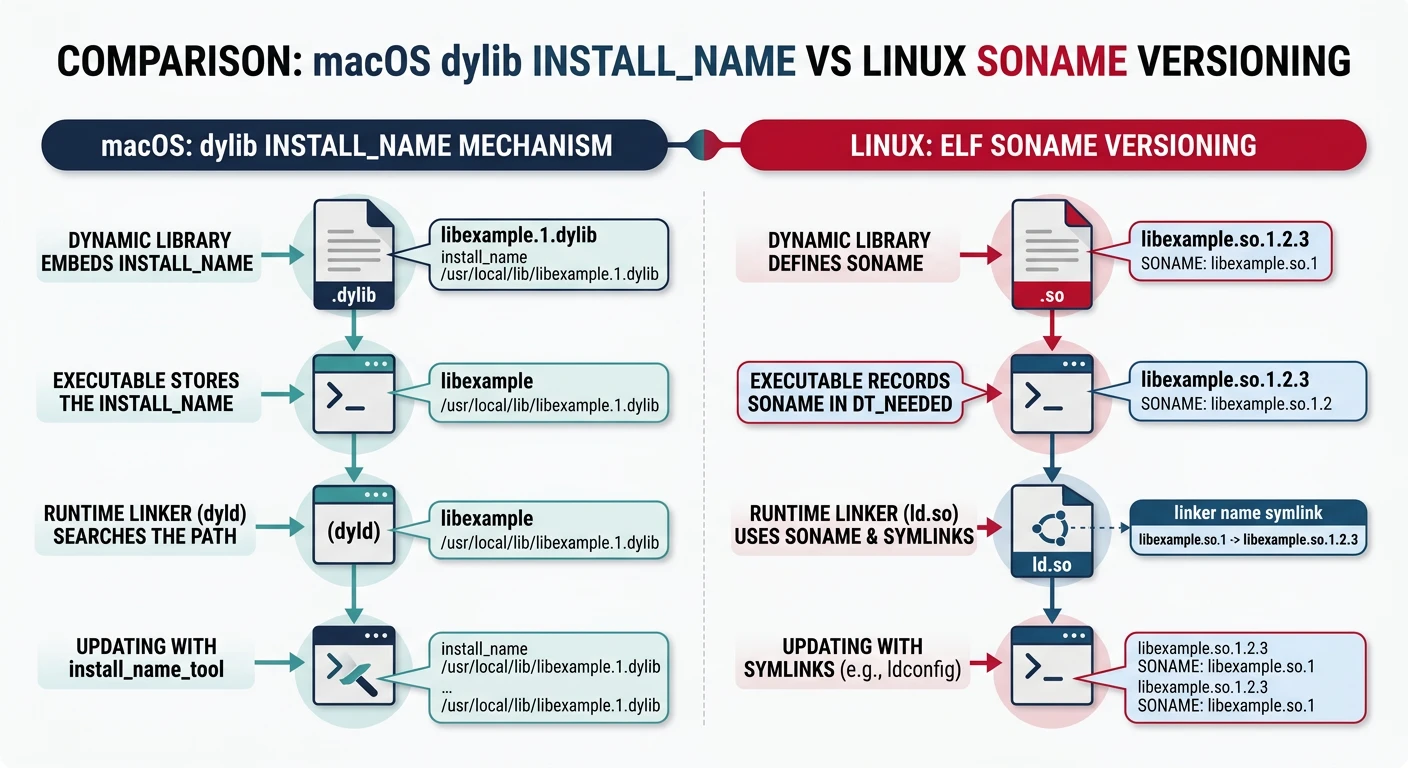

macOS Dylibs

On macOS, shared libraries use the .dylib extension and the install_name mechanism instead of SONAME:

# Build a .dylib on macOS:
clang -dynamiclib \
      -install_name @rpath/libmyutil.dylib \
      -o lib/libmyutil.dylib build/*.o

# Fix or inspect rpath/install_name:
otool -L lib/libmyutil.dylib
install_name_tool -change old_path new_path myapp

# Platform-conditional library extension in Makefile:
UNAME := $(shell uname -s)
ifeq ($(UNAME),Darwin)
    SHARED_EXT := dylib
    SHARED_FLAGS := -dynamiclib -install_name @rpath/lib$(LIBNAME).$(SHARED_EXT)
else
    SHARED_EXT := so
    SHARED_FLAGS := -shared -Wl,-soname,lib$(LIBNAME).$(SHARED_EXT).$(MAJOR)
endif

Complete Example: App + Static + Shared

CC       := gcc
CFLAGS   := -Wall -Wextra -std=c11 -O2
CFLAGS_PIC := $(CFLAGS) -fPIC         # PIC variant for shared library objects
BUILDDIR := build
LIBDIR   := lib

# ── Static library (src/math/*.c → libmath.a) ──
STATIC_SRCS := $(wildcard src/math/*.c)
STATIC_OBJS := $(patsubst src/%.c,$(BUILDDIR)/%.o,$(STATIC_SRCS))
STATIC_LIB  := $(LIBDIR)/libmath.a

# ── Shared library (src/io/*.c → libio.so) ──
SHARED_SRCS := $(wildcard src/io/*.c)
SHARED_OBJS := $(patsubst src/%.c,$(BUILDDIR)/pic/%.o,$(SHARED_SRCS))  # separate dir for PIC
SHARED_LIB  := $(LIBDIR)/libio.so

# ── Application ──
APP_SRCS := main.c
APP_OBJS := $(BUILDDIR)/main.o
TARGET   := myapp

.PHONY: all clean

all: $(TARGET)

# ── Create static library (archive of .o files) ──
$(STATIC_LIB): $(STATIC_OBJS)
	@mkdir -p $(LIBDIR)
	ar rcs $@ $^                      # r=replace, c=create, s=write index

# ── Create shared library (PIC objects linked with -shared) ──
$(SHARED_LIB): $(SHARED_OBJS)
	@mkdir -p $(LIBDIR)
	$(CC) -shared -Wl,-soname,libio.so.1 -o $@ $^   # embed SONAME for ABI versioning

# ── Compile for static lib (no -fPIC needed) ──
$(BUILDDIR)/%.o: src/%.c
	@mkdir -p $(dir $@)
	$(CC) $(CFLAGS) -MMD -MP -c $< -o $@

# ── Compile for shared lib (with -fPIC) ──
$(BUILDDIR)/pic/%.o: src/%.c
	@mkdir -p $(dir $@)
	$(CC) $(CFLAGS_PIC) -MMD -MP -c $< -o $@

# ── Link application against both libraries ──
$(TARGET): $(APP_OBJS) $(STATIC_LIB) $(SHARED_LIB)
	$(CC) $(LDFLAGS) -o $@ $(APP_OBJS) \
	    -L$(LIBDIR) -Wl,-rpath,$(LIBDIR) \           # -rpath embeds lib search path
	    -lio -lmath                                  # order matters: dependers first

-include $(shell find $(BUILDDIR) -name '*.d' 2>/dev/null)   # include all .d files

clean:
	rm -rf $(BUILDDIR) $(LIBDIR) $(TARGET)

# ── Variable Inspector ──────────────────────────────────────
.PHONY: info
info:
	@echo "CC           = $(CC)"
	@echo "CFLAGS       = $(CFLAGS)"
	@echo "CFLAGS_PIC   = $(CFLAGS_PIC)"
	@echo "BUILDDIR     = $(BUILDDIR)"
	@echo "LIBDIR       = $(LIBDIR)"
	@echo "TARGET       = $(TARGET)"
	@echo "STATIC_SRCS  = $(STATIC_SRCS)"
	@echo "STATIC_OBJS  = $(STATIC_OBJS)"
	@echo "STATIC_LIB   = $(STATIC_LIB)"
	@echo "SHARED_SRCS  = $(SHARED_SRCS)"
	@echo "SHARED_OBJS  = $(SHARED_OBJS)"
	@echo "SHARED_LIB   = $(SHARED_LIB)"
	@echo "APP_SRCS     = $(APP_SRCS)"
	@echo "APP_OBJS     = $(APP_OBJS)"

Create Source Files

The Makefile expects src/math/*.c, src/io/*.c, and main.c. Create them so every target resolves:

mkdir -p src/math src/io

cat > src/math/math_ops.h << 'EOF'
#ifndef MATH_OPS_H
#define MATH_OPS_H
int add(int a, int b);
int multiply(int a, int b);
#endif
EOF

cat > src/math/math_ops.c << 'EOF'
#include "math_ops.h"
int add(int a, int b)      { return a + b; }
int multiply(int a, int b) { return a * b; }
EOF

cat > src/io/io_ops.h << 'EOF'
#ifndef IO_OPS_H
#define IO_OPS_H
void io_print(const char *msg);
#endif
EOF

cat > src/io/io_ops.c << 'EOF'
#include "io_ops.h"
#include <stdio.h>
void io_print(const char *msg) { printf("[IO] %s\n", msg); }
EOF

cat > main.c << 'EOF'
#include <stdio.h>
#include "src/math/math_ops.h"
#include "src/io/io_ops.h"

int main(void) {
    printf("3 + 4 = %d\n", add(3, 4));
    io_print("Hello from shared lib!");
    return 0;
}
EOF

Try It

# Inspect all variables
make info

# Build static lib + shared lib + app
make

# Verify the outputs
ls lib/              # libmath.a  libio.so
file myapp           # ELF executable
LD_LIBRARY_PATH=lib ./myapp

# Incremental: touch a math source → only static lib rebuilds
touch src/math/math_ops.c
make

make clean
