Materials Science & Engineering Series Part 14: Computational Materials Science

February 13, 2026 Wasil Zafar 50 min read

Master computational approaches to materials science — density functional theory (DFT), molecular dynamics, Monte Carlo simulations, finite element methods, phase-field modeling, materials informatics, machine learning for materials discovery, and high-throughput computational screening.

Table of Contents

  1. Ab Initio & Quantum Methods
  2. Atomistic Simulations
  3. Continuum & Mesoscale Methods

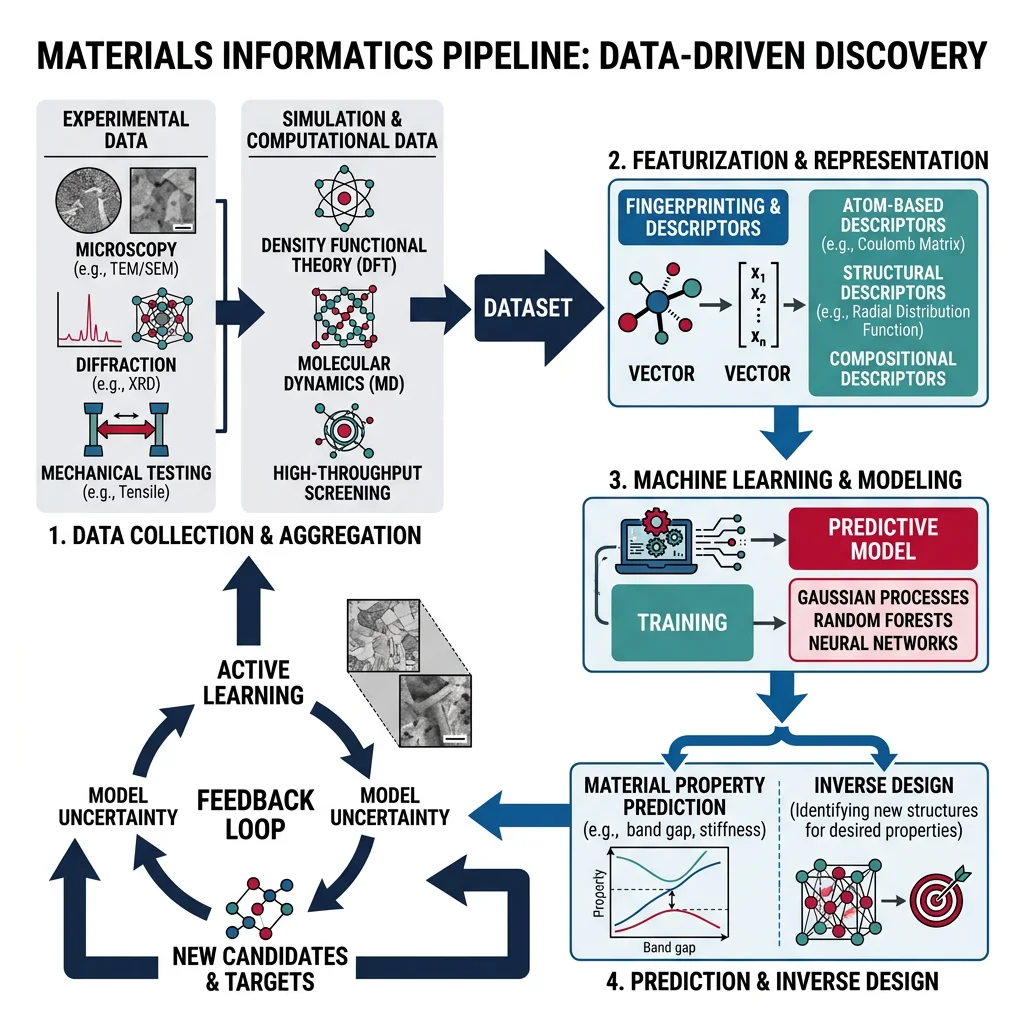

  4. Materials Informatics & AI
  5. Project Planner Tool
  6. Exercises

Ab Initio & Quantum Methods

Series Overview: This is Part 14 — the finale — of our 14-part Materials Science & Engineering Series. Computational materials science bridges theory and experiment, enabling us to predict material properties before ever synthesizing a sample, accelerating discovery from years to days.

At the heart of quantum-mechanical materials modeling lies the Schrödinger equation. For a system of $N$ electrons and $M$ nuclei, the full many-body Schrödinger equation is:

$$\hat{H}\Psi(\mathbf{r}_1, \mathbf{r}_2, \ldots, \mathbf{r}_N) = E\Psi(\mathbf{r}_1, \mathbf{r}_2, \ldots, \mathbf{r}_N)$$

where $\hat{H}$ includes kinetic energy of all electrons, electron-nuclear attraction, electron-electron repulsion, and nuclear-nuclear repulsion. For anything beyond a hydrogen atom, solving this equation exactly is computationally impossible — the wavefunction depends on $3N$ spatial coordinates, making direct computation scale exponentially.

Analogy — Crowd Behavior: Imagine tracking every single person in a crowd of 10,000 people — their position, velocity, who they bump into. Impossible. DFT says: "Forget tracking individuals. Just tell me the density of people at each location, and I can predict the crowd's behavior." Instead of the many-body wavefunction $\Psi(\mathbf{r}_1, \ldots, \mathbf{r}_N)$, DFT works with the electron density $n(\mathbf{r})$ — a function of just 3 variables instead of $3N$.

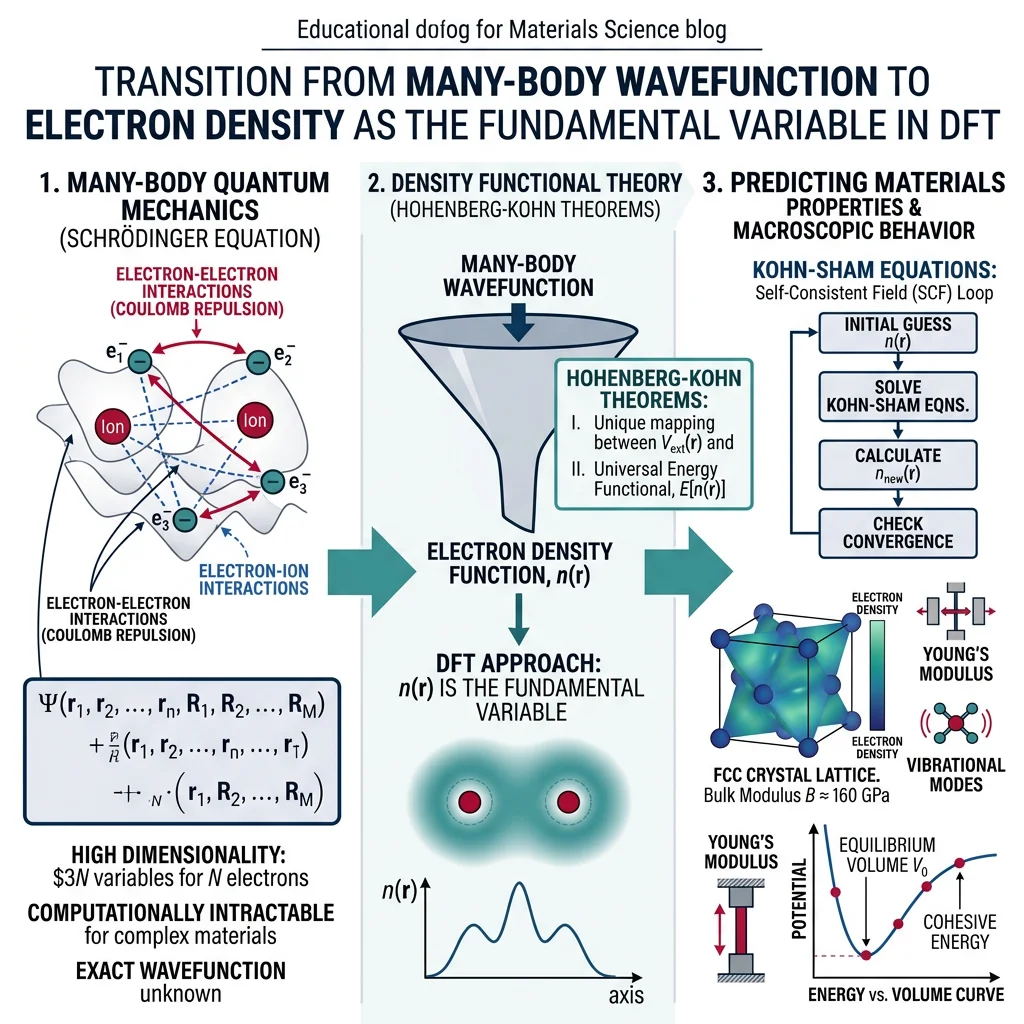

The Hohenberg-Kohn Theorems

DFT rests on two theorems proved by Hohenberg and Kohn in 1964:

  1. First Theorem: The ground-state electron density $n_0(\mathbf{r})$ uniquely determines the external potential $v(\mathbf{r})$ (and hence all ground-state properties). The density contains all the information.
  2. Second Theorem: There exists a universal energy functional $E[n]$ that is minimized by the true ground-state density. You can find the ground state by minimizing this functional.

The Kohn-Sham Equations

Kohn and Sham (1965) made DFT practical by mapping the interacting many-electron problem onto a system of non-interacting electrons moving in an effective potential:

$$\left[-\frac{\hbar^2}{2m}\nabla^2 + v_{\text{eff}}(\mathbf{r})\right]\phi_i(\mathbf{r}) = \epsilon_i \phi_i(\mathbf{r})$$

where $v_{\text{eff}} = v_{\text{ext}} + v_{\text{Hartree}} + v_{\text{xc}}$. The Hartree term captures classical electrostatic repulsion, and $v_{\text{xc}}$ — the exchange-correlation potential — captures everything else. The density is reconstructed from the Kohn-Sham orbitals: $n(\mathbf{r}) = \sum_i |\phi_i(\mathbf{r})|^2$. These equations are solved self-consistently until the density converges.

Exchange-Correlation Functionals

The accuracy of DFT hinges on the approximation chosen for $E_{\text{xc}}[n]$, the exchange-correlation functional. The hierarchy of approximations is often depicted as Jacob's Ladder:

Jacob's Ladder of DFT Functionals

Accuracy Hierarchy Computational Cost ↑
RungFunctional TypeExamplesAccuracy
1LDA — Local Density ApproximationVWN, PZOverbinds; decent for metals
2GGA — Generalized Gradient Approx.PBE, BLYP, PW91Good for solids & molecules
3meta-GGASCAN, TPSS, r2SCANBetter thermochemistry
4Hybrid — Exact exchange mixed inHSE06, PBE0, B3LYPBest for band gaps, barriers
5Double-hybrid / RPARPA, B2PLYPNear chemical accuracy

Rule of thumb Use PBE for metals and bulk solids, HSE06 when accurate band gaps matter (semiconductors, insulators), and r2SCAN when balanced accuracy across diverse chemistry is needed.

Pseudopotentials and Basis Sets

Core electrons are nearly inert in chemical bonding. Pseudopotentials (or PAW — Projector Augmented Wave) replace the deep nuclear potential and core electrons with a smooth effective potential, dramatically reducing the number of electrons that must be treated explicitly.

The Kohn-Sham orbitals must be expanded in some basis set:

  • Plane waves: Naturally periodic, systematic convergence controlled by an energy cutoff. Ideal for crystals. Used by VASP, Quantum ESPRESSO.
  • Localized basis sets: Gaussian-type orbitals (GTOs) or numerical atomic orbitals (NAOs). More efficient for molecules and large systems. Used by Gaussian, FHI-aims, SIESTA.
  • Real-space grids: Discretize space directly. Used by GPAW (finite-difference mode), Octopus.

DFT Codes (VASP, QE, GPAW)

Major DFT Software Packages

Software Comparison
CodeBasisLicenseStrengths
VASPPlane wave / PAWCommercialMost widely used for solids; excellent documentation; robust parallelization
Quantum ESPRESSOPlane wave / PAWOpen source (GPL)Free; strong community; phonons (DFPT); electron-phonon coupling
GPAWPAW / real-space / LCAOOpen source (GPL)Python-based (ASE integration); flexible; TDDFT support
GaussianGTOsCommercialGold standard for molecules; vast functional library; coupled-cluster
FHI-aimsNumeric atom-centeredAcademic licenseAll-electron; excellent for surfaces and hybrid functionals
CP2KMixed Gaussian / PWOpen sourceLarge-scale DFT-MD; linear scaling methods

DFT Applications in Materials Science

DFT is the computational workhorse of modern materials science, enabling prediction of:

  • Band structures — electronic band dispersion along high-symmetry paths in the Brillouin zone, revealing metallic vs. semiconducting behavior
  • Formation energies — thermodynamic stability of compounds, alloys, and defects (vacancies, interstitials, dopants)
  • Surface adsorption — binding energies and geometries of molecules on catalyst surfaces, critical for heterogeneous catalysis design
  • Elastic constants — full elastic tensor from stress-strain calculations
  • Phonon spectra — lattice dynamics via density functional perturbation theory (DFPT)
Python Example: Model Electronic Density of States
import numpy as np
import matplotlib.pyplot as plt

# Model a density of states (DOS) for a semiconductor
# Valence band: Gaussian centered at -2 eV
# Conduction band: Gaussian centered at +1.5 eV
# Band gap ~1.1 eV (similar to silicon)

energy = np.linspace(-6, 6, 500)  # eV

# Valence band DOS (parabolic-like, modeled as sum of Gaussians)
valence = 1.8 * np.exp(-((energy + 2.0)**2) / (2 * 0.8**2)) + \
          0.9 * np.exp(-((energy + 3.5)**2) / (2 * 0.5**2))

# Conduction band DOS
conduction = 1.5 * np.exp(-((energy - 1.5)**2) / (2 * 0.7**2)) + \
             0.7 * np.exp(-((energy - 3.0)**2) / (2 * 0.6**2))

# Total DOS — zero in the gap region
dos = valence + conduction

# Fermi energy at mid-gap
E_fermi = -0.25

fig, ax = plt.subplots(figsize=(8, 5))
ax.fill_between(energy, dos, where=(energy <= E_fermi), alpha=0.4,
                color='steelblue', label='Occupied states')
ax.fill_between(energy, dos, where=(energy > E_fermi), alpha=0.4,
                color='coral', label='Unoccupied states')
ax.plot(energy, dos, 'k-', linewidth=1.2)
ax.axvline(E_fermi, color='red', linestyle='--', label=f'$E_F$ = {E_fermi} eV')
ax.axvspan(-0.5, 0.6, alpha=0.1, color='yellow', label='Band gap (~1.1 eV)')
ax.set_xlabel('Energy (eV)', fontsize=12)
ax.set_ylabel('Density of States (arb. units)', fontsize=12)
ax.set_title('Model Electronic Density of States — Semiconductor', fontsize=13)
ax.legend(fontsize=10)
ax.set_xlim(-6, 6)
ax.set_ylim(0, None)
plt.tight_layout()
plt.show()

Case Study: DFT Prediction of Battery Cathode Materials

Materials Project Energy Storage

The Materials Project used high-throughput DFT (GGA+U with PBE functional and Hubbard U correction for transition metals) to screen thousands of potential lithium-ion battery cathode chemistries. Key workflow:

  1. Structure generation: Enumerate all ordered LixMO2 configurations (M = Mn, Co, Ni, Fe, V) using enumeration algorithms
  2. DFT calculations: Relax structures and compute total energies using VASP with PAW pseudopotentials and a 520 eV plane-wave cutoff
  3. Voltage prediction: Average intercalation voltage $V = -\Delta G / (n_e \cdot F) \approx -\Delta E_{\text{DFT}} / (n_e \cdot F)$
  4. Stability analysis: Construct convex hulls to assess thermodynamic stability against decomposition

Result: DFT-predicted voltages for LiCoO2 (~3.9 V), LiFePO4 (~3.4 V), and LiMn2O4 (~4.1 V) matched experimental values within 0.1–0.2 V. The approach identified novel disordered rocksalt cathodes (Li1.2Mn0.4Ti0.4O2) that were subsequently synthesized and validated, demonstrating DFT as a predictive screening tool for energy materials.

DFT+U High-Throughput Li-ion

Atomistic Simulations

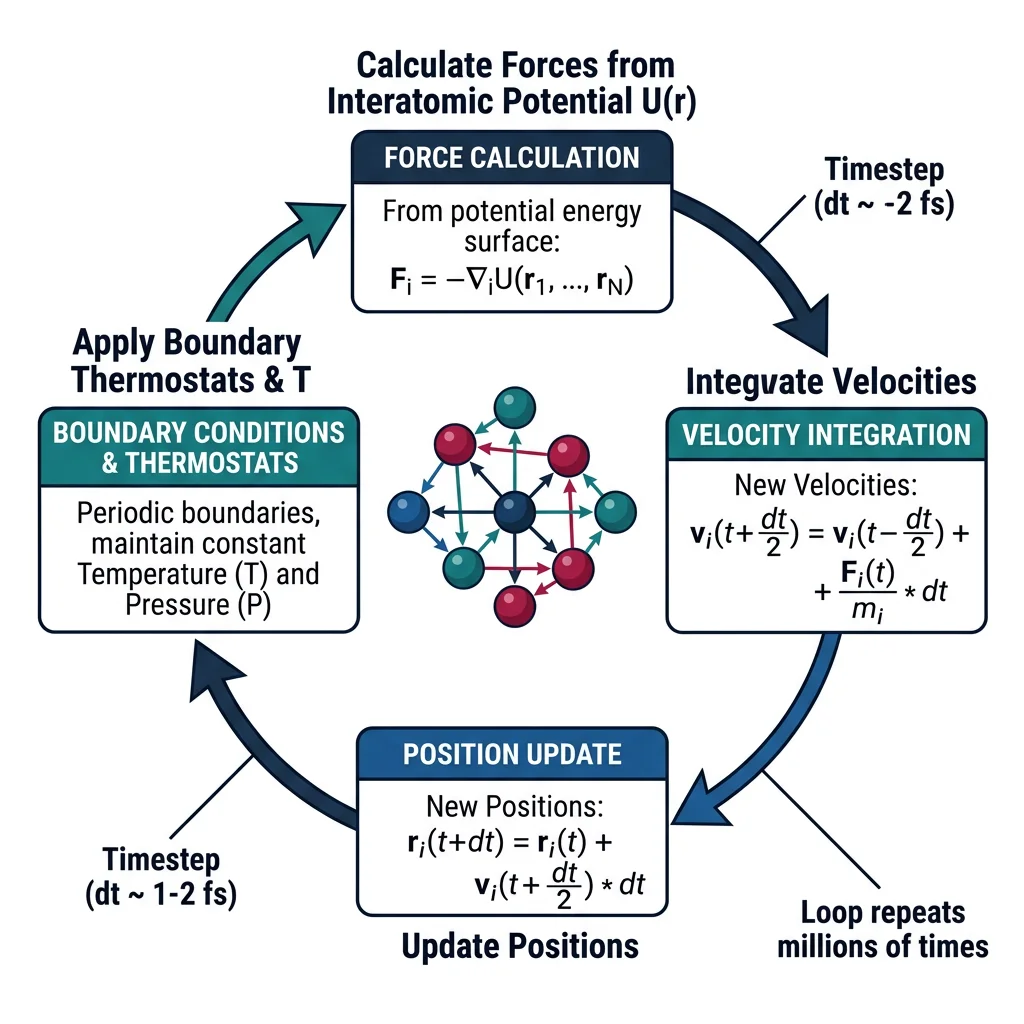

Classical Molecular Dynamics (MD) simulates the time evolution of atomic systems by numerically integrating Newton's equations of motion: $m_i \ddot{\mathbf{r}}_i = \mathbf{F}_i = -\nabla_i U(\mathbf{r}_1, \ldots, \mathbf{r}_N)$, where $U$ is the interatomic potential energy. At each timestep (typically 1–2 femtoseconds), forces on all atoms are computed from the potential, positions and velocities are updated, and the process repeats for millions of steps.

Analogy — Billions of Billiard Balls: Imagine applying Newton's laws to millions of billiard balls simultaneously — each ball interacts with its neighbors through springs and magnets (the force field). At each tick of a very fast clock, you calculate how far each ball moves. After billions of ticks, you can observe phase transitions, diffusion, and fracture — phenomena that emerge from individual atomic interactions but could never be predicted by tracking a single atom.

Statistical Ensembles

MD simulations can run under different thermodynamic constraints (ensembles):

  • NVE (Microcanonical): Fixed number of particles, volume, and total energy. True Newtonian dynamics; useful for verifying energy conservation.
  • NVT (Canonical): Fixed N, V, temperature. A thermostat (Nosé-Hoover, Langevin, Berendsen) controls temperature. Most common for equilibrium properties.
  • NPT (Isothermal-Isobaric): Fixed N, pressure, temperature. A barostat adjusts the simulation cell volume. Essential for computing thermal expansion, density, and phase transitions at constant pressure.

Interatomic Potentials & MLIPs

The accuracy and speed of MD are determined entirely by the choice of interatomic potential — the function $U(\mathbf{r}_1, \ldots, \mathbf{r}_N)$ that approximates the potential energy surface:

Interatomic Potential Landscape

Force Fields ML Potentials
PotentialFormBest ForAtoms/Speed
Lennard-Jones$U = 4\varepsilon[(\sigma/r)^{12} - (\sigma/r)^6]$Noble gases, toy models106+ / Very fast
EAMPair + embedding function of electron densityFCC metals (Al, Cu, Ni, Au)106 / Fast
Tersoff/REBOBond-order + angular termsSi, C, SiC, graphene105 / Moderate
ReaxFFReactive bond-order with charge equilibrationCombustion, oxidation, polymers104 / Slow
GAP / ACEGaussian process / polynomial body-orderNear-DFT accuracy, any system104–105 / Moderate
MACE / NequIPEquivariant graph neural networksUniversal, multi-element systems104–105 / Moderate

Key trend Machine-learned interatomic potentials (MLIPs) — trained on DFT data — are rapidly replacing classical force fields, offering near-DFT accuracy at a fraction of the cost. Foundation models like MACE-MP-0 provide "universal" potentials trained across the periodic table.

Key MD Applications

  • Diffusion coefficients: Track mean-square displacement $\langle |\mathbf{r}(t) - \mathbf{r}(0)|^2 \rangle = 6Dt$ to extract diffusivity
  • Phase transitions: Observe melting, solidification, martensitic transformations by ramping temperature or pressure
  • Dislocation dynamics: Study dislocation nucleation, glide, and interaction with obstacles (precipitates, grain boundaries)
  • Thermal conductivity: Non-equilibrium MD (Müller-Plathe) or Green-Kubo formalism from heat flux autocorrelation

Monte Carlo Methods

Unlike MD, which follows deterministic trajectories, Monte Carlo (MC) methods sample configurations stochastically, using random trial moves accepted or rejected according to the Metropolis criterion:

$$P_{\text{accept}} = \min\left(1,\; e^{-\Delta E / k_B T}\right)$$

If a trial move lowers energy, it is always accepted. If it raises energy by $\Delta E$, it is accepted with probability $e^{-\Delta E / k_B T}$. Over thousands of moves, the system samples the Boltzmann distribution. Kinetic Monte Carlo (KMC) extends this to study rare events (diffusion hops, surface growth) by assigning rates to each possible transition and advancing time proportionally.

MC vs. MD: MD gives real-time dynamics but requires small timesteps; MC efficiently samples equilibrium thermodynamics (phase stability, order-disorder transitions) without time evolution. For alloy phase diagrams, MC on a lattice model with cluster expansion energetics is 1,000× faster than MD.
Python Example: Simple 2D Lennard-Jones MD Simulation
import numpy as np
import matplotlib.pyplot as plt

# --- Simple 2D Lennard-Jones Molecular Dynamics ---
np.random.seed(42)

# Parameters
N = 36               # Number of particles
L = 10.0             # Box size
dt = 0.005           # Timestep (reduced units)
nsteps = 800         # Number of MD steps
epsilon = 1.0        # LJ energy parameter
sigma = 1.0          # LJ length parameter
rc = 2.5 * sigma     # Cutoff radius

# Initialize positions on a grid
side = int(np.ceil(np.sqrt(N)))
positions = np.array([[i, j] for i in range(side) for j in range(side)][:N],
                      dtype=float)
positions = positions * (L / side) + 0.5

# Random initial velocities (zero net momentum)
velocities = np.random.randn(N, 2) * 0.5
velocities -= velocities.mean(axis=0)

def compute_forces(pos, L, eps, sig, rc):
    """Compute LJ forces with periodic boundary conditions."""
    forces = np.zeros_like(pos)
    pe = 0.0
    for i in range(len(pos)):
        for j in range(i + 1, len(pos)):
            dr = pos[j] - pos[i]
            dr -= L * np.round(dr / L)       # Minimum image convention
            r2 = np.dot(dr, dr)
            if r2 < rc**2 and r2 > 0.01:
                r6 = (sig**2 / r2)**3
                f_mag = 24 * eps * (2 * r6**2 - r6) / r2
                forces[i] -= f_mag * dr
                forces[j] += f_mag * dr
                pe += 4 * eps * (r6**2 - r6)
    return forces, pe

# Velocity Verlet integration
ke_list, pe_list = [], []
forces, pe = compute_forces(positions, L, epsilon, sigma, rc)

for step in range(nsteps):
    # Half-step velocity
    velocities += 0.5 * dt * forces
    # Full-step position with periodic wrapping
    positions += dt * velocities
    positions %= L
    # Recompute forces
    forces, pe = compute_forces(positions, L, epsilon, sigma, rc)
    # Half-step velocity
    velocities += 0.5 * dt * forces
    # Record energies
    ke = 0.5 * np.sum(velocities**2)
    ke_list.append(ke)
    pe_list.append(pe)

# Plot energy conservation
fig, axes = plt.subplots(1, 2, figsize=(12, 4))

total_e = np.array(ke_list) + np.array(pe_list)
axes[0].plot(ke_list, label='Kinetic', alpha=0.8)
axes[0].plot(pe_list, label='Potential', alpha=0.8)
axes[0].plot(total_e, label='Total', linewidth=2, color='black')
axes[0].set_xlabel('Step')
axes[0].set_ylabel('Energy (reduced units)')
axes[0].set_title('Energy Conservation in NVE MD')
axes[0].legend()

# Final configuration
axes[1].scatter(positions[:, 0], positions[:, 1], s=80, c='steelblue',
                edgecolors='navy', alpha=0.8)
axes[1].set_xlim(0, L)
axes[1].set_ylim(0, L)
axes[1].set_aspect('equal')
axes[1].set_title(f'Final Configuration ({N} LJ particles)')
axes[1].set_xlabel('x')
axes[1].set_ylabel('y')

plt.tight_layout()
plt.show()
print(f"Energy drift: {abs(total_e[-1] - total_e[0]):.4f} (reduced units)")

Case Study: MD Simulation of Crack Propagation in Metals

Fracture Mechanics LAMMPS

Researchers at Sandia National Laboratories used large-scale MD with EAM potentials in LAMMPS to study crack-tip behavior in single-crystal copper:

  1. Setup: 10-million-atom copper single crystal with a pre-crack along the (111) plane. EAM potential by Mishin et al. (2001). NPT ensemble at 300 K.
  2. Loading: Mode I tensile loading applied by displacing boundary atoms at a constant strain rate of 108 s-1.
  3. Observation: At the critical stress intensity $K_{Ic}$, the crack tip emitted partial dislocations on {111} slip planes at 45° to the crack front — blunting the crack instead of brittle cleavage.
  4. Insight: The competition between dislocation emission (ductile) and bond breaking (brittle) at the crack tip depends on the ratio of surface energy $\gamma_s$ to unstable stacking fault energy $\gamma_{\text{usf}}$ — Rice's criterion confirmed atomistically.

Impact: MD revealed that the crack propagation speed in FCC metals is limited to ~60% of the Rayleigh wave speed due to lattice trapping effects — something continuum fracture mechanics could not predict.

EAM LAMMPS Fracture

Continuum & Mesoscale Methods

While atomistic simulations resolve individual atoms, engineering components operate at the millimeter-to-meter scale. The Finite Element Method (FEM) bridges this gap by solving continuum partial differential equations (equilibrium, heat conduction, fluid flow) on discretized domains.

Analogy — LEGO Bridge: Imagine you need to find the stress distribution in a complex bridge structure. FEM says: "Divide the bridge into thousands of tiny LEGO bricks (elements), write force-balance equations for each brick, connect the equations at shared corners (nodes), and solve the giant system of equations simultaneously." Each element is simple enough to solve analytically; assembling them captures the full complexity.

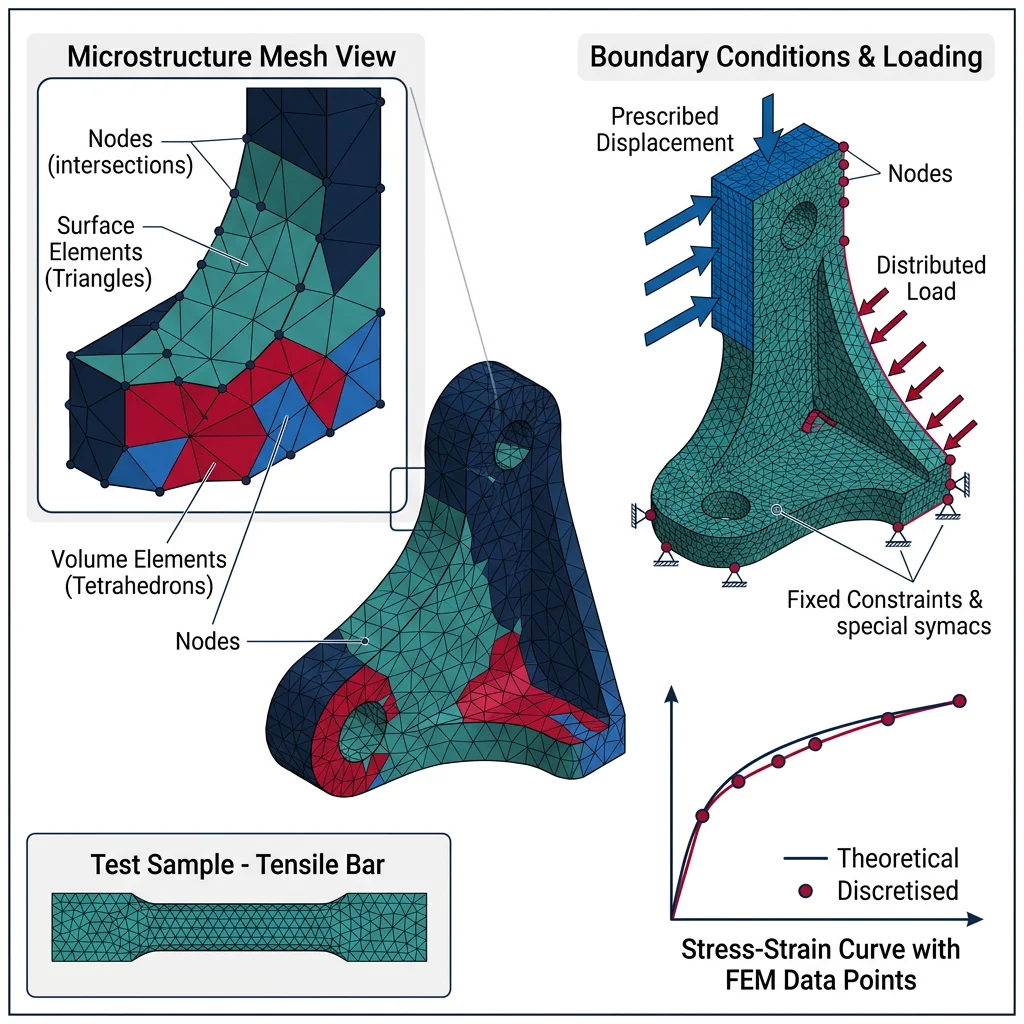

FEM Fundamentals

The FEM workflow consists of three stages:

  1. Pre-processing: Create geometry → generate mesh (triangles/tetrahedra for complex shapes, hexahedra for higher accuracy) → define material properties → apply boundary conditions (loads, constraints, temperatures)
  2. Solution: Assemble the global stiffness matrix $[K]\{u\} = \{F\}$ → solve for nodal displacements $\{u\}$ → compute strains $\{\varepsilon\} = [B]\{u\}$ → compute stresses $\{\sigma\} = [D]\{\varepsilon\}$
  3. Post-processing: Visualize stress contours, deformation, safety factors; verify convergence with mesh refinement

Linear vs. Nonlinear FEM

  • Linear FEM: Small deformations, linear elastic material, fixed boundary conditions. Single matrix solve. Fast and reliable for most structural analysis.
  • Nonlinear FEM: Required for large deformations (rubber, crash simulation), plastic yielding (metal forming), contact (gear meshing), and material failure. Solved iteratively (Newton-Raphson). Much more computationally expensive.

FEM Applications in Materials Science

  • Stress analysis: Predict failure locations in components under complex loading (thermal + mechanical + residual stresses)
  • Thermal modeling: Simulate heat treatment (quenching, tempering), welding thermal cycles, and additive manufacturing temperature fields
  • Manufacturing simulation: Sheet metal forming, forging, casting solidification, injection molding — predict defects before production
  • Composites: Micromechanical models of fiber-matrix interactions; progressive damage in laminated composites

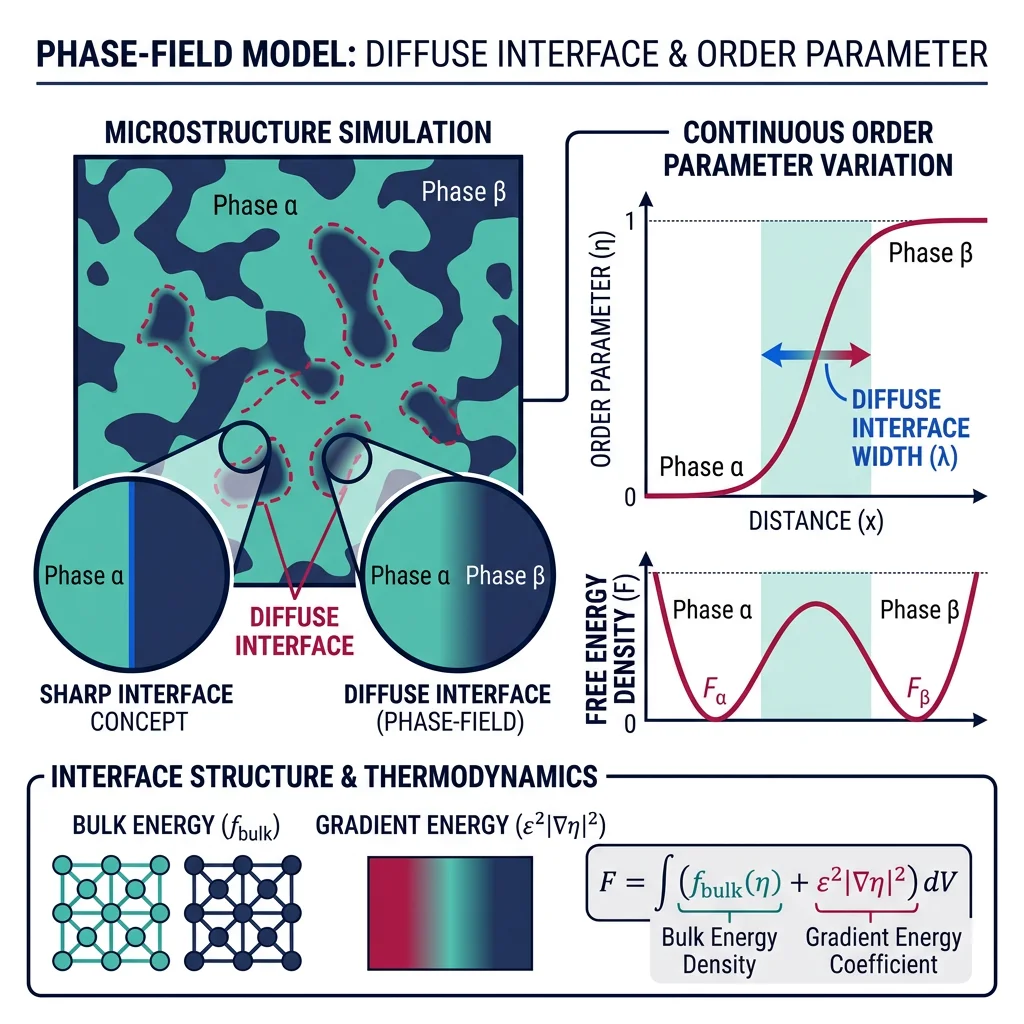

Phase-Field Modeling

Phase-field models describe microstructure evolution by introducing continuous order parameters $\phi(\mathbf{r}, t)$ that vary smoothly across interfaces — avoiding the need to explicitly track sharp boundaries. The evolution follows the Allen-Cahn (non-conserved) or Cahn-Hilliard (conserved) equations:

$$\frac{\partial \phi}{\partial t} = -L \frac{\delta F}{\delta \phi} \quad \text{(Allen-Cahn)} \qquad \frac{\partial c}{\partial t} = \nabla \cdot \left(M \nabla \frac{\delta F}{\delta c}\right) \quad \text{(Cahn-Hilliard)}$$

Applications include grain growth, solidification dendrite formation, spinodal decomposition, martensitic transformations, and crack propagation. Phase-field is the dominant method for simulating microstructure evolution at the mesoscale (microns to millimeters).

Multiscale Modeling

The Multiscale Challenge: No single simulation method covers all length and time scales relevant to materials engineering. The solution is multiscale modeling — linking methods hierarchically: DFT (Ã…, fs)MD (nm, ns)Phase-field / DD (μm, μs)FEM (mm–m, s–hours). Information flows upward: DFT provides elastic constants and stacking fault energies → MD calibrates dislocation mobility laws → these feed into crystal plasticity FEM models of polycrystalline deformation.

FEM/Continuum Software Comparison

Software
SoftwareLicenseStrengthsTypical Use
ABAQUSCommercial (Dassault)Gold standard for nonlinear mechanics; user subroutines (UMAT)Structural, crash, forming
ANSYSCommercialBroad multiphysics; excellent meshing; Fluent for CFDMultiphysics, thermal, fluid
COMSOLCommercialEquation-based modeling; easy PDE coupling; GUI-friendlyResearch, electromagnetics
FEniCS / FEniCSxOpen sourcePython API; variational formulation; research-grade flexibilityCustom PDE research
Moose FrameworkOpen source (INL)Multiphysics + phase-field; nuclear applicationsPhase-field, nuclear
CalculiXOpen source (GPL)ABAQUS-compatible input; free alternativeStructural analysis
Python Example: 1D FEM Bar Element Stress Calculation
import numpy as np
import matplotlib.pyplot as plt

# --- 1D FEM: Three-element bar under axial load ---
# Bar: 3 elements, 4 nodes
# Fixed at node 0, force F applied at node 3

# Material and geometry
E = 200e9       # Young's modulus (Pa) — steel
A = 0.001       # Cross-sectional area (m^2)
L_elem = 0.5    # Element length (m)
n_elem = 3      # Number of elements
n_nodes = n_elem + 1
F_applied = 50000  # Applied force at rightmost node (N)

# Element stiffness matrix for a 1D bar element:
# k_e = (EA/L) * [[1, -1], [-1, 1]]

# Assemble global stiffness matrix
K_global = np.zeros((n_nodes, n_nodes))
for e in range(n_elem):
    k_e = (E * A / L_elem) * np.array([[1, -1], [-1, 1]])
    K_global[e:e+2, e:e+2] += k_e

print("Global Stiffness Matrix (N/m):")
print(K_global / 1e9, "× 10^9")

# Apply boundary conditions: node 0 is fixed (u_0 = 0)
# Remove row/col 0 → solve reduced system
K_reduced = K_global[1:, 1:]
F_vector = np.zeros(n_nodes - 1)
F_vector[-1] = F_applied  # Force at last free node

# Solve for displacements
u_free = np.linalg.solve(K_reduced, F_vector)
u = np.concatenate([[0.0], u_free])  # Include fixed node

# Compute element stresses: sigma = E * strain = E * (u_{i+1} - u_i) / L
stresses = np.array([E * (u[i+1] - u[i]) / L_elem for i in range(n_elem)])

print(f"\nNodal Displacements (mm): {u * 1000}")
print(f"Element Stresses (MPa):  {stresses / 1e6}")
print(f"Analytical stress (F/A):  {F_applied / A / 1e6:.1f} MPa")

# Visualization
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 4))

nodes_x = np.linspace(0, n_elem * L_elem, n_nodes)
ax1.plot(nodes_x, u * 1000, 'bo-', markersize=8, linewidth=2)
ax1.set_xlabel('Position along bar (m)')
ax1.set_ylabel('Displacement (mm)')
ax1.set_title('Nodal Displacements')
ax1.grid(True, alpha=0.3)

elem_centers = [(nodes_x[i] + nodes_x[i+1]) / 2 for i in range(n_elem)]
ax2.bar(elem_centers, stresses / 1e6, width=0.3, color='coral',
        edgecolor='darkred')
ax2.axhline(F_applied / A / 1e6, color='green', linestyle='--',
            label='Analytical (F/A)')
ax2.set_xlabel('Position along bar (m)')
ax2.set_ylabel('Stress (MPa)')
ax2.set_title('Element Stresses')
ax2.legend()
ax2.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

Materials Informatics & AI

The Materials Genome Initiative (MGI), launched in 2011, catalyzed a paradigm shift: treat materials data as a strategic resource. Materials informatics applies data science — databases, descriptors, machine learning, and active learning — to accelerate discovery and design.

Materials Databases

Major Materials Databases

Open Data FAIR Principles
DatabaseData SourceEntriesSpecialization
Materials ProjectDFT (VASP/GGA+U)150,000+ materialsCrystal structures, band gaps, elastic properties, phase stability
AFLOWDFT (VASP)3.5M+ entriesAlloys, thermodynamic properties, symmetry analysis
OQMDDFT (VASP/PAW)1M+ entriesFormation energies, thermodynamic stability
ICSDExperimental XRD280,000+ structuresExperimentally determined crystal structures
NOMADDFT (all codes)12M+ calculationsRaw computation data; code-agnostic repository
CitrinationLiterature + DFTVariedPolymer and materials properties; NLP-extracted data

Descriptors and Featurization

Machine learning models cannot directly ingest a crystal structure or chemical formula. Featurization converts materials into numerical vectors:

  • Composition-based: Elemental statistics — mean/std of electronegativity, atomic radius, ionization energy, valence electrons. Libraries: matminer, CBFV.
  • Structure-based: Radial distribution functions, Voronoi tessellation features, Coulomb matrices, smooth overlap of atomic positions (SOAP). Libraries: matminer, DScribe.
  • Graph-based: Atoms as nodes, bonds as edges; fed into graph neural networks (GNNs). Libraries: MEGNet, CGCNN, M3GNet.
FAIR Data Principles: For materials data to be truly useful, it must be Findable Accessible Interoperable Reusable. This means persistent identifiers (DOIs), standardized metadata schemas, open APIs, and machine-readable formats. The NOMAD repository and Materials Project API exemplify FAIR practices.

ML for Materials Discovery

Machine learning models trained on DFT or experimental data can predict material properties in milliseconds — enabling screening of millions of candidate materials:

  • Random Forests / Gradient Boosting: Robust baseline models for tabular composition features. Interpretable via feature importance.
  • Gaussian Process Regression (GPR): Provides uncertainty estimates alongside predictions — ideal for active learning loops where you want to know what to compute next.
  • Graph Neural Networks (GNNs): CGCNN, MEGNet, M3GNet learn directly from crystal structure graphs. State-of-the-art accuracy for formation energy, band gap, and bulk modulus prediction.
  • Generative models: VAEs, GANs, and diffusion models trained on crystal structures can propose entirely new compositions and structures not in any existing database. CDVAE (Crystal Diffusion VAE) generates stable crystal structures with desired properties.

Active Learning and Bayesian Optimization

Active learning iteratively selects the most informative candidates for expensive DFT calculations, guided by model uncertainty. A typical loop:

  1. Train a surrogate model (GPR or ensemble) on available DFT data
  2. Score all uncomputed candidates by an acquisition function (expected improvement, upper confidence bound, or probability of improvement)
  3. Run DFT on the top-ranked candidates
  4. Add results to the training set and retrain — repeat until convergence or budget exhausted

This Bayesian optimization approach can find optimal materials in 10–50 iterations instead of brute-force screening of 100,000+ candidates.

High-Throughput Screening

High-throughput computational screening (HTCS) combines automated DFT workflows, materials databases, and filtering criteria to systematically search chemical space. A typical HTCS pipeline:

  1. Candidate generation: Enumerate compositions/structures from substitution rules or prototype databases
  2. Tier-1 filter: Composition-based ML screening — discard thermodynamically unstable candidates (energy above hull > 50 meV/atom)
  3. Tier-2 filter: DFT relaxation and property calculation on survivors
  4. Tier-3 filter: Detailed calculations (phonon stability, surface energies, defect formation) on top candidates
  5. Experimental validation: Synthesize and characterize the final shortlist
Python Example: Predict Material Property from Composition
import numpy as np
from sklearn.ensemble import RandomForestRegressor
from sklearn.model_selection import cross_val_score
import matplotlib.pyplot as plt

# --- Predict band gap from composition-based features ---
# Simplified: features = [electronegativity_mean, atomic_radius_mean,
#                         valence_electrons_mean, atomic_mass_mean]
# Each row represents a different material compound

np.random.seed(42)
n_materials = 200

# Generate synthetic composition features (mimicking real elemental statistics)
electroneg_mean = np.random.uniform(1.0, 3.5, n_materials)
atomic_radius_mean = np.random.uniform(0.5, 2.5, n_materials)
valence_mean = np.random.uniform(1, 8, n_materials)
mass_mean = np.random.uniform(10, 200, n_materials)

X = np.column_stack([electroneg_mean, atomic_radius_mean,
                     valence_mean, mass_mean])

# Synthetic band gap (eV): higher electronegativity diff → larger gap
# Plus some nonlinear effects and noise
band_gap = (0.8 * electroneg_mean**1.5
            - 0.3 * valence_mean
            + 0.1 * atomic_radius_mean
            + np.random.normal(0, 0.3, n_materials))
band_gap = np.clip(band_gap, 0, 8)  # Physical constraint: >= 0

# Train Random Forest
rf = RandomForestRegressor(n_estimators=100, max_depth=10, random_state=42)
scores = cross_val_score(rf, X, band_gap, cv=5, scoring='r2')
print(f"5-Fold CV R² scores: {scores.round(3)}")
print(f"Mean R²: {scores.mean():.3f} ± {scores.std():.3f}")

# Fit on all data for feature importance
rf.fit(X, band_gap)
feature_names = ['Electronegativity', 'Atomic Radius',
                 'Valence Electrons', 'Atomic Mass']
importances = rf.feature_importances_

fig, axes = plt.subplots(1, 2, figsize=(12, 4))

# Feature importance plot
axes[0].barh(feature_names, importances, color='steelblue', edgecolor='navy')
axes[0].set_xlabel('Importance')
axes[0].set_title('Random Forest Feature Importances')

# Predicted vs actual
y_pred = rf.predict(X)
axes[1].scatter(band_gap, y_pred, alpha=0.5, s=20, c='coral')
axes[1].plot([0, 8], [0, 8], 'k--', label='Perfect prediction')
axes[1].set_xlabel('Actual Band Gap (eV)')
axes[1].set_ylabel('Predicted Band Gap (eV)')
axes[1].set_title(f'Predicted vs Actual (R² = {scores.mean():.3f})')
axes[1].legend()

plt.tight_layout()
plt.show()

Case Study: AI Discovery of Novel Thermoelectric Materials

Active Learning Bayesian Optimization

A 2023 study at MIT used Bayesian optimization with a CGCNN surrogate model to discover new high-performance thermoelectric materials — compounds that convert waste heat to electricity:

  1. Objective: Maximize the thermoelectric figure of merit $zT = S^2 \sigma T / \kappa$, where $S$ is Seebeck coefficient, $\sigma$ is electrical conductivity, $\kappa$ is thermal conductivity
  2. Initial data: 1,200 known thermoelectrics from the Starrydata database, featurized with matminer composition features
  3. Surrogate model: CGCNN trained on DFT band structures + Boltzmann transport calculations (BoltzTraP2) to predict $zT$ from crystal structure
  4. Active learning: Expected Improvement acquisition function selected 45 candidates over 6 iterations (out of 50,000 screened)

Result: Identified Ba2BiAu — a full-Heusler compound with predicted $zT > 2.0$ at 600 K. DFT confirmed ultralow lattice thermal conductivity from rattling Ba atoms and favorable band convergence. The material was subsequently synthesized with measured $zT = 1.8$ at 600 K, validating the AI-guided approach.

CGCNN Thermoelectrics Bayesian Optimization

Computational Materials Science Project Planner

Use this interactive tool to plan your computational materials science project. Fill in the fields and download as Word, Excel, or PDF.

Project Planner

Plan your simulation project — capture method, material system, resources, and deliverables. Download as Word, Excel, or PDF.

Draft auto-saved

All data stays in your browser. Nothing is sent to or stored on any server.

Exercises

Practice Problems

Computational Thinking Self-Assessment
  1. DFT Functional Selection: You need to calculate the band gap of GaN (experimental: 3.4 eV). PBE predicts 1.7 eV. (a) Explain why GGA underestimates the band gap. (b) Which functional from Jacob's Ladder would you choose for a more accurate result, and why? (c) What trade-off in computational cost do you accept?
  2. MD Ensemble Design: You want to simulate the thermal expansion coefficient of aluminum from 300 K to 900 K. (a) Which ensemble (NVE, NVT, NPT) should you use and why? (b) Estimate the minimum system size (number of atoms) to avoid finite-size effects. (c) How would you verify your simulation is equilibrated before collecting data?
  3. Machine-Learned Potential Validation: You have trained a GAP potential for silicon using 5,000 DFT configurations. Describe three validation tests you would perform before using this potential for production MD simulations of crack propagation. Include at least one test that checks transferability to conditions not in the training set.
  4. FEM Mesh Convergence: You are performing FEM stress analysis on a notched tensile specimen. Your first mesh gives a peak stress of 450 MPa at the notch root. After refining the mesh by 2×, the peak stress increases to 520 MPa. (a) Is your solution converged? (b) What is the expected behavior of the stress concentration factor with further refinement? (c) How would you perform a systematic mesh convergence study?
  5. Active Learning Loop: Design an active learning workflow to discover a new high-entropy alloy with maximum hardness. Specify: (a) the initial training dataset, (b) the surrogate model and features, (c) the acquisition function, (d) the oracle (DFT or experiment), and (e) the stopping criterion. Estimate how many iterations might be needed to find a top candidate from a search space of 10,000 compositions.
  6. Multiscale Bridge: Explain how you would connect DFT calculations of the generalized stacking fault energy surface in an FCC metal to a continuum crystal plasticity FEM simulation of polycrystalline deformation. Identify what information passes between each length scale and what assumptions are made at each transition.

Series Conclusion

Congratulations! You have completed the entire 14-part Materials Science & Engineering Series — from quantum mechanics and atomic bonding in Part 1, through crystal structures, metals, polymers, ceramics, mechanical behavior, failure analysis, nanomaterials, characterization, thermodynamics, electronic materials, biomaterials, and energy materials, to the computational methods that tie it all together in this final chapter.

Computational materials science is the great integrator — it speaks the language of every sub-discipline we have covered. DFT computes the band structures from Part 11, the surface energies from Part 5, and the defect formation energies from Part 2. Molecular dynamics simulates the dislocation mechanics of Part 6, the polymer chain dynamics of Part 4, and the crack propagation of Part 7. FEM models the stress distributions from Part 6 at engineering scales. And materials informatics ties everything together with data-driven discovery that accelerates the traditional experiment → theory → experiment cycle by orders of magnitude.

The future of materials science is integrated computational materials engineering (ICME) — seamlessly connecting simulation tools across all scales, validating against experiments, and guided by AI to navigate vast chemical and structural spaces. The engineers who master both the physical intuition from Parts 1–13 and the computational tools from this chapter will define the next generation of advanced materials — from room-temperature superconductors to carbon-negative cement to quantum computing substrates.
