Embedded Systems Series Part 12: Debugging & Optimization

Introduction to Embedded Debugging

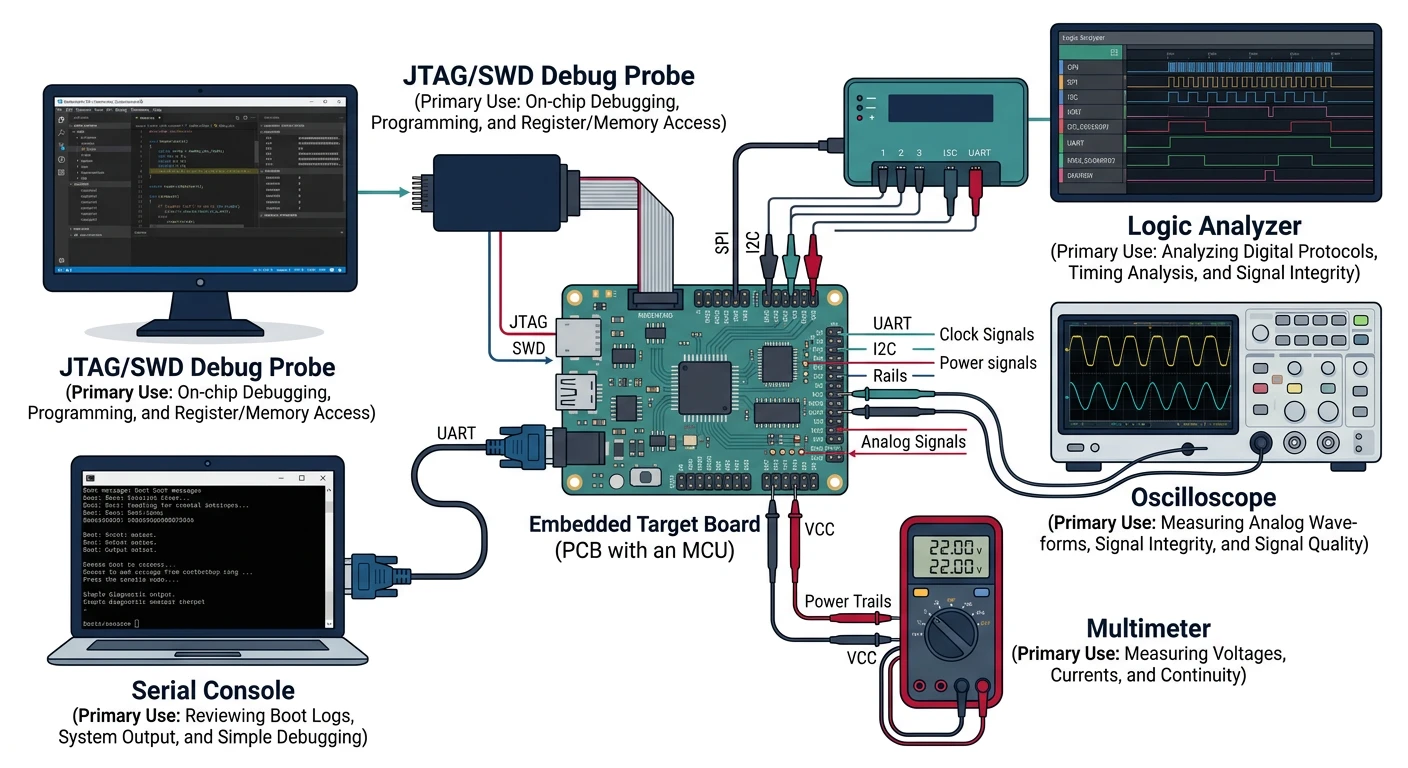

Debugging embedded systems requires specialized tools—JTAG probes, logic analyzers, and hardware debuggers. Unlike desktop development, you're often debugging without a display or keyboard.

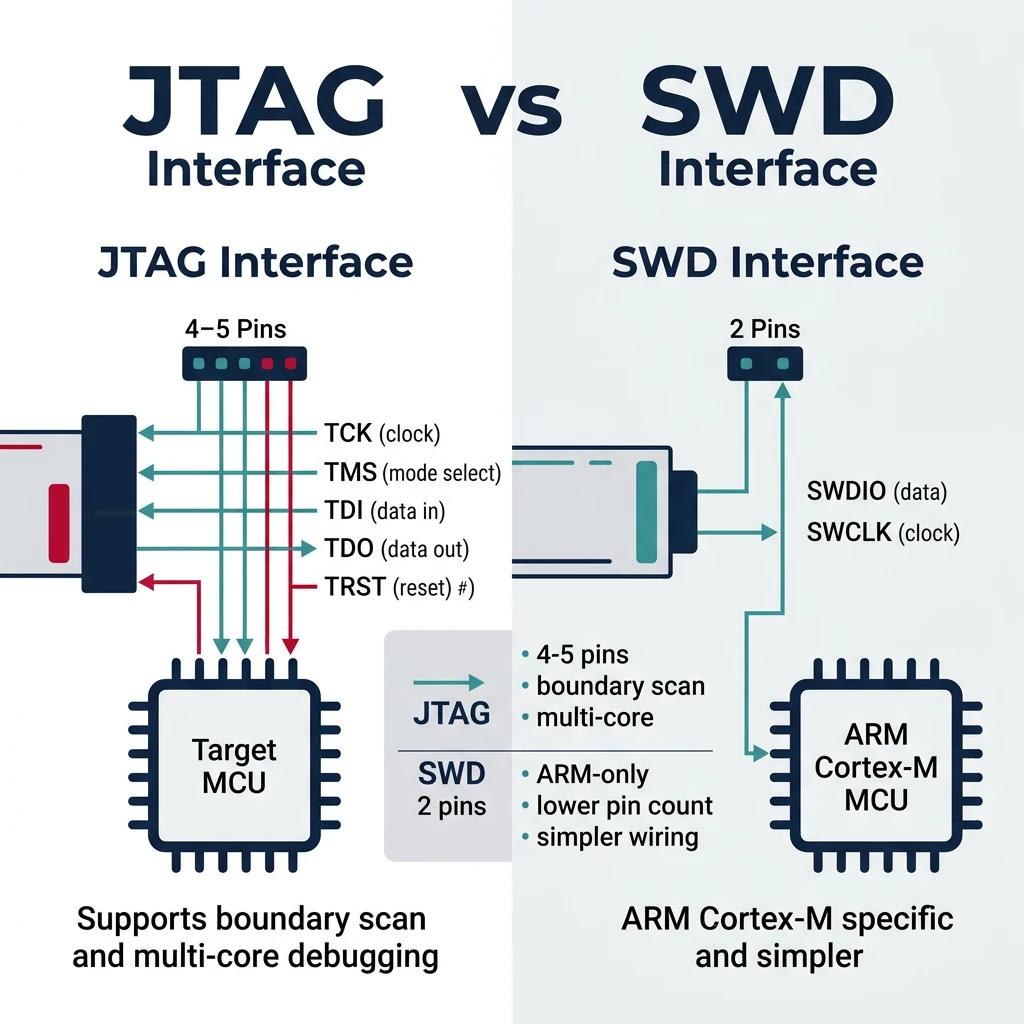

JTAG & SWD Debugging

# Popular debug probes
# J-Link (Segger) - Most common professional probe
# ST-Link - Bundled with STM32 dev boards
# CMSIS-DAP - Open standard

# OpenOCD - Open On-Chip Debugger
openocd -f interface/stlink.cfg -f target/stm32f4x.cfg

# OpenOCD commands
> reset halt          # Stop CPU
> flash write_image firmware.elf
> resume              # Continue execution
> reg                 # Show registers
> mdw 0x40000000 10   # Memory dump (10 words)

GDB for Embedded Systems

# Connect to OpenOCD
arm-none-eabi-gdb firmware.elf
(gdb) target remote localhost:3333
(gdb) monitor reset halt
(gdb) load                    # Flash firmware

# Debugging commands
(gdb) break main              # Set breakpoint
(gdb) continue                # Run
(gdb) next                    # Step over
(gdb) step                    # Step into
(gdb) print variable          # Inspect variable
(gdb) info registers          # Show registers
(gdb) x/10xw 0x20000000      # Examine memory

# Watchpoints (trigger on memory access)
(gdb) watch my_variable       # Break on write
(gdb) rwatch my_variable      # Break on read
(gdb) awatch my_variable      # Break on access

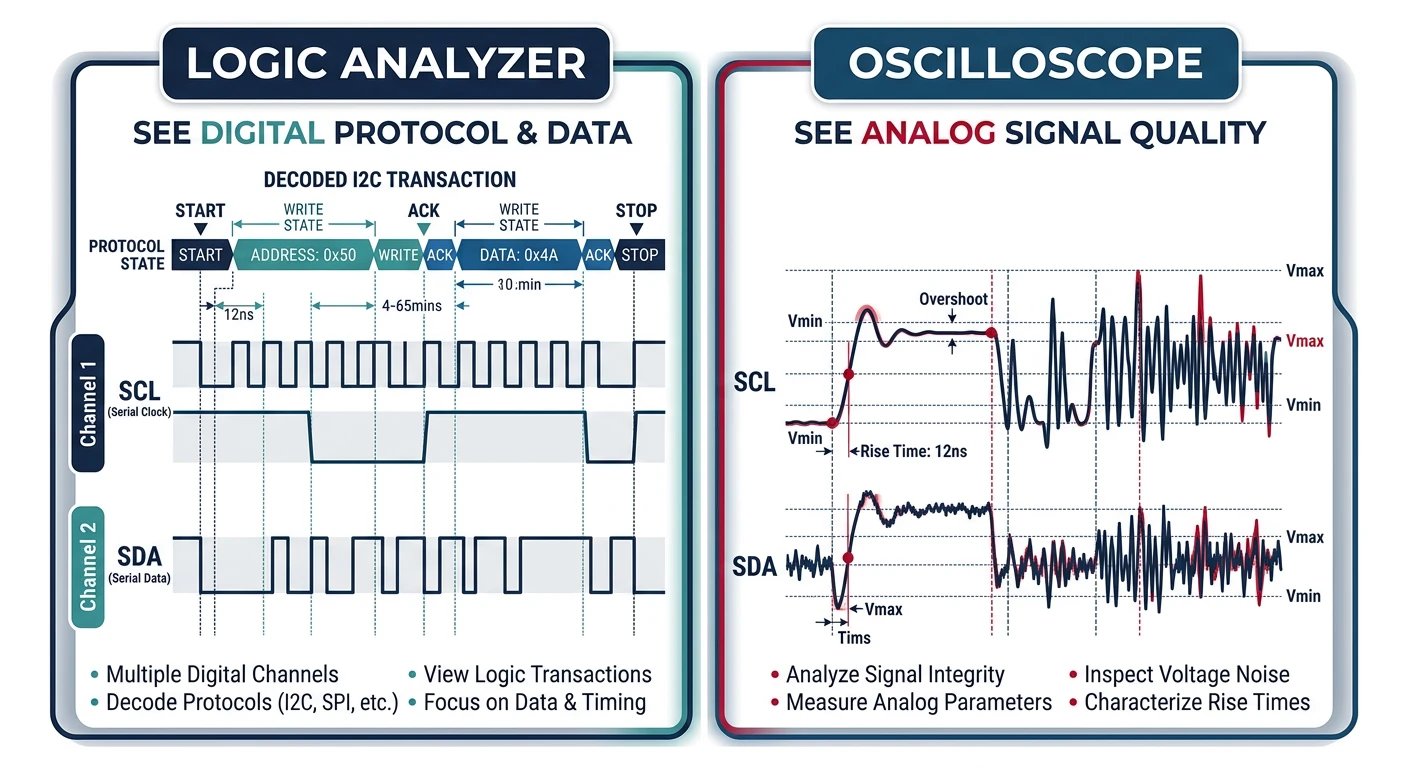

Logic Analyzers & Oscilloscopes

# Protocol analysis with sigrok
sigrok-cli -d fx2lafw -c samplerate=1M -o capture.sr

# Decode I2C
sigrok-cli -i capture.sr -P i2c:scl=D0:sda=D1

# Decode SPI
sigrok-cli -i capture.sr -P spi:clk=D0:mosi=D1:miso=D2:cs=D3

Trace Analysis (ETM/ITM)

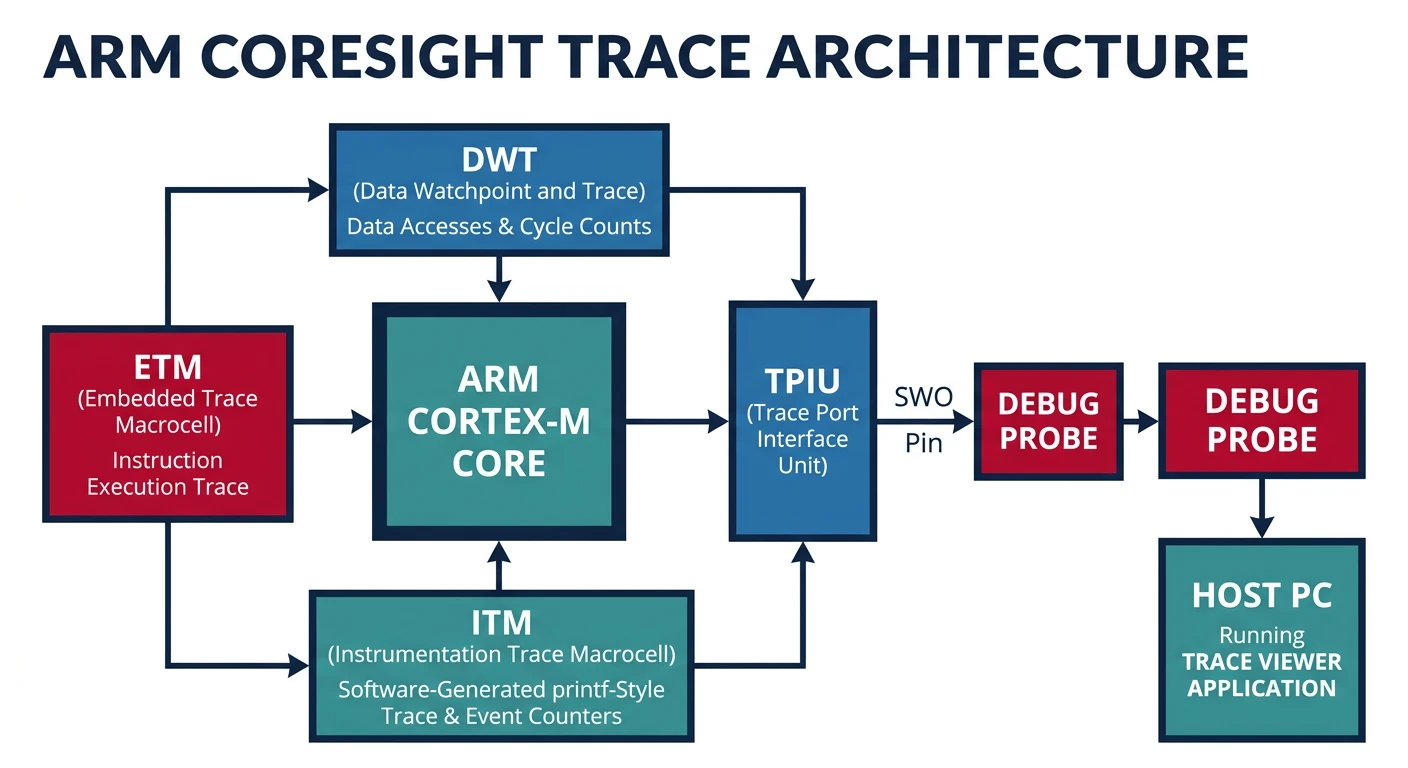

ETM (Embedded Trace Macrocell) provides non-intrusive instruction tracing; ITM (Instrumentation Trace Macrocell) provides printf-style debugging via SWO pin.

// ITM printf via SWO (ARM Cortex-M)
#include "core_cm4.h"

int _write(int file, char *ptr, int len) {
    for (int i = 0; i < len; i++) {
        ITM_SendChar(*ptr++);
    }
    return len;
}

// Usage
printf("Debug: value = %d\n", value);

Memory Debugging

// Stack overflow detection (FreeRTOS)
#define configCHECK_FOR_STACK_OVERFLOW 2

void vApplicationStackOverflowHook(TaskHandle_t xTask,
                                    char *pcTaskName) {
    printf("Stack overflow in: %s\n", pcTaskName);
    while(1);
}

// Heap usage tracking
size_t xPortGetFreeHeapSize(void);     // Current free
size_t xPortGetMinimumEverFreeHeapSize(void);  // Minimum ever

// Memory corruption detection
// Use canary values at memory boundaries
#define CANARY 0xDEADBEEF

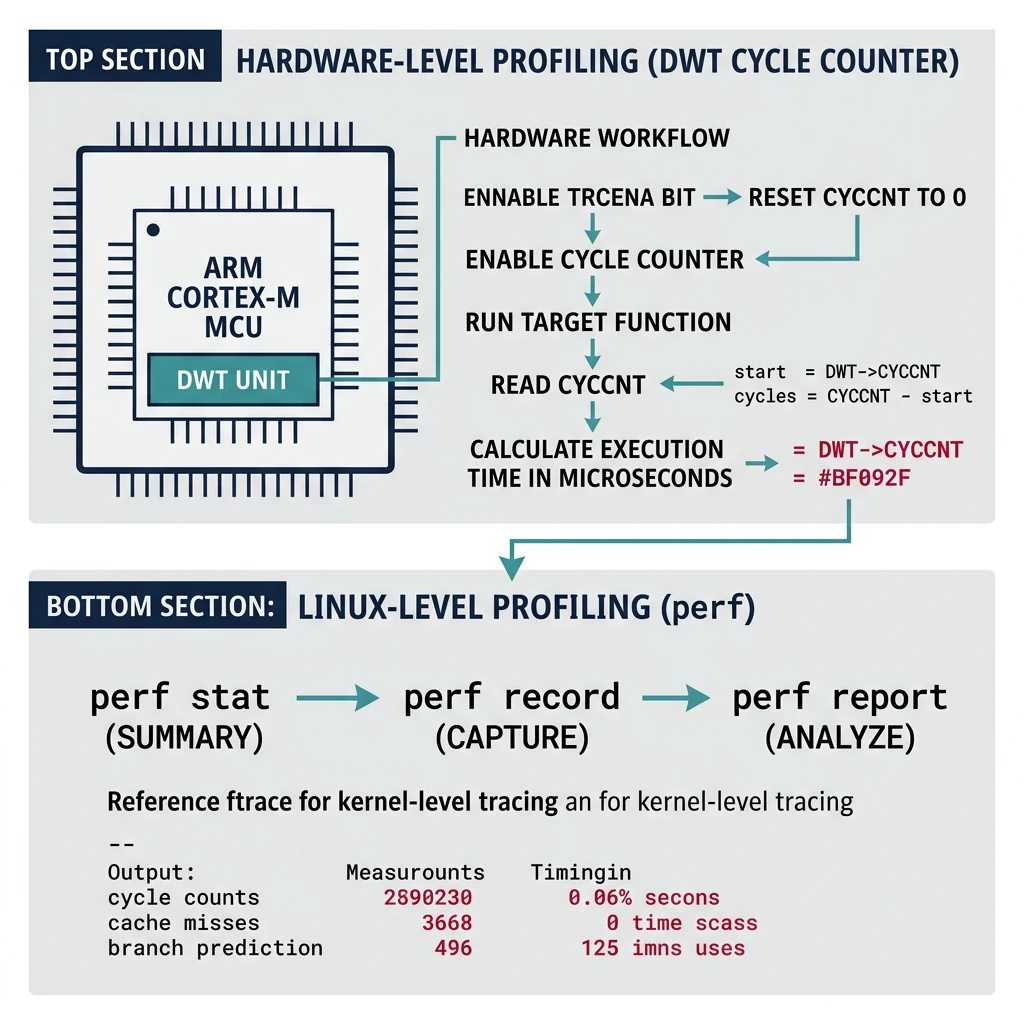

Profiling & Performance Analysis

// DWT cycle counter (ARM Cortex-M)
CoreDebug->DEMCR |= CoreDebug_DEMCR_TRCENA_Msk;
DWT->CYCCNT = 0;
DWT->CTRL |= DWT_CTRL_CYCCNTENA_Msk;

// Measure cycles
uint32_t start = DWT->CYCCNT;
my_function();
uint32_t cycles = DWT->CYCCNT - start;
float us = cycles / (SystemCoreClock / 1000000.0f);

# Linux perf (embedded Linux)
perf stat ./my_program
perf record -g ./my_program
perf report

# ftrace for kernel
echo function_graph > /sys/kernel/debug/tracing/current_tracer
cat /sys/kernel/debug/tracing/trace

Power Optimization

// Low power modes (STM32)
HAL_PWR_EnterSLEEPMode(PWR_MAINREGULATOR_ON, PWR_SLEEPENTRY_WFI);
HAL_PWR_EnterSTOPMode(PWR_LOWPOWERREGULATOR_ON, PWR_STOPENTRY_WFI);
HAL_PWR_EnterSTANDBYMode();

// Clock gating - disable unused peripherals
__HAL_RCC_GPIOB_CLK_DISABLE();
__HAL_RCC_USART2_CLK_DISABLE();

// Reduce clock speed when idle
SystemClock_Config_8MHz();   // Low speed
SystemClock_Config_168MHz(); // Full speed when needed

Code Size & Speed Optimization

# Compiler optimization flags
-Os    # Optimize for size
-O2    # Optimize for speed
-O3    # Aggressive speed (larger code)
-flto  # Link-time optimization

# Size analysis
arm-none-eabi-size firmware.elf
arm-none-eabi-nm --size-sort firmware.elf | tail -20

# Linker garbage collection
-ffunction-sections -fdata-sections
-Wl,--gc-sections

Conclusion & Series Summary

Congratulations! You've completed the Complete Embedded Systems Series. From bare-metal MCU programming through RTOS, Linux, Android, and debugging—you now have a comprehensive foundation for embedded systems development.
