Embedded Systems Series Part 5: Embedded Linux Fundamentals

Introduction to Embedded Linux

Embedded Linux runs on everything from routers and smart TVs to industrial controllers and medical devices. Unlike bare-metal or RTOS systems, Linux provides a full OS with networking, filesystems, and massive software ecosystem—but requires more resources (typically 32MB+ RAM, 100MHz+ CPU).

When to Choose Embedded Linux

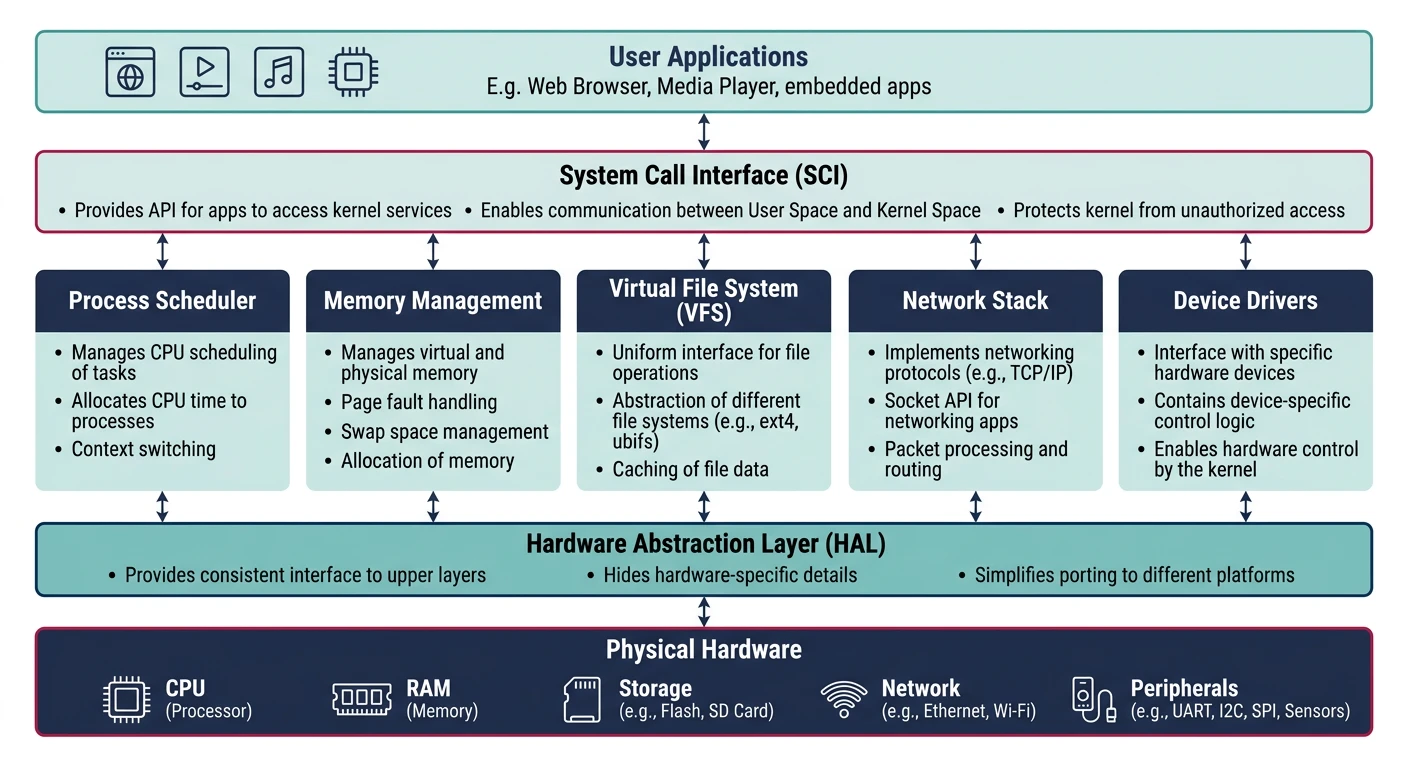

Linux Kernel Architecture

The Linux kernel is monolithic but modular—core functionality runs in kernel space while drivers can be loadable modules.

# Kernel source structure
linux/
+-- arch/           # Architecture-specific (arm, arm64, x86, riscv)
+-- drivers/        # Device drivers (gpio, i2c, spi, usb, net, ...)
+-- fs/             # Filesystems (ext4, nfs, proc, sysfs)
+-- include/        # Kernel headers
+-- init/           # Kernel initialization (main.c)
+-- kernel/         # Core kernel (sched, fork, signal)
+-- mm/             # Memory management
+-- net/            # Networking stack
+-- scripts/        # Build scripts, Kconfig
+-- Documentation/  # Kernel docs (essential reading!)

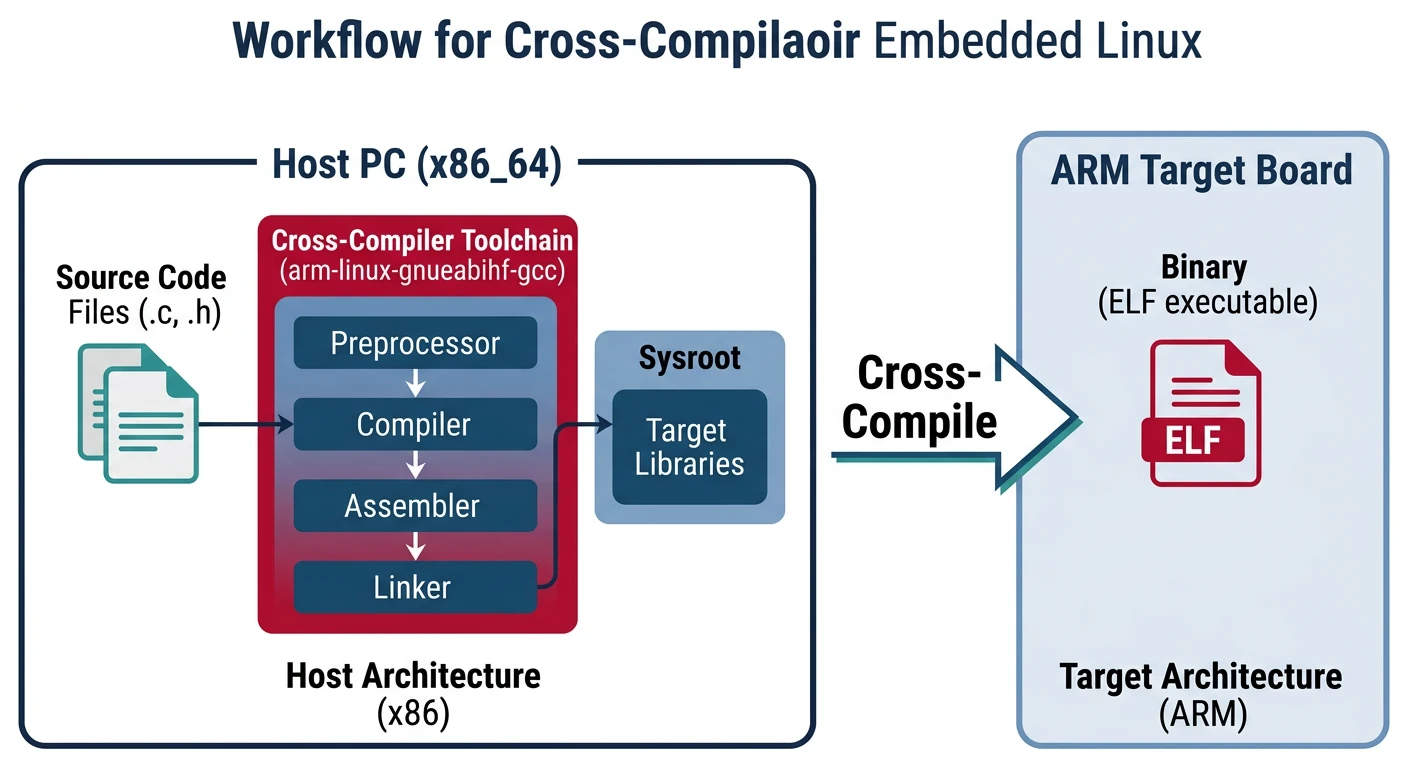

Cross-Compilation Toolchains

Embedded targets run on ARM, MIPS, or RISC-V—different from your x86 development machine. A cross-compiler runs on the host but produces binaries for the target.

# Install ARM cross-compiler (Ubuntu/Debian)
sudo apt install gcc-arm-linux-gnueabihf  # 32-bit ARM
sudo apt install gcc-aarch64-linux-gnu    # 64-bit ARM

# Verify installation
arm-linux-gnueabihf-gcc --version

# Cross-compile a simple program
cat > hello.c << 'EOF'
#include
int main() {
    printf("Hello from ARM!\n");
    return 0;
}
EOF

arm-linux-gnueabihf-gcc -o hello_arm hello.c

# Check binary architecture
file hello_arm
# hello_arm: ELF 32-bit LSB executable, ARM, EABI5, ...

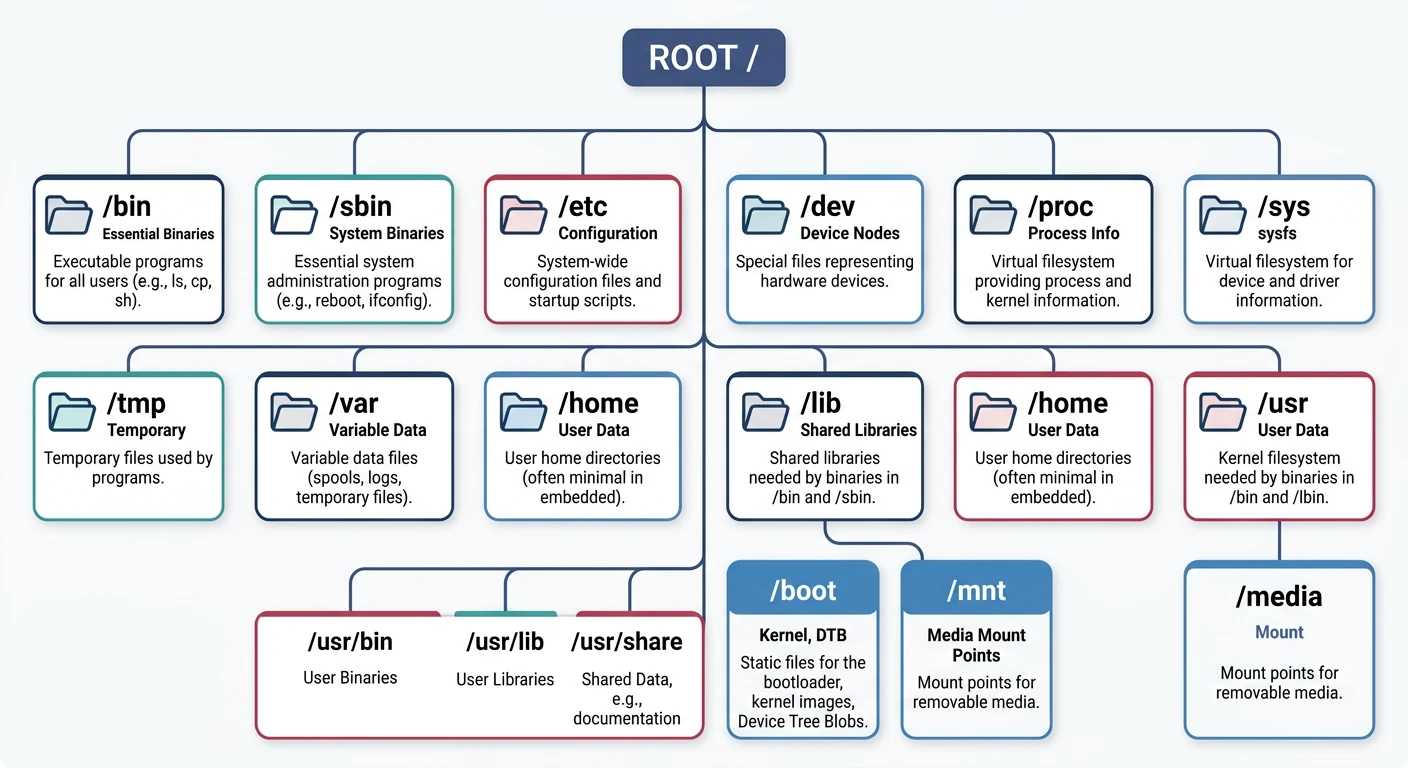

Filesystem Hierarchy

Linux follows the Filesystem Hierarchy Standard (FHS). Understanding this structure is essential for embedded system configuration.

/
+-- bin/        # Essential user binaries (ls, cp, sh)
+-- boot/       # Bootloader, kernel image, device tree
+-- dev/        # Device nodes (/dev/ttyS0, /dev/sda)
+-- etc/        # System configuration files
+-- home/       # User home directories
+-- lib/        # Shared libraries (libc.so, ld-linux.so)
+-- mnt/        # Temporary mount points
+-- proc/       # Process info (virtual filesystem)
+-- root/       # Root user's home
+-- sbin/       # System binaries (init, mount)
+-- sys/        # Kernel/device info (virtual filesystem)
+-- tmp/        # Temporary files (often tmpfs)
+-- usr/        # Secondary hierarchy (usr/bin, usr/lib)
+-- var/        # Variable data (logs, spool)

Root Filesystem Types

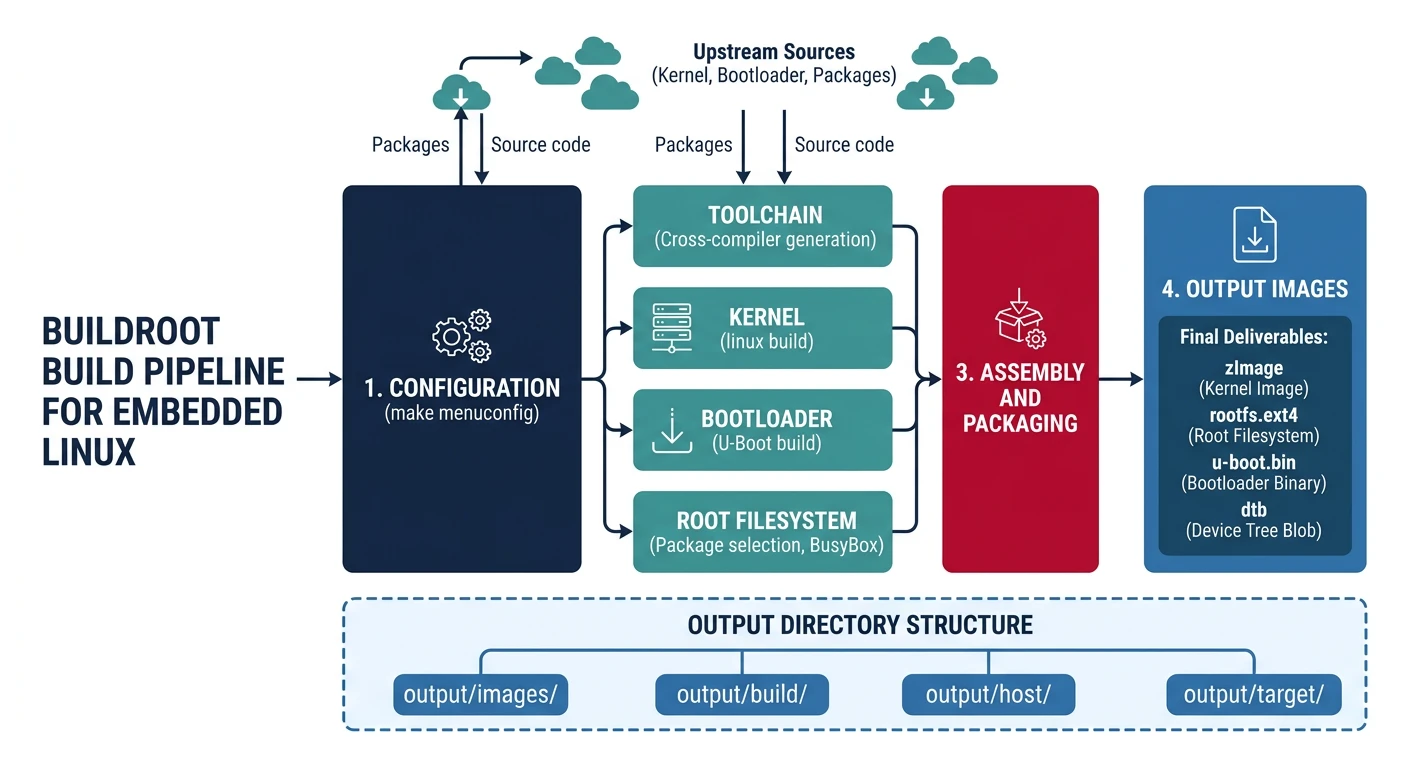

Buildroot Build System

Buildroot generates complete embedded Linux systems—toolchain, kernel, bootloader, and root filesystem. It's simpler than Yocto, ideal for smaller projects.

# Clone Buildroot
git clone https://github.com/buildroot/buildroot.git
cd buildroot

# List available board configs
ls configs/ | grep qemu
# qemu_arm_versatile_defconfig, qemu_aarch64_virt_defconfig, ...

# Configure for QEMU ARM (easy testing)
make qemu_arm_versatile_defconfig

# Customize (optional)
make menuconfig
# - Target options ? Architecture, CPU, FPU
# - Toolchain ? External or Buildroot toolchain
# - System configuration ? Hostname, init system
# - Kernel ? Version, config file
# - Target packages ? Select applications

# Build (takes 30-60 minutes first time)
make -j$(nproc)

# Output files
ls output/images/
# zImage, versatile-pb.dtb, rootfs.ext2

# Test in QEMU
qemu-system-arm -M versatilepb \
    -kernel output/images/zImage \
    -dtb output/images/versatile-pb.dtb \
    -drive file=output/images/rootfs.ext2,if=scsi,format=raw \
    -append "root=/dev/sda console=ttyAMA0" \
    -serial stdio -nographic

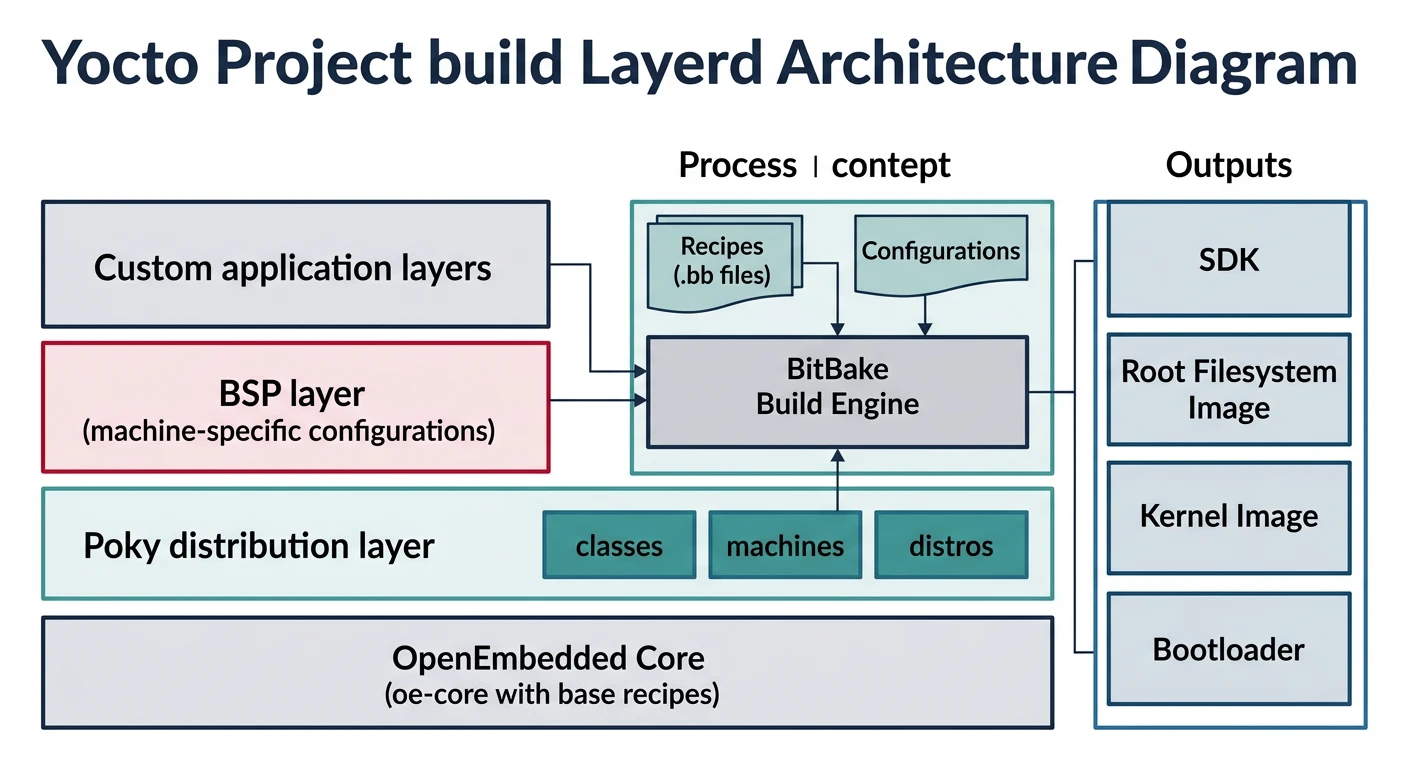

Yocto Project

Yocto/OpenEmbedded is the industry-standard build system for production embedded Linux. More complex than Buildroot but highly flexible and maintainable.

# Initial Yocto setup (requires ~50GB disk, 8GB+ RAM)
git clone git://git.yoctoproject.org/poky
cd poky
git checkout kirkstone  # LTS release

# Initialize build environment
source oe-init-build-env

# Edit conf/local.conf
# MACHINE = "qemuarm"
# DISTRO = "poky"

# Build minimal image
bitbake core-image-minimal

# Build with more packages
bitbake core-image-full-cmdline

# Output
ls tmp/deploy/images/qemuarm/
# core-image-minimal-qemuarm.ext4, zImage, ...

Userspace Programming

Linux userspace programming uses standard POSIX APIs. Here's how to interact with hardware from user applications.

// GPIO control via sysfs (deprecated but simple)
#include
#include
#include
#include

int gpio_export(int pin) {
    int fd = open("/sys/class/gpio/export", O_WRONLY);
    char buf[8];
    snprintf(buf, sizeof(buf), "%d", pin);
    write(fd, buf, strlen(buf));
    close(fd);
    return 0;
}

int gpio_set_direction(int pin, const char *dir) {
    char path[64];
    snprintf(path, sizeof(path), "/sys/class/gpio/gpio%d/direction", pin);
    int fd = open(path, O_WRONLY);
    write(fd, dir, strlen(dir));
    close(fd);
    return 0;
}

int gpio_write(int pin, int value) {
    char path[64];
    snprintf(path, sizeof(path), "/sys/class/gpio/gpio%d/value", pin);
    int fd = open(path, O_WRONLY);
    write(fd, value ? "1" : "0", 1);
    close(fd);
    return 0;
}

int main() {
    gpio_export(17);               // Export GPIO17
    gpio_set_direction(17, "out"); // Set as output

    while (1) {
        gpio_write(17, 1);  // LED on
        sleep(1);
        gpio_write(17, 0);  // LED off
        sleep(1);
    }
    return 0;
}

// Modern GPIO via libgpiod (recommended)
#include
#include

int main() {
    struct gpiod_chip *chip = gpiod_chip_open("/dev/gpiochip0");
    struct gpiod_line *line = gpiod_chip_get_line(chip, 17);

    gpiod_line_request_output(line, "example", 0);

    while (1) {
        gpiod_line_set_value(line, 1);
        sleep(1);
        gpiod_line_set_value(line, 0);
        sleep(1);
    }

    gpiod_line_release(line);
    gpiod_chip_close(chip);
    return 0;
}

Init Systems (systemd, BusyBox)

The init system is PID 1—the first userspace process. It manages service startup and system state.

# BusyBox inittab (/etc/inittab)
::sysinit:/etc/init.d/rcS
::respawn:/sbin/getty -L ttyAMA0 115200 vt100
::shutdown:/bin/umount -a -r

# systemd service file (/etc/systemd/system/myapp.service)
[Unit]
Description=My Embedded Application
After=network.target

[Service]
Type=simple
ExecStart=/usr/bin/myapp
Restart=always
RestartSec=5

[Install]
WantedBy=multi-user.target

# Enable and start service
systemctl enable myapp
systemctl start myapp
systemctl status myapp

Debugging Linux Systems

# Essential debugging commands
dmesg                    # Kernel messages (boot log)
cat /proc/cmdline        # Kernel boot parameters
cat /proc/cpuinfo        # CPU information
cat /proc/meminfo        # Memory stats
lsmod                    # Loaded kernel modules
lspci / lsusb            # PCI/USB devices
strace ./myapp           # System call tracing
ltrace ./myapp           # Library call tracing
gdb ./myapp core         # Debug core dump

# Remote debugging
# On target:
gdbserver :1234 ./myapp

# On host:
arm-linux-gnueabihf-gdb ./myapp
(gdb) target remote 192.168.1.100:1234
(gdb) break main
(gdb) continue

Conclusion & What's Next

You've learned the foundations of Embedded Linux—kernel architecture, cross-compilation, filesystem hierarchy, and build systems. Buildroot is great for learning and small projects; Yocto for production systems.

In Part 6, we'll master U-Boot—the bootloader that initializes hardware and loads Linux on most embedded systems.
