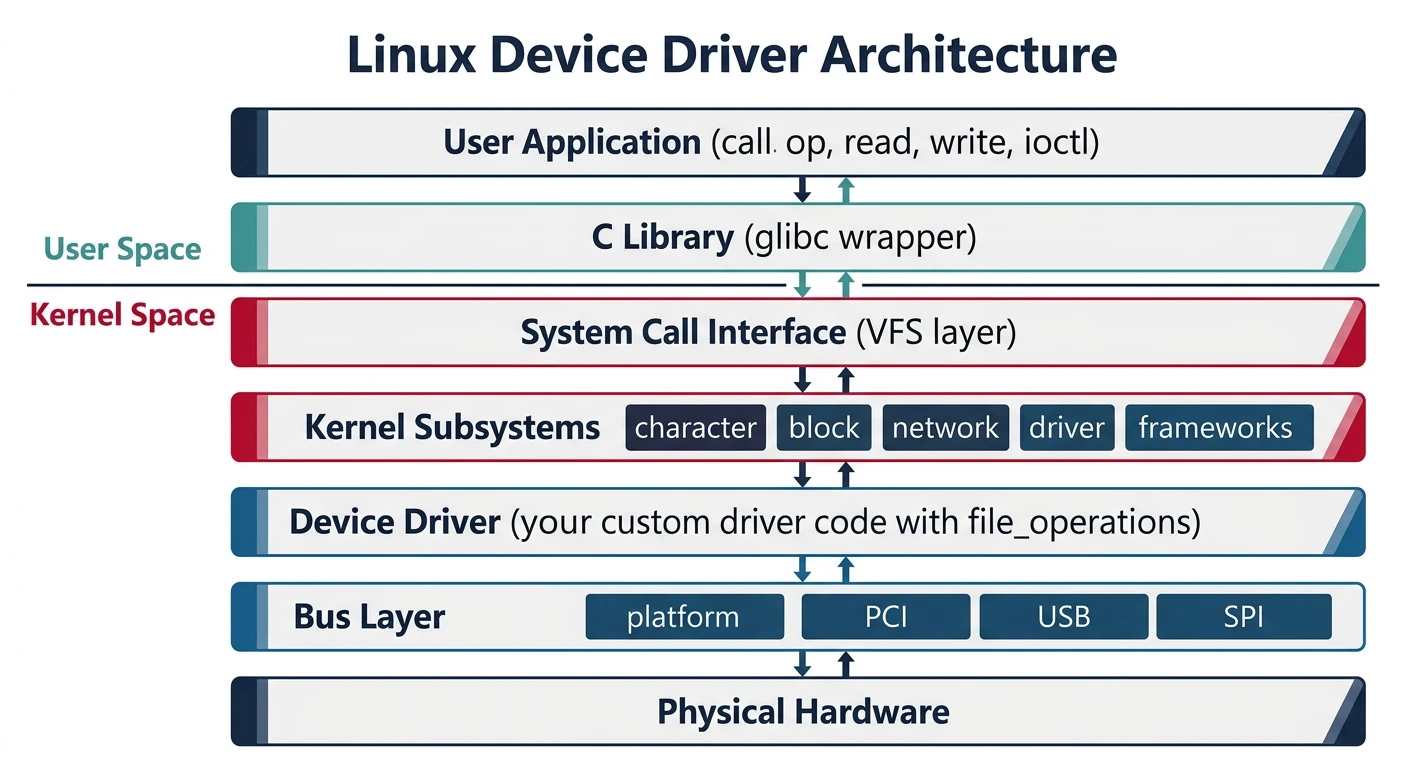

Introduction to Device Drivers

A device driver is kernel code that interfaces between hardware and userspace applications. Drivers abstract hardware complexity—applications use standard system calls (open, read, write) while drivers handle register-level communication.

Driver Types

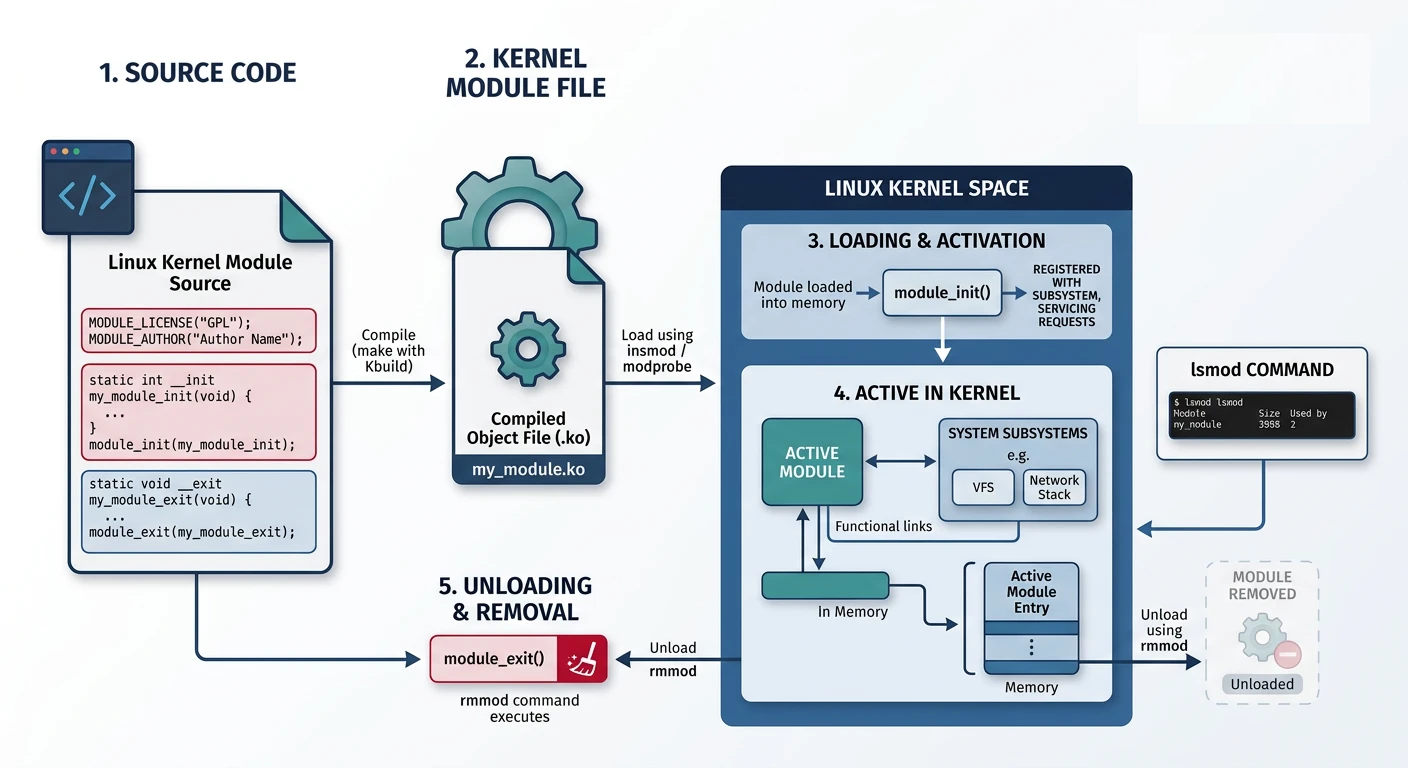

Kernel Modules Basics

Kernel modules can be loaded/unloaded at runtime without rebooting—essential for driver development and debugging.

// hello_module.c - Minimal kernel module
#include
#include
#include

MODULE_LICENSE("GPL");
MODULE_AUTHOR("Wasil Zafar");
MODULE_DESCRIPTION("Hello World Kernel Module");
MODULE_VERSION("1.0");

static int __init hello_init(void)
{
    pr_info("Hello, Kernel World!\n");
    return 0;  // 0 = success, negative = error
}

static void __exit hello_exit(void)
{
    pr_info("Goodbye, Kernel World!\n");
}

module_init(hello_init);
module_exit(hello_exit);

# Makefile for kernel module
obj-m += hello_module.o

KERNEL_DIR ?= /lib/modules/$(shell uname -r)/build

all:
	make -C $(KERNEL_DIR) M=$(PWD) modules

clean:
	make -C $(KERNEL_DIR) M=$(PWD) clean

# Build and test
make
sudo insmod hello_module.ko   # Load module
lsmod | grep hello            # Verify loaded
dmesg | tail -5               # Check kernel log
sudo rmmod hello_module       # Unload module

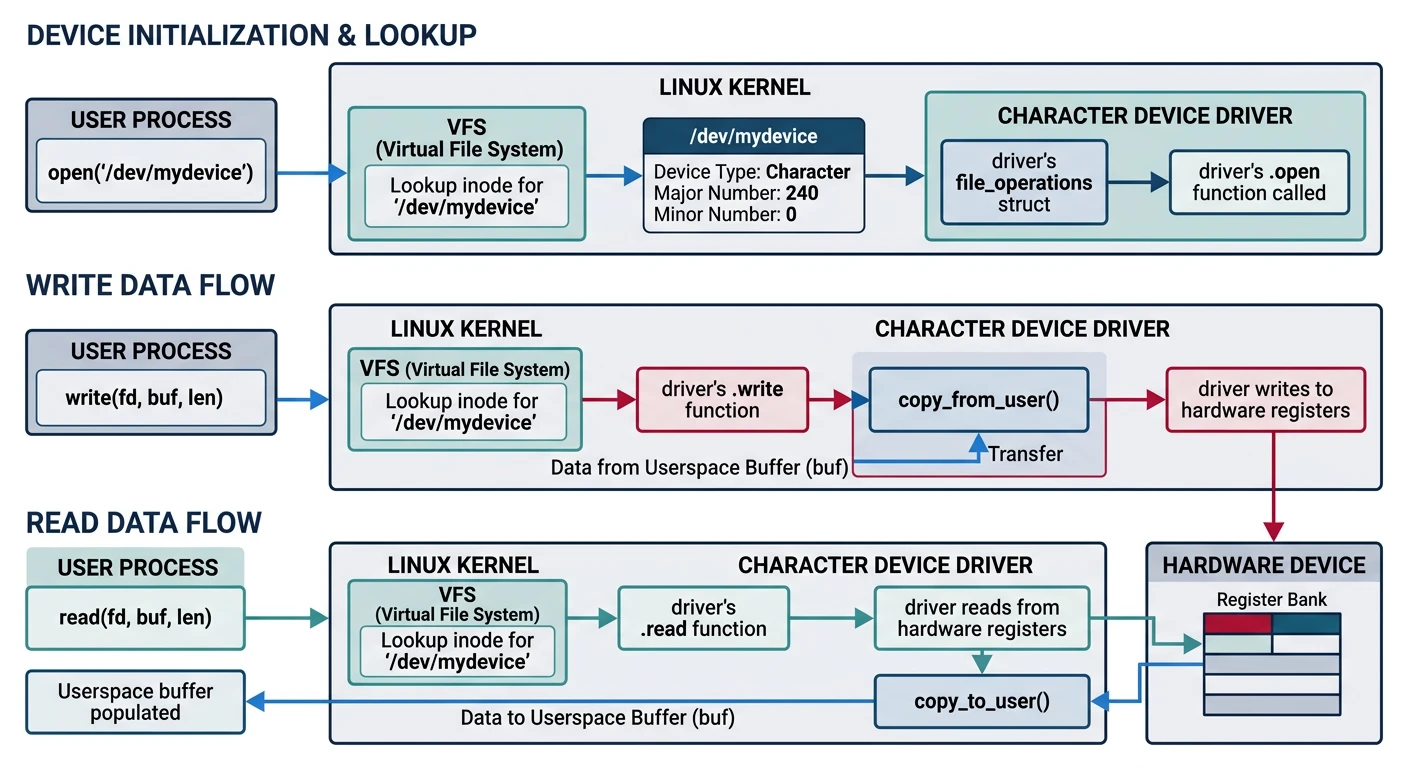

Character Device Drivers

Character drivers create device nodes in /dev/ that applications can open, read, and write.

// simple_char.c - Character device driver
#include
#include
#include
#include
#include
#include

#define DEVICE_NAME "simple_char"
#define CLASS_NAME  "simple"
#define BUFFER_SIZE 256

static int major_number;
static struct class *device_class;
static struct device *device;
static char kernel_buffer[BUFFER_SIZE];
static int buffer_size = 0;

// File operations
static int dev_open(struct inode *inodep, struct file *filep)
{
    pr_info("Device opened\n");
    return 0;
}

static int dev_release(struct inode *inodep, struct file *filep)
{
    pr_info("Device closed\n");
    return 0;
}

static ssize_t dev_read(struct file *filep, char __user *buffer,
                        size_t len, loff_t *offset)
{
    int bytes_to_read = min(len, (size_t)(buffer_size - *offset));

    if (bytes_to_read <= 0)
        return 0;  // EOF

    if (copy_to_user(buffer, kernel_buffer + *offset, bytes_to_read))
        return -EFAULT;

    *offset += bytes_to_read;
    pr_info("Read %d bytes\n", bytes_to_read);
    return bytes_to_read;
}

static ssize_t dev_write(struct file *filep, const char __user *buffer,
                         size_t len, loff_t *offset)
{
    int bytes_to_write = min(len, (size_t)BUFFER_SIZE);

    if (copy_from_user(kernel_buffer, buffer, bytes_to_write))
        return -EFAULT;

    buffer_size = bytes_to_write;
    pr_info("Wrote %d bytes\n", bytes_to_write);
    return bytes_to_write;
}

static struct file_operations fops = {
    .owner = THIS_MODULE,
    .open = dev_open,
    .release = dev_release,
    .read = dev_read,
    .write = dev_write,
};

static int __init char_init(void)
{
    // Register character device
    major_number = register_chrdev(0, DEVICE_NAME, &fops);
    if (major_number < 0) {
        pr_err("Failed to register major number\n");
        return major_number;
    }

    // Create device class
    device_class = class_create(CLASS_NAME);
    if (IS_ERR(device_class)) {
        unregister_chrdev(major_number, DEVICE_NAME);
        return PTR_ERR(device_class);
    }

    // Create device node /dev/simple_char
    device = device_create(device_class, NULL, MKDEV(major_number, 0),
                           NULL, DEVICE_NAME);
    if (IS_ERR(device)) {
        class_destroy(device_class);
        unregister_chrdev(major_number, DEVICE_NAME);
        return PTR_ERR(device);
    }

    pr_info("Device registered: /dev/%s (major %d)\n",
            DEVICE_NAME, major_number);
    return 0;
}

static void __exit char_exit(void)
{
    device_destroy(device_class, MKDEV(major_number, 0));
    class_destroy(device_class);
    unregister_chrdev(major_number, DEVICE_NAME);
    pr_info("Device unregistered\n");
}

module_init(char_init);
module_exit(char_exit);

MODULE_LICENSE("GPL");
MODULE_AUTHOR("Wasil Zafar");
MODULE_DESCRIPTION("Simple Character Device Driver");

# Test the driver
sudo insmod simple_char.ko
ls -l /dev/simple_char
echo "Hello Driver" | sudo tee /dev/simple_char
sudo cat /dev/simple_char

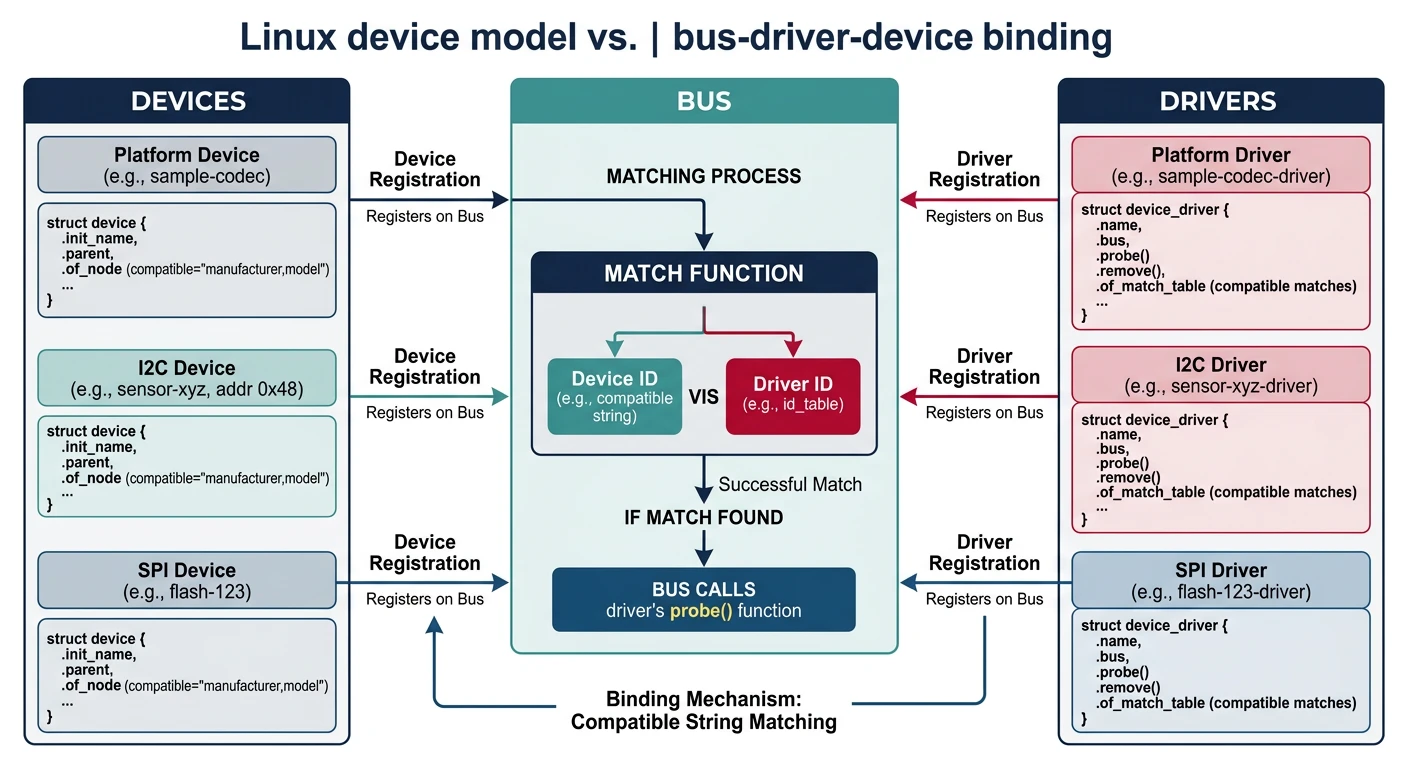

Linux Device Model

The Linux device model organizes hardware into buses, devices, and drivers—enabling automatic binding and power management.

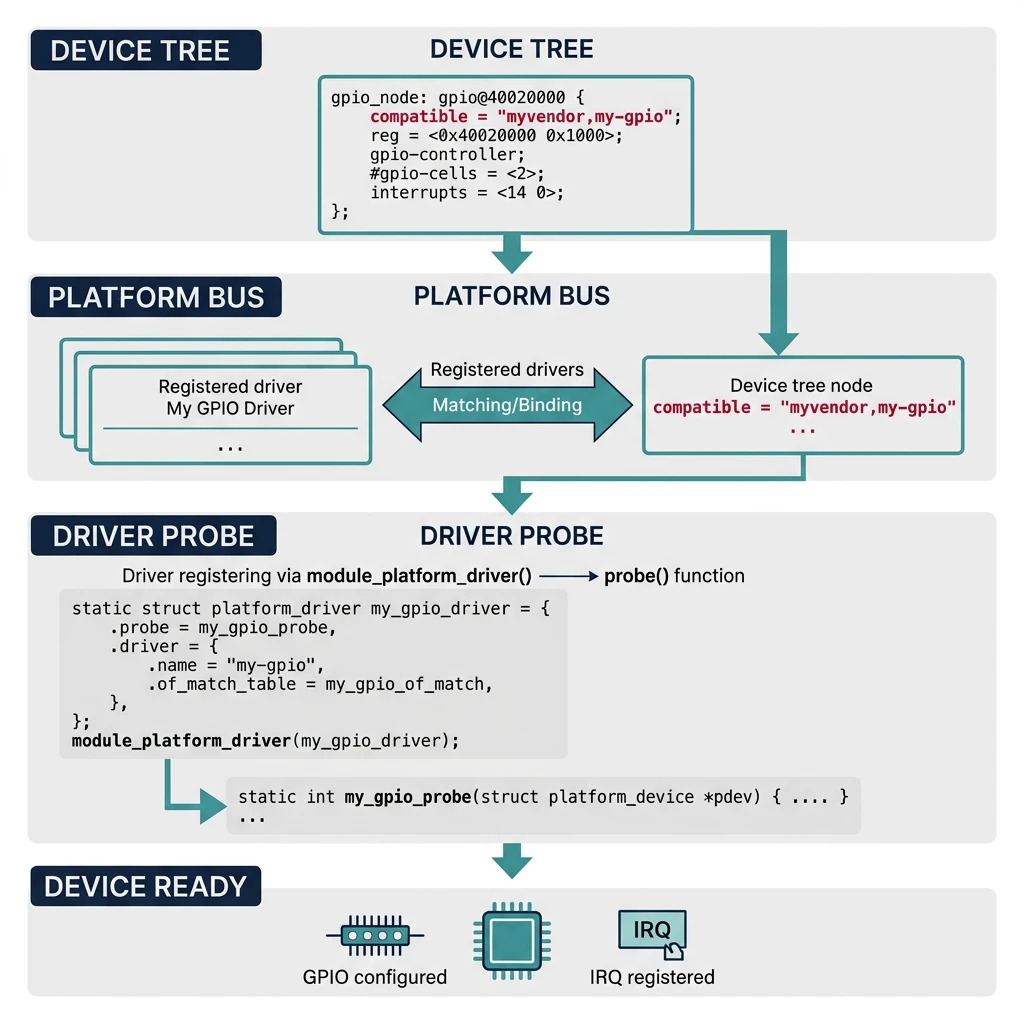

Platform Drivers

Platform drivers are for non-discoverable devices (GPIOs, on-chip peripherals) described in device tree.

// platform_gpio.c - Platform driver example
#include
#include
#include
#include
#include

struct gpio_led_data {
    struct gpio_desc *gpio;
};

static int gpio_led_probe(struct platform_device *pdev)
{
    struct gpio_led_data *data;

    data = devm_kzalloc(&pdev->dev, sizeof(*data), GFP_KERNEL);
    if (!data)
        return -ENOMEM;

    // Get GPIO from device tree
    data->gpio = devm_gpiod_get(&pdev->dev, "led", GPIOD_OUT_LOW);
    if (IS_ERR(data->gpio)) {
        dev_err(&pdev->dev, "Failed to get GPIO\n");
        return PTR_ERR(data->gpio);
    }

    platform_set_drvdata(pdev, data);

    // Turn on LED
    gpiod_set_value(data->gpio, 1);
    dev_info(&pdev->dev, "LED GPIO initialized\n");

    return 0;
}

static int gpio_led_remove(struct platform_device *pdev)
{
    struct gpio_led_data *data = platform_get_drvdata(pdev);
    gpiod_set_value(data->gpio, 0);
    dev_info(&pdev->dev, "LED GPIO removed\n");
    return 0;
}

// Device tree matching
static const struct of_device_id gpio_led_of_match[] = {
    { .compatible = "mycompany,gpio-led" },
    { }
};
MODULE_DEVICE_TABLE(of, gpio_led_of_match);

static struct platform_driver gpio_led_driver = {
    .probe = gpio_led_probe,
    .remove = gpio_led_remove,
    .driver = {
        .name = "gpio-led",
        .of_match_table = gpio_led_of_match,
    },
};

module_platform_driver(gpio_led_driver);

MODULE_LICENSE("GPL");
MODULE_DESCRIPTION("GPIO LED Platform Driver");

// Corresponding device tree entry
my_led: led@0 {
    compatible = "mycompany,gpio-led";
    led-gpios = <&gpio1 17 GPIO_ACTIVE_HIGH>;
    status = "okay";
};

Interrupt Handling

// Interrupt handling in drivers
#include

static irqreturn_t my_irq_handler(int irq, void *dev_id)
{
    struct my_device *dev = dev_id;

    // Check if this interrupt is for us
    if (!check_interrupt_pending(dev))
        return IRQ_NONE;

    // Clear interrupt flag
    clear_interrupt(dev);

    // Schedule bottom half for heavy processing
    tasklet_schedule(&dev->tasklet);

    return IRQ_HANDLED;
}

// In probe function
static int my_probe(struct platform_device *pdev)
{
    int irq, ret;

    // Get IRQ from device tree
    irq = platform_get_irq(pdev, 0);
    if (irq < 0)
        return irq;

    // Request IRQ
    ret = devm_request_irq(&pdev->dev, irq, my_irq_handler,
                           IRQF_SHARED, "my_device", dev);
    if (ret) {
        dev_err(&pdev->dev, "Failed to request IRQ\n");
        return ret;
    }

    return 0;
}

Memory Management in Drivers

// Kernel memory allocation
#include

// kmalloc - small, contiguous allocations
void *ptr = kmalloc(size, GFP_KERNEL);
kfree(ptr);

// kzalloc - zeroed memory
void *ptr = kzalloc(size, GFP_KERNEL);

// devm_* - device-managed (auto-freed on driver removal)
void *ptr = devm_kzalloc(&pdev->dev, size, GFP_KERNEL);

// vmalloc - large, virtual contiguous
void *ptr = vmalloc(large_size);
vfree(ptr);

// I/O memory mapping
void __iomem *base = devm_ioremap_resource(&pdev->dev, res);
u32 val = readl(base + OFFSET);
writel(new_val, base + OFFSET);

DMA & Data Transfer

// DMA memory allocation
#include

// Allocate coherent DMA buffer (no cache issues)
dma_addr_t dma_handle;
void *cpu_addr = dma_alloc_coherent(&pdev->dev, size,
                                    &dma_handle, GFP_KERNEL);

// Use dma_handle for hardware, cpu_addr for CPU
// ...

dma_free_coherent(&pdev->dev, size, cpu_addr, dma_handle);

// Streaming DMA (for existing buffers)
dma_addr_t dma_addr = dma_map_single(&pdev->dev, buffer, size,
                                      DMA_TO_DEVICE);
// Configure hardware with dma_addr
// ...
dma_unmap_single(&pdev->dev, dma_addr, size, DMA_TO_DEVICE);

Debugging Device Drivers

# Kernel logging
dmesg -w              # Follow kernel log
pr_info("...");       # Info level
pr_err("...");        # Error level
pr_debug("...");      # Debug (needs CONFIG_DYNAMIC_DEBUG)

# Dynamic debug
echo "file my_driver.c +p" > /sys/kernel/debug/dynamic_debug/control

# Module info
modinfo my_driver.ko

# sysfs inspection
ls /sys/bus/platform/drivers/my_driver/
ls /sys/class/my_class/

# ftrace (function tracing)
echo function > /sys/kernel/debug/tracing/current_tracer
echo my_probe > /sys/kernel/debug/tracing/set_ftrace_filter
cat /sys/kernel/debug/tracing/trace

Conclusion & What's Next

You've learned the foundations of Linux device driver development—kernel modules, character drivers, platform drivers, interrupts, and memory management. Driver development requires careful attention to kernel APIs and memory safety.
