Game Development Series Part 10: Game AI Systems

Pathfinding (A*, Dijkstra)

Pathfinding is how AI figures out how to get from point A to point B. It's essential for enemies chasing players, NPCs navigating towns, and units in strategy games.

Graph-Based Pathfinding

Grid as a Graph:

┌───┬───┬───┬───┬───┐
│ S │   │   │ █ │   │   S = Start
├───┼───┼───┼───┼───┤   G = Goal
│   │ █ │   │ █ │   │   █ = Obstacle
├───┼───┼───┼───┼───┤
│   │ █ │   │   │   │   Each cell = Node
├───┼───┼───┼───┼───┤   Adjacent cells = Edges
│   │   │   │ █ │   │
├───┼───┼───┼───┼───┤
│   │   │   │   │ G │
└───┴───┴───┴───┴───┘

Pathfinding finds the shortest route from S to G avoiding obstacles.

Dijkstra's Algorithm

Dijkstra: Explores outward from start, finds shortest path

Step-by-step (numbers = distance from start):

Start:          Step 2:         Step 4:         Found!
┌─┬─┬─┐         ┌─┬─┬─┐         ┌─┬─┬─┐         ┌─┬─┬─┐
│S│ │ │         │0│1│2│         │0│1│2│         │0│1│2│
├─┼─┼─┤    →    ├─┼─┼─┤    →    ├─┼─┼─┤    →    ├─┼─┼─┤
│ │█│ │         │1│█│3│         │1│█│3│         │1│█│3│
├─┼─┼─┤         ├─┼─┼─┤         ├─┼─┼─┤         ├─┼─┼─┤
│ │ │G│         │2│3│?│         │2│3│4│         │2│3│4│G
└─┴─┴─┘         └─┴─┴─┘         └─┴─┴─┘         └─┴─┴─┘

Pros: Guarantees shortest path
Cons: Explores in ALL directions (slow for large maps)

A* Algorithm (A-Star)

A* = Dijkstra + Heuristic (estimated distance to goal)

f(n) = g(n) + h(n)
       │       │
       │       └── Heuristic: Estimated cost to goal
       └────────── Actual cost from start to n

Heuristics:
• Manhattan: |dx| + |dy|  (4-directional movement)
• Euclidean: √(dx² + dy²)  (any direction)
• Diagonal: max(|dx|, |dy|) + (√2-1) * min(|dx|, |dy|)

A* prioritizes nodes that seem closer to goal:

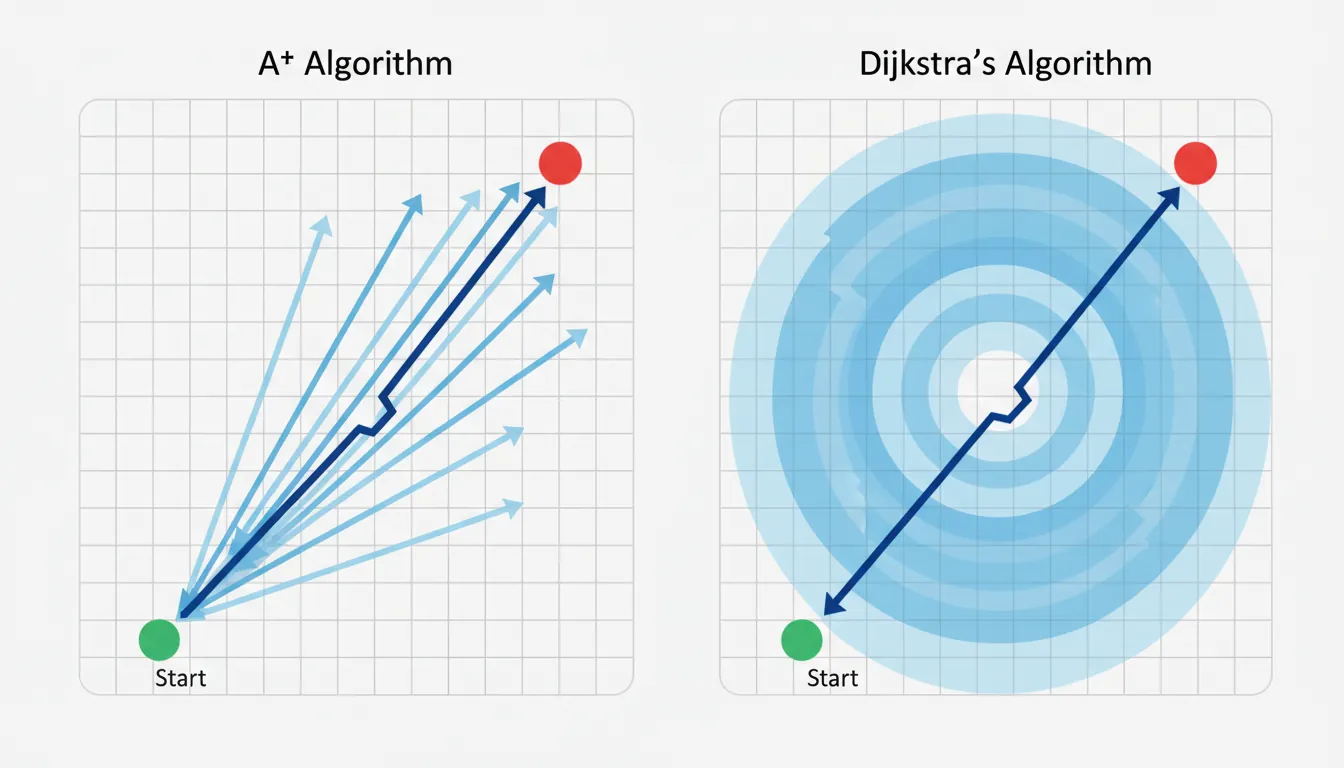

Dijkstra explores:         A* explores:
┌─┬─┬─┬─┬─┬─┬─┐            ┌─┬─┬─┬─┬─┬─┬─┐
│●│●│●│●│ │ │ │            │●│ │ │ │ │ │ │
├─┼─┼─┼─┼─┼─┼─┤            ├─┼─┼─┼─┼─┼─┼─┤
│●│●│●│●│ │ │ │            │●│●│ │ │ │ │ │
├─┼─┼─┼─┼─┼─┼─┤            ├─┼─┼─┼─┼─┼─┼─┤
│S│●│●│●│●│●│G│            │S│●│●│●│●│●│G│
├─┼─┼─┼─┼─┼─┼─┤            ├─┼─┼─┼─┼─┼─┼─┤
│●│●│●│●│ │ │ │            │ │ │ │ │ │ │ │
└─┴─┴─┴─┴─┴─┴─┘            └─┴─┴─┴─┴─┴─┴─┘
   (Wasteful)                 (Focused)

// Simplified A* Implementation
public class AStarPathfinding : MonoBehaviour
{
    public List<Vector2Int> FindPath(Vector2Int start, Vector2Int goal, bool[,] obstacles)
    {
        var openSet = new PriorityQueue<Node>();
        var closedSet = new HashSet<Vector2Int>();
        var cameFrom = new Dictionary<Vector2Int, Vector2Int>();
        var gScore = new Dictionary<Vector2Int, float>();

        gScore[start] = 0;
        openSet.Enqueue(new Node(start, Heuristic(start, goal)));

        while (openSet.Count > 0)
        {
            var current = openSet.Dequeue().Position;

            if (current == goal)
                return ReconstructPath(cameFrom, current);

            closedSet.Add(current);

            foreach (var neighbor in GetNeighbors(current, obstacles))
            {
                if (closedSet.Contains(neighbor))
                    continue;

                float tentativeG = gScore[current] + 1;  // Cost of 1 per step

                if (!gScore.ContainsKey(neighbor) || tentativeG < gScore[neighbor])
                {
                    cameFrom[neighbor] = current;
                    gScore[neighbor] = tentativeG;
                    float fScore = tentativeG + Heuristic(neighbor, goal);
                    openSet.Enqueue(new Node(neighbor, fScore));
                }
            }
        }

        return null;  // No path found
    }

    float Heuristic(Vector2Int a, Vector2Int b)
    {
        // Manhattan distance
        return Mathf.Abs(a.x - b.x) + Mathf.Abs(a.y - b.y);
    }
}

Navigation Meshes

A NavMesh (Navigation Mesh) is a simplified representation of walkable surfaces. Instead of grids, it uses polygons that AI agents can traverse.

NavMesh vs Grid:

Grid (memory intensive):         NavMesh (efficient):
┌─┬─┬─┬─┬─┬─┬─┬─┐               ┌───────────────────┐
│●│●│●│●│●│●│●│●│               │        A          │
├─┼─┼─┼─┼─┼─┼─┼─┤               │    ╱─────╲        │
│●│●│●│●│●│●│●│●│               │   B       C       │
├─┼─┼─┼─┼─┼─┼─┼─┤               │    ╲─────╱        │
│●│●│█│█│█│█│●│●│               │        D          │
├─┼─┼─┼─┼─┼─┼─┼─┤               └───────────────────┘
│●│●│█│█│█│█│●│●│
├─┼─┼─┼─┼─┼─┼─┼─┤               Only stores polygon vertices
│●│●│●│●│●│●│●│●│               and connections (much smaller!)
└─┴─┴─┴─┴─┴─┴─┴─┘

64 nodes to store                4 polygons, ~12 vertices

// Unity NavMesh Agent Usage
using UnityEngine.AI;

public class EnemyNavigation : MonoBehaviour
{
    private NavMeshAgent agent;
    public Transform target;

    void Start()
    {
        agent = GetComponent<NavMeshAgent>();

        // Configure agent
        agent.speed = 5f;
        agent.angularSpeed = 120f;
        agent.stoppingDistance = 2f;
        agent.acceleration = 8f;
    }

    void Update()
    {
        // Set destination - NavMesh handles pathfinding!
        agent.SetDestination(target.position);

        // Check if we've arrived
        if (!agent.pathPending && agent.remainingDistance <= agent.stoppingDistance)
        {
            Attack();
        }
    }

    // Check if position is on NavMesh
    bool IsValidPosition(Vector3 position)
    {
        NavMeshHit hit;
        return NavMesh.SamplePosition(position, out hit, 1f, NavMesh.AllAreas);
    }

    // Get random point on NavMesh (for patrol)
    Vector3 GetRandomNavMeshPoint(float range)
    {
        Vector3 randomDirection = Random.insideUnitSphere * range;
        randomDirection += transform.position;

        NavMeshHit hit;
        NavMesh.SamplePosition(randomDirection, out hit, range, NavMesh.AllAreas);
        return hit.position;
    }
}

Finite State Machines

A Finite State Machine (FSM) is the simplest AI pattern. The AI is always in exactly one state, and transitions between states based on conditions.

stateDiagram-v2
    [*] --> Idle
    Idle --> Patrol : No threat
    Patrol --> Chase : Player detected
    Chase --> Attack : In attack range
    Attack --> Chase : Player escapes range
    Chase --> Patrol : Player lost
    Attack --> Flee : Health < 20%
    Flee --> Idle : Reached safe zone
    Attack --> Dead : Health = 0
    Dead --> [*]

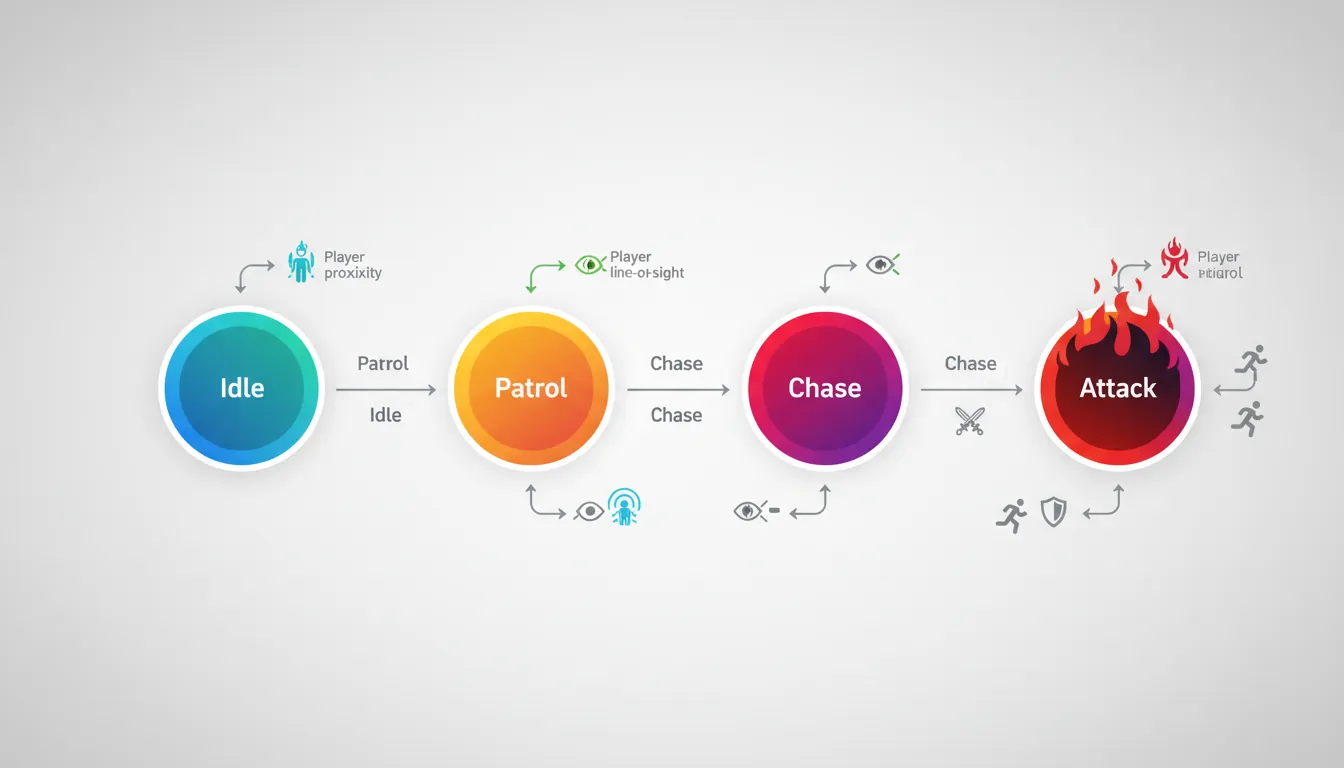

Enemy FSM Example:

           ┌─────────────────────────────────────────┐
           │                                         │
           ▼            Player spotted               │
     ┌──────────┐    ──────────────────►    ┌──────────┐
     │  PATROL  │                           │  CHASE   │
     └──────────┘    ◄──────────────────    └──────────┘
           │            Lost player                  │
           │                                         │
           │            In attack range              │
           │    ┌──────────────────────────────────┐│
           │    │                                  ││
           │    ▼                                  ▼│
     ┌──────────┐                           ┌──────────┐
     │  IDLE    │                           │  ATTACK  │
     └──────────┘                           └──────────┘
                      Out of range
                    ◄──────────────────

// Simple FSM Implementation
public enum EnemyState { Idle, Patrol, Chase, Attack }

public class EnemyFSM : MonoBehaviour
{
    public EnemyState currentState = EnemyState.Idle;
    public Transform player;
    public float detectRange = 10f;
    public float attackRange = 2f;

    void Update()
    {
        float distanceToPlayer = Vector3.Distance(transform.position, player.position);

        // State machine logic
        switch (currentState)
        {
            case EnemyState.Idle:
                // Just wait
                if (distanceToPlayer < detectRange)
                    TransitionTo(EnemyState.Chase);
                break;

            case EnemyState.Patrol:
                DoPatrol();
                if (distanceToPlayer < detectRange)
                    TransitionTo(EnemyState.Chase);
                break;

            case EnemyState.Chase:
                ChasePlayer();
                if (distanceToPlayer < attackRange)
                    TransitionTo(EnemyState.Attack);
                else if (distanceToPlayer > detectRange * 1.5f)
                    TransitionTo(EnemyState.Patrol);
                break;

            case EnemyState.Attack:
                AttackPlayer();
                if (distanceToPlayer > attackRange)
                    TransitionTo(EnemyState.Chase);
                break;
        }
    }

    void TransitionTo(EnemyState newState)
    {
        // Exit current state
        OnExitState(currentState);

        // Enter new state
        currentState = newState;
        OnEnterState(newState);
    }

    void OnEnterState(EnemyState state)
    {
        switch (state)
        {
            case EnemyState.Chase:
                PlaySound("AlertSound");
                break;
            case EnemyState.Attack:
                animator.SetTrigger("Attack");
                break;
        }
    }
}

Behavior Trees

Behavior Trees are more flexible than FSMs for complex AI. They use a tree structure of tasks that are evaluated from root to leaves.

graph TD
    ROOT["Root Selector\n(Try in order)"]
    ROOT --> SEQ1["Sequence:\nCombat"]
    ROOT --> SEQ2["Sequence:\nPatrol"]
    ROOT --> IDLE["Action:\nIdle"]

    SEQ1 --> C1["Condition:\nEnemy Visible?"]
    SEQ1 --> C2["Condition:\nIn Range?"]
    SEQ1 --> A1["Action:\nAttack"]

    SEQ2 --> C3["Condition:\nHas Waypoints?"]
    SEQ2 --> A2["Action:\nMove to\nWaypoint"]
    SEQ2 --> A3["Action:\nWait"]

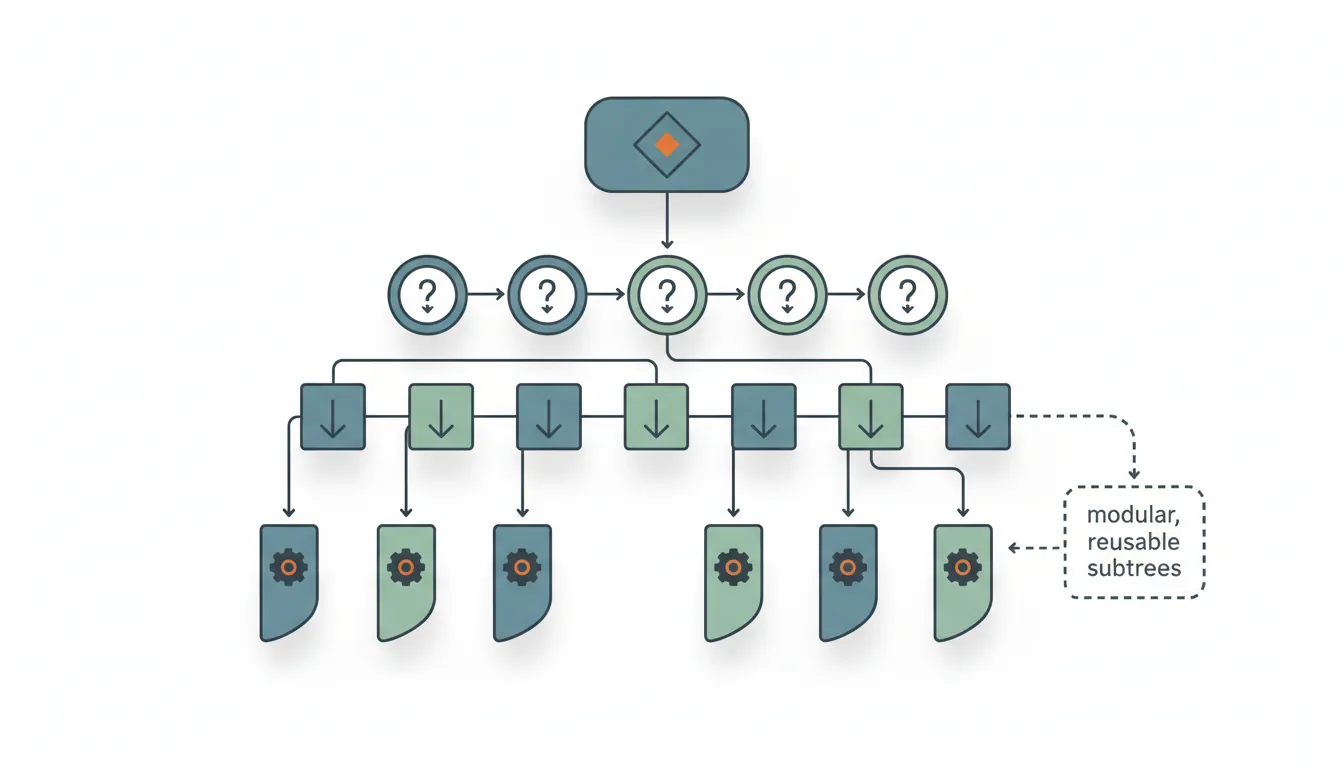

Behavior Tree Structure:

                     Root (Selector)
                           │
          ┌────────────────┼────────────────┐
          │                │                │
    [Sequence]       [Sequence]       [Sequence]
    "Attack"          "Chase"          "Patrol"
          │                │                │
    ┌─────┴─────┐    ┌─────┴─────┐    ┌─────┴─────┐
    │           │    │           │    │           │
Is Player   Attack  See      Move    No        Wander
In Range?   Action  Player?  To      Threat?   Around
                           Player

Node Types:
• Selector (?)  : Try children until one succeeds
• Sequence (→)  : Run children until one fails
• Decorator (~) : Modify child behavior (repeat, invert, etc.)
• Leaf          : Actual actions or conditions

Execution: Returns SUCCESS, FAILURE, or RUNNING

// Behavior Tree Implementation
public abstract class BTNode
{
    public enum Status { Success, Failure, Running }
    public abstract Status Evaluate();
}

public class Selector : BTNode  // Try until success
{
    private List<BTNode> children;

    public override Status Evaluate()
    {
        foreach (var child in children)
        {
            Status status = child.Evaluate();
            if (status != Status.Failure)
                return status;
        }
        return Status.Failure;
    }
}

public class Sequence : BTNode  // Run until failure
{
    private List<BTNode> children;

    public override Status Evaluate()
    {
        foreach (var child in children)
        {
            Status status = child.Evaluate();
            if (status != Status.Success)
                return status;
        }
        return Status.Success;
    }
}

// Condition node
public class IsPlayerInRange : BTNode
{
    private Enemy enemy;
    private float range;

    public override Status Evaluate()
    {
        float distance = Vector3.Distance(enemy.transform.position, enemy.player.position);
        return distance < range ? Status.Success : Status.Failure;
    }
}

// Action node
public class MoveToPlayer : BTNode
{
    private Enemy enemy;

    public override Status Evaluate()
    {
        enemy.navAgent.SetDestination(enemy.player.position);

        if (enemy.navAgent.remainingDistance < 0.5f)
            return Status.Success;
        return Status.Running;
    }
}

Decision Trees

Decision Trees are branching structures where each node asks a yes/no question, leading to different outcomes.

Decision Tree Example (NPC Shop Interaction):

                    Is player nearby?
                          │
              ┌───────────┴───────────┐
             Yes                      No
              │                       │
    Has player talked before?     Do nothing
              │
     ┌────────┴────────┐
    Yes                No
     │                  │
Is player a customer?  Introduce self
     │                 "Hello stranger!"
  ┌──┴──┐
 Yes    No
  │      │
"Welcome "Sorry, we're
 back!"   closed."

Steering Behaviors

Steering behaviors create natural-looking movement by combining simple forces. They're used for crowds, flocks, and smooth AI navigation.

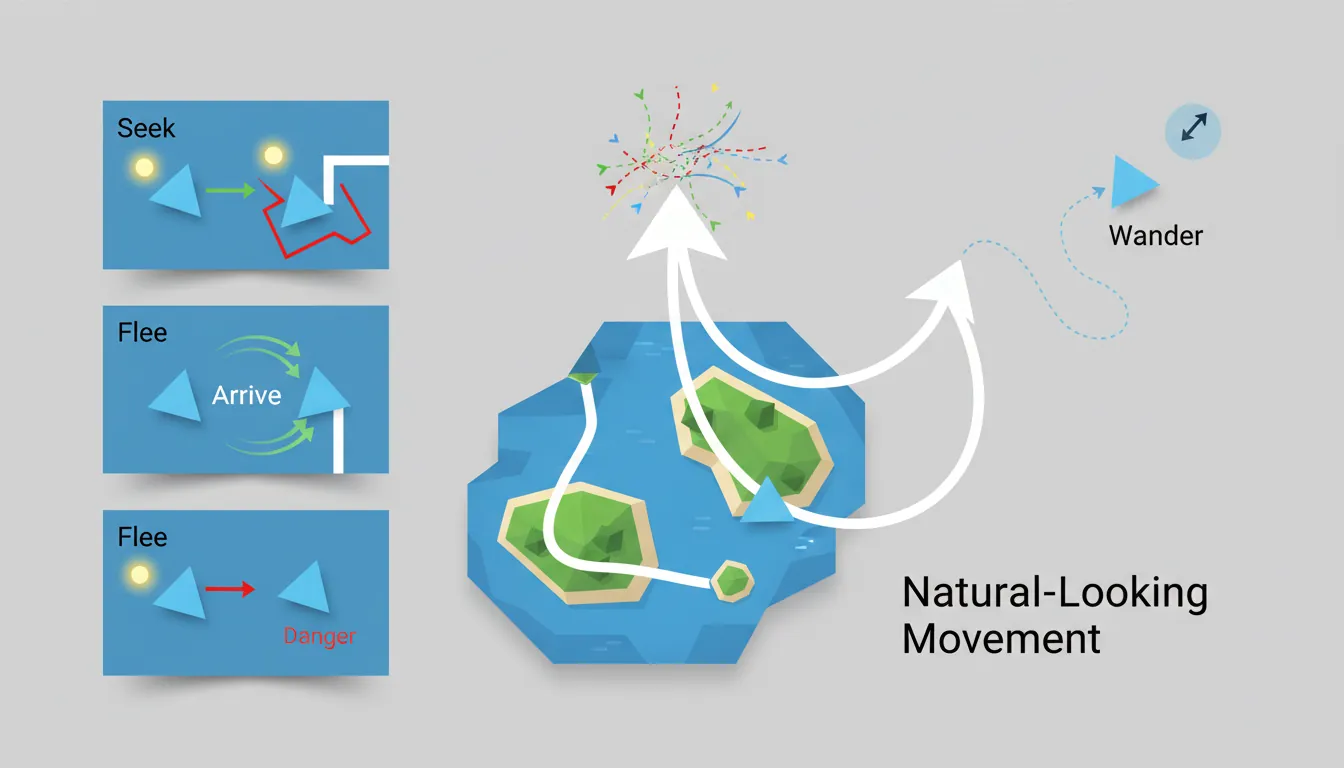

Basic Steering Behaviors:

Seek:                Flee:                Arrive:
     Target              Enemy              Target
        ●                  ●                  ●
       ╱                    ╲               slow↗
      ╱ Force              Force ╲        ────→
     ╱                            ╲      Agent
  Agent                          Agent    (slows down near target)

Wander:              Obstacle Avoidance:
   ●───┐             Agent ──────→
  ╱    │              ╲       █ Obstacle
 ╱ Random              ╲ ───→
Agent direction         Goes around

// Steering Behaviors Implementation
public class SteeringAgent : MonoBehaviour
{
    public float maxSpeed = 5f;
    public float maxForce = 10f;

    private Vector3 velocity;

    void Update()
    {
        Vector3 steering = Vector3.zero;

        // Combine behaviors
        steering += Seek(target.position) * 1f;
        steering += AvoidObstacles() * 2f;  // Higher priority
        steering += Separation(nearbyAgents) * 1.5f;

        // Apply steering
        steering = Vector3.ClampMagnitude(steering, maxForce);
        velocity += steering * Time.deltaTime;
        velocity = Vector3.ClampMagnitude(velocity, maxSpeed);

        transform.position += velocity * Time.deltaTime;
        transform.forward = velocity.normalized;
    }

    Vector3 Seek(Vector3 targetPos)
    {
        Vector3 desired = (targetPos - transform.position).normalized * maxSpeed;
        return desired - velocity;
    }

    Vector3 Flee(Vector3 threatPos)
    {
        return -Seek(threatPos);  // Opposite of seek
    }

    Vector3 Arrive(Vector3 targetPos, float slowRadius)
    {
        Vector3 toTarget = targetPos - transform.position;
        float distance = toTarget.magnitude;

        float speed = maxSpeed;
        if (distance < slowRadius)
            speed = maxSpeed * (distance / slowRadius);

        Vector3 desired = toTarget.normalized * speed;
        return desired - velocity;
    }

    Vector3 Separation(List<Transform> neighbors)
    {
        Vector3 steering = Vector3.zero;
        foreach (var neighbor in neighbors)
        {
            Vector3 away = transform.position - neighbor.position;
            steering += away.normalized / away.magnitude;  // Closer = stronger
        }
        return steering;
    }
}
