ARM Assembly Part 6: Stack, Subroutines & AAPCS

Introduction

Why the ABI Matters

The Application Binary Interface (ABI) is the contract that allows separately compiled object files — written in different languages, compiled by different compilers, possibly years apart — to call each other's functions. Think of it like a diplomatic protocol: if two nations agree on the same language and customs, they can cooperate without confusion. ARM's ABI for 64-bit platforms is the AAPCS64 (Procedure Call Standard for the Arm 64-bit Architecture). Violating even one rule — clobbering a callee-saved register you didn't restore, misaligning the stack — can cause silent data corruption, crashes, or security vulnerabilities that appear only under specific runtime conditions.

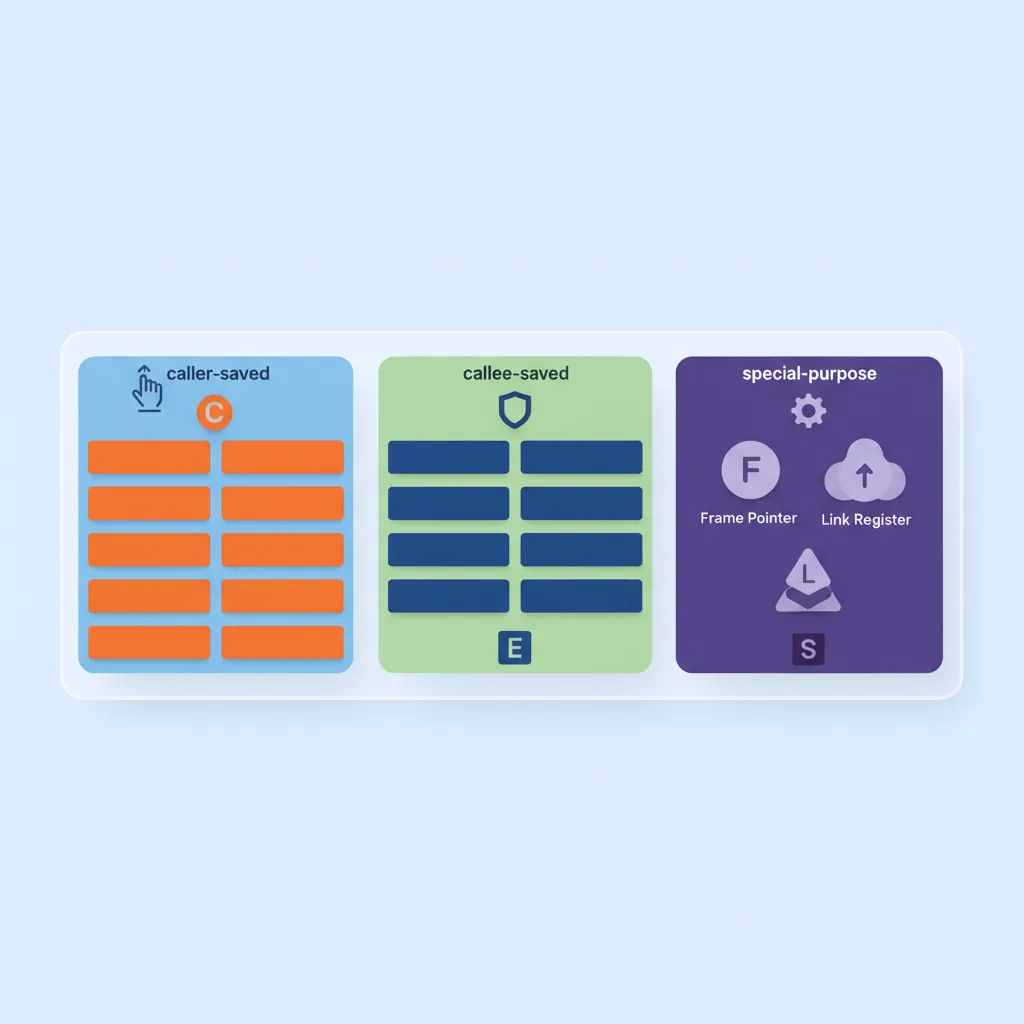

Register Conventions

Argument & Return Registers

The first 8 integer or pointer arguments are passed in X0–X7 (or W0–W7 for 32-bit values). The return value comes back in X0 (or X0:X1 for 128-bit returns). Register X8 has a special role: when a function returns a large struct by value (>16 bytes), the caller allocates space and passes a pointer to it in X8 — the callee writes the result through that pointer. For floating-point and SIMD, the first 8 arguments use V0–V7 independently from the integer registers, and the FP return value is in V0.

Caller-Saved (Corruptible) Registers

X0–X17, V0–V7, and V16–V31 are all caller-saved (also called "volatile" or "scratch"). This means any function you call via BL/BLR is free to overwrite these without restoring them. If you need a value in X9 to survive a function call, you must save it — typically by moving it to a callee-saved register (X19–X28) or spilling it to the stack before the call.

// Caller-save pattern: preserving X9 across a function call
    MOV  x19, x9             // Move to callee-saved register (safe)
    BL   some_function        // X9 may be destroyed; X19 survives
    MOV  x9, x19             // Restore value

    // Alternative: spill to stack
    STR  x9, [sp, #-16]!     // Push x9 to stack (16-byte aligned)
    BL   some_function
    LDR  x9, [sp], #16       // Pop x9 back

Callee-Saved (Preserved) Registers

X19–X28 and the lower 64 bits of V8–V15 (accessed as D8–D15) are callee-saved. If your function uses any of these, you must save them in the prologue and restore them in the epilogue. The upper 64 bits of V8–V15 are not preserved — a subtle trap for SIMD code that uses full 128-bit Q8–Q15 registers.

SP, FP (X29), LR (X30)

Three registers have architectural significance beyond the ABI:

• SP (Stack Pointer): Must be 16-byte aligned at any public interface boundary (function entry/exit, function calls) and whenever used as a base address for load/store. The hardware traps on misaligned SP access.
• X29 (Frame Pointer): When maintained (mandatory with -fno-omit-frame-pointer), X29 points to the saved {FP, LR} pair of the current frame, creating a linked list of frames for stack unwinding.
• X30 (Link Register): Set by BL/BLR to the return address. In non-leaf functions, you must save X30 in the prologue (it will be overwritten by any sub-call). RET branches to the address in X30.

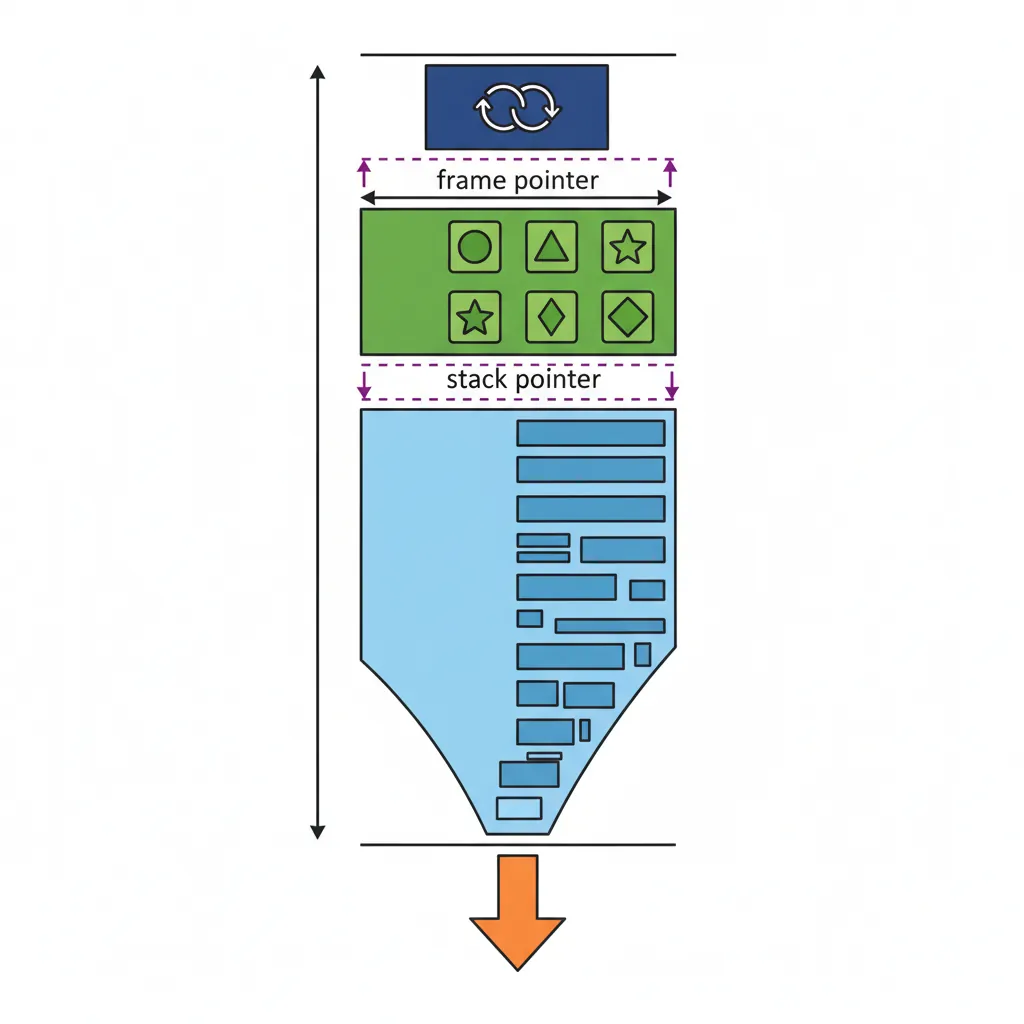

Stack Frame Layout

Frame Structure & Alignment

The AArch64 stack grows downward (toward lower addresses). Each function's stack frame contains, from high to low address:

1. Incoming stack arguments (if any — beyond X0–X7/V0–V7)
2. Saved FP (X29) and LR (X30) as a pair — always at the "top" of the frame
3. Callee-saved registers (X19–X28, D8–D15) that this function uses
4. Local variables and spill slots

The total frame size must be a multiple of 16 bytes. If your locals use 12 bytes, the frame is padded to 16. The STP x29, x30, [sp, #-N]! instruction both allocates the frame (decrementing SP by N) and saves the frame pointer and link register in a single atomic operation.

Prologue Pattern

// Standard AAPCS64 function prologue
my_function:
    STP  x29, x30, [sp, #-48]!  // Allocate 48 bytes; save FP+LR
    MOV  x29, sp                  // Set frame pointer
    STP  x19, x20, [sp, #16]     // Save callee-saved registers
    STP  x21, x22, [sp, #32]
    // ... function body ...

Epilogue Pattern

// Standard AAPCS64 function epilogue
    LDP  x21, x22, [sp, #32]     // Restore callee-saved registers
    LDP  x19, x20, [sp, #16]
    LDP  x29, x30, [sp], #48     // Restore FP+LR; deallocate frame
    RET                           // Return to caller via X30

Local Variable Allocation

The compiler assigns stack offsets to local variables relative to SP (or FP when the frame pointer is maintained). Variables that don't fit in registers, have their address taken (e.g., passed to another function as a pointer), or are too large for a register are spilled to the stack. Alignment padding is inserted to ensure each type's natural alignment — a double at an 8-byte boundary, a __int128 at 16 bytes.

// Function with local variables
my_fn:
    STP  x29, x30, [sp, #-64]!  // 64-byte frame
    MOV  x29, sp
    STP  x19, x20, [sp, #16]    // Save callee-saved regs
    // Local variable layout (relative to SP):
    //   [sp, #32]  → int32_t count   (4 bytes, 4-byte aligned)
    //   [sp, #36]  → padding          (4 bytes for alignment)
    //   [sp, #40]  → double value     (8 bytes, 8-byte aligned)
    //   [sp, #48]  → char buf[16]     (16 bytes)
    MOV  w0, #0
    STR  w0, [sp, #32]           // count = 0
    FMOV d0, #1.0
    STR  d0, [sp, #40]           // value = 1.0

Argument Passing Rules

Integer & Pointer Arguments

The first 8 integer or pointer arguments go in X0–X7 (W0–W7 for 32-bit types). Types narrower than 64 bits are zero-extended (for unsigned) or sign-extended (for signed) to fill the full 64-bit register. A 128-bit integer (e.g., __int128) occupies a pair of consecutive registers — the first 128-bit arg uses X0:X1 (low half in X0).

// C: int64_t sum(int a, long b, char *p, unsigned short s)
// a → w0 (sign-extended to x0), b → x1, p → x2, s → w3 (zero-extended)
sum:
    SXTW x0, w0              // Sign-extend int a to 64-bit
    ADD  x0, x0, x1          // x0 = a + b
    LDRB w4, [x2]            // Load byte from *p
    ADD  x0, x0, x4
    ADD  x0, x0, x3          // + s (already zero-extended)
    RET

Floating-Point & SIMD Arguments

FP and SIMD arguments use a completely separate set of registers from integers. The first 8 go in V0–V7 (as S0–S7 for float, D0–D7 for double, or Q0–Q7 for 128-bit SIMD). This means a function with 4 integer + 4 float arguments uses X0–X3 for the ints and V0–V3 for the floats simultaneously — no conflict. Return value comes back in V0 (or V0:V1 for 128-bit returns).

Stack Argument Overflow

When integer registers X0–X7 are exhausted, subsequent integer arguments are pushed onto the stack in left-to-right order, each 8-byte aligned. The same rule applies to FP/SIMD arguments beyond V7. The callee accesses overflow arguments at positive offsets from the frame pointer: [x29, #16] is the first stack argument (above the saved FP/LR pair).

// C: void many_args(int a, int b, ..., int i, int j)
//    X0=a, X1=b, ..., X7=h, stack: [sp]=i, [sp+8]=j
caller:
    // ... load X0-X7 with first 8 args ...
    MOV  x9, #9              // 9th argument
    MOV  x10, #10            // 10th argument
    STP  x9, x10, [sp, #-16]!  // Push args 9-10 to stack
    BL   many_args
    ADD  sp, sp, #16          // Caller cleans up stack args

Struct Passing Rules

Struct passing follows three rules based on size and composition:

• Small structs (≤16 bytes) with no unaligned fields are decomposed and passed in up to two registers (e.g., a struct with two int64_t fields goes in X0:X1).
• Large structs (>16 bytes) are passed by reference — the caller copies the struct to memory and passes a pointer in an integer register.
• Homogeneous Floating-Point Aggregates (HFA) — structs with up to 4 identical FP fields (e.g., struct { float x, y, z, w; }) use V registers directly: V0–V3 for a 4-element HFA.

Variadic Functions

va_list Layout in AArch64

AArch64's va_list is a struct with four fields (not a simple pointer like on some architectures):

• __stack — pointer to the next stack argument (for overflow args beyond X7/V7)
• __gr_top — pointer to the top of the General Register save area
• __vr_top — pointer to the top of the Vector Register save area
• __gr_offs — offset from __gr_top to the next GP argument (negative, counting up to 0)
• __vr_offs — offset from __vr_top to the next FP/SIMD argument (negative)

A variadic function's prologue saves all 8 GP registers (X0–X7) and all 8 FP registers (V0–V7) to the register save area on the stack, so va_arg can retrieve unnamed arguments from either area. This is more complex than x86-64 but avoids the need for stack probing.

Implementing va_arg in Assembly

For an integer va_arg: check __gr_offs — if it's less than 0, the next argument is still in the register save area at __gr_top + __gr_offs. Increment __gr_offs by 8. If __gr_offs reaches 0, all GP save slots are consumed; subsequent arguments come from __stack (the overflow area), advancing the pointer by 8 each time. For FP arguments, the same logic applies using __vr_offs/__vr_top with 16-byte increments (SIMD register width).

// Simplified va_arg for integer type
// va_list in [x19]: __stack, __gr_top, __vr_top, __gr_offs, __vr_offs
    LDRSW x0, [x19, #24]        // Load __gr_offs
    CBZ   x0, .use_stack         // If 0, GP save area exhausted
    ADDS  x0, x0, #8            // Advance offset
    STR   w0, [x19, #24]        // Store updated __gr_offs
    LDR   x1, [x19, #8]         // Load __gr_top
    SUB   x0, x0, #8            // Back to original offset
    LDR   x0, [x1, x0]          // Load argument from save area
    B     .va_arg_done
.use_stack:
    LDR   x1, [x19]             // Load __stack
    LDR   x0, [x1], #8          // Load arg, advance stack pointer
    STR   x1, [x19]             // Store updated __stack
.va_arg_done:
    // x0 = next variadic integer argument

Leaf Functions & Optimisations

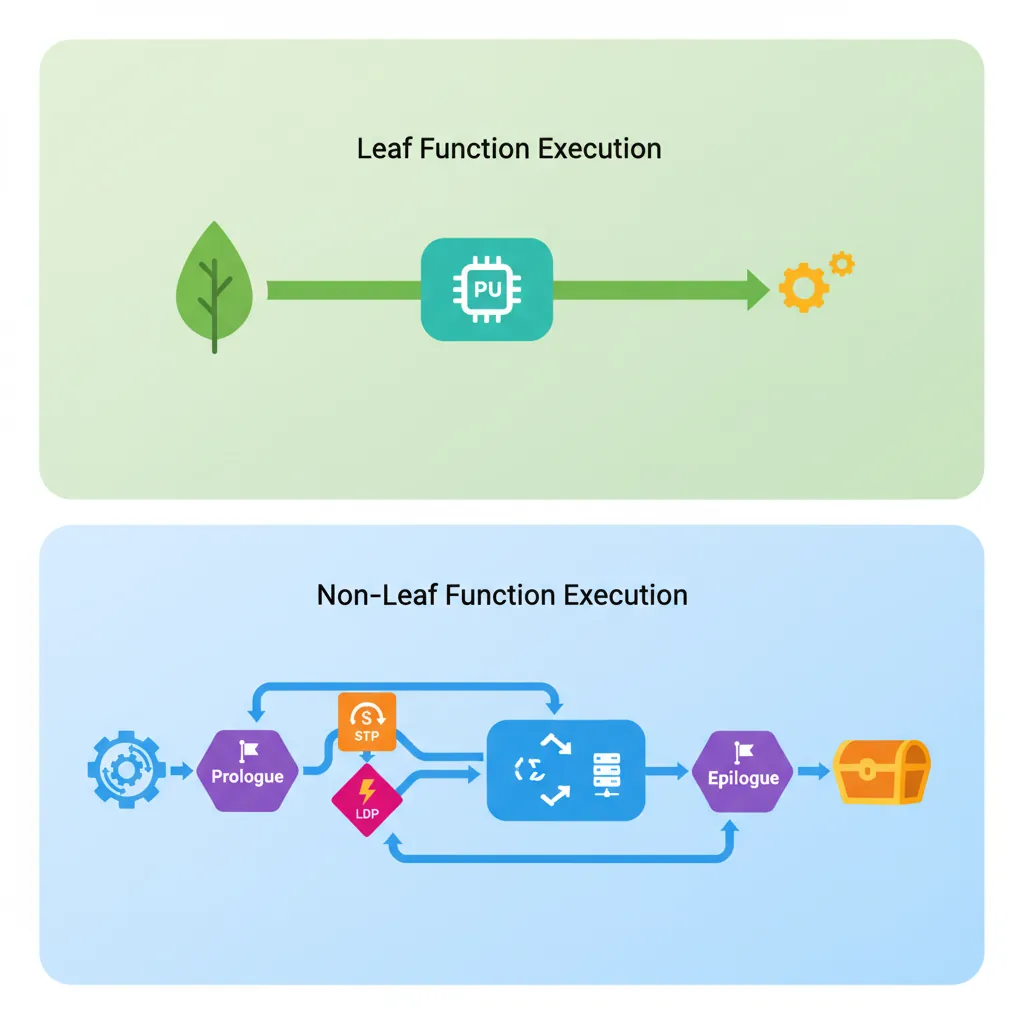

Leaf Function (No Frame)

A leaf function — one that makes no further function calls — is the most efficient function form on AArch64. If it only uses caller-saved registers (X0–X15), it does NOT need to save LR, does NOT need a stack frame, and does NOT need to adjust SP. The entire function is just the body plus RET. This eliminates the STP/LDP prologue/epilogue overhead entirely — a significant win for small utility functions called millions of times.

// Leaf function — no frame needed
add_two:
    ADD  x0, x0, x1     // Return x0 + x1
    RET                  // LR untouched; no frame

Tail-Call Optimisation

If the last action of a function is a call whose return value is immediately returned, the call overhead can be eliminated entirely. Instead of BL target; RET, the function restores its callee-saved registers and frame, then uses B target (not BL). The tail callee returns directly to the original caller — the intermediate frame vanishes. This is critical for recursive algorithms (it converts recursion to iteration) and for wrapper/forwarding functions.

// Tail-call example: forward() → B to target()
forward:
    STP  x29, x30, [sp, #-16]!
    MOV  x29, sp
    // ... modify args if needed ...
    LDP  x29, x30, [sp], #16    // Restore frame
    B    target                  // Tail call (not BL)

Inline Expansion

At -O2/-O3, GCC and Clang inline short functions — the function body is copied directly into the call site, eliminating all call overhead (no BL, no frame setup, no register save/restore). More importantly, the compiler can now optimise across the caller/callee boundary: propagate constants, eliminate dead code, and schedule instructions freely. Functions declared static inline or with __attribute__((always_inline)) are strong inline hints. Understanding what the compiler inlines helps when writing mixed C/assembly code — if you force a function to be in a separate .s file, it cannot be inlined.

Stack Frames & Debugging

Frame Pointer Chains

With -fno-omit-frame-pointer, every function's X29 points to the saved X29 of its caller, forming a linked list of stack frames. Walking this chain gives a complete stack trace even without symbol information — essential for debuggers, profilers (like Linux perf), and crash reporters. Each frame's {FP, LR} pair tells you: "who called me (LR) and where to find the next frame (FP)."

// Walking the frame pointer chain (stack unwinding)
// X29 (FP) → [saved_FP, saved_LR]
//   saved_FP → [prev_FP, prev_LR]
//     prev_FP → ... until FP == 0 (bottom of stack)
unwind:
    MOV  x0, x29             // Start with current frame pointer
.walk:
    CBZ  x0, .done           // FP == 0 means bottom of stack
    LDR  x1, [x0, #8]       // Load saved LR (return address)
    // ... record x1 for stack trace ...
    LDR  x0, [x0]           // Follow chain to caller's FP
    B    .walk
.done:

DWARF Unwind Info

Even when the frame pointer is omitted (-fomit-frame-pointer, the default at -O2), compilers emit DWARF unwind information in .eh_frame and .debug_frame sections. These contain Canonical Frame Address (CFA) rules describing, for every instruction in the function, how to compute the previous frame's SP and where each callee-saved register was stored. Tools like GDB, perf, and Apple Instruments use this data to reconstruct full call stacks without requiring frame pointers.

// GAS .cfi_* directives that generate DWARF unwind info
my_function:
    .cfi_startproc            // Begin unwind info for this function
    STP  x29, x30, [sp, #-32]!
    .cfi_def_cfa_offset 32    // CFA = SP + 32
    .cfi_offset x29, -32      // X29 saved at CFA - 32
    .cfi_offset x30, -24      // X30 saved at CFA - 24
    MOV  x29, sp
    .cfi_def_cfa_register x29 // CFA now tracked via X29
    STP  x19, x20, [sp, #16]
    .cfi_offset x19, -16
    .cfi_offset x20, -8
    // ... function body ...
    LDP  x19, x20, [sp, #16]
    .cfi_restore x19
    .cfi_restore x20
    LDP  x29, x30, [sp], #32
    .cfi_restore x29
    .cfi_restore x30
    .cfi_def_cfa sp, 0
    RET
    .cfi_endproc

Conclusion & Next Steps

This part formalised the AAPCS64 calling convention — the contract that makes all AArch64 software interoperate. We covered register conventions (X0–X7 for arguments, X19–X28 callee-saved, X30 as the link register), the canonical prologue/epilogue with STP/LDP for frame setup and teardown, local variable layout with 16-byte alignment, argument passing rules for integers, floating-point, stack overflow, structs, and HFAs, variadic functions with the five-field va_list struct, leaf functions that skip the frame entirely, tail-call optimisation via B instead of BL, and stack unwinding via frame pointer chains and DWARF CFA rules.
