ARM Assembly Part 24: Linkers, Loaders & Binary Format Internals

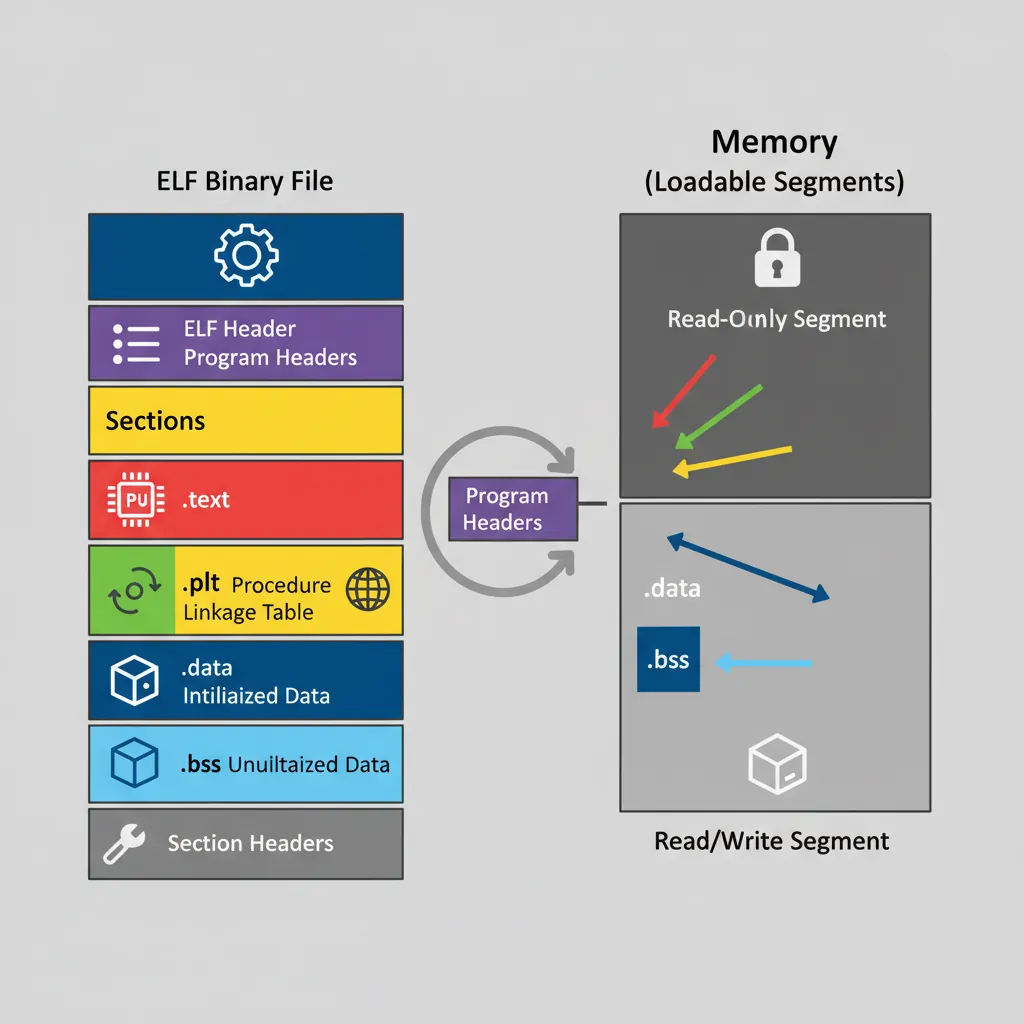

ELF Section Anatomy


                        Series Overview: Part 24 of 28. Related: Part 19 (Reverse Engineering / ELF overview), Part 20 (bare-metal linker script), Part 25 (cross-compilation toolchains).


ARM Assembly Mastery

Your 28-step learning path • Currently on Step 24

Linkers, Loaders & Binary Format Internals

ELF deep dive, relocations, PIC, crt0

You Are Here

Cross-Compilation & Build Systems

GCC/Clang toolchains, CMake

ARM in Real Systems

Android, FreeRTOS/Zephyr, U-Boot

Security Research & Exploitation

ASLR, PAC attacks, ROP/JOP

Emerging ARMv9 & Future Directions

MTE, SME, confidential compute


                        Real-World Analogy — Publishing a Book: The linker is like a book publisher assembling a final manuscript. Each object file (.o) is a chapter draft from a different author (translation unit). The publisher (linker) collects all chapters, assigns page numbers (addresses), builds the table of contents (.symtab) and index (.strtab), cross-references between chapters (relocations — "See Chapter 5, page 42"), and binds them into a single volume (ELF executable). Static linking is like printing all the appendices inline — the book is self-contained but heavy. Dynamic linking is like footnotes that say "see the companion reference manual on the shelf" — the book is lighter but needs access to the library (shared libraries) at reading time. The GOT (Global Offset Table) is the book's citation index: a fixed page you flip to that tells you the current shelf position of each reference manual. PLT (Procedure Linkage Table) is the librarian: on first request, they look up where the reference manual actually is (symbol resolution), write the shelf number in the citation index, and from then on you go directly to the shelf.


# Inspect all sections of an AArch64 binary:
aarch64-linux-gnu-readelf -S /bin/ls | head -60
# [Nr] Name              Type            Address          Off    Size
# [ 1] .interp           PROGBITS        0000000000000238 000238 00001c  # /lib/ld-linux-aarch64.so.1
# [ 2] .note.gnu.build-id NOTE            0000000000000254 000254 000024
# [11] .init             PROGBITS        0000000000004000 003000 000018  # init code
# [12] .plt              PROGBITS        0000000000004020 003020 000590  # PLT stubs
# [13] .plt.got          PROGBITS        0000000000004800 003800 000030  # PLT GOT stubs
# [14] .text             PROGBITS        0000000000004830 003830 013c4c  # main code
# [24] .got              PROGBITS        0000000000033000 032000 000038  # GOT (holds resolved addresses)
# [25] .got.plt          PROGBITS        0000000000033038 032038 0002e0  # GOT.PLT (lazy binding targets)
# [26] .data             PROGBITS        0000000000033320 032320 0000e0

# Program headers (segments — what the OS loader actually maps):
aarch64-linux-gnu-readelf -l /bin/ls | grep -A2 LOAD

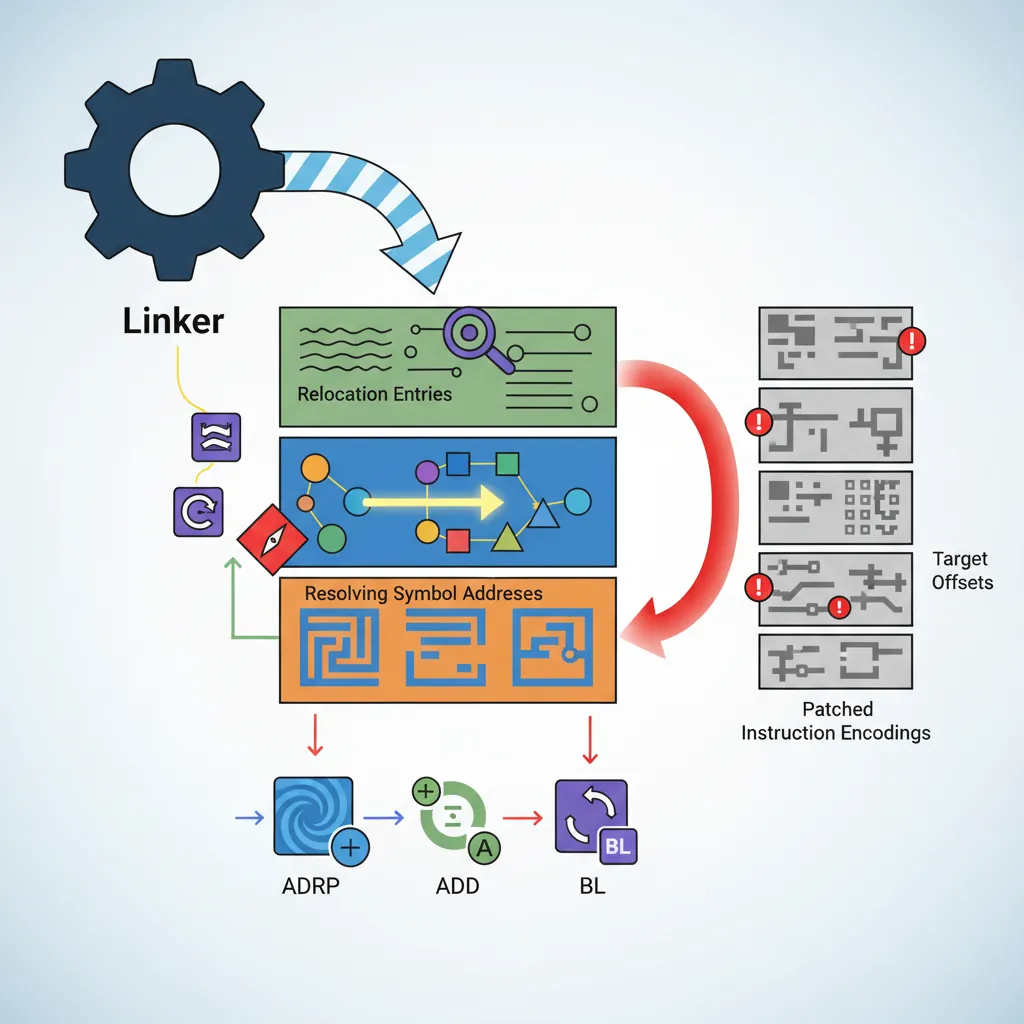

RELA Relocations

# Dump all RELA entries (Relocation with Explicit Addend):
aarch64-linux-gnu-readelf -r /bin/ls | head -40
# Relocation section '.rela.plt' at offset 0x748 contains 93 entries:
#   Offset          Info           Type           Sym. Value    Sym. Name + Addend
# 000000033040  000400000402 R_AARCH64_JUMP_SLOT 0000000000000000 free@GLIBC_2.17 + 0
# 000000033048  000500000402 R_AARCH64_JUMP_SLOT 0000000000000000 abort@GLIBC_2.17 + 0

# AArch64 Relocation Type Reference:
# R_AARCH64_NONE       (0)  — no-op
# R_AARCH64_ABS64      (257)— 64-bit absolute address
# R_AARCH64_COPY       (1024)—copy relocation for .bss symbols in DSO
# R_AARCH64_GLOB_DAT   (1025)—resolve symbol address into GOT slot
# R_AARCH64_JUMP_SLOT  (1026)—lazy PLT target (most common)
# R_AARCH64_RELATIVE   (1027)—base + addend (used for PIC data references)
# R_AARCH64_CALL26     (283) —B/BL 26-bit branch: encode PC-relative offset
# R_AARCH64_ADR_PREL_PG_HI21 (275)—ADRP instruction page offset
# R_AARCH64_ADD_ABS_LO12_NC  (277)—ADD immediate lower 12 bits

# See actual relocation bytes in .o file before linking:
aarch64-linux-gnu-gcc -c hello.c -o hello.o
aarch64-linux-gnu-readelf -r hello.o
# .rela.text entries:
#   000000000010  000200000116 R_AARCH64_ADR_PREL_PG_HI21 0 .rodata + 0
#   000000000014  000200000115 R_AARCH64_ADD_ABS_LO12_NC  0 .rodata + 0
#   000000000018  000300000107 R_AARCH64_CALL26           0 printf + 0
# These are filled by the static linker (ld) or patched at load time by ld.so

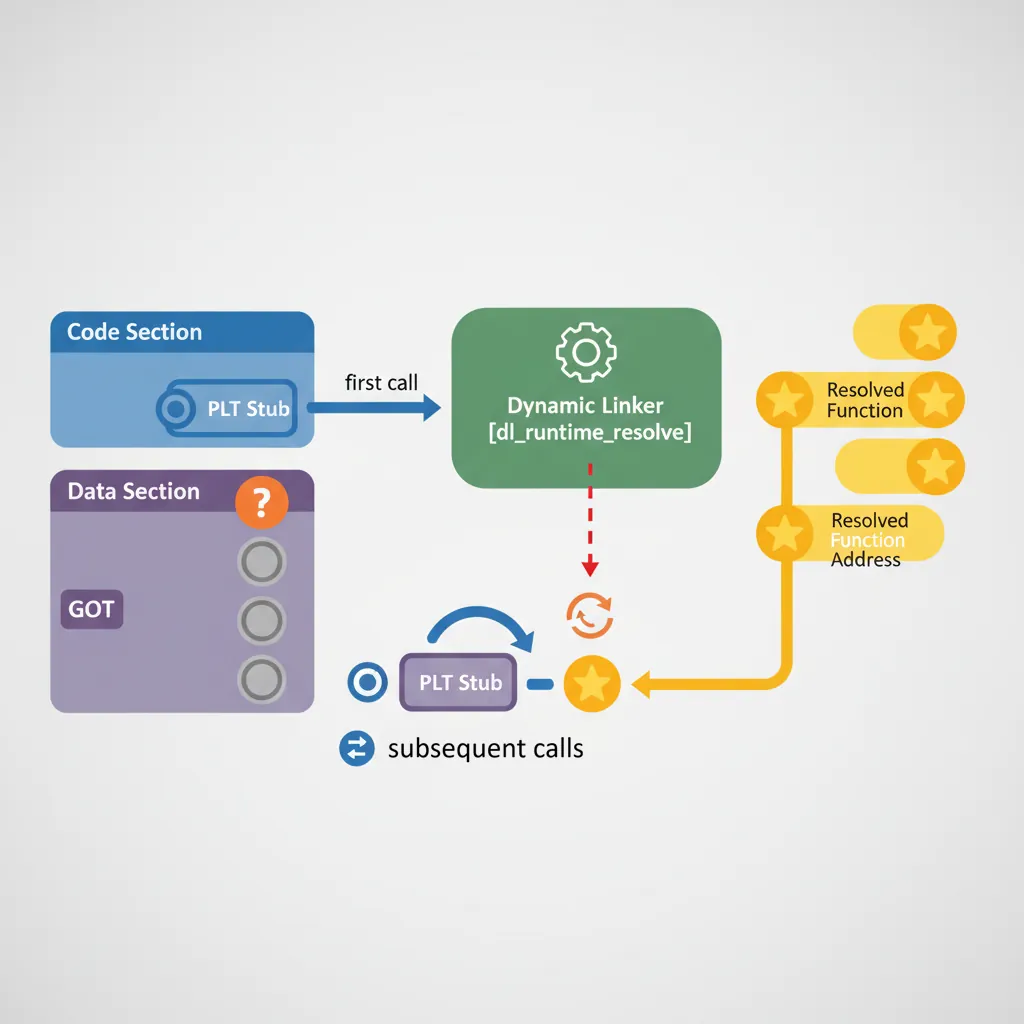

PLT, GOT & Lazy Binding


                        PLT / GOT Lazy Binding Flow:

                        1. First call to printf() hits PLT stub → loads GOT.PLT[n] → redirects to _dl_runtime_resolve

                        2. _dl_runtime_resolve looks up printf in loaded shared libraries

                        3. Writes real printf address into GOT.PLT[n]

                        4. All subsequent calls hit PLT → GOT.PLT[n] → direct jump to printf. No resolver cost.

// AArch64 PLT stub disassembly (typical):
// Address: .plt + 0x20 (first actual stub after PLT[0])
//
// .plt[0]: preamble — save IP, load resolver address from GOT.PLT[1,2]
// 0x4000: stp  x16, x30, [sp, #-16]!   // Save scratch + LR
// 0x4004: adrp x16, 33000              // ADRP → page of GOT.PLT
// 0x4008: ldr  x17, [x16, #0x40]       // Load GOT.PLT[resolver_offset]
// 0x400C: add  x16, x16, #0x40
// 0x4010: br   x17                      // Jump to _dl_runtime_resolve or real addr

// Individual PLT stub (e.g. for free@GLIBC_2.17):
// 0x4040: adrp x16, 33000              // Page of GOT.PLT
// 0x4044: ldr  x17, [x16, #0x48]       // Load GOT.PLT entry for 'free'
// 0x4048: add  x16, x16, #0x48
// 0x404C: br   x17                      // First call → resolver; after → real free()

// On AArch64, x16 (IP0) and x17 (IP1) are intra-procedure-call scratch registers
// reserved specifically for PLT stubs (AAPCS AArch64 calling convention)

Position-Independent Code (PIC/PIE)

# Compile with PIC (shared library):
aarch64-linux-gnu-gcc -fPIC -shared -o libfoo.so foo.c

# Compile PIE executable (position-independent executable, ASLR-compatible):
aarch64-linux-gnu-gcc -fPIE -pie -o foo foo.c

# Verify: PIE binaries have ET_DYN type, not ET_EXEC:
aarch64-linux-gnu-readelf -h foo | grep Type
# Type: DYN (Position-Independent Executable file)

// ── How the compiler generates PIC code on AArch64 ──

// Non-PIC (position-dependent): uses absolute address
// Problem: absolute address is wrong if loaded at a different address
adrp x0, my_global
add  x0, x0, :lo12:my_global   // Assembler fills in absolute page + offset
// RELA entry: R_AARCH64_ABS64 at the instruction — loader must patch at load

// PIC global data access (via GOT):
// Compiler generates:
adrp x0, :got:my_global         // PC-relative page of GOT entry
ldr  x0, [x0, :got_lo12:my_global]  // Load GOT entry → address of my_global
ldr  x1, [x0]                   // Dereference to get the actual data
// RELA: R_AARCH64_GLOB_DAT fills the GOT entry at load time
// The two-instruction GOT indirection is PC-relative → works at any load address

// PIC function call (via PLT):
// Compiler generates:
bl   my_extern_func              // Assembler emits R_AARCH64_CALL26 reloc
// Linker redirects to PLT stub, which loads target from GOT.PLT
// Result: call is position-independent; target patched by dynamic linker

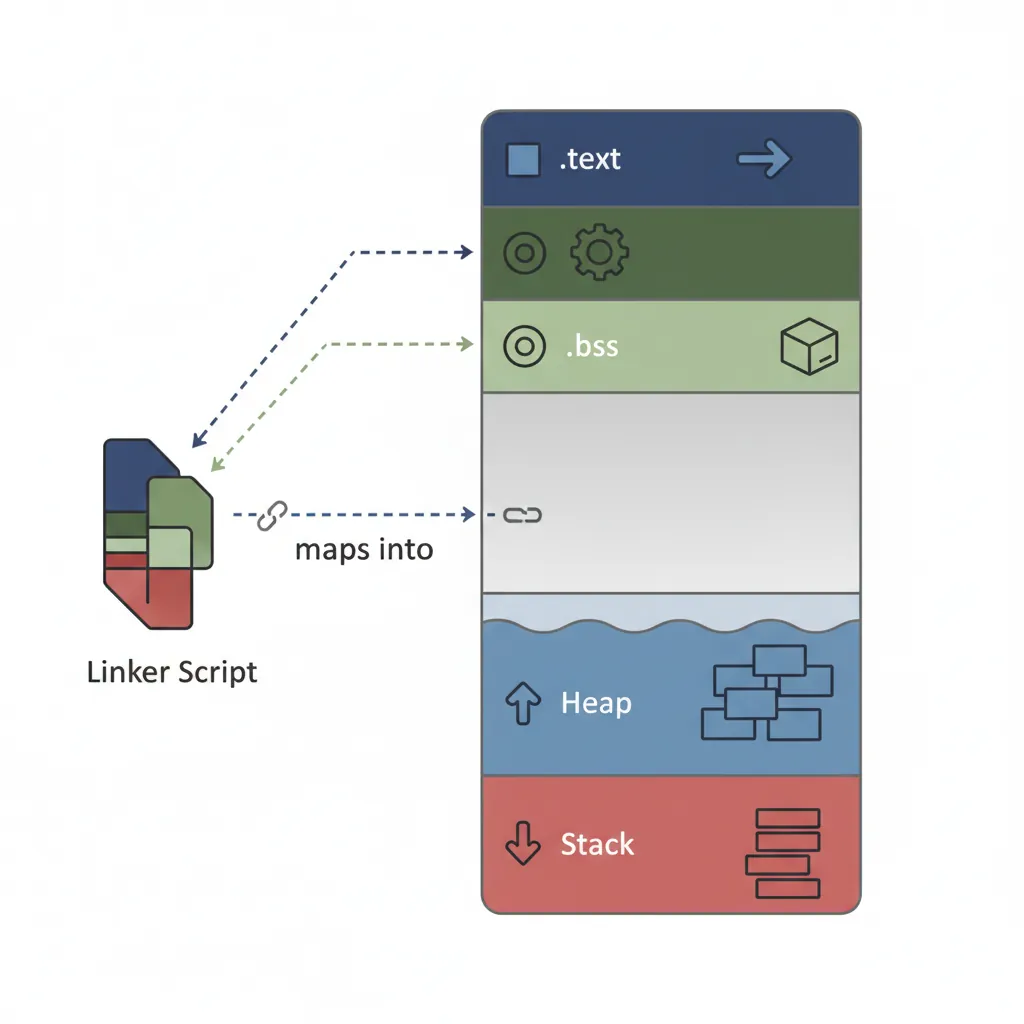

Linker Scripts

# Minimal linker script for ARM64 bare-metal (from Part 20):
cat kernel.ld

/* kernel.ld — bare-metal AArch64 linker script for QEMU virt */
OUTPUT_FORMAT("elf64-littleaarch64")
OUTPUT_ARCH(aarch64)
ENTRY(_start)

MEMORY {
    /* QEMU virt: RAM starts at 0x40000000 */
    RAM (rwx) : ORIGIN = 0x40000000, LENGTH = 128M
}

SECTIONS {
    /* Kernel code loaded at 0x40000000 */
    . = 0x40000000;

    .text.boot : { *(.text.boot) }  /* boot.S must be first */
    .text       : { *(.text .text.*) }
    .rodata     : { *(.rodata .rodata.*) }
    . = ALIGN(4096);                /* Page-align data sections */

    .data       : { *(.data .data.*) }
    . = ALIGN(8);
    _bss_start = .;
    .bss        : { *(.bss .bss.* COMMON) }
    . = ALIGN(8);
    _bss_end    = .;

    /* Heap starts after BSS — bump allocator uses this */
    _heap_start = .;
    . += 4M;                        /* Reserve 4 MB for heap */
    _heap_end   = .;

    /* Stack: 4KB per task × 8 tasks = 32 KB */
    . = ALIGN(4096);
    _stack_base = .;
    . += 32K;
    _stack_top  = .;
}

# View the final link map (where everything landed):
aarch64-linux-gnu-ld -T kernel.ld -Map kernel.map \
    boot.o uart.o vectors.o kernel.o -o kernel.elf
grep -E "^\.text|^\.data|^\.bss|_stack" kernel.map | head -20

crt0 & ELF Startup Sequence

// crt0.S — minimal C runtime startup for bare-metal AArch64
// This is what links between _start (boot.S) and main()

.global crt_start
crt_start:
    // ABI: x0 = argc, x1 = argv, x2 = envp (Linux); bare-metal: all 0
    mov  x0, #0           // argc = 0
    mov  x1, #0           // argv = NULL
    mov  x2, #0           // envp = NULL

    // Call global/static constructors (C++ init, attribute((constructor)))
    adrp x3, __init_array_start
    add  x3, x3, :lo12:__init_array_start
    adrp x4, __init_array_end
    add  x4, x4, :lo12:__init_array_end
.call_ctors:
    cmp  x3, x4
    b.ge .ctors_done
    ldr  x5, [x3], #8    // Load function pointer from .init_array
    blr  x5              // Call constructor
    b    .call_ctors
.ctors_done:

    // Call main()
    bl   main

    // Call global destructors (.fini_array) after main returns
    // ... (similar loop over __fini_array_start..__fini_array_end) ...

    // For bare-metal: loop forever; for Linux: call exit(r)
    bl   _exit

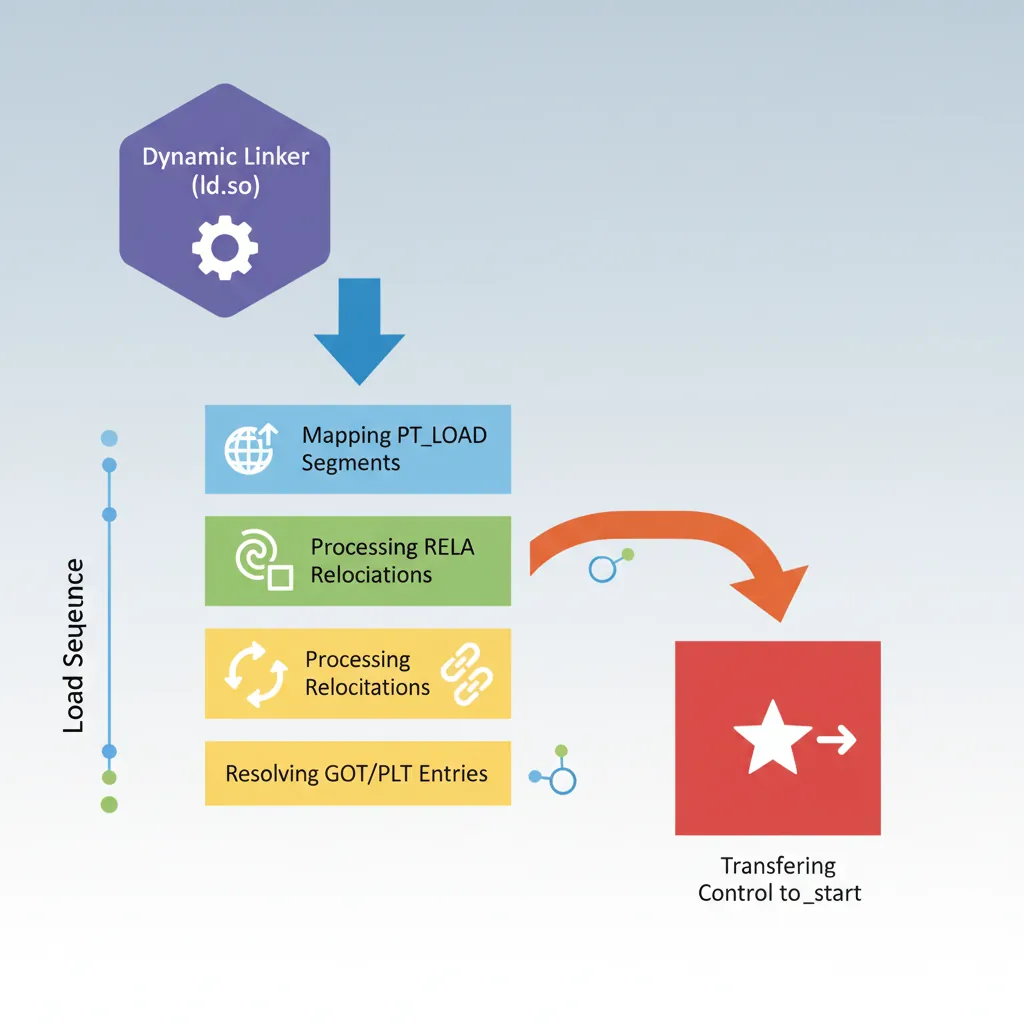

Dynamic Linker Internals

# Trace dynamic linker activity (ld.so):
LD_DEBUG=all LD_DEBUG_OUTPUT=/tmp/dl.log /bin/ls /tmp
grep -E "symbol|binding|plt" /tmp/dl.log.PID | head -30

# Key ld.so operations:
# 1. Read PT_INTERP segment to find ld.so path (/lib/ld-linux-aarch64.so.1)
# 2. Map all PT_LOAD segments of binary + all DT_NEEDED shared libs
# 3. Process RELA relocations:
#    - R_AARCH64_RELATIVE: base + addend (no symbol lookup needed)
#    - R_AARCH64_GLOB_DAT: lookup symbol, write address to GOT
#    - R_AARCH64_JUMP_SLOT: write PLT resolver or real addr into GOT.PLT
# 4. Call DT_INIT + .init_array constructors
# 5. Transfer control to e_entry (crt0 _start)

# Show shared library dependencies and load addresses:
ldd /bin/ls
# linux-vdso.so.1 (0x0000ffff8da72000)
# libselinux.so.1 => /lib/aarch64-linux-gnu/libselinux.so.1 (0x0000ffff8da00000)
# libc.so.6 => /lib/aarch64-linux-gnu/libc.so.6 (0x0000ffff8d860000)
# /lib/ld-linux-aarch64.so.1 (0x0000ffff8da85000)

# vDSO: a virtual DSO mapped by the kernel at boot, provides zero-syscall clock_gettime
# On AArch64: mapped at high address, contains e.g. __vdso_clock_gettime

Case Study: Android's Linker — Bionic vs glibc

AndroidProductionReal-World

Why Android Wrote Its Own Dynamic Linker

Android doesn't use glibc's ld-linux-aarch64.so.1 — it uses Bionic's linker64, a custom dynamic linker optimized for mobile constraints. The design decisions map directly to the concepts in this article:

No lazy binding: Unlike glibc's ld.so which resolves PLT entries on first call, Android's linker64 resolves all relocations at load time (equivalent to LD_BIND_NOW=1). Why? Lazy binding's first-call penalty causes visible UI jank on app startup. Pre-resolving all GOT.PLT entries at dlopen() time trades 10-50ms of startup for perfectly predictable call latency.
RELR compressed relocations: Android pioneered RELR (Relative Relocation) sections — a bitmap encoding of R_AARCH64_RELATIVE relocations that achieves 10-100x compression over RELA. A typical Android shared library has thousands of RELATIVE relocations (one per global pointer in PIC code); RELR reduces their storage from 24 bytes each to ~0.5 bytes each.
Namespace isolation: Android's linker supports "linker namespaces" — each app gets a private view of which shared libraries it can see. This is implemented at the linker level (not the kernel level) by maintaining per-namespace symbol lookup tables, preventing one app's libraries from interfering with another's.
TEXTREL enforcement: Android enforces that no shared library has text relocations (TEXTREL flag in ELF dynamic section). If your .so requires patching .text at load time, it won't load on Android. This ensures .text is truly read-only and can be shared across all processes mapping the same library — essential when RAM is precious.

Key lesson: The "standard" glibc linker behavior isn't the only option. Android's choices show how ELF linking mechanisms can be reconfigured for different performance/security trade-offs on the same ARM64 ISA.

HistoryEvolution

From a.out to ELF: The Binary Format Wars

The ELF format we use today wasn't always the standard:

1975 — a.out: Unix V6's original binary format. No shared libraries, no relocations, fixed load address. The binary was literally a memory dump with a tiny header.
1988 — COFF: Added section tables and relocations but still awkward for shared libraries. Used on early Windows (PE/COFF is a derivative).
1995 — ELF standardization: SVR4 Unix adopted ELF (Executable and Linkable Format). Its dual-view design (sections for linkers, segments for loaders) made position-independent shared libraries practical. Linux adopted ELF in 1995 (kernel 1.x); it became the universal standard for ARM, x86, MIPS, RISC-V.
2017 — RELR: Google engineers added RELR to the ELF spec (SHT_RELR), dramatically compressing the most common relocation type. Adopted in Android, ChromeOS, and later glibc 2.36.

Hands-On Exercises

Exercise 1Beginner

ELF Dissection Challenge

Using any AArch64 Linux system (or cross-tools on x86):

Compile a simple "Hello, World" as both static and dynamic: aarch64-linux-gnu-gcc -static -o hello_static hello.c and aarch64-linux-gnu-gcc -o hello_dynamic hello.c
Compare sizes: ls -la hello_static hello_dynamic (static is typically 10-100x larger)
Count sections: readelf -S hello_static | wc -l vs readelf -S hello_dynamic | wc -l
Count relocations: readelf -r hello_dynamic | wc -l — the dynamic binary should have RELA entries; the static binary should have zero
Find the entry point: readelf -h hello_dynamic | grep Entry — is it _start or main?

Question: Why does the static binary have no .plt or .got sections? What took their place?

Exercise 2Intermediate

PLT/GOT Live Patching Observation

Watch lazy binding happen in real-time:

Compile: aarch64-linux-gnu-gcc -o demo demo.c -lm (ensure it calls sin() from libm)
Run with: LD_DEBUG=bindings ./demo 2>&1 | grep sin — observe when and how sin is resolved
In GDB: break *0x... (address of PLT stub for sin). Run, hit breakpoint, examine GOT.PLT entry: x/gx 0x... — it should point back to the resolver
Continue past the breakpoint (sin is called). Re-examine the same GOT.PLT entry — it should now contain the real address of sin() in libm
Now recompile with -Wl,-z,now (bind now, no lazy). Repeat GDB inspection — GOT.PLT should already have the real address before main starts

Compare: Measure startup time with and without -z,now using time. For a binary with many library calls, bind-now is measurably slower at startup but faster per-call.

Exercise 3Advanced

Write a Custom Linker Script

Create a linker script for a specialized memory layout:

Define two memory regions: FLASH (rx) : ORIGIN = 0x08000000, LENGTH = 512K and RAM (rwx) : ORIGIN = 0x20000000, LENGTH = 128K
Place .text and .rodata in FLASH, .data and .bss in RAM
Add a .data_load section that stores initialized data in FLASH (LMA) but loads into RAM (VMA) — this is the AT() directive: .data : AT(__data_load_addr) { *(.data) } > RAM
Export symbols for the crt0 to copy .data from FLASH to RAM at boot: __data_load_start, __data_start, __data_end
Write a minimal crt0 that copies .data and zeroes .bss using these linker-exported symbols

Verify: Link a test program, then use readelf -l to confirm that .data's VMA (virtual address) is in RAM but its file offset (LMA proxy) would correspond to FLASH. Use objdump -h to see both VMA and LMA columns.

Conclusion & Next Steps

The path from gcc -o foo foo.c to a running process traverses the assembler, linker, ELF format, OS loader, dynamic linker, crt0, and finally your code. Understanding each layer means you can diagnose relocation errors, write bare-metal linker scripts, build ASLR-hardened PIE binaries, and audit PLT stubs in security research. Android's Bionic linker shows how these same ELF mechanisms are tuned for mobile, and the exercises let you dissect real binaries, watch lazy binding live, and write custom linker scripts from scratch.

Next in the Series

In Part 25: Cross-Compilation & Build Systems, we configure GCC and Clang cross-toolchains, set up sysroots and multilib, build with CMake targeting AArch64, and generate production firmware images.

Cookie Consent

ARM Assembly Part 24: Linkers, Loaders & Binary Format Internals

Table of Contents

ELF Section Anatomy

ARM Assembly Mastery

Architecture History & Core Concepts

ARM32 Instruction Set Fundamentals

AArch64 Registers & Data Movement

Arithmetic, Logic & Bit Manipulation

Branching, Loops & Conditional Execution

Stack, Subroutines & AAPCS

Memory Model, Caches & Barriers

NEON & Advanced SIMD

SVE & SVE2 Scalable Vectors

Floating-Point & VFP Instructions

Exception Levels, Interrupts & Vectors

MMU, Page Tables & Virtual Memory

TrustZone & Security Extensions

Cortex-M Assembly & Bare-Metal

Cortex-A System Programming & Boot

Apple Silicon & macOS ABI

Inline Assembly & C Interop

Performance Profiling & Micro-Opt

Reverse Engineering & Binary Analysis

Building a Bare-Metal OS Kernel

ARM Microarchitecture Deep Dive

Virtualization Extensions

Debugging & Tooling Ecosystem
