ARM Assembly Part 22: Virtualization Extensions

Virtualization Architecture Overview

EL2 Entry & HCR_EL2 Controls

// Entering EL2 from EL3 (Trusted Firmware drops into hypervisor)
// SCR_EL3: HCE=1 (HVC enabled), NS=1 (non-secure), RW=1 (EL2 is AArch64)
// Set EL3 target to EL2h (use SP_EL2) with all exceptions masked initially

// After EL3 → EL2 ERET, first thing hypervisor does:

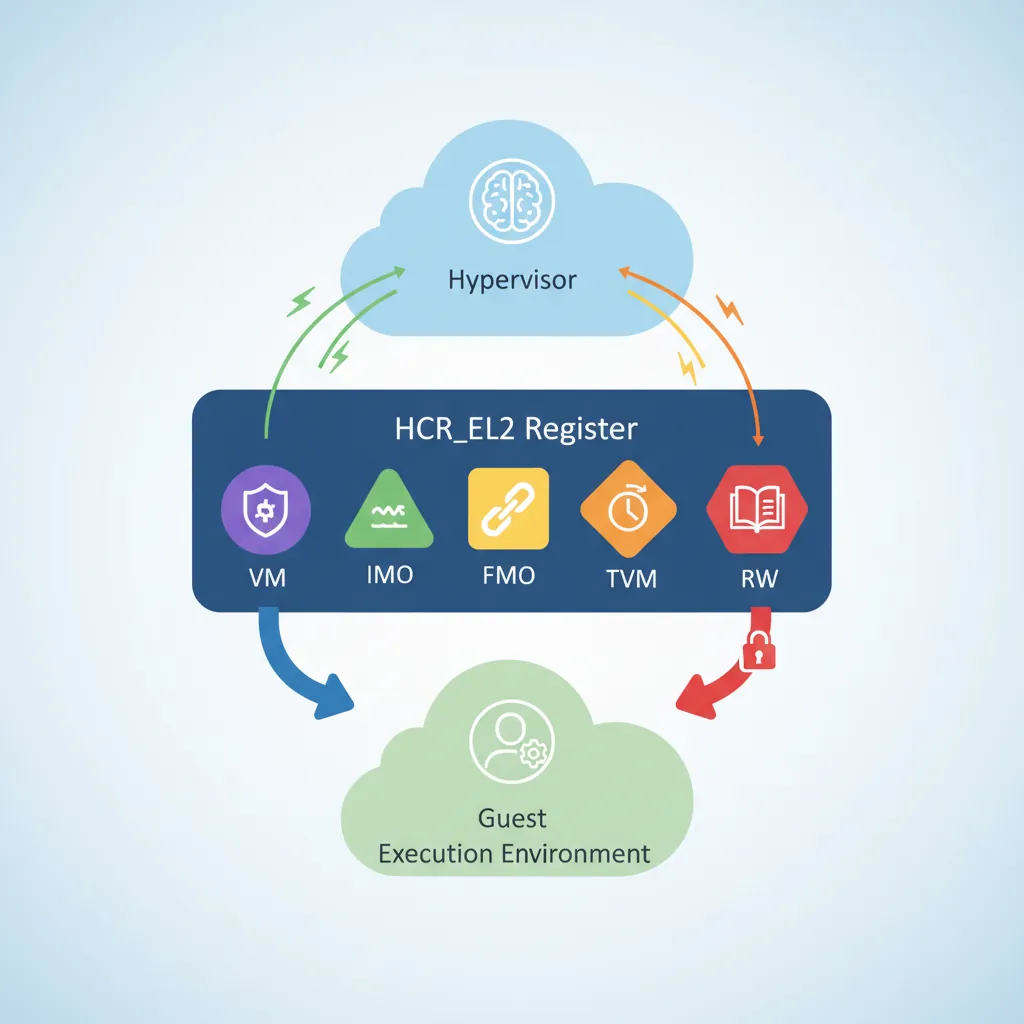

// Configure HCR_EL2 (Hypervisor Configuration Register EL2)

.macro set_hcr_el2
    mov  x0, xzr
    // VM=1: Enable stage-2 address translation (turns on two-stage MMU for guests)
    orr  x0, x0, #(1 << 0)
    // SWIO=1: Set/Way operations trap to hypervisor (needed for flushing guest caches)
    orr  x0, x0, #(1 << 1)
    // PTW=1: Protected table walk (stage-1 table walks go through stage-2)
    orr  x0, x0, #(1 << 4)
    // AMO=1: Route physical SError to EL2
    orr  x0, x0, #(1 << 5)
    // IMO=1: Route physical IRQ to EL2 (hypervisor handles physical interrupts)
    orr  x0, x0, #(1 << 6)
    // FMO=1: Route physical FIQ to EL2
    orr  x0, x0, #(1 << 7)
    // TWE=1, TWI=1: Trap WFE/WFI instructions from guests (power management)
    orr  x0, x0, #(1 << 13) | (1 << 14)
    // TVM=1: Trap writes to EL1 MMU registers (detect guest paging changes)
    orr  x0, x0, #(1 << 26)
    // RW=1: EL1 is AArch64 (not AArch32)
    orr  x0, x0, #(1 << 31)
    msr  hcr_el2, x0
    isb
.endm

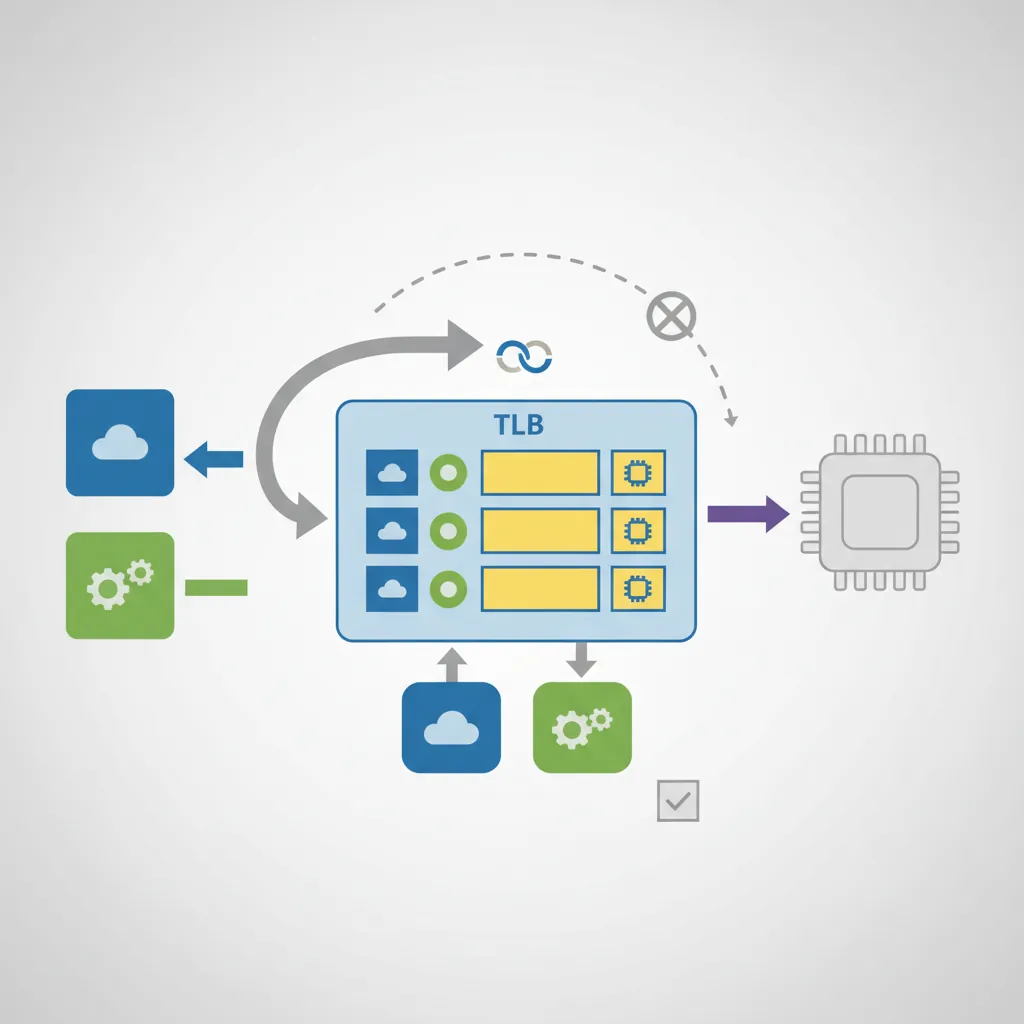

VMID, ASID & TLB Tagging

// Putting VMID 7 + stage-2 page table root at physical address 0x50000000
// into VTTBR_EL2 (Virtualization Translation Table Base Register, EL2)
//   VTTBR_EL2[63:48] = VMID  (if VTCR_EL2.VS=1, else 8-bit in [55:48])
//   VTTBR_EL2[47:1]  = BADDR (base address >> 1 bit if 4KB granule, T0SZ=32)

mov  x0, #0x50000000          // Stage-2 L1 table at 0x50000000
movk x0, #7, lsl #48          // Install VMID=7 in bits [55:48]
msr  vttbr_el2, x0
isb

// VTCR_EL2 controls stage-2 table size and cacheability
// SL0=1 (start at L1), T0SZ=32 (IPA space = 2^(64-32)=4GB)
// ORGN0=01 (write-back cached outer) IRGN0=01 (write-back inner)
// SH0=11 (inner-shareable)
ldr  x1, =0x80023540          // Representative VTCR_EL2 value
msr  vtcr_el2, x1
isb

Stage-2 Page Table Walks

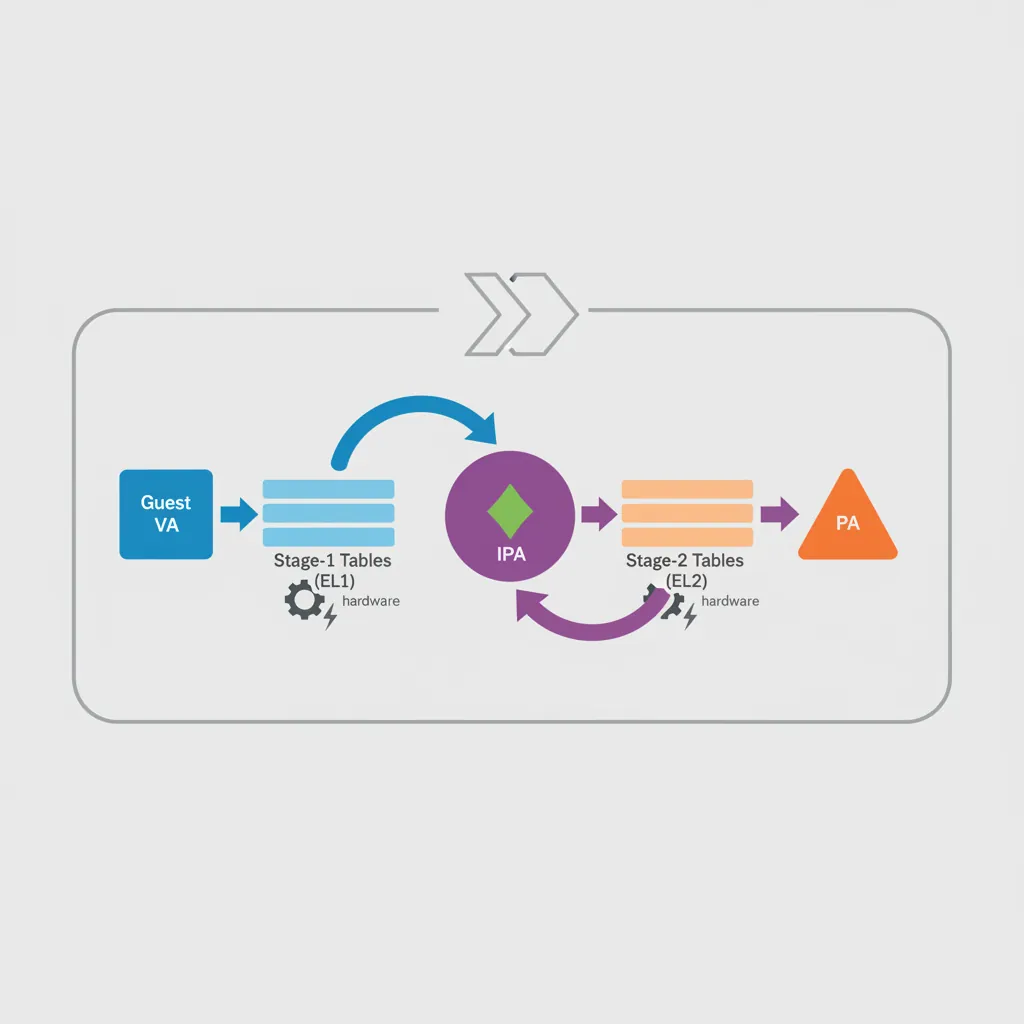

When HCR_EL2.VM=1, every memory access from EL0/EL1 goes through two translations. First the guest MMU resolves VA→IPA (Intermediate Physical Address) using the guest's TTBR0/TTBR1. Then the hardware page table walker performs a second walk (IPA→PA) using the hypervisor's stage-2 tables rooted at VTTBR_EL2. Both walks are performed entirely by hardware — no software emulation needed.

// Stage-2 page table descriptor format (identical to stage-1 but:
//  - bits [9:8] = S2AP (Stage-2 Access Permissions, not AP)
//  - bit 10 = S2AP[1], bit 9 = S2AP[0]
//  - S2AP: 00=NoAccess, 01=R/O, 10=W/O, 11=R/W
//  - MemAttr[3:0] replaces AttrIndx, maps to MAIR-like encoding in VTCR_EL2 field)

// Populate one 2 MB block in stage-2 L1 table (IPA 0x0 → PA 0x80000000)
// Block entry: PA | attrs | valid
//   [51:30] = output address (2 MB aligned → bits 51:21 matter, mask the rest)
//   [10:9]  = S2AP = 11 (read/write)
//   [5:2]   = MemAttr = 0b1111 (Normal Writeback)
//   [1:0]   = 01 (block entry, not table)

ldr  x0, =stage2_l1_table     // Address of stage-2 L1 table
mov  x1, #0x80000000          // PA 0x80000000 = output address for IPA 0x0
movk x1, #0x0753, lsl #0      // Encode: attrs bits [11:0]
// [11:10]S2AP=11, [9:8]=00 ignore,[5:2]MemAttr=1111, [1:0]=01 (block)
// Simplified encoding: 0b0000_0000_0111_0101_0011 = 0x753 | PA
orr  x1, x1, #0x753
str  x1, [x0]                  // Store into L1 table[0] = IPA 0x0 mapping

VM Entry / Exit Assembly

// hyp_vector.S — minimal EL2 vector table (VBAR_EL2)
// Same layout as EL1 VBAR: 4 groups × 4 entries × 128 bytes

.balign 2048
.global hyp_vectors

hyp_vectors:
    // EL2 with SP_EL0:
    .balign 128; b hyp_sync_sp0
    .balign 128; b hyp_irq_sp0
    .balign 128; b hyp_fiq_sp0
    .balign 128; b hyp_serr_sp0

    // EL2 with SP_EL2 (normal hypervisor execution):
    .balign 128; b hyp_sync_spx    // Sync from hypervisor itself
    .balign 128; b hyp_irq_spx     // Physical IRQ routed to EL2
    .balign 128; b hyp_fiq_spx
    .balign 128; b hyp_serr_spx

    // From EL1 (guest trap):
    .balign 128; b guest_sync       // HVC, data abort, SVC escalated
    .balign 128; b guest_irq        // Physical IRQ while in guest
    .balign 128; b hyp_fiq_sp0
    .balign 128; b hyp_serr_sp0

    // From EL0 32-bit:
    .balign 128; b unhandled
    .balign 128; b unhandled
    .balign 128; b unhandled
    .balign 128; b unhandled

// guest_sync: decode ESR_EL2 EC field to dispatch trap handler
guest_sync:
    stp  x0, x1,  [sp, #-16]!
    mrs  x0, esr_el2
    ubfx x1, x0, #26, #6           // EC = ESR_EL2[31:26]
    // Common EC values:
    // 0x12 = HVC from AArch32,  0x16 = HVC from AArch64
    // 0x20 = I-abort from lower EL, 0x24 = D-abort from lower EL
    // 0x17 = SMC from AArch64  (trap SMC calls from guest)
    cmp  x1, #0x16
    b.eq handle_hvc_el1
    cmp  x1, #0x24
    b.eq handle_data_abort
    b    unhandled_trap

// vm_enter.S — ERET from hypervisor into guest (VM entry)
// Before ERET: set SPSR_EL2 and ELR_EL2 to guest's saved state

vm_enter:
    // Restore guest general-purpose registers from vcpu struct
    ldp  x0, x1,   [x20, #VCPU_REGS + 0]
    ldp  x2, x3,   [x20, #VCPU_REGS + 16]
    // ... restore x4–x29 ...
    ldr  x30,      [x20, #VCPU_REGS + 240]

    // Switch stage-2 table to this guest's VMID
    ldr  x22, [x20, #VCPU_VTTBR]
    msr  vttbr_el2, x22
    isb

    // Load guest SPSR and ELR (restore guest exception state)
    ldr  x21, [x20, #VCPU_ELR_EL1]
    msr  elr_el2, x21
    ldr  x22, [x20, #VCPU_SPSR_EL1]
    msr  spsr_el2, x22

    // Re-enable IRQ/FIQ delivery in SPSR_EL2.DAIF before ERET
    eret                 // Jump to ELR_EL2, restore SPSR_EL2 → PSTATE

Virtual GICv3

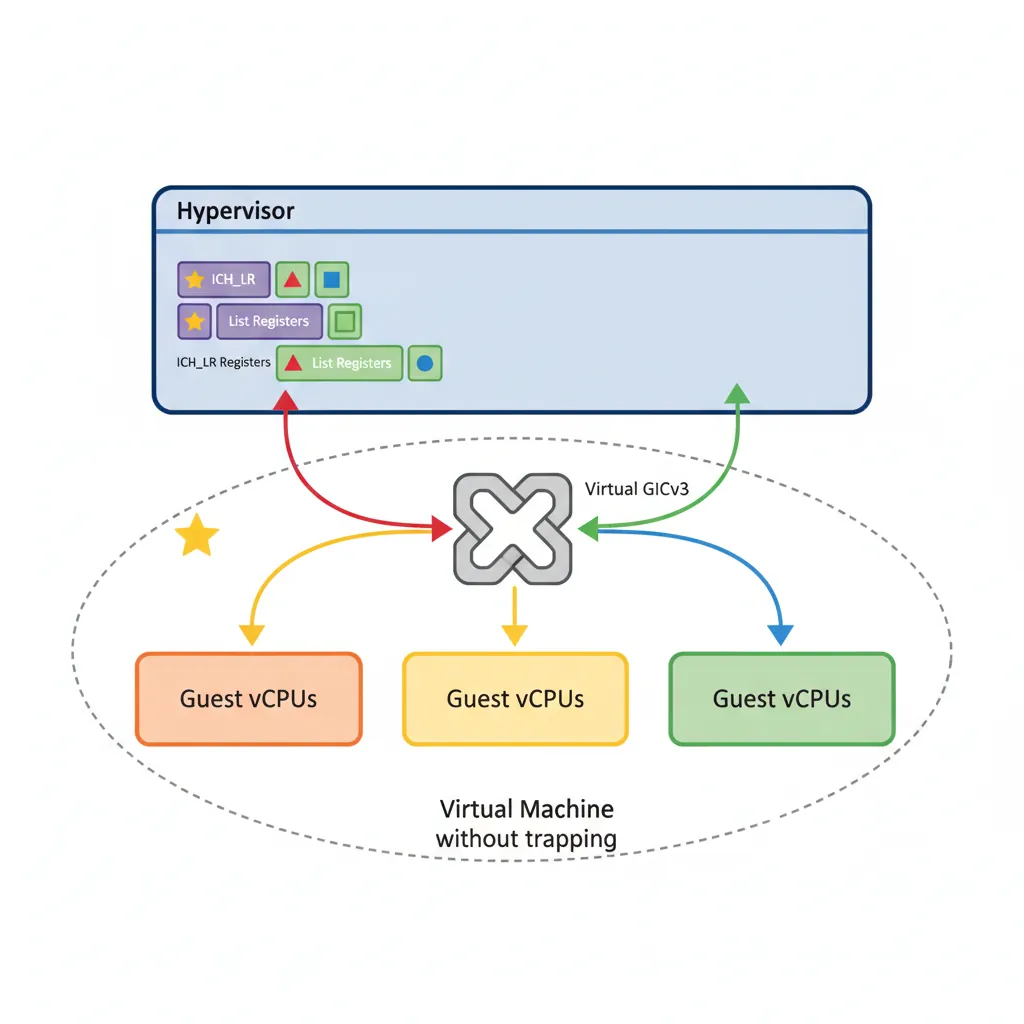

ARM GICv3 includes a virtualisation layer. EL2 programs List Registers (ICH_LR<n>_EL2) to inject virtual interrupts into the currently running vCPU. When the guest reads the GIC CPU interface registers, the hardware returns the values from the List Registers rather than the physical registers — no emulation trap needed for most interrupt operations.

// Inject virtual IRQ #32 (guest SGI 0) into vCPU currently on this physical CPU
// ICH_LR0_EL2 layout:
//   [63]    = State=01 (Pending=0b01)
//   [60]    = HW=0 (no linked physical IRQ) or 1 (Yes → deactivate physical automatically)
//   [55:48] = pINTID (physical INTID if HW=1)
//   [41:32] = vINTID (virtual interrupt ID → guest sees this)
//   [23:16] = Priority (0 = highest)

.equ ICH_LR_STATE_PENDING, (1ULL << 62)   // Use 62 for pending state bit
.equ ICH_LR_EOI,            (1ULL << 41)   // EOI flag

mov  x0, #32                           // vINTID = 32
lsl  x0, x0, #32                       // Shift to ICH_LR[41:32]
orr  x0, x0, #(1 << 62)               // State = Pending
orr  x0, x0, #(1 << 56)               // HW = 1 (link to physical INTID)
mov  x1, #32
lsl  x1, x1, #48
orr  x0, x0, x1                        // pINTID = 32 in [55:48]
msr  ich_lr0_el2, x0                    // Install in List Register 0

// How many list registers does this GIC implementation provide?
mrs  x2, ich_vtr_el2
and  x2, x2, #0x1F                      // ICH_VTR_EL2[4:0] = ListRegs - 1
add  x2, x2, #1                         // Actual count

KVM on ARM64

// KVM ARM64 vcpu struct (simplified, see arch/arm64/include/asm/kvm_host.h)
struct kvm_vcpu_arch {
    struct kvm_cpu_context ctxt;   // GP regs, PC, PSTATE saved at trap
    u64 hcr_el2;                   // Per-vcpu HCR_EL2 (e.g. TVM=1 or 0)
    u64 vttbr;                     // Stage-2 table + VMID for this vcpu
    struct vgic_v3_cpu_if vgic_cpu; // ICH_LR[0..15]_EL2 shadow copies
    u64 sys_regs[NR_SYS_REGS];    // EL1 system register bank saved on exit
};
// Key path: ioctl(KVM_RUN) → kvm_arch_vcpu_ioctl_run() →
//           kvm_call_hyp(__kvm_vcpu_run, vcpu) →
//           __kvm_vcpu_run at EL2 → vm_enter → ERET into guest

# Verify KVM/ARM64 is available and usable
ls -la /dev/kvm
dmesg | grep -i "kvm"
# kvm [1]: IPA Size Limit: 44 bits
# kvm [1]: GICv3 initialized in virtual mode

# Run a mini VM with QEMU/KVM on an ARM64 host (Ampere Altra, Graviton3, etc.)
qemu-system-aarch64 \
    -machine virt,gic-version=3 \
    -enable-kvm \
    -cpu host \
    -m 512M \
    -kernel Image \
    -append "console=ttyAMA0 root=/dev/vda" \
    -drive if=virtio,file=rootfs.qcow2 \
    -serial stdio \
    -display none

SMMU Stage-2 for DMA Isolation

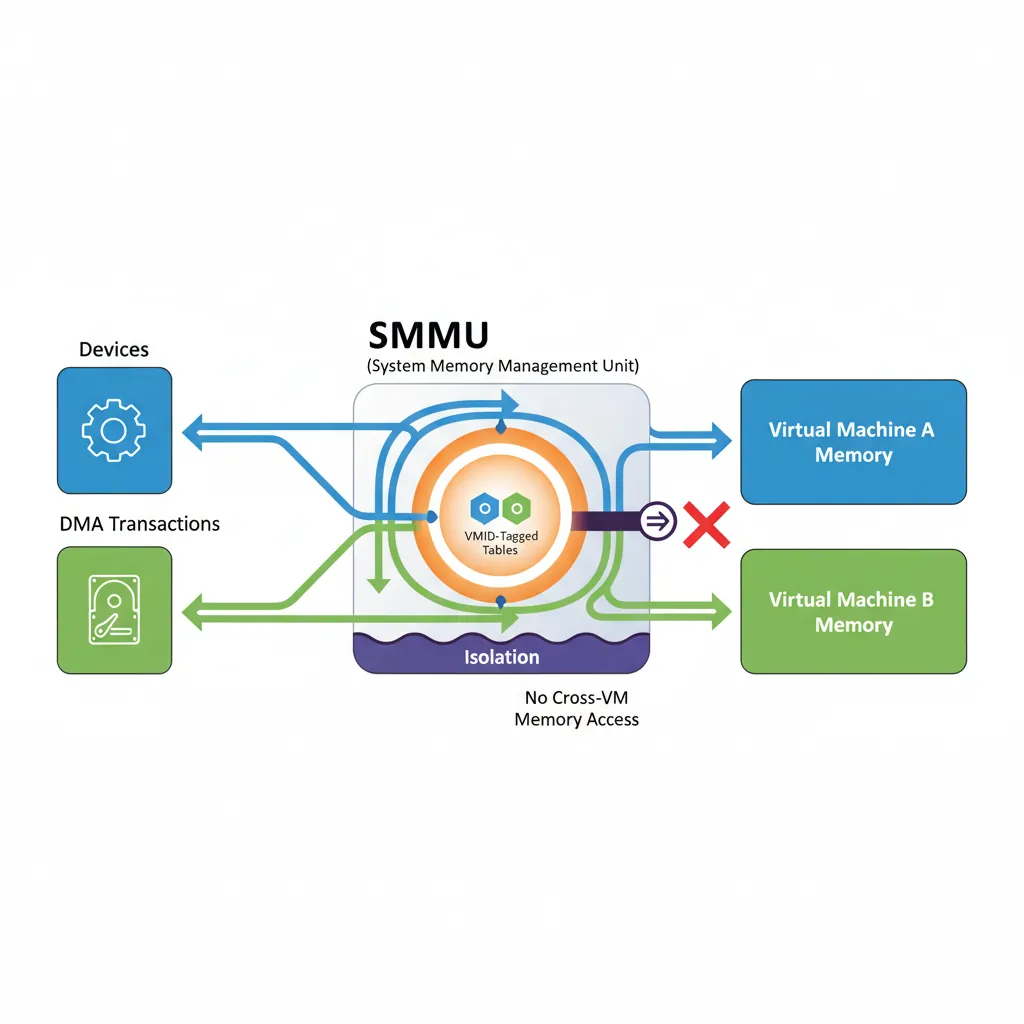

Without an IOMMU/SMMU, a guest could program a DMA-capable PCIe device to read/write any physical address — bypassing all CPU-side page table protections. The ARM System Memory Management Unit (SMMU v3) applies stage-2 translation to DMA transactions from devices, using the same VMID/stage-2 tables as the CPU. A guest can only DMA to IPA ranges that the hypervisor maps in the stage-2 table.

# Check SMMU presence on an ARM server
dmesg | grep -i smmu
# arm-smmu-v3 9050000.smmu: probed -- stalls, S2 supported
# iommu: Adding device to domain group 0

# In Linux kernel config, enable SMMU stage-2 for KVM (VFIO passthrough):
# CONFIG_ARM_SMMU_V3=y
# CONFIG_IOMMU_DEFAULT_PASSTHROUGH=n  ← devices get IOMMU domain by default
# CONFIG_VFIO=y
# CONFIG_VFIO_IOMMU_TYPE1=y

# Bind NVMe to VFIO for passthrough to KVM guest:
echo "144d a80a" > /sys/bus/pci/drivers/vfio-pci/new_id
echo "0000:01:00.0" > /sys/bus/pci/devices/0000:01:00.0/driver/unbind
echo "0000:01:00.0" > /sys/bus/pci/drivers/vfio-pci/bind
# SMMU stage-2 now enforces that this NVMe can only DMA to guest's IPA ranges

Case Study: AWS Graviton & KVM on ARM64

Hands-On Exercises

Conclusion & Next Steps

ARM virtualization is a direct extension of the privilege architecture: EL2 sits above EL1 exactly the way EL3 sits above EL2, and stage-2 tables compose cleanly with stage-1 in hardware. KVM exploits this to provide nearly bare-metal performance for guests — a VMEXIT (trap to hypervisor) costs ~800 ns on a modern Neoverse core, versus the many microseconds on early emulation-based systems. The AWS Graviton case study shows this technology powering millions of cloud instances, and the exercises guide you from inspecting KVM on real hardware to building your own minimal hypervisor.
