ARM Assembly Part 9: SVE & SVE2 Scalable Vector Extensions

Introduction & SVE Design Goals

ARM's Scalable Vector Extension (SVE) appeared with ARMv8.2-A in 2016 — the same year Fujitsu and RIKEN committed to building Fugaku, the supercomputer that would become the world's fastest machine in 2020 using 48-core A64FX chips running SVE at 512 bits. The central insight driving the design: the HPC community was tired of rewriting and recompiling code every time hardware doubled its vector width (MMX 64-bit → SSE 128-bit → AVX 256-bit → AVX-512). SVE eliminates this treadmill by making vector length an implementation choice invisible to the programmer.

Unlike NEON's fixed 128-bit registers, SVE allows each silicon vendor to choose a vector length (VL) from 128 to 2048 bits in 128-bit increments. Software never queries or hard-codes VL — it writes VL-agnostic loops that process however many elements the hardware can handle per cycle. A Cortex-A510 with 128-bit SVE, a Neoverse V1 with 256-bit SVE, and an A64FX with 512-bit SVE all run the same binary. The loop simply iterates fewer times on wider hardware. On the final iteration, a predicate register masks off the leftover lanes — no scalar cleanup epilogue required.

SVE Registers

Z Registers (Scalable Vectors)

SVE provides 32 scalable vector registers, Z0–Z31, each exactly VL bits wide. The crucial detail: VL is not known at compile time. The assembler never encodes a fixed width into the instruction stream. Instead, software discovers VL at runtime using the CNTB family of instructions.

Z registers alias the lower 128 bits of the NEON V registers: Z0[127:0] is bit-identical to V0. This means you can call a NEON function, and the result sits in Z0 ready for SVE processing without any move instruction. The upper bits (128 to VL-1) are defined as zero after a NEON write — no garbage leaks upward.

Suffix	Lane Width	Lanes (128-bit VL)	Lanes (512-bit VL)	Use Case
.B	8-bit byte	16	64	Text processing, INT8 ML inference
.H	16-bit half	8	32	FP16 inference, BFloat16 training
.S	32-bit single	4	16	FP32 physics, image pixels
.D	64-bit double	2	8	FP64 HPC, scientific computing

Think of each Z register as an elastic container: the hardware stretches it wider on silicon that supports longer vectors, but the number of registers is always 32. This is in contrast to x86, where AVX-512 added entirely new ZMM registers on top of the existing XMM/YMM set, tripling the state that must be saved on context switch.

P Registers (Predicates)

SVE's most revolutionary feature is its 16 scalable predicate registers, P0–P15, each VL/8 bits wide — that is, one bit per byte of vector length. On a 256-bit implementation, P registers are 32 bits wide (256/8); on a 512-bit implementation, they are 64 bits. The predicate width scales automatically with VL.

Predicate registers divide into two groups by convention:

• P0–P7 (governing predicates) — used as masks on arithmetic and memory instructions. When you write FADD Z0.S, P3/M, Z0.S, Z1.S, P3 controls which lanes participate.
• P8–P15 (general predicates) — available for temporary masks, loop counters, comparison results, and complex predicate logic.

Each bit in a predicate corresponds to one byte of vector data. For 32-bit (.S) operations, every 4th bit matters; for 64-bit (.D), every 8th bit matters. The intervening bits are ignored but must be set correctly for element-size-aware instructions like WHILELT.

FFR — First-Fault Register

The First-Fault Register (FFR) is a single implicit predicate-width register that records which lanes of an LDFF1 (first-fault load) completed successfully. It is SVE's answer to a classic vectorisation problem: "what if my vector-width load straddles a page boundary into unmapped memory?"

Here is how first-fault loads work step by step:

1. SETFFR — Reset the FFR to all-ones (all lanes valid).
2. LDFF1W {Z0.S}, P0/Z, [X0, X1, LSL #2] — Attempt the load. The first element (lane 0) is guaranteed to fault normally if unmapped (so your loop still traps on genuine bugs). But if any subsequent element faults, the hardware silently suppresses that fault and clears FFR from that lane onward.
3. RDFFR P1.B — Read the FFR into a predicate register. P1 now indicates exactly which lanes loaded valid data.
4. Process only the valid lanes using P1 as the governing predicate, then advance the loop index by the number of valid elements.

This mechanism lets the compiler vectorise loops where the iteration count is unknown and the data might end near a page boundary — for example, scanning a null-terminated C string with SVE. Without first-fault loads, such loops would need conservative scalar fallbacks near page edges.

Vector Length & CNTB/CNTW/CNTD

// Query current hardware vector length in bytes
CNTB x0           // x0 = VL/8 (number of bytes per Z register)
CNTW x1           // x1 = VL/32 (number of 32-bit lanes)
CNTD x2           // x2 = VL/64 (number of 64-bit lanes)
CNTH x3           // x3 = VL/16 (number of 16-bit lanes)

// Typical: on 512-bit SVE hardware, CNTB returns 64

Predication

WHILELT / WHILELE / WHILELO

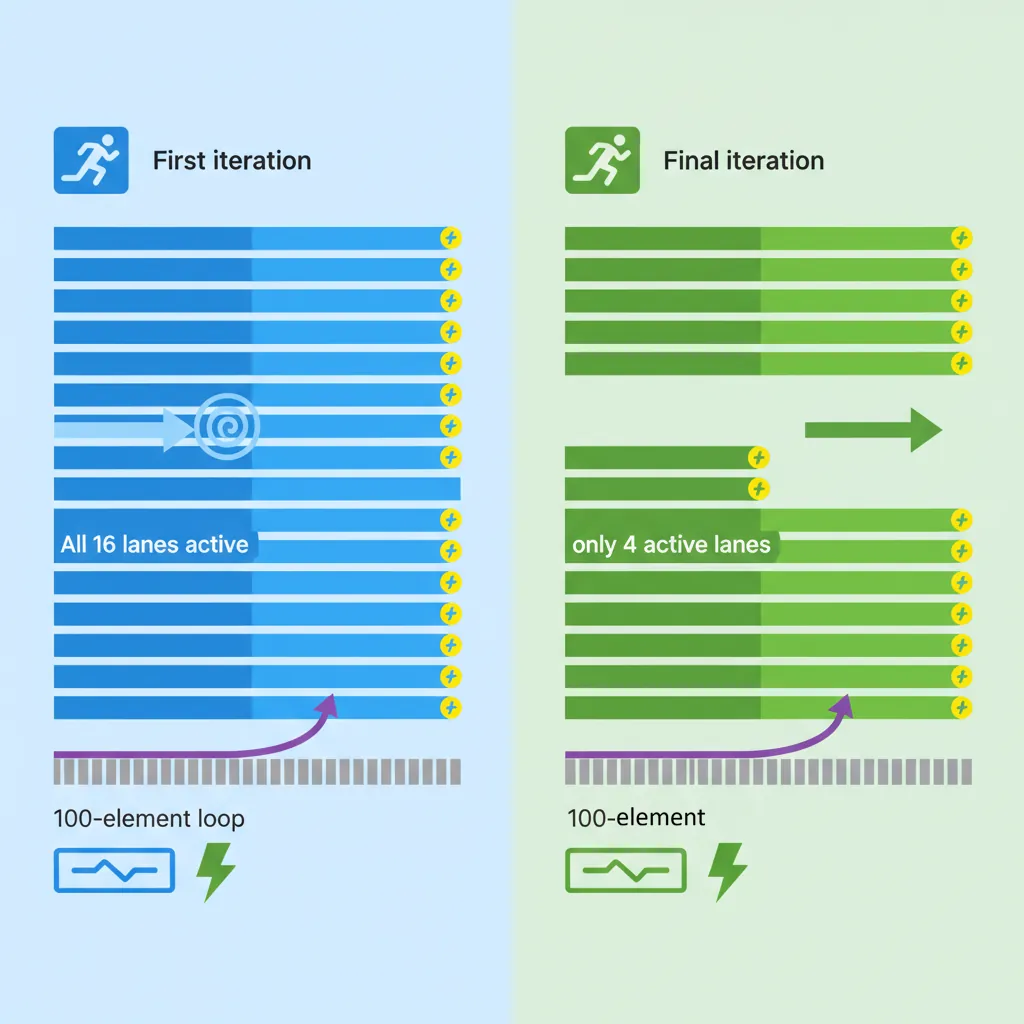

WHILELT is the instruction that makes SVE's VL-agnostic loops work. It compares a scalar loop index against a scalar limit and generates a predicate mask where lane i is active if (index + i) < limit. On the first iteration of a 100-element loop on 512-bit hardware (16 × 32-bit lanes), WHILELT sets all 16 predicate bits. On the final iteration (elements 96–99), only the first 4 bits are set — the remaining 12 lanes are masked off.

Instruction	Condition	Signed/Unsigned	Typical Use
WHILELT Pd.T, Xn, Xm	index + lane < limit	Signed	Standard for-loop (i < n)
WHILELE Pd.T, Xn, Xm	index + lane ≤ limit	Signed	Inclusive upper bound (i ≤ n)
WHILELO Pd.T, Xn, Xm	index + lane < limit	Unsigned	Size_t / pointer-based loops
WHILELS Pd.T, Xn, Xm	index + lane ≤ limit	Unsigned	Unsigned inclusive bounds

After WHILELT executes, the condition flags are set: the NONE condition is true if no lanes are active (loop done), and FIRST is true if at least one lane is active. The canonical SVE loop tests B.NONE .Ldone immediately after WHILELT to exit cleanly. No peeling, no scalar epilogue, no alignment check — the predicate handles everything.

// SVE vectorised loop: for (i=0; i<n; i++) b[i] = a[i] * c
//   x0 = pointer to a, x1 = pointer to b, x2 = n, z1.s = broadcast c
    MOV  x3, #0                    // i = 0
.Lloop:
    WHILELT p0.s, x3, x2           // p0: active lanes where i+lane < n
    B.NONE  .Ldone                 // Exit if no active lanes
    LD1W    {z0.s}, p0/z, [x0, x3, LSL #2]  // Load active a[i..i+VL-1]
    FMUL    z0.s, p0/m, z0.s, z1.s          // Multiply (merging predicate)
    ST1W    {z0.s}, p0, [x1, x3, LSL #2]   // Store active elements
    INCW    x3                              // i += number of 32-bit lanes
    B       .Lloop
.Ldone:

Predicated Arithmetic & Memory

Nearly every SVE data-processing instruction accepts a governing predicate between the opcode and the operands. The predicate register is written with a mode suffix that controls what happens to inactive lanes:

Mode	Syntax	Inactive Lanes	When to Use
/M (Merging)	FADD Z0.S, P0/M, Z0.S, Z1.S	Retain previous Z0 value	Accumulation, conditional update
/Z (Zeroing)	FADD Z0.S, P0/Z, Z1.S, Z2.S	Forced to zero	Fresh computation, no prior dependency

For memory operations, the rules are slightly different. Loads always use /Z — inactive lanes produce zero, never garbage from memory. Stores use the predicate without a mode suffix: ST1W {Z0.S}, P0, [X0, X1, LSL #2]. Inactive store lanes are simply suppressed; no byte hits the cache.

This design eliminates the need for explicit blend/select instructions after masked operations. Compare this to AVX-512, where you often need VBLENDMPS to merge results back — in SVE, the merging is built into every instruction.

PTEST / PFIRST / PNEXT

Predicate management instructions let you inspect and iterate through active elements, enabling patterns far beyond simple vectorised loops:

Instruction	Encoding	Purpose	Flags Set
PTEST	PTEST Pg, Pn.B	Test predicate contents without modifying any register	NONE (all-false), !NONE (at least one true), FIRST, LAST
PFIRST	PFIRST Pdn.B, Pg, Pdn.B	Set the first inactive lane (within Pg) to active	Updates NONE flag
PNEXT	PNEXT Pdn.T, Pg, Pdn.T	Advance to the next active element within governing Pg	Updates NONE flag
PTRUE	PTRUE Pd.T {, pattern}	Initialize predicate (all-true or a specific VL pattern)	—

The PFIRST/PNEXT pair enables element-serial iteration — processing one active element at a time within a predicate mask. This is essential for irregular data patterns like sparse matrix traversal, where you want to extract non-zero indices one by one from a comparison predicate. The pattern looks like:

1. CMPEQ P1.S, P0/Z, Z0.S, #0 — find all zero elements
2. PNEXT P1.S, P0, P1.S — advance to first/next match
3. B.NONE .Ldone — stop when no more matches
4. Extract and process the single active lane, then goto step 2

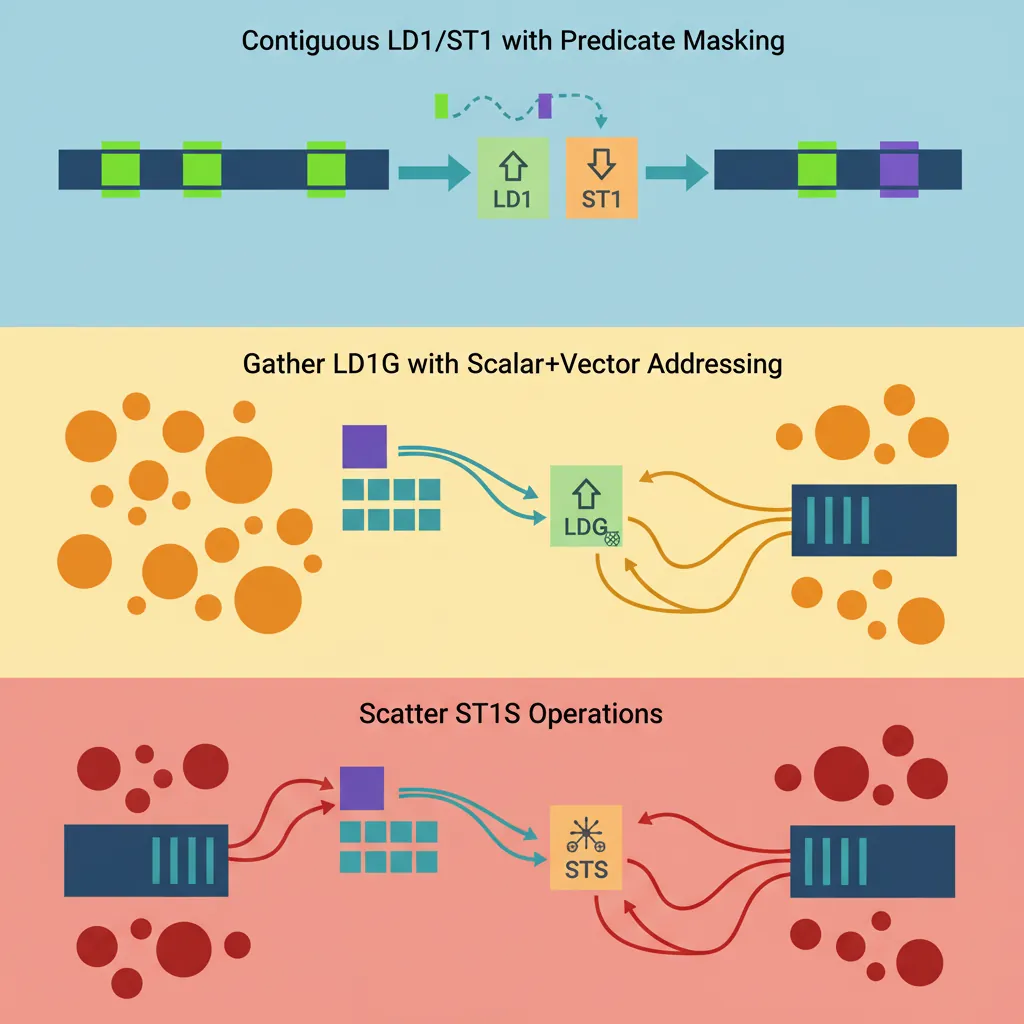

SVE Memory Operations

Contiguous Load/Store (LD1/ST1)

SVE's contiguous memory instructions are the workhorse of vectorised loops. They access a consecutive run of elements, masked by a governing predicate to handle loop tails cleanly:

Instruction	Description	Address Form
LD1W {Zd.S}, Pg/Z, [Xn, Xm, LSL #2]	Scalar base + scalar index × 4	Indexed (loop counter in Xm)
LD1W {Zd.S}, Pg/Z, [Xn]	Scalar base, unit stride	Simple pointer dereference
LD1W {Zd.S}, Pg/Z, [Xn, #3, MUL VL]	Base + immediate × VL	Accessing stacked vectors (e.g., 3rd chunk)
ST1W {Zt.S}, Pg, [Xn, Xm, LSL #2]	Predicated contiguous store	Same addressing as loads

SVE also supports multi-register loads for interleaved data: LD2W loads two Z registers (even/odd elements de-interleaved), LD3W loads three (e.g., RGB pixel channels), and LD4W loads four (RGBA). These are the SVE equivalent of NEON's LD2/LD3/LD4 but work at scalable widths.

The key difference from NEON loads: SVE loads are always predicated. Even a "load everything" operation uses PTRUE P0.S to generate the all-ones predicate first. This uniformity simplifies hardware design and ensures the same instruction works for both full-width and loop-tail iterations.

Gather Loads / Scatter Stores

// Gather load: Z0.S[i] = memory[base + Z1.S[i]]
// Z1 contains byte offsets
LD1W  {z0.s}, p0/z, [x0, z1.s, UXTW #2]   // Gather: base + z1[i]<<2

// Scatter store: memory[base + Z1.S[i]] = Z2.S[i]
ST1W  {z2.s}, p0, [x0, z1.s, UXTW #2]     // Scatter store

First-Fault & Non-Fault Loads

SVE provides two speculative load variants that solve the "last page" problem — what happens when your vector-width access extends past the end of mapped memory:

Instruction	First Element Fault?	Subsequent Faults?	Use Case
LDFF1W (First-Fault)	Yes — normal trap	Suppressed — FFR cleared	Vectorising strlen, strchr, memchr
LDNF1W (Non-Fault)	Suppressed	Suppressed	Prefetch-like speculation (EL0 only)

The first-fault workflow is the more commonly used pattern. Imagine vectorising strlen(): you load a vector of bytes starting at the current pointer, check for a zero byte, and advance. Near the end of a string that sits close to a page boundary, the load might cross into an unmapped page. With LDFF1B, the hardware loads as many bytes as possible, then records in the FFR which lanes succeeded. You process only those lanes, advance by that count, and repeat.

Vectorisation Loop Patterns

DAXPY / SAXPY Kernel

// DAXPY: y[i] += alpha * x[i]   (double precision)
// x0=n, x1=*x, x2=*y, d0=alpha (broadcast to z0.d first)
    MOV     z0.d, d0               // Broadcast scalar alpha to all lanes
    MOV     x3, #0
.Ldaxpy:
    WHILELT p0.d, x3, x0
    B.NONE  .Ldaxpy_done
    LD1D    {z1.d}, p0/z, [x1, x3, LSL #3]  // x[i]
    LD1D    {z2.d}, p0/z, [x2, x3, LSL #3]  // y[i]
    FMLA    z2.d, p0/m, z1.d, z0.d          // y += alpha*x
    ST1D    {z2.d}, p0, [x2, x3, LSL #3]
    INCD    x3
    B       .Ldaxpy
.Ldaxpy_done:

Reduction with FADDA

// Horizontal sum of float32 array using SVE
// x0 = *array, x1 = n,  result → s0
    PTRUE   p0.s                    // All lanes active
    FMOV    z0.s, #0.0              // Accumulator vector = 0
    MOV     x2, #0
.Lreduce:
    WHILELT p1.s, x2, x1
    B.NONE  .Lreduce_done
    LD1W    {z1.s}, p1/z, [x0, x2, LSL #2]
    FADD    z0.s, p1/m, z0.s, z1.s  // Accumulate active lanes
    INCW    x2
    B       .Lreduce
.Lreduce_done:
    PTRUE   p0.s
    FADDA   s0, p0, s0, z0.s        // Reduce vector to scalar

SVE2 Extensions

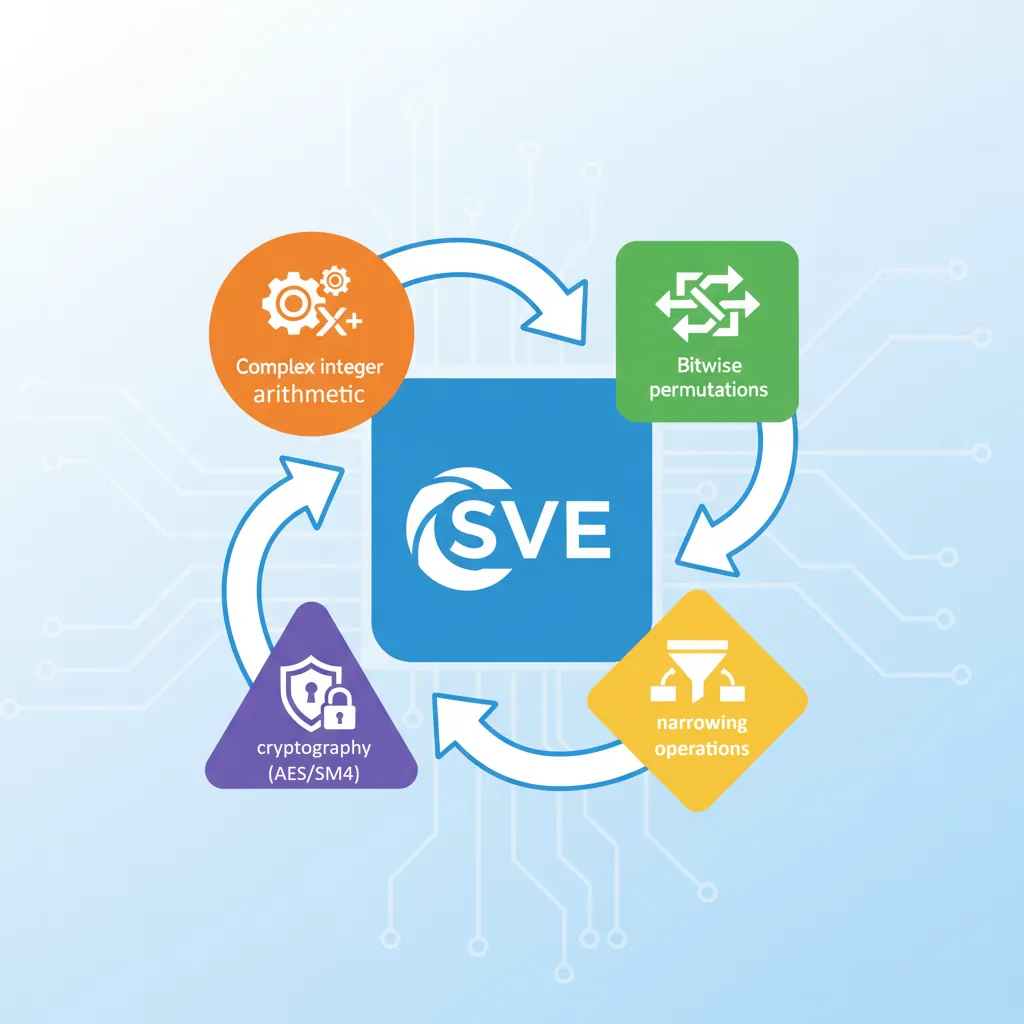

New SVE2 Instructions

SVE2 was introduced with ARMv9-A (2021) and is mandatory for all ARMv9 implementations — unlike SVE, which was optional in ARMv8.2+. SVE2 brings NEON's full integer and fixed-point capability into the scalable framework, closing the gaps that made SVE primarily useful for floating-point HPC workloads:

Category	Key Instructions	What It Enables
Widening Multiply-Add	SMLALB, SMLALT, UMLALB, UMLALT	INT16×INT16→INT32 accumulation (audio codecs, image filters)
Complex Arithmetic	FCADD, FCMLA	Complex number multiply-add treating adjacent lane pairs as real+imag (FFT, 5G baseband)
Saturating Narrowing	SQSHRUNB, SQSHRUNT, UQSHRNT	32-bit → 16-bit with saturation and shift (video encode quantisation)
Polynomial Multiply	PMULLB, PMULLT	GF(2) multiplication for CRC, error correction codes
Cross-Lane Permute	TBL (two-source), TBX	Arbitrary byte shuffles across full VL width
Non-Temporal Gather/Scatter	LDNT1W (scalar+vector)	Cache-bypassing random access for graph analytics

The widening and narrowing instructions use a bottom/top (B/T) convention: SMLALB multiplies the bottom (even-indexed) narrow elements while SMLALT multiplies the top (odd-indexed) elements, accumulating both into the wider destination. This interleaved approach processes an entire vector of narrow data in two instructions without any explicit unpack/pack step.

Cryptography (AES/SHA3/SM)

SVE2 includes optional cryptographic extensions that parallelise block cipher processing across the entire SVE width. Since each Z register holds VL/128 independent 128-bit blocks, wider SVE implementations naturally process more cipher blocks per instruction:

Feature Flag	Instructions	Blocks per Instruction (256-bit VL)	Use Case
FEAT_SVE_AES	AESE, AESD, AESMC, AESIMC	2	AES-GCM, AES-CTR for TLS/IPsec
FEAT_SVE_SHA3	RAX1, XAR, EOR3	2	SHA3/Keccak, SHAKE for post-quantum crypto
FEAT_SVE_SM4	SM4E, SM4EKEY	2	Chinese national standard SM4 cipher

On Fujitsu A64FX with 512-bit SVE, AESE processes 4 AES blocks simultaneously — matching the throughput of Intel's VAES on AVX-512. For server workloads dominated by TLS termination, this means SVE crypto can saturate 100 Gbps network links without dedicated accelerator hardware.

Bit Permutation & Histogram

SVE2 includes two specialised instruction groups that unlock workloads previously impossible to vectorise efficiently:

Bit Manipulation (FEAT_SVE_BitPerm)

Instruction	Operation	Application
BEXT Zd.T, Zn.T, Zm.T	Extract bits from Zn at positions specified by set bits in Zm, pack to bottom	Bit-level compression, Morton code extraction
BDEP Zd.T, Zn.T, Zm.T	Deposit (scatter) bottom bits of Zn into positions specified by Zm	Bit-level decompression, Z-order curve encoding

These are the SVE equivalents of Intel's PEXT/PDEP (BMI2), operating across an entire vector of elements. They are essential for database engines that use bit-packed column stores and need to extract specific bit fields from compressed records.

Histogram Instructions

Instruction	Operation	Application
HISTCNT Zd.S, Pg/Z, Zn.S, Zm.S	For each lane, count how many elements in Zm match Zn[lane]	Database GROUP BY, frequency counting
HISTSEG Zd.B, Zn.B, Zm.B	Byte-level histogram within 128-bit segments	Character frequency analysis, compression stats

SME — Scalable Matrix Extension

The Scalable Matrix Extension (SME), introduced with ARMv9.2-A in 2022, takes the scalable philosophy one step further: from 1D vectors to 2D matrix tiles. SME targets neural network inference and HPC GEMM (General Matrix Multiply) kernels — workloads where the inner loop is fundamentally a matrix outer product.

Streaming SVE Mode (SSVE)

SME introduces a new processor mode called Streaming SVE, entered with SMSTART and exited with SMSTOP. In streaming mode, the Z and P registers are available with a potentially different vector length (streaming VL) than normal SVE. The key addition is the ZA register array — a 2D tile of SVL×SVL bits, where SVL is the streaming vector length.

Instruction	Operation	Matrix Dimension (256-bit SVL)
SMSTART	Enter streaming SVE mode, enable ZA	—
FMOPA ZA0.S, P0/M, Z0.S, Z1.S	FP32 outer product: ZA += Z0 ⊗ Z1T	8×8 tile accumulate
BFMOPA ZA0.S, P0/M, Z0.H, Z1.H	BF16 outer product into FP32 accum	8×8 tile (16 BF16 pairs)
SMOPA ZA0.S, P0/M, Z0.B, Z1.B	INT8 outer product into INT32 accum	8×8 tile (32 INT8 pairs)
LD1W {ZA0H.S[W0]}, P0/Z, [X0]	Load one horizontal row of ZA tile	8 elements
ST1W {ZA0V.S[W0]}, P0, [X1]	Store one vertical column of ZA tile	8 elements
SMSTOP	Exit streaming mode, ZA contents undefined	—

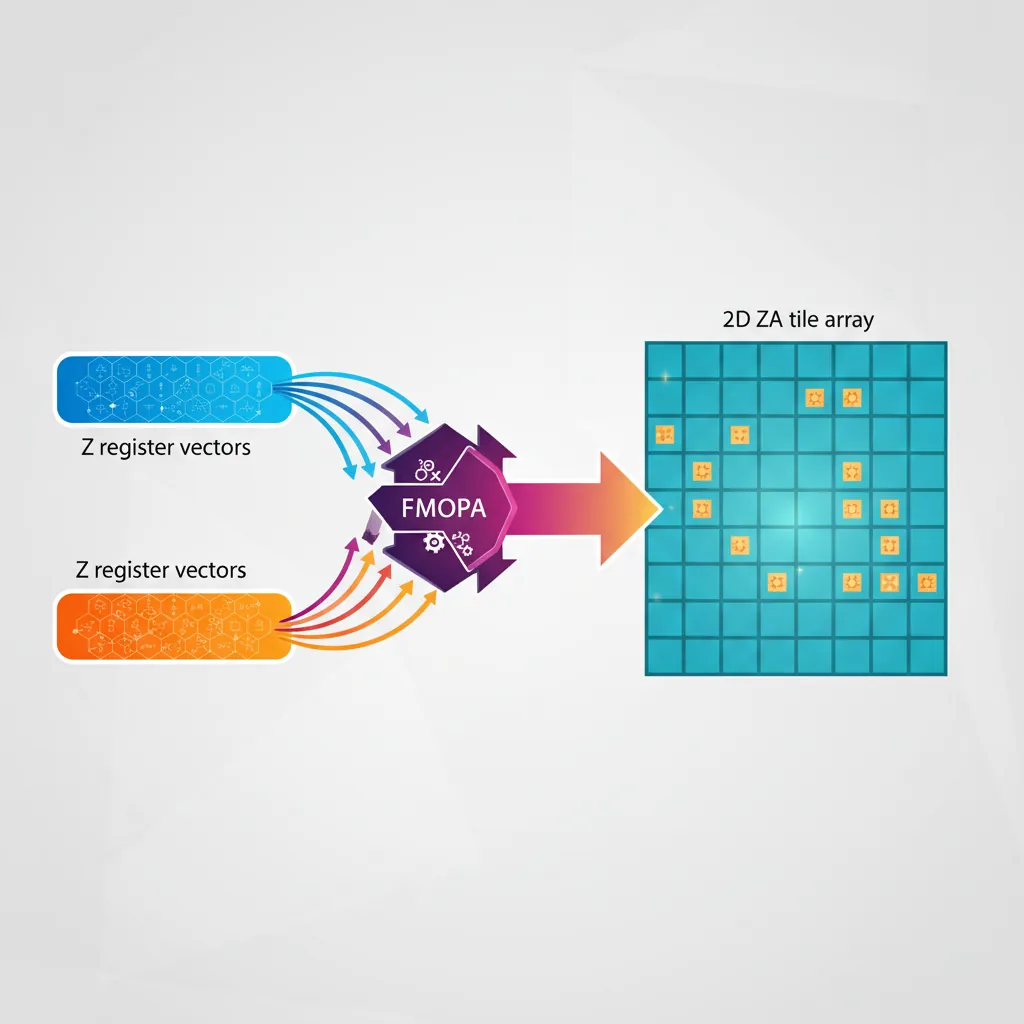

The outer product approach is revolutionary for GEMM: instead of loading rows and columns and computing dot products (the traditional vector approach), FMOPA takes one column vector and one row vector and accumulates their outer product into the entire tile in a single instruction. For an 8×8 tile, that is 64 multiply-accumulate operations per instruction. This matches the throughput of dedicated matrix accelerators like Google's TPU systolic array — but implemented as a general-purpose ISA extension.

Conclusion & Next Steps

SVE and SVE2 represent a fundamental rethinking of how vector processors should work. Instead of encoding fixed widths into the ISA and forcing recompilation every hardware generation, ARM made the vector length an implementation-invisible parameter. The key concepts from this part:

• Z0–Z31 — scalable vector registers (VL bits wide) aliasing NEON V registers at their lower 128 bits
• P0–P15 — scalable predicate registers (VL/8 bits) enabling per-lane masking in /M (merging) and /Z (zeroing) modes
• WHILELT/INCW loop pattern — the canonical VL-agnostic loop that eliminates scalar cleanup epilogues
• FFR and LDFF1 — first-fault loads for safe speculative vectorisation near page boundaries
• Contiguous, gather/scatter, and interleaved — comprehensive memory access patterns all governed by predicates
• SVE2 — mandatory in ARMv9, adding widening integer ops, complex arithmetic, crypto, histogram, and bit permutation
• SME — 2D matrix tiles with outer-product accumulation for GEMM-class workloads
