ARM Assembly Part 25: Cross-Compilation & Build Systems

Toolchain Taxonomy

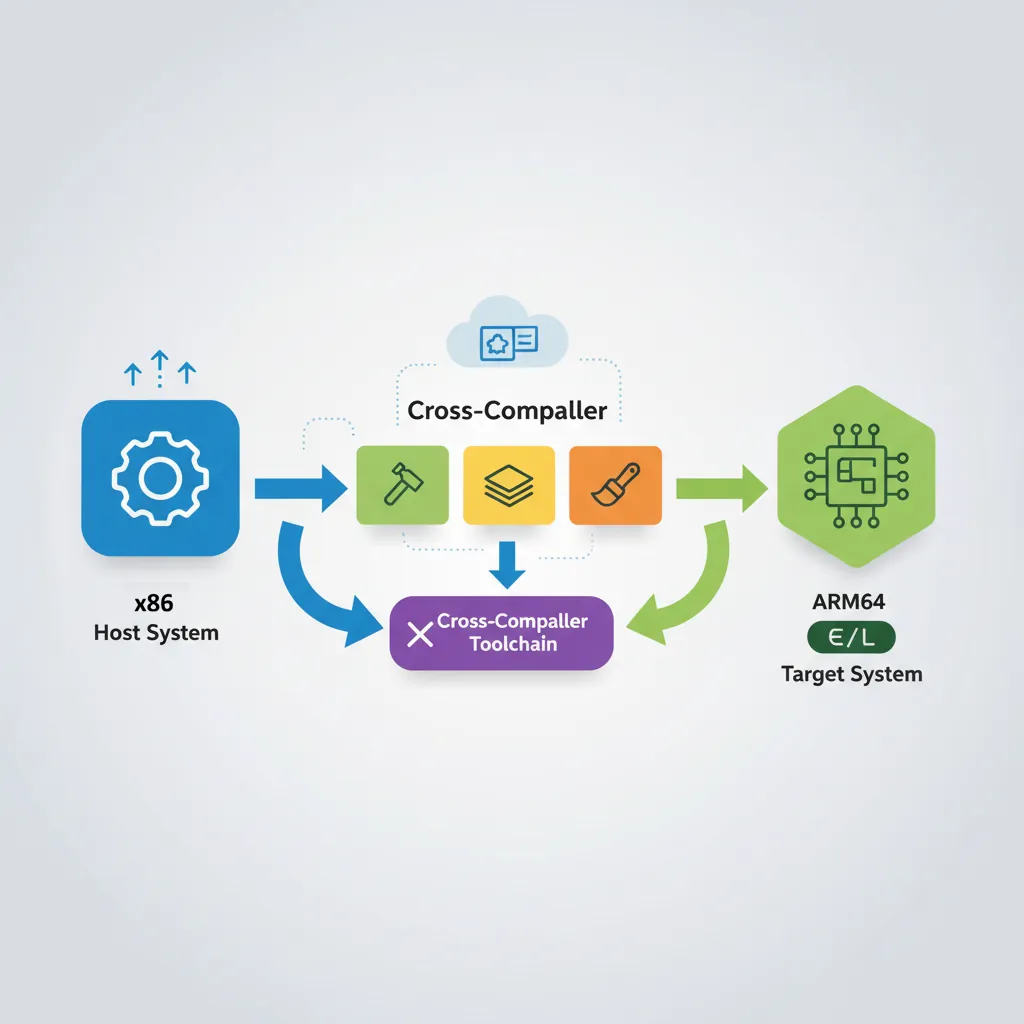

GCC Cross-Toolchain Setup

# ── Install GCC cross-toolchain on Ubuntu/Debian ──
sudo apt-get install -y \
    gcc-aarch64-linux-gnu \
    g++-aarch64-linux-gnu \
    binutils-aarch64-linux-gnu \
    libgcc-12-dev-arm64-cross \
    linux-libc-dev-arm64-cross

# Verify installation:
aarch64-linux-gnu-gcc --version
# aarch64-linux-gnu-gcc (Ubuntu 12.3.0-6ubuntu4) 12.3.0

# ── Build a simple program ──
cat > hello.c <<'EOF'
#include <stdio.h>
int main(void) { printf("Hello ARM64!\n"); return 0; }
EOF

aarch64-linux-gnu-gcc -O2 -march=armv8-a -o hello hello.c
file hello
# hello: ELF 64-bit LSB pie executable, ARM aarch64, version 1 (SYSV)

# Run on x86 using QEMU user-mode emulation:
sudo apt-get install -y qemu-user
qemu-aarch64 -L /usr/aarch64-linux-gnu ./hello
# Hello ARM64!

# ── ARM Architecture-specific flags ──
# Target a specific Cortex core for optimal code generation:
aarch64-linux-gnu-gcc \
    -march=armv8.2-a+crypto+fp16+rcpc \   # ARMv8.2 + crypto extensions
    -mtune=cortex-a78 \                     # Tune scheduling for A78 pipeline
    -O3 -fvectorize \
    -o app app.c

# ARMv9 / Neoverse:
aarch64-linux-gnu-gcc \
    -march=armv9-a+sve2 \                  # ARMv9 + SVE2
    -mtune=neoverse-n2 \
    -O3 -o server_app server_app.c

# Check what features the compiler knows about:
aarch64-linux-gnu-gcc -march=armv8-a -Q --help=target | grep -E "march|mtune|mfpu"

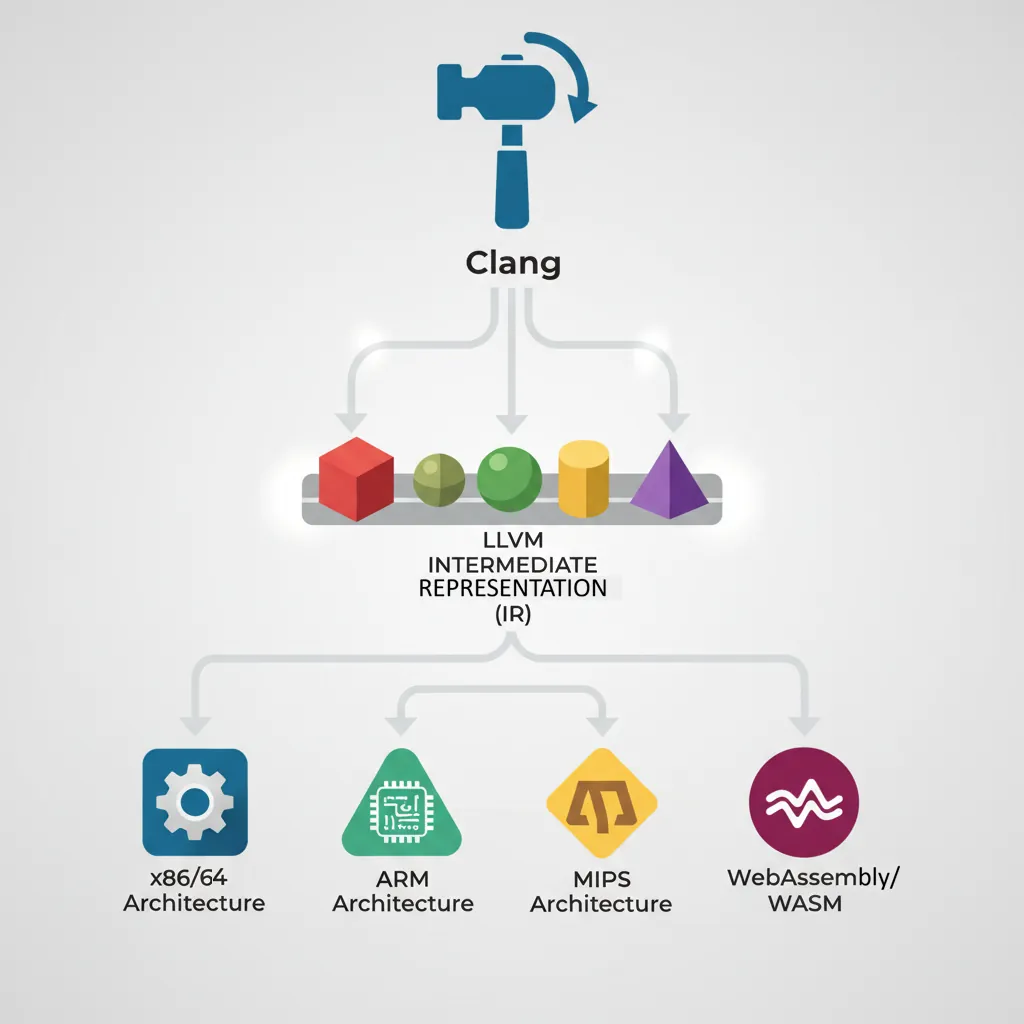

Clang/LLVM Cross-Compilation

# ── LLVM Clang cross-compilation (single binary, multi-target) ──
sudo apt-get install -y clang lld llvm

# Clang uses --target= flag instead of a prefixed binary:
clang \
    --target=aarch64-linux-gnu \
    -march=armv8.2-a \
    --sysroot=/usr/aarch64-linux-gnu \
    -fuse-ld=lld \
    -O2 -o hello hello.c

# Key difference: Clang links against host libraries by default.
# Always explicitly set --sysroot for cross-compilation.

# Verify target:
llvm-readobj --file-headers hello | grep Machine
# Machine: AArch64

# ── Clang bare-metal (no libc, no OS) ──
clang \
    --target=aarch64-none-elf \
    -march=armv8-a \
    -nostdlib -nostartfiles -ffreestanding \
    -fuse-ld=lld \
    -T linker.ld \
    -O2 -o kernel.elf boot.S kernel.c

# Generate assembly listing to inspect output:
clang \
    --target=aarch64-none-elf \
    -march=armv8-a -O2 \
    -S -masm=att \     # AT&T syntax (optional, GAS-compatible)
    -o kernel.s kernel.c

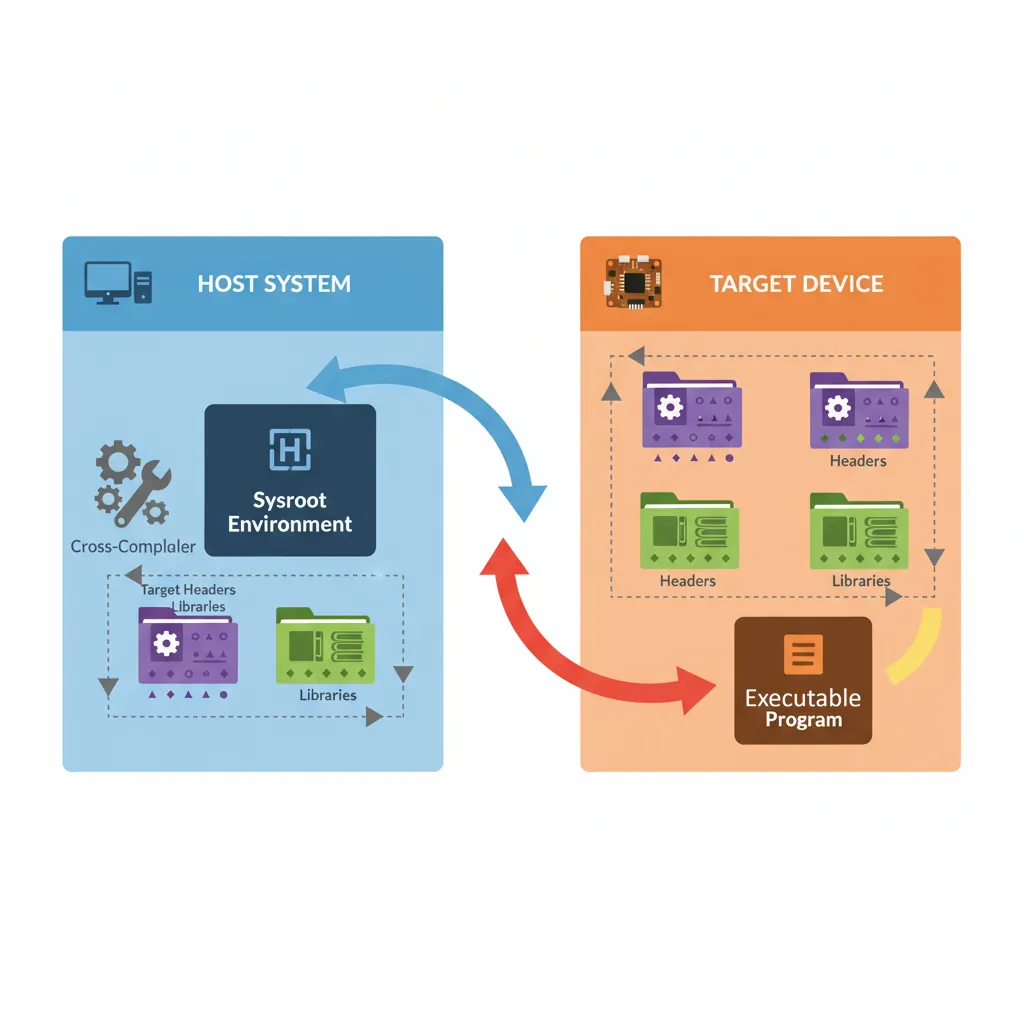

Sysroots & ABI Selection

# ── Build a proper sysroot for cross-compilation ──
# Option 1: Use the system sysroot from the Debian cross-tools package
ls /usr/aarch64-linux-gnu/
# bin/  include/  lib/  lib64/  libexec/  share/

# Option 2: Extract sysroot from a Raspberry Pi OS rootfs image
sudo apt-get install -y debootstrap qemu-debootstrap
sudo qemu-debootstrap \
    --arch=arm64 \
    bookworm \
    /opt/aarch64-sysroot \
    http://deb.debian.org/debian

# Compile against custom sysroot:
aarch64-linux-gnu-gcc \
    --sysroot=/opt/aarch64-sysroot \
    -I/opt/aarch64-sysroot/usr/include \
    -L/opt/aarch64-sysroot/usr/lib/aarch64-linux-gnu \
    -O2 -o app app.c

# ── ABI variants on ARM64 ──
# AAPCS64 (default): hard-float, 64-bit pointers, LP64 data model
# ILP32 (AArch64-ILP32 / "ARM64_32"): 32-bit pointers on 64-bit ISA (Apple watchOS)
# Soft-float: no FP hardware (rare on AArch64, common on ARM32)

# Check data model of existing binary:
aarch64-linux-gnu-objdump -d app | head -5
aarch64-linux-gnu-readelf -h app | grep "Class\|Data\|OS"
# Class:                             ELF64
# Data:                              2's complement, little endian
# OS/ABI:                            UNIX - System V

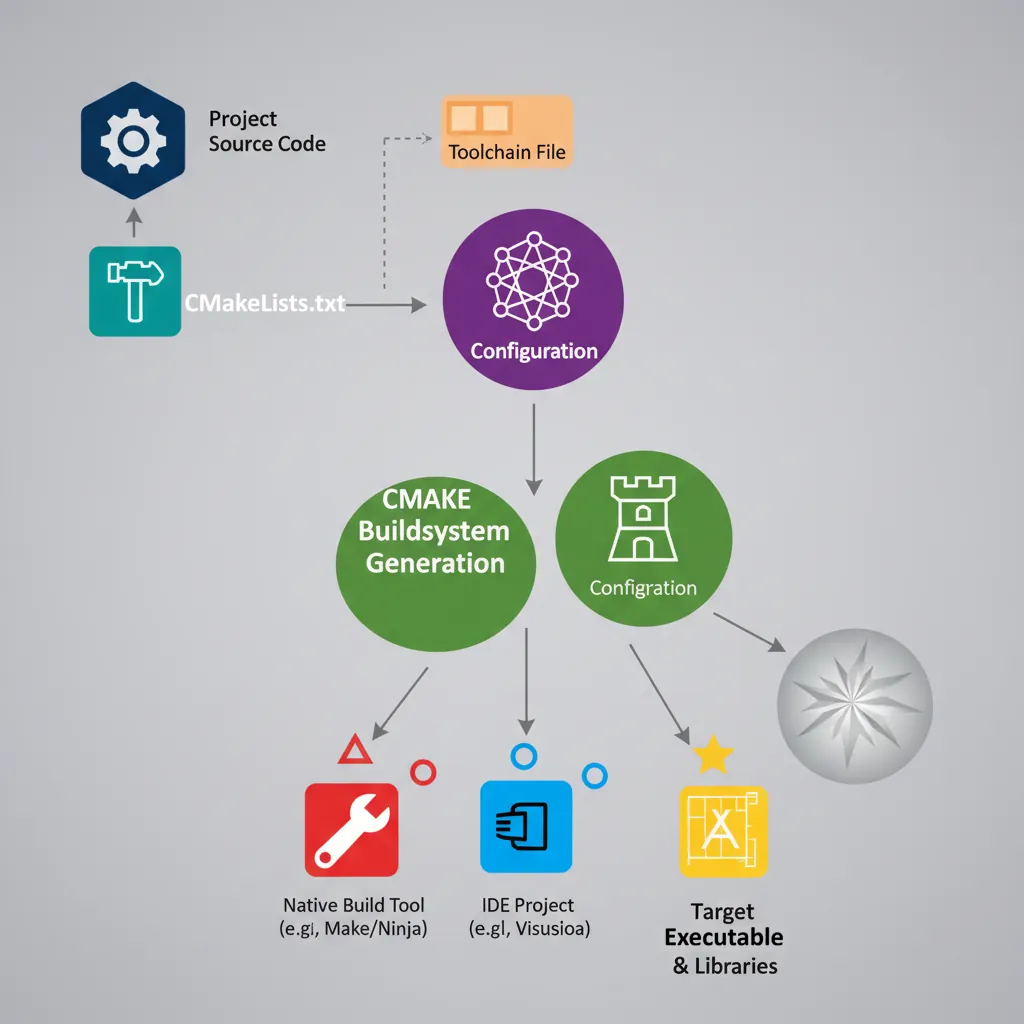

CMake Toolchain Files

# aarch64-linux-gnu.cmake — CMake toolchain file for Linux target
cat > aarch64-linux-gnu.cmake <<'EOF'
# Cross-compilation toolchain for AArch64 Linux (GCC)
set(CMAKE_SYSTEM_NAME Linux)
set(CMAKE_SYSTEM_PROCESSOR aarch64)

# Toolchain prefix
set(CROSS_COMPILE aarch64-linux-gnu-)
set(CMAKE_C_COMPILER   ${CROSS_COMPILE}gcc)
set(CMAKE_CXX_COMPILER ${CROSS_COMPILE}g++)
set(CMAKE_ASM_COMPILER ${CROSS_COMPILE}gcc)
set(CMAKE_OBJCOPY      ${CROSS_COMPILE}objcopy)
set(CMAKE_STRIP        ${CROSS_COMPILE}strip)

# Sysroot
set(CMAKE_SYSROOT /usr/aarch64-linux-gnu)
set(CMAKE_FIND_ROOT_PATH /usr/aarch64-linux-gnu)

# Search rules: headers/libs from target, programs from host
set(CMAKE_FIND_ROOT_PATH_MODE_PROGRAM NEVER)
set(CMAKE_FIND_ROOT_PATH_MODE_LIBRARY ONLY)
set(CMAKE_FIND_ROOT_PATH_MODE_INCLUDE ONLY)
set(CMAKE_FIND_ROOT_PATH_MODE_PACKAGE ONLY)

# Architecture flags
set(CMAKE_C_FLAGS_INIT   "-march=armv8-a -mtune=cortex-a72")
set(CMAKE_CXX_FLAGS_INIT "-march=armv8-a -mtune=cortex-a72")
EOF

# Use the toolchain file:
cmake -B build \
    -DCMAKE_TOOLCHAIN_FILE=aarch64-linux-gnu.cmake \
    -DCMAKE_BUILD_TYPE=Release \
    ..
cmake --build build -j$(nproc)

# aarch64-none-elf.cmake — CMake toolchain file for bare-metal
cat > aarch64-none-elf.cmake <<'EOF'
set(CMAKE_SYSTEM_NAME Generic)    # "Generic" = no OS
set(CMAKE_SYSTEM_PROCESSOR aarch64)

set(CMAKE_C_COMPILER   aarch64-none-elf-gcc)
set(CMAKE_CXX_COMPILER aarch64-none-elf-g++)
set(CMAKE_ASM_COMPILER aarch64-none-elf-gcc)

# Tell CMake linking bare-metal programs works without a test link step:
set(CMAKE_TRY_COMPILE_TARGET_TYPE STATIC_LIBRARY)

set(CMAKE_C_FLAGS_INIT   "-march=armv8-a -ffreestanding -nostdlib")
set(CMAKE_EXE_LINKER_FLAGS_INIT "-T${CMAKE_SOURCE_DIR}/linker.ld -nostartfiles")
EOF

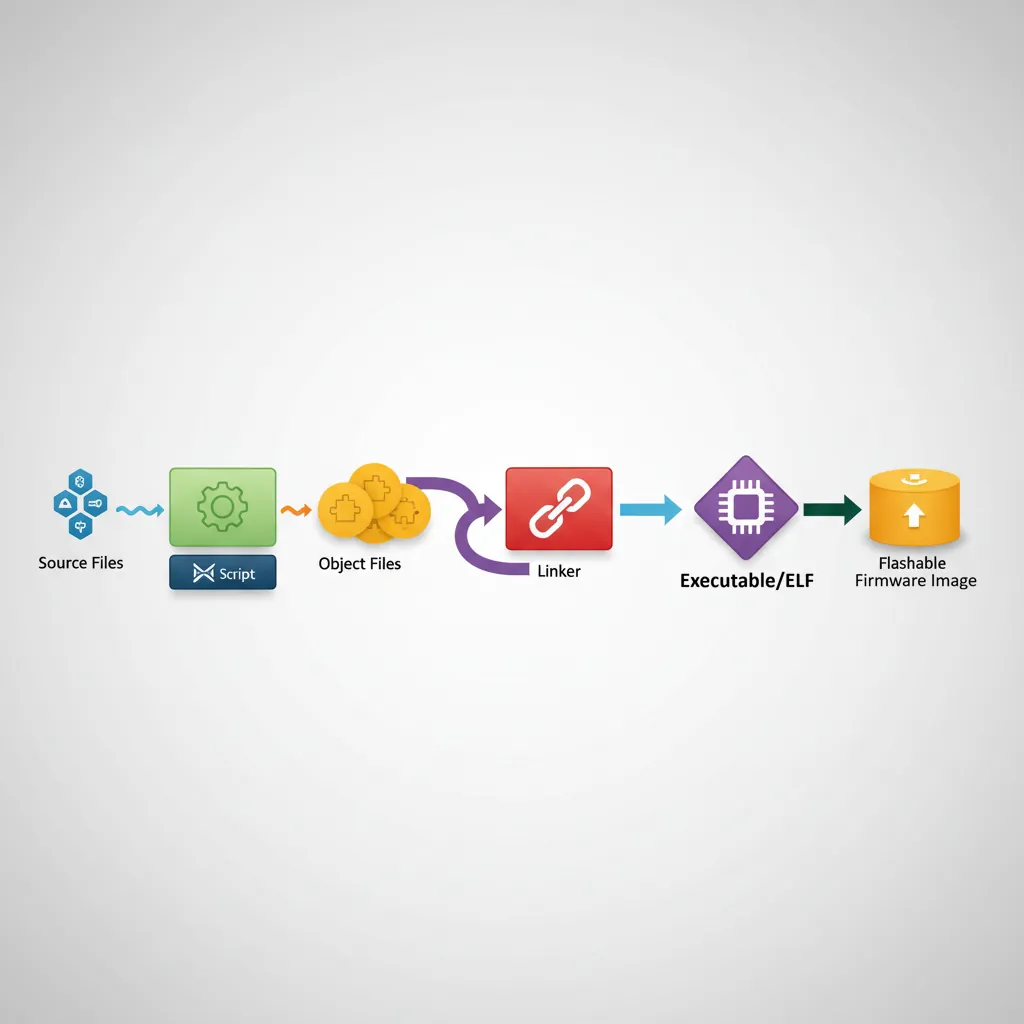

Bare-Metal Firmware Build

# Complete Makefile for bare-metal AArch64 kernel + firmware image
cat > Makefile <<'EOF'
CROSS   := aarch64-none-elf-
CC      := $(CROSS)gcc
LD      := $(CROSS)ld
OBJCOPY := $(CROSS)objcopy
OBJDUMP := $(CROSS)objdump

ARCH_FLAGS := -march=armv8-a -mcpu=cortex-a72
OPT_FLAGS  := -O2 -pipe
WARN_FLAGS := -Wall -Wextra -Wshadow
C_FLAGS    := $(ARCH_FLAGS) $(OPT_FLAGS) $(WARN_FLAGS) \
              -ffreestanding -nostdlib -fno-stack-protector \
              -fno-common -ffunction-sections -fdata-sections

SRCS := boot.S uart.S vectors.S context.S kernel.c mm.c sched.c
OBJS := $(patsubst %.S,%.o,$(patsubst %.c,%.o,$(SRCS)))

.PHONY: all clean flash

all: kernel.elf kernel.bin kernel.lst

kernel.elf: $(OBJS) linker.ld
	$(LD) -T linker.ld --gc-sections -o $@ $(OBJS)

kernel.bin: kernel.elf
	$(OBJCOPY) -O binary $< $@

kernel.lst: kernel.elf
	$(OBJDUMP) -D $< > $@

%.o: %.c
	$(CC) $(C_FLAGS) -c -o $@ $<

%.o: %.S
	$(CC) $(C_FLAGS) -c -o $@ $<

clean:
	rm -f *.o kernel.elf kernel.bin kernel.lst

flash: kernel.bin
	openocd -f board/my_board.cfg -c "program kernel.bin 0x40000000 verify reset exit"
EOF

# linker.ld — minimal AArch64 bare-metal linker script
cat > linker.ld <<'EOF'
OUTPUT_FORMAT("elf64-littleaarch64")
OUTPUT_ARCH(aarch64)
ENTRY(_start)

MEMORY {
    RAM (rwx) : ORIGIN = 0x40000000, LENGTH = 128M
}

SECTIONS {
    . = 0x40000000;

    .text.boot : { *(.text.boot) }   /* boot.S must be first */
    .text       : { *(.text .text.*) }
    .rodata     : { *(.rodata .rodata.*) }

    . = ALIGN(4096);
    .data       : { *(.data .data.*) }

    . = ALIGN(16);
    .bss (NOLOAD) : {
        _bss_start = .;
        *(.bss .bss.*)
        *(COMMON)
        _bss_end = .;
    }

    . = ALIGN(4096);
    _heap_start = .;

    . = ORIGIN(RAM) + LENGTH(RAM) - 0x8000;
    _stack_top = .;    /* 32 KB stack at end of RAM */
}
EOF

CI Pipeline for ARM64

# .github/workflows/arm64-build.yml — GitHub Actions cross-build
cat > .github/workflows/arm64-build.yml <<'EOF'
name: ARM64 Build & Test

on: [push, pull_request]

jobs:
  build-linux:
    runs-on: ubuntu-22.04
    steps:
      - uses: actions/checkout@v4

      - name: Install cross-toolchain
        run: |
          sudo apt-get update -qq
          sudo apt-get install -y gcc-aarch64-linux-gnu qemu-user

      - name: Build
        run: |
          aarch64-linux-gnu-gcc -O2 -march=armv8-a \
              -o app src/main.c src/lib.c
          file app

      - name: Test with QEMU user-mode
        run: |
          qemu-aarch64 -L /usr/aarch64-linux-gnu ./app

  build-bare-metal:
    runs-on: ubuntu-22.04
    steps:
      - uses: actions/checkout@v4

      - name: Install bare-metal toolchain
        run: |
          sudo apt-get update -qq
          sudo apt-get install -y gcc-aarch64-linux-gnu binutils-aarch64-linux-gnu \
              qemu-system-arm

      - name: Build kernel
        run: make -C firmware/ CROSS=aarch64-linux-gnu-

      - name: Boot test in QEMU
        run: |
          timeout 10 qemu-system-aarch64 \
              -machine virt -cpu cortex-a57 -m 64M \
              -kernel firmware/kernel.elf \
              -serial stdio -display none \
              -no-reboot
          echo "QEMU boot test passed"
EOF

Case Study: Cross-Compilation in the Real World

Hands-On Exercises

# Install tools
sudo apt-get install -y gcc-aarch64-linux-gnu qemu-user

# Create test program
cat > abi_probe.c <<'EOF'
#include <stdio.h>
#include <stdint.h>

int main(void) {
    printf("=== ABI Probe ===\n");
    printf("sizeof(int)     = %zu\n", sizeof(int));
    printf("sizeof(long)    = %zu\n", sizeof(long));
    printf("sizeof(void*)   = %zu\n", sizeof(void*));
    printf("sizeof(double)  = %zu\n", sizeof(double));
    printf("sizeof(size_t)  = %zu\n", sizeof(size_t));

    // Endianness check
    uint32_t val = 0x01020304;
    uint8_t *p = (uint8_t *)&val;
    printf("Endian: %s\n",
        p[0] == 0x04 ? "Little-endian" : "Big-endian");

    return 0;
}
EOF

# Cross-compile and run
aarch64-linux-gnu-gcc -O2 -o abi_probe_arm64 abi_probe.c
qemu-aarch64 -L /usr/aarch64-linux-gnu ./abi_probe_arm64

# Compare with native
gcc -O2 -o abi_probe_x86 abi_probe.c
./abi_probe_x86

# Project structure
mkdir -p cross-cmake/{src,toolchains,build-x86,build-arm64-gcc,build-arm64-clang}

# Create CMakeLists.txt
cat > cross-cmake/CMakeLists.txt <<'EOF'
cmake_minimum_required(VERSION 3.20)
project(MathLib C)

add_library(mathlib STATIC src/mathlib.c)
target_include_directories(mathlib PUBLIC src/)

add_executable(bench src/bench.c)
target_link_libraries(bench mathlib)

# Generate assembly listing
add_custom_command(TARGET bench POST_BUILD
    COMMAND ${CMAKE_OBJDUMP} -d $<TARGET_FILE:bench> > bench.lst
    COMMENT "Generating disassembly listing"
)
EOF

# Build native, then cross-compile with both toolchains
cd cross-cmake
cmake -B build-x86 -DCMAKE_BUILD_TYPE=Release
cmake --build build-x86

cmake -B build-arm64-gcc \
    -DCMAKE_TOOLCHAIN_FILE=toolchains/aarch64-linux-gnu.cmake
cmake --build build-arm64-gcc

cmake -B build-arm64-clang \
    -DCMAKE_TOOLCHAIN_FILE=toolchains/aarch64-clang.cmake
cmake --build build-arm64-clang

# Compare generated assembly for dot_product():
diff <(grep -A30 'dot_product' build-arm64-gcc/bench.lst) \
     <(grep -A30 'dot_product' build-arm64-clang/bench.lst)

# Dockerfile for reproducible ARM64 cross-compilation
cat > Dockerfile.arm64-builder <<'EOF'
FROM ubuntu:22.04 AS builder
ENV DEBIAN_FRONTEND=noninteractive

# Install cross-toolchain + QEMU
RUN apt-get update && apt-get install -y \
    gcc-aarch64-linux-gnu \
    binutils-aarch64-linux-gnu \
    qemu-system-arm \
    make cmake \
    && rm -rf /var/lib/apt/lists/*

WORKDIR /build
COPY . .

# Build bare-metal firmware
RUN make CROSS=aarch64-linux-gnu- kernel.bin

# Boot test: run QEMU, capture UART output, check for success string
RUN timeout 10 qemu-system-aarch64 \
    -machine virt -cpu cortex-a72 -m 64M \
    -kernel kernel.elf \
    -serial file:/tmp/uart.log \
    -display none -no-reboot || true \
    && grep -q "Boot successful" /tmp/uart.log \
    && echo "BOOT TEST PASSED"
EOF

# Build and run the Docker image
docker build -f Dockerfile.arm64-builder -t arm64-firmware .

# Extract artifacts
docker create --name extract arm64-firmware
docker cp extract:/build/kernel.bin ./kernel.bin
docker cp extract:/build/kernel.elf ./kernel.elf
docker rm extract

Conclusion & Next Steps

A well-structured cross-compilation setup removes the "works on my machine" problem from ARM64 firmware and embedded Linux development. The CMake toolchain file approach is especially valuable: it encodes all target-specific knowledge in one place, making CI pipelines, Docker containers, and new developer onboarding trivially reproducible.

From the Yocto Project building entire automotive Linux distributions to Docker-based CI pipelines running QEMU boot tests, cross-compilation is the backbone of modern ARM development. The evolution from hand-written Makefiles with hardcoded paths to declarative toolchain files and multi-target Clang binaries reflects the broader maturation of embedded software engineering. Mastering these tools turns any x86 workstation into a full ARM development environment.
