ARM Assembly Part 10: Floating-Point & VFP Instructions

Introduction & Register File

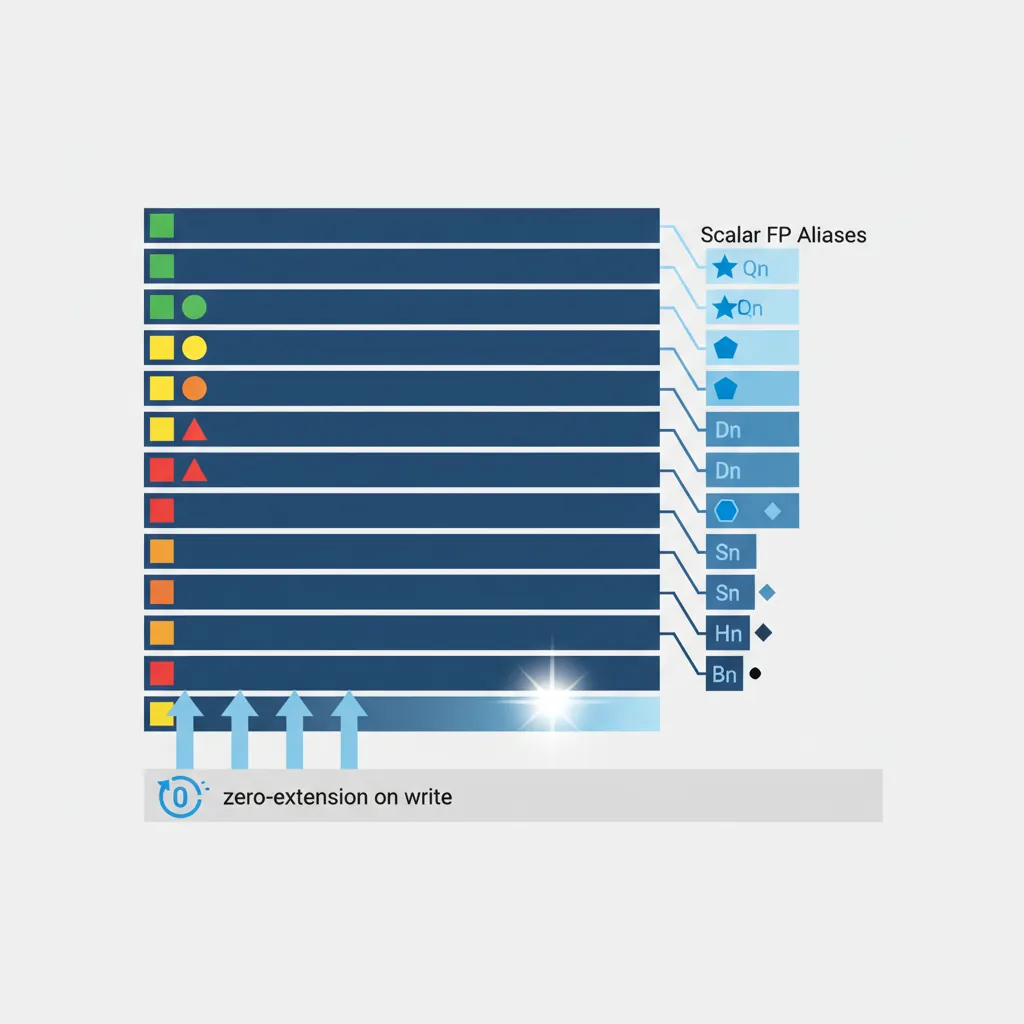

AArch64 uses a unified 128-bit register file (V0–V31) that serves three masters: scalar floating-point, NEON SIMD, and SVE (which aliases the lower 128 bits). When you use scalar FP instructions, you refer to the same physical registers through size-specific aliases:

Alias	Width	Upper Bits on Write	Typical Use
Bn	8-bit	Bits [127:8] zeroed	Rare (byte extraction)
Hn	16-bit	Bits [127:16] zeroed	FP16 / BFloat16 ML inference
Sn	32-bit	Bits [127:32] zeroed	Single-precision (float)
Dn	64-bit	Bits [127:64] zeroed	Double-precision (double)
Qn	128-bit	Full register used	NEON 128-bit vector view

The zero-extension rule is critical: writing S0 clears the upper 96 bits of V0 to zero. This prevents stale upper-half data from leaking into subsequent NEON or SVE operations that read V0/Z0 at full width. ARM's scalar FP implementation is fully IEEE-754-2008 compliant for binary32 and binary64, including gradual underflow, correct rounding, and all five exception types.

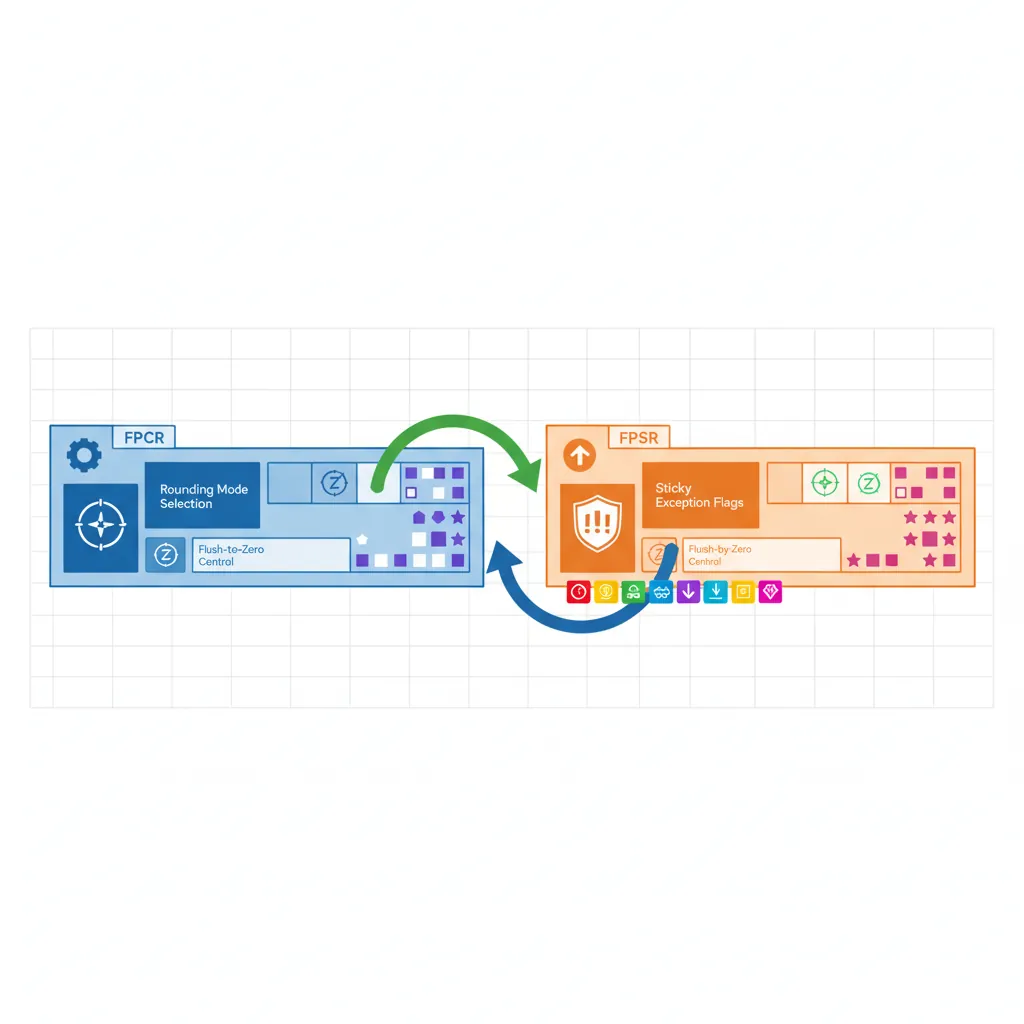

FPCR & FPSR System Registers

Two dedicated system registers control FP behaviour. They are accessed via MRS/MSR from any exception level:

Register	Key Fields	Purpose
FPCR (Control)	RMode [23:22], FZ [24], FZ16 [19], DN [25], AHP [26], trap enables [12:8]	Controls rounding, flush-to-zero, default NaN, and whether exceptions trap
FPSR (Status)	QC [27], IDC [7], IXC [4], UFC [3], OFC [2], DZC [1], IOC [0]	Sticky exception flags set by FP instructions (cleared only by explicit MSR)

The FPSR flags are sticky — once set, they remain set until software explicitly clears them. This lets you run a long computation and check for exceptions at the end rather than after every instruction. The FZ (flush-to-zero) bit in FPCR forces denormalised results to zero, trading IEEE compliance for performance on cores where denormal handling is slow (typically 10–100× slower). Most game engines and ML frameworks enable FZ; scientific code leaves it off.

Rounding Modes (RMode field)

FPCR bits [23:22] select the default rounding mode used by all FP instructions unless overridden by a per-instruction rounding variant:

RMode	Value	C Name	Behaviour	Instruction Override
RN	00	FE_TONEAREST	Round to nearest, ties to even (IEEE default)	FRINTN
RP	01	FE_UPWARD	Round toward +∞ (ceiling)	FRINTP
RM	10	FE_DOWNWARD	Round toward −∞ (floor)	FRINTM
RZ	11	FE_TOWARDZERO	Round toward zero (truncate)	FRINTZ

The per-instruction rounding variants (FRINTP, FRINTM, etc.) are invaluable because they avoid the expensive MSR FPCR / MSR FPCR save-restore sequence. Changing FPCR is serialising on most ARM cores (50–100 cycles), so if you only need a different rounding mode for one operation, use the FRINT* instruction directly.

FP Exception Traps

By default, all five IEEE-754 exceptions are masked (non-trapping). When an exception occurs, the corresponding sticky flag in FPSR is set, and the instruction produces a default result (NaN for invalid, ±∞ for overflow/divide-by-zero, denormal/zero for underflow, rounded result for inexact).

Exception	FPSR Flag	FPCR Trap Enable	Default Result
Invalid Operation	IOC [0]	bit 8	Default NaN
Divide by Zero	DZC [1]	bit 9	±∞
Overflow	OFC [2]	bit 10	±∞ or ±MAX (per rounding)
Underflow	UFC [3]	bit 11	Denormal or ±0
Inexact	IXC [4]	bit 12	Rounded result

Enabling a trap bit in FPCR causes the processor to take a synchronous exception (routed through the EL1 vector table) when that FP exception fires. In practice, almost no production code enables FP traps. Linux and macOS leave all traps masked. Instead, glibc checks FPSR flags in fenv.h functions (fetestexcept(), feraiseexcept()) after critical computations. The one common use case for traps is debugging: enabling the IOC trap during development catches NaN-producing code paths immediately rather than letting quiet NaNs propagate silently through an entire pipeline.

FMOV & FCVT

FMOV Variants

// --- FMOV: FP register ↔ GP register (bit-pattern copy, no conversion) ---
FMOV  d0, x0          // GP→FP: copy 64-bit pattern from x0 to D0
FMOV  x1, d0          // FP→GP: copy 64-bit pattern from D0 to x1
FMOV  s0, w0          // GP→FP: 32-bit copy
FMOV  w1, s0          // FP→GP: 32-bit copy

// FMOV with immediate encodes a limited set of 8-bit float constants
FMOV  s0, #1.0        // s0 = 1.0f
FMOV  d1, #-2.5       // d1 = -2.5

// FP register → FP register copy (same precision)
FMOV  s1, s0          // s1 = s0

FCVT Precision Conversions

// --- FCVT: convert between FP precisions ---
FCVT  d0, s0          // single → double (lossless)
FCVT  s0, d0          // double → single (may lose precision, uses FPCR rounding)
FCVT  h0, s0          // single → half (FP16)
FCVT  s0, h0          // half → single
FCVT  h0, d0          // double → half (directly)

FP Arithmetic

FADD / FSUB / FMUL / FDIV

FADD  d0, d1, d2       // d0 = d1 + d2 (double)
FSUB  s0, s1, s2       // s0 = s1 - s2 (single)
FMUL  d0, d1, d2       // d0 = d1 * d2
FDIV  d0, d1, d2       // d0 = d1 / d2 (expensive — 10–20 cycles typical)

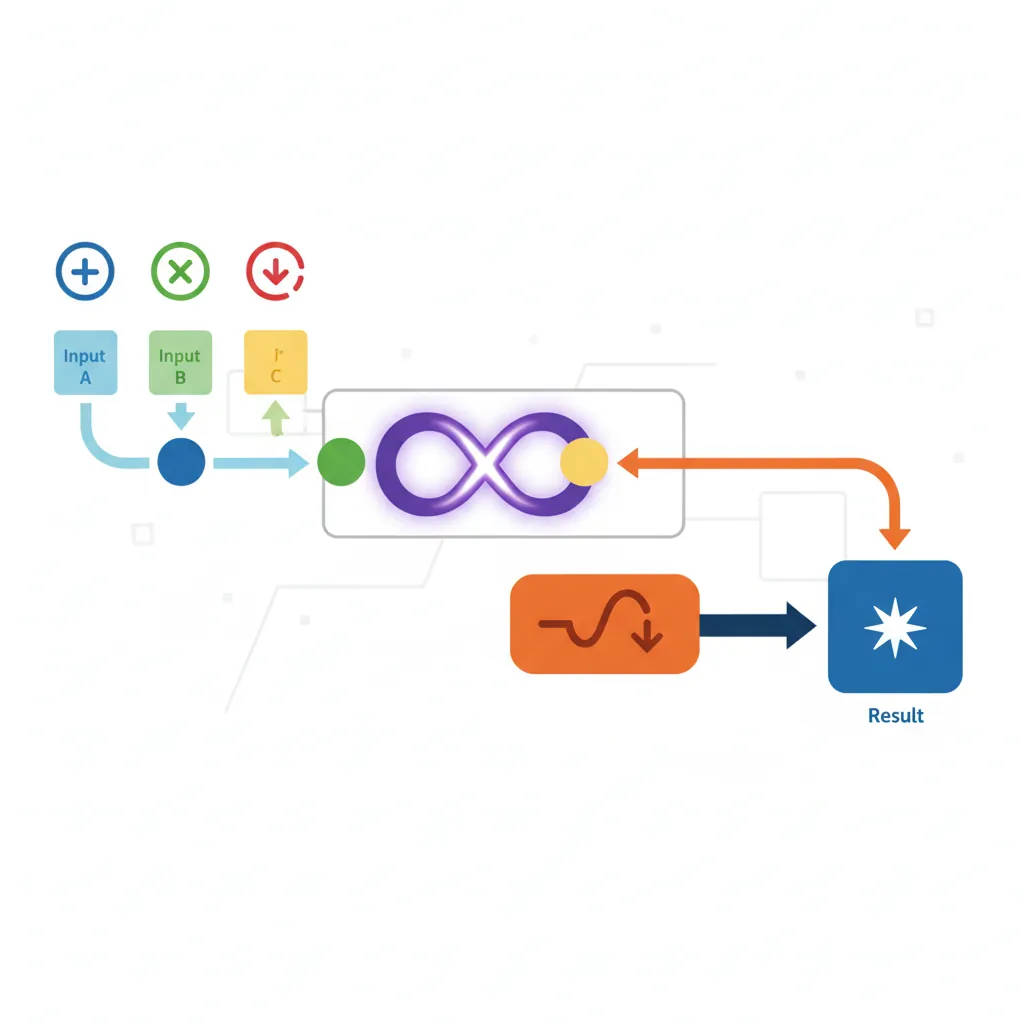

FMADD / FMSUB / FNMADD

The fused multiply-add family is arguably the most important FP instruction group. FMADD Dd, Dn, Dm, Da computes Da + (Dn × Dm) with a single rounding at the end. This means the intermediate product Dn × Dm is computed to infinite precision internally (no rounding after the multiply), and only the final sum is rounded to the destination format.

Instruction	Computation	Use Case
FMADD Dd, Dn, Dm, Da	Da + Dn × Dm	Dot product, polynomial evaluation (Horner)
FMSUB Dd, Dn, Dm, Da	Da − Dn × Dm	Residual computation, error correction
FNMADD Dd, Dn, Dm, Da	−(Da + Dn × Dm)	Negated accumulation
FNMSUB Dd, Dn, Dm, Da	−Da + Dn × Dm	Negated subtraction form

The single-rounding property makes FMADD both faster (one instruction instead of two) and more accurate (one rounding error instead of two). This is not just a micro-optimisation: the Kahan summation algorithm, compensated dot product, and double-double arithmetic all rely on the fused semantics to achieve correctness. The compiler flag -ffp-contract=fast allows GCC/Clang to fuse separate FMUL + FADD sequences into FMADD automatically.

// y = a * x + b  →  FMADD
FMADD  d0, d1, d2, d3   // d0 = d3 + d1*d2

// y = - a * x + b  →  FNMSUB
FNMSUB d0, d1, d2, d3   // d0 = d3 - d1*d2 (negated mul then add)

FABS / FNEG / FSQRT

FABS   d0, d1           // d0 = |d1|  (just clears sign bit)
FNEG   s0, s1           // s0 = -s1   (just flips sign bit)
FSQRT  d0, d1           // d0 = sqrt(d1) — correctly-rounded IEEE-754

FRECPE / FRSQRTE (Estimates)

Division and square root are expensive operations (10–20+ cycles for FDIV, 15–30+ for FSQRT on typical Cortex-A cores). ARM provides fast estimate instructions that produce an 8-bit-accurate approximation in a single cycle, which you refine with Newton-Raphson steps:

Estimate	Refinement Step	After 1 Step	After 2 Steps
FRECPE Dd, Dn (≈1/x)	FRECPS Dd, Dn, Dm	~16 bits	~32 bits (enough for float)
FRSQRTE Dd, Dn (≈1/√x)	FRSQRTS Dd, Dn, Dm	~16 bits	~32 bits (enough for float)

The refinement instructions (FRECPS, FRSQRTS) implement one Newton-Raphson iteration each. For single-precision, two refinement steps give full 24-bit mantissa accuracy; for double-precision, you need three steps for 52 bits. The trade-off: FRECPE + 2×FRECPS takes ~5 cycles total versus 15+ for FDIV — a 3× speedup when 1–2 ULP error is acceptable. Graphics engines, physics simulations, and audio DSP all use this pattern extensively.

FMIN / FMAX & NaN Handling

ARM provides two pairs of min/max instructions with critically different NaN behaviour:

Instruction	If Either Operand is NaN	IEEE-754 Compliance	Use Case
FMIN / FMAX	Result is NaN (propagated)	IEEE 754-2008 minimum/maximum	Strict IEEE code, NaN detection
FMINNM / FMAXNM	NaN treated as missing; other value returned	IEEE 754-2008 minNum/maxNum	Safe array reduction, signal processing

The "NM" (number) variants are what you almost always want in practice. When scanning an array for its maximum value, a single NaN in the data would "poison" the result with FMAX. With FMAXNM, the NaN is skipped and the actual maximum is returned. This is why NEON's FMAXNMV and SVE's FMAXNMV reduction instructions use the NM semantics — they are designed for real-world data that may contain NaN sentinels or missing-value markers.

FMAX   d0, d1, d2       // d0 = max(d1, d2)  — NaN propagates
FMAXNM d0, d1, d2       // d0 = max(d1, d2)  — NaN treated as missing

Rounding Instructions

FRINTA  s0, s1       // Round to nearest, ties away from zero (round half up)
FRINTM  d0, d1       // Round toward -∞ (floor)
FRINTP  d0, d1       // Round toward +∞ (ceil)
FRINTZ  s0, s1       // Round toward zero (truncate)
FRINTI  d0, d1       // Round using current FPCR RMode — raises inexact if not exact
FRINTX  s0, s1       // Round using FPCR, raise IXC flag if not exact
FRINTN  d0, d1       // Round to nearest, ties to even (the default)

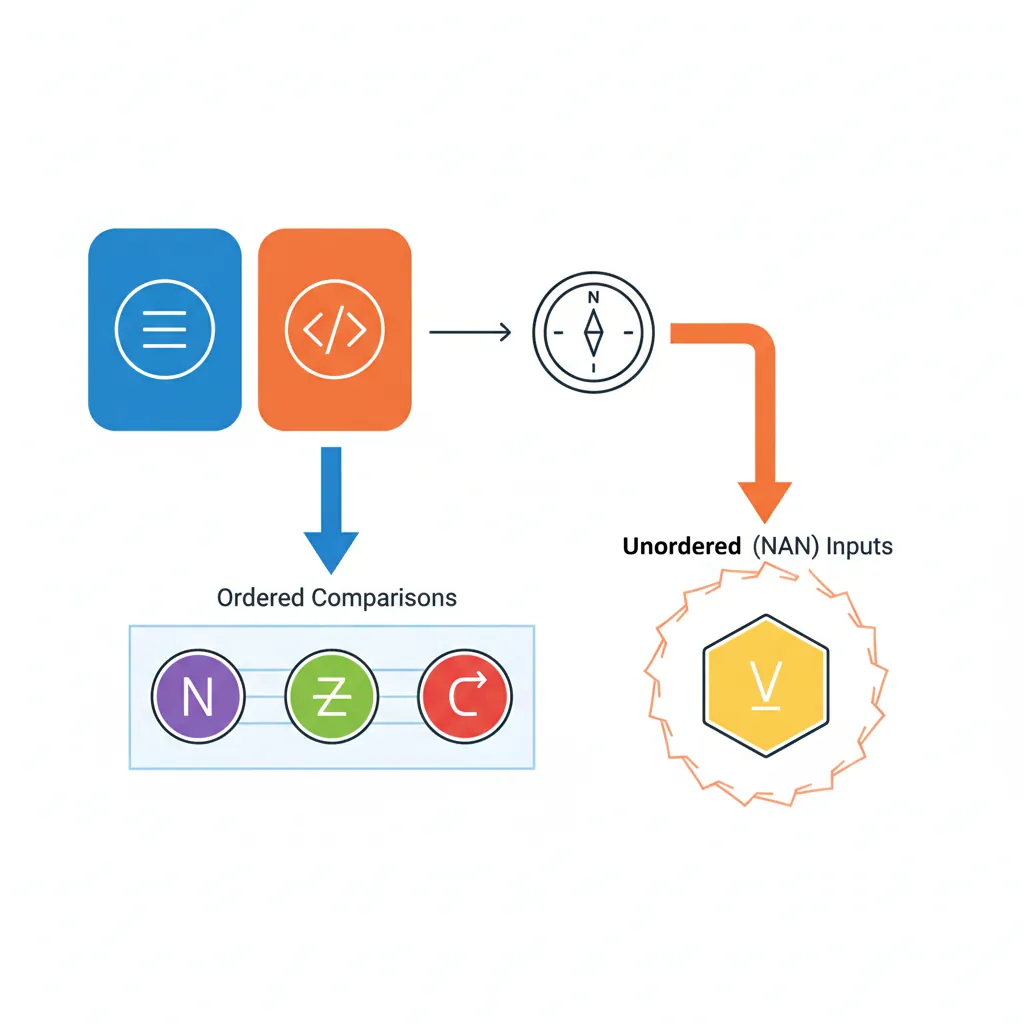

FCMP, FCCMP & Condition Flags

FCMP compares two FP values and sets the PSTATE condition flags (NZCV), enabling subsequent conditional branches or selects:

Comparison Result	N	Z	C	V	Valid Conditions
Sn < Sm	1	0	0	0	MI, LT
Sn = Sm	0	1	1	0	EQ
Sn > Sm	0	0	1	0	GT, HI
Unordered (NaN)	0	0	1	1	VS (overflow set)

The unordered case is the trap for the unwary: when either operand is NaN, the V (overflow) flag is set. This means B.GT, B.LT, and B.EQ all fall through — none of them fire. To detect NaN, use FCMP Dn, Dn (compare a register against itself) followed by B.VS: any non-NaN value equals itself, so V=1 implies NaN.

FCCMP Sn, Sm, #nzcv, cond is the conditional compare variant: if cond is true, it performs the FP comparison; if cond is false, it loads the immediate #nzcv into the flags instead. This enables multi-condition chains without branches — for example, testing (a > 0.0 && b < 1.0) in two instructions with no branch.

FCMP   d0, d1        // Set flags: d0 vs d1
B.GT   .Lgreater     // Branch if d0 > d1
B.MI   .Lnegative    // Branch if d0 < 0 (negative)

// NaN test
FCMP   d0, d0        // If d0 is NaN, V flag is set (unordered)
B.VS   .Lnan         // VS = overflow flag set = unordered = NaN

FCSEL & Branchless FP Select

// FCSEL Dd, Dn, Dm, cond
// Dd = (cond true) ? Dn : Dm
FCMP   d0, d1
FCSEL  d2, d0, d1, GT    // d2 = (d0 > d1) ? d0 : d1  →  max(d0, d1) branchless

// Clamp at 0.0
FMOV   d3, #0.0
FCMP   d0, d3
FCSEL  d0, d3, d0, MI    // d0 = (d0 < 0) ? 0.0 : d0  →  ReLU(d0)

Integer ↔ FP Conversions

// Integer → FP (converts bit value)
SCVTF  d0, x0         // Signed 64-bit int → double
UCVTF  s0, w0         // Unsigned 32-bit int → single
SCVTF  d0, w0         // Signed 32-bit int → double (sign-extends)

// FP → Integer (truncate toward zero unless overridden)
FCVTZS x0, d0         // double → signed 64-bit int (truncate)
FCVTZU w0, s0         // single → unsigned 32-bit int (truncate)
FCVTMS x0, d0         // double → int64 (round toward -∞, floor)
FCVTPS x0, d0         // double → int64 (round toward +∞, ceil)
FCVTAS x0, d0         // double → int64 (round to nearest, ties away)

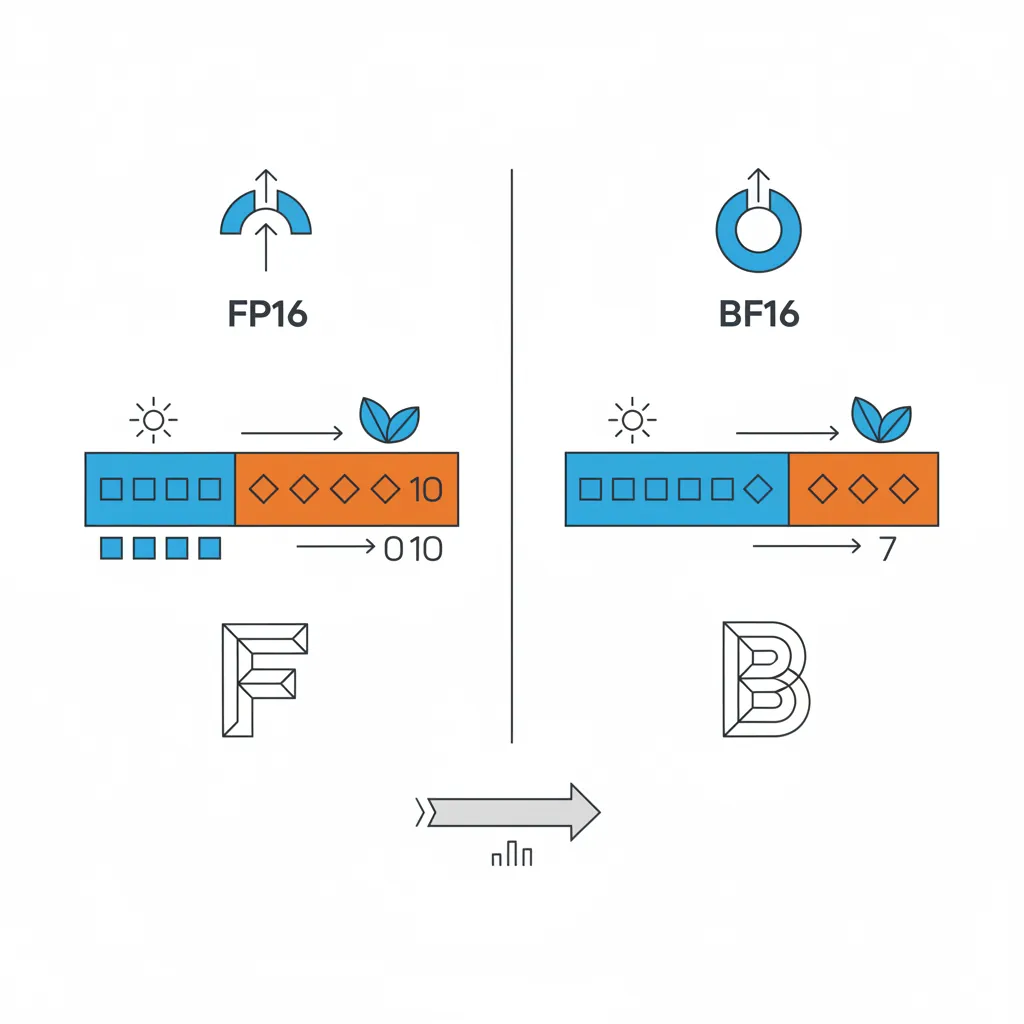

Half Precision: FP16 & BF16

ARM has progressively added support for reduced-precision FP formats that trade accuracy for throughput and memory bandwidth — critical for machine learning workloads:

Format	Feature	Exponent	Mantissa	Range	Primary Use
FP16 (IEEE binary16)	FEAT_FP16 (ARMv8.2)	5 bits	10 bits	±65504	Inference, mobile GPU shaders
BF16 (BFloat16)	FEAT_BF16 (ARMv8.6)	8 bits	7 bits	Same as FP32	ML training, mixed-precision GEMM

FEAT_FP16 adds full IEEE-754 binary16 arithmetic: every standard FP instruction (FADD, FMUL, FMADD, FCMP, etc.) accepts Hn register operands. This doubles the throughput compared to FP32 on cores that support it (the same 128-bit datapath processes 8 FP16 values versus 4 FP32). Apple's M-series chips and Cortex-A76+ cores implement FEAT_FP16.

FEAT_BF16 adds BFloat16, which keeps the same 8-bit exponent as FP32 (avoiding overflow that plagues FP16 at values > 65504) but reduces the mantissa to 7 bits. The key instructions are:

• BFCVT Hd, Sn — Convert FP32 to BF16 (truncate lower 16 mantissa bits)
• BFDOT Vd.4S, Vn.8H, Vm.8H — BF16 dot product into FP32 accumulator (NEON)
• BFMMLA Vd.4S, Vn.8H, Vm.8H — BF16 matrix multiply-accumulate (2×4 × 4×2 → 2×2 FP32)
• BFMOPA ZA.S, Pn/M, Zm.H, Zn.H — SME BF16 outer product into FP32 tile

Conclusion & Next Steps

Part 10 covered ARM's scalar floating-point architecture — from the register file through to half-precision ML formats. The key concepts:

• Unified register file — V0–V31 shared between scalar FP (Sn/Dn/Hn), NEON, and SVE; writing a narrow alias zeros the upper bits
• FPCR/FPSR — control register (rounding mode, flush-to-zero, trap enables) and sticky status flags (IOC, DZC, OFC, UFC, IXC)
• FMOV vs FCVT — FMOV copies bit patterns without conversion; FCVT converts between precisions with rounding
• Fused multiply-add — FMADD computes a + b×c with one rounding, delivering both speed and accuracy
• FMIN/FMAX vs FMINNM/FMAXNM — NaN-propagating versus NaN-ignoring semantics
• FRINTI/FRINTM/FRINTP/FRINTZ — per-instruction rounding overrides that avoid expensive FPCR changes
• FCMP/FCCMP — FP comparison with NZCV flag setting; unordered (NaN) sets V=1
• FCSEL — branchless FP conditional select, perfect for clamp/max/min patterns
• SCVTF/FCVTZS — integer ↔ FP conversion family with various rounding modes
• FP16/BF16 — half-precision formats for ML inference and training, with native arithmetic and dot-product accumulation
