Complete Database Mastery Part 7: Data Modeling & Normalization

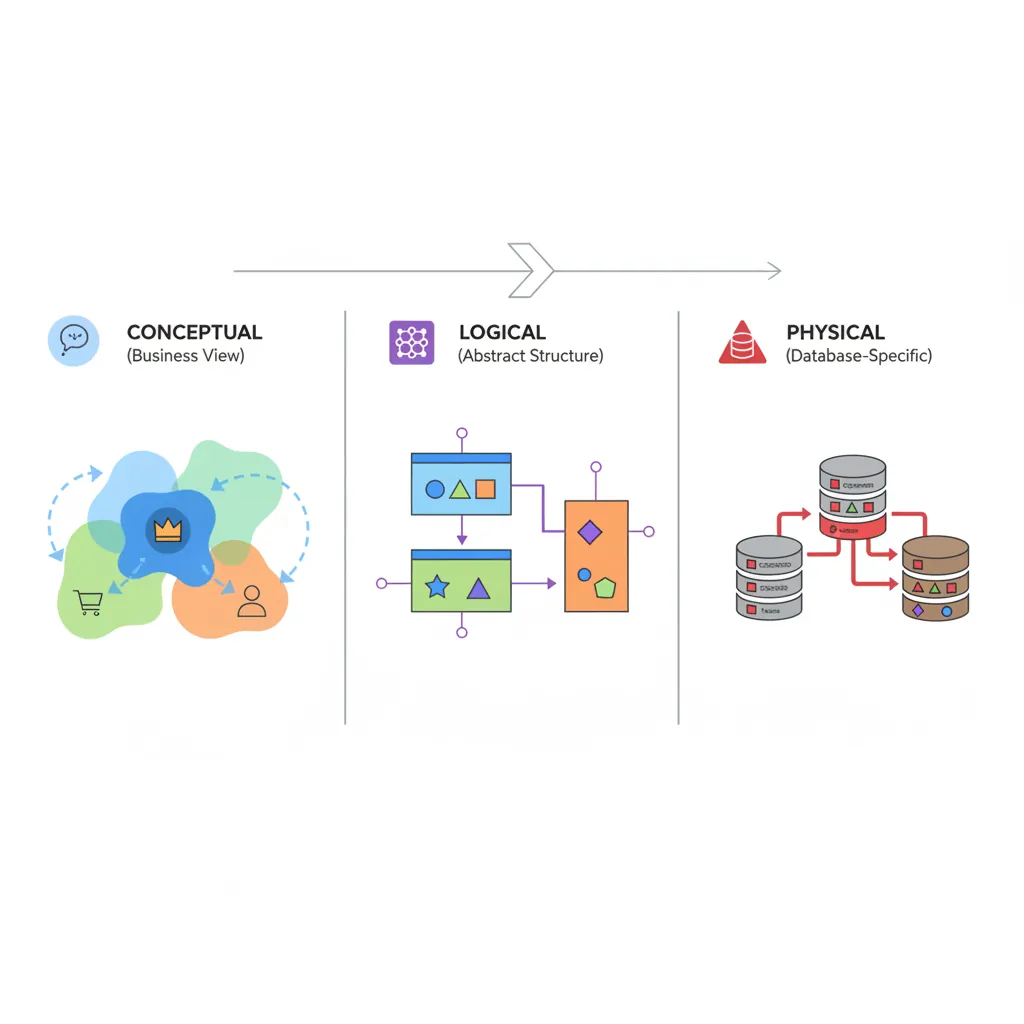

Modeling Approaches

Conceptual Modeling (What)

High-level view of business entities and relationships. No technical details—focuses on what data exists.

-- Conceptual: Business perspective
-- "Customers place Orders. Orders contain Products."

-- Entities:
-- - Customer (name, email)
-- - Order (date, total)
-- - Product (name, price)

-- Relationships:
-- - Customer places Order (one-to-many)
-- - Order contains Product (many-to-many)

Logical Modeling (How - Abstract)

Detailed design with tables, columns, data types, and keys—but database-agnostic. Defines the structure without implementation specifics.

-- Logical: Structure without implementation details
-- Customer(customer_id PK, name, email UNIQUE, created_at)
-- Order(order_id PK, customer_id FK, order_date, status, total)
-- Product(product_id PK, name, price, category)
-- OrderItem(order_id FK, product_id FK, quantity, unit_price)
--   PK: (order_id, product_id)

Physical Modeling (How - Concrete)

Database-specific implementation: exact data types, indexes, partitioning, storage parameters.

-- Physical: PostgreSQL-specific implementation
CREATE TABLE customers (
    customer_id BIGSERIAL PRIMARY KEY,
    name VARCHAR(100) NOT NULL,
    email VARCHAR(255) UNIQUE NOT NULL,
    created_at TIMESTAMP WITH TIME ZONE DEFAULT NOW()
);

CREATE INDEX idx_customers_email ON customers(email);

CREATE TABLE orders (
    order_id BIGSERIAL PRIMARY KEY,
    customer_id BIGINT NOT NULL REFERENCES customers(customer_id),
    order_date DATE NOT NULL DEFAULT CURRENT_DATE,
    status VARCHAR(20) DEFAULT 'pending' CHECK (status IN ('pending', 'shipped', 'delivered', 'cancelled')),
    total DECIMAL(12,2) NOT NULL
) PARTITION BY RANGE (order_date);

CREATE INDEX idx_orders_customer ON orders(customer_id);
CREATE INDEX idx_orders_date ON orders(order_date);

Entity Relationship Diagrams (ERDs)

ERDs visualize database structure. They show entities (tables), attributes (columns), and relationships (foreign keys).

-- One-to-One: User Profile (separate for privacy/performance)
CREATE TABLE users (
    id SERIAL PRIMARY KEY,
    email VARCHAR(255) UNIQUE NOT NULL
);

CREATE TABLE user_profiles (
    user_id INT PRIMARY KEY REFERENCES users(id),
    bio TEXT,
    avatar_url VARCHAR(500)
);

-- One-to-Many: Customer Orders
CREATE TABLE customers (id SERIAL PRIMARY KEY, name VARCHAR(100));
CREATE TABLE orders (
    id SERIAL PRIMARY KEY,
    customer_id INT NOT NULL REFERENCES customers(id),  -- FK here
    total DECIMAL(10,2)
);

-- Many-to-Many: Order Products (junction table)
CREATE TABLE products (id SERIAL PRIMARY KEY, name VARCHAR(100));
CREATE TABLE order_items (
    order_id INT REFERENCES orders(id),
    product_id INT REFERENCES products(id),
    quantity INT NOT NULL DEFAULT 1,
    PRIMARY KEY (order_id, product_id)  -- Composite PK
);

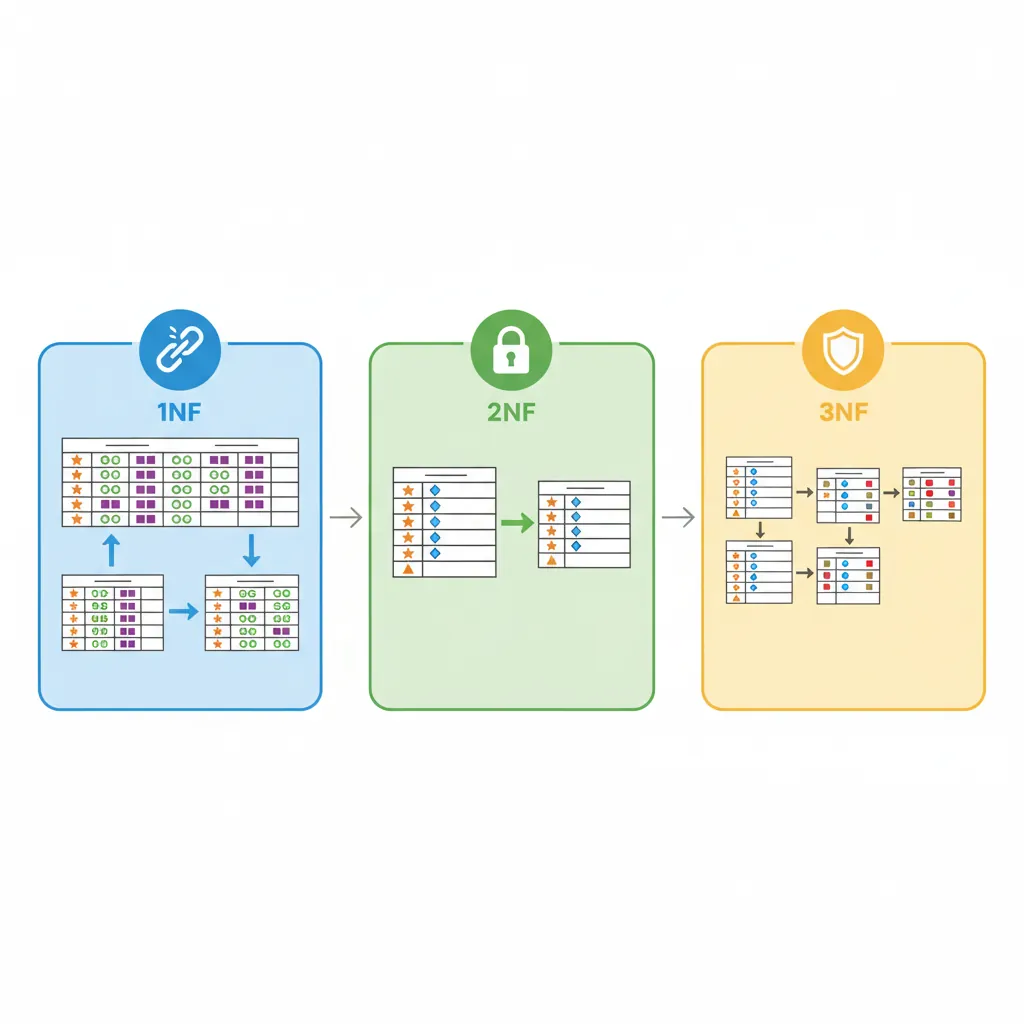

Normal Forms

Normalization eliminates redundancy and ensures data integrity. Each normal form builds on the previous one.

First Normal Form (1NF): Atomic Values

Each column contains only atomic (indivisible) values. No repeating groups or arrays.

-- ❌ Violates 1NF: Multiple values in one column
CREATE TABLE orders_bad (
    order_id INT,
    customer VARCHAR(100),
    products VARCHAR(500)  -- "iPhone, iPad, MacBook"
);

-- ✅ 1NF: Atomic values, one product per row
CREATE TABLE order_items_1nf (
    order_id INT,
    customer VARCHAR(100),
    product VARCHAR(100)
);
-- But this has redundancy... customer repeated for every item!

Second Normal Form (2NF): No Partial Dependencies

1NF + every non-key column depends on the entire primary key (not just part of it).

-- ❌ Violates 2NF: customer depends only on order_id, not product
-- PK is (order_id, product) but customer doesn't need product
CREATE TABLE orders_bad (
    order_id INT,
    product VARCHAR(100),
    customer VARCHAR(100),  -- Partial dependency!
    quantity INT,
    PRIMARY KEY (order_id, product)
);

-- ✅ 2NF: Separate tables
CREATE TABLE orders_2nf (
    order_id INT PRIMARY KEY,
    customer VARCHAR(100)
);

CREATE TABLE order_items_2nf (
    order_id INT,
    product VARCHAR(100),
    quantity INT,
    PRIMARY KEY (order_id, product),
    FOREIGN KEY (order_id) REFERENCES orders_2nf(order_id)
);

Third Normal Form (3NF): No Transitive Dependencies

2NF + no non-key column depends on another non-key column.

-- ❌ Violates 3NF: customer_city depends on customer_id, not order_id
CREATE TABLE orders_bad (
    order_id INT PRIMARY KEY,
    customer_id INT,
    customer_city VARCHAR(100)  -- Transitive: order→customer→city
);

-- ✅ 3NF: City belongs with customer
CREATE TABLE customers_3nf (
    customer_id INT PRIMARY KEY,
    name VARCHAR(100),
    city VARCHAR(100)
);

CREATE TABLE orders_3nf (
    order_id INT PRIMARY KEY,
    customer_id INT REFERENCES customers_3nf(customer_id),
    total DECIMAL(10,2)
);

Boyce-Codd Normal Form (BCNF)

A stricter version of 3NF. Every determinant (column that determines others) must be a candidate key.

-- Example: Course scheduling
-- Student can take one course per semester
-- Each course is taught by one professor
-- Each professor teaches only one course

-- ❌ Anomaly: Professor determines Course, but Professor isn't a key
CREATE TABLE enrollments_bad (
    student_id INT,
    semester VARCHAR(20),
    professor VARCHAR(100),
    course VARCHAR(100),  -- Determined by professor!
    PRIMARY KEY (student_id, semester)
);

-- ✅ BCNF: Separate professor-course relationship
CREATE TABLE professor_courses (
    professor VARCHAR(100) PRIMARY KEY,
    course VARCHAR(100) NOT NULL
);

CREATE TABLE enrollments_bcnf (
    student_id INT,
    semester VARCHAR(20),
    professor VARCHAR(100) REFERENCES professor_courses(professor),
    PRIMARY KEY (student_id, semester)
);

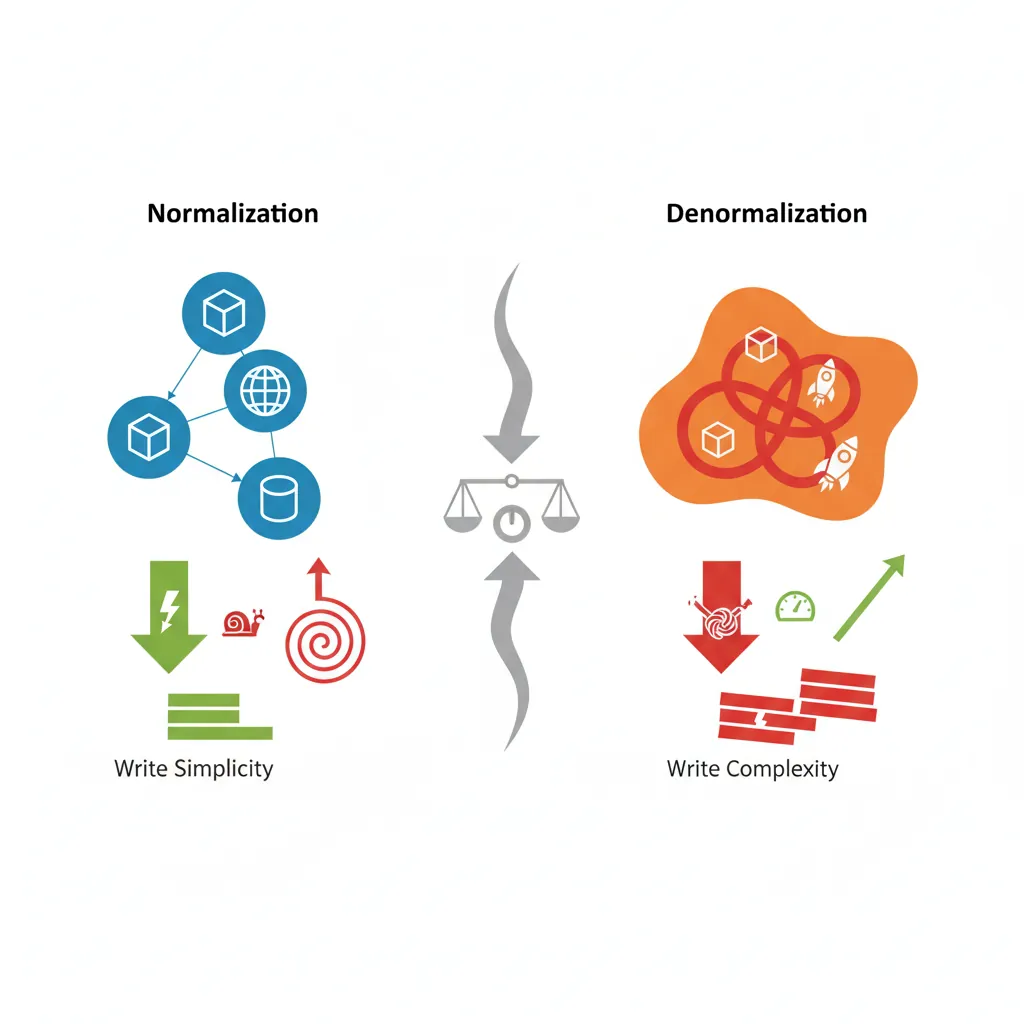

Denormalization Tradeoffs

Denormalization intentionally adds redundancy to improve read performance. It trades storage space and write complexity for faster queries.

-- Normalized: Separate product details
-- Query requires JOIN
SELECT o.order_id, p.name, p.price
FROM orders o
JOIN order_items oi ON o.order_id = oi.order_id
JOIN products p ON oi.product_id = p.product_id
WHERE o.customer_id = 123;

-- Denormalized: Store product snapshot in order_items
CREATE TABLE order_items_denorm (
    order_id INT,
    product_id INT,
    quantity INT,
    -- Denormalized: snapshot of product at order time
    product_name VARCHAR(100),
    unit_price DECIMAL(10,2),
    PRIMARY KEY (order_id, product_id)
);

-- Benefits:
-- 1. Faster queries (no JOIN needed)
-- 2. Historical accuracy (price at time of order)
-- Downside: product_name won't update if product renamed

Designing for Scalability

-- 1. Use surrogate keys (not natural keys)
-- ✅ Good: system-generated ID
CREATE TABLE users (
    id BIGSERIAL PRIMARY KEY,  -- Can handle billions
    email VARCHAR(255) UNIQUE
);

-- ❌ Risky: natural key that might change
CREATE TABLE users_bad (
    email VARCHAR(255) PRIMARY KEY  -- What if user changes email?
);

-- 2. Prepare for partitioning
-- Include partition key in primary key
CREATE TABLE events (
    id BIGSERIAL,
    event_date DATE NOT NULL,
    data JSONB,
    PRIMARY KEY (id, event_date)  -- Include partition key
) PARTITION BY RANGE (event_date);

-- 3. Avoid wide tables
-- Split into logical groups
CREATE TABLE user_core (id BIGINT PRIMARY KEY, email VARCHAR(255));
CREATE TABLE user_profile (user_id BIGINT PRIMARY KEY, bio TEXT, avatar_url VARCHAR(500));
CREATE TABLE user_settings (user_id BIGINT PRIMARY KEY, preferences JSONB);

-- 4. Use appropriate data types
-- INT vs BIGINT: Know your scale
-- VARCHAR(n) vs TEXT: PostgreSQL treats them similarly
-- DECIMAL vs FLOAT: DECIMAL for money, FLOAT for science

Real-World Schema Modeling

E-Commerce Schema

-- Core E-Commerce Schema
CREATE TABLE customers (
    id BIGSERIAL PRIMARY KEY,
    email VARCHAR(255) UNIQUE NOT NULL,
    password_hash VARCHAR(255) NOT NULL,
    created_at TIMESTAMP DEFAULT NOW()
);

CREATE TABLE addresses (
    id BIGSERIAL PRIMARY KEY,
    customer_id BIGINT REFERENCES customers(id),
    type VARCHAR(20) CHECK (type IN ('billing', 'shipping')),
    street VARCHAR(255),
    city VARCHAR(100),
    postal_code VARCHAR(20),
    country CHAR(2)
);

CREATE TABLE products (
    id BIGSERIAL PRIMARY KEY,
    sku VARCHAR(50) UNIQUE NOT NULL,
    name VARCHAR(255) NOT NULL,
    price DECIMAL(10,2) NOT NULL,
    inventory_count INT DEFAULT 0,
    category_id BIGINT REFERENCES categories(id)
);

CREATE TABLE orders (
    id BIGSERIAL PRIMARY KEY,
    customer_id BIGINT REFERENCES customers(id),
    status VARCHAR(20) DEFAULT 'pending',
    shipping_address_id BIGINT REFERENCES addresses(id),
    total DECIMAL(12,2),
    created_at TIMESTAMP DEFAULT NOW()
);

CREATE TABLE order_items (
    order_id BIGINT REFERENCES orders(id),
    product_id BIGINT REFERENCES products(id),
    quantity INT NOT NULL,
    unit_price DECIMAL(10,2) NOT NULL,  -- Snapshot at order time
    PRIMARY KEY (order_id, product_id)
);

Banking/Financial Schema

-- Banking: Every transaction must be traceable
CREATE TABLE accounts (
    id BIGSERIAL PRIMARY KEY,
    account_number VARCHAR(20) UNIQUE NOT NULL,
    customer_id BIGINT REFERENCES customers(id),
    account_type VARCHAR(20) CHECK (account_type IN ('checking', 'savings', 'credit')),
    balance DECIMAL(15,2) NOT NULL DEFAULT 0,
    currency CHAR(3) DEFAULT 'USD',
    created_at TIMESTAMP DEFAULT NOW()
);

-- Double-entry bookkeeping: Every transaction has debit AND credit
CREATE TABLE transactions (
    id BIGSERIAL PRIMARY KEY,
    transaction_date TIMESTAMP DEFAULT NOW(),
    description VARCHAR(255)
);

CREATE TABLE transaction_entries (
    id BIGSERIAL PRIMARY KEY,
    transaction_id BIGINT REFERENCES transactions(id),
    account_id BIGINT REFERENCES accounts(id),
    entry_type VARCHAR(10) CHECK (entry_type IN ('debit', 'credit')),
    amount DECIMAL(15,2) NOT NULL,
    CHECK (amount > 0)
);

-- Constraint: debits must equal credits (enforced by trigger)

Social Media Schema

-- Social: Optimized for feeds and relationships
CREATE TABLE users (
    id BIGSERIAL PRIMARY KEY,
    username VARCHAR(50) UNIQUE NOT NULL,
    display_name VARCHAR(100)
);

-- Self-referencing many-to-many for follows
CREATE TABLE follows (
    follower_id BIGINT REFERENCES users(id),
    following_id BIGINT REFERENCES users(id),
    created_at TIMESTAMP DEFAULT NOW(),
    PRIMARY KEY (follower_id, following_id),
    CHECK (follower_id != following_id)  -- Can't follow yourself
);

CREATE TABLE posts (
    id BIGSERIAL PRIMARY KEY,
    user_id BIGINT REFERENCES users(id),
    content TEXT NOT NULL,
    created_at TIMESTAMP DEFAULT NOW()
);

-- Denormalized counters for performance
ALTER TABLE posts ADD COLUMN like_count INT DEFAULT 0;
ALTER TABLE posts ADD COLUMN comment_count INT DEFAULT 0;
ALTER TABLE users ADD COLUMN follower_count INT DEFAULT 0;

Data Integrity & Constraints

-- NOT NULL: Required fields
CREATE TABLE products (
    id SERIAL PRIMARY KEY,
    name VARCHAR(100) NOT NULL,
    price DECIMAL(10,2) NOT NULL
);

-- UNIQUE: No duplicates
ALTER TABLE users ADD CONSTRAINT unique_email UNIQUE (email);

-- CHECK: Domain validation
CREATE TABLE orders (
    id SERIAL PRIMARY KEY,
    quantity INT CHECK (quantity > 0),
    status VARCHAR(20) CHECK (status IN ('pending', 'shipped', 'delivered'))
);

-- FOREIGN KEY: Referential integrity
-- ON DELETE options:
-- CASCADE: Delete related rows
-- SET NULL: Set FK to NULL
-- RESTRICT: Prevent delete if referenced
CREATE TABLE order_items (
    order_id INT REFERENCES orders(id) ON DELETE CASCADE,
    product_id INT REFERENCES products(id) ON DELETE RESTRICT
);

-- EXCLUSION: Prevent overlapping ranges (PostgreSQL)
CREATE TABLE room_bookings (
    room_id INT,
    during TSRANGE,
    EXCLUDE USING gist (room_id WITH =, during WITH &&)
);

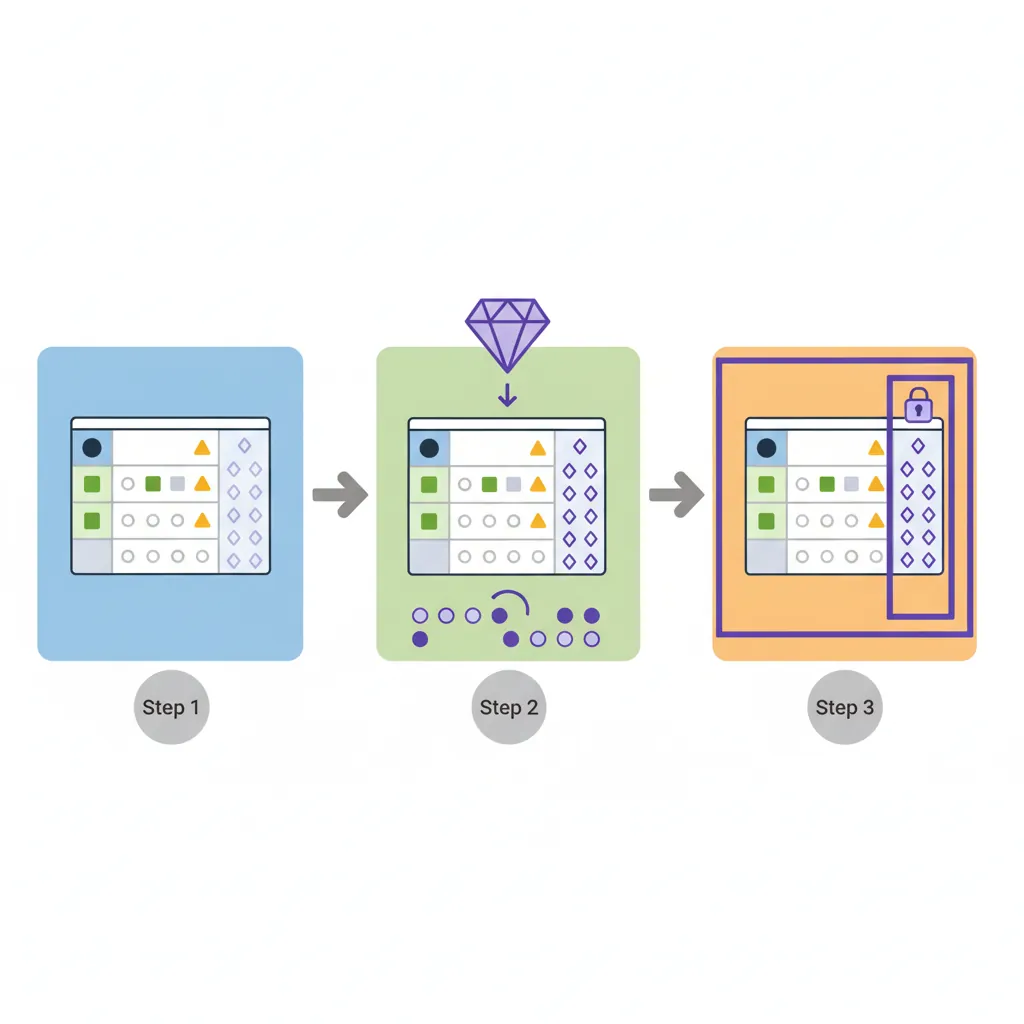

Schema Evolution Planning

Schemas change over time. Plan for evolution without breaking existing applications.

-- Safe column additions (backward compatible)
ALTER TABLE users ADD COLUMN phone VARCHAR(20);  -- Nullable by default

-- Dangerous: Adding NOT NULL without default
-- ALTER TABLE users ADD COLUMN age INT NOT NULL;  -- FAILS if rows exist!

-- Safe approach: Add nullable, backfill, then constrain
ALTER TABLE users ADD COLUMN age INT;
UPDATE users SET age = 0 WHERE age IS NULL;
ALTER TABLE users ALTER COLUMN age SET NOT NULL;
ALTER TABLE users ALTER COLUMN age SET DEFAULT 0;

-- Renaming columns: Create view for backward compatibility
ALTER TABLE users RENAME COLUMN name TO full_name;
CREATE VIEW users_v1 AS SELECT id, full_name AS name, email FROM users;

-- Soft deprecation: Add new column, keep old
ALTER TABLE products ADD COLUMN price_cents BIGINT;  -- New: cents
-- Old 'price' DECIMAL column stays until migration complete

Conclusion & Next Steps

Data modeling is both art and science. Understanding normal forms, knowing when to denormalize, and designing for real-world requirements are skills that distinguish database architects from developers.
