Complete Database Mastery Part 8: MongoDB & Document Databases

Welcome to the Document Database Era

For decades, relational databases ruled the world. Tables, rows, joins, ACID transactions—the relational model worked beautifully for structured data. But as applications evolved, developers faced new challenges:

• JSON objects from APIs don't fit neatly into tables
• Rapidly changing schemas slow development velocity
• Horizontal scaling requires complex sharding logic
• Object-relational impedance mismatch creates boilerplate code

MongoDB emerged in 2009 as a solution. Instead of tables and rows, MongoDB stores documents—flexible JSON-like objects that map directly to your application's data structures. No more ORMs, no more migrations, no more JOIN headaches.

NoSQL vs. SQL: Different Tools for Different Jobs

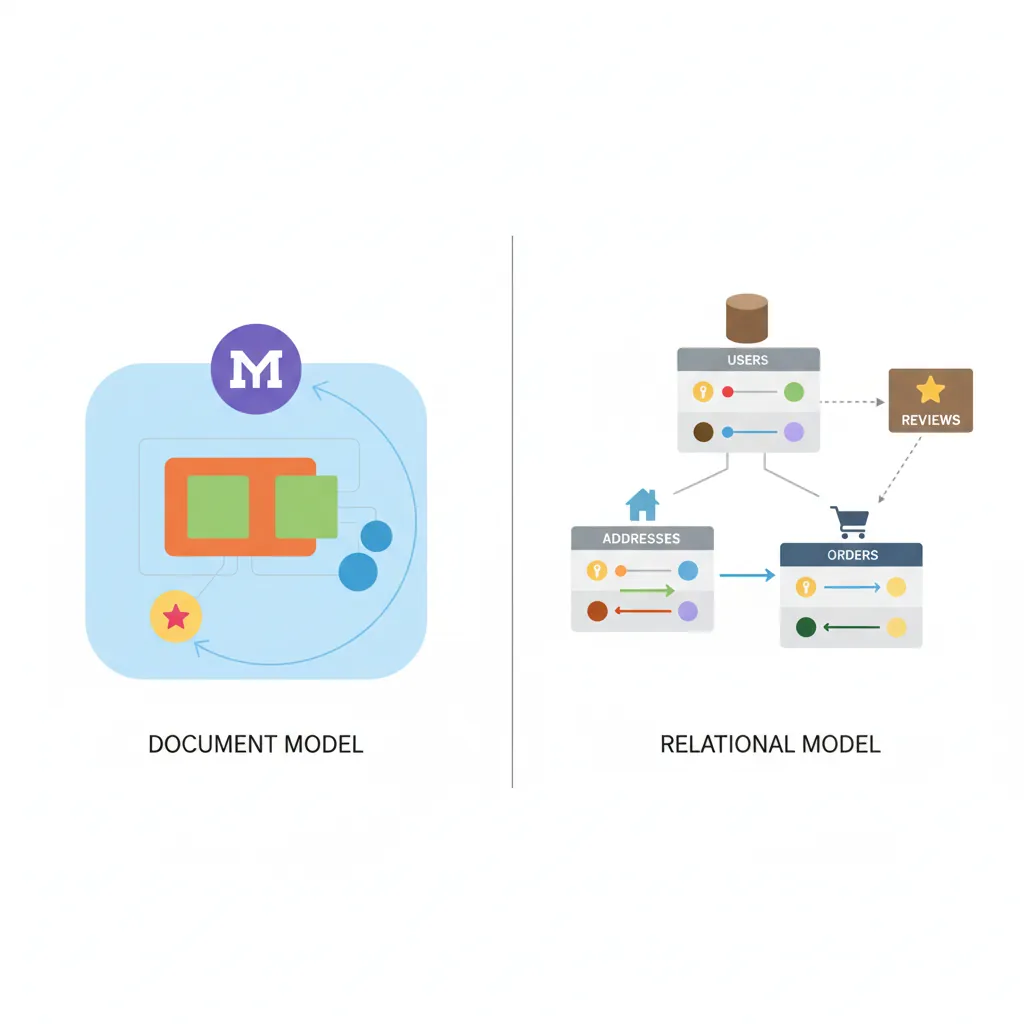

The Document Model

In MongoDB, data is stored as documents—self-contained units that combine related data in a single record. Think of documents as rows in SQL, but with superpowers.

Document Fundamentals

// A MongoDB document (JSON format)
{
  "_id": ObjectId("507f1f77bcf86cd799439011"),
  "username": "alice_dev",
  "email": "alice@example.com",
  "profile": {
    "firstName": "Alice",
    "lastName": "Chen",
    "age": 28,
    "location": "San Francisco, CA"
  },
  "interests": ["databases", "distributed systems", "coffee"],
  "accountCreated": ISODate("2025-01-15T10:30:00Z"),
  "lastLogin": ISODate("2026-01-30T14:22:15Z"),
  "settings": {
    "notifications": true,
    "theme": "dark",
    "language": "en"
  }
}

BSON: Binary JSON

MongoDB stores documents in BSON (Binary JSON)—a binary representation that extends JSON with additional types like Date, ObjectId, Binary, Decimal128, and more.

// BSON supports types JSON doesn't
{
  "price": NumberDecimal("19.99"),        // Precise decimal (not float)
  "createdAt": new Date(),                 // Native date type
  "profilePic": BinData(0, "base64..."),  // Binary data
  "count": NumberLong("9223372036854775807") // 64-bit integer
}

Embedded Documents: Power of Nesting

Unlike SQL's normalized tables, MongoDB encourages embedding related data within a single document. This eliminates joins and improves read performance.

// SQL approach: 3 tables (users, addresses, orders)
// MongoDB approach: 1 document with embedded data

{
  "_id": ObjectId("..."),
  "username": "bob_buyer",
  "addresses": [
    {
      "type": "shipping",
      "street": "123 Main St",
      "city": "Austin",
      "state": "TX",
      "zip": "78701"
    },
    {
      "type": "billing",
      "street": "456 Oak Ave",
      "city": "Austin",
      "state": "TX",
      "zip": "78702"
    }
  ],
  "recentOrders": [
    {
      "orderId": "ORD-2025-1234",
      "total": 149.99,
      "date": ISODate("2026-01-28T10:00:00Z"),
      "items": [
        { "productId": "p-001", "name": "Wireless Mouse", "qty": 2, "price": 29.99 },
        { "productId": "p-042", "name": "USB-C Cable", "qty": 3, "price": 12.99 }
      ]
    }
  ]
}

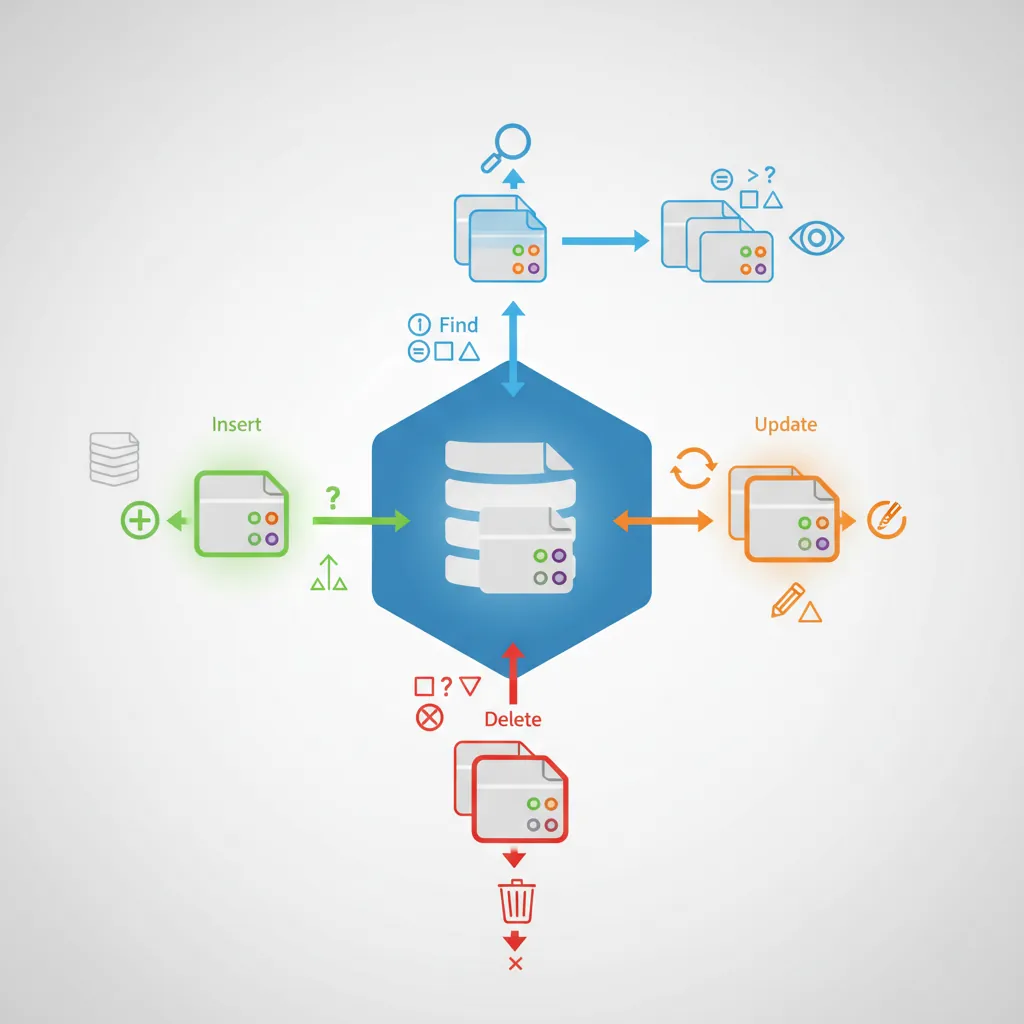

Collections & Basic Operations

Documents are organized into collections—analogous to SQL tables, but without enforced schema. A collection can contain documents with completely different structures (though keeping them similar helps maintainability).

// MongoDB Shell (mongosh) or Node.js driver

// Insert a single document
db.users.insertOne({
  username: "charlie",
  email: "charlie@example.com",
  age: 35
});

// Insert multiple documents
db.users.insertMany([
  { username: "diana", email: "diana@example.com", age: 29 },
  { username: "eve", email: "eve@example.com", age: 42 }
]);

// Find documents
db.users.find({ age: { $gte: 30 } });  // age >= 30
db.users.findOne({ username: "alice" });

// Update documents
db.users.updateOne(
  { username: "bob" },
  { $set: { age: 31, "profile.city": "Seattle" } }
);

// Upsert: update if exists, insert if doesn't
db.users.updateOne(
  { username: "frank" },
  { $set: { email: "frank@example.com", age: 27 } },
  { upsert: true }
);

// Delete documents
db.users.deleteOne({ username: "eve" });
db.users.deleteMany({ age: { $lt: 18 } });  // Delete all under 18

Query Operators

// Comparison operators
db.products.find({ price: { $gt: 50, $lte: 200 } });  // 50 < price <= 200
db.products.find({ category: { $in: ["electronics", "books"] } });

// Logical operators
db.products.find({
  $or: [
    { price: { $lt: 20 } },
    { onSale: true }
  ]
});

// Array operators
db.users.find({ interests: "databases" });  // Array contains "databases"
db.users.find({ interests: { $all: ["databases", "coffee"] } });  // Contains both

// Nested field queries
db.users.find({ "profile.city": "Austin" });
db.users.find({ "addresses.type": "billing" });

// Existence checks
db.users.find({ phoneNumber: { $exists: true } });
db.users.find({ salary: { $type: "number" } });

Indexing: From Seconds to Milliseconds

Without indexes, MongoDB scans every document (collection scan) to find matches—slow for large collections. Indexes create sorted data structures for fast lookups.

// Create single-field index
db.users.createIndex({ email: 1 });  // 1 = ascending, -1 = descending

// Compound index (multiple fields)
db.orders.createIndex({ userId: 1, orderDate: -1 });

// Unique index (enforces uniqueness)
db.users.createIndex({ email: 1 }, { unique: true });

// Text index for full-text search
db.articles.createIndex({ title: "text", content: "text" });
db.articles.find({ $text: { $search: "mongodb tutorial" } });

// Geospatial index for location queries
db.stores.createIndex({ location: "2dsphere" });
db.stores.find({
  location: {
    $near: {
      $geometry: { type: "Point", coordinates: [-122.4194, 37.7749] },
      $maxDistance: 5000  // 5 km radius
    }
  }
});

// Partial index (index subset of documents)
db.orders.createIndex(
  { orderDate: 1 },
  { partialFilterExpression: { status: "active" } }
);

// Analyze query performance with explain()
db.users.find({ age: { $gte: 30 } }).explain("executionStats");

// Output shows:
// - "executionTimeMillis": 5
// - "totalDocsExamined": 12500  // Without index: millions
// - "indexName": "age_1"         // Which index was used

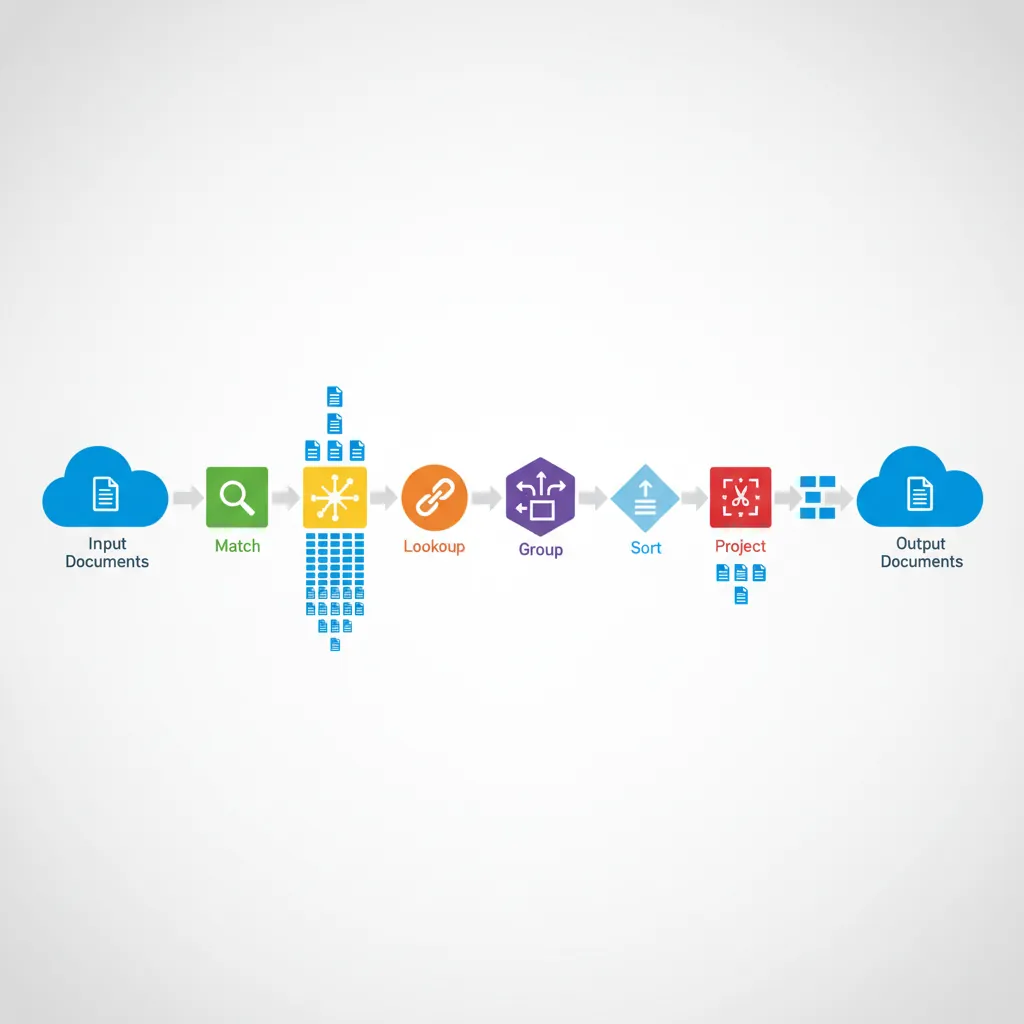

Aggregation Pipeline: MongoDB's Superpower

The aggregation pipeline is MongoDB's framework for data processing. Pass documents through a sequence of stages, each transforming the data—similar to UNIX pipes or SQL's window functions.

Pipeline Stages

// Aggregation pipeline example: Sales report by category
db.orders.aggregate([
  // Stage 1: Filter to 2026 orders only
  { $match: {
      orderDate: {
        $gte: ISODate("2026-01-01"),
        $lt: ISODate("2027-01-01")
      }
  }},

  // Stage 2: Unwind items array (one doc per item)
  { $unwind: "$items" },

  // Stage 3: Lookup product details (like SQL JOIN)
  { $lookup: {
      from: "products",
      localField: "items.productId",
      foreignField: "_id",
      as: "productInfo"
  }},

  // Stage 4: Group by category, sum revenue
  { $group: {
      _id: "$productInfo.category",
      totalRevenue: { $sum: { $multiply: ["$items.qty", "$items.price"] } },
      orderCount: { $sum: 1 },
      avgOrderValue: { $avg: { $multiply: ["$items.qty", "$items.price"] } }
  }},

  // Stage 5: Sort by revenue descending
  { $sort: { totalRevenue: -1 } },

  // Stage 6: Limit to top 10 categories
  { $limit: 10 },

  // Stage 7: Format output
  { $project: {
      _id: 0,
      category: "$_id",
      revenue: { $round: ["$totalRevenue", 2] },
      orders: "$orderCount",
      avgValue: { $round: ["$avgOrderValue", 2] }
  }}
]);

Common Aggregation Operators

// Real-world example: User engagement report
db.events.aggregate([
  // Users active in last 30 days
  { $match: {
      timestamp: { $gte: new Date(Date.now() - 30*24*60*60*1000) }
  }},

  // Group by user, count actions
  { $group: {
      _id: "$userId",
      totalEvents: { $sum: 1 },
      lastSeen: { $max: "$timestamp" },
      eventTypes: { $addToSet: "$eventType" }  // Unique event types
  }},

  // Calculate engagement score
  { $addFields: {
      engagementScore: {
        $multiply: [
          "$totalEvents",
          { $size: "$eventTypes" }  // Variety bonus
        ]
      }
  }},

  // Top 100 most engaged users
  { $sort: { engagementScore: -1 } },
  { $limit: 100 }
]);

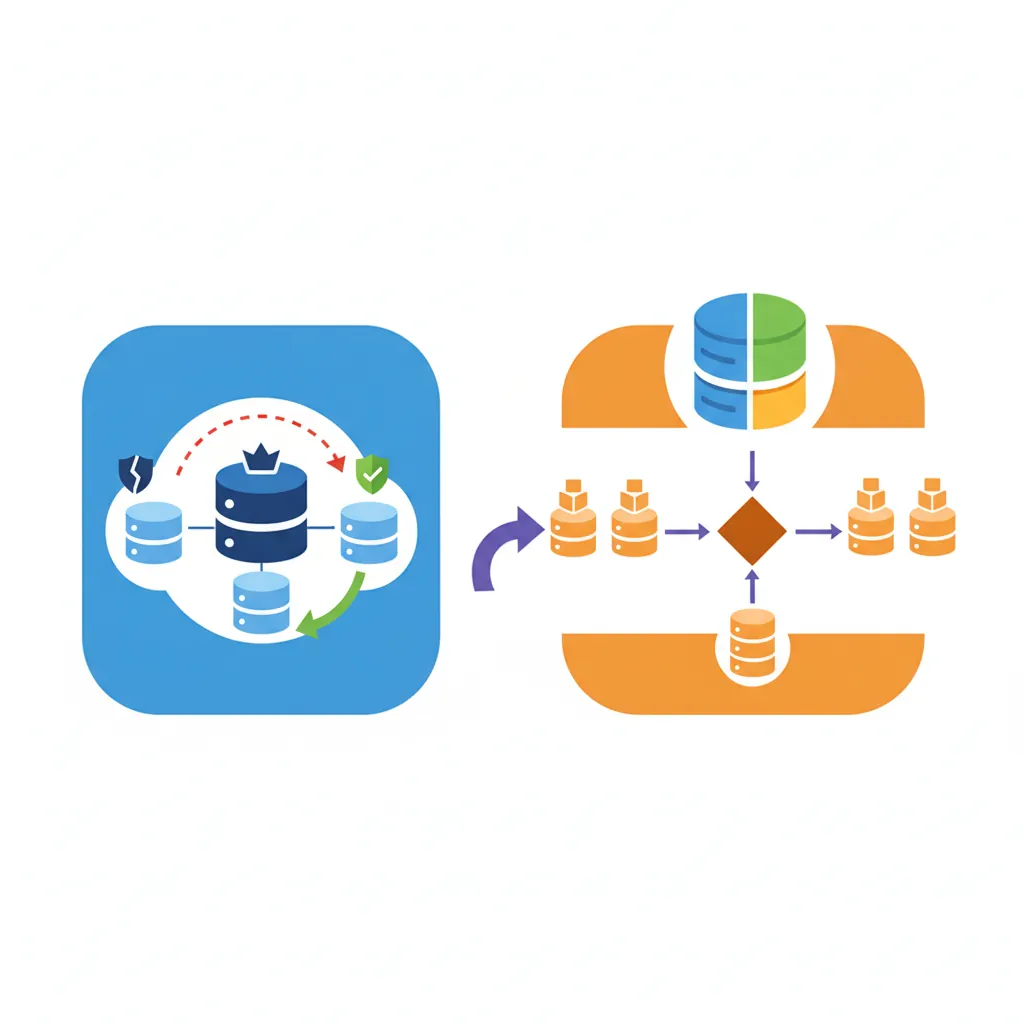

Scaling MongoDB: Replica Sets & Sharding

MongoDB is designed for horizontal scaling. As data grows, add more servers instead of upgrading hardware.

Replica Sets: High Availability

A replica set is a group of MongoDB servers that maintain the same dataset. If the primary fails, an automatic election promotes a secondary to primary—no downtime.

// Replica set configuration (3-node cluster)
rs.initiate({
  _id: "myReplicaSet",
  members: [
    { _id: 0, host: "mongo1.example.com:27017", priority: 2 },  // Primary
    { _id: 1, host: "mongo2.example.com:27017", priority: 1 },  // Secondary
    { _id: 2, host: "mongo3.example.com:27017", arbiterOnly: true }  // Arbiter (voting only)
  ]
});

// Connection string with replica set
mongodb://mongo1.example.com,mongo2.example.com,mongo3.example.com/mydb?replicaSet=myReplicaSet

// Read preference: where to read data
db.users.find().readPref("primaryPreferred");  // Primary first, secondaries if unavailable
db.analytics.find().readPref("secondary");     // Always read from secondaries (reduce primary load)

Sharding: Horizontal Partitioning

Sharding distributes data across multiple servers (shards). Each shard holds a subset of data, allowing storage and throughput beyond a single server's limits.

# Enable sharding on database
sh.enableSharding("ecommerce")

# Shard a collection by userId (shard key)
sh.shardCollection("ecommerce.orders", { userId: 1 })

# MongoDB automatically routes queries to correct shards
# db.orders.find({ userId: "user123" })  -> Single shard (efficient)
# db.orders.find({ orderDate: {...} })   -> All shards (scatter-gather, slower)

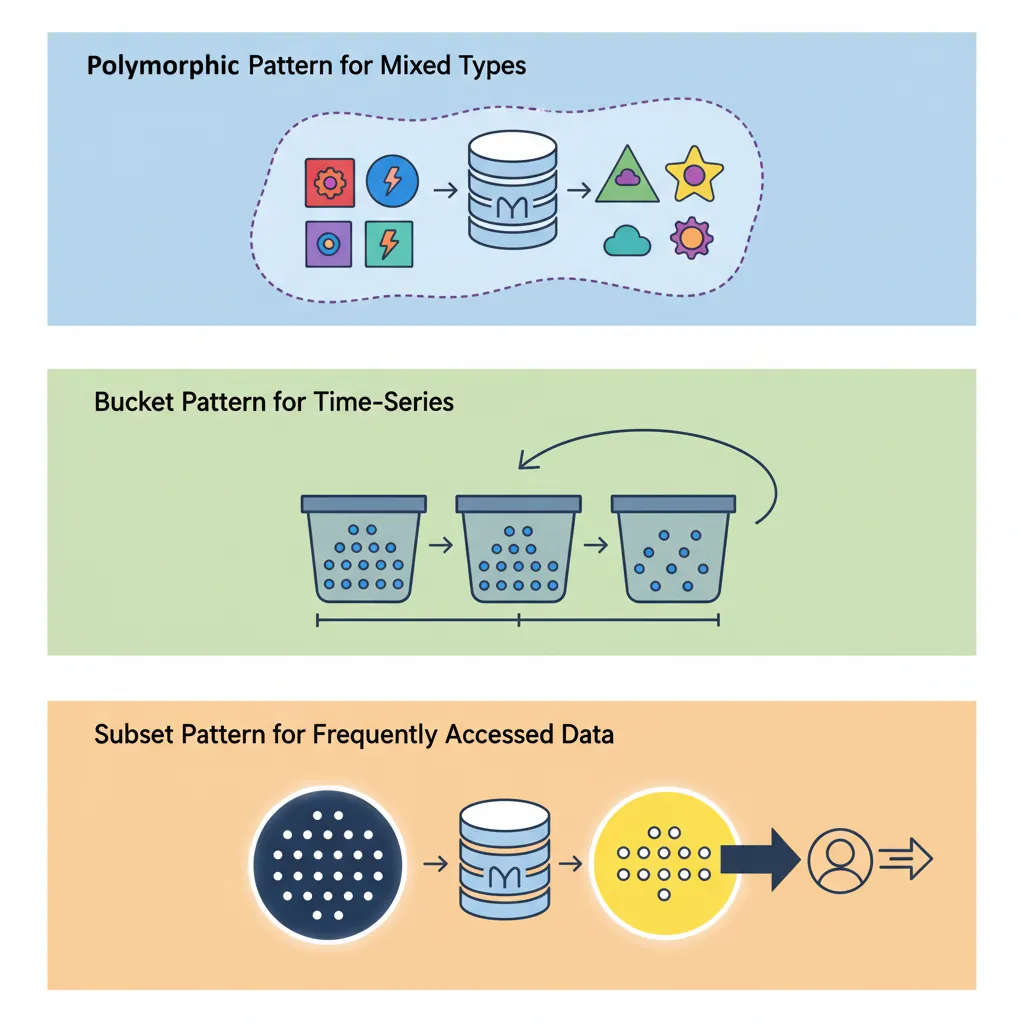

Schema Design Patterns

Schema design in MongoDB is about optimizing for your access patterns, not normalization. Here are proven patterns for common scenarios.

1. Polymorphic Pattern

Store documents with different structures in the same collection, distinguished by a type field.

// Products collection with different product types
{
  "_id": ObjectId("..."),
  "type": "book",
  "title": "Database Design",
  "author": "C.J. Date",
  "isbn": "978-0321884497",
  "pages": 865
}

{
  "_id": ObjectId("..."),
  "type": "electronics",
  "name": "Wireless Mouse",
  "brand": "Logitech",
  "warranty": "2 years",
  "batteryType": "AA"
}

// Query by type
db.products.find({ type: "book" })

2. Bucket Pattern

Group time-series data into buckets to reduce document count and improve performance.

// Instead of one document per sensor reading (millions of documents)
// Group readings into hourly buckets

{
  "_id": ObjectId("..."),
  "sensorId": "sensor-42",
  "date": ISODate("2026-01-30T14:00:00Z"),
  "readings": [
    { "timestamp": ISODate("2026-01-30T14:00:05Z"), "temp": 22.5, "humidity": 45 },
    { "timestamp": ISODate("2026-01-30T14:01:05Z"), "temp": 22.7, "humidity": 46 },
    // ... 3600 readings in one hour
  ],
  "avgTemp": 23.1,
  "maxTemp": 24.5,
  "minTemp": 21.8
}

3. Subset Pattern

Store frequently accessed data in the main document, reference full dataset elsewhere.

// Movie document with subset of reviews (most recent 10)
{
  "_id": ObjectId("..."),
  "title": "The Shawshank Redemption",
  "year": 1994,
  "recentReviews": [
    { "user": "alice", "rating": 5, "comment": "Masterpiece!", "date": "2026-01-25" },
    // ... 9 more recent reviews embedded
  ],
  "totalReviews": 452000,     // Count
  "avgRating": 4.8,
  "reviewsRef": "reviews-collection"  // Full reviews in separate collection
}

4. Extended Reference Pattern

Embed frequently accessed fields from referenced documents to avoid lookups.

// Order document with extended product references
{
  "_id": ObjectId("..."),
  "orderId": "ORD-12345",
  "items": [
    {
      "productId": ObjectId("..."),
      // Embedded product fields to avoid lookup
      "name": "Wireless Mouse",
      "price": 29.99,
      "image": "mouse-thumbnail.jpg"
      // Full product details in products collection if needed
    }
  ]
}

When MongoDB Wins (and When It Doesn't)

Real-World Success Stories

• eBay: Manages 250+ billion records across hundreds of MongoDB clusters for search, catalog, and user data
• Uber: Stores trip data, driver locations, and real-time analytics in MongoDB for millisecond query latency
• Adobe: Powers Adobe Experience Manager with MongoDB, handling billions of content assets
• Bosch: IoT sensor data from 8 billion devices processed through MongoDB
