Robotics & Automation Series Part 18: Complete Robotics System Project

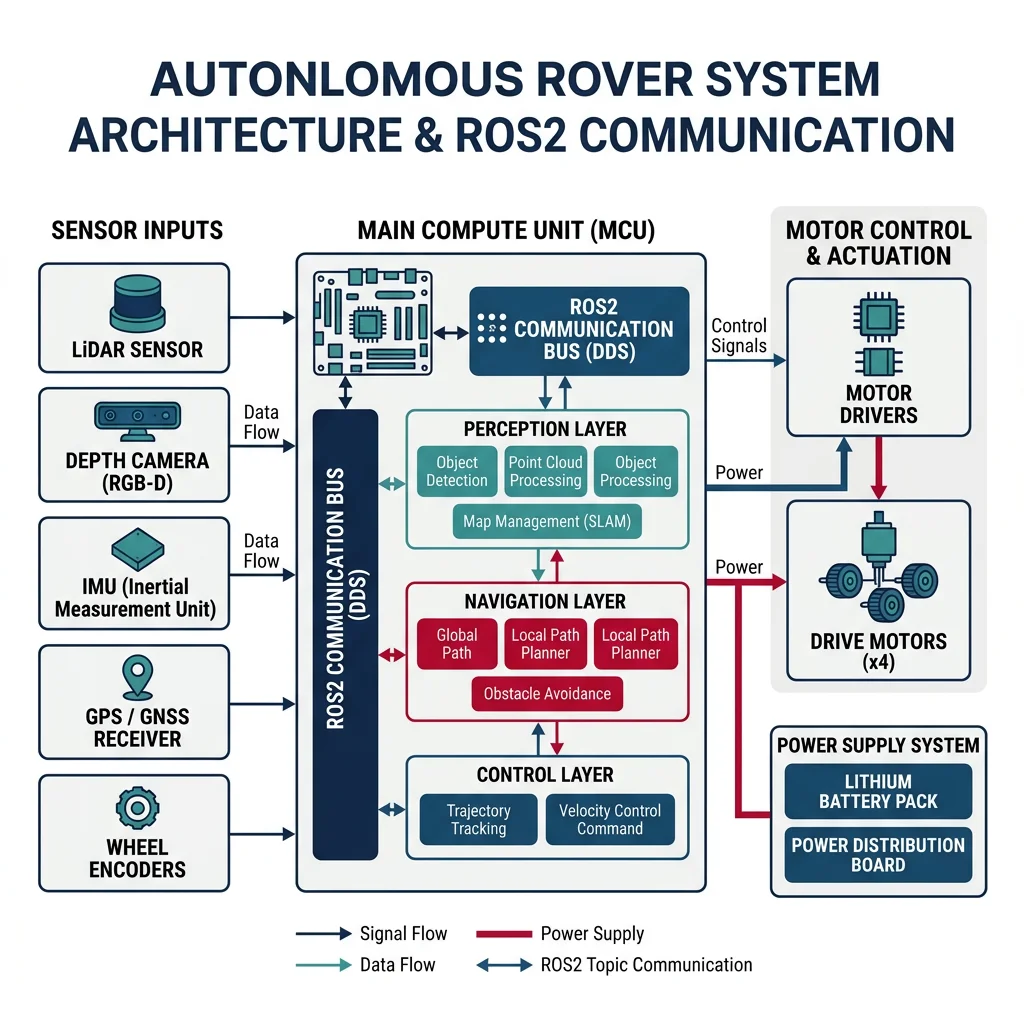

Autonomous Rover

The autonomous rover is the "Hello World" of mobile robotics — it integrates sensors, perception, control, and path planning into one cohesive system. Think of building a rover like building a miniature self-driving car: it needs to sense its environment, understand where it is, decide where to go, and physically move there — all autonomously.

Every rover project starts with a solid Bill of Materials (BOM). Here's a practical, budget-friendly parts list for a capable research/learning rover:

Total estimated BOM: ~$390 — a capable research rover at a fraction of commercial alternatives ($2,000-5,000).

Firmware & Motor Control

The firmware layer bridges the high-level ROS2 commands with the physical motors. The Arduino handles real-time motor control via PWM signals, reads wheel encoders for odometry, and communicates with the Raspberry Pi over serial (UART). Think of it as the spinal cord of the rover — handling reflexive motor actions while the "brain" (Pi) handles higher-level thinking.

// Rover Motor Control Firmware — Arduino
// Handles differential drive, encoder reading, and serial command parsing
// Independent, upload-ready sketch

// Motor pins (L298N driver)
#define LEFT_EN   5    // PWM
#define LEFT_IN1  6
#define LEFT_IN2  7
#define RIGHT_EN  10   // PWM
#define RIGHT_IN1 8
#define RIGHT_IN2 9

// Encoder pins (interrupt-capable)
#define LEFT_ENC_A  2
#define LEFT_ENC_B  4
#define RIGHT_ENC_A 3
#define RIGHT_ENC_B 11

// Encoder state
volatile long leftCount = 0, rightCount = 0;
const int TICKS_PER_REV = 360;      // Encoder CPR
const float WHEEL_DIAMETER = 0.065;  // meters
const float WHEEL_BASE = 0.20;       // meters (axle-to-axle)

void leftEncoderISR() {
    leftCount += (digitalRead(LEFT_ENC_B) == HIGH) ? 1 : -1;
}
void rightEncoderISR() {
    rightCount += (digitalRead(RIGHT_ENC_B) == HIGH) ? 1 : -1;
}

void setMotor(int enPin, int in1, int in2, int speed) {
    // speed: -255 to 255
    if (speed >= 0) {
        digitalWrite(in1, HIGH);
        digitalWrite(in2, LOW);
        analogWrite(enPin, min(speed, 255));
    } else {
        digitalWrite(in1, LOW);
        digitalWrite(in2, HIGH);
        analogWrite(enPin, min(-speed, 255));
    }
}

void setup() {
    Serial.begin(115200);

    // Motor pins
    pinMode(LEFT_EN, OUTPUT); pinMode(LEFT_IN1, OUTPUT); pinMode(LEFT_IN2, OUTPUT);
    pinMode(RIGHT_EN, OUTPUT); pinMode(RIGHT_IN1, OUTPUT); pinMode(RIGHT_IN2, OUTPUT);

    // Encoder pins
    pinMode(LEFT_ENC_A, INPUT_PULLUP); pinMode(LEFT_ENC_B, INPUT_PULLUP);
    pinMode(RIGHT_ENC_A, INPUT_PULLUP); pinMode(RIGHT_ENC_B, INPUT_PULLUP);

    attachInterrupt(digitalPinToInterrupt(LEFT_ENC_A), leftEncoderISR, RISING);
    attachInterrupt(digitalPinToInterrupt(RIGHT_ENC_A), rightEncoderISR, RISING);

    Serial.println("Rover firmware ready");
}

void loop() {
    // Read serial commands: "M left_speed right_speed\n"
    if (Serial.available()) {
        String cmd = Serial.readStringUntil('\n');
        if (cmd.startsWith("M")) {
            int leftSpeed = cmd.substring(2, cmd.indexOf(' ', 2)).toInt();
            int rightSpeed = cmd.substring(cmd.indexOf(' ', 2) + 1).toInt();
            setMotor(LEFT_EN, LEFT_IN1, LEFT_IN2, leftSpeed);
            setMotor(RIGHT_EN, RIGHT_IN1, RIGHT_IN2, rightSpeed);
        } else if (cmd == "S") {  // Stop
            setMotor(LEFT_EN, LEFT_IN1, LEFT_IN2, 0);
            setMotor(RIGHT_EN, RIGHT_IN1, RIGHT_IN2, 0);
        }
    }

    // Publish encoder counts every 50ms
    static unsigned long lastPub = 0;
    if (millis() - lastPub >= 50) {
        Serial.print("E ");
        Serial.print(leftCount);
        Serial.print(" ");
        Serial.println(rightCount);
        lastPub = millis();
    }
}

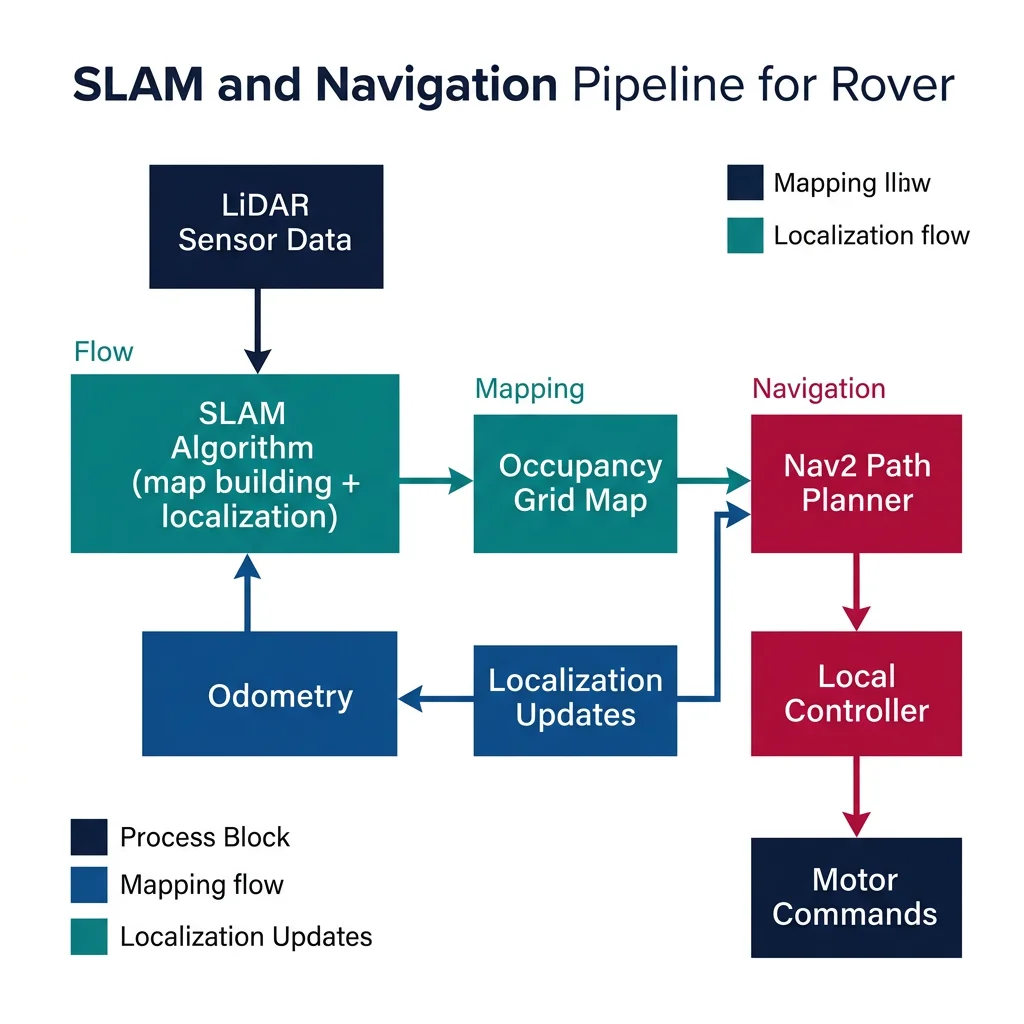

SLAM & Navigation

SLAM (Simultaneous Localization and Mapping) is where the rover becomes truly autonomous. Using the RPLiDAR sensor, the rover builds a map of its environment while simultaneously tracking its own position within that map. We use the slam_toolbox package in ROS2, which implements a graph-based SLAM algorithm well-suited for indoor environments.

#!/usr/bin/env python3
"""
ROS2 Rover Navigation Node — Autonomous Goal-Seeking
Combines odometry, LiDAR SLAM, and Nav2 for point-to-point navigation.
Independent ROS2 node — run with: ros2 run rover_nav goal_navigator
"""
import rclpy
from rclpy.node import Node
from geometry_msgs.msg import PoseStamped, Twist
from nav_msgs.msg import Odometry, OccupancyGrid
from sensor_msgs.msg import LaserScan
import numpy as np
import math

class RoverNavigator(Node):
    def __init__(self):
        super().__init__('rover_navigator')

        # Publishers
        self.cmd_pub = self.create_publisher(Twist, '/cmd_vel', 10)
        self.goal_pub = self.create_publisher(PoseStamped, '/goal_pose', 10)

        # Subscribers
        self.create_subscription(Odometry, '/odom', self.odom_callback, 10)
        self.create_subscription(LaserScan, '/scan', self.scan_callback, 10)
        self.create_subscription(OccupancyGrid, '/map', self.map_callback, 10)

        # State
        self.position = {'x': 0.0, 'y': 0.0, 'theta': 0.0}
        self.goal = None
        self.obstacle_detected = False
        self.map_received = False

        # Parameters
        self.declare_parameter('goal_tolerance', 0.15)         # meters
        self.declare_parameter('obstacle_threshold', 0.35)     # meters
        self.declare_parameter('linear_speed', 0.2)            # m/s
        self.declare_parameter('angular_speed', 0.8)           # rad/s

        # Navigation timer (10 Hz control loop)
        self.create_timer(0.1, self.navigate)

        self.get_logger().info('Rover Navigator initialized — waiting for goal...')

    def odom_callback(self, msg):
        self.position['x'] = msg.pose.pose.position.x
        self.position['y'] = msg.pose.pose.position.y
        # Extract yaw from quaternion
        q = msg.pose.pose.orientation
        siny = 2.0 * (q.w * q.z + q.x * q.y)
        cosy = 1.0 - 2.0 * (q.y * q.y + q.z * q.z)
        self.position['theta'] = math.atan2(siny, cosy)

    def scan_callback(self, msg):
        # Check front 60° arc for obstacles
        ranges = np.array(msg.ranges)
        n = len(ranges)
        front_start = n * 330 // 360  # -30 degrees
        front_end = n * 30 // 360     # +30 degrees
        front_ranges = np.concatenate([ranges[front_start:], ranges[:front_end]])
        valid = front_ranges[np.isfinite(front_ranges)]
        threshold = self.get_parameter('obstacle_threshold').value
        self.obstacle_detected = len(valid) > 0 and np.min(valid) < threshold

    def map_callback(self, msg):
        if not self.map_received:
            self.get_logger().info(
                f'Map received: {msg.info.width}x{msg.info.height} '
                f'at {msg.info.resolution:.3f} m/pixel'
            )
            self.map_received = True

    def send_goal(self, x, y, theta=0.0):
        """Send a navigation goal to Nav2."""
        goal_msg = PoseStamped()
        goal_msg.header.frame_id = 'map'
        goal_msg.header.stamp = self.get_clock().now().to_msg()
        goal_msg.pose.position.x = x
        goal_msg.pose.position.y = y
        goal_msg.pose.orientation.z = math.sin(theta / 2)
        goal_msg.pose.orientation.w = math.cos(theta / 2)
        self.goal = {'x': x, 'y': y}
        self.goal_pub.publish(goal_msg)
        self.get_logger().info(f'Goal sent: ({x:.2f}, {y:.2f})')

    def navigate(self):
        """Simple reactive navigation (fallback when Nav2 is not running)."""
        if self.goal is None:
            return

        cmd = Twist()
        dx = self.goal['x'] - self.position['x']
        dy = self.goal['y'] - self.position['y']
        distance = math.sqrt(dx**2 + dy**2)
        goal_angle = math.atan2(dy, dx)
        angle_error = goal_angle - self.position['theta']
        # Normalize to [-pi, pi]
        angle_error = math.atan2(math.sin(angle_error), math.cos(angle_error))

        tolerance = self.get_parameter('goal_tolerance').value

        if distance < tolerance:
            self.get_logger().info('Goal reached!')
            self.goal = None
            cmd.linear.x = 0.0
            cmd.angular.z = 0.0
        elif self.obstacle_detected:
            # Reactive obstacle avoidance — turn away
            cmd.linear.x = 0.0
            cmd.angular.z = self.get_parameter('angular_speed').value
        elif abs(angle_error) > 0.3:
            # Rotate toward goal
            cmd.linear.x = 0.0
            cmd.angular.z = self.get_parameter('angular_speed').value * np.sign(angle_error)
        else:
            # Drive toward goal
            cmd.linear.x = self.get_parameter('linear_speed').value
            cmd.angular.z = 0.5 * angle_error  # Proportional steering

        self.cmd_pub.publish(cmd)

def main(args=None):
    rclpy.init(args=args)
    node = RoverNavigator()
    # Example: send goal after 5 seconds
    node.create_timer(5.0, lambda: node.send_goal(2.0, 1.5), callback_group=None)
    rclpy.spin(node)
    node.destroy_node()
    rclpy.shutdown()

if __name__ == '__main__':
    main()

# Terminal 1: Launch robot hardware drivers
ros2 launch rover_bringup rover_hardware.launch.py

# Terminal 2: Start LiDAR
ros2 launch rplidar_ros rplidar_a1_launch.py

# Terminal 3: Launch SLAM
ros2 launch slam_toolbox online_async_launch.py \
    params_file:=config/slam_params.yaml

# Terminal 4: Launch Nav2 navigation stack
ros2 launch nav2_bringup navigation_launch.py \
    params_file:=config/nav2_params.yaml

# Terminal 5: Launch RViz for visualization
ros2 launch rover_bringup rviz_launch.py

# Terminal 6: Send navigation goal
ros2 run rover_nav goal_navigator

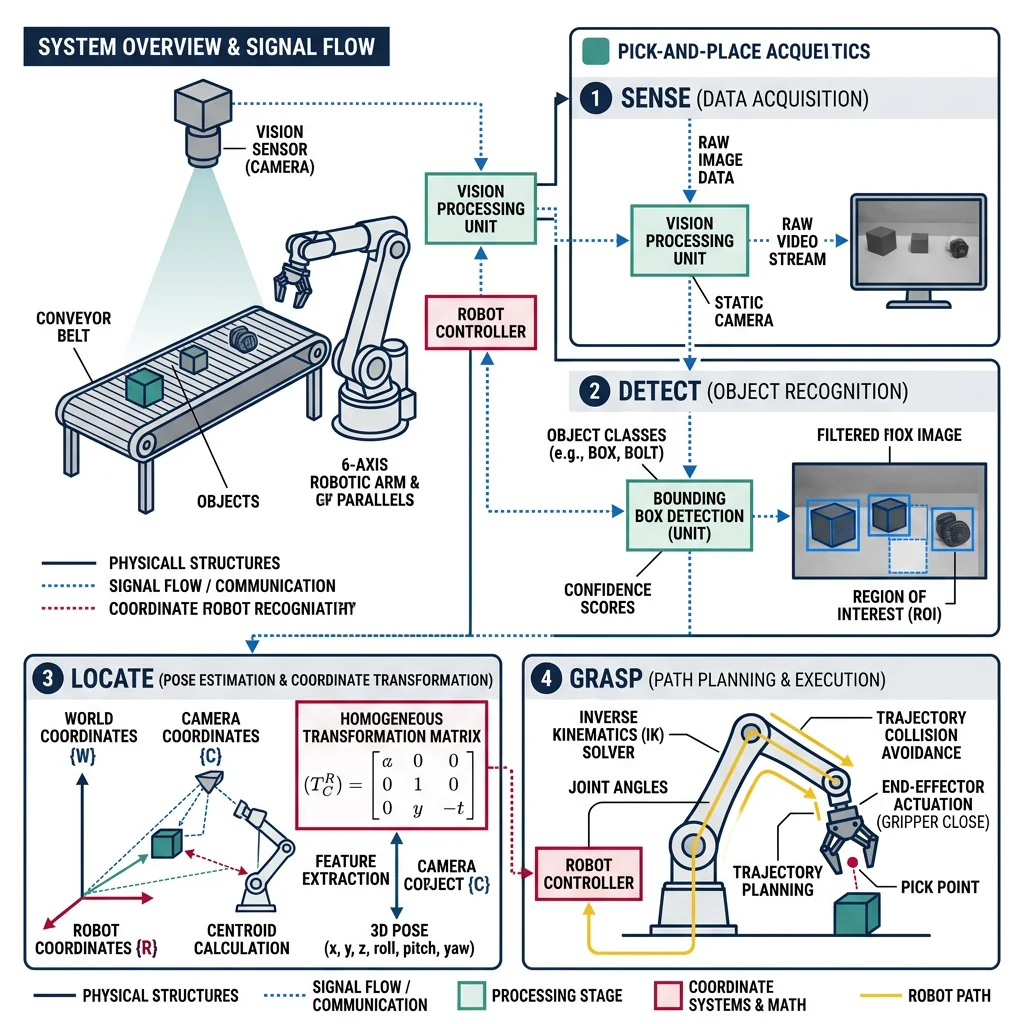

Pick-and-Place Arm

The pick-and-place arm project integrates kinematics, control, computer vision, and motion planning into a practical industrial automation system. Think of it as building a robotic chef's hand that can see an ingredient, calculate how to reach it, grasp it precisely, and place it exactly where needed — all while avoiding collisions with its environment.

Gripper & Vision Pipeline

The vision pipeline transforms raw camera data into actionable grasp commands. It follows a Sense → Detect → Locate → Grasp pipeline: the RGB-D camera captures the scene, a detection model identifies objects, depth data provides 3D coordinates, and the inverse kinematics solver generates joint angles for the grasp pose.

#!/usr/bin/env python3
"""
Object Detection & Grasp Pose Estimation Node
Uses RGB-D camera to detect objects and compute 6-DOF grasp poses.
Independent ROS2 node for the pick-and-place pipeline.
"""
import numpy as np
import cv2

class GraspPoseEstimator:
    """Estimates grasp poses from RGB-D data using geometric analysis."""

    def __init__(self, camera_matrix, gripper_width=0.08):
        self.K = camera_matrix        # 3x3 intrinsic matrix
        self.gripper_width = gripper_width  # meters
        self.min_depth = 0.15         # meters (minimum valid depth)
        self.max_depth = 1.0          # meters (workspace limit)

    def detect_objects(self, rgb_image, depth_image):
        """Detect graspable objects using color segmentation + contours."""
        hsv = cv2.cvtColor(rgb_image, cv2.COLOR_BGR2HSV)

        # Detect colored objects (adjustable for target objects)
        lower = np.array([0, 80, 80])
        upper = np.array([180, 255, 255])
        mask = cv2.inRange(hsv, lower, upper)

        # Clean up mask
        kernel = cv2.getStructuringElement(cv2.MORPH_ELLIPSE, (5, 5))
        mask = cv2.morphologyEx(mask, cv2.MORPH_CLOSE, kernel)
        mask = cv2.morphologyEx(mask, cv2.MORPH_OPEN, kernel)

        contours, _ = cv2.findContours(mask, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)

        objects = []
        for cnt in contours:
            area = cv2.contourArea(cnt)
            if area < 500 or area > 50000:  # Filter by size
                continue

            # Bounding box and center
            x, y, w, h = cv2.boundingRect(cnt)
            cx, cy = x + w // 2, y + h // 2

            # Get depth at center (median of region for robustness)
            depth_roi = depth_image[max(0,cy-5):cy+5, max(0,cx-5):cx+5]
            valid_depths = depth_roi[depth_roi > 0] / 1000.0  # mm to meters

            if len(valid_depths) == 0:
                continue
            depth = np.median(valid_depths)

            if self.min_depth < depth < self.max_depth:
                # Back-project to 3D camera frame
                fx, fy = self.K[0, 0], self.K[1, 1]
                px, py = self.K[0, 2], self.K[1, 2]
                X = (cx - px) * depth / fx
                Y = (cy - py) * depth / fy
                Z = depth

                objects.append({
                    'center_2d': (cx, cy),
                    'position_3d': np.array([X, Y, Z]),
                    'bbox': (x, y, w, h),
                    'area': area,
                    'depth': depth
                })

        # Sort by size (largest first for priority grasping)
        objects.sort(key=lambda o: o['area'], reverse=True)
        return objects

    def compute_grasp_pose(self, obj, approach_offset=0.10):
        """Compute 6-DOF grasp pose (position + orientation) for top-down grasp."""
        pos = obj['position_3d'].copy()

        # Approach from above: grasp position slightly above object
        grasp_position = pos.copy()
        grasp_position[2] -= 0.02  # Lower to grasp surface

        # Pre-grasp position (approach vector)
        pre_grasp = pos.copy()
        pre_grasp[2] -= approach_offset  # Offset above

        # Top-down orientation (Z-axis pointing down)
        # Rotation matrix: gripper Z down, X along gripper fingers
        grasp_orientation = np.array([
            [1,  0,  0],
            [0, -1,  0],
            [0,  0, -1]
        ])

        return {
            'pre_grasp': pre_grasp,
            'grasp': grasp_position,
            'orientation': grasp_orientation,
            'gripper_width': min(self.gripper_width, obj['bbox'][2] * obj['depth'] / self.K[0,0] + 0.01)
        }

# Example usage (independent, executable)
if __name__ == '__main__':
    # Simulated camera intrinsics (Intel RealSense D435i typical values)
    K = np.array([
        [615.0,   0.0, 320.0],
        [  0.0, 615.0, 240.0],
        [  0.0,   0.0,   1.0]
    ])

    estimator = GraspPoseEstimator(K, gripper_width=0.08)

    # Create synthetic test data
    rgb = np.zeros((480, 640, 3), dtype=np.uint8)
    cv2.rectangle(rgb, (280, 200), (360, 280), (0, 120, 255), -1)  # Orange object

    depth = np.zeros((480, 640), dtype=np.uint16)
    depth[200:280, 280:360] = 450  # 450mm depth

    objects = estimator.detect_objects(rgb, depth)
    print(f"Detected {len(objects)} object(s)")

    for i, obj in enumerate(objects):
        pose = estimator.compute_grasp_pose(obj)
        print(f"\nObject {i+1}:")
        print(f"  3D position: [{obj['position_3d'][0]:.3f}, {obj['position_3d'][1]:.3f}, {obj['position_3d'][2]:.3f}] m")
        print(f"  Grasp point:  [{pose['grasp'][0]:.3f}, {pose['grasp'][1]:.3f}, {pose['grasp'][2]:.3f}] m")
        print(f"  Gripper width: {pose['gripper_width']*1000:.1f} mm")

MoveIt Integration

MoveIt2 is the motion planning framework that turns a grasp pose into a collision-free joint trajectory. It handles inverse kinematics, obstacle avoidance, trajectory smoothing, and execution — the "brains" behind every smooth arm movement.

#!/usr/bin/env python3
"""
MoveIt2 Pick-and-Place Controller
Executes pick-and-place sequences using MoveIt2 motion planning.
Requires: moveit2, ros2_control running with robot URDF loaded.
"""
import rclpy
from rclpy.node import Node
import numpy as np

class PickPlaceController:
    """High-level pick-and-place controller using MoveIt2 concepts."""

    def __init__(self, arm_group='arm', gripper_group='gripper'):
        self.arm_group = arm_group
        self.gripper_group = gripper_group
        self.home_joints = [0.0, -1.57, 1.57, 0.0, 1.57, 0.0]  # 6-DOF home
        self.place_joints = [1.57, -1.0, 1.2, 0.0, 1.57, 0.0]  # Place position

    def plan_cartesian_path(self, waypoints, eef_step=0.005, max_velocity_scaling=0.3):
        """
        Plan a Cartesian path through waypoints.
        In real MoveIt2: move_group.compute_cartesian_path(waypoints, eef_step)
        Here we show the planning concept with IK at each waypoint.
        """
        trajectory = []
        for i, wp in enumerate(waypoints):
            # Each waypoint is [x, y, z, roll, pitch, yaw]
            joint_solution = self._inverse_kinematics(wp)
            if joint_solution is not None:
                trajectory.append({
                    'waypoint': i,
                    'pose': wp,
                    'joints': joint_solution,
                    'velocity_scaling': max_velocity_scaling
                })
            else:
                print(f"  IK failed for waypoint {i}: {wp}")
                return None

        print(f"  Cartesian path planned: {len(trajectory)} waypoints")
        return trajectory

    def _inverse_kinematics(self, target_pose):
        """
        Simplified 6-DOF IK solver (analytical for demonstration).
        Real MoveIt2 uses KDL, TRAC-IK, or BioIK solvers.
        """
        x, y, z = target_pose[:3]

        # Simplified: check reachability
        reach = np.sqrt(x**2 + y**2 + z**2)
        if reach > 0.8 or reach < 0.1:  # Workspace limits
            return None

        # Analytical IK (simplified 6-DOF)
        q1 = np.arctan2(y, x)
        r = np.sqrt(x**2 + y**2)
        L1, L2 = 0.3, 0.3  # Link lengths

        d = np.clip((r**2 + z**2 - L1**2 - L2**2) / (2 * L1 * L2), -1, 1)
        q3 = np.arccos(d)
        q2 = np.arctan2(z, r) - np.arctan2(L2 * np.sin(q3), L1 + L2 * np.cos(q3))

        return [q1, q2, q3, 0.0, -(q2 + q3), 0.0]  # Wrist orientation

    def execute_pick_and_place(self, grasp_pose, place_pose):
        """Execute a complete pick-and-place cycle."""
        print("\n" + "=" * 50)
        print("PICK-AND-PLACE EXECUTION")
        print("=" * 50)

        # Step 1: Move to home position
        print("\n1. Moving to HOME position...")
        print(f"   Joints: {[f'{j:.2f}' for j in self.home_joints]}")

        # Step 2: Open gripper
        print("2. Opening GRIPPER...")

        # Step 3: Move to pre-grasp position
        pre_grasp = grasp_pose.copy()
        pre_grasp[2] += 0.10  # 10cm above grasp
        print(f"3. Moving to PRE-GRASP: [{pre_grasp[0]:.3f}, {pre_grasp[1]:.3f}, {pre_grasp[2]:.3f}]")
        approach_path = self.plan_cartesian_path([pre_grasp])

        # Step 4: Approach (Cartesian descent)
        print(f"4. APPROACHING grasp point: [{grasp_pose[0]:.3f}, {grasp_pose[1]:.3f}, {grasp_pose[2]:.3f}]")
        grasp_path = self.plan_cartesian_path([pre_grasp, grasp_pose], max_velocity_scaling=0.1)

        # Step 5: Close gripper
        print("5. Closing GRIPPER — object grasped!")

        # Step 6: Retreat (lift up)
        print(f"6. RETREATING to pre-grasp height...")
        retreat_path = self.plan_cartesian_path([grasp_pose, pre_grasp], max_velocity_scaling=0.15)

        # Step 7: Move to place position
        pre_place = place_pose.copy()
        pre_place[2] += 0.10
        print(f"7. Moving to PLACE position: [{place_pose[0]:.3f}, {place_pose[1]:.3f}, {place_pose[2]:.3f}]")
        place_path = self.plan_cartesian_path([pre_place, place_pose], max_velocity_scaling=0.2)

        # Step 8: Open gripper to release
        print("8. Opening GRIPPER — object placed!")

        # Step 9: Retreat and return home
        print("9. Returning to HOME position...")
        print("\n✅ Pick-and-place cycle COMPLETE")

        return True

# Example execution
if __name__ == '__main__':
    controller = PickPlaceController()

    # Grasp an object at [0.35, 0.1, 0.05] (x, y, z in base frame)
    grasp = [0.35, 0.10, 0.05, 0.0, 3.14, 0.0]   # Top-down grasp
    place = [0.10, 0.35, 0.08, 0.0, 3.14, 0.0]    # Bin location

    controller.execute_pick_and_place(grasp, place)

Delivery Robot

The delivery robot project extends mobile robotics into real-world outdoor operation — navigating sidewalks, crossing intersections, handling weather, and managing a fleet of multiple robots. Think of it as building a robotic mail carrier that must reliably traverse miles of mixed terrain, avoid pedestrians, and deliver packages to the right doorstep.

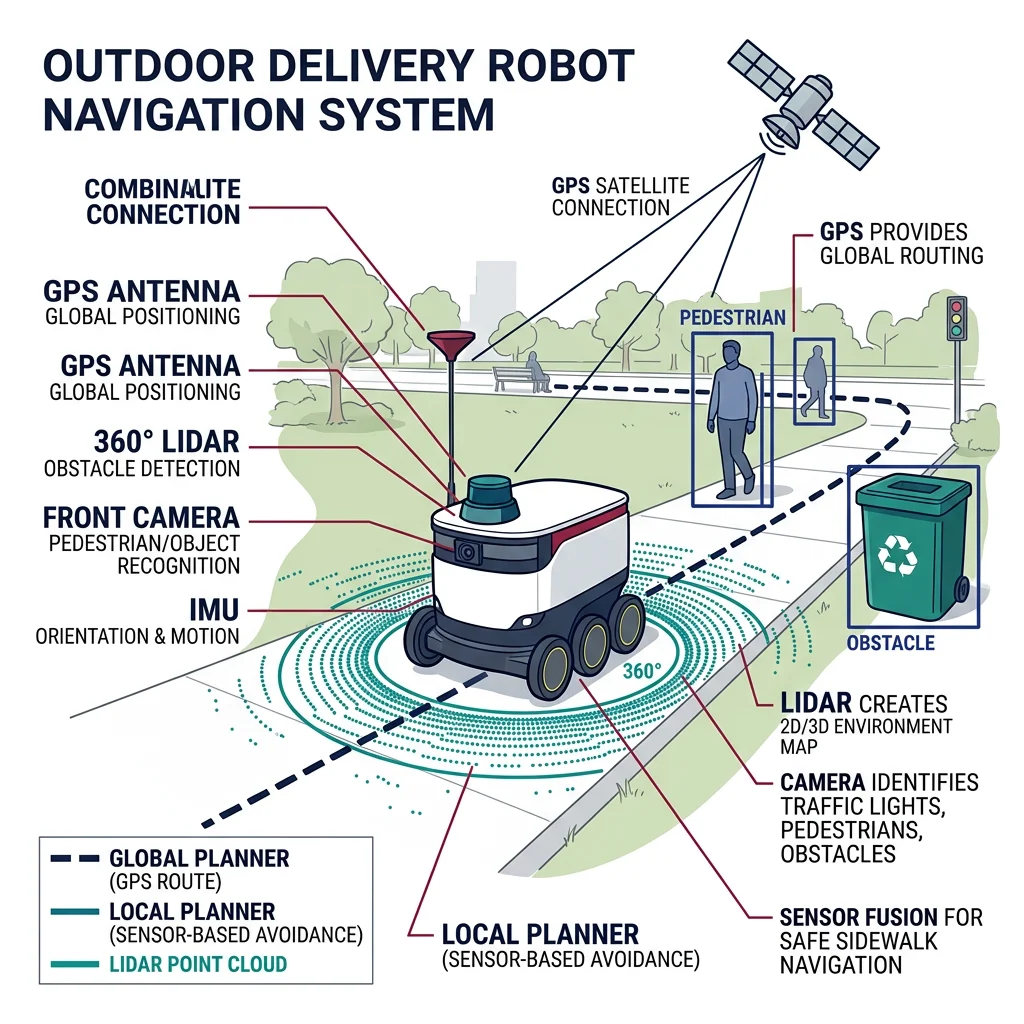

Outdoor Navigation & GPS

Outdoor navigation combines GPS for global positioning with local perception for obstacle avoidance. Pure GPS is accurate to 2-5 meters (or 1-2cm with RTK corrections), which is insufficient for sidewalk navigation. The solution is sensor fusion: GPS provides the global route, while LiDAR/camera handle local path planning around obstacles.

#!/usr/bin/env python3
"""
GPS + Local Sensor Fusion for Outdoor Navigation
Combines RTK-GPS with LiDAR odometry for precise outdoor localization.
Independent, self-contained demonstration.
"""
import numpy as np

class OutdoorLocalizer:
    """Fuses GPS and LiDAR odometry using Extended Kalman Filter."""

    def __init__(self):
        # State: [x, y, theta, v] in local ENU frame
        self.state = np.zeros(4)
        self.P = np.diag([1.0, 1.0, 0.1, 0.5])  # Initial covariance

        # Process noise
        self.Q = np.diag([0.05, 0.05, 0.01, 0.1])

        # GPS measurement noise (RTK-corrected)
        self.R_gps = np.diag([0.02, 0.02])  # 2cm RTK accuracy

        # Odometry measurement noise
        self.R_odom = np.diag([0.01, 0.01, 0.005])  # Relative motion

        # Reference GPS origin (first fix)
        self.gps_origin = None

    def gps_to_local(self, lat, lon):
        """Convert GPS lat/lon to local ENU coordinates (meters)."""
        if self.gps_origin is None:
            self.gps_origin = (lat, lon)
            return 0.0, 0.0

        dlat = lat - self.gps_origin[0]
        dlon = lon - self.gps_origin[1]

        # Approximate conversion (valid for small areas)
        east = dlon * 111320 * np.cos(np.radians(lat))
        north = dlat * 110540
        return east, north

    def predict(self, dt):
        """Predict state forward using constant-velocity model."""
        x, y, theta, v = self.state

        # State transition
        self.state[0] += v * np.cos(theta) * dt
        self.state[1] += v * np.sin(theta) * dt

        # Jacobian of state transition
        F = np.eye(4)
        F[0, 2] = -v * np.sin(theta) * dt
        F[0, 3] = np.cos(theta) * dt
        F[1, 2] = v * np.cos(theta) * dt
        F[1, 3] = np.sin(theta) * dt

        self.P = F @ self.P @ F.T + self.Q

    def update_gps(self, lat, lon):
        """Update state with GPS measurement."""
        east, north = self.gps_to_local(lat, lon)
        z = np.array([east, north])

        # Measurement model: H maps state [x, y, theta, v] to [x, y]
        H = np.array([[1, 0, 0, 0], [0, 1, 0, 0]])

        # Innovation
        y = z - H @ self.state
        S = H @ self.P @ H.T + self.R_gps
        K = self.P @ H.T @ np.linalg.inv(S)

        self.state += K @ y
        self.P = (np.eye(4) - K @ H) @ self.P

        return {'east': east, 'north': north, 'innovation': np.linalg.norm(y)}

    def update_odometry(self, dx, dy, dtheta):
        """Update state with wheel/LiDAR odometry."""
        z = np.array([self.state[0] + dx, self.state[1] + dy, self.state[2] + dtheta])

        H = np.array([[1, 0, 0, 0], [0, 1, 0, 0], [0, 0, 1, 0]])

        y = z - H @ self.state
        y[2] = np.arctan2(np.sin(y[2]), np.cos(y[2]))  # Normalize angle
        S = H @ self.P @ H.T + self.R_odom
        K = self.P @ H.T @ np.linalg.inv(S)

        self.state += K @ y
        self.P = (np.eye(4) - K @ H) @ self.P

# Simulation: delivery route along sidewalk
localizer = OutdoorLocalizer()
np.random.seed(42)

# Simulated GPS waypoints (delivery route)
route_lat = np.linspace(37.7749, 37.7760, 20)  # ~120 meters north
route_lon = np.linspace(-122.4194, -122.4185, 20)  # ~80 meters east

print("=" * 60)
print("OUTDOOR DELIVERY ROBOT — GPS + ODOMETRY FUSION")
print("=" * 60)

for i in range(len(route_lat)):
    # Predict forward
    localizer.predict(dt=0.5)
    localizer.state[3] = 1.2  # 1.2 m/s walking speed

    # Simulate noisy GPS update
    gps_lat = route_lat[i] + np.random.normal(0, 0.000002)  # ~0.2m noise
    gps_lon = route_lon[i] + np.random.normal(0, 0.000002)
    result = localizer.update_gps(gps_lat, gps_lon)

    # Simulate odometry update
    localizer.update_odometry(
        dx=np.random.normal(0.3, 0.01),
        dy=np.random.normal(0.2, 0.01),
        dtheta=np.random.normal(0.0, 0.005)
    )

    if i % 5 == 0:
        print(f"\nWaypoint {i+1}/{len(route_lat)}:")
        print(f"  Position: ({localizer.state[0]:.2f}, {localizer.state[1]:.2f}) m")
        print(f"  Heading:  {np.degrees(localizer.state[2]):.1f}°")
        print(f"  Speed:    {localizer.state[3]:.2f} m/s")
        print(f"  GPS innovation: {result['innovation']:.3f} m")

print(f"\n✅ Route complete — total distance: {np.sqrt(localizer.state[0]**2 + localizer.state[1]**2):.1f} m")

Fleet Management

Managing a fleet of delivery robots requires a central dispatch system that assigns deliveries to robots, monitors their status, handles failures, and optimizes routes. Think of it as an air traffic control system for ground robots — coordinating dozens of autonomous vehicles to avoid conflicts and maximize throughput.

import numpy as np
from collections import defaultdict
import heapq

class DeliveryRobotFleetManager:
    """Fleet management system for autonomous delivery robots."""

    def __init__(self):
        self.robots = {}           # robot_id -> state
        self.orders = []           # Priority queue of pending orders
        self.completed = []        # Completed deliveries
        self.order_counter = 0

    def register_robot(self, robot_id, home_position):
        """Register a robot in the fleet."""
        self.robots[robot_id] = {
            'position': np.array(home_position, dtype=float),
            'status': 'idle',          # idle, en_route, delivering, returning, charging
            'battery': 100.0,          # percent
            'current_order': None,
            'total_deliveries': 0,
            'total_distance': 0.0
        }

    def add_order(self, pickup, dropoff, priority=5):
        """Add a delivery order to the queue."""
        self.order_counter += 1
        order = {
            'id': self.order_counter,
            'pickup': np.array(pickup, dtype=float),
            'dropoff': np.array(dropoff, dtype=float),
            'priority': priority,      # 1=urgent, 10=low
            'status': 'pending',
            'assigned_robot': None
        }
        heapq.heappush(self.orders, (priority, self.order_counter, order))
        return order['id']

    def assign_orders(self):
        """Assign pending orders to available robots using nearest-robot heuristic."""
        assignments = []
        available = {rid: r for rid, r in self.robots.items()
                     if r['status'] == 'idle' and r['battery'] > 20.0}

        temp_orders = []
        while self.orders and available:
            priority, oid, order = heapq.heappop(self.orders)

            # Find nearest available robot to pickup
            best_robot = None
            best_dist = float('inf')
            for rid, robot in available.items():
                dist = np.linalg.norm(robot['position'] - order['pickup'])
                if dist < best_dist:
                    best_dist = dist
                    best_robot = rid

            if best_robot:
                # Assign order
                self.robots[best_robot]['status'] = 'en_route'
                self.robots[best_robot]['current_order'] = order
                order['assigned_robot'] = best_robot
                order['status'] = 'assigned'

                # Calculate route distance
                pickup_dist = np.linalg.norm(self.robots[best_robot]['position'] - order['pickup'])
                delivery_dist = np.linalg.norm(order['pickup'] - order['dropoff'])
                total_dist = pickup_dist + delivery_dist

                assignments.append({
                    'robot': best_robot,
                    'order': order['id'],
                    'distance': total_dist,
                    'est_time_min': total_dist / 1.2 / 60  # 1.2 m/s average speed
                })

                del available[best_robot]
            else:
                temp_orders.append((priority, oid, order))

        # Put unassigned orders back
        for item in temp_orders:
            heapq.heappush(self.orders, item)

        return assignments

    def simulate_step(self):
        """Simulate one time step of fleet operation."""
        for rid, robot in self.robots.items():
            if robot['status'] == 'en_route' and robot['current_order']:
                order = robot['current_order']
                # Move toward pickup
                direction = order['pickup'] - robot['position']
                dist = np.linalg.norm(direction)
                step = min(5.0, dist)  # 5m per step
                if dist > 1.0:
                    robot['position'] += direction / dist * step
                    robot['battery'] -= 0.3
                    robot['total_distance'] += step
                else:
                    robot['status'] = 'delivering'

            elif robot['status'] == 'delivering' and robot['current_order']:
                order = robot['current_order']
                direction = order['dropoff'] - robot['position']
                dist = np.linalg.norm(direction)
                step = min(5.0, dist)
                if dist > 1.0:
                    robot['position'] += direction / dist * step
                    robot['battery'] -= 0.3
                    robot['total_distance'] += step
                else:
                    # Delivery complete
                    robot['total_deliveries'] += 1
                    order['status'] = 'completed'
                    self.completed.append(order)
                    robot['current_order'] = None
                    robot['status'] = 'idle'

    def fleet_status(self):
        """Print fleet dashboard."""
        print("\n" + "=" * 65)
        print("DELIVERY ROBOT FLEET DASHBOARD")
        print("=" * 65)
        print(f"{'Robot':<10} {'Status':<14} {'Battery':>8} {'Deliveries':>11} {'Distance':>10}")
        print("-" * 65)
        for rid, r in sorted(self.robots.items()):
            print(f"{rid:<10} {r['status']:<14} {r['battery']:>7.1f}% {r['total_deliveries']:>11} {r['total_distance']:>9.0f}m")
        print(f"\nPending orders: {len(self.orders)} | Completed: {len(self.completed)}")

# Run fleet simulation
fleet = DeliveryRobotFleetManager()

# Register 5 delivery robots at depot
for i in range(5):
    fleet.register_robot(f"DR-{i+1:03d}", home_position=[0.0 + i*10, 0.0])

# Add 12 delivery orders across the city
np.random.seed(42)
for _ in range(12):
    pickup = np.random.uniform(-200, 200, 2)
    dropoff = pickup + np.random.uniform(-100, 100, 2)
    priority = np.random.choice([1, 3, 5, 7])
    fleet.add_order(pickup, dropoff, priority)

# Run simulation
print("Starting fleet simulation...")
assignments = fleet.assign_orders()
for a in assignments:
    print(f"  Order #{a['order']} → Robot {a['robot']} (dist: {a['distance']:.0f}m, ETA: {a['est_time_min']:.1f} min)")

for step in range(50):
    fleet.simulate_step()
    if step % 10 == 0:
        # Try to assign new orders as robots become available
        new_assignments = fleet.assign_orders()

fleet.fleet_status()

Swarm Simulation

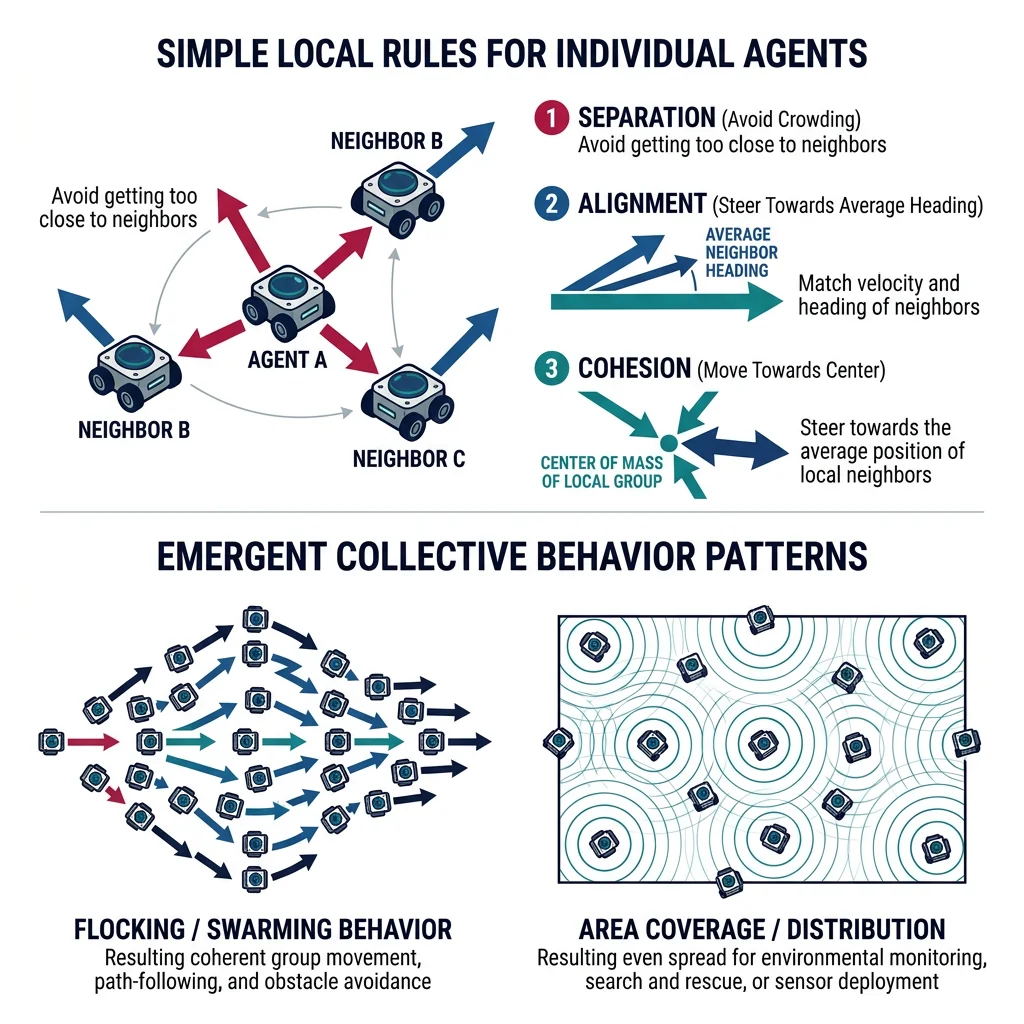

Swarm robotics demonstrates emergent collective behavior from simple individual rules. Like a flock of starlings or a colony of ants, each robot follows basic local rules but the group achieves complex global behaviors — exploration, formation, coverage, and task allocation. This project builds a complete multi-robot swarm simulator.

Swarm Algorithms

The core swarm algorithms implement Reynolds' Boids model extended with task-specific behaviors. Each algorithm layer adds capability on top of the basic flocking rules:

Gazebo Multi-Robot Simulation

import numpy as np
import matplotlib
matplotlib.use('Agg')
import matplotlib.pyplot as plt
from matplotlib.patches import Circle
import matplotlib.animation as animation

class SwarmRobot:
    """Individual swarm robot with local sensing and behavior rules."""

    def __init__(self, position, velocity=None):
        self.position = np.array(position, dtype=float)
        self.velocity = velocity if velocity is not None else np.random.uniform(-0.5, 0.5, 2)
        self.max_speed = 1.5
        self.max_force = 0.5
        self.sensing_radius = 5.0    # Can see neighbors within 5m
        self.safety_radius = 1.0     # Minimum distance to neighbors

    def apply_force(self, force):
        """Apply steering force with magnitude limits."""
        force = np.clip(force, -self.max_force, self.max_force)
        self.velocity += force
        speed = np.linalg.norm(self.velocity)
        if speed > self.max_speed:
            self.velocity = self.velocity / speed * self.max_speed

class SwarmSimulator:
    """Multi-robot swarm simulator with Reynolds' flocking + extensions."""

    def __init__(self, num_robots=30, arena_size=50.0):
        self.arena_size = arena_size
        self.robots = []
        self.obstacles = []
        self.goal = None
        self.history = []

        # Initialize robots in random positions
        for _ in range(num_robots):
            pos = np.random.uniform(5, arena_size - 5, 2)
            self.robots.append(SwarmRobot(pos))

        # Weights for behavior blending
        self.w_separation = 2.0
        self.w_alignment = 0.8
        self.w_cohesion = 0.5
        self.w_goal = 0.3
        self.w_obstacle = 3.0

    def add_obstacle(self, position, radius):
        self.obstacles.append({'pos': np.array(position), 'radius': radius})

    def set_goal(self, position):
        self.goal = np.array(position)

    def get_neighbors(self, robot):
        """Find all robots within sensing radius."""
        neighbors = []
        for other in self.robots:
            if other is robot:
                continue
            dist = np.linalg.norm(robot.position - other.position)
            if dist < robot.sensing_radius:
                neighbors.append((other, dist))
        return neighbors

    def separation(self, robot, neighbors):
        """Steer away from close neighbors."""
        force = np.zeros(2)
        for neighbor, dist in neighbors:
            if dist < robot.safety_radius and dist > 0:
                diff = robot.position - neighbor.position
                force += diff / (dist * dist)  # Inverse square repulsion
        return force

    def alignment(self, robot, neighbors):
        """Match average velocity of neighbors."""
        if not neighbors:
            return np.zeros(2)
        avg_vel = np.mean([n.velocity for n, _ in neighbors], axis=0)
        return avg_vel - robot.velocity

    def cohesion(self, robot, neighbors):
        """Steer toward center of neighbors."""
        if not neighbors:
            return np.zeros(2)
        center = np.mean([n.position for n, _ in neighbors], axis=0)
        desired = center - robot.position
        dist = np.linalg.norm(desired)
        if dist > 0:
            desired = desired / dist * robot.max_speed
        return desired - robot.velocity

    def goal_seeking(self, robot):
        """Steer toward goal position."""
        if self.goal is None:
            return np.zeros(2)
        desired = self.goal - robot.position
        dist = np.linalg.norm(desired)
        if dist > 0:
            speed = min(robot.max_speed, dist * 0.1)  # Slow near goal
            desired = desired / dist * speed
        return desired - robot.velocity

    def obstacle_avoidance(self, robot):
        """Repel from static obstacles."""
        force = np.zeros(2)
        for obs in self.obstacles:
            diff = robot.position - obs['pos']
            dist = np.linalg.norm(diff) - obs['radius']
            if 0 < dist < 3.0:  # Within avoidance range
                force += diff / (dist * dist)
        return force

    def step(self, dt=0.1):
        """Advance simulation by one time step."""
        for robot in self.robots:
            neighbors = self.get_neighbors(robot)

            # Compute behavior forces
            f_sep = self.separation(robot, neighbors) * self.w_separation
            f_ali = self.alignment(robot, neighbors) * self.w_alignment
            f_coh = self.cohesion(robot, neighbors) * self.w_cohesion
            f_goal = self.goal_seeking(robot) * self.w_goal
            f_obs = self.obstacle_avoidance(robot) * self.w_obstacle

            # Blend forces
            total_force = f_sep + f_ali + f_coh + f_goal + f_obs
            robot.apply_force(total_force)

            # Update position
            robot.position += robot.velocity * dt

            # Arena boundaries (soft walls)
            for i in range(2):
                if robot.position[i] < 2:
                    robot.velocity[i] += 0.5
                elif robot.position[i] > self.arena_size - 2:
                    robot.velocity[i] -= 0.5

        # Record positions for plotting
        self.history.append([r.position.copy() for r in self.robots])

    def run(self, steps=200):
        """Run simulation for N steps."""
        for _ in range(steps):
            self.step()

    def analyze(self):
        """Compute swarm metrics."""
        positions = np.array([r.position for r in self.robots])
        velocities = np.array([r.velocity for r in self.robots])

        # Cohesion: average distance from centroid
        centroid = positions.mean(axis=0)
        avg_dist = np.mean(np.linalg.norm(positions - centroid, axis=1))

        # Alignment: average velocity alignment (order parameter)
        avg_vel = velocities.mean(axis=0)
        avg_speed = np.mean(np.linalg.norm(velocities, axis=1))
        order = np.linalg.norm(avg_vel) / max(avg_speed, 1e-6)

        # Coverage: area covered (convex hull approximation)
        spread = np.max(positions, axis=0) - np.min(positions, axis=0)
        coverage = spread[0] * spread[1]

        # Min distance (collision check)
        min_dist = float('inf')
        for i in range(len(self.robots)):
            for j in range(i+1, len(self.robots)):
                d = np.linalg.norm(positions[i] - positions[j])
                min_dist = min(min_dist, d)

        return {
            'cohesion': avg_dist,
            'order_parameter': order,
            'coverage_area': coverage,
            'min_distance': min_dist,
            'centroid': centroid
        }

# Run simulation
print("=" * 55)
print("SWARM ROBOTICS SIMULATION")
print("=" * 55)

sim = SwarmSimulator(num_robots=25, arena_size=40.0)
sim.add_obstacle([20, 20], radius=3.0)
sim.add_obstacle([10, 30], radius=2.0)
sim.set_goal([35, 35])

print(f"\nSwarm: {len(sim.robots)} robots")
print(f"Arena: {sim.arena_size}m × {sim.arena_size}m")
print(f"Obstacles: {len(sim.obstacles)}")
print(f"Goal: [{sim.goal[0]}, {sim.goal[1]}]")

# Initial metrics
metrics_before = sim.analyze()
print(f"\n--- Before Simulation ---")
print(f"  Cohesion (avg dist from center): {metrics_before['cohesion']:.2f}m")
print(f"  Order parameter: {metrics_before['order_parameter']:.3f}")

# Run 300 steps
sim.run(steps=300)

# Final metrics
metrics_after = sim.analyze()
print(f"\n--- After 300 Steps ---")
print(f"  Cohesion: {metrics_after['cohesion']:.2f}m")
print(f"  Order parameter: {metrics_after['order_parameter']:.3f}")
print(f"  Coverage area: {metrics_after['coverage_area']:.0f} m²")
print(f"  Min robot distance: {metrics_after['min_distance']:.2f}m (collision {'❌' if metrics_after['min_distance'] < 0.5 else '✅ avoided'})")
print(f"  Centroid: ({metrics_after['centroid'][0]:.1f}, {metrics_after['centroid'][1]:.1f})")
print(f"  Distance to goal: {np.linalg.norm(metrics_after['centroid'] - sim.goal):.1f}m")

# Visualize final state
fig, ax = plt.subplots(1, 1, figsize=(8, 8))
positions = np.array([r.position for r in sim.robots])
velocities = np.array([r.velocity for r in sim.robots])

ax.quiver(positions[:, 0], positions[:, 1], velocities[:, 0], velocities[:, 1],
          color='steelblue', scale=20, width=0.004, alpha=0.8)
ax.scatter(positions[:, 0], positions[:, 1], c='steelblue', s=50, zorder=5)

for obs in sim.obstacles:
    circle = Circle(obs['pos'], obs['radius'], fill=True, color='gray', alpha=0.4)
    ax.add_patch(circle)

if sim.goal is not None:
    ax.scatter(*sim.goal, c='red', s=200, marker='*', zorder=6, label='Goal')

ax.set_xlim(0, sim.arena_size)
ax.set_ylim(0, sim.arena_size)
ax.set_aspect('equal')
ax.set_title('Swarm Final State (25 robots)')
ax.set_xlabel('X (m)')
ax.set_ylabel('Y (m)')
ax.legend()
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.savefig('swarm_final.png', dpi=100, bbox_inches='tight')
plt.show()
print("\n✅ Swarm simulation complete — see swarm_final.png")

Capstone Project Planner

Use this planner to scope and organize your own robotics capstone project. Whether you're building a rover, arm, delivery bot, or swarm, this tool helps you define requirements and generate a project specification document.

Exercises & Challenges

Conclusion & Series Wrap-Up

These four capstone projects demonstrate the full spectrum of robotics engineering — from individual sensor readings to fleet-scale coordination. Each project exercised skills from multiple parts of this series, showing how sensors, actuators, kinematics, control, AI, and systems integration all come together in real systems.
