Robotics & Automation Series Part 12: Industrial Robotics & Automation

PLC Programming

A Programmable Logic Controller (PLC) is the backbone of industrial automation. Think of it as a ruggedized, real-time computer designed to survive the factory floor — dust, vibration, temperature extremes, and electromagnetic interference — while controlling machines with cycle times measured in milliseconds.

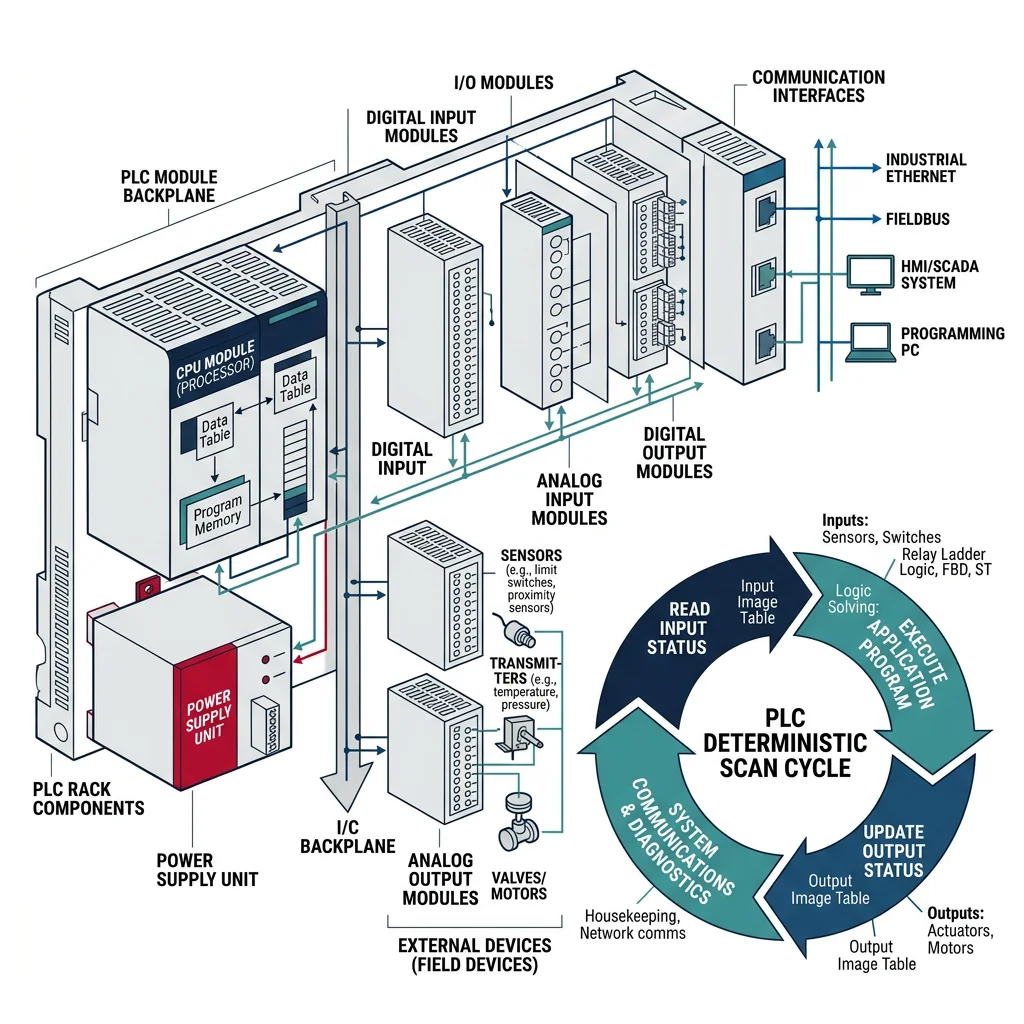

PLCs follow a simple but powerful scan cycle: (1) read all inputs, (2) execute the program logic, (3) update all outputs, (4) repeat. This deterministic cycle ensures predictable, real-time control.

The IEC 61131-3 standard defines five programming languages for PLCs. The two most common are Ladder Diagram (LD) for electricians transitioning from relay logic, and Structured Text (ST) for software engineers who prefer textual programming.

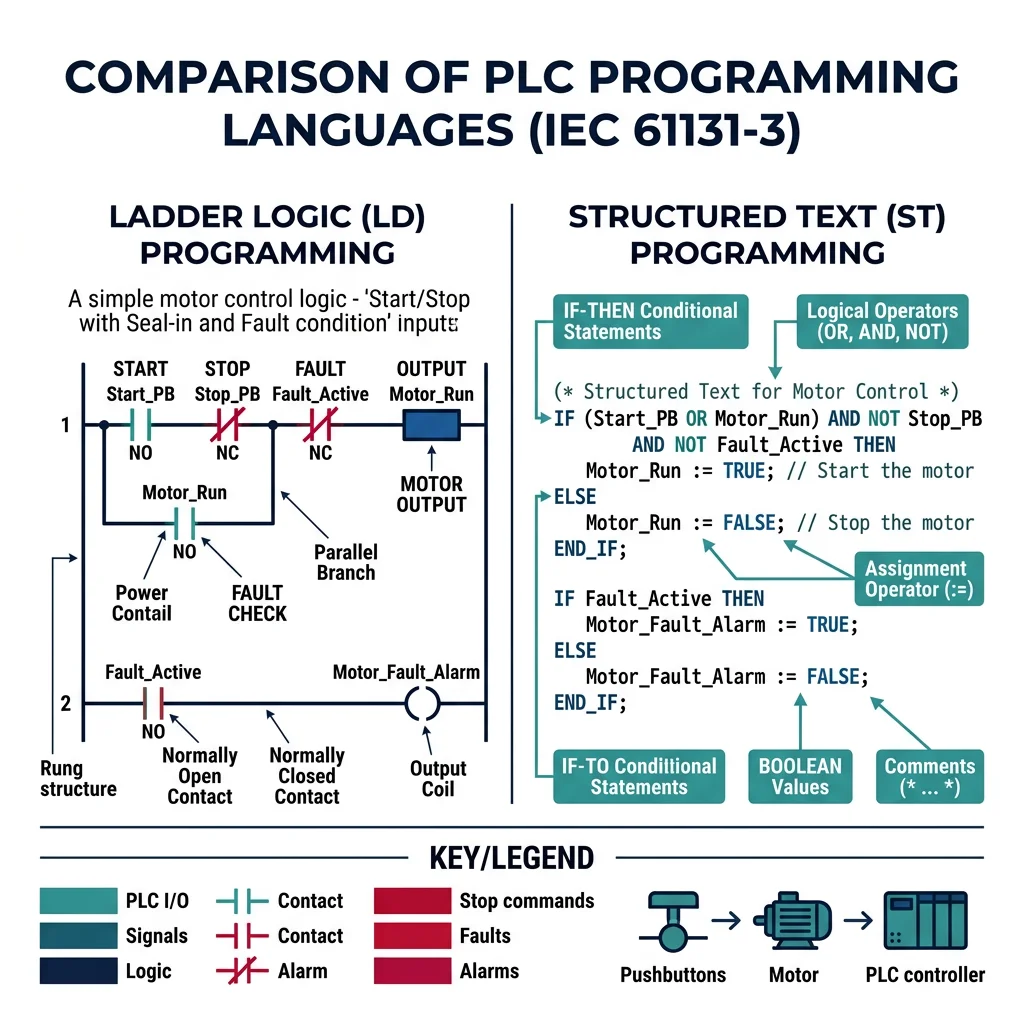

Ladder Logic

Ladder logic was invented to make PLCs accessible to electricians who already understood relay wiring diagrams. Each "rung" of the ladder represents a circuit path from the left power rail to the right power rail, with contacts (inputs) and coils (outputs).

Here's a Python simulation of a ladder logic engine that evaluates rungs with AND/OR logic:

class LadderLogicSimulator:
    """Simulates PLC ladder logic execution"""

    def __init__(self):
        self.inputs = {}    # Digital inputs: 'I0.0' -> True/False
        self.outputs = {}   # Digital outputs: 'Q0.0' -> True/False
        self.memory = {}    # Internal memory bits: 'M0.0' -> True/False
        self.timers = {}    # Timer values
        self.counters = {}  # Counter values

    def set_input(self, address, value):
        self.inputs[address] = bool(value)

    def get_bit(self, address):
        """Resolve any address (input, output, or memory)"""
        if address.startswith('I'):
            return self.inputs.get(address, False)
        elif address.startswith('Q'):
            return self.outputs.get(address, False)
        elif address.startswith('M'):
            return self.memory.get(address, False)
        return False

    def evaluate_rung(self, rung):
        """
        Evaluate a ladder rung.
        rung format: {'contacts': [...], 'coil': 'Q0.0', 'logic': 'AND'/'OR'}
        Each contact: {'address': 'I0.0', 'type': 'NO'/'NC'}
        """
        results = []
        for contact in rung['contacts']:
            value = self.get_bit(contact['address'])
            if contact['type'] == 'NC':
                value = not value  # Normally Closed inverts
            results.append(value)

        if rung.get('logic', 'AND') == 'AND':
            coil_state = all(results) if results else False
        else:  # OR logic (parallel contacts)
            coil_state = any(results) if results else False

        # Energize the coil
        coil = rung['coil']
        if coil.startswith('Q'):
            self.outputs[coil] = coil_state
        elif coil.startswith('M'):
            self.memory[coil] = coil_state

        return coil_state

# Example: Motor start/stop circuit with safety interlock
plc = LadderLogicSimulator()

# Rung 1: Start button (I0.0) AND safety guard (I0.2) -> Motor run (Q0.0)
# OR Motor run latch (Q0.0) — self-holding circuit
# AND NOT Stop button (I0.1) — NC contact breaks the seal
rung1_start = {
    'contacts': [
        {'address': 'I0.0', 'type': 'NO'},   # Start pushbutton
        {'address': 'I0.2', 'type': 'NO'}     # Safety guard closed
    ],
    'coil': 'M0.0',
    'logic': 'AND'
}

rung1_latch = {
    'contacts': [
        {'address': 'Q0.0', 'type': 'NO'}    # Self-holding contact
    ],
    'coil': 'M0.1',
    'logic': 'AND'
}

rung1_output = {
    'contacts': [
        {'address': 'M0.0', 'type': 'NO'},   # Start condition
        {'address': 'I0.1', 'type': 'NC'}     # Stop button (NC = breaks when pressed)
    ],
    'coil': 'Q0.0',
    'logic': 'AND'
}

# Simulate: Press start with guard closed
plc.set_input('I0.0', True)   # Start pressed
plc.set_input('I0.1', False)  # Stop not pressed
plc.set_input('I0.2', True)   # Guard closed

plc.evaluate_rung(rung1_start)
plc.evaluate_rung(rung1_output)

print(f"Motor Q0.0: {'ON' if plc.outputs.get('Q0.0') else 'OFF'}")
# Output: Motor Q0.0: ON

# Simulate: Press stop
plc.set_input('I0.1', True)   # Stop pressed
plc.evaluate_rung(rung1_start)
plc.evaluate_rung(rung1_output)
print(f"Motor Q0.0: {'ON' if plc.outputs.get('Q0.0') else 'OFF'}")
# Output: Motor Q0.0: OFF

Structured Text

Structured Text (ST) resembles Pascal or Python and is ideal for complex mathematical operations, PID control, and data handling that would be cumbersome in ladder logic.

class StructuredTextPLC:
    """Python equivalent of IEC 61131-3 Structured Text patterns"""

    def __init__(self):
        self.variables = {}
        self.timers = {}
        self.scan_count = 0

    def conveyor_control_program(self, sensor_data):
        """
        Equivalent Structured Text (IEC 61131-3):

        PROGRAM ConveyorControl
        VAR
            bPartDetected : BOOL;
            rConveyorSpeed : REAL := 0.5;  (* m/s *)
            iPartCount : INT := 0;
            eState : (IDLE, RUNNING, PAUSED, ERROR);
        END_VAR

        CASE eState OF
            IDLE:
                IF bStartCommand THEN
                    eState := RUNNING;
                END_IF;
            RUNNING:
                IF bPartDetected THEN
                    iPartCount := iPartCount + 1;
                    IF iPartCount >= iTargetCount THEN
                        eState := PAUSED;
                    END_IF;
                END_IF;
                IF bEmergencyStop THEN
                    eState := ERROR;
                END_IF;
            PAUSED:
                rConveyorSpeed := 0.0;
            ERROR:
                rConveyorSpeed := 0.0;
                (* Require manual reset *)
        END_CASE;
        """
        state = self.variables.get('state', 'IDLE')
        part_count = self.variables.get('part_count', 0)
        speed = 0.0

        if state == 'IDLE':
            if sensor_data.get('start_command'):
                state = 'RUNNING'
                speed = 0.5  # m/s

        elif state == 'RUNNING':
            speed = 0.5
            if sensor_data.get('part_detected'):
                part_count += 1
            if sensor_data.get('emergency_stop'):
                state = 'ERROR'
                speed = 0.0
            elif part_count >= sensor_data.get('target_count', 100):
                state = 'PAUSED'
                speed = 0.0

        elif state == 'PAUSED':
            speed = 0.0
            if sensor_data.get('resume_command'):
                state = 'RUNNING'
                part_count = 0

        elif state == 'ERROR':
            speed = 0.0
            if sensor_data.get('reset_command') and not sensor_data.get('emergency_stop'):
                state = 'IDLE'

        self.variables['state'] = state
        self.variables['part_count'] = part_count
        self.scan_count += 1

        return {
            'state': state,
            'speed': speed,
            'part_count': part_count,
            'scan': self.scan_count
        }

# Simulate conveyor operation
plc = StructuredTextPLC()

scenarios = [
    {'start_command': True, 'part_detected': False},
    {'part_detected': True, 'target_count': 3},
    {'part_detected': True, 'target_count': 3},
    {'part_detected': True, 'target_count': 3},
    {'resume_command': True},
]

for i, sensor_data in enumerate(scenarios):
    result = plc.conveyor_control_program(sensor_data)
    print(f"Scan {result['scan']}: State={result['state']}, "
          f"Speed={result['speed']}m/s, Parts={result['part_count']}")

SCADA & HMI Systems

SCADA (Supervisory Control and Data Acquisition) is the nervous system that connects PLCs, sensors, and actuators across an entire plant into a unified monitoring and control platform. If a PLC is the brain of one machine, SCADA is the central command center overseeing the entire factory.

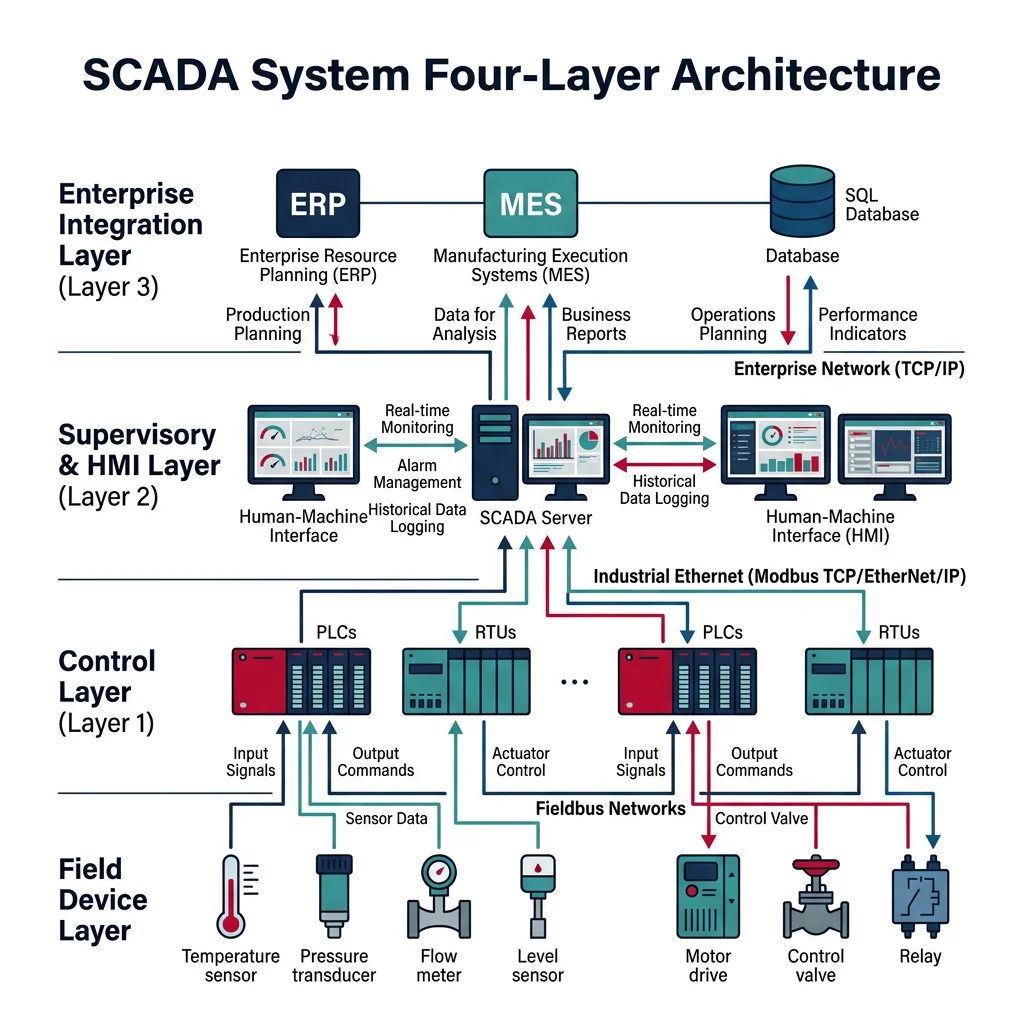

A typical SCADA architecture has four layers:

import time
import random

class SCADASystem:
    """Simplified SCADA system simulator"""

    def __init__(self, plant_name):
        self.plant_name = plant_name
        self.rtus = {}       # Remote Terminal Units (PLCs)
        self.alarms = []     # Active alarms
        self.historian = []  # Historical data log
        self.tags = {}       # SCADA tag database

    def register_rtu(self, rtu_id, description, tags):
        """Register a PLC/RTU with its I/O tags"""
        self.rtus[rtu_id] = {
            'description': description,
            'tags': tags,
            'status': 'ONLINE',
            'last_poll': None
        }
        for tag in tags:
            self.tags[tag['name']] = {
                'value': tag.get('default', 0),
                'unit': tag.get('unit', ''),
                'alarm_hi': tag.get('alarm_hi'),
                'alarm_lo': tag.get('alarm_lo'),
                'rtu': rtu_id
            }

    def poll_rtu(self, rtu_id, simulated_values=None):
        """Poll RTU for current values (simulated)"""
        if rtu_id not in self.rtus:
            return None

        rtu = self.rtus[rtu_id]
        rtu['last_poll'] = time.time()

        for tag in rtu['tags']:
            if simulated_values and tag['name'] in simulated_values:
                new_value = simulated_values[tag['name']]
            else:
                current = self.tags[tag['name']]['value']
                new_value = current + random.uniform(-1, 1)

            self.tags[tag['name']]['value'] = new_value
            self._check_alarms(tag['name'], new_value)
            self._log_to_historian(tag['name'], new_value)

        return {tag['name']: self.tags[tag['name']]['value']
                for tag in rtu['tags']}

    def _check_alarms(self, tag_name, value):
        tag = self.tags[tag_name]
        if tag['alarm_hi'] and value > tag['alarm_hi']:
            alarm = f"HIGH ALARM: {tag_name} = {value:.1f} > {tag['alarm_hi']}"
            self.alarms.append(alarm)
            print(f"  âš  {alarm}")
        elif tag['alarm_lo'] and value < tag['alarm_lo']:
            alarm = f"LOW ALARM: {tag_name} = {value:.1f} < {tag['alarm_lo']}"
            self.alarms.append(alarm)
            print(f"  âš  {alarm}")

    def _log_to_historian(self, tag_name, value):
        self.historian.append({
            'tag': tag_name,
            'value': round(value, 2),
            'timestamp': time.time()
        })

# Create SCADA system for a water treatment plant
scada = SCADASystem("Municipal Water Treatment")

# Register RTUs (PLCs at remote pump stations)
scada.register_rtu('RTU-01', 'Intake Pump Station', [
    {'name': 'PS1_FLOW', 'unit': 'm3/h', 'default': 150,
     'alarm_hi': 200, 'alarm_lo': 50},
    {'name': 'PS1_PRESSURE', 'unit': 'bar', 'default': 4.5,
     'alarm_hi': 6.0, 'alarm_lo': 2.0},
])

scada.register_rtu('RTU-02', 'Chemical Dosing', [
    {'name': 'CHLORINE_PPM', 'unit': 'ppm', 'default': 1.5,
     'alarm_hi': 3.0, 'alarm_lo': 0.5},
    {'name': 'PH_VALUE', 'unit': 'pH', 'default': 7.2,
     'alarm_hi': 8.5, 'alarm_lo': 6.5},
])

# Simulate polling cycle
print("=== SCADA Polling Cycle ===")
print(f"Plant: {scada.plant_name}\n")

for rtu_id in ['RTU-01', 'RTU-02']:
    values = scada.poll_rtu(rtu_id)
    print(f"{rtu_id} ({scada.rtus[rtu_id]['description']}):")
    for tag_name, value in values.items():
        tag = scada.tags[tag_name]
        print(f"  {tag_name}: {value:.2f} {tag['unit']}")
    print()

print(f"Historian records: {len(scada.historian)}")
print(f"Active alarms: {len(scada.alarms)}")

HMI Design

An HMI (Human-Machine Interface) is the touchscreen panel or display that operators use to monitor and control the process. Good HMI design follows the "high-performance HMI" principles — minimal color, gray backgrounds, and information hierarchy that lets operators spot abnormalities instantly.

OPC UA Communication

OPC UA (Open Platform Communications Unified Architecture) is the universal translator for industrial automation. It's a platform-independent, secure protocol that enables any device — PLCs, robots, SCADA servers, cloud platforms — to exchange data regardless of manufacturer.

class OPCUANode:
    """Simplified OPC UA information model"""

    def __init__(self, node_id, browse_name, node_class='Variable', value=None):
        self.node_id = node_id          # e.g., 'ns=2;s=Robot1.JointAngle.J1'
        self.browse_name = browse_name  # Human-readable name
        self.node_class = node_class    # Object, Variable, Method
        self.value = value
        self.children = []
        self.data_type = type(value).__name__ if value else 'None'
        self.access_level = 'ReadWrite'

    def add_child(self, child):
        self.children.append(child)
        return child

class OPCUAServer:
    """Simplified OPC UA server simulator"""

    def __init__(self, endpoint):
        self.endpoint = endpoint
        self.address_space = {}
        self.root = OPCUANode('ns=0;i=84', 'Root', 'Object')

    def create_robot_model(self, robot_name):
        """Create an OPC UA information model for a robot"""
        robot = OPCUANode(f'ns=2;s={robot_name}', robot_name, 'Object')

        # Joint angles (Variables)
        joints = OPCUANode(f'ns=2;s={robot_name}.Joints', 'Joints', 'Object')
        for i in range(1, 7):
            joint = OPCUANode(
                f'ns=2;s={robot_name}.Joints.J{i}',
                f'J{i}_Angle',
                'Variable',
                0.0
            )
            joints.add_child(joint)
            self.address_space[joint.node_id] = joint

        robot.add_child(joints)

        # Status (Variable)
        status = OPCUANode(f'ns=2;s={robot_name}.Status', 'Status', 'Variable', 'IDLE')
        robot.add_child(status)
        self.address_space[status.node_id] = status

        # Speed override (Variable)
        speed = OPCUANode(f'ns=2;s={robot_name}.SpeedOverride', 'SpeedOverride', 'Variable', 100)
        robot.add_child(speed)
        self.address_space[speed.node_id] = speed

        self.root.add_child(robot)
        print(f"Created OPC UA model for '{robot_name}' with {len(self.address_space)} nodes")
        return robot

    def read(self, node_id):
        node = self.address_space.get(node_id)
        if node:
            return {'node_id': node_id, 'value': node.value, 'type': node.data_type}
        return None

    def write(self, node_id, value):
        node = self.address_space.get(node_id)
        if node and node.access_level == 'ReadWrite':
            node.value = value
            return True
        return False

    def browse(self, start_node=None):
        """Browse the address space from a starting node"""
        node = start_node or self.root
        result = [{'id': node.node_id, 'name': node.browse_name,
                    'class': node.node_class}]
        for child in node.children:
            result.extend(self.browse(child))
        return result

# Create OPC UA server and model
server = OPCUAServer('opc.tcp://192.168.1.100:4840')
server.create_robot_model('KUKA_KR210')

# Read joint angle
result = server.read('ns=2;s=KUKA_KR210.Joints.J1')
print(f"Read J1: {result}")

# Write new speed override
server.write('ns=2;s=KUKA_KR210.SpeedOverride', 75)
result = server.read('ns=2;s=KUKA_KR210.SpeedOverride')
print(f"Speed Override: {result['value']}%")

# Browse address space
nodes = server.browse()
print(f"\nAddress Space ({len(nodes)} nodes):")
for n in nodes[:8]:
    print(f"  [{n['class']}] {n['name']} ({n['id']})")

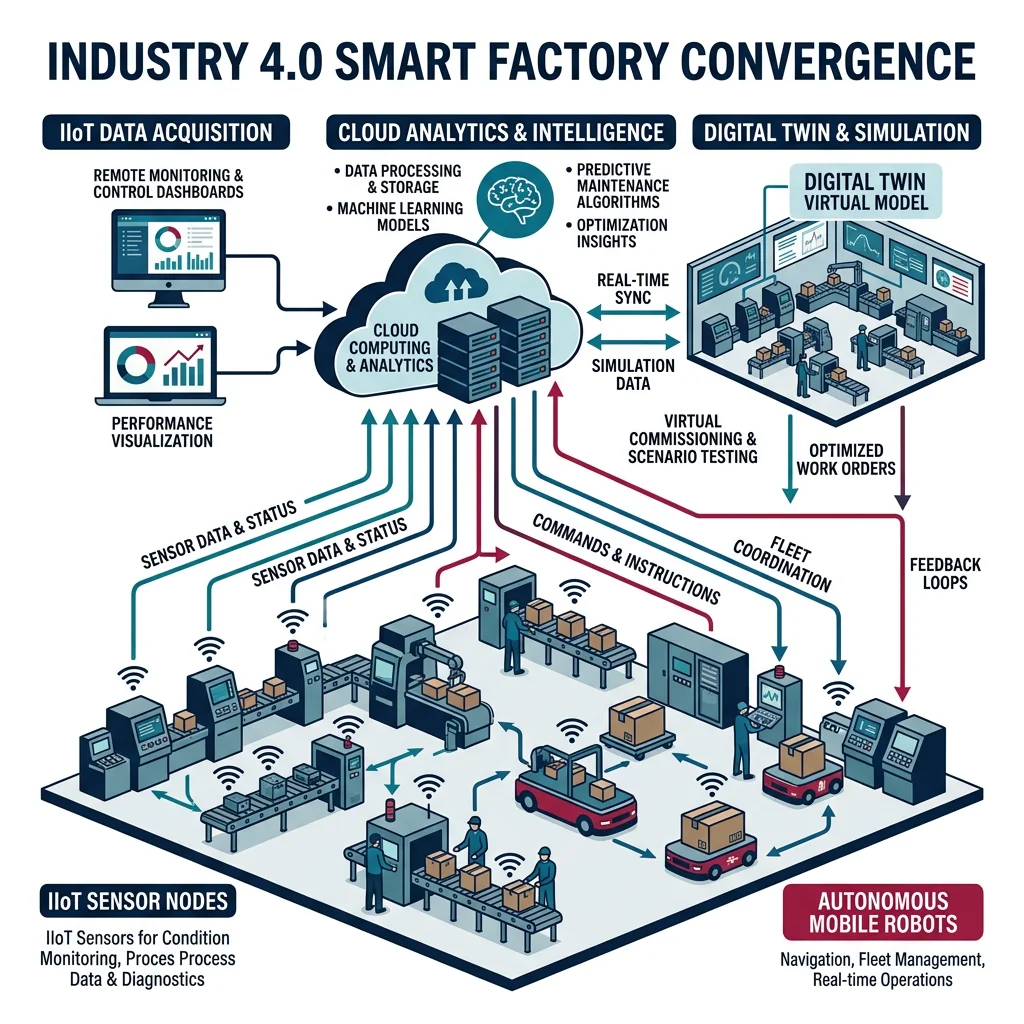

Industry 4.0 & Smart Factories

Industry 4.0 represents the fourth industrial revolution — the convergence of operational technology (OT) with information technology (IT). While Industry 3.0 introduced PLCs and automation, Industry 4.0 connects those systems to the cloud, AI, and each other via the Industrial Internet of Things (IIoT).

Industrial IoT (IIoT)

The Industrial IoT connects machines, sensors, and systems to the internet, enabling real-time monitoring, predictive maintenance, and data-driven optimization. Unlike consumer IoT (smart thermostats), IIoT demands deterministic timing, ruggedized hardware, and industrial-grade security.

import json
import time
import random

class IIoTGateway:
    """Industrial IoT Edge Gateway — bridges OT to IT"""

    def __init__(self, gateway_id, location):
        self.gateway_id = gateway_id
        self.location = location
        self.devices = {}
        self.message_queue = []
        self.edge_rules = []     # Local processing rules

    def register_device(self, device_id, device_type, protocol):
        self.devices[device_id] = {
            'type': device_type,
            'protocol': protocol,
            'status': 'connected',
            'last_data': None
        }

    def add_edge_rule(self, name, condition_fn, action_fn):
        """Add edge computing rule for local decision-making"""
        self.edge_rules.append({
            'name': name,
            'condition': condition_fn,
            'action': action_fn
        })

    def ingest_data(self, device_id, telemetry):
        """Receive data from field device"""
        if device_id not in self.devices:
            return

        telemetry['device_id'] = device_id
        telemetry['gateway_id'] = self.gateway_id
        telemetry['timestamp'] = time.time()
        telemetry['edge_processed'] = False

        # Apply edge rules locally (no cloud round trip)
        for rule in self.edge_rules:
            if rule['condition'](telemetry):
                rule['action'](telemetry)
                telemetry['edge_processed'] = True
                telemetry['rule_triggered'] = rule['name']

        self.devices[device_id]['last_data'] = telemetry
        self.message_queue.append(telemetry)
        return telemetry

    def publish_to_cloud(self):
        """Send queued messages to cloud (MQTT/AMQP)"""
        messages = self.message_queue.copy()
        self.message_queue.clear()
        return messages

    def get_mqtt_payload(self, telemetry):
        """Format as MQTT message for cloud IoT hub"""
        return json.dumps({
            'topic': f'factory/{self.location}/{telemetry["device_id"]}/telemetry',
            'payload': telemetry,
            'qos': 1,
            'retain': False
        }, indent=2)

# Create IIoT gateway for a CNC machining cell
gateway = IIoTGateway('GW-CELL-04', 'machining_hall_b')

# Register field devices
gateway.register_device('SPINDLE-01', 'CNC Spindle Motor', 'Modbus TCP')
gateway.register_device('VIBRATION-01', 'Vibration Sensor', 'IO-Link')
gateway.register_device('TEMP-01', 'Thermal Sensor', '4-20mA')

# Edge rule: If vibration exceeds threshold, trigger local alert
def high_vibration(data):
    return data.get('vibration_rms', 0) > 5.0  # mm/s

def vibration_alert(data):
    print(f"  EDGE ALERT: High vibration on {data['device_id']}! "
          f"RMS={data['vibration_rms']:.1f} mm/s — reduce feed rate")

gateway.add_edge_rule('high_vibration_alert', high_vibration, vibration_alert)

# Simulate data ingestion
print("=== IIoT Gateway Data Ingestion ===\n")

telemetry_samples = [
    ('SPINDLE-01', {'rpm': 12000, 'current_a': 15.3, 'power_kw': 7.2}),
    ('VIBRATION-01', {'vibration_rms': 3.2, 'peak_g': 0.8, 'temperature_c': 45}),
    ('VIBRATION-01', {'vibration_rms': 7.8, 'peak_g': 2.1, 'temperature_c': 62}),
    ('TEMP-01', {'bearing_temp_c': 78, 'ambient_temp_c': 25}),
]

for device_id, data in telemetry_samples:
    result = gateway.ingest_data(device_id, data)
    edge_flag = " [EDGE]" if result.get('edge_processed') else ""
    print(f"{device_id}: {data}{edge_flag}")

# Publish to cloud
messages = gateway.publish_to_cloud()
print(f"\nPublished {len(messages)} messages to cloud broker")
print(f"\nSample MQTT payload:")
print(gateway.get_mqtt_payload(messages[0]))

Digital Twin Technology

A digital twin is a virtual replica of a physical asset — a robot, a production line, or an entire factory — that mirrors the real system in real time. It enables "what-if" simulation, predictive maintenance, and virtual commissioning (testing automation code before the physical equipment arrives).

import math

class DigitalTwinRobot:
    """Digital twin of a 6-axis industrial robot"""

    def __init__(self, robot_id, model):
        self.robot_id = robot_id
        self.model = model

        # Physical state (mirrored from real robot)
        self.joint_positions = [0.0] * 6    # degrees
        self.joint_velocities = [0.0] * 6   # deg/s
        self.joint_currents = [0.0] * 6     # amps
        self.tcp_position = [0, 0, 0]       # mm
        self.cycle_count = 0
        self.runtime_hours = 0

        # Predictive maintenance model
        self.wear_factors = [1.0] * 6  # 1.0 = new, 0.0 = failed
        self.maintenance_log = []

    def update_from_physical(self, sensor_data):
        """Sync digital twin with physical robot data"""
        self.joint_positions = sensor_data.get('positions', self.joint_positions)
        self.joint_currents = sensor_data.get('currents', self.joint_currents)
        self.tcp_position = sensor_data.get('tcp', self.tcp_position)
        self.cycle_count = sensor_data.get('cycle_count', self.cycle_count)
        self.runtime_hours = sensor_data.get('runtime_hours', self.runtime_hours)

        # Update wear model
        self._update_wear_model()

    def _update_wear_model(self):
        """Simple wear prediction based on current draw & cycles"""
        for i in range(6):
            # Higher current = more stress on gearbox
            stress_factor = self.joint_currents[i] / 20.0  # normalized
            cycle_factor = self.cycle_count / 500000        # typical lifecycle

            self.wear_factors[i] = max(0, 1.0 - (stress_factor * 0.1 + cycle_factor))

    def predict_maintenance(self, threshold=0.3):
        """Predict which joints need maintenance"""
        predictions = []
        for i in range(6):
            if self.wear_factors[i] < threshold:
                remaining_cycles = int((self.wear_factors[i] / (1.0 - self.wear_factors[i] + 0.001)) * self.cycle_count)
                predictions.append({
                    'joint': f'J{i+1}',
                    'wear_factor': round(self.wear_factors[i], 3),
                    'status': 'CRITICAL' if self.wear_factors[i] < 0.15 else 'WARNING',
                    'estimated_remaining_cycles': remaining_cycles,
                    'action': 'Schedule gearbox replacement' if self.wear_factors[i] < 0.15
                             else 'Monitor closely — plan maintenance window'
                })
        return predictions

    def simulate_what_if(self, scenario):
        """Run what-if simulation on the digital twin"""
        result = {
            'scenario': scenario['name'],
            'feasible': True,
            'issues': []
        }

        if scenario.get('speed_increase'):
            new_speed = scenario['speed_increase']
            for i in range(6):
                if self.wear_factors[i] < 0.5:
                    result['issues'].append(
                        f"J{i+1} wear at {self.wear_factors[i]:.0%} — "
                        f"speed increase of {new_speed}% not recommended"
                    )
                    result['feasible'] = False

        if scenario.get('new_payload_kg'):
            payload = scenario['new_payload_kg']
            max_payload = {'KR210': 210, 'IRB6700': 235, 'M-2000iA': 2300}
            max_kg = max_payload.get(self.model, 100)
            if payload > max_kg * 0.8:
                result['issues'].append(
                    f"Payload {payload}kg exceeds 80% of max ({max_kg}kg) "
                    f"— accelerated wear expected"
                )

        return result

# Create digital twin of a KUKA KR210
twin = DigitalTwinRobot('KUKA-001', 'KR210')

# Simulate receiving data from physical robot
twin.update_from_physical({
    'positions': [45.0, -30.0, 60.0, 0.0, 90.0, -45.0],
    'currents': [12.5, 18.2, 8.1, 3.5, 5.0, 2.1],
    'tcp': [1200, 500, 800],
    'cycle_count': 420000,
    'runtime_hours': 18500
})

# Predictive maintenance
print("=== Digital Twin: Predictive Maintenance ===\n")
print(f"Robot: {twin.robot_id} ({twin.model})")
print(f"Cycles: {twin.cycle_count:,} | Runtime: {twin.runtime_hours:,}h\n")

for i in range(6):
    bar = 'â–ˆ' * int(twin.wear_factors[i] * 20) + 'â–‘' * (20 - int(twin.wear_factors[i] * 20))
    status = 'OK' if twin.wear_factors[i] > 0.5 else 'WARN' if twin.wear_factors[i] > 0.3 else 'CRIT'
    print(f"  J{i+1}: [{bar}] {twin.wear_factors[i]:.1%} [{status}]")

# Maintenance predictions
predictions = twin.predict_maintenance()
if predictions:
    print(f"\nâš  Maintenance Predictions:")
    for p in predictions:
        print(f"  {p['joint']}: {p['status']} — {p['action']}")

# What-if simulation
print("\n=== What-If Simulation ===")
scenario = twin.simulate_what_if({
    'name': 'Increase line speed by 20%',
    'speed_increase': 20,
    'new_payload_kg': 180
})
print(f"Scenario: {scenario['scenario']}")
print(f"Feasible: {scenario['feasible']}")
for issue in scenario['issues']:
    print(f"  Issue: {issue}")

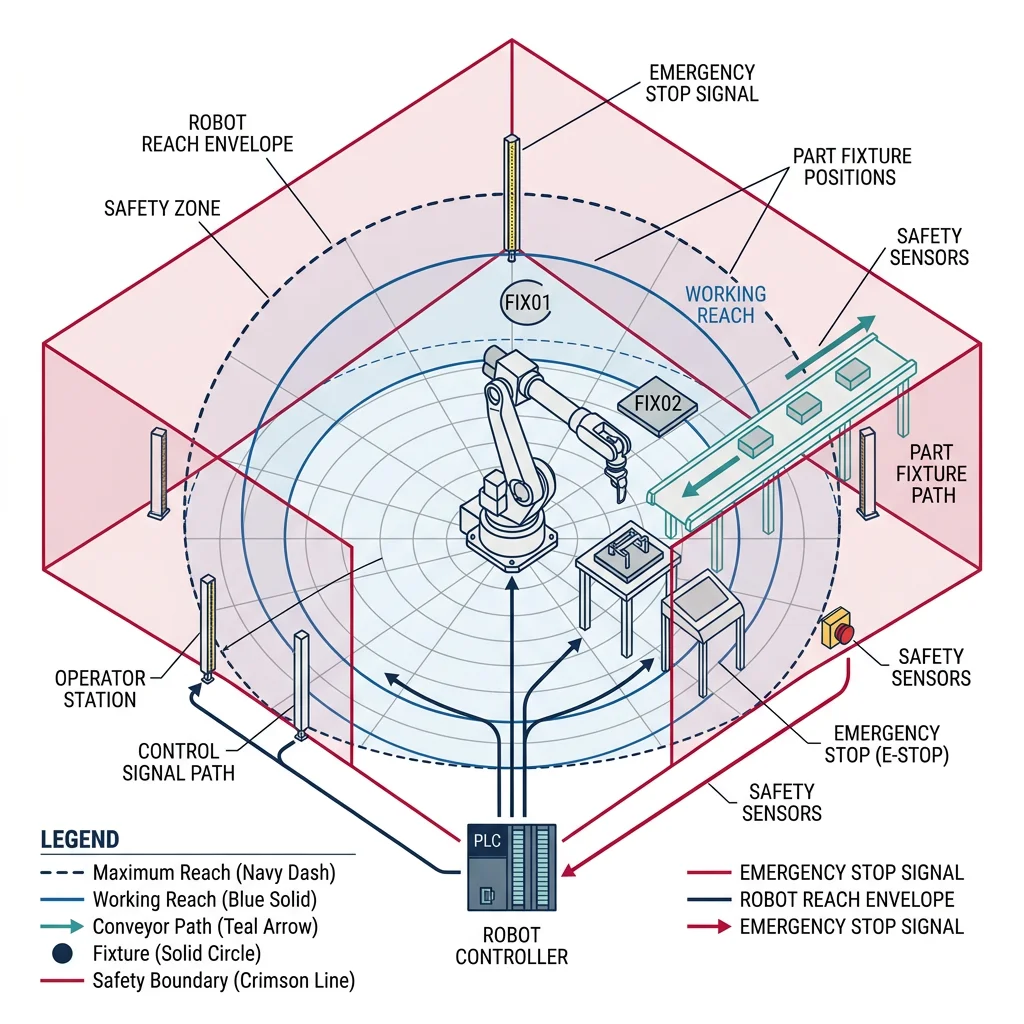

Workcell Design & Manufacturing

A robotic workcell is a self-contained manufacturing unit where one or more robots, fixtures, conveyors, and safety systems work together to perform a specific task — welding, painting, assembly, inspection, or palletizing. Designing a workcell requires balancing cycle time, safety zones, material flow, and robot reach.

import math

class RoboticWorkcell:
    """Design and simulate a robotic workcell"""

    def __init__(self, name, length_m, width_m):
        self.name = name
        self.length = length_m
        self.width = width_m
        self.robots = []
        self.stations = []
        self.conveyors = []
        self.safety_zones = []
        self.cycle_time_target = None  # seconds

    def add_robot(self, robot_id, x, y, reach_m, payload_kg, cycle_time_s):
        self.robots.append({
            'id': robot_id, 'x': x, 'y': y,
            'reach': reach_m, 'payload': payload_kg,
            'cycle_time': cycle_time_s
        })

    def add_station(self, station_id, x, y, process_type, process_time_s):
        self.stations.append({
            'id': station_id, 'x': x, 'y': y,
            'type': process_type, 'time': process_time_s
        })

    def add_conveyor(self, conveyor_id, start_xy, end_xy, speed_mpm):
        length = math.hypot(end_xy[0] - start_xy[0], end_xy[1] - start_xy[1])
        self.conveyors.append({
            'id': conveyor_id, 'start': start_xy, 'end': end_xy,
            'speed': speed_mpm, 'length': length,
            'transfer_time': (length / speed_mpm) * 60  # seconds
        })

    def calculate_cycle_time(self):
        """Calculate total workcell cycle time (bottleneck analysis)"""
        times = {}

        for robot in self.robots:
            times[robot['id']] = robot['cycle_time']

        for station in self.stations:
            times[station['id']] = station['time']

        for conv in self.conveyors:
            times[conv['id']] = conv['transfer_time']

        bottleneck = max(times, key=times.get)
        cycle_time = times[bottleneck]

        return {
            'cycle_time_s': round(cycle_time, 1),
            'bottleneck': bottleneck,
            'parts_per_hour': round(3600 / cycle_time, 1),
            'all_times': times,
            'utilization': {k: round(v / cycle_time * 100, 1)
                          for k, v in times.items()}
        }

    def check_reachability(self):
        """Verify all stations are within robot reach"""
        issues = []
        for robot in self.robots:
            for station in self.stations:
                dist = math.hypot(station['x'] - robot['x'],
                                  station['y'] - robot['y'])
                if dist > robot['reach']:
                    issues.append(
                        f"{robot['id']} cannot reach {station['id']} "
                        f"(distance={dist:.2f}m, reach={robot['reach']}m)"
                    )
        return issues

    def generate_layout_report(self):
        """Generate workcell layout summary"""
        analysis = self.calculate_cycle_time()
        reach_issues = self.check_reachability()

        report = f"\n{'='*50}\n"
        report += f"WORKCELL LAYOUT REPORT: {self.name}\n"
        report += f"{'='*50}\n"
        report += f"Dimensions: {self.length}m x {self.width}m\n"
        report += f"Robots: {len(self.robots)} | Stations: {len(self.stations)}\n"
        report += f"\nCycle Time: {analysis['cycle_time_s']}s\n"
        report += f"Bottleneck: {analysis['bottleneck']}\n"
        report += f"Throughput: {analysis['parts_per_hour']} parts/hour\n"
        report += f"\nUtilization:\n"
        for unit, util in analysis['utilization'].items():
            bar = 'â–ˆ' * int(util / 5) + 'â–‘' * (20 - int(util / 5))
            report += f"  {unit:15s} [{bar}] {util}%\n"

        if reach_issues:
            report += f"\nâš  Reach Issues:\n"
            for issue in reach_issues:
                report += f"  - {issue}\n"
        else:
            report += "\n✓ All stations reachable\n"

        return report

# Design a welding workcell
cell = RoboticWorkcell("Welding Cell A3", length_m=6.0, width_m=4.0)

# Add robots
cell.add_robot('FANUC-R1', x=2.0, y=2.0, reach_m=2.0, payload_kg=20, cycle_time_s=18)
cell.add_robot('FANUC-R2', x=4.0, y=2.0, reach_m=2.0, payload_kg=20, cycle_time_s=22)

# Add stations
cell.add_station('LOAD', x=0.5, y=2.0, process_type='Manual Load', process_time_s=15)
cell.add_station('WELD-1', x=2.5, y=1.0, process_type='Spot Weld', process_time_s=18)
cell.add_station('WELD-2', x=4.5, y=1.0, process_type='Arc Weld', process_time_s=22)
cell.add_station('INSPECT', x=5.5, y=2.0, process_type='Vision Inspect', process_time_s=8)

# Add conveyor
cell.add_conveyor('CONV-1', start_xy=(0, 2), end_xy=(6, 2), speed_mpm=5)

# Generate report
print(cell.generate_layout_report())

MES Integration

A Manufacturing Execution System (MES) bridges the gap between shop-floor automation (PLCs, SCADA) and enterprise planning (ERP). It tracks work orders, records production data (traceability), enforces quality checks, and provides real-time OEE (Overall Equipment Effectiveness) metrics.

class OEECalculator:
    """Calculate Overall Equipment Effectiveness"""

    def __init__(self, machine_name):
        self.machine_name = machine_name
        self.shifts = []

    def add_shift(self, planned_minutes, downtime_minutes,
                  ideal_cycle_time_s, total_parts, good_parts):
        """Add production shift data"""
        run_time = planned_minutes - downtime_minutes

        availability = run_time / planned_minutes if planned_minutes > 0 else 0

        theoretical_output = (run_time * 60) / ideal_cycle_time_s
        performance = total_parts / theoretical_output if theoretical_output > 0 else 0

        quality = good_parts / total_parts if total_parts > 0 else 0

        oee = availability * performance * quality

        shift = {
            'planned_min': planned_minutes,
            'run_min': run_time,
            'downtime_min': downtime_minutes,
            'ideal_cycle_s': ideal_cycle_time_s,
            'total_parts': total_parts,
            'good_parts': good_parts,
            'reject_parts': total_parts - good_parts,
            'availability': availability,
            'performance': performance,
            'quality': quality,
            'oee': oee,
        }
        self.shifts.append(shift)
        return shift

    def report(self):
        """Print OEE report for all shifts"""
        if not self.shifts:
            return "No shift data available."

        print(f"\n{'='*55}")
        print(f"OEE Report: {self.machine_name}")
        print(f"{'='*55}")

        for i, s in enumerate(self.shifts):
            print(f"\n--- Shift {i+1} ---")
            print(f"  Planned: {s['planned_min']}min | Run: {s['run_min']}min | Down: {s['downtime_min']}min")
            print(f"  Parts: {s['good_parts']}/{s['total_parts']} good ({s['reject_parts']} rejects)")
            print(f"  Availability: {s['availability']:.1%}")
            print(f"  Performance:  {s['performance']:.1%}")
            print(f"  Quality:      {s['quality']:.1%}")
            oee_pct = s['oee'] * 100
            bar = 'â–ˆ' * int(oee_pct / 5) + 'â–‘' * (20 - int(oee_pct / 5))
            status = 'World-Class' if oee_pct >= 85 else 'Good' if oee_pct >= 70 else 'Needs Improvement'
            print(f"  OEE:          [{bar}] {oee_pct:.1f}% ({status})")

        # Average across shifts
        avg_oee = sum(s['oee'] for s in self.shifts) / len(self.shifts)
        print(f"\nOverall Average OEE: {avg_oee:.1%}")

# Calculate OEE for a CNC machining center
oee = OEECalculator("CNC-HAAS-VF2")

# Morning shift: 480 min planned, 45 min downtime, 30s cycle, 780 total, 768 good
oee.add_shift(480, 45, 30, 780, 768)

# Afternoon shift: 480 min planned, 20 min downtime, 30s cycle, 850 total, 842 good
oee.add_shift(480, 20, 30, 850, 842)

# Night shift: 480 min planned, 90 min downtime, 30s cycle, 600 total, 585 good
oee.add_shift(480, 90, 30, 600, 585)

oee.report()

Quality Control & Lean Manufacturing

Lean manufacturing focuses on eliminating the eight wastes (DOWNTIME mnemonic): Defects, Overproduction, Waiting, Non-utilized talent, Transportation, Inventory excess, Motion waste, and Extra processing. Combined with Six Sigma's statistical approach, it creates a powerful quality framework.

import math

class SixSigmaCalculator:
    """Statistical Process Control (SPC) and capability analysis"""

    @staticmethod
    def process_capability(measurements, usl, lsl):
        """
        Calculate Cp, Cpk process capability indices.
        USL = Upper Specification Limit, LSL = Lower Specification Limit
        """
        n = len(measurements)
        mean = sum(measurements) / n
        std_dev = math.sqrt(sum((x - mean) ** 2 for x in measurements) / (n - 1))

        cp = (usl - lsl) / (6 * std_dev) if std_dev > 0 else float('inf')

        cpu = (usl - mean) / (3 * std_dev) if std_dev > 0 else float('inf')
        cpl = (mean - lsl) / (3 * std_dev) if std_dev > 0 else float('inf')
        cpk = min(cpu, cpl)

        # DPMO estimation (simplified)
        z_upper = (usl - mean) / std_dev if std_dev > 0 else 6
        z_lower = (mean - lsl) / std_dev if std_dev > 0 else 6

        # Sigma level approximation
        sigma_level = min(z_upper, z_lower)

        return {
            'mean': round(mean, 4),
            'std_dev': round(std_dev, 4),
            'cp': round(cp, 3),
            'cpk': round(cpk, 3),
            'sigma_level': round(sigma_level, 2),
            'n_samples': n,
            'within_spec': sum(1 for x in measurements if lsl <= x <= usl),
            'out_of_spec': sum(1 for x in measurements if x < lsl or x > usl),
            'interpretation': 'Capable' if cpk >= 1.33 else
                            'Marginal' if cpk >= 1.0 else 'Not Capable'
        }

# Analyze a machining process: bore diameter specification 25.00 ± 0.05 mm
import random
random.seed(42)

# Simulate 100 measurements (normal distribution centered at 25.002)
measurements = [random.gauss(25.002, 0.012) for _ in range(100)]

result = SixSigmaCalculator.process_capability(
    measurements, usl=25.05, lsl=24.95
)

print("=== Process Capability Analysis ===")
print(f"Specification: 25.00 ± 0.05 mm (LSL=24.95, USL=25.05)")
print(f"Samples: {result['n_samples']}")
print(f"Mean: {result['mean']} mm")
print(f"Std Dev: {result['std_dev']} mm")
print(f"Cp:  {result['cp']} (spread capability)")
print(f"Cpk: {result['cpk']} (centering + spread)")
print(f"Sigma Level: {result['sigma_level']}σ")
print(f"Within Spec: {result['within_spec']}/{result['n_samples']}")
print(f"Verdict: {result['interpretation']}")

Industrial Automation Planner Tool

Use this tool to plan an industrial automation project — capture your PLC/SCADA requirements, IIoT strategy, and workcell design parameters, then download the plan as Word, Excel, or PDF.

Exercises & Challenges

Conclusion & Next Steps

Industrial robotics and automation is where robotics meets production reality. You've learned how PLCs provide deterministic real-time control through ladder logic and structured text, how SCADA systems aggregate plant-wide data through OPC UA, how Industry 4.0 connects machines via IIoT and digital twins, and how workcell design optimizes throughput through OEE analysis and lean principles.

These concepts scale from a single robotic workcell to entire factories. The convergence of OT and IT — edge computing, cloud analytics, and AI-driven optimization — is transforming manufacturing from reactive to predictive, from rigid to flexible.
