Robotics & Automation Series Part 16: Systems Integration & Deployment

System Architecture

Building individual subsystems — sensors, actuators, controllers, AI — is the easy part. The hard part is making them all work together reliably, safely, and maintainably. Systems integration is the engineering discipline of combining subsystems into a complete, functioning robot and ensuring it performs correctly from the lab to the field and throughout its operational life.

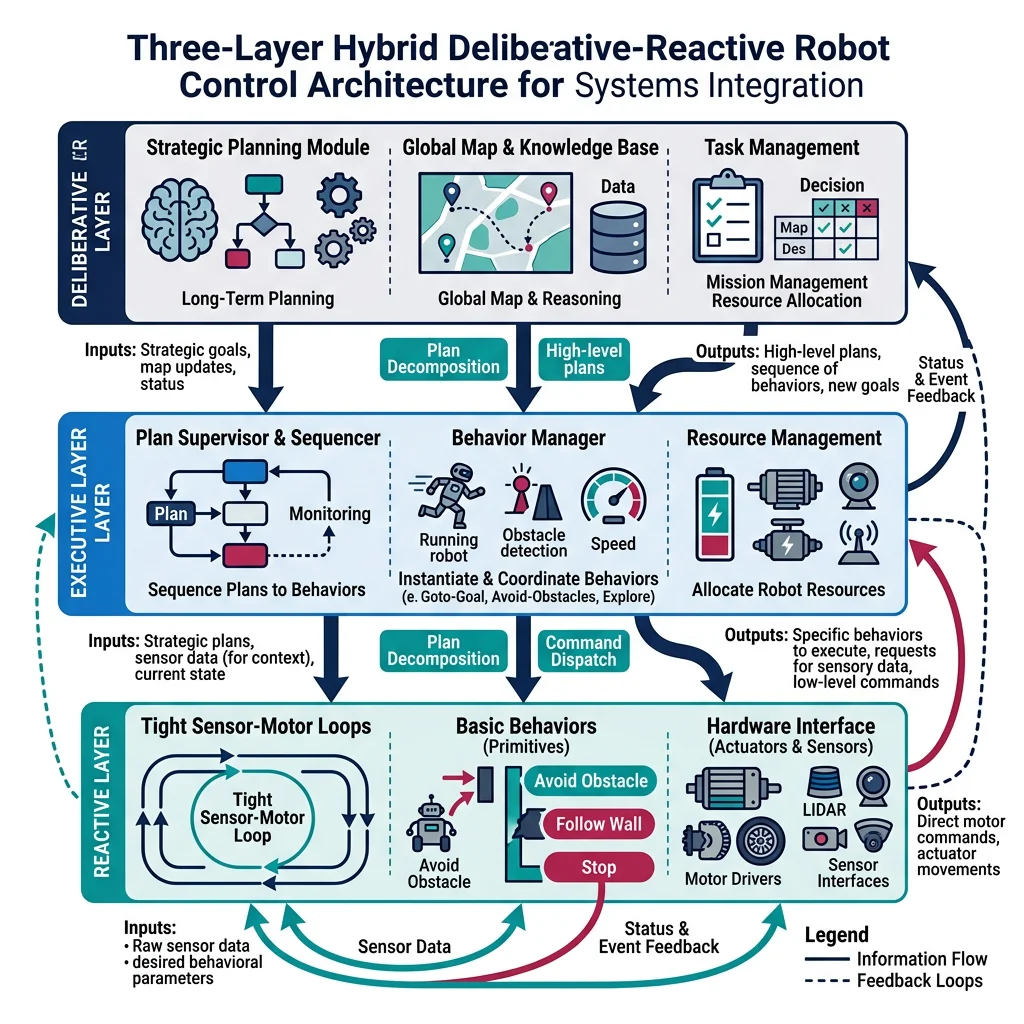

Architecture Patterns

Robot system architectures typically follow one of several proven patterns, each trading off complexity, real-time performance, and modularity:

Pattern	Structure	Pros	Cons	Example
Sense-Plan-Act (SPA)	Sequential pipeline	Simple, predictable	Slow, no reactivity	Early Shakey robot
Subsumption	Layered behaviors, priority-based	Reactive, real-time	Hard to scale, debug	iRobot Roomba (early)
Hybrid Deliberative-Reactive	3-layer: reactive + executive + planner	Balanced speed/intelligence	Interface complexity	Most modern robots
Component-Based (ROS2)	Modular nodes + middleware	Reusable, testable	Communication overhead	ROS2-based systems
Microservices	Independent services + API	Scalable, cloud-native	Latency, orchestration	Cloud robotics platforms

import numpy as np
import matplotlib.pyplot as plt

# Visualize the 3-Layer Hybrid Architecture
fig, ax = plt.subplots(figsize=(10, 6))

layers = [
    {'name': 'Deliberative Layer\n(Planning & Reasoning)', 'y': 2.2, 'color': '#132440',
     'desc': 'Path planning, task scheduling, mission logic\nCycle time: 100ms - 10s'},
    {'name': 'Executive Layer\n(Coordination & Sequencing)', 'y': 1.2, 'color': '#16476A',
     'desc': 'State machines, behavior trees, error recovery\nCycle time: 10ms - 100ms'},
    {'name': 'Reactive Layer\n(Sensing & Control)', 'y': 0.2, 'color': '#3B9797',
     'desc': 'PID loops, obstacle avoidance, safety stops\nCycle time: 1ms - 10ms'}
]

for layer in layers:
    rect = plt.Rectangle((0.5, layer['y']), 9, 0.8, linewidth=2,
                          edgecolor='white', facecolor=layer['color'], alpha=0.9)
    ax.add_patch(rect)
    ax.text(5, layer['y'] + 0.55, layer['name'], ha='center', va='center',
            fontsize=12, fontweight='bold', color='white')
    ax.text(5, layer['y'] + 0.15, layer['desc'], ha='center', va='center',
            fontsize=9, color='#dddddd', style='italic')

# Arrows
for y in [1.2, 2.2]:
    ax.annotate('', xy=(5, y), xytext=(5, y - 0.2),
                arrowprops=dict(arrowstyle='->', color='white', lw=2))

ax.set_xlim(0, 10)
ax.set_ylim(0, 3.5)
ax.set_title('3-Layer Hybrid Deliberative-Reactive Architecture', fontsize=14, fontweight='bold')
ax.axis('off')
plt.tight_layout()
plt.show()

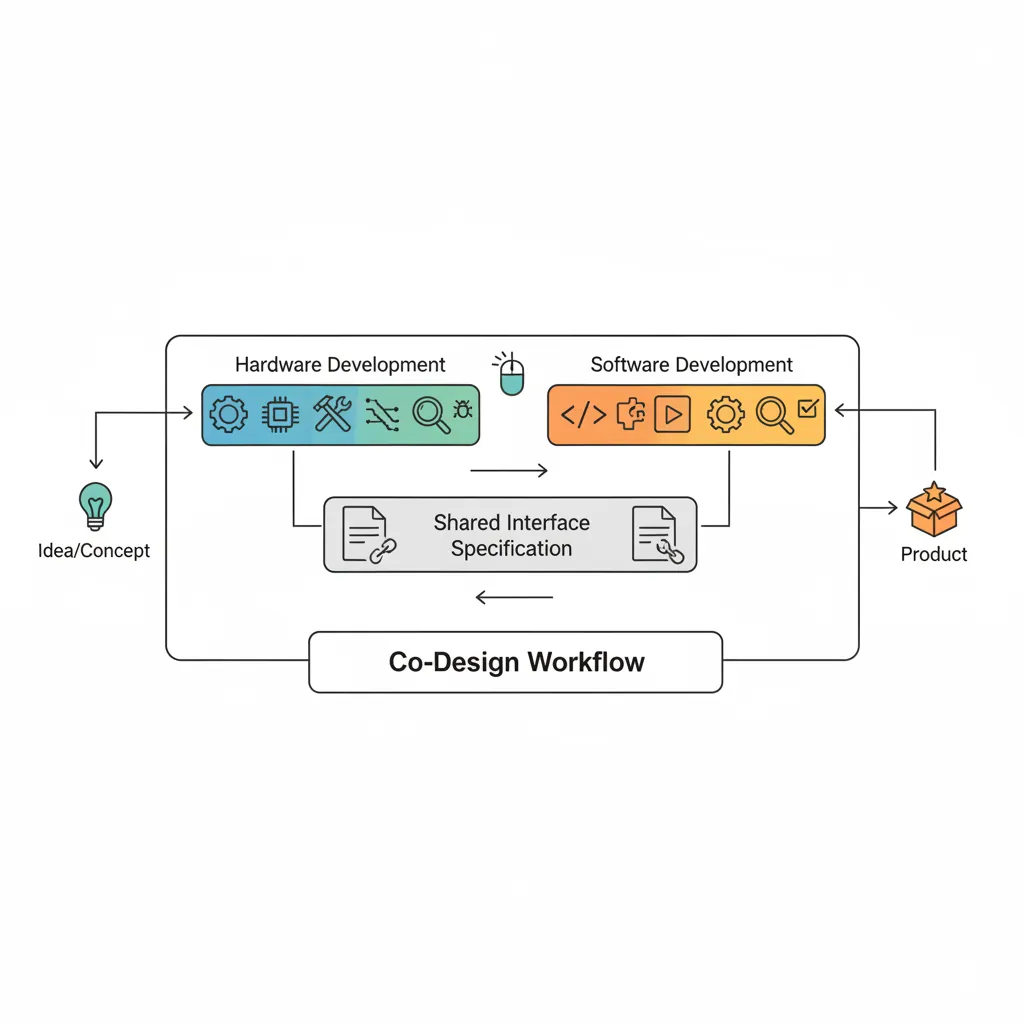

HW/SW Co-Design

In traditional engineering, hardware is designed first, then software is written to control it. In HW/SW co-design, both are developed simultaneously with continuous feedback between teams. This prevents the costly situation where software requirements discover hardware limitations too late to change.

Co-Design Decision Matrix

Decision	Hardware Impact	Software Impact	Resolution Strategy
Sensor selection	Mounting, wiring, power	Drivers, data formats, fusion	Joint evaluation with prototype
Compute platform	Size, cooling, connectors	OS, libraries, real-time	Benchmark target workloads
Communication bus	Cable routing, EMI shielding	Protocol stack, latency	Signal integrity analysis
Safety architecture	E-stop circuits, redundancy	Watchdogs, safe states	FMEA + safety standard review
Power budget	Battery, regulators, connectors	Sleep modes, task scheduling	Power profile measurement

Interface Design & Contracts

When multiple teams build subsystems that must work together, interface contracts define exactly how they communicate — data formats, timing, error codes, and boundary conditions. Without contracts, integration becomes a debugging nightmare.

import json

# Example: Robot subsystem interface contract specification
interface_contract = {
    "interface_name": "MotorController_v2",
    "version": "2.1.0",
    "provider": "Actuator Subsystem",
    "consumer": "Motion Planning",
    "protocol": "CAN-FD",
    "messages": {
        "SetVelocity": {
            "id": "0x201",
            "direction": "consumer → provider",
            "payload": {
                "joint_id": {"type": "uint8", "range": [0, 6]},
                "velocity_rad_s": {"type": "float32", "range": [-6.28, 6.28]},
                "acceleration_limit": {"type": "float32", "range": [0, 50.0]}
            },
            "rate_hz": 1000,
            "latency_max_ms": 1,
            "error_response": "NACK with error code"
        },
        "JointState": {
            "id": "0x301",
            "direction": "provider → consumer",
            "payload": {
                "joint_id": {"type": "uint8"},
                "position_rad": {"type": "float32"},
                "velocity_rad_s": {"type": "float32"},
                "current_A": {"type": "float32"},
                "temperature_C": {"type": "float32"},
                "fault_flags": {"type": "uint16"}
            },
            "rate_hz": 1000,
            "latency_max_ms": 0.5
        }
    },
    "error_codes": {
        "0x00": "OK",
        "0x01": "Over-temperature",
        "0x02": "Over-current",
        "0x03": "Encoder fault",
        "0x04": "Communication timeout",
        "0xFF": "Unknown error"
    }
}

print(json.dumps(interface_contract, indent=2))
print(f"\nTotal messages defined: {len(interface_contract['messages'])}")
print(f"Error codes defined: {len(interface_contract['error_codes'])}")

Testing & Verification

Testing a robot is fundamentally different from testing software alone. A bug in a web app shows an error page; a bug in a robot arm can injure a person or destroy expensive hardware. Robotics testing follows the V-Model: each development phase has a corresponding test phase, from unit tests on individual components to full system acceptance tests.

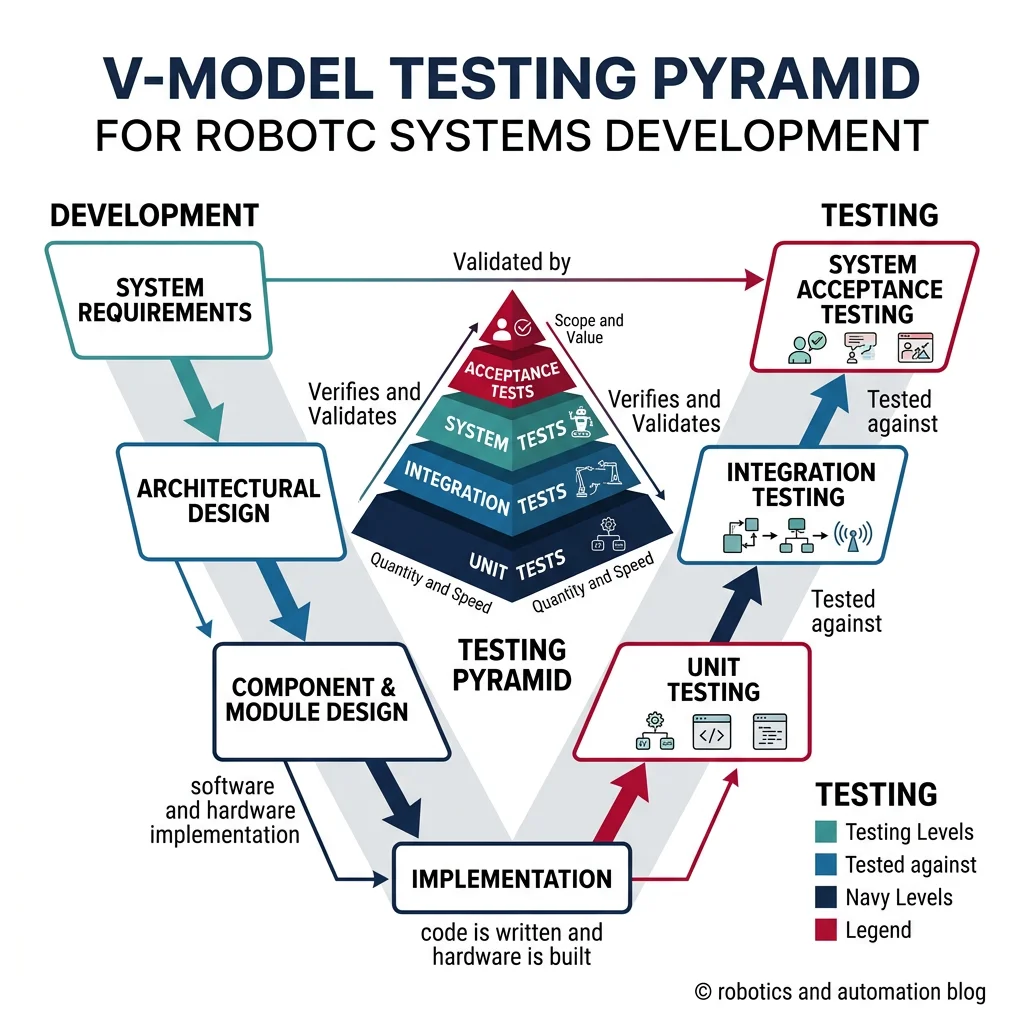

The Testing Pyramid for Robotics

Level	What's Tested	Tools	Coverage Target	Speed
Unit Tests	Individual functions, classes	pytest, gtest, Catch2	>80% line coverage	Milliseconds
Component Tests	Single node/module with mocked I/O	ROS2 launch_testing, Mock HAL	All interfaces	Seconds
Integration Tests	Subsystem interactions	Docker compose, CI/CD pipelines	All data flows	Minutes
SIL (Software-in-the-Loop)	Full SW stack on simulated plant	Gazebo, Isaac Sim, MATLAB	All scenarios	Minutes-Hours
HIL (Hardware-in-the-Loop)	Real controller + simulated plant	dSPACE, NI, Speedgoat	Timing, I/O	Real-time
System Tests	Complete robot in lab	Test scripts, manual checks	All requirements	Hours-Days
Acceptance Tests	Customer requirements at site	FAT/SAT protocols	All user stories	Days

import json
from datetime import datetime

class RobotTestSuite:
    """Automated test framework for robot subsystem testing."""

    def __init__(self, robot_name):
        self.robot_name = robot_name
        self.results = []
        self.start_time = datetime.now()

    def run_test(self, test_name, test_func, category="unit"):
        """Execute a single test and record results."""
        try:
            result = test_func()
            passed = result if isinstance(result, bool) else True
            self.results.append({
                "name": test_name,
                "category": category,
                "status": "PASS" if passed else "FAIL",
                "timestamp": datetime.now().isoformat()
            })
        except Exception as e:
            self.results.append({
                "name": test_name,
                "category": category,
                "status": "ERROR",
                "error": str(e),
                "timestamp": datetime.now().isoformat()
            })

    def summary(self):
        total = len(self.results)
        passed = sum(1 for r in self.results if r["status"] == "PASS")
        failed = sum(1 for r in self.results if r["status"] == "FAIL")
        errors = sum(1 for r in self.results if r["status"] == "ERROR")
        return {"total": total, "passed": passed, "failed": failed,
                "errors": errors, "pass_rate": f"{passed/total*100:.1f}%" if total > 0 else "N/A"}

# Example: Test a motor controller interface
suite = RobotTestSuite("6-DOF Industrial Arm")

# Unit tests
suite.run_test("Joint velocity within limits", lambda: abs(3.14) <= 6.28, "unit")
suite.run_test("Encoder resolution check", lambda: 4096 >= 2048, "unit")
suite.run_test("Temperature sensor range", lambda: -40 <= 25 <= 150, "unit")
suite.run_test("CAN message ID valid", lambda: 0x201 <= 0x3FF, "unit")

# Integration tests
suite.run_test("Motor responds to velocity command", lambda: True, "integration")
suite.run_test("Emergency stop latency < 10ms", lambda: 8.5 < 10, "integration")
suite.run_test("All joints home successfully", lambda: True, "integration")

# System tests
suite.run_test("Pick-and-place cycle under 4s", lambda: 3.7 < 4.0, "system")
suite.run_test("Repeatability < 0.1mm", lambda: 0.05 < 0.1, "system")

result = suite.summary()
print(f"Test Results for: {suite.robot_name}")
print(f"  Total: {result['total']}, Passed: {result['passed']}, "
      f"Failed: {result['failed']}, Errors: {result['errors']}")
print(f"  Pass Rate: {result['pass_rate']}")
print(f"\nDetailed Results:")
for r in suite.results:
    icon = "✓" if r["status"] == "PASS" else "✗"
    print(f"  {icon} [{r['category']:12s}] {r['name']}: {r['status']}")

HIL & SIL Simulation

Software-in-the-Loop (SIL) runs the real control software against a simulated robot model on a desktop PC. Hardware-in-the-Loop (HIL) runs the real control software on the real control hardware, but connects it to a simulated plant model instead of real actuators and sensors. Both are critical for testing dangerous or expensive scenarios safely.

Aspect	SIL	HIL
Hardware Required	Desktop/server only	Real controller + I/O + simulator
Timing Fidelity	Simulated clock (faster-than-real)	Real-time clock (1:1)
Cost	Low ($0 marginal)	High ($50k–$500k for HIL rig)
Bug Types Found	Logic, algorithms, state machines	Timing, I/O, driver, thermal
CI/CD Compatible	Yes (containerized)	Limited (physical rig needed)
Platforms	Gazebo, Isaac Sim, MATLAB/Simulink	dSPACE, NI VeriStand, Speedgoat

Verification & Validation (V&V)

Verification asks: "Did we build the system right?" (does the implementation match the design?). Validation asks: "Did we build the right system?" (does the system meet the user's actual needs?). Both are required for safety-critical robotics.

import json

# Requirements traceability matrix — mapping requirements to tests
traceability_matrix = {
    "REQ-001": {
        "description": "Robot shall reach any point within 800mm radius workspace",
        "source": "Customer Specification v2.3",
        "priority": "Critical",
        "verification_method": "Test",
        "test_ids": ["SYS-T-001", "SYS-T-002"],
        "status": "Verified",
        "evidence": "Test report TR-2026-001, 100% workspace coverage measured"
    },
    "REQ-002": {
        "description": "Emergency stop shall halt all motion within 50ms",
        "source": "ISO 10218-1, Section 5.5",
        "priority": "Safety-Critical",
        "verification_method": "Test + Analysis",
        "test_ids": ["SAF-T-010", "SAF-T-011", "SAF-A-003"],
        "status": "Verified",
        "evidence": "Measured 38ms worst-case, oscilloscope capture in TR-2026-005"
    },
    "REQ-003": {
        "description": "System shall operate continuously for 16 hours between maintenance",
        "source": "Operations Requirement OR-007",
        "priority": "High",
        "verification_method": "Demonstration",
        "test_ids": ["REL-T-001"],
        "status": "Validated",
        "evidence": "72-hour endurance test completed, 0 unplanned stops"
    },
    "REQ-004": {
        "description": "Position repeatability shall be ≤ ±0.05mm",
        "source": "Quality Specification QS-12",
        "priority": "Critical",
        "verification_method": "Test",
        "test_ids": ["SYS-T-015"],
        "status": "Verified",
        "evidence": "Laser tracker measurement: ±0.032mm (3σ)"
    }
}

print("Requirements Traceability Matrix")
print("=" * 60)
for req_id, req in traceability_matrix.items():
    status_icon = "✓" if req["status"] in ["Verified", "Validated"] else "○"
    print(f"\n{status_icon} {req_id}: {req['description']}")
    print(f"  Priority: {req['priority']}")
    print(f"  Method: {req['verification_method']}")
    print(f"  Tests: {', '.join(req['test_ids'])}")
    print(f"  Status: {req['status']}")

verified = sum(1 for r in traceability_matrix.values() if r["status"] in ["Verified", "Validated"])
print(f"\n\nSummary: {verified}/{len(traceability_matrix)} requirements verified/validated")

Field Deployment

The gap between "works in the lab" and "works in the field" is where many robotics projects fail. Field deployment introduces real-world variables that the lab couldn't predict: dust, humidity, vibration, untrained operators, network outages, and interaction with legacy systems.

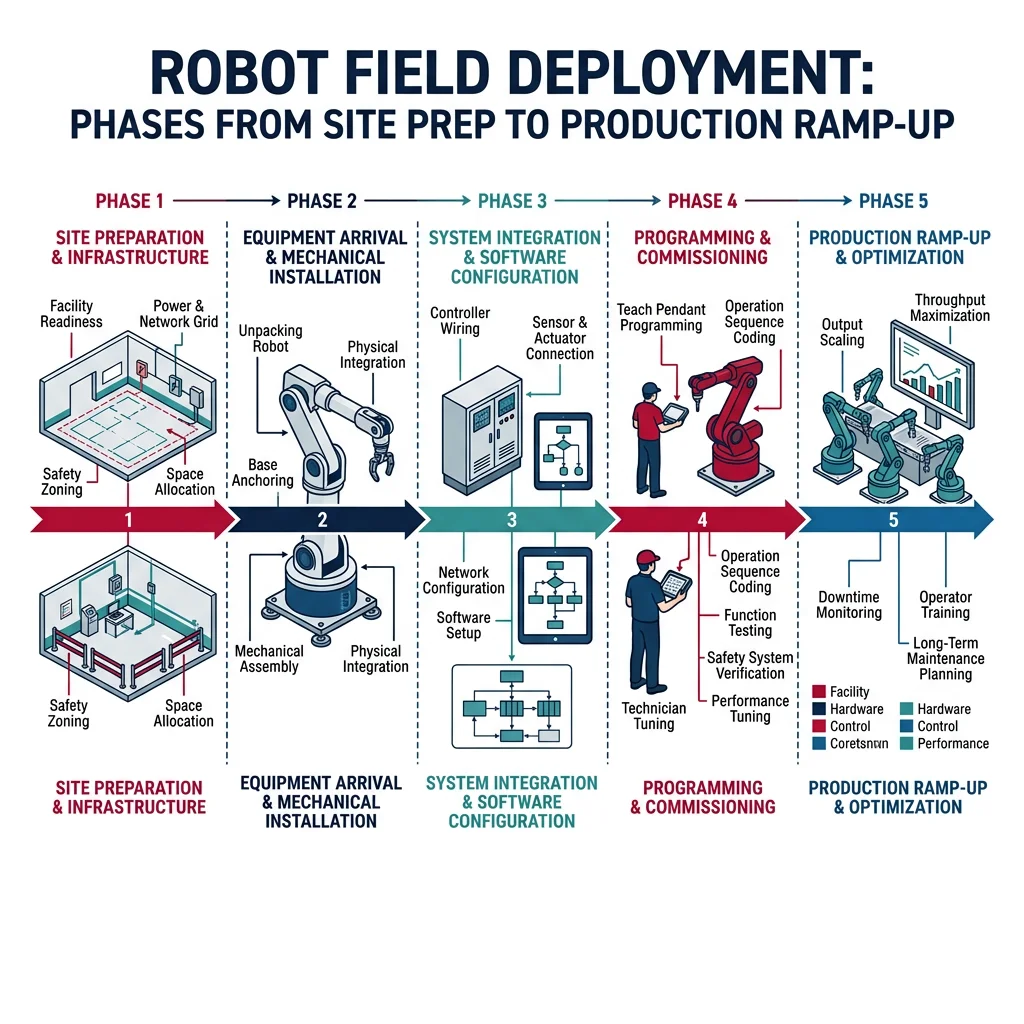

Installation & Commissioning

Commissioning is the structured process of verifying that a deployed robot meets its performance specifications at the customer site. It follows a formal protocol:

Phase	Activities	Duration	Deliverable
Site Preparation	Power, air, network, floor anchorage, safety fencing	1–2 weeks	Site readiness certificate
Mechanical Install	Unpack, position, bolt down, connect utilities	1–3 days	Installation checklist
Electrical/Network	Wire I/O, configure network, connect PLCs	1–3 days	I/O test report
Software Deployment	Load firmware, calibrate sensors, configure params	1–2 days	Calibration certificates
FAT (Factory Acceptance)	Run standard test procedures at manufacturer	1 day	FAT report (signed)
SAT (Site Acceptance)	Run customer-specific test procedures at site	1–3 days	SAT report (signed)
Operator Training	Normal operation, fault recovery, maintenance	2–5 days	Training sign-off
Ramp-Up	Gradual increase to full production speed	1–4 weeks	Production readiness report

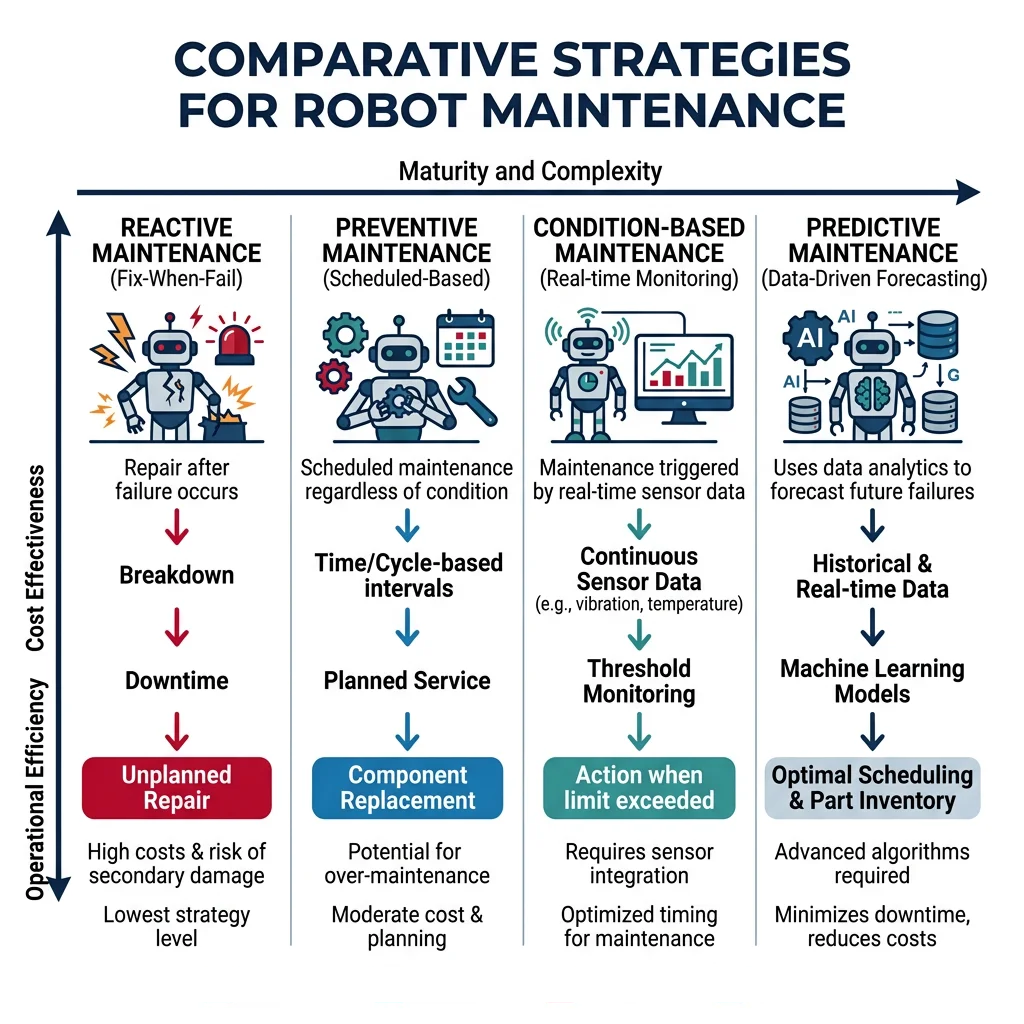

Remote Monitoring & Telemetry

Once deployed, robots need continuous monitoring to detect degradation, predict failures, and optimize performance. Modern robot fleets stream telemetry data to cloud dashboards for real-time visibility across hundreds of deployed units.

import json
from datetime import datetime, timedelta
import random

class RobotTelemetryCollector:
    """Collect and analyze robot health telemetry data."""

    def __init__(self, robot_id, location):
        self.robot_id = robot_id
        self.location = location
        self.telemetry_log = []

    def collect_sample(self):
        """Simulate collecting one telemetry sample."""
        sample = {
            "timestamp": datetime.now().isoformat(),
            "robot_id": self.robot_id,
            "location": self.location,
            "joint_temperatures_C": [round(40 + random.gauss(0, 3), 1) for _ in range(6)],
            "motor_currents_A": [round(2.5 + random.gauss(0, 0.5), 2) for _ in range(6)],
            "cycle_time_s": round(3.2 + random.gauss(0, 0.1), 3),
            "vibration_rms_g": round(0.15 + random.gauss(0, 0.02), 4),
            "cpu_load_pct": round(45 + random.gauss(0, 8), 1),
            "network_latency_ms": round(5 + random.gauss(0, 2), 1),
            "uptime_hours": round(random.uniform(0, 720), 1),
            "error_count_24h": random.randint(0, 3)
        }
        self.telemetry_log.append(sample)
        return sample

    def health_check(self):
        """Analyze latest telemetry for anomalies."""
        if not self.telemetry_log:
            return {"status": "NO_DATA"}

        latest = self.telemetry_log[-1]
        alerts = []

        max_temp = max(latest["joint_temperatures_C"])
        if max_temp > 55:
            alerts.append(f"HIGH_TEMP: Joint at {max_temp}°C (limit: 55°C)")

        if latest["vibration_rms_g"] > 0.25:
            alerts.append(f"HIGH_VIBRATION: {latest['vibration_rms_g']}g (limit: 0.25g)")

        if latest["cycle_time_s"] > 3.8:
            alerts.append(f"SLOW_CYCLE: {latest['cycle_time_s']}s (target: 3.5s)")

        if latest["error_count_24h"] > 5:
            alerts.append(f"ERROR_RATE: {latest['error_count_24h']} errors/24h")

        status = "CRITICAL" if len(alerts) > 2 else "WARNING" if alerts else "HEALTHY"
        return {"status": status, "alerts": alerts, "robot_id": self.robot_id}

# Simulate fleet monitoring
fleet = [
    RobotTelemetryCollector("ARM-001", "Assembly Line A"),
    RobotTelemetryCollector("ARM-002", "Assembly Line A"),
    RobotTelemetryCollector("ARM-003", "Welding Cell B"),
]

print("Robot Fleet Health Dashboard")
print("=" * 50)
for robot in fleet:
    robot.collect_sample()
    health = robot.health_check()
    icon = {"HEALTHY": "🟢", "WARNING": "🟡", "CRITICAL": "🔴"}.get(health["status"], "⚪")
    print(f"\n{icon} {health['robot_id']} ({robot.location}): {health['status']}")
    if health.get("alerts"):
        for alert in health["alerts"]:
            print(f"   âš  {alert}")
    else:
        print("   All parameters nominal")

Diagnostics & Troubleshooting

When a deployed robot fails, every minute of downtime costs money. Effective diagnostics require structured fault trees, comprehensive logging, and remote access capabilities.

Lifecycle Management

A robot's lifecycle extends far beyond deployment. Industrial robots operate for 10–15 years, requiring planned maintenance, software updates, component replacements, and eventually decommissioning. Total Cost of Ownership (TCO) over the lifecycle often exceeds the purchase price by 3–5×.

Maintenance Strategies

Strategy	Approach	Cost	Downtime	Best For
Reactive	Fix when it breaks	Low (initially)	High, unplanned	Non-critical, cheap equipment
Preventive (PM)	Scheduled intervals (time/cycle-based)	Medium	Planned, predictable	Standard industrial equipment
Condition-Based (CBM)	Monitor degradation indicators	Medium-High	Low, targeted	Expensive components (gearboxes)
Predictive (PdM)	ML models predict failure time	High (setup)	Minimal	Critical production equipment

import numpy as np
import matplotlib.pyplot as plt

def predict_remaining_life(vibration_history, threshold=0.5, fit_order=2):
    """Predict remaining useful life from vibration trend data.
    Uses polynomial curve fitting to extrapolate degradation trend.
    """
    t = np.arange(len(vibration_history))
    coeffs = np.polyfit(t, vibration_history, fit_order)
    poly = np.poly1d(coeffs)

    # Extrapolate to find when threshold is crossed
    t_future = np.arange(len(vibration_history), len(vibration_history) + 500)
    predicted = poly(t_future)

    cross_idx = np.where(predicted >= threshold)[0]
    if len(cross_idx) > 0:
        rul = cross_idx[0]  # days until failure
    else:
        rul = 500  # beyond prediction horizon

    return rul, poly, t_future, predicted

# Simulated vibration degradation data (6 months of daily readings)
np.random.seed(42)
days = 180
t = np.arange(days)
# Exponential degradation with noise
vibration = 0.1 + 0.001 * t + 0.00005 * t**2 + np.random.normal(0, 0.01, days)

rul, model, t_future, predicted = predict_remaining_life(vibration, threshold=0.5)

plt.figure(figsize=(10, 5))
plt.plot(t, vibration, 'b.', alpha=0.5, markersize=3, label='Measured Vibration')
plt.plot(t_future, predicted, 'r--', linewidth=1.5, label='Predicted Trend')
plt.axhline(y=0.5, color='orange', linestyle='-', linewidth=2, label='Failure Threshold')
plt.axvline(x=days + rul, color='green', linestyle=':', linewidth=2,
            label=f'Predicted Failure: Day {days + rul}')
plt.fill_betweenx([0, 0.7], days, days + rul, alpha=0.1, color='green')
plt.xlabel('Days Since Installation')
plt.ylabel('Vibration RMS (g)')
plt.title(f'Predictive Maintenance: Remaining Useful Life = {rul} days')
plt.legend()
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
print(f"Current vibration: {vibration[-1]:.3f}g")
print(f"Threshold: 0.500g")
print(f"Predicted failure in: {rul} days")
print(f"Recommended maintenance window: {max(0, rul - 30)} - {rul - 7} days from now")

Upgrades & Retrofits

Robotic systems evolve over their lifetime. Software upgrades (new algorithms, bug fixes, security patches) are relatively low-risk. Hardware retrofits (adding sensors, upgrading controllers, replacing end-effectors) require careful planning to avoid breaking existing functionality.

Decommissioning & Disposal

When a robot reaches end-of-life, decommissioning involves: (1) data backup and IP protection — erase proprietary algorithms and production data, (2) environmental compliance — batteries (Li-ion hazardous waste), lubricants, hydraulic fluids require certified disposal, (3) salvage assessment — motors, sensors, and controllers can often be refurbished for secondary markets, and (4) site restoration — remove foundations, fencing, and utility connections.

Integration Checklist Planner

Use this tool to plan your robot systems integration project. Capture the system name, architecture pattern, testing strategy, deployment site details, and export a structured checklist document.

Exercises & Challenges

Conclusion & Next Steps

Systems integration is the discipline that transforms individual subsystems into a reliable, deployable robot. The key principles to remember:
