Robotics & Automation Series Part 13: Mobile Robotics

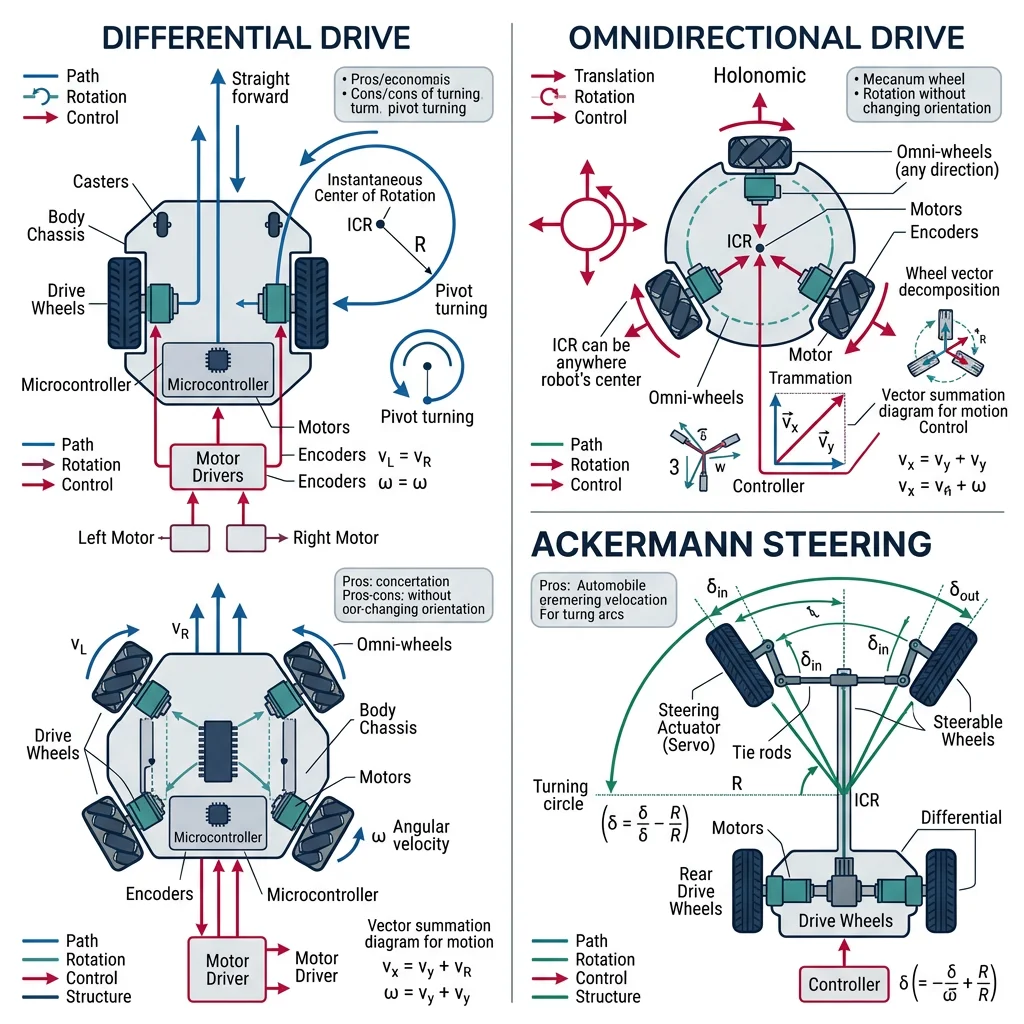

Wheeled Robots

Mobile robots must solve a fundamental problem that fixed industrial robots never face: where am I, and how do I get there? The answer depends on the locomotion system. Wheels are efficient on flat surfaces, legs handle rough terrain, and each configuration has unique kinematic constraints.

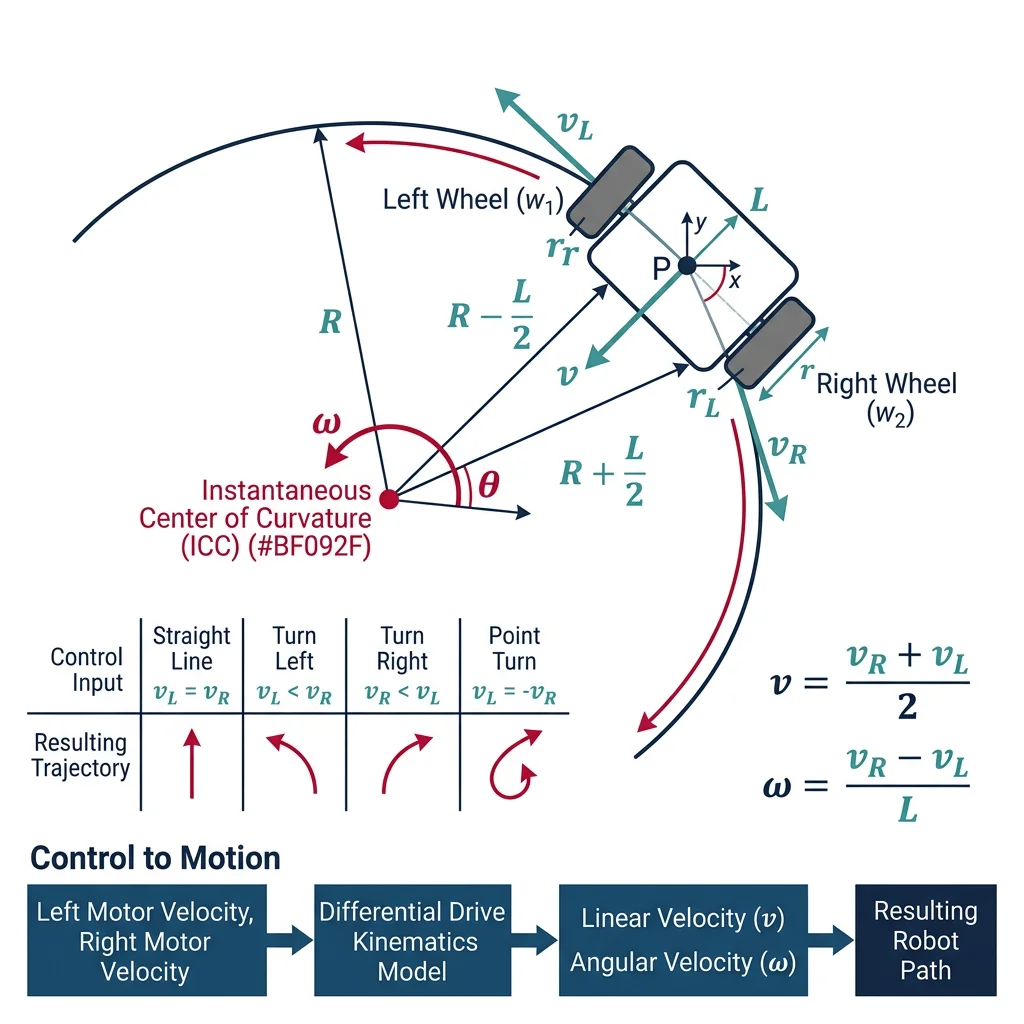

The differential drive is the most common mobile robot configuration. Two drive wheels with independent motors produce motion and steering through speed differences. The kinematics are elegantly simple:

import math

class DifferentialDriveRobot:
    """Differential drive mobile robot kinematics"""

    def __init__(self, wheel_radius, wheel_base):
        self.R = wheel_radius       # meters
        self.L = wheel_base         # distance between wheels (meters)
        self.x = 0.0                # position x (meters)
        self.y = 0.0                # position y (meters)
        self.theta = 0.0            # heading (radians)
        self.path = [(0, 0)]

    def forward_kinematics(self, omega_left, omega_right, dt):
        """
        Given wheel angular velocities (rad/s), compute new pose.
        v = R * (ωR + ωL) / 2      — linear velocity
        ω = R * (ωR - ωL) / L      — angular velocity
        """
        v_left = self.R * omega_left
        v_right = self.R * omega_right

        v = (v_right + v_left) / 2.0       # linear velocity
        omega = (v_right - v_left) / self.L # angular velocity

        # Update pose using ICC (Instantaneous Center of Curvature)
        if abs(omega) < 1e-6:  # Straight line
            self.x += v * math.cos(self.theta) * dt
            self.y += v * math.sin(self.theta) * dt
        else:
            # Arc motion
            r = v / omega  # turning radius
            self.x += r * (math.sin(self.theta + omega * dt) - math.sin(self.theta))
            self.y -= r * (math.cos(self.theta + omega * dt) - math.cos(self.theta))
            self.theta += omega * dt

        self.theta = self.theta % (2 * math.pi)
        self.path.append((round(self.x, 3), round(self.y, 3)))

        return {'x': round(self.x, 3), 'y': round(self.y, 3),
                'theta_deg': round(math.degrees(self.theta), 1),
                'v': round(v, 3), 'omega': round(omega, 3)}

    def inverse_kinematics(self, v_desired, omega_desired):
        """Given desired v and ω, compute wheel speeds"""
        v_right = v_desired + (omega_desired * self.L / 2)
        v_left = v_desired - (omega_desired * self.L / 2)

        omega_right = v_right / self.R
        omega_left = v_left / self.R

        return {'omega_left': round(omega_left, 3),
                'omega_right': round(omega_right, 3)}

# Create robot: 5cm wheel radius, 30cm wheelbase
robot = DifferentialDriveRobot(wheel_radius=0.05, wheel_base=0.30)

# Drive forward for 2 seconds (both wheels same speed)
print("=== Differential Drive Simulation ===\n")
print("Stage 1: Drive straight (2s)")
for t in range(20):
    pose = robot.forward_kinematics(omega_left=10, omega_right=10, dt=0.1)

print(f"  Position: ({pose['x']}, {pose['y']}) m, Heading: {pose['theta_deg']}°")

# Turn right (left wheel faster)
print("\nStage 2: Turn right (1s)")
for t in range(10):
    pose = robot.forward_kinematics(omega_left=10, omega_right=5, dt=0.1)

print(f"  Position: ({pose['x']}, {pose['y']}) m, Heading: {pose['theta_deg']}°")

# Inverse kinematics: what wheel speeds for v=0.5 m/s, ω=1 rad/s?
ik = robot.inverse_kinematics(v_desired=0.5, omega_desired=1.0)
print(f"\nInverse Kinematics (v=0.5 m/s, ω=1.0 rad/s):")
print(f"  Left wheel: {ik['omega_left']} rad/s, Right wheel: {ik['omega_right']} rad/s")

Ackermann Steering

Ackermann steering is the geometry used in cars and car-like robots. The inner wheel turns more sharply than the outer wheel, ensuring both wheels trace concentric circles around the same turn center — preventing tire scrubbing.

import math

class AckermannRobot:
    """Car-like robot with Ackermann steering geometry"""

    def __init__(self, wheelbase, track_width):
        self.L = wheelbase          # front-to-rear axle distance
        self.T = track_width        # distance between left-right wheels
        self.x = 0.0
        self.y = 0.0
        self.theta = 0.0            # heading
        self.max_steer = math.radians(35)  # max steering angle

    def compute_steering(self, desired_radius):
        """
        Ackermann geometry: compute inner and outer wheel angles
        for a desired turning radius.
        """
        if abs(desired_radius) < self.L:
            print("  Warning: Turning radius too small!")
            desired_radius = self.L * 1.5

        # Average steering angle
        delta_avg = math.atan(self.L / desired_radius)

        # Inner and outer wheel angles (Ackermann correction)
        delta_inner = math.atan(self.L / (desired_radius - self.T / 2))
        delta_outer = math.atan(self.L / (desired_radius + self.T / 2))

        return {
            'avg_angle_deg': round(math.degrees(delta_avg), 1),
            'inner_angle_deg': round(math.degrees(delta_inner), 1),
            'outer_angle_deg': round(math.degrees(delta_outer), 1),
            'turn_radius': round(desired_radius, 2)
        }

    def bicycle_model_update(self, speed, steering_angle, dt):
        """Simplified bicycle model for motion prediction"""
        steering_angle = max(-self.max_steer, min(self.max_steer, steering_angle))

        self.x += speed * math.cos(self.theta) * dt
        self.y += speed * math.sin(self.theta) * dt
        self.theta += (speed / self.L) * math.tan(steering_angle) * dt

        return {'x': round(self.x, 3), 'y': round(self.y, 3),
                'theta_deg': round(math.degrees(self.theta), 1)}

# Create car-like robot (wheelbase=2.5m, track=1.5m)
car = AckermannRobot(wheelbase=2.5, track_width=1.5)

# Compute steering for different turning radii
print("=== Ackermann Steering Geometry ===\n")
for radius in [5, 10, 20, 50]:
    result = car.compute_steering(radius)
    print(f"Radius {radius}m: Inner={result['inner_angle_deg']}°, "
          f"Outer={result['outer_angle_deg']}°, Avg={result['avg_angle_deg']}°")

# Simulate driving in a curve
print("\n=== Bicycle Model Simulation ===")
car2 = AckermannRobot(wheelbase=2.5, track_width=1.5)
steer = math.radians(15)  # 15° steering

for t in range(10):
    pose = car2.bicycle_model_update(speed=5.0, steering_angle=steer, dt=0.5)
    if t % 3 == 0:
        print(f"  t={t*0.5:.1f}s: ({pose['x']}, {pose['y']}) heading={pose['theta_deg']}°")

Holonomic & Omnidirectional Platforms

A holonomic robot can move in any direction at any time without needing to turn first. This requires special wheels — either Mecanum wheels (angled rollers at 45°) or omni wheels (perpendicular rollers). Holonomic platforms are ideal for warehouses, where robots need to navigate tight aisles.

import math

class MecanumRobot:
    """4-wheel Mecanum drive (holonomic platform)"""

    def __init__(self, wheel_radius, lx, ly):
        self.R = wheel_radius       # wheel radius
        self.lx = lx                # half-distance between front/rear axles
        self.ly = ly                # half-distance between left/right wheels
        self.x = 0.0
        self.y = 0.0
        self.theta = 0.0

    def inverse_kinematics(self, vx, vy, omega):
        """
        Compute individual wheel speeds from desired body velocity.
        Mecanum inverse kinematics (45° roller angle):
        ω1 = (vx - vy - (lx+ly)ω) / R   (front-left)
        ω2 = (vx + vy + (lx+ly)ω) / R   (front-right)
        ω3 = (vx + vy - (lx+ly)ω) / R   (rear-left)
        ω4 = (vx - vy + (lx+ly)ω) / R   (rear-right)
        """
        k = self.lx + self.ly
        w1 = (vx - vy - k * omega) / self.R  # Front-Left
        w2 = (vx + vy + k * omega) / self.R  # Front-Right
        w3 = (vx + vy - k * omega) / self.R  # Rear-Left
        w4 = (vx - vy + k * omega) / self.R  # Rear-Right

        return [round(w, 2) for w in [w1, w2, w3, w4]]

    def update(self, vx, vy, omega, dt):
        """Update pose from body-frame velocities"""
        # Transform body velocities to world frame
        cos_t = math.cos(self.theta)
        sin_t = math.sin(self.theta)

        self.x += (vx * cos_t - vy * sin_t) * dt
        self.y += (vx * sin_t + vy * cos_t) * dt
        self.theta += omega * dt

        return {'x': round(self.x, 3), 'y': round(self.y, 3),
                'theta_deg': round(math.degrees(self.theta), 1)}

# Create Mecanum robot
mec = MecanumRobot(wheel_radius=0.05, lx=0.15, ly=0.20)

# Movement commands
print("=== Mecanum Drive: Omnidirectional Motion ===\n")
commands = [
    ('Forward',      0.5,  0.0,  0.0),
    ('Strafe Right',  0.0,  0.5,  0.0),
    ('Diagonal',     0.5,  0.5,  0.0),
    ('Spin in place', 0.0,  0.0,  1.0),
    ('Forward+Turn', 0.5,  0.0,  0.5),
]

for name, vx, vy, omega in commands:
    wheels = mec.inverse_kinematics(vx, vy, omega)
    print(f"{name:15s} (vx={vx}, vy={vy}, ω={omega})")
    print(f"  Wheels [FL, FR, RL, RR]: {wheels} rad/s\n")

Legged Robots

Legged robots sacrifice the efficiency of wheels for the versatility of legs. They can step over obstacles, climb stairs, traverse rubble, and navigate terrain that would immobilize any wheeled platform. The trade-off is dramatically increased mechanical and computational complexity.

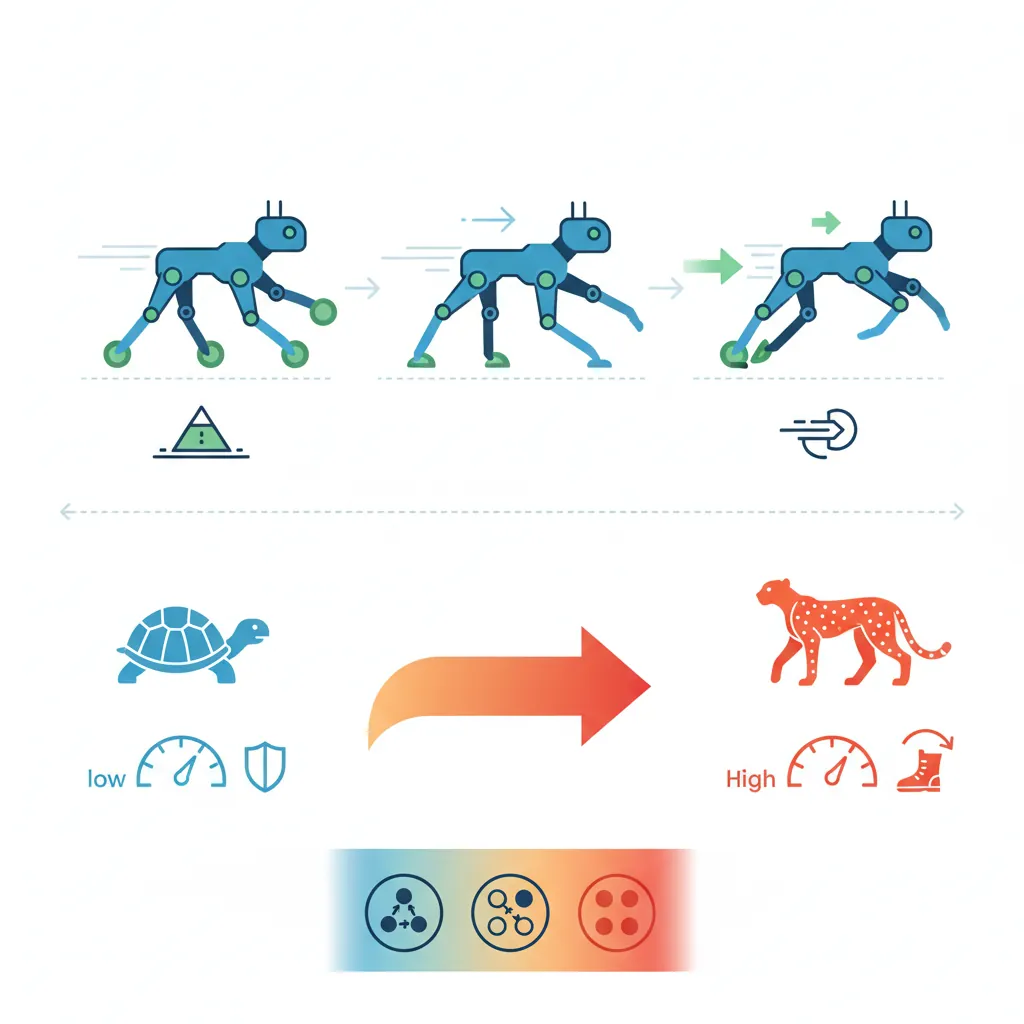

Quadruped Robots

Quadruped robots like Boston Dynamics' Spot have become commercially viable for inspection, construction monitoring, and hazardous environments. Their stability comes from having up to three support points at any time.

import math

class QuadrupedGait:
    """Quadruped gait pattern generator"""

    # Standard gait patterns (phase offsets for each leg)
    GAITS = {
        'walk': {
            'description': 'Slow, statically stable — 3 legs always grounded',
            'phases': [0.0, 0.5, 0.75, 0.25],  # FL, FR, RL, RR
            'duty_factor': 0.75,  # % of cycle each foot is on ground
            'speed': 'slow'
        },
        'trot': {
            'description': 'Diagonal pairs move together — fastest stable gait',
            'phases': [0.0, 0.5, 0.5, 0.0],
            'duty_factor': 0.5,
            'speed': 'medium'
        },
        'pace': {
            'description': 'Same-side pairs move together — lateral rocking',
            'phases': [0.0, 0.5, 0.0, 0.5],
            'duty_factor': 0.5,
            'speed': 'medium'
        },
        'gallop': {
            'description': 'All legs different phase — fastest but dynamically unstable',
            'phases': [0.0, 0.1, 0.5, 0.6],
            'duty_factor': 0.3,
            'speed': 'fast'
        }
    }

    def __init__(self):
        self.leg_names = ['Front-Left', 'Front-Right', 'Rear-Left', 'Rear-Right']

    def generate_gait(self, gait_name, num_steps=8):
        """Generate gait timing diagram"""
        gait = self.GAITS[gait_name]
        print(f"\nGait: {gait_name.upper()} — {gait['description']}")
        print(f"Duty Factor: {gait['duty_factor']*100:.0f}% | Speed: {gait['speed']}")
        print(f"\nTiming Diagram (â–ˆ=stance/ground, â–‘=swing/air):")

        for i, leg in enumerate(self.leg_names):
            phase = gait['phases'][i]
            duty = gait['duty_factor']

            # Generate timing pattern
            pattern = ''
            for step in range(num_steps * 4):
                t = (step / (num_steps * 4) + phase) % 1.0
                if t < duty:
                    pattern += 'â–ˆ'
                else:
                    pattern += 'â–‘'

            print(f"  {leg:12s} |{pattern}|")

        # Calculate stability
        support_count = []
        for step in range(num_steps * 4):
            legs_on_ground = 0
            for i in range(4):
                t = (step / (num_steps * 4) + gait['phases'][i]) % 1.0
                if t < gait['duty_factor']:
                    legs_on_ground += 1
            support_count.append(legs_on_ground)

        min_support = min(support_count)
        stability = 'Static' if min_support >= 3 else 'Dynamic'
        print(f"\n  Min support legs: {min_support} → {stability} stability")

# Demonstrate all gaits
planner = QuadrupedGait()
for gait in ['walk', 'trot', 'pace', 'gallop']:
    planner.generate_gait(gait)

Gait Planning & Stability

Gait planning determines when each foot lifts and lands, while footstep planning determines where feet are placed. The key constraint is maintaining the Zero Moment Point (ZMP) within the support polygon — the convex hull of all ground contact points.

Autonomous Vehicles

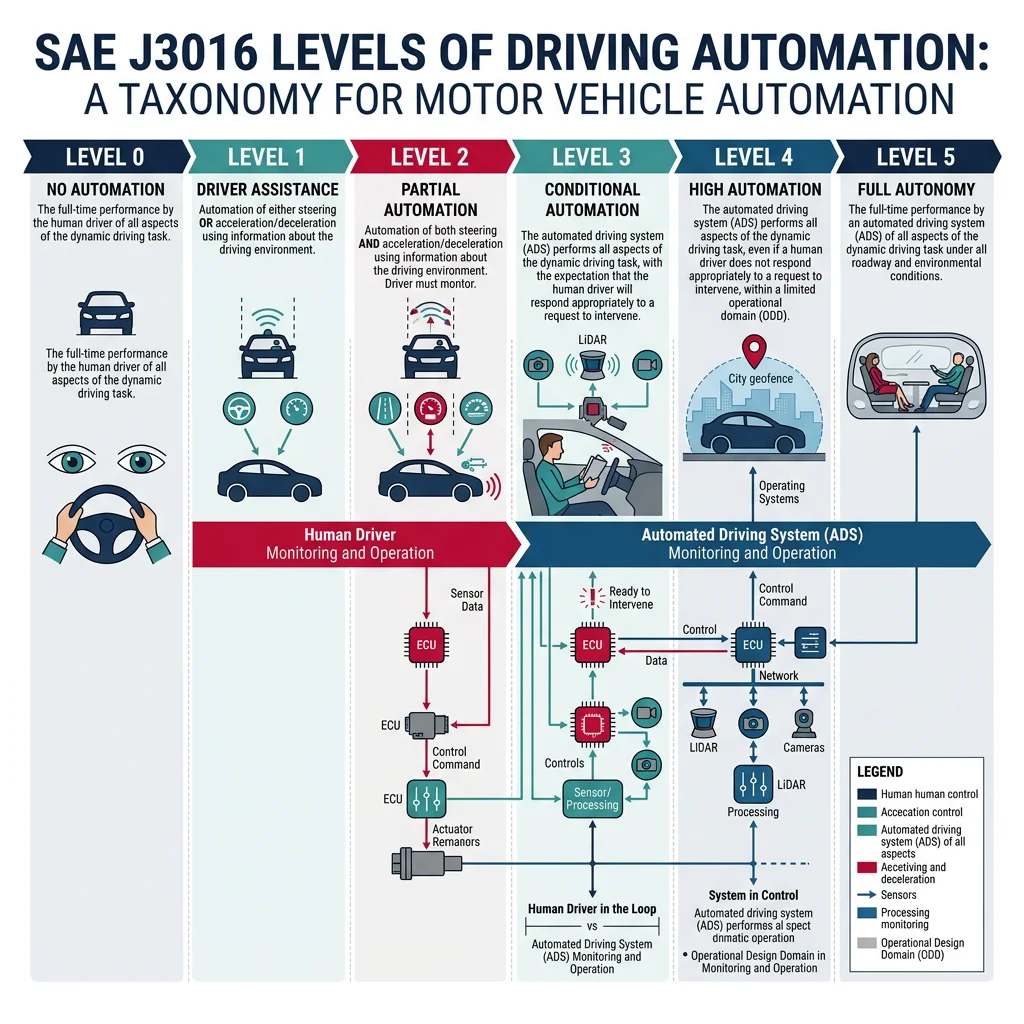

Autonomous vehicles (AVs) are the highest-profile application of mobile robotics. The SAE J3016 standard defines six levels of driving automation:

Sensor Suites

Autonomous vehicles fuse multiple sensor modalities because no single sensor is sufficient for all conditions. The industry debate between camera-only (Tesla's approach) and LiDAR + camera fusion (Waymo, Cruise) remains unresolved.

Localization & HD Mapping

Localization answers "where am I?" with centimeter accuracy. AVs combine GPS (which alone is only accurate to 1-2 meters) with HD maps, LiDAR matching, visual odometry, and IMU dead-reckoning for robust positioning.

import math
import random

class ParticleFilterLocalizer:
    """Monte Carlo Localization (particle filter) for mobile robots"""

    def __init__(self, num_particles, map_bounds):
        self.num_particles = num_particles
        self.map_bounds = map_bounds  # (x_min, x_max, y_min, y_max)

        # Initialize particles uniformly
        self.particles = []
        for _ in range(num_particles):
            p = {
                'x': random.uniform(map_bounds[0], map_bounds[1]),
                'y': random.uniform(map_bounds[2], map_bounds[3]),
                'theta': random.uniform(0, 2 * math.pi),
                'weight': 1.0 / num_particles
            }
            self.particles.append(p)

    def predict(self, v, omega, dt, noise_v=0.1, noise_omega=0.05):
        """Motion model: move particles forward with noise"""
        for p in self.particles:
            v_noisy = v + random.gauss(0, noise_v)
            omega_noisy = omega + random.gauss(0, noise_omega)

            p['x'] += v_noisy * math.cos(p['theta']) * dt
            p['y'] += v_noisy * math.sin(p['theta']) * dt
            p['theta'] += omega_noisy * dt

    def update(self, measurement, landmarks):
        """
        Sensor model: weight particles based on how well they
        explain the observed distances to landmarks.
        """
        for p in self.particles:
            weight = 1.0
            for i, (lx, ly) in enumerate(landmarks):
                expected_dist = math.hypot(lx - p['x'], ly - p['y'])
                observed_dist = measurement[i]

                # Gaussian likelihood
                sigma = 0.5  # sensor noise (meters)
                diff = expected_dist - observed_dist
                likelihood = math.exp(-0.5 * (diff / sigma) ** 2)
                weight *= max(likelihood, 1e-10)

            p['weight'] = weight

        # Normalize weights
        total = sum(p['weight'] for p in self.particles)
        for p in self.particles:
            p['weight'] /= total

    def resample(self):
        """Low-variance resampling"""
        new_particles = []
        r = random.uniform(0, 1.0 / self.num_particles)
        c = self.particles[0]['weight']
        i = 0

        for m in range(self.num_particles):
            u = r + m / self.num_particles
            while c < u:
                i += 1
                c += self.particles[i]['weight']

            new_p = dict(self.particles[i])
            new_p['weight'] = 1.0 / self.num_particles
            new_particles.append(new_p)

        self.particles = new_particles

    def estimate(self):
        """Weighted average of particles = best pose estimate"""
        x = sum(p['x'] * p['weight'] for p in self.particles)
        y = sum(p['y'] * p['weight'] for p in self.particles)

        sin_t = sum(math.sin(p['theta']) * p['weight'] for p in self.particles)
        cos_t = sum(math.cos(p['theta']) * p['weight'] for p in self.particles)
        theta = math.atan2(sin_t, cos_t)

        return {'x': round(x, 2), 'y': round(y, 2),
                'theta_deg': round(math.degrees(theta), 1)}

# Simulate particle filter localization
landmarks = [(0, 10), (10, 0), (10, 10), (5, 5)]  # Known landmark positions
true_pos = {'x': 3.0, 'y': 4.0, 'theta': 0.5}

# Create localizer with 500 particles in 15x15 map
localizer = ParticleFilterLocalizer(500, (0, 15, 0, 15))

# Simulate range measurements from true position to landmarks
measurements = [math.hypot(lx - true_pos['x'], ly - true_pos['y']) + random.gauss(0, 0.3)
                for lx, ly in landmarks]

print("=== Particle Filter Localization ===\n")
print(f"True Position: ({true_pos['x']}, {true_pos['y']})")
print(f"Landmarks: {landmarks}")
print(f"Range Measurements: {[round(m, 2) for m in measurements]}\n")

# Run prediction → update → resample cycle
for iteration in range(5):
    localizer.predict(v=0.5, omega=0.1, dt=0.1)
    localizer.update(measurements, landmarks)
    localizer.resample()
    est = localizer.estimate()
    error = math.hypot(est['x'] - true_pos['x'], est['y'] - true_pos['y'])
    print(f"Iteration {iteration+1}: est=({est['x']}, {est['y']}), error={error:.2f}m")

Drones & Maritime Robotics

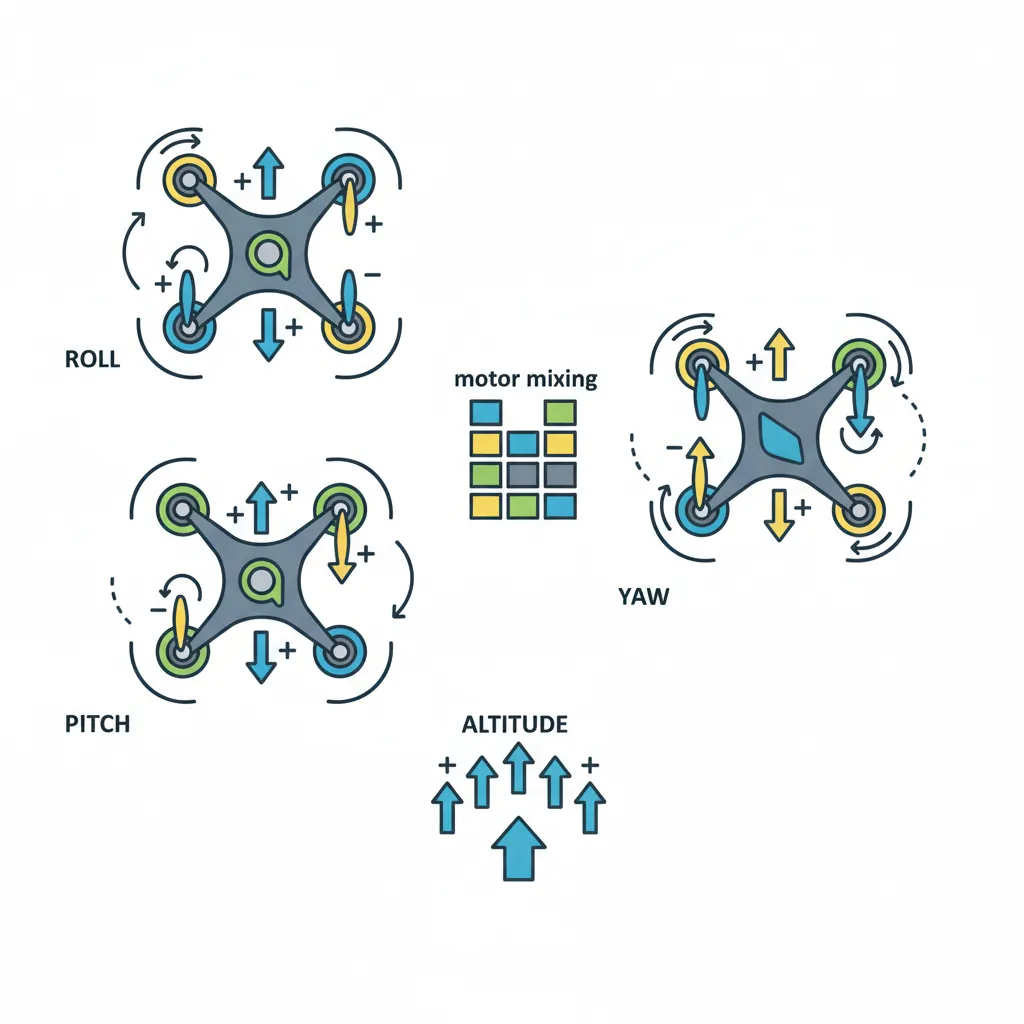

Unmanned Aerial Vehicles (UAVs) have transformed industries from agriculture to cinematography. Multirotor drones achieve flight through differential thrust — varying the speed of 4+ propellers to control roll, pitch, yaw, and altitude. Fixed-wing drones trade hovering capability for endurance and speed.

import math

class QuadcopterDynamics:
    """Simplified quadcopter flight dynamics model"""

    def __init__(self, mass_kg, arm_length_m):
        self.mass = mass_kg
        self.arm = arm_length_m
        self.g = 9.81               # gravity
        self.hover_thrust = mass_kg * self.g  # total thrust to hover

        # State: position, velocity, attitude
        self.z = 0.0                # altitude (m)
        self.vz = 0.0              # vertical velocity (m/s)
        self.roll = 0.0            # roll angle (rad)
        self.pitch = 0.0           # pitch angle (rad)
        self.yaw = 0.0             # yaw angle (rad)

    def motor_mixing(self, throttle, roll_cmd, pitch_cmd, yaw_cmd):
        """
        Convert pilot commands to individual motor speeds.
        Quadcopter X configuration:
            M1 (front-left, CCW)   M2 (front-right, CW)
            M3 (rear-left, CW)    M4 (rear-right, CCW)
        """
        m1 = throttle + roll_cmd + pitch_cmd - yaw_cmd
        m2 = throttle - roll_cmd + pitch_cmd + yaw_cmd
        m3 = throttle + roll_cmd - pitch_cmd + yaw_cmd
        m4 = throttle - roll_cmd - pitch_cmd - yaw_cmd

        # Clamp to [0, 1]
        motors = [max(0, min(1, m)) for m in [m1, m2, m3, m4]]
        return motors

    def update(self, motors, dt):
        """Simple altitude dynamics"""
        total_thrust = sum(motors) * self.hover_thrust / 2.0
        net_force = total_thrust - self.mass * self.g
        az = net_force / self.mass

        self.vz += az * dt
        self.z += self.vz * dt
        self.z = max(0, self.z)  # ground constraint

        return {
            'altitude': round(self.z, 2),
            'vz': round(self.vz, 2),
            'motors': [round(m, 3) for m in motors]
        }

# Create quadcopter (1.5kg, 25cm arm)
quad = QuadcopterDynamics(mass_kg=1.5, arm_length_m=0.25)

print("=== Quadcopter Motor Mixing ===\n")

commands = [
    ('Hover',       0.5,  0.0,  0.0,  0.0),
    ('Climb',       0.7,  0.0,  0.0,  0.0),
    ('Roll Right',  0.5, -0.1,  0.0,  0.0),
    ('Pitch Fwd',   0.5,  0.0,  0.1,  0.0),
    ('Yaw CW',      0.5,  0.0,  0.0,  0.1),
]

for name, throttle, roll, pitch, yaw in commands:
    motors = quad.motor_mixing(throttle, roll, pitch, yaw)
    print(f"{name:12s}: Motors [M1={motors[0]:.2f}, M2={motors[1]:.2f}, "
          f"M3={motors[2]:.2f}, M4={motors[3]:.2f}]")

# Simulate takeoff
print("\n=== Takeoff Simulation ===")
quad2 = QuadcopterDynamics(mass_kg=1.5, arm_length_m=0.25)

for t in range(20):
    throttle = 0.65 if t < 10 else 0.50  # climb then hover
    motors = quad2.motor_mixing(throttle, 0, 0, 0)
    state = quad2.update(motors, dt=0.1)
    if t % 4 == 0:
        print(f"  t={t*0.1:.1f}s: alt={state['altitude']}m, vz={state['vz']}m/s")

Marine & Underwater Robotics

Autonomous Underwater Vehicles (AUVs) and Remotely Operated Vehicles (ROVs) face unique challenges: GPS doesn't work underwater (radio waves barely penetrate water), pressure increases ~1 atmosphere per 10 meters, and saltwater corrodes electronics. Navigation relies on acoustic transponders, inertial navigation, and Doppler velocity logs.

Field Deployment Strategies

Deploying mobile robots in the real world requires solving problems that don't exist in the lab: GPS denial (indoors, urban canyons), dynamic obstacles (pedestrians, vehicles), weather (rain, fog, dust), and communication loss (network dead zones).

Mobile Robot Planner Tool

Use this tool to design a mobile robot platform — document your locomotion type, sensor suite, navigation strategy, and deployment environment, then download the design as Word, Excel, or PDF.

Exercises & Challenges

Conclusion & Next Steps

Mobile robotics unlocks the full potential of autonomous systems — taking robots beyond fixed installations into the dynamic, unstructured real world. You've explored wheeled locomotion from differential drive to holonomic Mecanum platforms, legged robots with quadruped gait planning and stability analysis, autonomous vehicles with sensor fusion and particle filter localization, and aerial and marine robots that extend robotics into sky and sea.

The common thread across all mobile platforms is the sense-plan-act loop: perceive the environment (sensors + localization), plan a path (navigation), and execute motion (locomotion control). Mastering these fundamentals prepares you for any mobile robotics domain.
