Coordinate Frames & Transformations

Series Overview: This is Part 4 of our 18-part Robotics & Automation Series. Here we tackle the essential mathematics that describe how robots move through space — the foundation for all motion planning and control.

Robotics & Automation Mastery

Your 18-step learning path • Currently on Step 4
Introduction to Robotics
History, types, DOF, architectures, mechatronics, ethics
Sensors & Perception Systems
Encoders, IMUs, LiDAR, cameras, sensor fusion, Kalman filters, SLAM
Actuators & Motion Control
DC/servo/stepper motors, hydraulics, drivers, gear systems
4
Kinematics (Forward & Inverse)
DH parameters, transformations, Jacobians, workspace analysis
You Are Here
5
Dynamics & Robot Modeling
Newton-Euler, Lagrangian, inertia, friction, contact modeling
6
Control Systems & PID
PID tuning, state-space, LQR, MPC, adaptive & robust control
7
Embedded Systems & Microcontrollers
Arduino, STM32, RTOS, PWM, serial protocols, FPGA
8
Robot Operating Systems (ROS)
ROS2, nodes, topics, Gazebo, URDF, navigation stacks
9
Computer Vision for Robotics
Calibration, stereo vision, object recognition, visual SLAM
10
AI Integration & Autonomous Systems
ML, reinforcement learning, path planning, swarm robotics
11
Human-Robot Interaction (HRI)
Cobots, gesture/voice control, safety standards, social robotics
12
Industrial Robotics & Automation
PLC, SCADA, Industry 4.0, smart factories, digital twins
13
Mobile Robotics
Wheeled/legged robots, autonomous vehicles, drones, marine robotics
14
Safety, Reliability & Compliance
Functional safety, redundancy, ISO standards, cybersecurity
15
Advanced & Emerging Robotics
Soft robotics, bio-inspired, surgical, space, nano-robotics
16
Systems Integration & Deployment
HW/SW co-design, testing, field deployment, lifecycle
17
Robotics Business & Strategy
Startups, product-market fit, manufacturing, go-to-market
18
Complete Robotics System Project
Autonomous rover, pick-and-place arm, delivery robot, swarm sim

Before a robot can move to a desired location, it must understand where things are. In robotics, we describe the position and orientation of every link, joint, and tool using coordinate frames — imagine attaching a tiny set of XYZ axes to each part of the robot.

Everyday Analogy: Think of giving directions. "The coffee shop is 3 blocks east and 2 blocks north" only makes sense if both people agree on where "east" and "north" point. Coordinate frames are the robotics equivalent — they define the shared language of position and orientation.

Right-Hand Rule & Frame Conventions

Robotics universally uses the right-hand coordinate system: point your right index finger along X, curl your fingers toward Y, and your thumb points along Z. Every frame in a robot chain follows this convention.

FrameSymbolDescriptionExample
World / Base{0}Fixed reference frame, usually at robot baseFactory floor origin
Joint Frame{i}Attached to each joint axisShoulder, elbow, wrist
End-Effector{n}Attached to the tool tipGripper, welding torch
Object Frame{obj}Attached to a workpiece or targetPart on conveyor
Camera Frame{cam}Attached to a vision sensorEye-in-hand camera

2D and 3D Rotations

Rotation matrices describe how one frame is oriented relative to another. In 2D, rotation by angle θ around the Z-axis is:

2D Rotation Matrix:
R(θ) = [[cos θ, −sin θ], [sin θ, cos θ]]

Properties: R is orthogonal (RT = R−1), det(R) = 1, columns are unit vectors

In 3D, we have three elementary rotation matrices — one for each axis:

import numpy as np

def rot_x(theta):
    """Rotation matrix about X-axis by theta radians."""
    c, s = np.cos(theta), np.sin(theta)
    return np.array([
        [1,  0,  0],
        [0,  c, -s],
        [0,  s,  c]
    ])

def rot_y(theta):
    """Rotation matrix about Y-axis by theta radians."""
    c, s = np.cos(theta), np.sin(theta)
    return np.array([
        [ c, 0, s],
        [ 0, 1, 0],
        [-s, 0, c]
    ])

def rot_z(theta):
    """Rotation matrix about Z-axis by theta radians."""
    c, s = np.cos(theta), np.sin(theta)
    return np.array([
        [c, -s, 0],
        [s,  c, 0],
        [0,  0, 1]
    ])

# Example: Rotate 45 degrees about Z
angle = np.radians(45)
R = rot_z(angle)
print("Rotation matrix (Z, 45°):")
print(np.round(R, 4))

# Verify orthogonality: R^T * R = I
identity_check = R.T @ R
print("\nR^T @ R (should be identity):")
print(np.round(identity_check, 4))

# Verify determinant = 1
print(f"\ndet(R) = {np.linalg.det(R):.4f}")

Euler Angles vs. Quaternions

There are multiple ways to represent 3D orientation, each with trade-offs:

RepresentationParametersProsCons
Rotation Matrix9 (3×3)Direct transformation, no singularitiesRedundant (6 constraints), expensive
Euler Angles (ZYX)3 (φ, θ, ψ)Intuitive (roll, pitch, yaw)Gimbal lock at θ = ±90°
Axis-Angle4 (k̂, θ)Compact, physical meaningInterpolation not straightforward
Quaternions4 (w, x, y, z)No gimbal lock, smooth interpolationLess intuitive, unit constraint
Gimbal Lock Warning: Euler angles suffer from gimbal lock — when the middle rotation reaches ±90°, two axes align and you lose a degree of freedom. This is why aerospace and robotics prefer quaternions for orientation tracking. The Apollo 11 mission actually experienced gimbal lock concerns during lunar approach!

Homogeneous Transformations

To combine rotation and translation into a single mathematical operation, we use 4×4 homogeneous transformation matrices. This elegant trick lets us chain multiple transformations by simple matrix multiplication.

Structure of a Homogeneous Transformation:
T = [[R(3×3), p(3×1)], [0 0 0, 1]]

Where R is the rotation matrix and p = [px, py, pz]T is the translation vector.
import numpy as np

def homogeneous_transform(R, p):
    """Create a 4x4 homogeneous transformation matrix.

    Args:
        R: 3x3 rotation matrix
        p: 3-element translation vector [x, y, z]
    Returns:
        4x4 homogeneous transformation matrix
    """
    T = np.eye(4)
    T[:3, :3] = R
    T[:3, 3] = p
    return T

def rot_z(theta):
    c, s = np.cos(theta), np.sin(theta)
    return np.array([[c, -s, 0], [s, c, 0], [0, 0, 1]])

# Example: Frame {1} is rotated 30° about Z and translated [2, 1, 0]
angle = np.radians(30)
R_01 = rot_z(angle)
p_01 = np.array([2.0, 1.0, 0.0])
T_01 = homogeneous_transform(R_01, p_01)

print("T_01 (Frame 0 to Frame 1):")
print(np.round(T_01, 4))

# Transform a point from frame {1} to frame {0}
point_in_1 = np.array([1.0, 0.0, 0.0, 1.0])  # [x, y, z, 1]
point_in_0 = T_01 @ point_in_1
print(f"\nPoint [1,0,0] in frame 1 = {np.round(point_in_0[:3], 4)} in frame 0")

# Inverse transformation: T^-1
T_10 = np.linalg.inv(T_01)
print("\nT_10 (inverse):")
print(np.round(T_10, 4))

# Verify: T_01 @ T_10 = I
print("\nT_01 @ T_10 (should be identity):")
print(np.round(T_01 @ T_10, 4))

The power of homogeneous transforms is composition: to find the pose of the end-effector relative to the base, we simply multiply the transforms for each joint in the chain:

Chain Rule: T0n = T01 · T12 · T23 · ... · T(n-1)n

Each Ti-1,i describes how frame {i} relates to frame {i-1}. Multiplying them gives the full base-to-tool transformation.

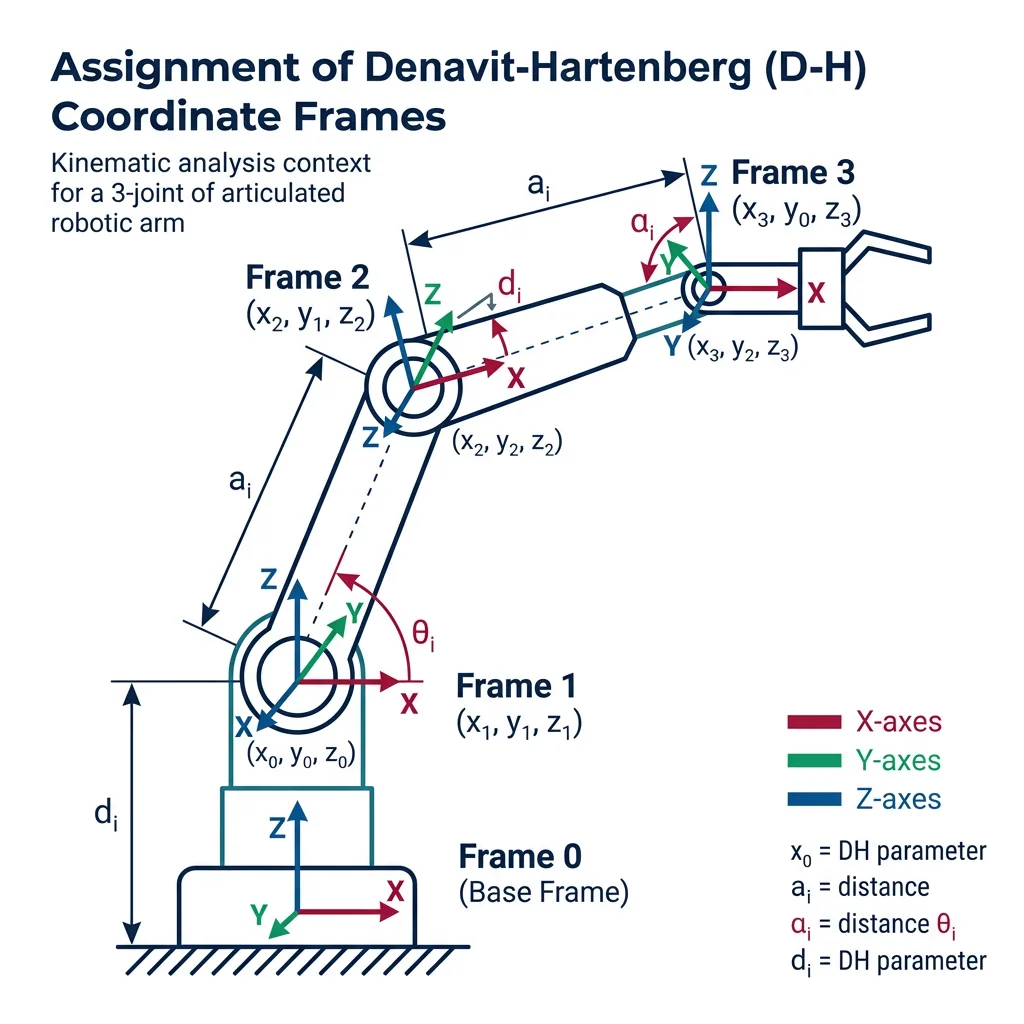

Denavit-Hartenberg Parameters

In 1955, Jacques Denavit and Richard Hartenberg introduced a systematic convention for assigning coordinate frames to robot links that requires only 4 parameters per joint instead of the general 6. This convention — called DH parameters — remains the standard method for describing robot geometry.

Historical Context: Why DH Matters

Kinematics Standard Since 1955

Before DH, each roboticist would assign frames differently, making it impossible to share kinematic models. DH parameters created a universal language: given the 4 parameters for each joint, any roboticist can reconstruct the exact geometry, simulate the robot, and compute its motion. Today, every robot datasheet and every simulation tool (ROS URDF, MATLAB Robotics Toolbox, Peter Corke's toolbox) uses DH parameters.

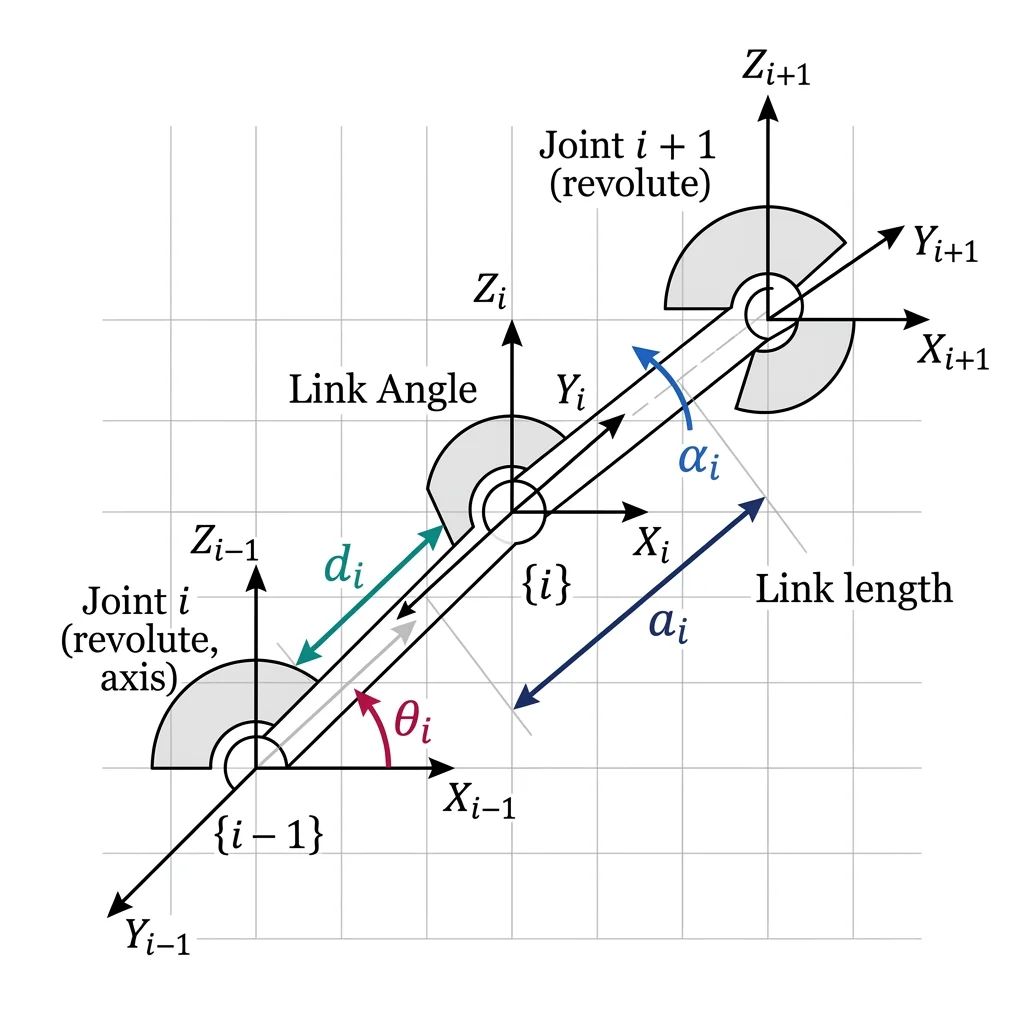

The Four DH Parameters

ParameterSymbolDescriptionMeasured Along/About
Link LengthaiDistance between Zi-1 and Zi along XiXi axis
Link TwistαiAngle between Zi-1 and Zi about XiAbout Xi
Link OffsetdiDistance between Xi-1 and Xi along Zi-1Zi-1 axis
Joint AngleθiAngle between Xi-1 and Xi about Zi-1About Zi-1

For a revolute joint, θi is the variable (it changes as the joint rotates) and the other three are constants. For a prismatic joint, di is the variable.

DH Transformation Matrix

Each joint's DH parameters produce a 4×4 transformation matrix:

import numpy as np

def dh_transform(theta, d, a, alpha):
    """Compute the DH transformation matrix for one joint.

    Args:
        theta: Joint angle (radians) - rotation about Z(i-1)
        d: Link offset - translation along Z(i-1)
        a: Link length - translation along X(i)
        alpha: Link twist (radians) - rotation about X(i)
    Returns:
        4x4 homogeneous transformation matrix
    """
    ct, st = np.cos(theta), np.sin(theta)
    ca, sa = np.cos(alpha), np.sin(alpha)

    return np.array([
        [ct, -st*ca,  st*sa, a*ct],
        [st,  ct*ca, -ct*sa, a*st],
        [ 0,     sa,     ca,    d],
        [ 0,      0,      0,    1]
    ])

# Example: Single revolute joint with a=0.5m, alpha=0, d=0, theta=45°
T = dh_transform(
    theta=np.radians(45),  # Joint angle
    d=0.0,                 # No offset
    a=0.5,                 # Link length 0.5m
    alpha=0.0              # No twist
)

print("DH Transform (theta=45°, d=0, a=0.5, alpha=0):")
print(np.round(T, 4))
print(f"\nEnd-effector position: x={T[0,3]:.4f}, y={T[1,3]:.4f}, z={T[2,3]:.4f}")
Memory Aid for DH Order: Think "θ-d-a-α" or "The Dog Ate Alpha". The transform applies operations in order: (1) rotate θ about Z, (2) translate d along Z, (3) translate a along X, (4) rotate α about X.

Forward Kinematics

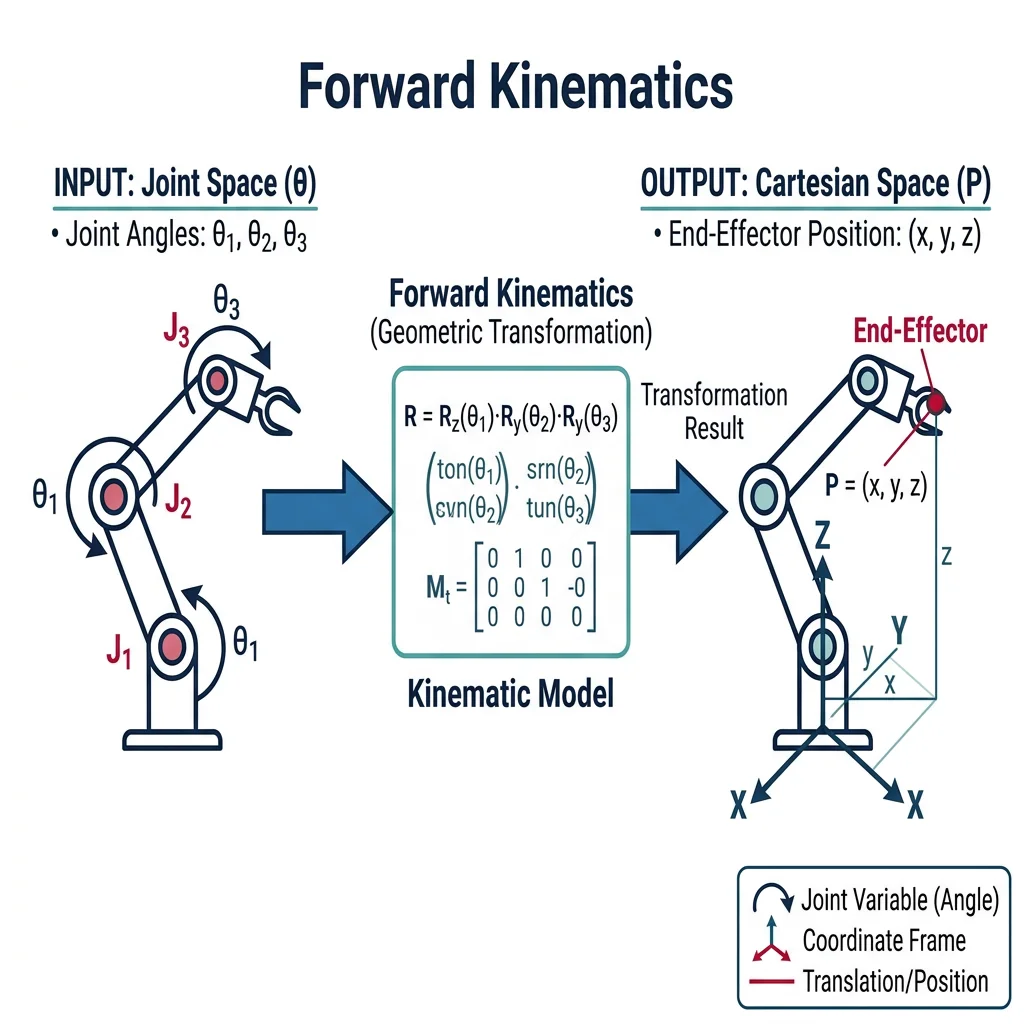

Forward kinematics (FK) answers the question: "Given all joint angles, where is the end-effector?" It maps from joint space (the angles/displacements of each joint) to task space (the position and orientation of the tool).

Analogy: Forward kinematics is like knowing exactly how each segment of your arm is bent (shoulder angle, elbow angle, wrist angle) and calculating where your fingertip ends up. You're going from causes (joint positions) to effect (hand location).

FK Algorithm

  1. Assign DH parameters to each joint (θi, di, ai, αi)
  2. Compute the DH transformation matrix Ti-1,i for each joint
  3. Multiply all matrices: T0n = T01 · T12 · ... · T(n-1)n
  4. Extract position from column 4, orientation from the 3×3 submatrix

Practical Examples

Example 1: 2-Link Planar Arm

The simplest articulated robot: two revolute joints rotating in a plane. This is the "hello world" of robot kinematics.

Case Study: 2-Link Planar Manipulator

2 DOF Planar

Setup: Two links of length L1 and L2, both rotating about the Z-axis (perpendicular to the plane). DH parameters: Joint 1: (θ1, 0, L1, 0), Joint 2: (θ2, 0, L2, 0).

Closed-form FK: x = L1·cos(θ1) + L2·cos(θ1+θ2), y = L1·sin(θ1) + L2·sin(θ1+θ2)

import numpy as np

def dh_transform(theta, d, a, alpha):
    """DH transformation matrix."""
    ct, st = np.cos(theta), np.sin(theta)
    ca, sa = np.cos(alpha), np.sin(alpha)
    return np.array([
        [ct, -st*ca,  st*sa, a*ct],
        [st,  ct*ca, -ct*sa, a*st],
        [ 0,     sa,     ca,    d],
        [ 0,      0,      0,    1]
    ])

def fk_2link(theta1, theta2, L1=1.0, L2=0.8):
    """Forward kinematics for a 2-link planar arm.

    Args:
        theta1, theta2: Joint angles in degrees
        L1, L2: Link lengths in meters
    Returns:
        End-effector position [x, y]
    """
    t1 = np.radians(theta1)
    t2 = np.radians(theta2)

    # DH parameters: [theta, d, a, alpha]
    T01 = dh_transform(t1, 0, L1, 0)
    T12 = dh_transform(t2, 0, L2, 0)

    # Chain the transforms
    T02 = T01 @ T12

    return T02[:2, 3]  # [x, y]

# Test multiple configurations
configs = [
    (0, 0, "Fully extended along X"),
    (45, 0, "Shoulder at 45°"),
    (45, -45, "Elbow folded back"),
    (90, -90, "L-shape pointing up"),
    (0, 180, "Folded back on itself")
]

print("2-Link Planar Arm FK (L1=1.0m, L2=0.8m)")
print("-" * 55)
for t1, t2, desc in configs:
    pos = fk_2link(t1, t2)
    print(f"θ1={t1:4d}°, θ2={t2:4d}° → x={pos[0]:7.4f}, y={pos[1]:7.4f}  ({desc})")

# Verify with closed-form equations
print("\nVerification with closed-form equations:")
t1, t2 = np.radians(45), np.radians(-45)
L1, L2 = 1.0, 0.8
x_cf = L1*np.cos(t1) + L2*np.cos(t1+t2)
y_cf = L1*np.sin(t1) + L2*np.sin(t1+t2)
pos_dh = fk_2link(45, -45)
print(f"Closed-form: x={x_cf:.4f}, y={y_cf:.4f}")
print(f"DH method:   x={pos_dh[0]:.4f}, y={pos_dh[1]:.4f}")
print(f"Match: {np.allclose([x_cf, y_cf], pos_dh)}")

Example 2: 3-DOF Articulated Arm (RRR)

A more practical configuration: three revolute joints creating a robot that can reach points in 3D space (but with limited orientation control).

import numpy as np

def dh_transform(theta, d, a, alpha):
    """DH transformation matrix."""
    ct, st = np.cos(theta), np.sin(theta)
    ca, sa = np.cos(alpha), np.sin(alpha)
    return np.array([
        [ct, -st*ca,  st*sa, a*ct],
        [st,  ct*ca, -ct*sa, a*st],
        [ 0,     sa,     ca,    d],
        [ 0,      0,      0,    1]
    ])

def fk_3dof(theta1_deg, theta2_deg, theta3_deg,
            d1=0.4, a2=0.3, a3=0.25):
    """Forward kinematics for a 3-DOF RRR articulated arm.

    DH Table:
    Joint | theta  | d   | a   | alpha
    ------+--------+-----+-----+------
      1   | theta1 | d1  |  0  | 90°
      2   | theta2 |  0  | a2  |  0°
      3   | theta3 |  0  | a3  |  0°
    """
    t1 = np.radians(theta1_deg)
    t2 = np.radians(theta2_deg)
    t3 = np.radians(theta3_deg)

    T01 = dh_transform(t1, d1, 0,  np.pi/2)
    T12 = dh_transform(t2, 0,  a2, 0)
    T23 = dh_transform(t3, 0,  a3, 0)

    T03 = T01 @ T12 @ T23

    pos = T03[:3, 3]
    return T03, pos

# Test configurations
print("3-DOF Articulated Arm FK")
print("DH: d1=0.4m, a2=0.3m, a3=0.25m")
print("-" * 60)

configs = [
    (0, 0, 0, "Home position"),
    (0, 90, 0, "Arm pointing straight up"),
    (90, 45, -30, "Rotated and angled"),
    (0, 0, -90, "Wrist bent 90°"),
]

for t1, t2, t3, desc in configs:
    T, pos = fk_3dof(t1, t2, t3)
    print(f"θ=({t1:4d}°,{t2:4d}°,{t3:4d}°) → "
          f"x={pos[0]:.4f}, y={pos[1]:.4f}, z={pos[2]:.4f}  ({desc})")

Case Study: PUMA 560 — The Robot That Defined FK

6-DOF Industrial Standard

The Unimation PUMA 560, introduced in 1978, became the most studied robot in history. Its DH parameters were published by researchers at Stanford and Carnegie Mellon, making it the standard test case for FK/IK algorithms. The PUMA's 6-DOF configuration (three joints for position + spherical wrist for orientation) influenced the design of nearly all modern industrial robots. Today, most 6-DOF arms (ABB IRB, KUKA KR, FANUC LR Mate) follow the same kinematic architecture.

Key Insight: The PUMA demonstrated that separating the arm into a "positioning structure" (joints 1-3) and an "orientation structure" (spherical wrist, joints 4-6) greatly simplifies both FK and IK computation.

Example 3: 6-DOF Robot Arm

A complete 6-DOF manipulator provides full position and orientation control. Here we implement FK for a generic articulated arm with a spherical wrist:

import numpy as np

def dh_transform(theta, d, a, alpha):
    """DH transformation matrix."""
    ct, st = np.cos(theta), np.sin(theta)
    ca, sa = np.cos(alpha), np.sin(alpha)
    return np.array([
        [ct, -st*ca,  st*sa, a*ct],
        [st,  ct*ca, -ct*sa, a*st],
        [ 0,     sa,     ca,    d],
        [ 0,      0,      0,    1]
    ])

def fk_6dof(joint_angles_deg):
    """Forward kinematics for a generic 6-DOF arm with spherical wrist.

    DH Table (inspired by typical industrial robot):
    Joint | d      | a     | alpha
    ------+--------+-------+------
      1   | 0.400  | 0.025 |  90°
      2   | 0.000  | 0.315 |   0°
      3   | 0.000  | 0.035 |  90°
      4   | 0.365  | 0.000 | -90°
      5   | 0.000  | 0.000 |  90°
      6   | 0.080  | 0.000 |   0°
    """
    # DH parameters: [d, a, alpha] for each joint
    dh_params = [
        [0.400, 0.025,  np.pi/2],   # Joint 1
        [0.000, 0.315,  0.0],       # Joint 2
        [0.000, 0.035,  np.pi/2],   # Joint 3
        [0.365, 0.000, -np.pi/2],   # Joint 4
        [0.000, 0.000,  np.pi/2],   # Joint 5
        [0.080, 0.000,  0.0],       # Joint 6
    ]

    T = np.eye(4)
    for i, (d, a, alpha) in enumerate(dh_params):
        theta = np.radians(joint_angles_deg[i])
        T_i = dh_transform(theta, d, a, alpha)
        T = T @ T_i

    return T

# Compute FK for home position
angles = [0, 0, 0, 0, 0, 0]
T = fk_6dof(angles)
print("6-DOF FK — Home Position (all zeros):")
print(f"Position: x={T[0,3]:.4f}, y={T[1,3]:.4f}, z={T[2,3]:.4f}")
print(f"Rotation matrix:\n{np.round(T[:3,:3], 4)}")

# Another configuration
angles2 = [30, -45, 60, 0, 45, 0]
T2 = fk_6dof(angles2)
print(f"\nFK for θ = {angles2}:")
print(f"Position: x={T2[0,3]:.4f}, y={T2[1,3]:.4f}, z={T2[2,3]:.4f}")

Inverse Kinematics

Inverse kinematics (IK) is the reverse problem: "Given a desired end-effector pose, what joint angles achieve it?" This is the harder problem — while FK always has a unique answer, IK can have zero, one, or multiple solutions.

Why IK Is Hard: FK is a straightforward multiplication of matrices. IK requires solving nonlinear transcendental equations. A 6-DOF robot can have up to 16 solutions for a single target pose, some of which may involve self-collision or joint limit violations!
Analogy: FK is like knowing how you bent every joint in your arm and calculating where your hand ended up. IK is like seeing a coffee cup on the table and figuring out what shoulder, elbow, and wrist angles will let you grab it. Your brain solves IK thousands of times a day — and it does it with multiple solutions (you can reach the cup from many different arm configurations)!

IK Solution Methods

MethodTypeBest ForLimitations
GeometricAnalyticalSimple planar arms (2-3 DOF)Doesn't scale to complex robots
AlgebraicAnalyticalRobots with closed-form solutionsRequires specific kinematic structures
Pieper's MethodAnalytical6-DOF with spherical wristWrist axes must intersect
Newton-RaphsonNumericalAny kinematic structureLocal convergence, needs initial guess
Jacobian Pseudo-InverseNumericalRedundant robots, real-timeMay not converge near singularities
CCD (Cyclic Coordinate Descent)IterativeAnimation, game enginesSlow convergence, no orientation
FABRIKIterativeGame dev, soft constraintsHeuristic, not physically exact

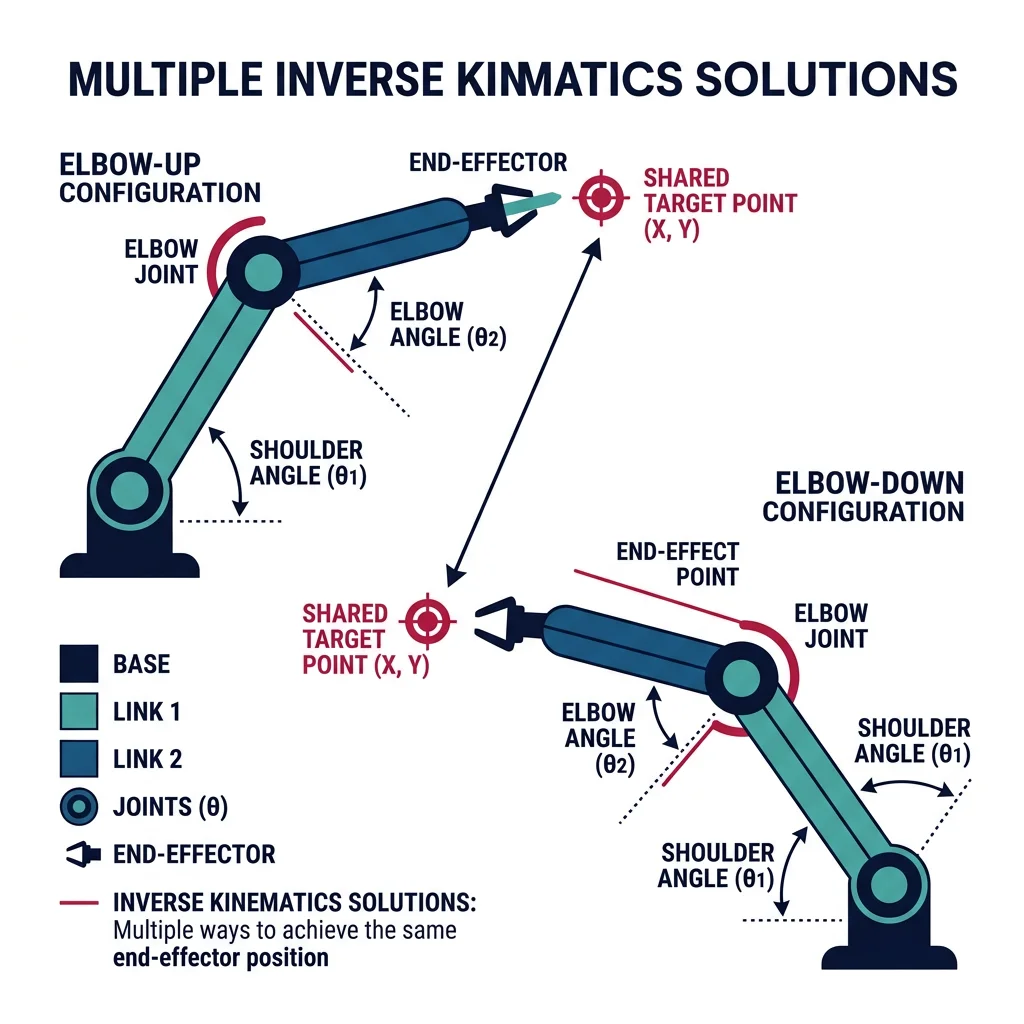

Analytical IK: 2-Link Planar Arm

For the 2-link planar arm, we can derive a closed-form solution using the law of cosines:

import numpy as np

def ik_2link(x, y, L1=1.0, L2=0.8):
    """Analytical inverse kinematics for a 2-link planar arm.

    Uses geometric approach with law of cosines.
    Returns BOTH elbow-up and elbow-down solutions.

    Args:
        x, y: Desired end-effector position
        L1, L2: Link lengths
    Returns:
        List of (theta1, theta2) solutions in degrees, or empty if unreachable
    """
    # Check reachability
    dist = np.sqrt(x**2 + y**2)
    if dist > L1 + L2:
        print(f"  Target ({x:.2f}, {y:.2f}) is beyond reach (max={L1+L2:.2f})")
        return []
    if dist < abs(L1 - L2):
        print(f"  Target ({x:.2f}, {y:.2f}) is too close (min={abs(L1-L2):.2f})")
        return []

    # Law of cosines for theta2
    cos_theta2 = (x**2 + y**2 - L1**2 - L2**2) / (2 * L1 * L2)
    cos_theta2 = np.clip(cos_theta2, -1, 1)  # Numerical safety

    solutions = []

    # Elbow-down (positive theta2)
    theta2 = np.arccos(cos_theta2)
    theta1 = np.arctan2(y, x) - np.arctan2(
        L2 * np.sin(theta2),
        L1 + L2 * np.cos(theta2)
    )
    solutions.append((np.degrees(theta1), np.degrees(theta2)))

    # Elbow-up (negative theta2)
    theta2_neg = -theta2
    theta1_neg = np.arctan2(y, x) - np.arctan2(
        L2 * np.sin(theta2_neg),
        L1 + L2 * np.cos(theta2_neg)
    )
    solutions.append((np.degrees(theta1_neg), np.degrees(theta2_neg)))

    return solutions

# Test IK
targets = [
    (1.5, 0.5, "Moderate reach"),
    (0.3, 0.3, "Close to base"),
    (1.8, 0.0, "Near full extension"),
    (0.0, 1.0, "Straight up"),
    (2.5, 0.0, "Beyond reach"),
]

print("2-Link Planar Arm IK (L1=1.0, L2=0.8)")
print("=" * 65)

for x, y, desc in targets:
    print(f"\nTarget: ({x:.1f}, {y:.1f}) — {desc}")
    solutions = ik_2link(x, y)
    for i, (t1, t2) in enumerate(solutions):
        config = "elbow-down" if i == 0 else "elbow-up"
        print(f"  Solution {i+1} ({config}): θ1={t1:7.2f}°, θ2={t2:7.2f}°")

        # Verify with FK
        x_check = 1.0*np.cos(np.radians(t1)) + 0.8*np.cos(np.radians(t1+t2))
        y_check = 1.0*np.sin(np.radians(t1)) + 0.8*np.sin(np.radians(t1+t2))
        print(f"    FK check: ({x_check:.4f}, {y_check:.4f}) — "
              f"Error: {np.sqrt((x-x_check)**2 + (y-y_check)**2):.2e}")

Numerical Solutions

When analytical solutions don't exist (most robots with more than 3 DOF or non-standard geometries), we use numerical methods. The most common approach uses the Jacobian matrix to iteratively refine joint angles.

Jacobian-Based IK

The Jacobian J relates small changes in joint angles to small changes in end-effector position: Δx = J · Δθ. We invert this relationship to find the joint angle corrections needed:

import numpy as np

def dh_transform(theta, d, a, alpha):
    """DH transformation matrix."""
    ct, st = np.cos(theta), np.sin(theta)
    ca, sa = np.cos(alpha), np.sin(alpha)
    return np.array([
        [ct, -st*ca,  st*sa, a*ct],
        [st,  ct*ca, -ct*sa, a*st],
        [ 0,     sa,     ca,    d],
        [ 0,      0,      0,    1]
    ])

def fk_planar(thetas, link_lengths):
    """FK for an N-link planar arm. Returns (x, y) position."""
    T = np.eye(4)
    for theta, L in zip(thetas, link_lengths):
        T = T @ dh_transform(theta, 0, L, 0)
    return T[:2, 3]

def numerical_jacobian(thetas, link_lengths, delta=1e-6):
    """Compute Jacobian numerically using finite differences."""
    n = len(thetas)
    pos = fk_planar(thetas, link_lengths)
    J = np.zeros((2, n))

    for i in range(n):
        thetas_perturbed = thetas.copy()
        thetas_perturbed[i] += delta
        pos_perturbed = fk_planar(thetas_perturbed, link_lengths)
        J[:, i] = (pos_perturbed - pos) / delta

    return J

def ik_numerical(target, link_lengths, initial_guess=None,
                 max_iter=200, tol=1e-6, alpha=0.5):
    """Numerical IK using damped least-squares (Levenberg-Marquardt).

    Args:
        target: Desired [x, y] position
        link_lengths: List of link lengths
        initial_guess: Starting joint angles (radians)
        max_iter: Maximum iterations
        tol: Position error tolerance
        alpha: Step size damping factor
    Returns:
        Joint angles, final error, iterations used
    """
    n = len(link_lengths)
    target = np.array(target)

    if initial_guess is None:
        thetas = np.random.uniform(-np.pi/4, np.pi/4, n)
    else:
        thetas = np.array(initial_guess, dtype=float)

    damping = 0.01  # Damping factor for singularity robustness

    for iteration in range(max_iter):
        current_pos = fk_planar(thetas, link_lengths)
        error = target - current_pos
        error_norm = np.linalg.norm(error)

        if error_norm < tol:
            return thetas, error_norm, iteration + 1

        J = numerical_jacobian(thetas, link_lengths)

        # Damped least-squares: delta_theta = J^T (J J^T + lambda*I)^-1 * error
        JJT = J @ J.T
        delta_theta = J.T @ np.linalg.solve(
            JJT + damping * np.eye(JJT.shape[0]), error
        )

        thetas += alpha * delta_theta

    return thetas, np.linalg.norm(target - fk_planar(thetas, link_lengths)), max_iter

# Test: 3-link planar arm reaching a target
links = [1.0, 0.8, 0.5]
target = [1.5, 0.8]

print("Numerical IK — 3-Link Planar Arm")
print(f"Link lengths: {links}")
print(f"Target: ({target[0]}, {target[1]})")
print("-" * 50)

thetas, error, iters = ik_numerical(
    target, links,
    initial_guess=[0.3, 0.3, 0.3]
)

angles_deg = np.degrees(thetas)
final_pos = fk_planar(thetas, links)

print(f"Solution found in {iters} iterations")
print(f"Joint angles: [{', '.join(f'{a:.2f}°' for a in angles_deg)}]")
print(f"Achieved position: ({final_pos[0]:.6f}, {final_pos[1]:.6f})")
print(f"Position error: {error:.2e}")

Case Study: IK in Video Games — FABRIK

Animation Real-Time

The Forward And Backward Reaching Inverse Kinematics (FABRIK) algorithm, published by Aristidou & Lasenby in 2011, revolutionized real-time IK for games and animation. Unlike Jacobian-based methods, FABRIK works by iteratively adjusting joint positions (not angles) using simple point-to-point operations.

How it works: (1) Forward pass: starting from the end-effector, move each joint toward the target along the chain. (2) Backward pass: starting from the base, move each joint back to maintain the fixed base position. Repeat until convergence.

Why games love it: FABRIK is 10× faster than Jacobian methods, handles constraints naturally, and converges in 3-5 iterations for most cases. It's used in Unreal Engine, Unity, and many AAA game titles for character IK.

Workspace, Singularities & Jacobians

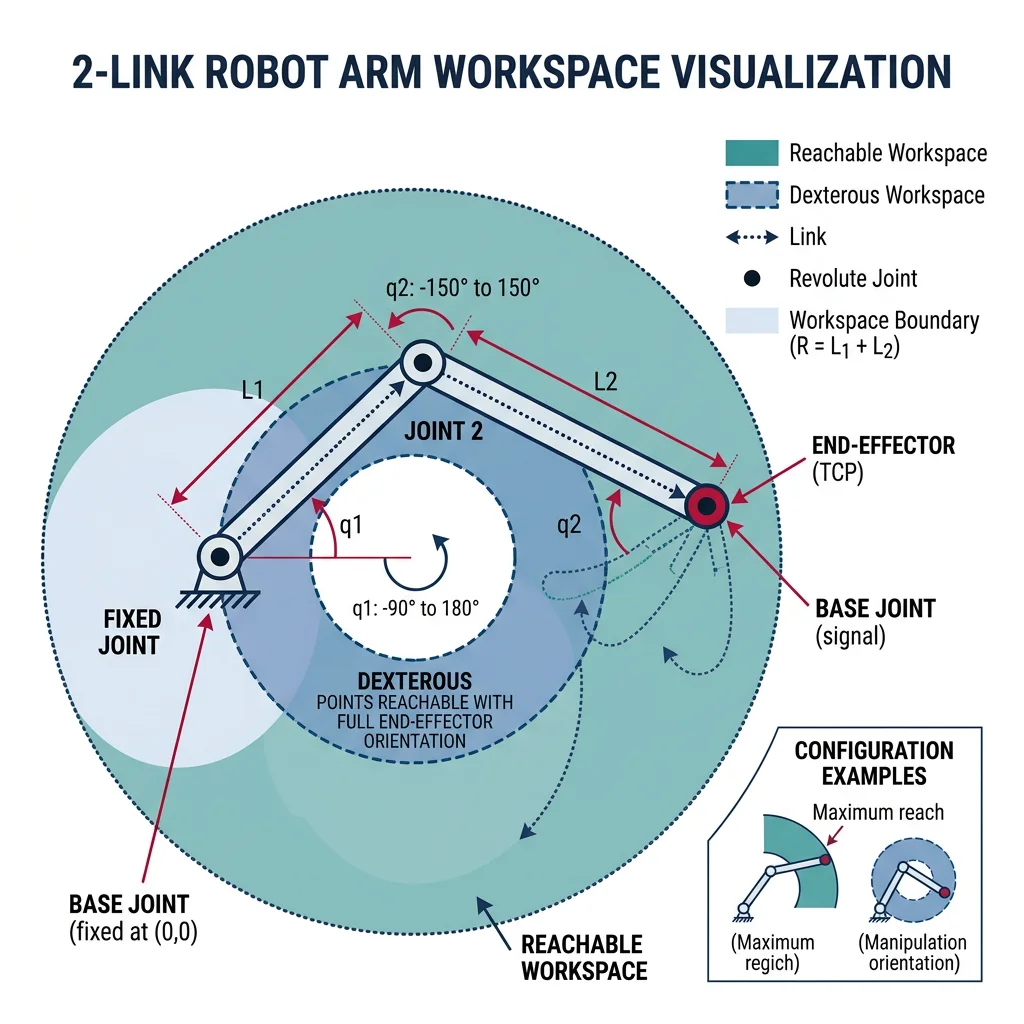

Understanding a robot's workspace is crucial for task planning — it tells us which positions and orientations the robot can actually reach.

Types of Workspace

TypeDefinitionPractical Meaning
Reachable WorkspaceAll points the end-effector can reach with at least one orientationThe total volume the robot can access
Dexterous WorkspaceAll points reachable with any orientationWhere the robot is most capable (always ⊆ reachable)
Cross-Section2D slice through the workspaceQuick visualization for planar analysis
import numpy as np

def fk_2link_pos(theta1, theta2, L1=1.0, L2=0.8):
    """Forward kinematics for 2-link arm, returns [x, y]."""
    x = L1 * np.cos(theta1) + L2 * np.cos(theta1 + theta2)
    y = L1 * np.sin(theta1) + L2 * np.sin(theta1 + theta2)
    return x, y

# Generate workspace by sampling all joint angle combinations
L1, L2 = 1.0, 0.8
n_samples = 200

theta1_range = np.linspace(0, 2*np.pi, n_samples)
theta2_range = np.linspace(-np.pi, np.pi, n_samples)

workspace_x = []
workspace_y = []

for t1 in theta1_range:
    for t2 in theta2_range:
        x, y = fk_2link_pos(t1, t2, L1, L2)
        workspace_x.append(x)
        workspace_y.append(y)

workspace_x = np.array(workspace_x)
workspace_y = np.array(workspace_y)

# Workspace statistics
max_reach = L1 + L2
min_reach = abs(L1 - L2)
print("2-Link Arm Workspace Analysis")
print(f"L1 = {L1}m, L2 = {L2}m")
print(f"Maximum reach: {max_reach:.2f}m (arm fully extended)")
print(f"Minimum reach: {min_reach:.2f}m (arm folded back)")
print(f"Workspace shape: Annular ring (donut)")
print(f"Outer radius: {max_reach:.2f}m")
print(f"Inner radius: {min_reach:.2f}m")
print(f"Workspace area: π({max_reach:.2f}² - {min_reach:.2f}²) = "
      f"{np.pi * (max_reach**2 - min_reach**2):.4f} m²")
print(f"Sampled {len(workspace_x):,} points")
print(f"X range: [{workspace_x.min():.4f}, {workspace_x.max():.4f}]")
print(f"Y range: [{workspace_y.min():.4f}, {workspace_y.max():.4f}]")

Singularities

Singularities are configurations where the robot loses one or more degrees of freedom — the Jacobian matrix becomes rank-deficient, and certain directions of motion become impossible.

Why Singularities Are Dangerous: Near a singularity, achieving even a small motion in the "lost" direction requires enormous joint velocities — potentially causing the robot to move violently or damage itself. Industrial robot controllers detect and avoid singularities in real time.

Common Types of Singularities

TypeConditionExamplePhysical Effect
BoundaryArm fully extended or retractedθ2 = 0° or 180°Can't move radially outward/inward
InteriorTwo or more joint axes alignWrist axes collinearLost rotation DOF
WristWrist joints 4 & 6 axes alignθ5 = 0° in spherical wristθ4 and θ6 become redundant
import numpy as np

def compute_jacobian_2link(theta1, theta2, L1=1.0, L2=0.8):
    """Compute the 2x2 Jacobian for a 2-link planar arm.

    J = [dx/dtheta1, dx/dtheta2]
        [dy/dtheta1, dy/dtheta2]
    """
    J = np.array([
        [-L1*np.sin(theta1) - L2*np.sin(theta1+theta2),
         -L2*np.sin(theta1+theta2)],
        [ L1*np.cos(theta1) + L2*np.cos(theta1+theta2),
          L2*np.cos(theta1+theta2)]
    ])
    return J

# Analyze singularities
print("Singularity Analysis — 2-Link Planar Arm")
print("=" * 55)

configs = [
    (45, -30, "Normal configuration"),
    (45, 0, "SINGULARITY: Arm fully extended"),
    (45, 180, "SINGULARITY: Arm fully folded"),
    (45, -90, "Normal: right angle"),
    (45, -179, "Near singularity"),
]

for t1_deg, t2_deg, desc in configs:
    t1 = np.radians(t1_deg)
    t2 = np.radians(t2_deg)

    J = compute_jacobian_2link(t1, t2)
    det_J = np.linalg.det(J)

    # Manipulability = |det(J)| — measures how "capable" the robot is
    manipulability = abs(det_J)

    print(f"\nθ1={t1_deg:4d}°, θ2={t2_deg:4d}° — {desc}")
    print(f"  det(J) = {det_J:8.4f}")
    print(f"  Manipulability = {manipulability:.4f}")
    if manipulability < 0.01:
        print(f"  âš  SINGULAR — robot cannot move in certain directions!")
    else:
        print(f"  ✓ Good manipulability")

Jacobians

The Jacobian matrix is the single most important mathematical tool in robot kinematics. It connects joint-space velocities to task-space velocities, enables force/torque mapping, and drives numerical IK algorithms.

What the Jacobian Tells Us:
• Velocity mapping: ẋ = J(θ) · θ̇ — end-effector velocity from joint velocities
• Force mapping: Ï„ = JT(θ) · F — joint torques from end-effector forces
• Singularity detection: det(J) = 0 indicates singularity
• Manipulability: The volume of the velocity ellipsoid (Yoshikawa, 1985)
import numpy as np

def compute_jacobian_2link(theta1, theta2, L1=1.0, L2=0.8):
    """Analytical Jacobian for 2-link planar arm."""
    J = np.array([
        [-L1*np.sin(theta1) - L2*np.sin(theta1+theta2),
         -L2*np.sin(theta1+theta2)],
        [ L1*np.cos(theta1) + L2*np.cos(theta1+theta2),
          L2*np.cos(theta1+theta2)]
    ])
    return J

def velocity_ellipsoid_axes(J):
    """Compute velocity ellipsoid from Jacobian using SVD.

    The singular values give the semi-axes of the ellipsoid.
    The left singular vectors give the directions.
    """
    U, sigma, Vt = np.linalg.svd(J)
    return sigma, U

# Analyze Jacobian properties at different configurations
print("Jacobian Analysis — Velocity Ellipsoid")
print("=" * 60)

configs = [(45, -30), (45, -90), (45, 0), (0, -45)]

for t1_deg, t2_deg in configs:
    t1, t2 = np.radians(t1_deg), np.radians(t2_deg)
    J = compute_jacobian_2link(t1, t2)
    sigma, U = velocity_ellipsoid_axes(J)

    # Condition number = ratio of largest to smallest singular value
    condition = sigma[0] / max(sigma[1], 1e-10)

    # Manipulability (Yoshikawa): sqrt(det(J @ J^T))
    manipulability = np.sqrt(np.linalg.det(J @ J.T))

    print(f"\nθ1={t1_deg}°, θ2={t2_deg}°:")
    print(f"  Singular values: σ1={sigma[0]:.4f}, σ2={sigma[1]:.4f}")
    print(f"  Condition number: {condition:.2f} (1=isotropic, >10=near-singular)")
    print(f"  Manipulability: {manipulability:.4f}")
    print(f"  Max EE speed direction: [{U[0,0]:.4f}, {U[1,0]:.4f}]")
    print(f"  Min EE speed direction: [{U[0,1]:.4f}, {U[1,1]:.4f}]")

# Force mapping example
print("\n" + "=" * 60)
print("Force/Torque Mapping Example")
print("-" * 60)
t1, t2 = np.radians(45), np.radians(-30)
J = compute_jacobian_2link(t1, t2)

# If end-effector pushes with 10N in X direction
F_ee = np.array([10.0, 0.0])  # [Fx, Fy] in Newtons
tau = J.T @ F_ee  # Joint torques

print(f"End-effector force: Fx={F_ee[0]:.1f}N, Fy={F_ee[1]:.1f}N")
print(f"Required joint torques: τ1={tau[0]:.2f} Nm, τ2={tau[1]:.2f} Nm")

Case Study: da Vinci Surgical Robot — Singularity Avoidance

Medical Robotics Critical Safety

The da Vinci Surgical System by Intuitive Surgical is a 7-DOF telemanipulated robot used in over 12 million surgical procedures. Its Jacobian-based control system must handle singularity avoidance in real time while operating inside the human body.

Challenge: The da Vinci's remote center of motion (RCM) — the point where instruments pass through the patient's body wall — creates a kinematic constraint that limits the workspace. Near the boundaries of this constrained workspace, the robot approaches singularities.

Solution: Intuitive Surgical uses damped least-squares IK (the same Levenberg-Marquardt approach shown above) with adaptive damping. The damping factor λ increases as the manipulability index decreases, automatically slowing down the robot near singularities rather than generating dangerous velocities. The system also uses null-space optimization to keep the 7th DOF (redundant) actively avoiding singular configurations.

Redundant Manipulators

A robot is kinematically redundant when it has more degrees of freedom than needed for the task. A 7-DOF arm doing a 6-DOF task (position + orientation) has 1 redundant DOF — giving it extra flexibility to avoid obstacles, singularities, or joint limits.

Analogy: Your arm has 7 DOF (3 at shoulder, 1 at elbow, 3 at wrist). That's why you can keep your hand on a table and still move your elbow around — the extra DOF gives you freedom to customize how you reach the target, not just whether you reach it.

Null-Space Optimization

For redundant robots, the IK solution has infinite possibilities. We can use the null space of the Jacobian to add a secondary objective without affecting the end-effector:

import numpy as np

def fk_nlink(thetas, link_lengths):
    """FK for N-link planar arm. Returns [x, y]."""
    x, y, angle_sum = 0.0, 0.0, 0.0
    for theta, L in zip(thetas, link_lengths):
        angle_sum += theta
        x += L * np.cos(angle_sum)
        y += L * np.sin(angle_sum)
    return np.array([x, y])

def numerical_jacobian(thetas, link_lengths, delta=1e-7):
    """Compute Jacobian numerically for N-link planar arm."""
    n = len(thetas)
    pos = fk_nlink(thetas, link_lengths)
    J = np.zeros((2, n))
    for i in range(n):
        thetas_p = thetas.copy()
        thetas_p[i] += delta
        J[:, i] = (fk_nlink(thetas_p, link_lengths) - pos) / delta
    return J

def ik_redundant(target, link_lengths, initial_thetas,
                 max_iter=300, tol=1e-6):
    """IK for redundant arm with null-space joint centering.

    Uses pseudo-inverse with null-space projection to keep
    joints near their center (zero) position.
    """
    target = np.array(target)
    thetas = np.array(initial_thetas, dtype=float)
    n = len(thetas)
    damping = 0.01

    for it in range(max_iter):
        pos = fk_nlink(thetas, link_lengths)
        error = target - pos

        if np.linalg.norm(error) < tol:
            break

        J = numerical_jacobian(thetas, link_lengths)

        # Pseudo-inverse: J^+ = J^T (J J^T + lambda I)^-1
        JJT = J @ J.T
        J_pinv = J.T @ np.linalg.inv(JJT + damping * np.eye(2))

        # Primary task: reach target
        delta_primary = J_pinv @ error

        # Null-space projector: (I - J^+ J)
        null_proj = np.eye(n) - J_pinv @ J

        # Secondary task: minimize joint angles (joint centering)
        joint_center_gradient = -0.1 * thetas  # Pull toward zero
        delta_null = null_proj @ joint_center_gradient

        thetas += delta_primary + delta_null

    return thetas, np.linalg.norm(target - fk_nlink(thetas, link_lengths)), it+1

# 4-link planar arm (redundant for 2D positioning)
links = [0.8, 0.6, 0.4, 0.3]
target = [1.2, 0.5]

print("Redundant IK — 4-Link Planar Arm (4 DOF, 2D task)")
print(f"Links: {links}, Target: ({target[0]}, {target[1]})")
print("=" * 60)

# Solve from different initial guesses to show multiple solutions
for trial in range(3):
    init = np.random.uniform(-0.5, 0.5, 4)
    thetas, error, iters = ik_redundant(target, links, init)
    angles_deg = np.degrees(thetas)
    final_pos = fk_nlink(thetas, links)

    print(f"\nTrial {trial+1} (random initial guess):")
    print(f"  Angles: [{', '.join(f'{a:.1f}°' for a in angles_deg)}]")
    print(f"  Position: ({final_pos[0]:.6f}, {final_pos[1]:.6f})")
    print(f"  Error: {error:.2e}, Iterations: {iters}")
    print(f"  Joint norm: {np.linalg.norm(thetas):.4f} "
          f"(lower = more centered)")

DH Parameter Worksheet Tool

Use this interactive worksheet to document and generate a DH parameter table for your robot. Enter the parameters for each joint, then download as Word, Excel, or PDF for reference and documentation.

DH Parameter Worksheet

Enter robot name and DH parameters for up to 6 joints. Download as Word, Excel, or PDF.

Draft auto-saved

All data stays in your browser. Nothing is sent to or stored on any server.

Exercises & Challenges

Exercise 1: DH Parameter Assignment

Given a 3-DOF RRR planar arm with link lengths L1=0.5m, L2=0.4m, L3=0.3m, write the complete DH table and verify by computing FK for θ = (30°, 45°, -60°).

import numpy as np

def dh_transform(theta, d, a, alpha):
    ct, st = np.cos(theta), np.sin(theta)
    ca, sa = np.cos(alpha), np.sin(alpha)
    return np.array([
        [ct, -st*ca,  st*sa, a*ct],
        [st,  ct*ca, -ct*sa, a*st],
        [ 0,     sa,     ca,    d],
        [ 0,      0,      0,    1]
    ])

# DH Table for 3-DOF RRR planar arm:
# Joint | theta | d | a   | alpha
# ------+-------+---+-----+------
#   1   | θ1    | 0 | 0.5 |  0
#   2   | θ2    | 0 | 0.4 |  0
#   3   | θ3    | 0 | 0.3 |  0

angles = [30, 45, -60]
links = [(0.5, 0), (0.4, 0), (0.3, 0)]  # (a, alpha)

T = np.eye(4)
for i, (deg, (a, alpha)) in enumerate(zip(angles, links)):
    T_i = dh_transform(np.radians(deg), 0, a, alpha)
    T = T @ T_i
    pos = T[:2, 3]
    print(f"After joint {i+1} (θ={deg}°): x={pos[0]:.4f}, y={pos[1]:.4f}")

print(f"\nFinal end-effector: x={T[0,3]:.4f}, y={T[1,3]:.4f}")

# Cross-check with direct trigonometry
t = np.radians(angles)
x = 0.5*np.cos(t[0]) + 0.4*np.cos(t[0]+t[1]) + 0.3*np.cos(t[0]+t[1]+t[2])
y = 0.5*np.sin(t[0]) + 0.4*np.sin(t[0]+t[1]) + 0.3*np.sin(t[0]+t[1]+t[2])
print(f"Trig verify:       x={x:.4f}, y={y:.4f}")

Exercise 2: IK Multiple Solutions

For a 2-link arm (L1=1.0, L2=0.8), find both IK solutions for target (1.2, 0.6). Plot or print both configurations and verify with FK.

import numpy as np

def ik_2link(x, y, L1=1.0, L2=0.8):
    """Returns both elbow-up and elbow-down solutions."""
    dist = np.sqrt(x**2 + y**2)
    if dist > L1 + L2 or dist < abs(L1 - L2):
        return []

    cos_t2 = (x**2 + y**2 - L1**2 - L2**2) / (2*L1*L2)
    cos_t2 = np.clip(cos_t2, -1, 1)

    solutions = []
    for sign in [1, -1]:
        t2 = sign * np.arccos(cos_t2)
        t1 = np.arctan2(y, x) - np.arctan2(L2*np.sin(t2), L1 + L2*np.cos(t2))
        solutions.append((np.degrees(t1), np.degrees(t2)))
    return solutions

# Solve
target_x, target_y = 1.2, 0.6
solutions = ik_2link(target_x, target_y)

for i, (t1, t2) in enumerate(solutions):
    config = "elbow-down" if i == 0 else "elbow-up"
    # FK verification
    r1, r2 = np.radians(t1), np.radians(t2)
    x_v = np.cos(r1) + 0.8*np.cos(r1+r2)
    y_v = np.sin(r1) + 0.8*np.sin(r1+r2)
    err = np.sqrt((target_x-x_v)**2 + (target_y-y_v)**2)
    print(f"Solution {i+1} ({config}): θ1={t1:.2f}°, θ2={t2:.2f}°")
    print(f"  FK check: ({x_v:.4f}, {y_v:.4f}), error={err:.2e}")

Exercise 3: Jacobian & Singularity Detection

Compute the Jacobian determinant for a 2-link arm as θ2 sweeps from -180° to 180°. Identify the singular configurations.

import numpy as np

L1, L2 = 1.0, 0.8
theta1 = np.radians(45)  # Fixed shoulder angle

# Sweep theta2
theta2_range = np.linspace(-180, 180, 361)
det_values = []

for t2_deg in theta2_range:
    t2 = np.radians(t2_deg)
    # det(J) for 2-link planar arm = L1 * L2 * sin(theta2)
    det_j = L1 * L2 * np.sin(t2)
    det_values.append(det_j)

det_values = np.array(det_values)

# Find singularities (det ≈ 0)
singular_angles = theta2_range[np.abs(det_values) < 0.01]
print("Singularity Analysis: det(J) vs θ2")
print(f"θ1 fixed at 45°, L1={L1}, L2={L2}")
print(f"\nSingular θ2 values: {singular_angles}")
print(f"  → θ2=0° means arm fully extended (boundary singularity)")
print(f"  → θ2=±180° means arm fully folded (boundary singularity)")
print(f"\nMax |det(J)| = {np.max(np.abs(det_values)):.4f} at θ2 = ±90°")
print(f"Formula: det(J) = L1·L2·sin(θ2) = {L1}×{L2}×sin(θ2)")

Exercise 4: Workspace Boundary Challenge

For a 2-link arm (L1=1.0, L2=0.8), analytically compute the workspace boundaries (inner and outer radii). Then sample 1000 random joint configurations and verify that all end-effector positions fall within these bounds.

import numpy as np

L1, L2 = 1.0, 0.8
r_max = L1 + L2     # Maximum reach (fully extended)
r_min = abs(L1 - L2)  # Minimum reach (fully folded)

print(f"Analytical Workspace Bounds:")
print(f"  Inner radius: {r_min:.2f}m")
print(f"  Outer radius: {r_max:.2f}m")

# Random sampling verification
np.random.seed(42)
n = 1000
t1 = np.random.uniform(0, 2*np.pi, n)
t2 = np.random.uniform(-np.pi, np.pi, n)

x = L1*np.cos(t1) + L2*np.cos(t1+t2)
y = L1*np.sin(t1) + L2*np.sin(t1+t2)
r = np.sqrt(x**2 + y**2)

print(f"\nRandom Sampling ({n} configs):")
print(f"  Min radius found: {r.min():.6f}m (theoretical: {r_min:.2f})")
print(f"  Max radius found: {r.max():.6f}m (theoretical: {r_max:.2f})")
print(f"  All within bounds: {np.all((r >= r_min - 1e-10) & (r <= r_max + 1e-10))}")

Conclusion & Next Steps

In this article, we've built the mathematical foundation for understanding robot motion:

  • Coordinate frames provide a shared language for describing position and orientation in 3D space
  • Homogeneous transformations combine rotation and translation into composable 4×4 matrices
  • DH parameters reduce robot geometry to just 4 parameters per joint — the universal standard since 1955
  • Forward kinematics computes end-effector pose from joint angles via matrix chain multiplication
  • Inverse kinematics solves the harder reverse problem — from desired pose to joint angles, with analytical and numerical approaches
  • Jacobians map between joint and task velocities, reveal singularities, and enable force analysis
  • Redundant manipulators use null-space optimization for secondary objectives like obstacle avoidance
What's Next: Kinematics tells us where the robot moves but not how fast or the forces involved. In Part 5 (Dynamics & Robot Modeling), we'll add physics — masses, inertias, gravity, and friction — to predict the torques needed for motion. This bridges the gap between geometry and real motor control.

Next in the Series

In Part 5: Dynamics & Robot Modeling, we'll explore the forces and torques that govern robot motion — Newton-Euler formulation, Lagrangian dynamics, and energy-based modeling.
