Robotics & Automation Series Part 6: Control Systems & PID

Feedback & Control Basics

Control systems are the invisible intelligence that make robots move precisely. Without control, a robot is just a collection of motors and sensors — with control, it becomes a precise, responsive machine. Think of cruise control in your car: you set a target speed, the controller measures actual speed, and adjusts the throttle to eliminate the difference. Every robotic system, from a simple thermostat to a self-driving car, operates on this same fundamental principle.

Open-Loop vs Closed-Loop Control

In open-loop control, the controller sends a command without measuring the result. A microwave runs for a set time regardless of food temperature. In closed-loop (feedback) control, sensors continuously measure the output and the controller adjusts commands to reduce the error — the difference between desired and actual values.

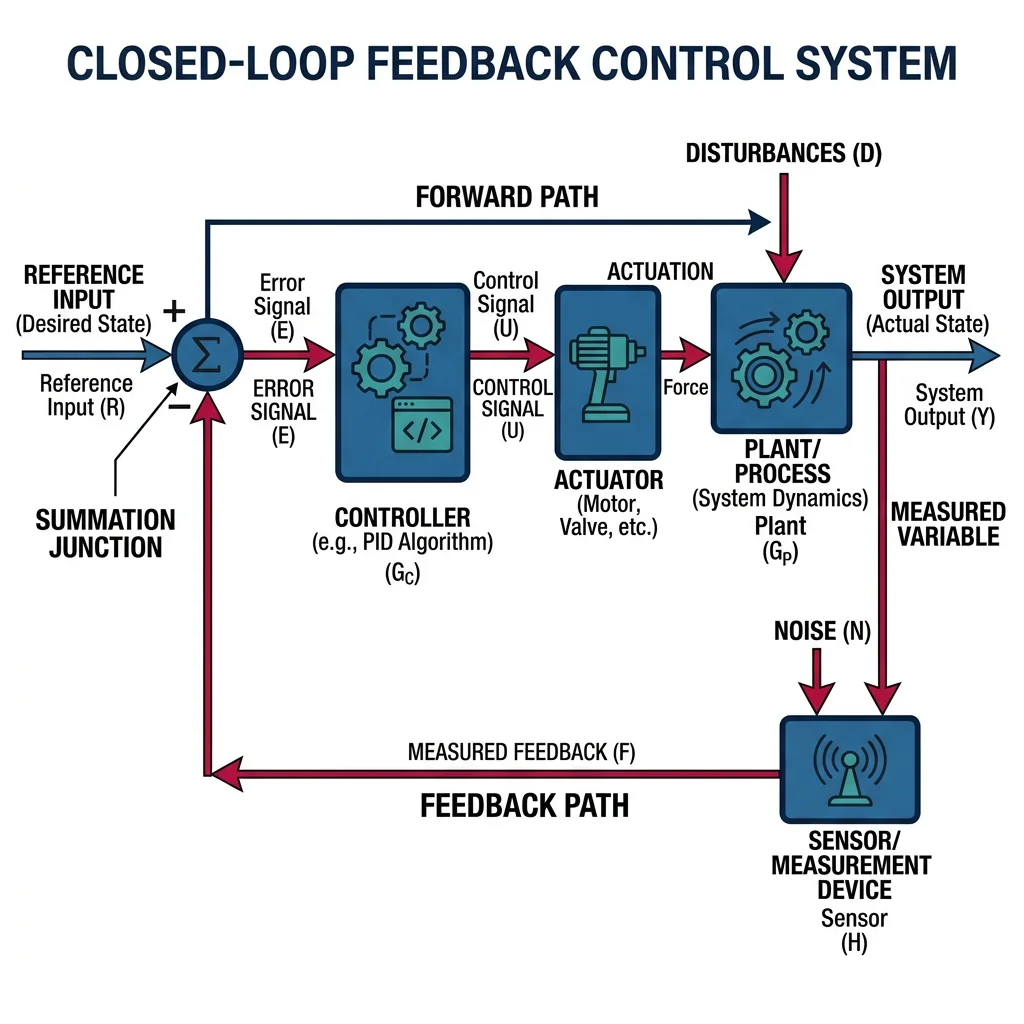

The standard closed-loop block diagram has five elements:

1. Reference (r) — desired setpoint (target position, speed, temperature)
2. Error (e = r − y) — difference between desired and actual
3. Controller (C) — computes control signal from error
4. Plant (G) — the physical system (motor, arm, vehicle)
5. Sensor (H) — measures output and feeds it back

import numpy as np
import matplotlib.pyplot as plt

# Simple closed-loop step response simulation
# Plant: first-order system G(s) = 1/(s+1)
# Controller: proportional gain Kp

dt = 0.01  # time step
t = np.arange(0, 10, dt)
setpoint = 1.0  # desired output

# Simulate for different proportional gains
for Kp in [0.5, 1.0, 2.0, 5.0]:
    y = 0.0  # initial output
    outputs = []
    for _ in t:
        error = setpoint - y
        u = Kp * error          # proportional control
        dydt = -y + u           # plant: dy/dt = -y + u
        y += dydt * dt
        outputs.append(y)
    plt.plot(t, outputs, label=f'Kp = {Kp}')

plt.axhline(y=setpoint, color='k', linestyle='--', label='Setpoint')
plt.xlabel('Time (s)')
plt.ylabel('Output')
plt.title('Closed-Loop Response with Proportional Control')
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

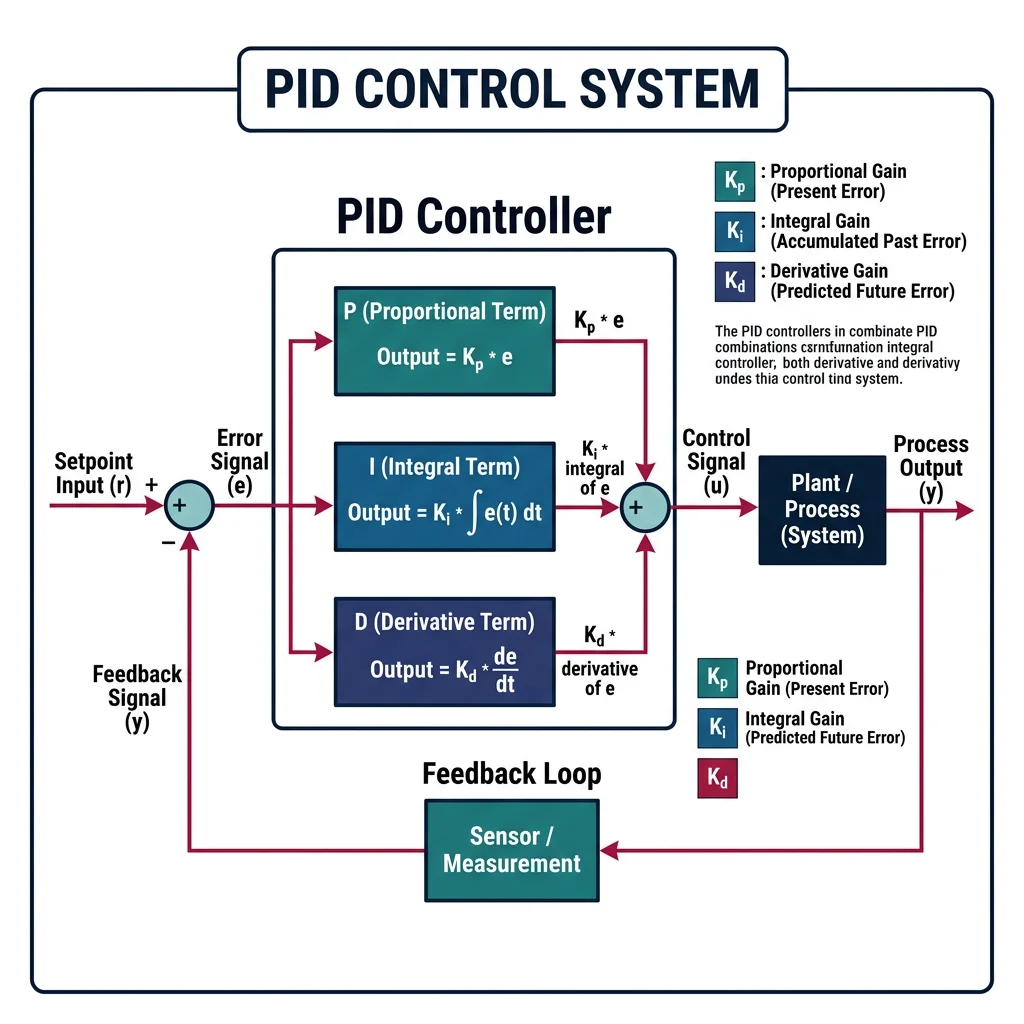

PID Controllers

The PID controller is the most widely used control algorithm in industry — over 95% of industrial control loops use some form of PID. It produces a control signal by combining three terms:

import numpy as np
import matplotlib.pyplot as plt

class PIDController:
    """Complete PID controller with anti-windup"""
    def __init__(self, Kp, Ki, Kd, dt, output_limits=(-100, 100)):
        self.Kp = Kp
        self.Ki = Ki
        self.Kd = Kd
        self.dt = dt
        self.output_limits = output_limits
        self.integral = 0.0
        self.prev_error = 0.0

    def compute(self, setpoint, measurement):
        error = setpoint - measurement

        # Proportional term
        P = self.Kp * error

        # Integral term with anti-windup clamping
        self.integral += error * self.dt
        I = self.Ki * self.integral

        # Derivative term (on error)
        derivative = (error - self.prev_error) / self.dt
        D = self.Kd * derivative

        # Total output with saturation
        output = P + I + D
        output = np.clip(output, *self.output_limits)

        # Anti-windup: if output is saturated, stop integrating
        if output == self.output_limits[0] or output == self.output_limits[1]:
            self.integral -= error * self.dt

        self.prev_error = error
        return output, P, I, D

# Simulate PID on a second-order plant (mass-spring-damper)
dt = 0.001
t = np.arange(0, 5, dt)
setpoint = 1.0

# Plant parameters: m*x'' + b*x' + k*x = u
m, b, k = 1.0, 0.5, 2.0
pid = PIDController(Kp=15, Ki=8, Kd=3, dt=dt)

x, v = 0.0, 0.0  # position, velocity
positions = []

for _ in t:
    u, _, _, _ = pid.compute(setpoint, x)
    a = (u - b * v - k * x) / m  # acceleration
    v += a * dt
    x += v * dt
    positions.append(x)

plt.figure(figsize=(10, 4))
plt.plot(t, positions, 'b-', label='Response')
plt.axhline(y=setpoint, color='r', linestyle='--', label='Setpoint')
plt.fill_between(t, setpoint * 0.98, setpoint * 1.02, alpha=0.2, color='green', label='±2% band')
plt.xlabel('Time (s)')
plt.ylabel('Position')
plt.title('PID Control of Mass-Spring-Damper System')
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

Tuning Methods (Ziegler-Nichols)

Finding the right PID gains ($K_p, K_i, K_d$) is the central challenge of PID control. Several systematic methods exist:

Ziegler-Nichols Step Response Method

Apply a step input to the open-loop plant and measure two parameters from the S-shaped response curve:

• L (dead time / delay) — time before the response starts rising
• T (time constant) — time from the tangent line intersection to 63.2% of final value

Ziegler-Nichols Ultimate Gain Method

Set $K_i = 0$ and $K_d = 0$, then increase $K_p$ until the system oscillates at a constant amplitude. Record:

• $K_u$ (ultimate gain) — the gain at sustained oscillation
• $T_u$ (ultimate period) — the oscillation period

import numpy as np

def ziegler_nichols_ultimate(Ku, Tu, controller_type='PID'):
    """Calculate PID gains using Ziegler-Nichols ultimate gain method.

    Args:
        Ku: Ultimate gain (gain at sustained oscillation)
        Tu: Ultimate period (period of oscillation in seconds)
        controller_type: 'P', 'PI', or 'PID'

    Returns:
        dict with Kp, Ki, Kd gains
    """
    if controller_type == 'P':
        Kp = 0.5 * Ku
        Ki, Kd = 0.0, 0.0
    elif controller_type == 'PI':
        Kp = 0.45 * Ku
        Ti = Tu / 1.2
        Ki = Kp / Ti
        Kd = 0.0
    elif controller_type == 'PID':
        Kp = 0.6 * Ku
        Ti = Tu / 2.0
        Td = Tu / 8.0
        Ki = Kp / Ti
        Kd = Kp * Td
    else:
        raise ValueError("controller_type must be 'P', 'PI', or 'PID'")

    return {'Kp': round(Kp, 4), 'Ki': round(Ki, 4), 'Kd': round(Kd, 4)}

# Example: motor position control
Ku = 8.0   # ultimate gain found experimentally
Tu = 0.25  # ultimate period = 0.25 seconds

for ctype in ['P', 'PI', 'PID']:
    gains = ziegler_nichols_ultimate(Ku, Tu, ctype)
    print(f"{ctype:4s} → Kp={gains['Kp']:6.3f}, Ki={gains['Ki']:6.3f}, Kd={gains['Kd']:6.3f}")

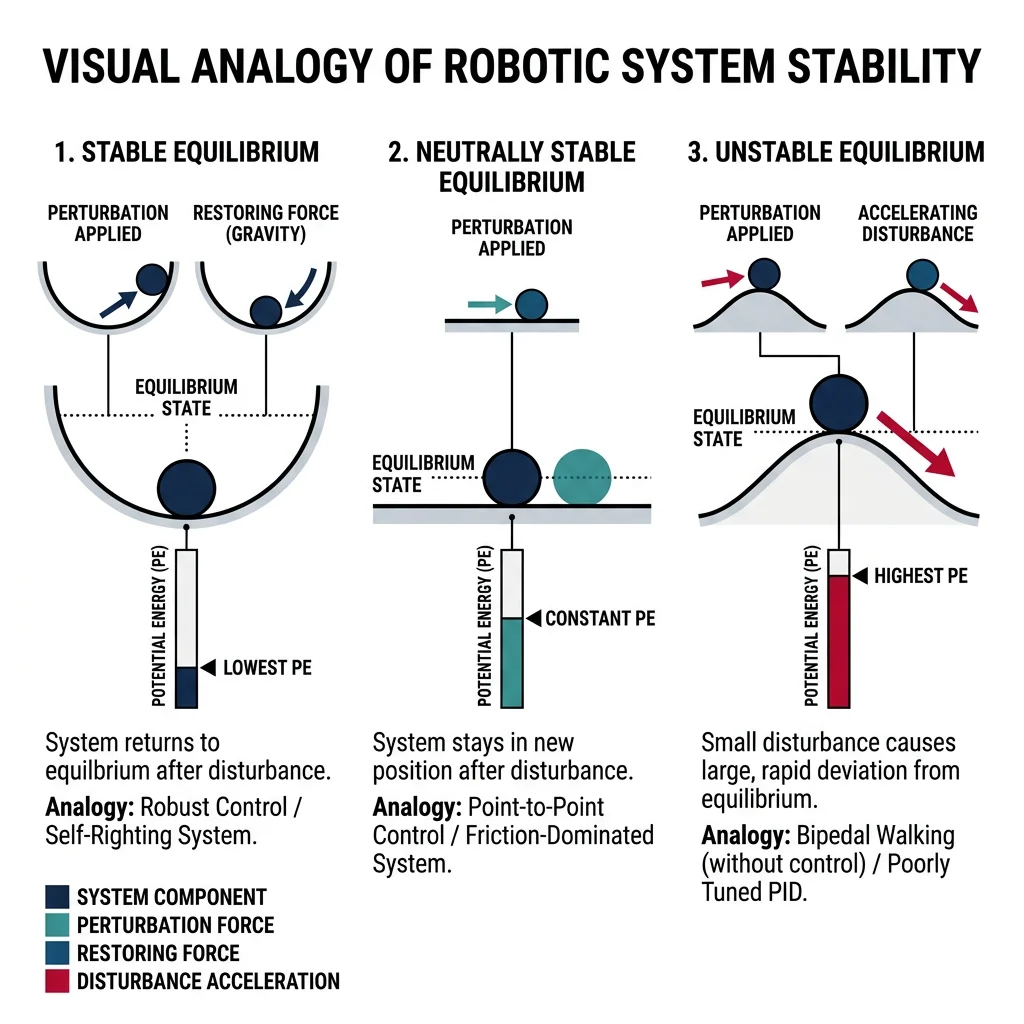

Stability & Analysis

A control system is stable if its output converges to a bounded value for any bounded input. Stability is the most fundamental requirement — an unstable controller can drive a robot arm into wild oscillations or cause a drone to crash.

BIBO Stability (Bounded-Input, Bounded-Output)

A system is BIBO stable if every bounded input produces a bounded output. For linear systems described by transfer functions $G(s) = N(s)/D(s)$, stability requires all poles (roots of $D(s) = 0$) to have negative real parts — i.e., all poles in the left half of the s-plane.

Routh-Hurwitz Criterion

The Routh-Hurwitz criterion determines stability without solving for poles directly. For a characteristic polynomial $a_n s^n + a_{n-1} s^{n-1} + \cdots + a_1 s + a_0$, form the Routh array. The system is stable if and only if all elements in the first column are positive (no sign changes).

import numpy as np

def routh_array(coeffs):
    """Build Routh array and check stability.

    Args:
        coeffs: list of polynomial coefficients [a_n, a_{n-1}, ..., a_1, a_0]

    Returns:
        (is_stable, array): stability flag and Routh array
    """
    n = len(coeffs)
    rows = n
    cols = (n + 1) // 2

    # Initialize array
    routh = np.zeros((rows, cols))

    # Fill first two rows
    routh[0, :len(coeffs[0::2])] = coeffs[0::2]  # odd-indexed coeffs
    routh[1, :len(coeffs[1::2])] = coeffs[1::2]  # even-indexed coeffs

    # Calculate remaining rows
    for i in range(2, rows):
        for j in range(cols - 1):
            if routh[i-1, 0] == 0:
                routh[i-1, 0] = 1e-10  # avoid division by zero
            routh[i, j] = (routh[i-1, 0] * routh[i-2, j+1] - routh[i-2, 0] * routh[i-1, j+1]) / routh[i-1, 0]

    # Check first column for sign changes
    first_col = routh[:, 0]
    sign_changes = np.sum(np.diff(np.sign(first_col)) != 0)
    is_stable = sign_changes == 0 and np.all(first_col > 0)

    return is_stable, routh

# Example: s^3 + 6s^2 + 11s + 6 = (s+1)(s+2)(s+3) → stable
coeffs_stable = [1, 6, 11, 6]
stable, array = routh_array(coeffs_stable)
print(f"Polynomial: s³ + 6s² + 11s + 6")
print(f"Stable: {stable}")
print(f"First column: {array[:, 0]}")

# Example: s^3 + 2s^2 - s - 2 = (s+1)(s+2)(s-1) → UNSTABLE
coeffs_unstable = [1, 2, -1, -2]
stable, array = routh_array(coeffs_unstable)
print(f"\nPolynomial: s³ + 2s² - s - 2")
print(f"Stable: {stable}")
print(f"First column: {array[:, 0]}")

Root Locus Method

Root locus plots show how system poles move in the s-plane as a controller gain $K$ varies from 0 to ∞. Poles that cross from the left half-plane to the right half-plane indicate the gain at which the system becomes unstable — the gain margin.

Frequency Response (Bode Plots)

Frequency response analysis evaluates how a system responds to sinusoidal inputs at different frequencies. Bode plots display magnitude (in dB) and phase (in degrees) vs. frequency, providing two critical stability metrics:

• Gain Margin (GM): How much gain can increase before instability — measured at the phase crossover frequency (where phase = −180°). GM > 6 dB is typical.
• Phase Margin (PM): How much additional phase lag is tolerable — measured at the gain crossover frequency (where magnitude = 0 dB). PM > 45° is desirable.

import numpy as np
import matplotlib.pyplot as plt

def bode_plot(num, den, freq_range=(0.01, 100), num_points=1000):
    """Generate Bode magnitude and phase plots.

    Args:
        num: numerator polynomial coefficients [b_m, ..., b_1, b_0]
        den: denominator polynomial coefficients [a_n, ..., a_1, a_0]
    """
    omega = np.logspace(np.log10(freq_range[0]), np.log10(freq_range[1]), num_points)
    s = 1j * omega

    # Evaluate transfer function at each frequency
    H = np.polyval(num, s) / np.polyval(den, s)

    magnitude_db = 20 * np.log10(np.abs(H))
    phase_deg = np.degrees(np.angle(H))

    # Unwrap phase for continuous plot
    phase_deg = np.degrees(np.unwrap(np.radians(phase_deg)))

    fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(10, 6), sharex=True)

    ax1.semilogx(omega, magnitude_db, 'b-', linewidth=2)
    ax1.axhline(y=0, color='r', linestyle='--', alpha=0.5)
    ax1.set_ylabel('Magnitude (dB)')
    ax1.set_title('Bode Plot')
    ax1.grid(True, which='both', alpha=0.3)

    ax2.semilogx(omega, phase_deg, 'r-', linewidth=2)
    ax2.axhline(y=-180, color='k', linestyle='--', alpha=0.5)
    ax2.set_ylabel('Phase (degrees)')
    ax2.set_xlabel('Frequency (rad/s)')
    ax2.grid(True, which='both', alpha=0.3)

    plt.tight_layout()
    plt.show()

# Second-order plant with PID: G(s) = 10 / (s^2 + 2s + 10)
# Open-loop transfer function
bode_plot(num=[10], den=[1, 2, 10])

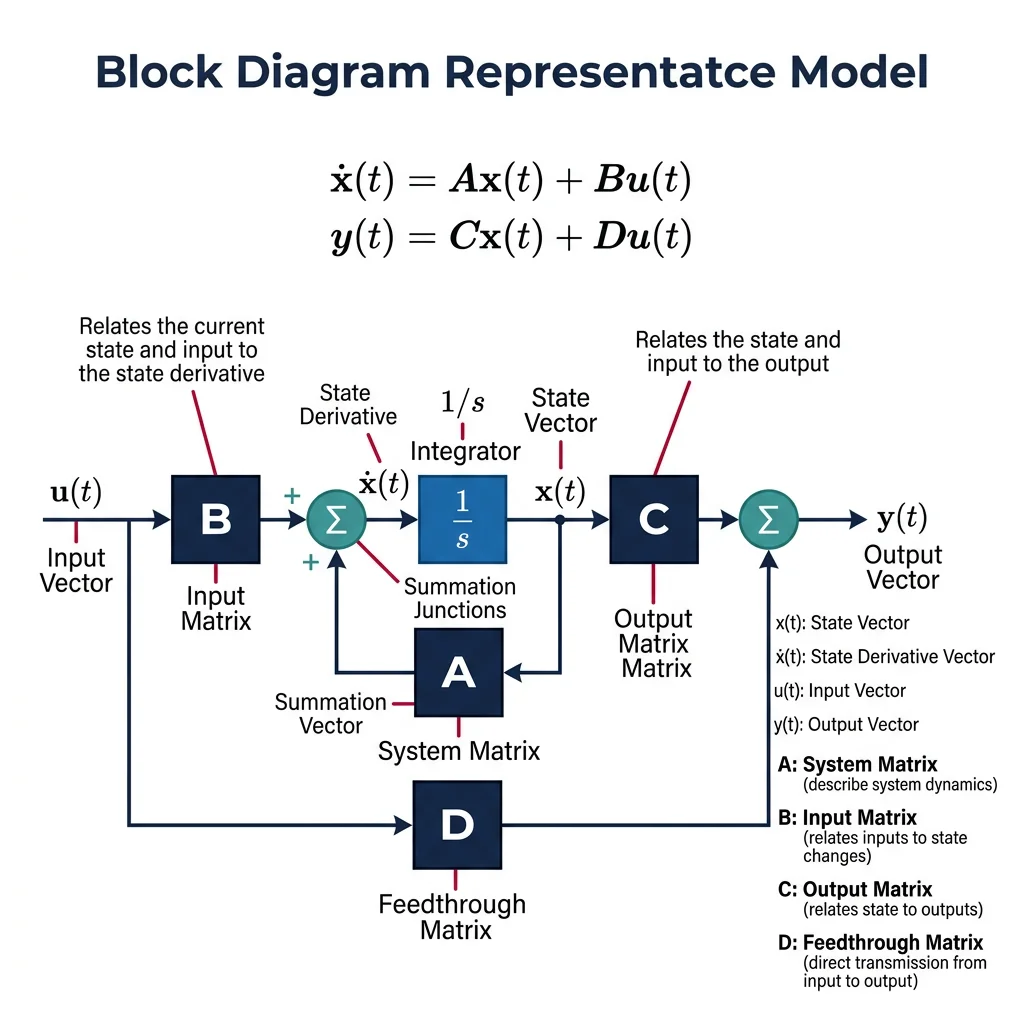

State-Space Modeling & Observers

State-space representation is the modern approach to control design, especially for multi-input, multi-output (MIMO) systems that transfer functions handle poorly. Every robotic system — from a 6-DOF arm to a quadrotor — is naturally described in state-space form.

The state vector $\mathbf{x}$ captures everything needed to predict future behavior. For a DC motor: $\mathbf{x} = [\theta, \dot{\theta}, i]^T$ (angle, angular velocity, current). For a mobile robot: $\mathbf{x} = [x, y, \theta, v, \omega]^T$ (position, heading, speed, rotation rate).

import numpy as np
import matplotlib.pyplot as plt

# State-space model of a DC motor
# States: x = [theta, omega] (angle and angular velocity)
# Input: u = voltage
# Parameters
J = 0.01    # moment of inertia (kg·m²)
b = 0.1     # friction coefficient (N·m·s)
Kt = 0.01   # torque constant (N·m/A)
Ke = 0.01   # back-EMF constant (V·s/rad)
R = 1.0     # armature resistance (Ω)
L = 0.5     # armature inductance (H)

# State-space matrices (simplified: neglecting inductance)
# x = [theta, omega]
A = np.array([[0, 1],
              [0, -(b + Kt*Ke/R) / J]])
B = np.array([[0],
              [Kt / (J * R)]])
C = np.array([[1, 0]])    # measure angle
D = np.array([[0]])

print("System Matrix A:")
print(A)
print(f"\nEigenvalues: {np.linalg.eigvals(A)}")
print(f"System is {'stable' if np.all(np.real(np.linalg.eigvals(A)) < 0) else 'UNSTABLE'}")

# Simulate step response
dt = 0.001
t = np.arange(0, 3, dt)
x = np.array([0.0, 0.0])  # initial state
u_val = 12.0  # 12V step input

states = []
for _ in t:
    u = np.array([u_val])
    x_dot = A @ x + B.flatten() * u_val
    x = x + x_dot * dt
    states.append(x.copy())

states = np.array(states)
fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(10, 6), sharex=True)
ax1.plot(t, np.degrees(states[:, 0]), 'b-')
ax1.set_ylabel('Angle (degrees)')
ax1.set_title('DC Motor State-Space Response to 12V Step')
ax1.grid(True, alpha=0.3)
ax2.plot(t, states[:, 1], 'r-')
ax2.set_ylabel('Angular Velocity (rad/s)')
ax2.set_xlabel('Time (s)')
ax2.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

Controllability & Observability

Before designing a controller, verify two fundamental properties:

• Controllability: Can we drive the system from any state to any other state using the available inputs? Check: rank of $\mathcal{C} = [B, AB, A^2B, \ldots, A^{n-1}B]$ must equal $n$ (state dimension).
• Observability: Can we determine all internal states from output measurements? Check: rank of $\mathcal{O} = [C; CA; CA^2; \ldots; CA^{n-1}]$ must equal $n$.

import numpy as np

def check_controllability(A, B):
    """Check if (A, B) is controllable."""
    n = A.shape[0]
    C_mat = B.copy()
    for i in range(1, n):
        C_mat = np.hstack([C_mat, np.linalg.matrix_power(A, i) @ B])
    rank = np.linalg.matrix_rank(C_mat)
    return rank == n, rank

def check_observability(A, C):
    """Check if (A, C) is observable."""
    n = A.shape[0]
    O_mat = C.copy()
    for i in range(1, n):
        O_mat = np.vstack([O_mat, C @ np.linalg.matrix_power(A, i)])
    rank = np.linalg.matrix_rank(O_mat)
    return rank == n, rank

# DC motor example
A = np.array([[0, 1], [0, -11]])
B = np.array([[0], [1]])
C = np.array([[1, 0]])

ctrl, r1 = check_controllability(A, B)
obs, r2 = check_observability(A, C)
print(f"Controllable: {ctrl} (rank = {r1}/{A.shape[0]})")
print(f"Observable:   {obs} (rank = {r2}/{A.shape[0]})")

State Observers (Luenberger Observer)

In practice, we can't always measure every state variable. An observer estimates unmeasured states from available sensor data. The Luenberger observer is a copy of the system model with a correction term based on the output error:

import numpy as np
import matplotlib.pyplot as plt

# Luenberger observer for DC motor
# Only angle (theta) is measured, estimate velocity (omega)
A = np.array([[0, 1], [0, -11]])
B = np.array([[0], [1]])
C = np.array([[1, 0]])

# Observer gain L — places observer poles at -20, -25 (faster than system)
L = np.array([[35], [500]])

dt = 0.001
t = np.arange(0, 1, dt)

# True state and estimated state
x_true = np.array([0.0, 0.0])
x_hat = np.array([0.5, -5.0])  # wrong initial estimate!

true_states, est_states = [], []

for _ in t:
    u = 5.0  # constant input
    y = C @ x_true  # measurement

    # True system evolution
    x_true = x_true + (A @ x_true + B.flatten() * u) * dt

    # Observer evolution
    y_hat = C @ x_hat
    x_hat = x_hat + (A @ x_hat + B.flatten() * u + L.flatten() * (y - y_hat)) * dt

    true_states.append(x_true.copy())
    est_states.append(x_hat.copy())

true_states = np.array(true_states)
est_states = np.array(est_states)

fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(10, 6), sharex=True)
ax1.plot(t, true_states[:, 0], 'b-', label='True θ')
ax1.plot(t, est_states[:, 0], 'r--', label='Estimated θ')
ax1.set_ylabel('Angle (rad)')
ax1.set_title('Luenberger Observer: State Estimation')
ax1.legend()
ax1.grid(True, alpha=0.3)

ax2.plot(t, true_states[:, 1], 'b-', label='True ω')
ax2.plot(t, est_states[:, 1], 'r--', label='Estimated ω')
ax2.set_ylabel('Angular Velocity (rad/s)')
ax2.set_xlabel('Time (s)')
ax2.legend()
ax2.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
print("Observer converges despite wrong initial estimate!")

Advanced Control Strategies

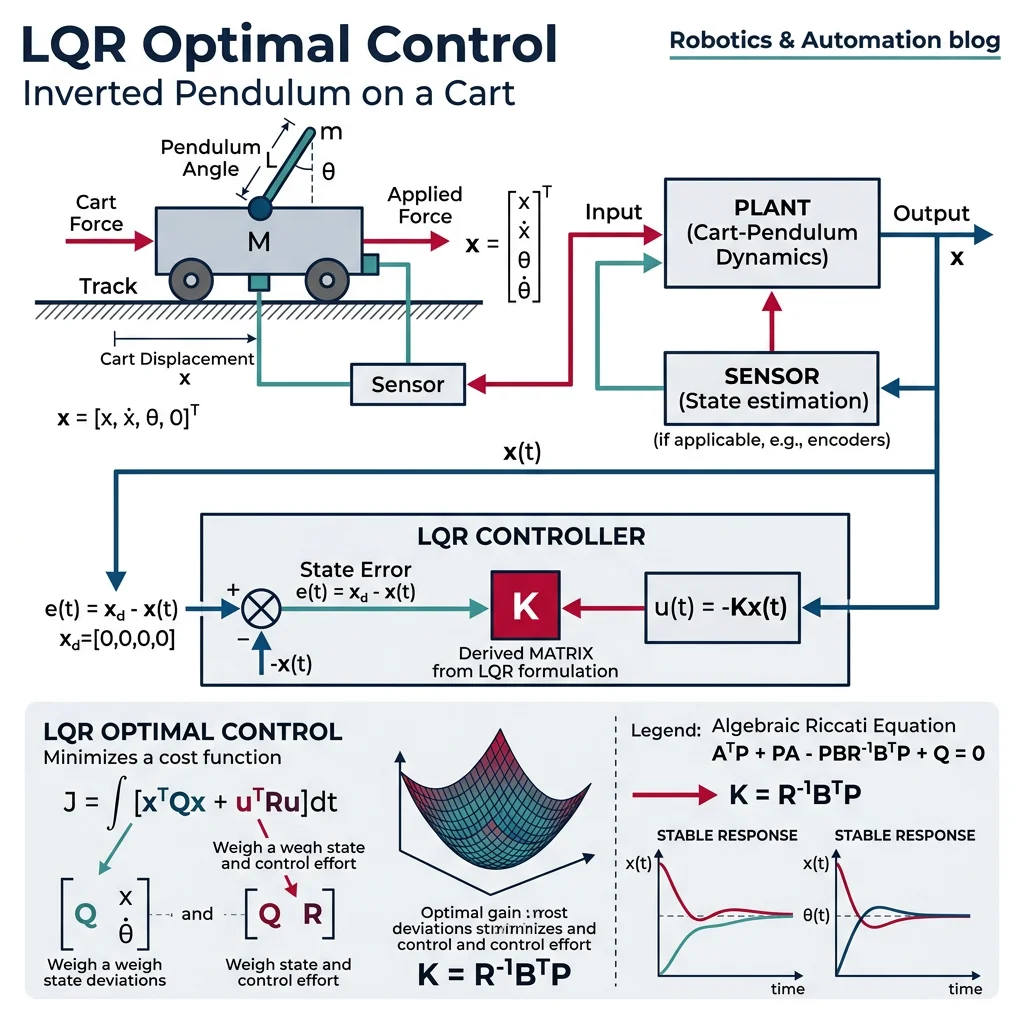

LQR (Linear Quadratic Regulator)

LQR is an optimal control method that finds the best state-feedback gain $\mathbf{K}$ to minimize a quadratic cost function. Think of PID tuning as trial-and-error; LQR as mathematically computing the optimal gains.

import numpy as np
from scipy import linalg
import matplotlib.pyplot as plt

def lqr(A, B, Q, R):
    """Solve the continuous-time LQR problem.

    Returns:
        K: optimal gain matrix
        P: solution to Riccati equation
        eigvals: closed-loop eigenvalues
    """
    # Solve continuous algebraic Riccati equation: A'P + PA - PBR^-1B'P + Q = 0
    P = linalg.solve_continuous_are(A, B, Q, R)
    K = np.linalg.inv(R) @ B.T @ P
    eigvals = np.linalg.eigvals(A - B @ K)
    return K, P, eigvals

# Inverted pendulum on cart (classic control problem)
# States: x = [position, velocity, angle, angular_velocity]
m_cart = 1.0    # cart mass (kg)
m_pend = 0.1    # pendulum mass (kg)
l = 0.5         # pendulum length (m)
g = 9.81

# Linearized A and B matrices (around upright equilibrium)
A = np.array([
    [0, 1, 0, 0],
    [0, 0, -m_pend*g/m_cart, 0],
    [0, 0, 0, 1],
    [0, 0, (m_cart+m_pend)*g/(m_cart*l), 0]
])
B = np.array([[0], [1/m_cart], [0], [-1/(m_cart*l)]])

# LQR weights: penalize angle error heavily
Q = np.diag([1, 1, 10, 1])   # state weights
R = np.array([[0.1]])          # control effort weight

K, P, eigs = lqr(A, B, Q, R)
print(f"Optimal gain K: {K.flatten().round(3)}")
print(f"Closed-loop poles: {eigs.round(3)}")
print(f"All poles stable: {np.all(np.real(eigs) < 0)}")

# Simulate with LQR controller
dt = 0.001
t = np.arange(0, 5, dt)
x = np.array([0, 0, 0.2, 0])  # initial tilt of 0.2 rad (~11°)
states = []

for _ in t:
    u = -K @ x  # LQR control law
    x_dot = A @ x + B.flatten() * u.item()
    x = x + x_dot * dt
    states.append(x.copy())

states = np.array(states)
fig, axes = plt.subplots(2, 2, figsize=(12, 6))
labels = ['Position (m)', 'Velocity (m/s)', 'Angle (rad)', 'Angular Vel (rad/s)']
for i, ax in enumerate(axes.flat):
    ax.plot(t, states[:, i], linewidth=2)
    ax.set_ylabel(labels[i])
    ax.grid(True, alpha=0.3)
axes[1][0].set_xlabel('Time (s)')
axes[1][1].set_xlabel('Time (s)')
fig.suptitle('LQR Control of Inverted Pendulum', fontsize=14, fontweight='bold')
plt.tight_layout()
plt.show()

Model Predictive Control (MPC)

MPC is the most powerful general-purpose control strategy. Unlike PID which reacts to current error, MPC predicts the future by simulating the plant model forward over a prediction horizon, then optimizes control inputs to minimize a cost over that horizon. Only the first control action is applied, then the process repeats — this is called receding horizon control.

import numpy as np
import matplotlib.pyplot as plt

def simple_mpc(A, B, Q, R, x0, N_horizon, N_steps, dt, u_min=-10, u_max=10):
    """Simplified linear MPC with constraints.

    Args:
        A, B: discrete-time system matrices
        Q, R: state and input weight matrices
        x0: initial state
        N_horizon: prediction horizon (steps)
        N_steps: total simulation steps
        u_min, u_max: input constraints
    """
    n = A.shape[0]
    x = x0.copy()
    states = [x.copy()]
    inputs = []

    for step in range(N_steps):
        # Simple MPC: evaluate cost for candidate inputs
        best_cost = float('inf')
        best_u = 0

        # Grid search over control inputs (simplified)
        for u_cand in np.linspace(u_min, u_max, 50):
            cost = 0
            x_pred = x.copy()
            for k in range(N_horizon):
                cost += x_pred.T @ Q @ x_pred + u_cand**2 * R[0, 0]
                x_pred = A @ x_pred + B.flatten() * u_cand
            if cost < best_cost:
                best_cost = cost
                best_u = u_cand

        # Apply first control action
        x = A @ x + B.flatten() * best_u
        states.append(x.copy())
        inputs.append(best_u)

    return np.array(states), np.array(inputs)

# Discrete-time double integrator (position control)
dt = 0.1
A = np.array([[1, dt], [0, 1]])
B = np.array([[0.5*dt**2], [dt]])
Q = np.diag([10, 1])
R = np.array([[0.1]])

x0 = np.array([5.0, 0.0])  # start at position=5, want position=0
states, inputs = simple_mpc(A, B, Q, R, x0, N_horizon=10, N_steps=50, dt=dt)

fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(10, 6), sharex=True)
t = np.arange(len(states)) * dt
ax1.plot(t, states[:, 0], 'b-', linewidth=2)
ax1.axhline(y=0, color='r', linestyle='--')
ax1.set_ylabel('Position')
ax1.set_title('MPC: Position Regulation with Input Constraints')
ax1.grid(True, alpha=0.3)
ax2.step(t[:-1], inputs, 'r-', linewidth=2, where='post')
ax2.axhline(y=10, color='k', linestyle=':', alpha=0.5, label='Constraint')
ax2.axhline(y=-10, color='k', linestyle=':', alpha=0.5)
ax2.set_ylabel('Control Input')
ax2.set_xlabel('Time (s)')
ax2.legend()
ax2.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

Adaptive & Robust Control

Real robots face uncertainty: unknown payloads, changing friction, unmodeled dynamics. Adaptive and robust control address this.

Adaptive Control

Adaptive control adjusts controller parameters online to compensate for unknown or changing plant dynamics. The two main approaches are:

• Model Reference Adaptive Control (MRAC): Defines a reference model for desired behavior; adaptation law adjusts gains so the plant tracks the reference model
• Self-Tuning Regulators: Estimate plant parameters online (system identification) and redesign the controller at each step

import numpy as np
import matplotlib.pyplot as plt

# Simple MRAC (Model Reference Adaptive Control) example
# Plant: y_dot = a*y + b*u (a, b unknown to controller)
# Reference model: y_m_dot = a_m * y_m + b_m * r

a_true = -2.0    # true (unknown) plant parameter
b_true = 3.0     # true (unknown) input gain

a_m = -5.0       # desired model dynamics
b_m = 5.0        # desired model input gain

# Adaptation gains (learning rates)
gamma_theta = 10.0
gamma_k = 10.0

dt = 0.001
t = np.arange(0, 10, dt)
r = np.sign(np.sin(0.5 * t))  # square wave reference

y = 0.0           # plant output
y_m = 0.0         # model output
theta_hat = 0.0   # estimated feedforward gain
k_hat = 0.0       # estimated feedback gain

outputs, model_outputs, errors = [], [], []

for i in range(len(t)):
    # Tracking error
    e = y - y_m

    # Adaptive control law
    u = theta_hat * r[i] + k_hat * y

    # Plant dynamics (unknown to controller)
    y_dot = a_true * y + b_true * u
    y = y + y_dot * dt

    # Reference model dynamics
    y_m_dot = a_m * y_m + b_m * r[i]
    y_m = y_m + y_m_dot * dt

    # Adaptation laws (MIT rule)
    theta_hat -= gamma_theta * e * r[i] * dt
    k_hat -= gamma_k * e * y * dt

    outputs.append(y)
    model_outputs.append(y_m)

plt.figure(figsize=(10, 4))
plt.plot(t, model_outputs, 'b-', label='Reference Model', alpha=0.7)
plt.plot(t, outputs, 'r-', label='Adaptive Plant Output', alpha=0.7)
plt.xlabel('Time (s)')
plt.ylabel('Output')
plt.title('MRAC: Plant Adapts to Track Reference Model')
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

Robust Control (H∞)

Robust control designs controllers that work well despite bounded uncertainties — it doesn't adapt but designs for the worst case. The H∞ (H-infinity) method minimizes the worst-case effect of disturbances on performance. While mathematically complex, the key intuition is: design for the worst-case plant model within a defined uncertainty set.

Nonlinear Control

Real robots are inherently nonlinear — gravity varies with configuration, friction is discontinuous, and actuators saturate. Nonlinear control methods handle these directly rather than linearizing.

Feedback Linearization

Transform a nonlinear system into an equivalent linear system through a change of variables and nonlinear state feedback. If the robot dynamics are $\mathbf{M}(\mathbf{q})\ddot{\mathbf{q}} + \mathbf{C}(\mathbf{q}, \dot{\mathbf{q}})\dot{\mathbf{q}} + \mathbf{g}(\mathbf{q}) = \boldsymbol{\tau}$, choose:

Sliding Mode Control (SMC)

SMC forces the system state onto a predefined sliding surface $s(\mathbf{x}) = 0$ using high-frequency switching. Once on the surface, the system slides toward the equilibrium regardless of disturbances — providing invariance to matched uncertainties.

import numpy as np
import matplotlib.pyplot as plt

# Sliding Mode Control for a nonlinear system
# Plant: x_dot = f(x) + b(x)*u + d(t) (disturbance)
# x_dot = -x^3 + u + d

dt = 0.001
t = np.arange(0, 5, dt)
x_desired = 2.0  # desired position

# SMC parameters
lam = 5.0      # sliding surface slope
eta = 2.0      # switching gain (must exceed max disturbance)
phi = 0.1      # boundary layer thickness (for chattering reduction)

x, x_dot = 0.0, 0.0  # initial conditions
positions, surfaces, controls = [], [], []

for i in range(len(t)):
    # Tracking error and sliding surface
    e = x - x_desired
    s = x_dot + lam * e  # s = e_dot + lambda * e

    # External disturbance (unknown to controller)
    d = 1.5 * np.sin(3 * t[i])

    # SMC control law with saturation (reduces chattering)
    # u_eq = x^3 - lambda * x_dot (equivalent control)
    # u_sw = -eta * sat(s/phi) (switching control)
    u_eq = x**3 - lam * x_dot
    u_sw = -eta * np.clip(s / phi, -1, 1)  # saturation function
    u = u_eq + u_sw

    # Plant dynamics: x_ddot = -x^3 + u + d
    x_ddot = -x**3 + u + d
    x_dot += x_ddot * dt
    x += x_dot * dt

    positions.append(x)
    surfaces.append(s)
    controls.append(u)

fig, axes = plt.subplots(3, 1, figsize=(10, 8), sharex=True)
axes[0].plot(t, positions, 'b-', linewidth=2)
axes[0].axhline(y=x_desired, color='r', linestyle='--', label='Desired')
axes[0].set_ylabel('Position')
axes[0].set_title('Sliding Mode Control with Disturbance Rejection')
axes[0].legend()
axes[0].grid(True, alpha=0.3)

axes[1].plot(t, surfaces, 'g-', linewidth=1)
axes[1].axhline(y=0, color='k', linestyle='--')
axes[1].set_ylabel('Sliding Surface s')
axes[1].grid(True, alpha=0.3)

axes[2].plot(t, controls, 'r-', linewidth=1)
axes[2].set_ylabel('Control Input u')
axes[2].set_xlabel('Time (s)')
axes[2].grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

Lyapunov-Based Control

Lyapunov stability theory is the foundation for proving stability of nonlinear systems. Instead of finding poles (which only works for linear systems), you find a Lyapunov function $V(\mathbf{x}) > 0$ whose time derivative along system trajectories is negative: $\dot{V}(\mathbf{x}) < 0$. This guarantees the system converges to the origin — like showing a ball always rolls downhill on your energy landscape.

PID Tuning Worksheet

Use this interactive tool to document your PID tuning parameters. Enter your system configuration and download a professional report.

Exercises & Challenges

Conclusion & Next Steps

Control systems form the core intelligence of every robotic system. We've progressed from fundamental feedback concepts through PID — the workhorse of industry — to advanced strategies like LQR, MPC, adaptive control, and nonlinear methods. Key takeaways:

• PID is sufficient for 90%+ of single-loop control problems when properly tuned
• State-space methods (LQR, observers) are essential for MIMO systems and modern robotics
• MPC is the gold standard when constraints and prediction matter
• Nonlinear control (computed torque, SMC, Lyapunov) handles the reality that robots are inherently nonlinear
• Stability analysis (Routh-Hurwitz, Bode, root locus) must be verified before any deployment
