Robotics & Automation Series Part 11: Human-Robot Interaction (HRI)

Collaborative Robots (Cobots)

For most of robotics history, robots and humans occupied separate worlds — robots behind safety cages on factory floors, humans safely outside. Collaborative robots (cobots) shattered this paradigm, enabling robots to work directly alongside people without barriers. Think of the difference between a roaring industrial press (dangerous, fenced off) and a power drill (powerful tool that a human safely controls). Cobots are designed from the ground up for human proximity — with force sensing, compliant joints, and rounded edges that make physical contact safe rather than catastrophic.

The cobot market has grown from $580 million (2018) to over $2 billion (2025), driven by small-to-medium enterprises that can't afford full-cage automation but need robotic assistance for repetitive tasks like machine tending, quality inspection, and palletizing.

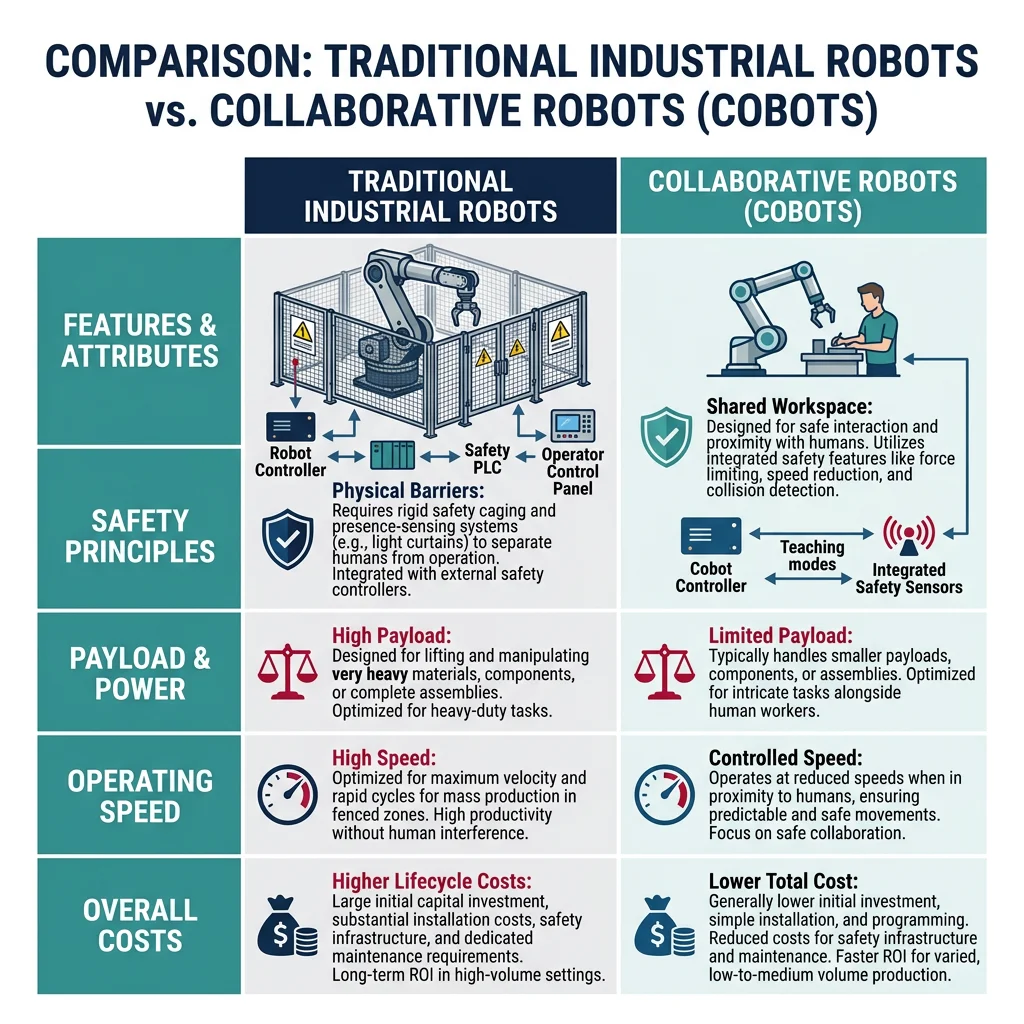

Feature	Traditional Industrial Robot	Collaborative Robot (Cobot)
Safety	Requires safety cage/fence	Operates alongside humans
Payload	Up to 2,300 kg (Fanuc M-2000)	Typically 3–25 kg
Speed	Up to 2+ m/s	Limited to 1.0–1.5 m/s near humans
Programming	Expert programmer required	Hand-guiding, drag-and-drop, teach pendant
Setup Time	Weeks to months	Hours to days
Cost	$50K–$500K + integration	$20K–$70K, often self-deployable
Key Players	ABB, KUKA, Fanuc, Yaskawa	Universal Robots, Franka Emika, Techman

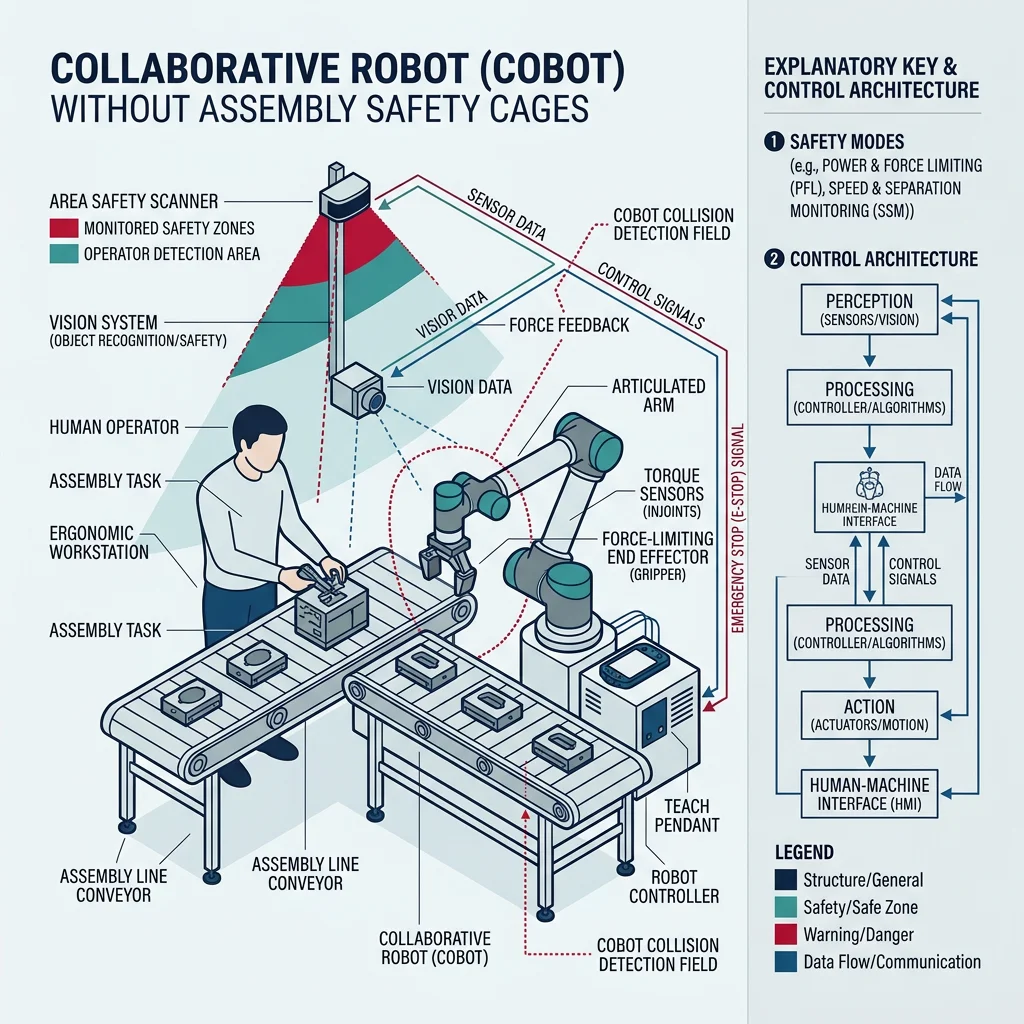

Shared Workspace Design

ISO 10218 and ISO/TS 15066 define four collaborative operation modes, each balancing productivity with safety. Understanding these modes is essential for designing any human-robot shared workspace:

import numpy as np

class SpeedSeparationMonitor:
    """Implements ISO/TS 15066 Speed & Separation Monitoring (SSM).

    Dynamically adjusts robot speed based on human-robot distance:
    - d > d_safe: Full speed operation
    - d_min < d < d_safe: Speed scales linearly
    - d < d_min: Emergency stop
    """

    def __init__(self, v_max=1.5, d_safe=1.5, d_min=0.3):
        self.v_max = v_max      # Max robot speed (m/s)
        self.d_safe = d_safe    # Distance for full speed (m)
        self.d_min = d_min      # Minimum protective distance (m)
        self.current_speed = 0.0
        self.stopped = False

    def compute_safe_speed(self, human_distance):
        """Calculate allowable robot speed based on human proximity."""
        if human_distance <= self.d_min:
            self.stopped = True
            self.current_speed = 0.0
            return 0.0, "EMERGENCY_STOP"

        if human_distance >= self.d_safe:
            self.stopped = False
            self.current_speed = self.v_max
            return self.v_max, "FULL_SPEED"

        # Linear interpolation in transition zone
        ratio = (human_distance - self.d_min) / (self.d_safe - self.d_min)
        self.current_speed = self.v_max * ratio
        self.stopped = False
        return self.current_speed, "REDUCED_SPEED"

    def protective_separation_distance(self, v_human=1.6, t_reaction=0.1, t_stop=0.3):
        """Calculate minimum protective separation per ISO/TS 15066 formula.

        S_p = v_h * (t_r + t_s) + v_r * t_s + C + Z_d + Z_r
        Simplified: S_p = v_h * T + v_r * t_s + safety_margins
        """
        v_robot = self.current_speed
        safety_margin = 0.1  # C + Z_d + Z_r approximation

        s_protective = (v_human * (t_reaction + t_stop) +
                       v_robot * t_stop + safety_margin)
        return s_protective

# Simulate a human approaching a cobot
ssm = SpeedSeparationMonitor(v_max=1.5, d_safe=1.5, d_min=0.3)

print("=== Speed & Separation Monitoring (ISO/TS 15066) ===\n")
print(f"{'Distance(m)':>12} {'Speed(m/s)':>12} {'Status':>18} {'Sep.Dist(m)':>12}")
print("-" * 58)

distances = [3.0, 2.0, 1.5, 1.2, 0.9, 0.6, 0.3, 0.1]
for d in distances:
    speed, status = ssm.compute_safe_speed(d)
    sep_dist = ssm.protective_separation_distance()
    print(f"{d:>12.1f} {speed:>12.2f} {status:>18} {sep_dist:>12.2f}")

print(f"\nMax speed: {ssm.v_max} m/s")
print(f"Full speed beyond: {ssm.d_safe} m")
print(f"Emergency stop within: {ssm.d_min} m")

Force Limiting & Speed Monitoring

When a cobot operates in Power & Force Limiting (PFL) mode, contact with humans is expected and permitted — but only within biomechanically safe limits. ISO/TS 15066 Annex A specifies maximum allowable pressures and forces for 29 body regions:

Body Region	Max Transient Force (N)	Max Quasi-Static Force (N)	Max Pressure (N/cm²)
Skull/Forehead	130	65	10
Face	65	45	11
Chest	140	70	12
Hand/Fingers	140	70	30
Lower Legs	210	130	25

Interaction Interfaces

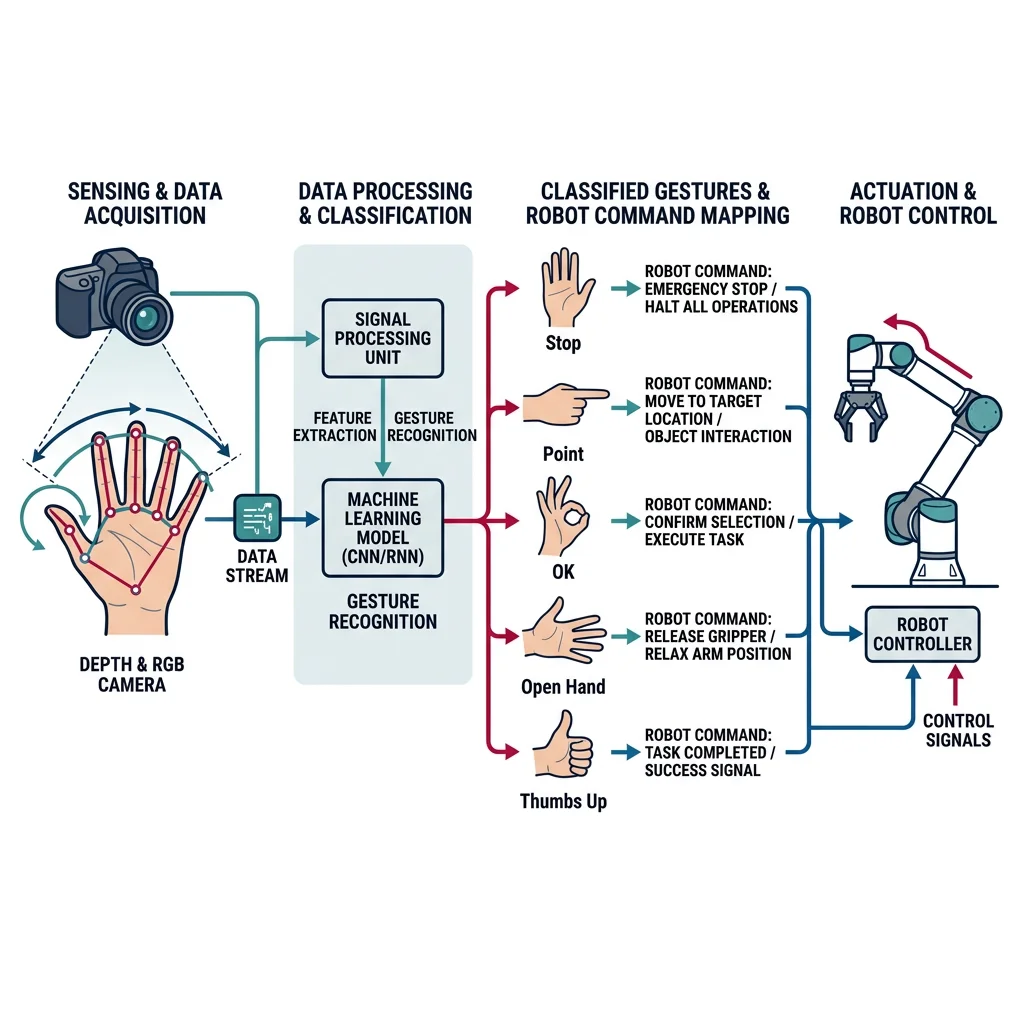

Gesture Recognition

Gesture-based control lets operators communicate with robots using natural body movements — pointing to indicate targets, waving to stop, or using hand signals to switch between tasks. This is critical in noisy factory environments where voice commands fail, or when operators' hands are occupied with tools.

import numpy as np

class GestureClassifier:
    """Simple gesture recognizer using hand landmark positions.

    In production, use MediaPipe or OpenPose for hand tracking.
    This demonstrates the classification logic.
    """

    # Gesture definitions based on finger states
    GESTURES = {
        'STOP': {'fingers_extended': [0, 0, 0, 0, 0]},       # Fist
        'POINT': {'fingers_extended': [0, 1, 0, 0, 0]},       # Index only
        'OK': {'fingers_extended': [0, 0, 1, 1, 1]},          # OK sign
        'OPEN_HAND': {'fingers_extended': [1, 1, 1, 1, 1]},   # All open
        'THUMBS_UP': {'fingers_extended': [1, 0, 0, 0, 0]},   # Thumb only
    }

    GESTURE_ACTIONS = {
        'STOP': 'Emergency stop — halt all motion',
        'POINT': 'Move to pointed direction',
        'OK': 'Confirm current action / proceed',
        'OPEN_HAND': 'Release gripper / open hand',
        'THUMBS_UP': 'Start task / resume operation',
    }

    def classify(self, finger_states):
        """Classify finger states into a gesture.

        finger_states: list of 5 ints (0=bent, 1=extended)
                       [thumb, index, middle, ring, pinky]
        """
        for gesture_name, pattern in self.GESTURES.items():
            if finger_states == pattern['fingers_extended']:
                return gesture_name, self.GESTURE_ACTIONS[gesture_name]
        return 'UNKNOWN', 'No matching gesture — ignore'

    def process_sequence(self, gesture_sequence, hold_frames=5):
        """Process gesture sequence with temporal filtering.

        Requires a gesture to be held for hold_frames consecutive
        detections to filter out noise and accidental gestures.
        """
        if len(gesture_sequence) < hold_frames:
            return None, 'Insufficient frames'

        # Check if last N frames are the same gesture
        recent = gesture_sequence[-hold_frames:]
        if len(set(recent)) == 1 and recent[0] != 'UNKNOWN':
            return recent[0], self.GESTURE_ACTIONS.get(recent[0], 'Unknown action')
        return None, 'Gesture not stable'

# Simulate gesture recognition sequence
gc = GestureClassifier()

print("=== Robot Gesture Control System ===\n")
print("Recognized gestures:")
test_gestures = [
    [0, 0, 0, 0, 0],  # Fist
    [0, 1, 0, 0, 0],  # Point
    [1, 1, 1, 1, 1],  # Open hand
    [1, 0, 0, 0, 0],  # Thumbs up
    [0, 0, 1, 1, 1],  # OK
    [0, 1, 1, 0, 0],  # Peace/unknown
]

for fingers in test_gestures:
    gesture, action = gc.classify(fingers)
    finger_str = ''.join(['✋' if f else '✊' for f in fingers])
    print(f"  {finger_str} → {gesture:12s} → {action}")

# Temporal filtering demo
print("\n--- Temporal Filtering (5-frame hold) ---")
sequence = ['UNKNOWN', 'STOP', 'STOP', 'STOP', 'STOP', 'STOP', 'STOP']
for i in range(3, len(sequence) + 1):
    confirmed, action = gc.process_sequence(sequence[:i])
    status = f"CONFIRMED: {confirmed}" if confirmed else "Waiting..."
    print(f"  Frame {i}: [{', '.join(sequence[:i][-5:])}] → {status}")

Voice Control & NLP

Voice interfaces allow hands-free robot control, especially valuable in surgical, maintenance, and logistics scenarios. Modern robot voice systems combine Automatic Speech Recognition (ASR) for converting speech to text, Natural Language Understanding (NLU) for extracting intent and parameters, and dialogue management for multi-turn conversations.

import re

class RobotVoiceCommander:
    """Simple intent-based voice command parser for a robot.

    Parses natural language commands into structured robot actions.
    In production, use Rasa NLU, Dialogflow, or fine-tuned LLMs.
    """

    # Intent patterns (regex-based NLU)
    INTENT_PATTERNS = {
        'move': [
            r'(?:move|go|navigate|drive)\s+(?:to\s+)?(.+)',
            r'(?:take me to|head to)\s+(.+)',
        ],
        'pick': [
            r'(?:pick up|grab|grasp|take)\s+(?:the\s+)?(.+)',
        ],
        'place': [
            r'(?:place|put|drop|set)\s+(?:the\s+)?(?:.+?)\s+(?:on|at|in)\s+(.+)',
            r'(?:place|put|drop)\s+(?:it\s+)?(?:on|at|in)\s+(.+)',
        ],
        'stop': [
            r'\b(?:stop|halt|freeze|pause|emergency)\b',
        ],
        'status': [
            r'(?:what|where|how).+(?:status|position|battery|state)',
            r'(?:report|check)\s+(?:your\s+)?(?:status|position)',
        ],
        'speed': [
            r'(?:set|change)\s+speed\s+(?:to\s+)?(\d+)',
            r'(?:go|move)\s+(faster|slower)',
            r'speed\s+(\d+)',
        ]
    }

    def parse_command(self, text):
        """Parse natural language into intent + entities."""
        text = text.lower().strip()

        for intent, patterns in self.INTENT_PATTERNS.items():
            for pattern in patterns:
                match = re.search(pattern, text)
                if match:
                    entities = match.groups()
                    return {
                        'intent': intent,
                        'entities': list(entities),
                        'raw_text': text,
                        'confidence': 0.85,  # Simplified
                        'requires_confirmation': intent in ['move', 'pick', 'place']
                    }

        return {
            'intent': 'unknown',
            'entities': [],
            'raw_text': text,
            'confidence': 0.0,
            'requires_confirmation': False
        }

# Test voice commands
vc = RobotVoiceCommander()

print("=== Robot Voice Command Parser ===\n")

test_commands = [
    "Move to shelf B3",
    "Pick up the red box",
    "Place it on the conveyor belt",
    "Stop!",
    "What is your battery status?",
    "Set speed to 50",
    "Go faster",
    "Navigate to charging station",
    "Grab the blue cylinder",
    "How's it going?",  # Unknown intent
]

for cmd in test_commands:
    result = vc.parse_command(cmd)
    conf_str = " ⚠️CONFIRM" if result['requires_confirmation'] else ""
    print(f"  \"{cmd}\"")
    print(f"    → Intent: {result['intent']:8s} | "
          f"Entities: {result['entities']}{conf_str}\n")

Haptic Feedback

Haptic feedback provides the sense of touch in robot teleoperation and assistive devices. When a surgeon operates a da Vinci robot, haptic feedback lets them "feel" tissue resistance through the controls. Without it, operators over-apply force because they lack the subconscious feedback loop that governs everyday manipulation.

Types of haptic feedback in robotics:

• Force Feedback (Kinesthetic) — Motorized joysticks/exoskeletons that resist motion proportional to robot contact forces. Used in surgical robots and remote manipulation.
• Vibrotactile — Vibration motors in wearable devices indicating proximity, contact, or warnings. Low-cost, widely used in gloves and controllers.
• Electrotactile — Electrical stimulation of skin to simulate texture and pressure. Experimental but promising for prosthetics.
• Pneumatic — Air-pressure-based force feedback in soft robotic gloves. Comfortable for long-duration use.

Teleoperation

Teleoperation enables human operators to control robots remotely — from across a factory floor, across a city, or across the solar system (Mars rovers). The core challenge is latency: a 1-second delay between joystick input and robot response makes precise manipulation extremely difficult.

import numpy as np

class TeleoperationSystem:
    """Simulates a teleoperation system with latency compensation.

    Demonstrates bilateral control with force reflection
    and predictive display for latency management.
    """

    def __init__(self, latency_ms=100, force_scale=1.0):
        self.latency = latency_ms / 1000.0  # Convert to seconds
        self.force_scale = force_scale
        self.master_pos = np.array([0.0, 0.0, 0.0])
        self.slave_pos = np.array([0.0, 0.0, 0.0])
        self.contact_force = np.array([0.0, 0.0, 0.0])
        self.command_buffer = []  # Simulates network delay

    def master_input(self, displacement):
        """Operator moves the master controller."""
        self.master_pos += np.array(displacement)
        # Buffer command (simulates network transmission)
        self.command_buffer.append(self.master_pos.copy())

    def slave_execute(self, environment_stiffness=100.0):
        """Remote robot executes buffered commands."""
        if not self.command_buffer:
            return self.slave_pos, self.contact_force

        # Execute oldest command (FIFO = latency simulation)
        target = self.command_buffer.pop(0)

        # Move toward target with dynamics
        self.slave_pos = 0.8 * self.slave_pos + 0.2 * target

        # Simulate environment contact (wall at z = 1.0)
        if self.slave_pos[2] > 1.0:
            penetration = self.slave_pos[2] - 1.0
            self.contact_force = np.array([0, 0, -environment_stiffness * penetration])
            self.slave_pos[2] = 1.0  # Can't penetrate wall
        else:
            self.contact_force = np.array([0.0, 0.0, 0.0])

        return self.slave_pos, self.contact_force

    def get_haptic_feedback(self):
        """Return scaled contact force to master controller."""
        return self.contact_force * self.force_scale

# Simulate teleoperation with force feedback
teleop = TeleoperationSystem(latency_ms=150, force_scale=0.5)

print("=== Teleoperation with Force Feedback ===")
print(f"Latency: {teleop.latency*1000:.0f}ms, Force scale: {teleop.force_scale}\n")

# Operator moves toward and contacts a surface
movements = [
    [0.1, 0.0, 0.2],   # Move forward + up
    [0.1, 0.0, 0.3],   # More forward + up
    [0.0, 0.0, 0.4],   # Push into surface
    [0.0, 0.0, 0.3],   # Push harder
    [0.0, 0.0, -0.5],  # Pull back (felt force!)
]

for i, move in enumerate(movements):
    teleop.master_input(move)
    slave_pos, force = teleop.slave_execute()
    haptic = teleop.get_haptic_feedback()

    print(f"Step {i+1}: Master cmd={move}")
    print(f"  Slave pos: [{slave_pos[0]:.2f}, {slave_pos[1]:.2f}, {slave_pos[2]:.2f}]")
    print(f"  Contact force: [{force[0]:.1f}, {force[1]:.1f}, {force[2]:.1f}] N")
    print(f"  Haptic feedback: [{haptic[0]:.1f}, {haptic[1]:.1f}, {haptic[2]:.1f}] N")
    contact_status = "⚠️ CONTACT" if np.linalg.norm(force) > 0 else "✓ Free space"
    print(f"  Status: {contact_status}\n")

Safety in Human-Robot Interaction

Safety is the non-negotiable foundation of HRI. Every cobot deployment must undergo a rigorous risk assessment process defined by international standards. Getting safety wrong doesn't just risk regulatory penalties — it risks human lives.

Risk Assessment

Every HRI deployment requires a systematic risk assessment following ISO 12100. The process identifies hazards, estimates risk severity and probability, and determines risk reduction measures until residual risk is acceptable.

import numpy as np

class HRIRiskAssessment:
    """Risk assessment framework for human-robot interaction scenarios.

    Based on ISO 12100 risk assessment methodology:
    Risk = Severity × (Frequency + Probability + Avoidance)
    """

    SEVERITY_LEVELS = {
        1: 'Negligible (minor discomfort)',
        2: 'Minor (bruise, small cut)',
        3: 'Moderate (fracture, laceration)',
        4: 'Serious (permanent injury)',
        5: 'Critical (life-threatening)'
    }

    FREQUENCY_LEVELS = {
        1: 'Rare (yearly)',
        2: 'Occasional (monthly)',
        3: 'Frequent (daily)',
        4: 'Continuous (every cycle)'
    }

    PROBABILITY_LEVELS = {
        1: 'Very unlikely',
        2: 'Unlikely',
        3: 'Likely',
        4: 'Very likely'
    }

    def assess_risk(self, hazard_name, severity, frequency, probability, avoidability=2):
        """Calculate risk level for a hazard.

        avoidability: 1=easily avoidable, 3=not avoidable
        Returns: risk_score, risk_level, required_action
        """
        exposure = frequency + probability + avoidability
        risk_score = severity * exposure

        if risk_score >= 30:
            level = 'UNACCEPTABLE'
            action = 'MUST eliminate hazard or add safety-rated controls'
        elif risk_score >= 20:
            level = 'HIGH'
            action = 'Implement engineering controls + safety monitoring'
        elif risk_score >= 10:
            level = 'MEDIUM'
            action = 'Add protective measures, training, PPE'
        else:
            level = 'LOW'
            action = 'Acceptable with standard procedures'

        return {
            'hazard': hazard_name,
            'severity': severity,
            'exposure': exposure,
            'risk_score': risk_score,
            'risk_level': level,
            'action': action
        }

# Assess common HRI hazards
assessor = HRIRiskAssessment()

hazards = [
    ('Robot arm collision with head', 5, 3, 2, 2),
    ('Pinch point at gripper', 3, 4, 3, 2),
    ('Dropped heavy part on foot', 3, 3, 2, 3),
    ('Electrical shock from cable', 4, 1, 1, 1),
    ('Repetitive strain from hand-guiding', 2, 4, 3, 2),
    ('Flying debris from machining', 3, 4, 2, 2),
]

print("=== HRI Risk Assessment (ISO 12100) ===\n")
print(f"{'Hazard':<38} {'Sev':>4} {'Exp':>4} {'Score':>6} {'Level':<14} {'Action'}")
print("-" * 110)

for hazard_name, sev, freq, prob, avoid in hazards:
    result = assessor.assess_risk(hazard_name, sev, freq, prob, avoid)
    print(f"{result['hazard']:<38} {result['severity']:>4} {result['exposure']:>4} "
          f"{result['risk_score']:>6} {result['risk_level']:<14} {result['action']}")

Trust Calibration

Trust calibration is the process of ensuring humans have appropriate trust in robot capabilities — not too much (over-trust, leading to complacency) and not too little (under-trust, leading to disuse). Research shows that trust in robots follows a "U-shaped" curve: high initial trust drops after the first error, then slowly rebuilds with consistent reliability.

Factors affecting human trust in robots:

• Reliability — Consistent task success rate (>95% needed for sustained trust)
• Transparency — Robot explains its decisions ("I'm stopping because I detected an obstacle")
• Predictability — Consistent motion patterns; erratic movement destroys trust
• Appearance — Anthropomorphic features increase initial trust but create higher expectations
• Failure severity — A single dangerous failure outweighs hundreds of successes
• Operator experience — Expert operators calibrate trust faster than novices

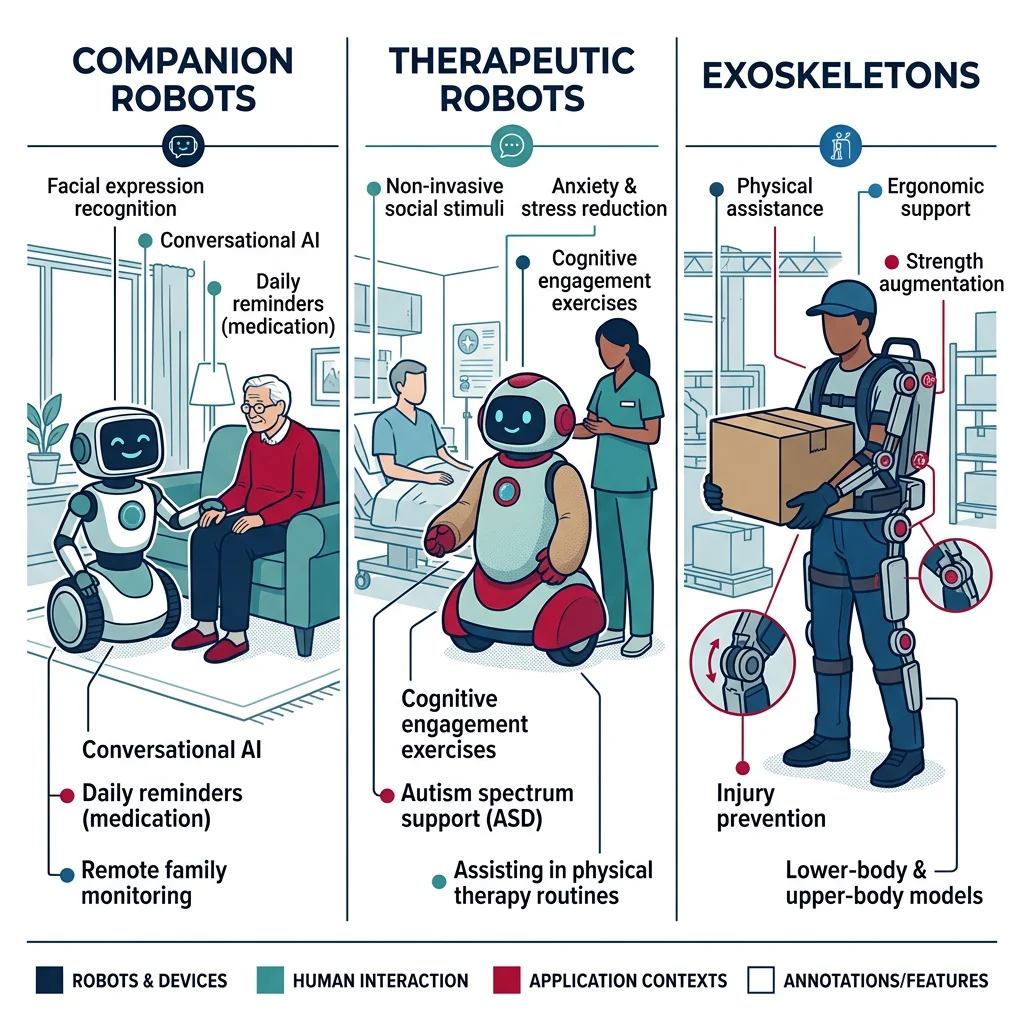

Social & Assistive Robotics

Social robots are designed to interact with people in socially meaningful ways — engaging in conversation, recognizing emotions, maintaining eye contact, and adapting their behavior to social norms. Unlike industrial cobots optimized for throughput, social robots optimize for engagement, comfort, and emotional connection.

Robot	Developer	Application	Key Features
Pepper	SoftBank	Retail, hospitality	Emotion recognition, multi-language, tablet chest
NAO	SoftBank	Education, research	25-DOF, programmable, dance/walk capabilities
PARO	AIST Japan	Elderly care, therapy	Therapeutic seal, responds to touch and voice
Sophia	Hanson Robotics	Research, public engagement	Realistic face, 62 facial expressions
Spot	Boston Dynamics	Inspection, security	Quadruped, autonomous navigation, sensor platform

Assistive Robotics

Assistive robots help people with disabilities, elderly individuals, and patients with mobility or cognitive impairments. These range from powered exoskeletons enabling paraplegic individuals to walk, to robotic arms mounted on wheelchairs for independent feeding, to companion robots providing cognitive stimulation for dementia patients.

Ethics in HRI

As robots become more socially capable and embedded in intimate contexts (caregiving, therapy, companionship), ethical questions become paramount:

HRI Design Planner Tool

Use this interactive planner to design the human-robot interaction system for your application. Specify the cobot platform, interaction modalities, safety requirements, and deployment context — then generate a structured specification document.

Exercises & Challenges

Conclusion & Next Steps

Human-Robot Interaction sits at the intersection of robotics engineering, cognitive science, and ethics. We've covered the full HRI spectrum — from cobot safety standards that define allowable contact forces, to gesture and voice interfaces that make robot control intuitive, to the deeper questions of trust calibration and ethical design for social robots. The key takeaway is that HRI is not just a technical challenge — it's a human-centered design problem where the robot must adapt to the human, not the other way around.
