Robotics & Automation Series Part 14: Safety, Reliability & Compliance

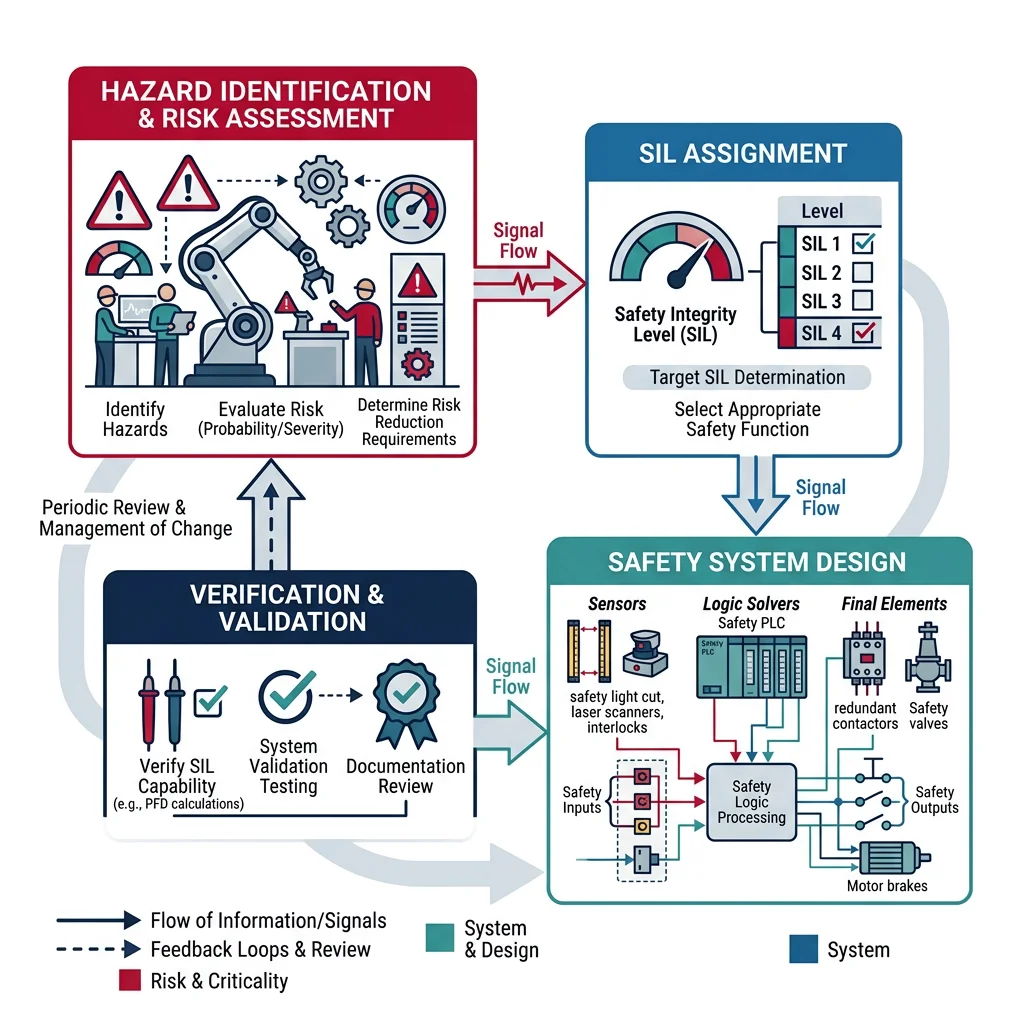

Functional Safety

Functional safety is the part of overall safety that depends on a system or equipment operating correctly in response to its inputs. Think of it like a car's airbag system — the airbag itself is a safety device, but functional safety ensures the electronic sensors, controller, and deployment mechanism work correctly when a collision actually happens. In robotics, functional safety means the robot will detect hazards and respond safely, even when components fail.

Safety Integrity Levels (SIL)

SIL levels range from 1 (lowest) to 4 (highest), each specifying a probability of dangerous failure per hour (PFH) for continuously operating systems:

SIL Level	PFH (per hour)	Risk Reduction Factor	Example Application
SIL 1	≥10-6 to <10-5	10 — 100	Conveyor emergency stop
SIL 2	≥10-7 to <10-6	100 — 1,000	Robot cell safety interlock
SIL 3	≥10-8 to <10-7	1,000 — 10,000	Surgical robot force limiter
SIL 4	≥10-9 to <10-8	10,000 — 100,000	Nuclear handling robot

Risk Assessment Process

Before assigning a SIL level, engineers conduct a risk assessment using a systematic process:

1. Hazard Identification: List all conceivable hazards (collision, pinching, electrical shock, release of hazardous materials)
2. Risk Estimation: Evaluate severity of harm, frequency of exposure, probability of hazardous event, and possibility of avoidance
3. Risk Evaluation: Compare estimated risk against tolerable risk criteria
4. Risk Reduction: Apply measures — inherent safe design, safeguarding, information for use — until residual risk is tolerable

import numpy as np

# SIL Assignment using Risk Graph Method (IEC 61508-5)
# Parameters: Consequence (C), Frequency (F), Probability (P), Avoidance (W)

def assign_sil_level(consequence, frequency, probability, avoidance):
    """
    Simple SIL assignment based on risk parameters.
    consequence: 1-4 (minor injury to multiple fatalities)
    frequency: 1-2 (rare to frequent exposure)
    probability: 1-2 (low to high probability of hazardous event)
    avoidance: 1-2 (possible to impossible avoidance)
    """
    risk_score = consequence + frequency + probability + avoidance

    if risk_score <= 5:
        return "No safety requirements"
    elif risk_score <= 7:
        return "SIL 1"
    elif risk_score <= 9:
        return "SIL 2"
    elif risk_score <= 10:
        return "SIL 3"
    else:
        return "SIL 4"

# Example: Industrial robot with human nearby
scenarios = [
    {"name": "Conveyor speed monitor", "C": 1, "F": 2, "P": 1, "W": 1},
    {"name": "Robot cell light curtain", "C": 3, "F": 2, "P": 1, "W": 2},
    {"name": "Cobot force limiter", "C": 2, "F": 2, "P": 2, "W": 2},
    {"name": "Surgical robot emergency stop", "C": 4, "F": 2, "P": 1, "W": 2},
]

print("SIL Level Assignment Results:")
print("-" * 55)
for s in scenarios:
    sil = assign_sil_level(s["C"], s["F"], s["P"], s["W"])
    score = s["C"] + s["F"] + s["P"] + s["W"]
    print(f"  {s['name']:30s} | Score: {score:2d} | {sil}")

FMEA & FMECA

Failure Mode and Effects Analysis (FMEA) is a systematic technique for identifying all the ways a component or process can fail, the effects of each failure, and prioritising them for corrective action. Think of it as a pre-mortem for your robot: instead of asking "what went wrong?" after a failure, you ask "what could go wrong?" before deployment.

Risk Priority Number (RPN)

FMEA uses the Risk Priority Number to prioritize failures:

$$RPN = Severity \times Occurrence \times Detection$$

Each factor is rated 1–10, giving RPNs from 1 to 1,000. Higher RPNs indicate higher-priority failure modes to address.

import numpy as np

# FMEA Analysis for a 6-DOF Industrial Robot Arm
# Each failure mode rated: Severity (1-10), Occurrence (1-10), Detection (1-10)

fmea_data = [
    {"component": "Joint Encoder",    "failure_mode": "Signal drift",           "S": 7, "O": 4, "D": 3},
    {"component": "Joint Encoder",    "failure_mode": "Complete signal loss",    "S": 9, "O": 2, "D": 2},
    {"component": "Servo Motor",      "failure_mode": "Overheating",            "S": 6, "O": 5, "D": 4},
    {"component": "Servo Motor",      "failure_mode": "Winding short circuit",  "S": 8, "O": 2, "D": 5},
    {"component": "Gripper",          "failure_mode": "Grip force loss",        "S": 7, "O": 3, "D": 6},
    {"component": "Safety Controller","failure_mode": "Watchdog timeout",       "S": 9, "O": 1, "D": 2},
    {"component": "Power Supply",     "failure_mode": "Voltage sag",            "S": 5, "O": 4, "D": 3},
    {"component": "Communication Bus","failure_mode": "Packet loss above 10%",  "S": 6, "O": 3, "D": 5},
]

print("FMEA Analysis for 6-DOF Robot Arm")
print("=" * 80)
print(f"{'Component':<20} {'Failure Mode':<25} {'S':>3} {'O':>3} {'D':>3} {'RPN':>5} {'Priority'}")
print("-" * 80)

for item in sorted(fmea_data, key=lambda x: x['S']*x['O']*x['D'], reverse=True):
    rpn = item['S'] * item['O'] * item['D']
    priority = "HIGH" if rpn > 100 else ("MEDIUM" if rpn > 50 else "LOW")
    print(f"  {item['component']:<20} {item['failure_mode']:<25} {item['S']:>3} {item['O']:>3} {item['D']:>3} {rpn:>5} {priority}")

high_risk = [i for i in fmea_data if i['S']*i['O']*i['D'] > 100]
print(f"\nHigh-Risk Items (RPN > 100): {len(high_risk)} of {len(fmea_data)}")

Fault Tree Analysis

Fault Tree Analysis (FTA) works top-down — you start with an undesired event (the "top event," like "robot collides with operator") and systematically decompose it into combinations of lower-level failures using logical gates (AND, OR). It's like asking "for this bad thing to happen, what combination of failures must occur?"

import numpy as np

# Fault Tree Analysis: Robot Collision with Operator
# Calculate top-event probability from basic event probabilities

# Basic events (probability of failure per mission)
p_sensor_fail = 0.001        # Proximity sensor fails to detect
p_controller_fail = 0.0005   # Safety controller logic error
p_brake_fail = 0.0002        # Emergency brake fails to engage
p_encoder_fail = 0.0008      # Position encoder gives wrong reading
p_comms_fail = 0.001         # Safety bus communication failure

# Gate calculations:
# Detection system fails = sensor_fail OR encoder_fail (OR gate)
p_detection_fail = 1 - (1 - p_sensor_fail) * (1 - p_encoder_fail)

# Dual-channel safety controller fails = controller AND comms (AND gate)
p_safety_logic_fail = p_controller_fail * p_comms_fail

# Stopping system fails = brake_fail (single point of failure)
p_stopping_fail = p_brake_fail

# Top event: Collision = Detection fails AND (Safety logic OR Stopping fails)
p_response_fail = 1 - (1 - p_safety_logic_fail) * (1 - p_stopping_fail)
p_collision = p_detection_fail * p_response_fail

print("Fault Tree Analysis: Robot-Operator Collision")
print("=" * 55)
print(f"Basic Events:")
print(f"  Sensor failure:           {p_sensor_fail:.4f}")
print(f"  Encoder failure:          {p_encoder_fail:.4f}")
print(f"  Controller failure:       {p_controller_fail:.4f}")
print(f"  Communication failure:    {p_comms_fail:.4f}")
print(f"  Brake failure:            {p_brake_fail:.4f}")
print(f"\nIntermediate Events:")
print(f"  Detection fails (OR):     {p_detection_fail:.6f}")
print(f"  Safety logic fails (AND): {p_safety_logic_fail:.8f}")
print(f"  Response fails (OR):      {p_response_fail:.6f}")
print(f"\nTop Event:")
print(f"  Collision probability:    {p_collision:.10f}")
print(f"  Approx. 1 in {int(1/p_collision):,} missions")

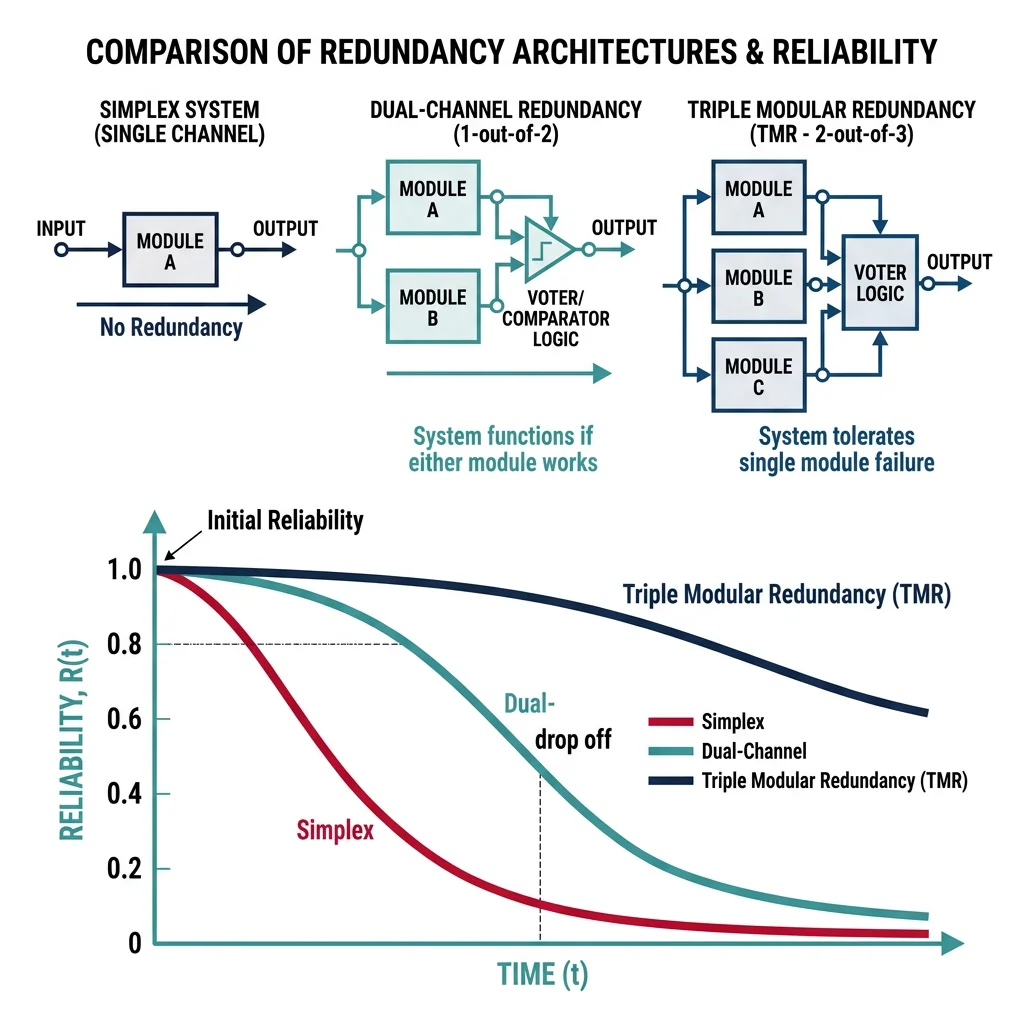

Redundancy & Fault Tolerance

Redundancy means having backup components or pathways so that a single failure doesn't cause a dangerous situation. Think of it like a building with both a staircase and an elevator — if one is out of service, the other still provides safe egress. In safety-critical robotics, redundancy is often mandatory to achieve the required SIL level.

Hardware Redundancy Architectures

Architecture	Notation	Description	Pros/Cons
Simplex	1oo1	Single channel, no redundancy	Cheap; single point of failure
Dual	1oo2	Two channels, either can trigger safety action	High availability; may cause nuisance trips
Dual with Diagnostics	1oo2D	Two channels with cross-monitoring	Most common in robotics; detects discrepancies
Triple Modular	2oo3	Three channels, majority vote decides	Tolerates one failure; expensive, high availability

import numpy as np

# Reliability Comparison of Redundancy Architectures
# Using exponential reliability model: R(t) = e^(-lambda * t)

def reliability_simplex(lam, t):
    """1oo1: fails if single channel fails."""
    return np.exp(-lam * t)

def reliability_dual(lam, t):
    """1oo2: fails only if BOTH channels fail."""
    r = np.exp(-lam * t)
    return 1 - (1 - r)**2

def reliability_tmr(lam, t):
    """2oo3: fails if 2 or more of 3 channels fail."""
    r = np.exp(-lam * t)
    return 3 * r**2 - 2 * r**3

# Parameters
failure_rate = 1e-5  # failures per hour per channel
mission_hours = np.array([1000, 5000, 10000, 20000, 50000])

print("Redundancy Architecture Reliability Comparison")
print(f"Channel failure rate: {failure_rate:.1e} failures/hour")
print("=" * 65)
print(f"{'Hours':>8}  {'Simplex':>12}  {'Dual (1oo2)':>12}  {'TMR (2oo3)':>12}")
print("-" * 65)

for t in mission_hours:
    r1 = reliability_simplex(failure_rate, t)
    r2 = reliability_dual(failure_rate, t)
    r3 = reliability_tmr(failure_rate, t)
    print(f"{t:>8,}  {r1:>12.8f}  {r2:>12.8f}  {r3:>12.8f}")

print(f"\nAt 20,000 hours:")
print(f"  Simplex: {(1-reliability_simplex(failure_rate, 20000))*1e6:.0f} failures/million")
print(f"  Dual:    {(1-reliability_dual(failure_rate, 20000))*1e6:.0f} failures/million")
print(f"  TMR:     {(1-reliability_tmr(failure_rate, 20000))*1e6:.0f} failures/million")

Software Redundancy

While hardware redundancy protects against physical failures, software redundancy guards against bugs, timing issues, and logical errors. Since identical software on redundant channels would have the same bug, software redundancy uses diverse programming — different teams, languages, or algorithms implement the same safety function.

N-Version Programming Pattern

import numpy as np

# N-Version Programming: Two independent safe distance implementations
# Version A: Geometric bounding-sphere approach
# Version B: Manhattan distance with rectangular envelope (diverse algorithm)

def safe_distance_v1(robot_pos, human_pos, robot_radius=0.3, safety_margin=0.5):
    """Version A: Euclidean distance with bounding sphere."""
    distance = np.linalg.norm(np.array(robot_pos) - np.array(human_pos))
    safe_dist = robot_radius + safety_margin
    return distance > safe_dist, distance

def safe_distance_v2(robot_pos, human_pos, robot_envelope=0.35, min_clearance=0.45):
    """Version B: Closest-axis approach with rectangular envelope."""
    diff = np.abs(np.array(robot_pos) - np.array(human_pos))
    min_axis_dist = np.min(diff)
    safe_dist = robot_envelope + min_clearance
    return min_axis_dist > safe_dist, min_axis_dist

def safety_voter(robot_pos, human_pos):
    """Conservative voter: if EITHER version says unsafe, trigger stop."""
    safe_a, dist_a = safe_distance_v1(robot_pos, human_pos)
    safe_b, dist_b = safe_distance_v2(robot_pos, human_pos)

    # 1oo2 voting for safety — either can trigger stop
    is_safe = safe_a and safe_b

    if safe_a != safe_b:
        print(f"  DISAGREEMENT: V1={'SAFE' if safe_a else 'STOP'}, V2={'SAFE' if safe_b else 'STOP'}")
        print(f"    Conservative action: STOP")

    return is_safe

# Test scenarios
scenarios = [
    {"robot": [1.0, 0.0, 0.5], "human": [2.5, 0.0, 0.5], "desc": "Human 1.5m away"},
    {"robot": [1.0, 0.0, 0.5], "human": [1.6, 0.2, 0.5], "desc": "Human 0.6m away"},
    {"robot": [1.0, 0.0, 0.5], "human": [1.2, 0.1, 0.5], "desc": "Human very close"},
]

print("N-Version Safety Voter Results:")
print("=" * 50)
for s in scenarios:
    result = safety_voter(s["robot"], s["human"])
    print(f"  {s['desc']:25s} -> {'SAFE' if result else 'STOP'}")

Watchdogs & Heartbeats

A watchdog timer is a hardware or software mechanism that detects when the main program has hung, crashed, or entered an infinite loop. It's like a dead man's switch on a train — the engineer must periodically press a button to prove they're conscious. If the button isn't pressed within the timeout, the train automatically brakes.

import time
import threading

class WatchdogTimer:
    """
    Software watchdog timer for safety-critical robot control loops.
    If the control loop doesn't 'kick' the watchdog within the timeout,
    the safety callback is triggered (e.g., emergency stop).
    """
    def __init__(self, timeout_ms, safety_callback, name="Watchdog"):
        self.timeout = timeout_ms / 1000.0
        self.callback = safety_callback
        self.name = name
        self.last_kick = time.time()
        self.running = False

    def start(self):
        self.running = True
        self.last_kick = time.time()
        self._thread = threading.Thread(target=self._monitor, daemon=True)
        self._thread.start()
        print(f"[{self.name}] Started with timeout: {self.timeout*1000:.0f}ms")

    def kick(self):
        """Reset the watchdog. Call from your control loop each cycle."""
        self.last_kick = time.time()

    def stop(self):
        self.running = False
        print(f"[{self.name}] Stopped")

    def _monitor(self):
        while self.running:
            elapsed = time.time() - self.last_kick
            if elapsed > self.timeout:
                print(f"[{self.name}] TIMEOUT ({elapsed*1000:.0f}ms) -> safety action!")
                self.callback()
                self.running = False
                return
            time.sleep(self.timeout / 10)

# Example usage
def emergency_stop():
    print("EMERGENCY STOP: Motors disabled, brakes engaged")

wd = WatchdogTimer(timeout_ms=100, safety_callback=emergency_stop, name="ControlLoop-WD")

print("Watchdog Timer Summary:")
print(f"  Normal: control loop kicks every 20ms (within 100ms timeout)")
print(f"  Failure: if loop hangs -> watchdog triggers emergency stop")
print(f"  Typical rates: 1-10kHz (0.1-1ms cycle time)")

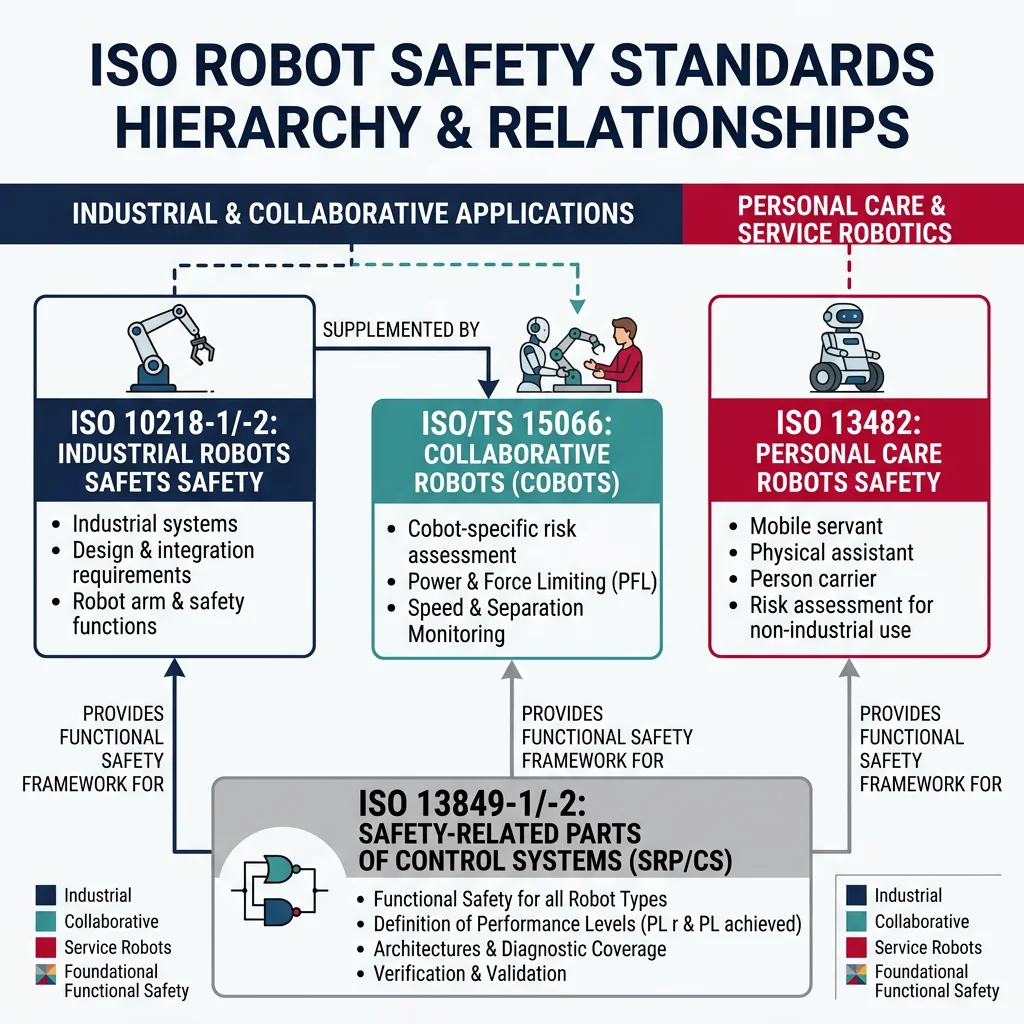

ISO Standards & Certification

International standards provide a shared framework for robot safety, ensuring that robots built in one country can be certified and deployed globally. Think of standards like a contract between manufacturers and users — they define the minimum safety requirements everyone agrees to follow.

ISO 10218 — Industrial Robots

The foundational standard for industrial robot safety, published in two parts:

Standard	Scope	Key Requirements
ISO 10218-1	Robot manufacturers	Emergency stop category 0/1, speed/force limits, protective stop, axis limits
ISO 10218-2	System integrators	Risk assessment, safeguarding design, layout planning, validation & verification

ISO 10218-2 defines four collaborative operation modes for robots sharing workspace with humans:

1. Safety-rated monitored stop: Robot stops when human enters collaborative workspace
2. Hand guiding: Human physically guides the robot (reduced speed, force sensing)
3. Speed and separation monitoring: Robot adjusts speed based on distance to nearest person
4. Power and force limiting: Robot limits contact forces below pain/injury thresholds

ISO 13482 — Personal Care Robots

As robots move from factories into homes and hospitals, ISO 13482 addresses the unique challenges of personal care robots interacting with untrained users. It covers three categories:

• Mobile servant robots: Service robots that navigate homes (cleaning, delivery)
• Physical assistant robots: Exoskeletons and mobility aids worn by humans
• Person carrier robots: Autonomous wheelchairs and personal transporters

ISO/TS 15066 — Collaborative Robots

ISO/TS 15066 is the technical specification that provides detailed guidance for power and force limiting in collaborative robot applications. It defines the actual biomechanical force/pressure thresholds for different body regions.

import numpy as np

# ISO/TS 15066 Biomechanical Limits: Force/Pressure Compliance Check
# Body region limits for Power and Force Limiting (PFL) mode

body_limits = {
    "Skull/Forehead":  {"F_transient": 130, "F_static": 65,  "P_static": 5.0},
    "Face":            {"F_transient": 65,  "F_static": 45,  "P_static": 1.8},
    "Chest":           {"F_transient": 140, "F_static": 100, "P_static": 2.8},
    "Upper arm":       {"F_transient": 150, "F_static": 110, "P_static": 3.6},
    "Forearm":         {"F_transient": 160, "F_static": 120, "P_static": 4.0},
    "Hand/Finger":     {"F_transient": 140, "F_static": 95,  "P_static": 2.0},
    "Lower leg":       {"F_transient": 220, "F_static": 160, "P_static": 4.4},
}

# Simulated robot contact scenario
robot_mass = 5.0        # kg (effective mass at contact point)
robot_speed = 0.25      # m/s (collaborative speed)
contact_area = 0.001    # m^2 (1 cm^2 contact patch)

# Transient contact force via energy method
spring_constant = 75000  # N/m (typical soft covering)
delta = robot_speed * np.sqrt(robot_mass / spring_constant)
F_impact = spring_constant * delta

print("ISO/TS 15066 Compliance Check")
print(f"Robot mass: {robot_mass} kg, Speed: {robot_speed} m/s")
print(f"Estimated impact force: {F_impact:.1f} N")
print("=" * 60)
print(f"{'Body Region':<20} {'Limit (N)':>10} {'Actual (N)':>10} {'Status':>10}")
print("-" * 60)

for region, limits in body_limits.items():
    compliant = F_impact <= limits["F_transient"]
    status = "PASS" if compliant else "FAIL"
    print(f"  {region:<20} {limits['F_transient']:>10} {F_impact:>10.1f} {status:>10}")

CE Marking & Compliance Pathways

CE marking is a mandatory conformity mark for products sold in the European Economic Area (EEA). For robotic systems, CE marking requires demonstrating compliance with the Machinery Directive (2006/42/EC) and applicable harmonised standards. Think of it as a passport — without CE marking, your robot cannot legally enter the European market.

Compliance Pathway Overview

1. Identify applicable directives: Machinery Directive, Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), Radio Equipment Directive (2014/53/EU)
2. Risk assessment: Following ISO 12100 methodology
3. Apply harmonised standards: ISO 10218, ISO 13849, IEC 62061, etc.
4. Prepare technical documentation: Design drawings, risk assessment, test reports, calculation notes
5. Declaration of Conformity: Manufacturer's legally binding declaration
6. Affix CE mark: Visible, legible, indelible marking on the product

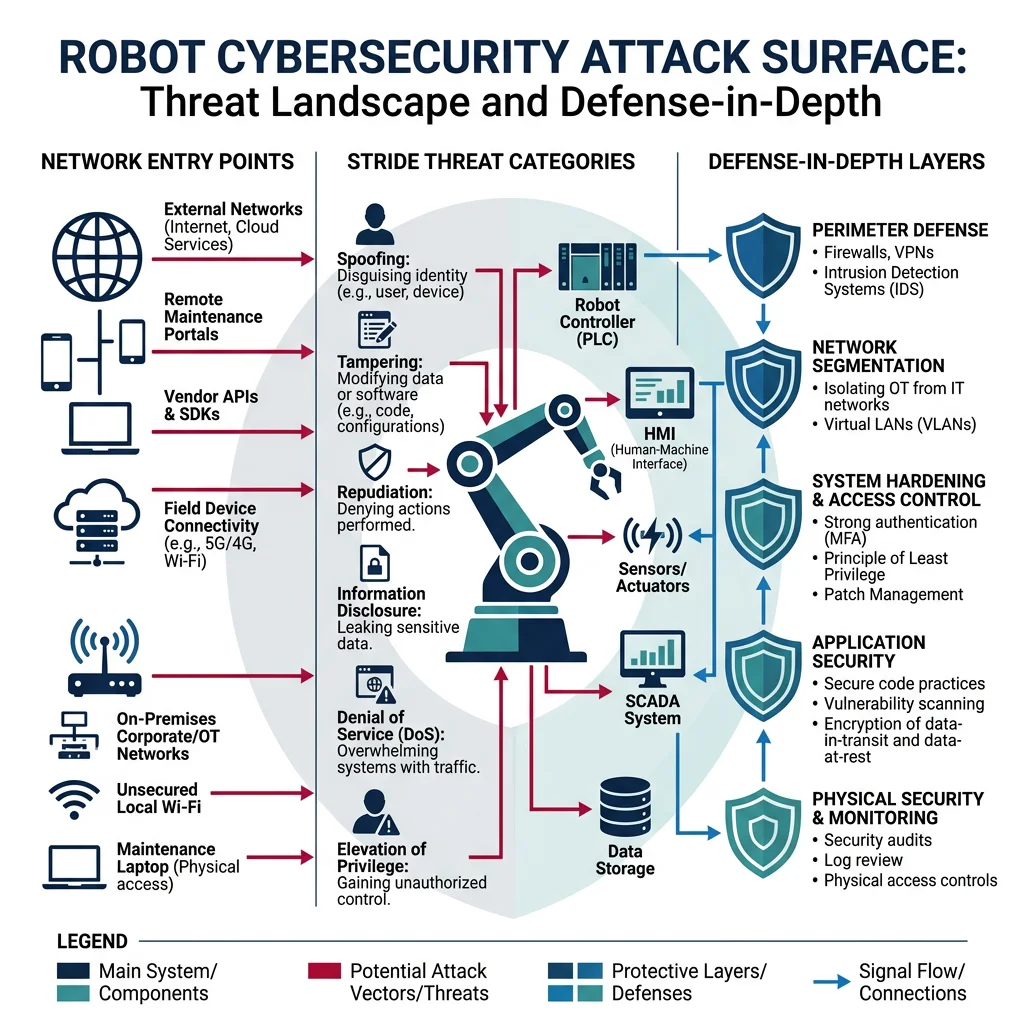

Cybersecurity for Robotics

As robots become networked and connected to cloud services, they become targets for cyberattacks. A compromised robot isn't just an IT problem — it's a physical safety hazard. An attacker who gains control of a 200kg industrial robot arm can cause serious injury or death.

Threat Modeling with STRIDE

Threat	Description	Robot Example
Spoofing	Impersonating a trusted entity	Fake sensor data injection into LiDAR feed
Tampering	Modifying data or code	Altering robot trajectory waypoints in transit
Repudiation	Denying an action occurred	No audit log of who modified safety parameters
Info Disclosure	Exposing confidential data	Leaking proprietary manufacturing processes
Denial of Service	Making system unavailable	Flooding ROS 2 DDS network with garbage topics
Privilege Elevation	Gaining unauthorized access	Operator gains engineer-level safety override

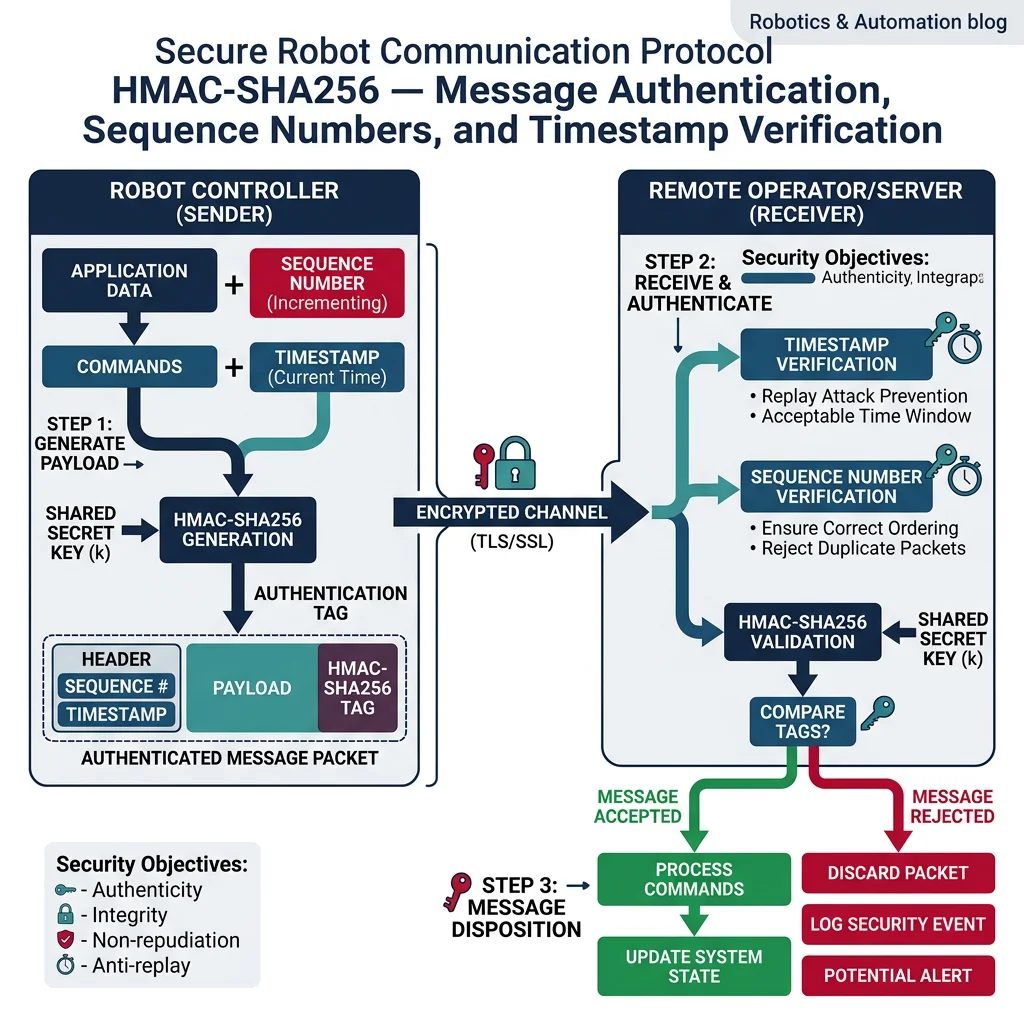

Secure Communication Protocols

Robot communication channels must be secured against eavesdropping, tampering, and replay attacks. The challenge is that real-time robot control requires low latency — traditional TLS handshakes may be too slow for microsecond-level control loops.

import hashlib
import hmac
import struct
import time

class SecureRobotMessage:
    """
    Lightweight authenticated message format for robot control.
    Uses HMAC-SHA256 for integrity + sequence numbers for replay protection.
    """
    def __init__(self, shared_key):
        self.key = shared_key.encode('utf-8')
        self.sequence = 0
        self.last_seen_seq = -1

    def create_message(self, command, joint_positions):
        """Create an authenticated control message."""
        self.sequence += 1
        timestamp = int(time.time() * 1000)

        # Pack: sequence(4B) + timestamp(8B) + command(1B) + 6 joints(48B)
        payload = struct.pack('<IqB6d',
            self.sequence, timestamp, command, *joint_positions
        )

        # HMAC for authentication and integrity
        mac = hmac.new(self.key, payload, hashlib.sha256).digest()[:16]
        return payload + mac  # 61B payload + 16B MAC = 77 bytes total

    def verify_message(self, raw_message):
        """Verify received message integrity, replay, and freshness."""
        payload = raw_message[:-16]
        received_mac = raw_message[-16:]

        # Verify HMAC
        expected_mac = hmac.new(self.key, payload, hashlib.sha256).digest()[:16]
        if not hmac.compare_digest(received_mac, expected_mac):
            return None, "INTEGRITY_FAILURE"

        seq, ts, cmd = struct.unpack('<IqB', payload[:13])
        joints = struct.unpack('<6d', payload[13:])

        # Replay protection
        if seq <= self.last_seen_seq:
            return None, f"REPLAY_ATTACK (seq {seq})"

        # Freshness check (reject messages older than 500ms)
        age = int(time.time() * 1000) - ts
        if age > 500:
            return None, f"STALE_MESSAGE ({age}ms)"

        self.last_seen_seq = seq
        return {"seq": seq, "cmd": cmd, "joints": joints}, "OK"

# Demo
secure = SecureRobotMessage("robot-secret-key-2026")
joints = [0.0, -1.57, 1.57, 0.0, 1.57, 0.0]
msg = secure.create_message(command=1, joint_positions=joints)
print(f"Secure message size: {len(msg)} bytes")
print(f"HMAC overhead: 16 bytes ({16/len(msg)*100:.1f}%)")
print(f"Suitable for 1kHz control: {'Yes' if len(msg) < 256 else 'No'}")

OTA Updates & System Hardening

Over-the-Air (OTA) updates allow robot software to be patched remotely — critical for fixing security vulnerabilities post-deployment. However, OTA updates themselves are an attack vector if not properly secured.

import hashlib

class SecureOTAManager:
    """
    Secure OTA update manager for robotic fleet.
    Implements: code signing, rollback protection, A/B partitioning.
    """
    def __init__(self, robot_id, current_version):
        self.robot_id = robot_id
        self.current_version = current_version
        self.rollback_version = None
        self.active_partition = 'A'

    def verify_update(self, firmware_bytes, signature, min_version):
        """Verify firmware integrity and version constraints."""
        checks = {}
        fw_hash = hashlib.sha256(firmware_bytes).hexdigest()
        checks['integrity'] = fw_hash == signature
        checks['version_ok'] = min_version >= self.current_version
        checks['size_ok'] = len(firmware_bytes) <= 64 * 1024 * 1024  # 64 MB
        return all(checks.values()), checks

    def apply_update(self, new_version):
        """Apply update using A/B partition scheme."""
        inactive = 'B' if self.active_partition == 'A' else 'A'
        print(f"  Writing v{new_version} to partition {inactive}")
        self.rollback_version = self.current_version
        self.current_version = new_version
        self.active_partition = inactive
        print(f"  Active: {inactive} (v{new_version})")
        print(f"  Rollback: v{self.rollback_version}")

# Example
ota = SecureOTAManager("ROBOT-042", current_version="2.3.1")
print(f"Robot {ota.robot_id} — Current: v{ota.current_version}")

fake_fw = b"robot_firmware_v2.4.0_binary"
fake_sig = hashlib.sha256(fake_fw).hexdigest()
passed, checks = ota.verify_update(fake_fw, fake_sig, "2.4.0")
print(f"\nVerification: {'PASSED' if passed else 'FAILED'}")
for check, result in checks.items():
    print(f"  {check}: {'OK' if result else 'FAIL'}")
if passed:
    ota.apply_update("2.4.0")

Safety Assessment Planner Tool

Use this interactive tool to plan and document your robot safety assessment. Fill in the details below and download your safety plan as Word, Excel, or PDF:

Exercises & Challenges

Conclusion & Next Steps

Safety, reliability, and compliance are not checkboxes to tick at the end of a project — they are integral engineering disciplines that must be woven into every phase of robot development. From risk assessment through functional safety analysis, redundancy design, standards compliance, and cybersecurity hardening, each layer works together to ensure robots operate safely alongside humans.
