Robotics & Automation Series Part 1: Introduction to Robotics

What Is Robotics?

Robotics is the interdisciplinary branch of engineering and science that deals with the design, construction, operation, and use of robots. At its heart, a robot is a programmable machine capable of carrying out a series of actions automatically — but that simple definition barely scratches the surface.

The word "robot" comes from the Czech word robota, meaning "forced labor" or "drudgery." It was first used in Karel ÄŒapek's 1920 play R.U.R. (Rossum's Universal Robots), where artificial beings were created to serve humans. Today, robots range from simple pick-and-place arms on factory floors to self-driving cars, surgical assistants, and planet-exploring rovers.

The Interdisciplinary Nature of Robotics

Robotics sits at the crossroads of multiple engineering and science disciplines. No single field owns robotics — it demands a blend of knowledge:

Discipline	Contribution to Robotics	Example
Mechanical Engineering	Structure, joints, actuators, kinematics	Robot arm linkages, gear trains
Electrical Engineering	Motors, circuits, power systems, sensors	Motor drivers, encoder circuits
Computer Science	Algorithms, AI, computer vision, planning	Path-planning algorithms, neural networks
Control Engineering	Feedback loops, stability, PID controllers	Balancing a two-wheeled robot
Mathematics	Linear algebra, calculus, probability	Transformation matrices, Kalman filters
Biology / Neuroscience	Bio-inspired designs, neural architectures	Gecko-inspired grippers, neural nets

Robot vs. Machine: What's the Difference?

Not every machine is a robot. The key differentiators are:

A washing machine follows a fixed program and doesn't sense its environment adaptively — it's an automated machine but not a robot. A Roomba vacuum, however, senses obstacles with IR and bump sensors, processes that data to plan a cleaning path, and actuates its wheels and brushes. That makes it a robot.

# Simple classification: Is it a robot?
import json

def classify_machine(name, can_sense, can_process, can_actuate, is_programmable):
    """Classify whether a machine qualifies as a robot."""
    score = sum([can_sense, can_process, can_actuate, is_programmable])

    if score == 4:
        classification = "Robot"
    elif score == 3:
        classification = "Semi-Autonomous Machine"
    elif score >= 1:
        classification = "Automated Machine"
    else:
        classification = "Passive Tool"

    result = {
        "name": name,
        "classification": classification,
        "sense": can_sense,
        "process": can_process,
        "actuate": can_actuate,
        "programmable": is_programmable,
        "score": f"{score}/4"
    }
    return result

# Test several machines
machines = [
    ("Roomba Vacuum", True, True, True, True),
    ("Industrial Robot Arm (FANUC)", True, True, True, True),
    ("Washing Machine", False, False, True, True),
    ("Tesla Autopilot", True, True, True, True),
    ("Hammer", False, False, False, False),
    ("CNC Mill", True, True, True, True),
]

for args in machines:
    result = classify_machine(*args)
    print(f"{result['name']:30s} → {result['classification']:25s} (Score: {result['score']})")

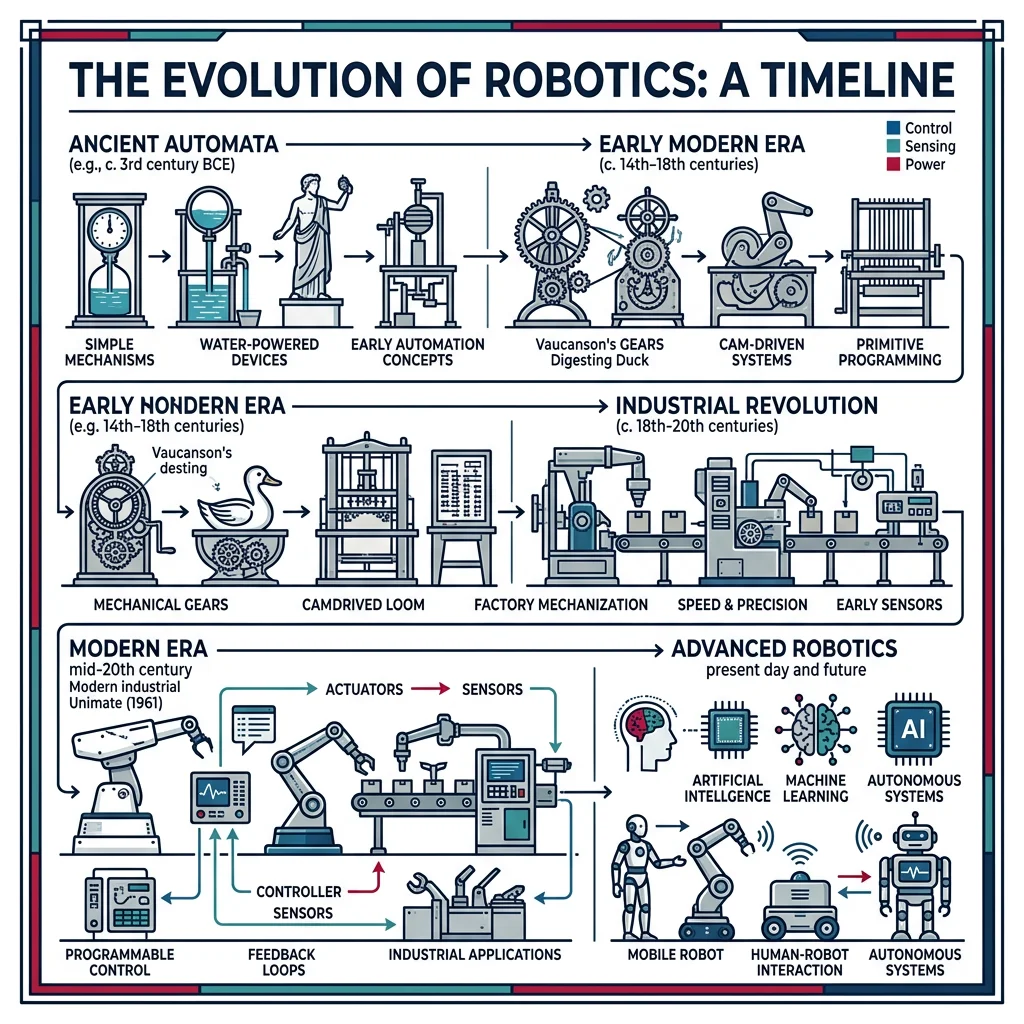

History & Evolution of Robotics

The dream of creating artificial beings is as old as civilization itself. Understanding history helps us appreciate how far we've come — and hints at where we're heading.

Ancient Automata (350 BC – 1700s)

The idea of mechanized beings began long before electricity:

• 350 BC — Archytas' Pigeon: The Greek mathematician built a wooden bird powered by steam that could reportedly fly up to 200 meters. This is considered the earliest known "robot."
• 1st Century AD — Hero of Alexandria: Created automated theaters with moving figurines, self-opening temple doors powered by steam, and a coin-operated holy water dispenser — arguably the first vending machine.
• 1206 — Al-Jazari: The Islamic polymath built programmable automata including a hand-washing machine and a musical robot band on a boat. His Book of Knowledge of Ingenious Mechanical Devices documented 100+ mechanisms.
• 1495 — Leonardo da Vinci's Knight: Da Vinci designed a mechanical knight that could sit, raise its visor, and move its arms using a system of pulleys, gears, and cables.
• 1770s — Jaquet-Droz Automata: Swiss watchmakers built "The Writer," "The Musician," and "The Draughtsman" — mechanical dolls that could write custom messages with a quill pen.

The Industrial Revolution & Early Automation (1800s – 1960s)

• 1801 — Jacquard Loom: Joseph-Marie Jacquard's programmable loom used punched cards to control weaving patterns — a direct ancestor of computer programming.
• 1898 — Nikola Tesla: Demonstrated a radio-controlled boat at Madison Square Garden — the first remotely operated machine (telerobot).
• 1921 — "Robot" coined: Karel ÄŒapek's play R.U.R. introduced the word, depicting artificial humanoids that rebel against humans.
• 1942 — Asimov's Three Laws: Isaac Asimov published the Three Laws of Robotics in his short story Runaround, profoundly shaping how we think about robot ethics.
• 1954 — Unimate: George Devol patented the first programmable industrial robot. In 1961, Unimate began work at a General Motors die-casting plant, lifting and stacking hot metal parts.
• 1966 — Shakey the Robot: Developed at SRI International, Shakey was the first mobile robot that could reason about its actions using AI planning.

The Modern Era (1970s – Present)

Decade	Key Milestone	Significance
1970s	Stanford Arm, PUMA robot	First electric computer-controlled arm; widespread industrial adoption
1980s	SCARA robots, machine vision	High-speed assembly; robots begin "seeing" their environment
1990s	Sojourner Mars Rover, Honda P2	Space exploration; first full-size humanoid robot walks
2000s	Roomba, da Vinci Surgical, DARPA Grand Challenge	Consumer robotics; surgical robots; autonomous vehicles
2010s	Boston Dynamics Atlas, collaborative robots (cobots)	Dynamic legged locomotion; safe human-robot co-work
2020s	Perseverance + Ingenuity, Tesla Optimus, GPT-powered robots	Helicopter flight on Mars; humanoid general-purpose; LLM integration

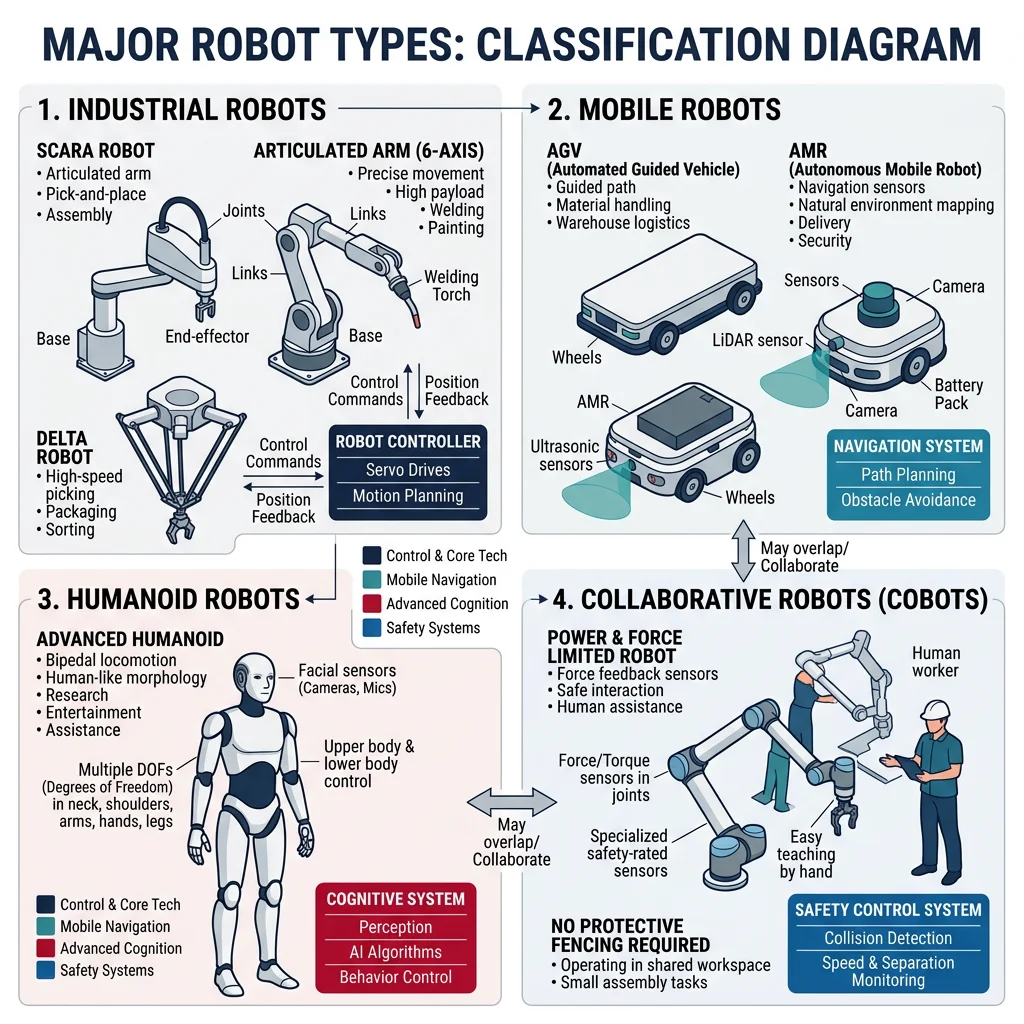

Types of Robots

Robots come in an extraordinary variety of forms, each optimized for specific tasks and environments. Understanding the major categories helps you choose the right architecture for a given application.

Industrial Robots

These are the workhorses of manufacturing — fixed-base manipulators that perform repetitive tasks with high speed and precision:

Configuration	DOF	Workspace Shape	Typical Use	Example
Cartesian (Gantry)	3	Rectangular box	CNC machines, 3D printers, pick-and-place	Güdel gantry systems
Cylindrical	3	Cylinder	Assembly, spot welding	Seiko cylindrical robots
Spherical (Polar)	3	Partial sphere	Material handling, arc welding	Stanford Arm
SCARA	4	Cylindrical (horizontal)	Electronics assembly, packaging	Epson SCARA T-series
Articulated	4–7	Complex sphere	Welding, painting, material handling	FANUC M-20, ABB IRB 6700
Delta (Parallel)	3–4	Dome / cone	High-speed pick-and-place, food packaging	ABB FlexPicker IRB 360

Service & Collaborative Robots

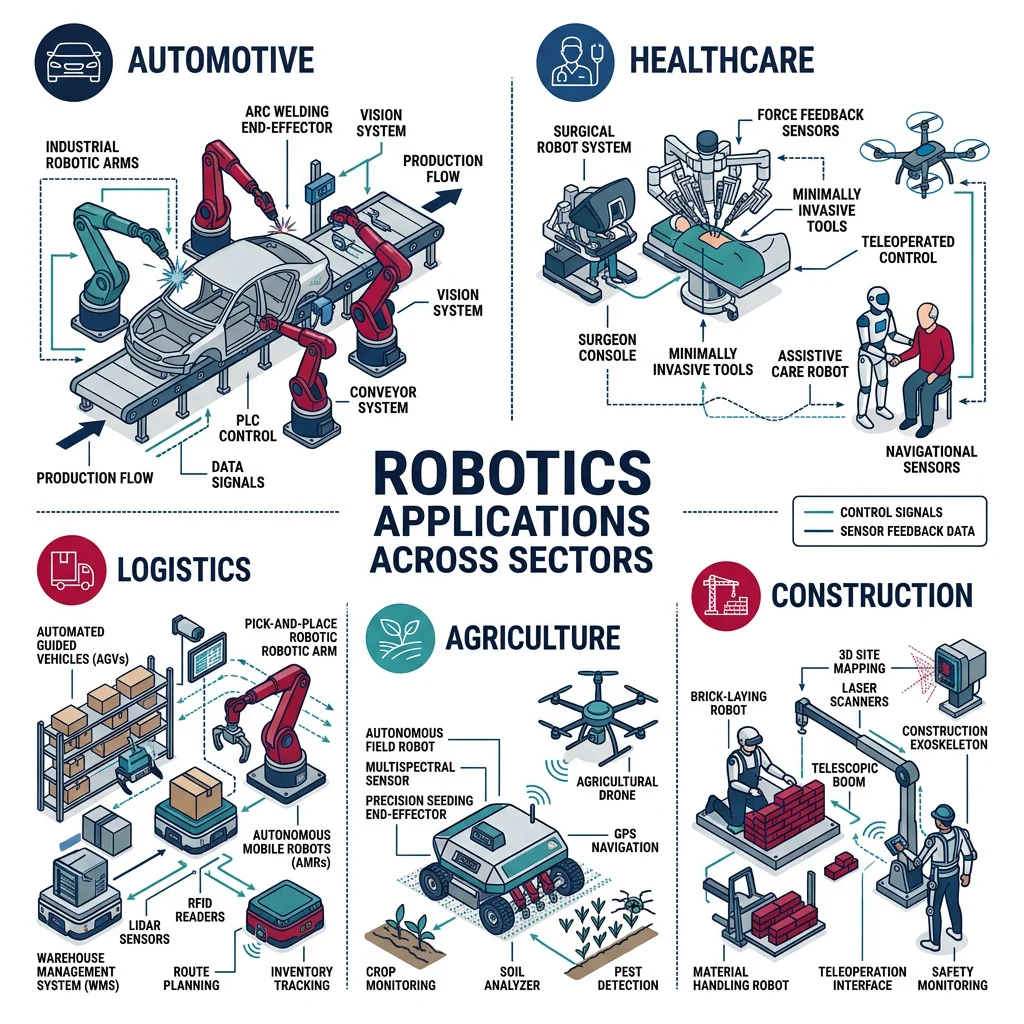

Service robots operate outside traditional manufacturing, performing tasks for humans in everyday environments:

• Domestic robots: Vacuuming (Roomba), lawn mowing (Husqvarna Automower), pool cleaning
• Healthcare robots: Surgical assistants (da Vinci Xi), rehabilitation exoskeletons (Ekso GT), pharmacy dispensers
• Hospitality robots: Hotel delivery (Relay by Savioke), restaurant servers (Pudu BellaBot)
• Agricultural robots: Crop monitoring drones, autonomous tractors (John Deere), fruit-picking arms

Collaborative robots (cobots) are designed to work alongside humans without safety cages:

Mobile & Autonomous Robots

• Wheeled robots: Autonomous mobile robots (AMRs) like Kiva/Amazon warehouse robots, AGVs (automated guided vehicles)
• Legged robots: Boston Dynamics Spot (quadruped) and Atlas (bipedal humanoid)
• Aerial robots (UAVs/drones): Delivery drones (Wing by Alphabet), inspection drones (Skydio), agricultural spray drones (DJI Agras)
• Underwater robots (AUVs/ROVs): Deep-sea exploration (NOAA ROVs), pipeline inspection, ocean mapping
• Autonomous vehicles: Self-driving cars (Waymo, Cruise), autonomous trucks (TuSimple, Aurora)

Specialized Robots

• Humanoid robots: Tesla Optimus, Agility Robotics Digit — designed for general-purpose human environments
• Soft robots: Made from flexible, deformable materials — ideal for delicate tasks like food handling or surgery
• Swarm robots: Large groups of small, simple robots that coordinate like ant colonies — used in search-and-rescue, environmental monitoring
• Space robots: Mars rovers (Curiosity, Perseverance), robotic arms on the ISS (Canadarm2), satellite servicing
• Micro/Nano robots: Millimeter-scale robots for targeted drug delivery, minimally invasive surgery

Robot Anatomy & Architecture

Every robot — from a simple Roomba to a 6-axis welding arm — is built from the same fundamental components:

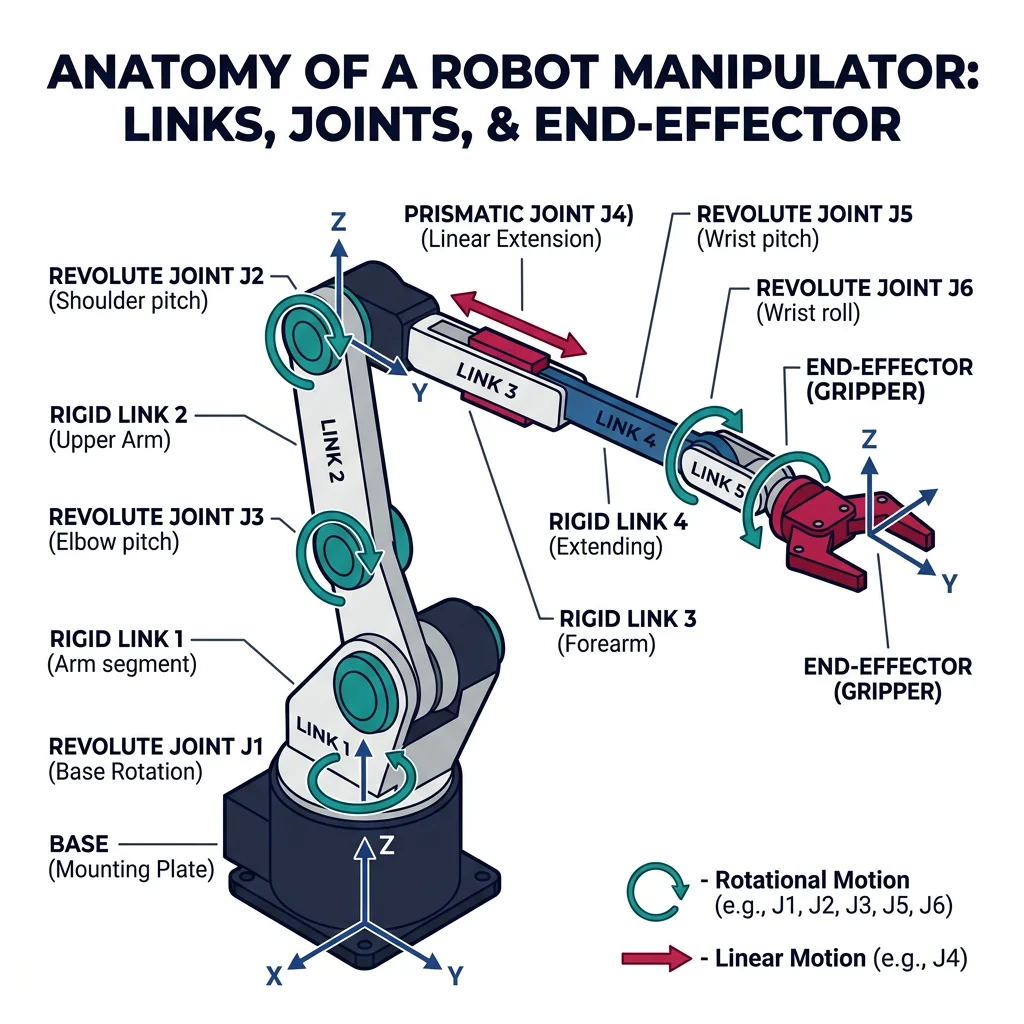

In a manipulator robot (robot arm), the structure consists of a series of rigid links connected by joints. Each joint provides one degree of freedom — either revolute (rotation) or prismatic (linear sliding).

# Visualizing a simple 2-link robot arm
import numpy as np
import matplotlib.pyplot as plt

def draw_2link_arm(theta1_deg, theta2_deg, L1=1.0, L2=0.8):
    """Draw a 2-link planar robot arm given joint angles in degrees."""
    theta1 = np.radians(theta1_deg)
    theta2 = np.radians(theta2_deg)

    # Joint positions
    x0, y0 = 0, 0  # Base
    x1 = L1 * np.cos(theta1)
    y1 = L1 * np.sin(theta1)
    x2 = x1 + L2 * np.cos(theta1 + theta2)
    y2 = y1 + L2 * np.sin(theta1 + theta2)

    # Plot
    fig, ax = plt.subplots(1, 1, figsize=(6, 6))
    ax.plot([x0, x1, x2], [y0, y1, y2], 'o-', linewidth=4,
            markersize=10, color='#3B9797', markerfacecolor='#BF092F')
    ax.plot(x0, y0, 's', markersize=14, color='#132440')  # Base
    ax.plot(x2, y2, '*', markersize=16, color='#BF092F')   # End-effector

    ax.set_xlim(-2.2, 2.2)
    ax.set_ylim(-2.2, 2.2)
    ax.set_aspect('equal')
    ax.grid(True, alpha=0.3)
    ax.set_title(f'2-Link Arm: θ1={theta1_deg}°, θ2={theta2_deg}°', fontsize=14)
    ax.set_xlabel('X (meters)')
    ax.set_ylabel('Y (meters)')

    # Annotate
    ax.annotate(f'End-Effector\n({x2:.2f}, {y2:.2f})',
                xy=(x2, y2), xytext=(x2+0.3, y2+0.3),
                arrowprops=dict(arrowstyle='->', color='#BF092F'),
                fontsize=10, color='#BF092F')
    plt.tight_layout()
    plt.show()

# Draw the arm at θ1 = 45°, θ2 = 30°
draw_2link_arm(45, 30)

Degrees of Freedom (DOF)

Degrees of Freedom define the number of independent parameters needed to completely describe a robot's position/configuration. In simple terms, DOF = the number of independent motions a robot can make.

Key relationships:

• A free rigid body in 3D space has 6 DOF — 3 translational + 3 rotational
• To position and orient an end-effector anywhere in 3D, a robot needs at least 6 DOF
• A robot with >6 DOF is redundant — it can reach the same point in multiple configurations (useful for obstacle avoidance)
• A robot with <6 DOF has a restricted workspace

# Calculating DOF using Grübler's (mobility) formula
def grubler_formula(n_links, n_joints, joint_freedoms):
    """
    Calculate Degrees of Freedom using Grübler's formula.

    DOF = 6*(n-1) - Σ(6 - fi) for spatial mechanisms
    DOF = 3*(n-1) - Σ(3 - fi) for planar mechanisms

    Parameters
    ----------
    n_links : int
        Number of links including the fixed base (ground)
    n_joints : int
        Number of joints
    joint_freedoms : list of int
        DOF provided by each joint (1 for revolute/prismatic, 2 for universal, 3 for spherical)
    """
    # Spatial formula
    mobility = 6 * (n_links - 1) - sum(6 - f for f in joint_freedoms)
    return mobility

# Example 1: 6R articulated robot (like FANUC M-20)
# 7 links (including base), 6 revolute joints (each = 1 DOF)
dof_1 = grubler_formula(n_links=7, n_joints=6, joint_freedoms=[1]*6)
print(f"6R Articulated Robot DOF: {dof_1}")  # Expected: 6

# Example 2: SCARA robot (4 joints: R, R, P, R)
dof_2 = grubler_formula(n_links=5, n_joints=4, joint_freedoms=[1]*4)
print(f"SCARA Robot DOF: {dof_2}")  # Expected: 4

# Example 3: 7R redundant manipulator (like KUKA LBR iiwa)
dof_3 = grubler_formula(n_links=8, n_joints=7, joint_freedoms=[1]*7)
print(f"7R Redundant Robot DOF: {dof_3}")  # Expected: 7

# Example 4: Delta robot (parallel mechanism — simplified)
# Delta has 3 independent actuated DOF, but the constraint analysis
# requires considering closed-loop kinematics separately
print(f"\nDelta robot: 3 DOF (position only, no orientation)")
print(f"Delta+rotation: 4 DOF (with wrist rotation)")

Workspace & Robot Configurations

The workspace is the set of all points the end-effector can reach. There are two types:

• Reachable workspace: All points the end-effector can reach with at least one orientation
• Dexterous workspace: All points the end-effector can reach with all orientations

# Visualize the workspace of a 2-link planar arm
import numpy as np
import matplotlib.pyplot as plt

def plot_workspace(L1=1.0, L2=0.7, num_samples=5000):
    """Plot the reachable workspace of a 2-link planar robot."""
    theta1 = np.random.uniform(0, 2 * np.pi, num_samples)
    theta2 = np.random.uniform(-np.pi, np.pi, num_samples)

    # Forward kinematics
    x = L1 * np.cos(theta1) + L2 * np.cos(theta1 + theta2)
    y = L1 * np.sin(theta1) + L2 * np.sin(theta1 + theta2)

    fig, ax = plt.subplots(figsize=(7, 7))
    ax.scatter(x, y, s=1, alpha=0.3, color='#3B9797', label='Reachable Points')

    # Draw workspace boundaries
    outer_circle = plt.Circle((0, 0), L1 + L2, fill=False,
                               linestyle='--', color='#BF092F', linewidth=2, label=f'Outer (r={L1+L2})')
    inner_circle = plt.Circle((0, 0), abs(L1 - L2), fill=False,
                               linestyle='--', color='#132440', linewidth=2, label=f'Inner (r={abs(L1-L2)})')
    ax.add_patch(outer_circle)
    ax.add_patch(inner_circle)

    ax.plot(0, 0, 's', markersize=12, color='#132440', label='Base')
    ax.set_xlim(-2.2, 2.2)
    ax.set_ylim(-2.2, 2.2)
    ax.set_aspect('equal')
    ax.grid(True, alpha=0.3)
    ax.legend(loc='upper right')
    ax.set_title(f'2-Link Robot Workspace (L1={L1}, L2={L2})', fontsize=14)
    ax.set_xlabel('X (meters)')
    ax.set_ylabel('Y (meters)')
    plt.tight_layout()
    plt.show()

    print(f"Outer boundary radius: {L1 + L2:.2f} m")
    print(f"Inner boundary radius: {abs(L1 - L2):.2f} m")
    print(f"Workspace is an annulus (ring) shape")

plot_workspace()

Mechatronics Fundamentals

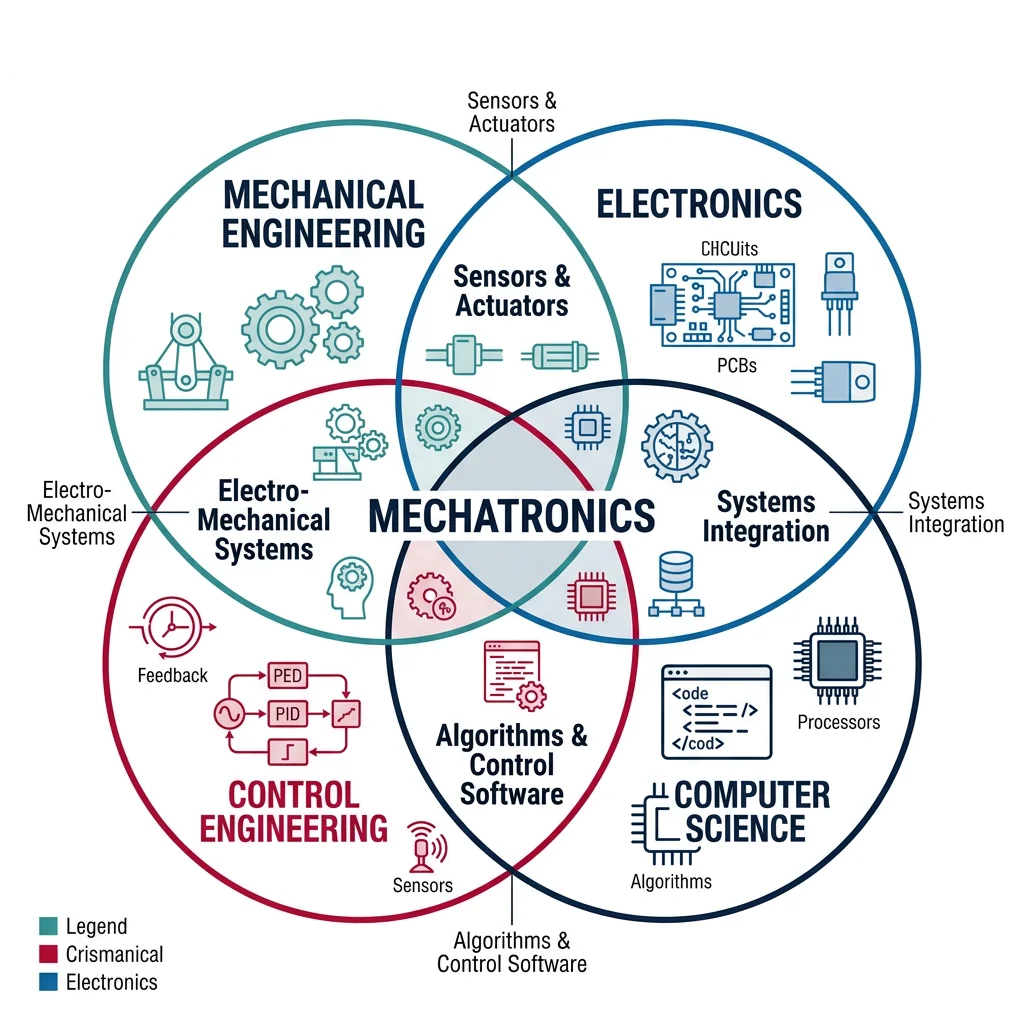

Robotics is really applied mechatronics — the synergistic integration of mechanical engineering, electronics, control engineering, and computer science. The term was coined by Tetsuro Mori at Yaskawa Electric in 1969.

Each discipline contributes a critical piece:

Component	Discipline	Role in a Robot	Examples
Mechanical Structure	Mechanical Eng.	Physical form, strength, motion	Links, gears, bearings, end-effectors
Actuators	Electrical / Mech. Eng.	Convert energy to motion	DC motors, servos, pneumatic cylinders
Sensors	Electrical / Physics	Measure state and environment	Encoders, IMUs, cameras, force sensors
Controller	Control / CS	Decision-making, feedback loops	PID controllers, microcontrollers, PLCs
Software	Computer Science	Algorithms, planning, learning	ROS, path planners, neural networks

The Sense-Think-Act Cycle

Every autonomous robot operates on a continuous loop often called the Sense-Think-Act (STA) cycle:

1. Sense: Gather data from the environment using sensors (cameras, LiDAR, touch sensors, encoders)
2. Think: Process data, update world model, plan next action (algorithms, AI, control laws)
3. Act: Execute the planned action through actuators (move a joint, fire a thruster, close a gripper)

# Simulation of the Sense-Think-Act cycle for a simple line-following robot
import random

class LineFollowingRobot:
    """Simple simulation of a line-following robot using Sense-Think-Act."""

    def __init__(self):
        self.position = 0.0      # Lateral offset from the line (0 = centered)
        self.heading = 0.0       # Heading error in degrees
        self.speed = 1.0         # Forward speed (m/s)
        self.sensor_noise = 0.05 # Sensor noise standard deviation

    def sense(self):
        """Read the line position relative to the robot (with noise)."""
        # Simulated IR sensor reading: offset from center line
        noise = random.gauss(0, self.sensor_noise)
        measured_offset = self.position + noise
        return measured_offset

    def think(self, sensor_reading, kp=2.0, kd=0.5):
        """Simple proportional-derivative controller to decide steering."""
        error = sensor_reading            # How far off the line
        derivative = error - getattr(self, '_prev_error', 0)
        self._prev_error = error

        # PD control: steering correction
        steering = -(kp * error + kd * derivative)
        steering = max(-30, min(30, steering))  # Limit to ±30 degrees
        return steering

    def act(self, steering):
        """Apply steering correction and update position."""
        dt = 0.1  # Time step
        self.heading += steering * dt
        self.position += self.speed * (self.heading / 90.0) * dt

    def step(self):
        """Execute one Sense-Think-Act cycle."""
        sensor_data = self.sense()
        steering = self.think(sensor_data)
        self.act(steering)
        return self.position, self.heading, steering

# Simulate 50 steps with initial offset
robot = LineFollowingRobot()
robot.position = 0.5  # Start 0.5m off the line

print(f"{'Step':>4}  {'Position':>10}  {'Heading':>10}  {'Steering':>10}")
print("-" * 50)
for step in range(20):
    pos, heading, steer = robot.step()
    print(f"{step:>4}  {pos:>10.4f}  {heading:>10.4f}  {steer:>10.4f}")

print(f"\nFinal offset from line: {robot.position:.4f} m")
print(f"Robot {'converged' if abs(robot.position) < 0.05 else 'still correcting'}!")

Robot Programming Paradigms

How do we tell a robot what to do? There are several approaches, each suited to different levels of complexity:

Method	How It Works	Pros	Cons	Used By
Teach Pendant	Manually jog the robot to positions and record them	Simple, no coding required	Slow, operator must be present	FANUC, ABB, KUKA
Hand Guiding	Physically move the robot arm to desired positions	Very intuitive, fast setup	Limited to collaborative robots	Universal Robots, Franka
Offline Programming	Program in simulation software, then upload	No production downtime	Requires accurate 3D model	RoboDK, Delmia, RobotStudio
Text-Based Languages	Write robot programs in manufacturer-specific or standard languages	Flexible, precise control	Requires programming skill	RAPID (ABB), KRL (KUKA), Python + ROS
Visual / Block Programming	Drag-and-drop programming blocks	Low barrier, educational	Limited for complex logic	Scratch, Blockly, UR PolyScope
AI / Learning-Based	Robot learns from demonstrations or trial-and-error	Handles complex tasks, adapts	Data-hungry, hard to verify safety	DeepMind, OpenAI, Google RT-2

Your First Robot Program (Simulated)

Let's write a simple robot program that moves a 2-joint arm through a sequence of positions — like a teach pendant recording:

# Simulated teach-pendant programming: record and playback joint positions
import time

class SimpleRobotArm:
    """Simulated 2-DOF robot arm with teach-and-playback capability."""

    def __init__(self, name="MyRobot"):
        self.name = name
        self.joint1 = 0.0  # Shoulder angle (degrees)
        self.joint2 = 0.0  # Elbow angle (degrees)
        self.program = []   # Recorded positions
        self.gripper_closed = False

    def move_to(self, j1, j2, speed="fast"):
        """Move both joints to target positions."""
        self.joint1 = j1
        self.joint2 = j2
        speed_label = "🏃 FAST" if speed == "fast" else "🐢 SLOW"
        print(f"  [{self.name}] Moving to J1={j1:6.1f}°, J2={j2:6.1f}° ({speed_label})")

    def gripper(self, action):
        """Open or close the gripper."""
        self.gripper_closed = (action == "close")
        icon = "✊" if self.gripper_closed else "✋"
        print(f"  [{self.name}] Gripper {action.upper()} {icon}")

    def record_position(self, label=""):
        """Record current position to the program."""
        self.program.append({
            "j1": self.joint1,
            "j2": self.joint2,
            "gripper": "close" if self.gripper_closed else "open",
            "label": label
        })
        print(f"  📍 Position recorded: {label}")

    def playback(self, cycles=1):
        """Play back recorded program."""
        print(f"\n{'='*50}")
        print(f"  PLAYBACK MODE — {len(self.program)} waypoints, {cycles} cycle(s)")
        print(f"{'='*50}")

        for cycle in range(1, cycles + 1):
            print(f"\n  --- Cycle {cycle}/{cycles} ---")
            for i, wp in enumerate(self.program, 1):
                print(f"\n  Step {i}: {wp['label']}")
                self.move_to(wp['j1'], wp['j2'])
                self.gripper(wp['gripper'])

        print(f"\n  ✅ Program complete!")

# --- Programming a pick-and-place task ---
arm = SimpleRobotArm("UR5e")

print("=== TEACH MODE (Recording Positions) ===\n")

# Step 1: Home position
arm.move_to(0, 0)
arm.gripper("open")
arm.record_position("Home")

# Step 2: Move above pick location
arm.move_to(45, -30)
arm.gripper("open")
arm.record_position("Above Pick")

# Step 3: Lower to pick
arm.move_to(45, -60)
arm.gripper("close")
arm.record_position("Pick Object")

# Step 4: Lift
arm.move_to(45, -30)
arm.record_position("Lift")

# Step 5: Move above place location
arm.move_to(-45, -30)
arm.record_position("Above Place")

# Step 6: Lower to place
arm.move_to(-45, -60)
arm.gripper("open")
arm.record_position("Place Object")

# Step 7: Return home
arm.move_to(0, 0)
arm.record_position("Return Home")

# Playback
arm.playback(cycles=2)

Real-World Applications

Robots have permeated virtually every industry. Here are the major application domains:

Industry	Application	Robot Type	Impact
Automotive	Welding, painting, assembly	6-axis articulated	80% of a car body is robot-welded
Electronics	SMT placement, testing, inspection	SCARA, delta	10,000+ component placements/hour
Healthcare	Surgery, rehabilitation, pharmacy	Surgical arms, exoskeletons	da Vinci: 12M+ surgeries performed
Logistics	Order picking, sorting, delivery	AMRs, drones	Amazon: 750K+ robots in warehouses
Agriculture	Harvesting, spraying, monitoring	Autonomous tractors, drones	30% reduction in pesticide use
Construction	3D printing, bricklaying, demolition	AMRs, exoskeletons	Hadrian X: 200 bricks/hour
Space	Exploration, satellite servicing, habitat	Rovers, arms, humanoids	Mars rovers: 10+ years of operation
Defense	EOD, surveillance, logistics	UGVs, UAVs, AUVs	50,000+ military robots deployed globally

Industry Case Studies

Ethics & Social Impact

As robots become more capable and widespread, they raise profound questions about society, labor, and safety:

Asimov's Three Laws (1942)

While Asimov's laws are fictional, they highlight real concerns that robotics engineers face daily. Modern approaches include:

Key Ethical Considerations

Issue	Concern	Real Example	Mitigation Approach
Job Displacement	Robots replacing human workers	Automotive assembly reduced 50% of manual jobs	Reskilling programs, cobots that augment workers
Safety	Robots injuring humans	Fatal incident at VW plant (2015)	ISO 10218, ISO/TS 15066, force-limiting
Autonomous Weapons	Lethal autonomous weapons systems (LAWS)	Drone warfare, autonomous targeting	Campaign to Stop Killer Robots, UN debates
Privacy	Surveillance capabilities of robots	Security patrol robots with facial recognition	Data minimization, consent frameworks
Bias & Fairness	AI-driven robots inheriting biased training data	Facial recognition performing poorly on darker skin	Diverse training data, algorithmic auditing
Accountability	Who's responsible when a robot causes harm?	Autonomous vehicle accidents	Legal frameworks, insurance, liability chains

Interactive Tool: Robot Specification Sheet Generator

Use this tool to define and document a robot's key specifications. Generate a professional specification sheet as a downloadable Word, Excel, PDF, or PowerPoint document.

Exercises & Challenges

Exercise 1: Classify Real Machines

For each machine below, determine if it qualifies as a robot (meets all 3 criteria: sense, process, actuate). Justify your answer.

1. A traffic light system with embedded timers
2. A thermostat-controlled home HVAC system
3. A da Vinci surgical system
4. A cruise control system in a car
5. A coin-operated vending machine

Exercise 2: DOF Calculation

Using Grübler's formula, calculate the DOF for:

1. A planar 3-link mechanism with 3 revolute joints (use the planar formula: DOF = 3(n-1) - 2j)
2. A spatial 4-link mechanism with 4 revolute joints
3. A Stewart platform (6 prismatic actuators connecting a fixed base to a moving platform)

Exercise 3: Python — Forward Position of a 3-Link Arm

Extend the 2-link arm code from the Robot Anatomy section to handle 3 links. Calculate and print the end-effector position for:

• L1 = 1.0 m, L2 = 0.8 m, L3 = 0.5 m
• θ1 = 30°, θ2 = 45°, θ3 = -20°

# Exercise 3 — Starter code (complete the function)
import numpy as np

def forward_position_3link(theta1_deg, theta2_deg, theta3_deg, L1=1.0, L2=0.8, L3=0.5):
    """Calculate end-effector position for a 3-link planar arm."""
    theta1 = np.radians(theta1_deg)
    theta2 = np.radians(theta2_deg)
    theta3 = np.radians(theta3_deg)

    # Joint 1 position
    x1 = L1 * np.cos(theta1)
    y1 = L1 * np.sin(theta1)

    # Joint 2 position
    x2 = x1 + L2 * np.cos(theta1 + theta2)
    y2 = y1 + L2 * np.sin(theta1 + theta2)

    # End-effector position (YOUR CODE: add link 3)
    x3 = x2 + L3 * np.cos(theta1 + theta2 + theta3)
    y3 = y2 + L3 * np.sin(theta1 + theta2 + theta3)

    return x3, y3

# Test
x, y = forward_position_3link(30, 45, -20)
print(f"End-effector position: ({x:.4f}, {y:.4f}) meters")
print(f"Distance from base: {np.sqrt(x**2 + y**2):.4f} meters")

Exercise 4: Research & Reflection

1. Pick one robot from the last 5 years that excites you. Write a 200-word summary of what it does, what sensors it uses, and what makes it innovative.
2. Identify one ethical concern about robotics that you find most pressing. Propose two concrete steps society could take to address it.
3. Take a machine in your home or workplace. Draw a block diagram showing its sensors (if any), controller, and actuators. Does it qualify as a robot?

Exercise 5: Workspace Exploration

Modify the workspace visualization code to explore how link lengths affect workspace:

• Compare L1=1.0, L2=1.0 (equal links) vs. L1=1.5, L2=0.5 (unequal links)
• What happens when L1 = L2? Does the inner boundary disappear? Why?
• What does this mean for a robot designer choosing link lengths?

Conclusion & Next Steps

In this introductory guide, we've covered the foundations that every roboticist needs:

• What robotics is — an interdisciplinary field combining mechanics, electronics, computing, and control
• Historical evolution — from ancient automata to Mars rovers and AI-powered humanoids
• Types of robots — industrial, collaborative, mobile, surgical, space, and more
• Robot anatomy — links, joints, DOF, workspace, and the sense-think-act cycle
• Mechatronics — the integration principle that makes robots possible
• Programming paradigms — from teach pendants to AI-driven learning
• Real-world applications — manufacturing, healthcare, logistics, space, and agriculture
• Ethical considerations — job displacement, safety, autonomy, and accountability
