System Design Series Part 4: Database Design & Sharding

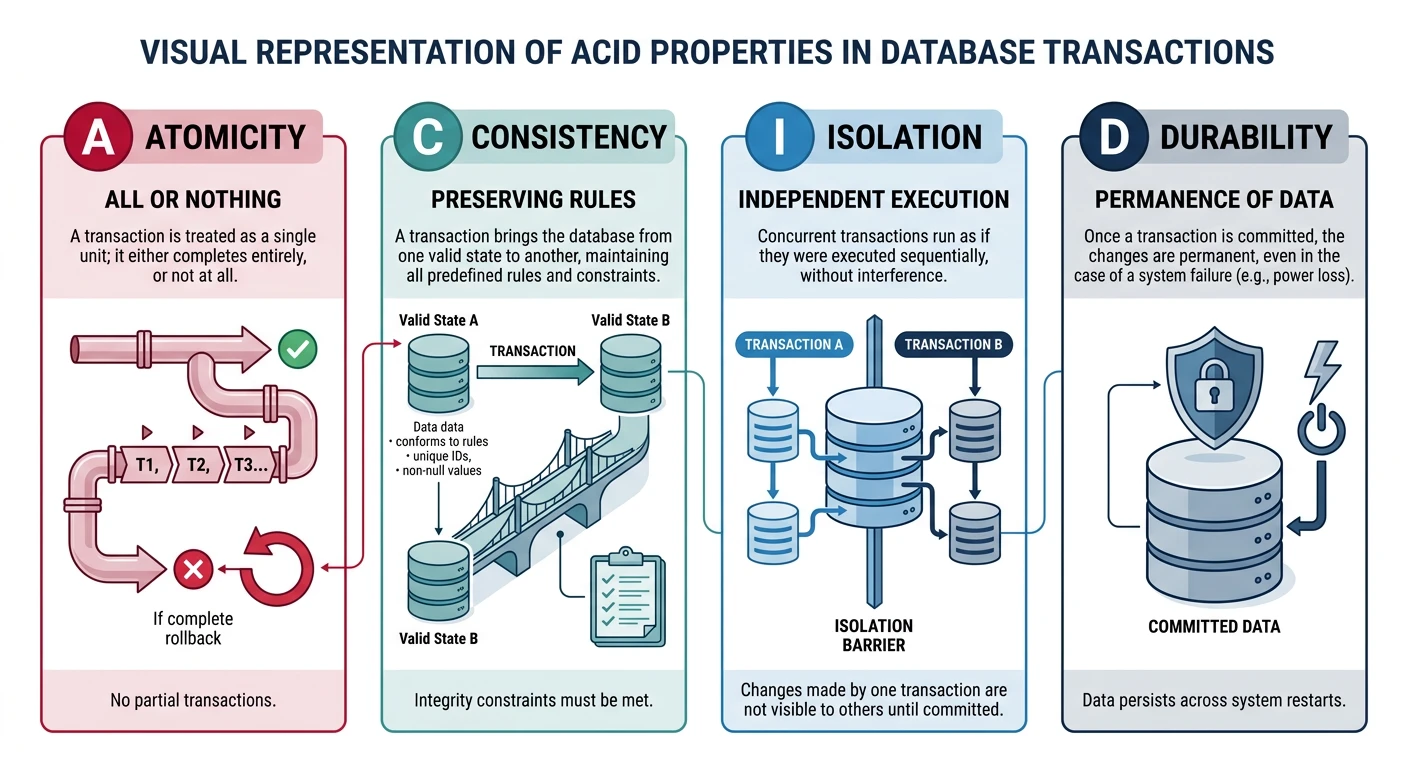

Transactions are "all or nothing." Either all operations succeed, or none do.

-- Bank transfer: Must be atomic
BEGIN TRANSACTION;

-- Debit from source account
UPDATE accounts SET balance = balance - 100 WHERE id = 'account_A';

-- Credit to destination account
UPDATE accounts SET balance = balance + 100 WHERE id = 'account_B';

-- If both succeed, commit; otherwise rollback
COMMIT;  -- or ROLLBACK if any step fails

Without atomicity, a system crash between the two UPDATEs could leave money "lost."

Database moves from one valid state to another. All constraints (foreign keys, checks, triggers) are enforced.

-- Consistency enforced by constraints
CREATE TABLE orders (
    id SERIAL PRIMARY KEY,
    user_id INT NOT NULL REFERENCES users(id),
    total DECIMAL(10,2) CHECK (total >= 0),
    status VARCHAR(20) CHECK (status IN ('pending', 'shipped', 'delivered'))
);

-- This INSERT will fail if user_id doesn't exist in users table
INSERT INTO orders (user_id, total, status) VALUES (999, 50.00, 'pending');
-- ERROR: violates foreign key constraint

Concurrent transactions don't interfere with each other. Different isolation levels offer different guarantees:

-- Set isolation level in PostgreSQL
SET TRANSACTION ISOLATION LEVEL SERIALIZABLE;
BEGIN;
-- Operations here see a consistent snapshot
COMMIT;

Once committed, data survives system crashes. Achieved through:

• Write-Ahead Logging (WAL): Log changes before applying them
• Checkpoints: Periodic snapshots to disk
• Replication: Copy data to multiple servers

-- PostgreSQL synchronous commit (maximum durability)
SET synchronous_commit = on;

-- For slightly faster writes with small durability window
SET synchronous_commit = off;  -- Commits may be lost in crash

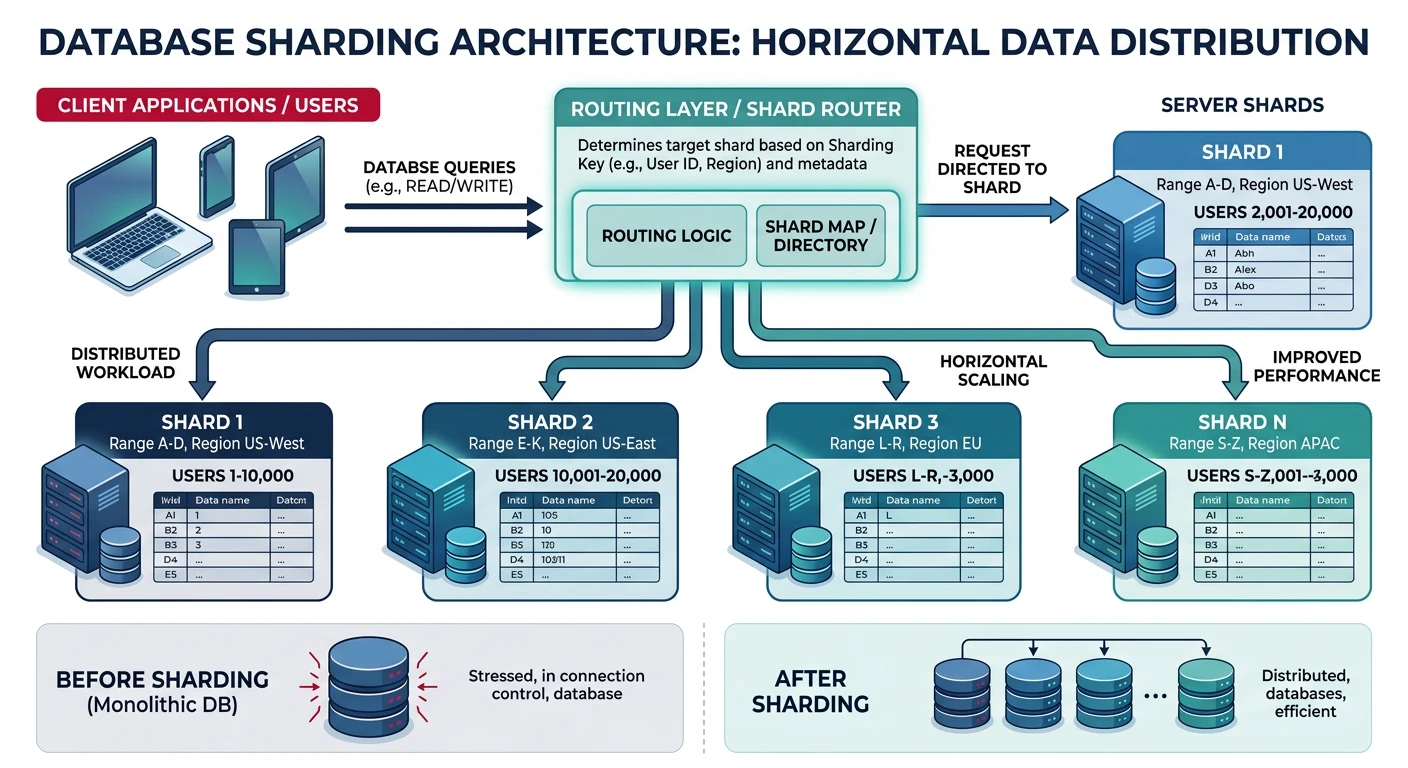

Apply hash function to shard key, then modulo by number of shards.

# Hash-based sharding
import hashlib

class HashShardRouter:
    def __init__(self, num_shards):
        self.num_shards = num_shards
        self.shards = [Database(f"shard_{i}") for i in range(num_shards)]

    def get_shard(self, key):
        """Determine which shard holds data for given key"""
        hash_value = int(hashlib.md5(str(key).encode()).hexdigest(), 16)
        shard_index = hash_value % self.num_shards
        return self.shards[shard_index]

    def insert(self, user_id, data):
        shard = self.get_shard(user_id)
        shard.insert(data)

    def query(self, user_id):
        shard = self.get_shard(user_id)
        return shard.query(user_id)

# Usage
router = HashShardRouter(num_shards=4)
router.insert(user_id=12345, data={"name": "John"})  # Goes to shard 1
router.insert(user_id=67890, data={"name": "Jane"})  # Goes to shard 2

Pros: Even distribution, simple implementation
Cons: Resharding is expensive (all data must move when adding shards)

Partition data by value ranges. Good when queries often filter by range.

# Range-based sharding
class RangeShardRouter:
    def __init__(self):
        self.ranges = [
            (0, 1000000, "shard_1"),
            (1000000, 2000000, "shard_2"),
            (2000000, 3000000, "shard_3"),
            (3000000, float('inf'), "shard_4"),
        ]
        self.shards = {name: Database(name) for _, _, name in self.ranges}

    def get_shard(self, user_id):
        for start, end, shard_name in self.ranges:
            if start <= user_id < end:
                return self.shards[shard_name]
        raise ValueError(f"No shard for user_id {user_id}")

    def range_query(self, start_id, end_id):
        """Query across multiple shards for range"""
        results = []
        for range_start, range_end, shard_name in self.ranges:
            if start_id < range_end and end_id > range_start:
                shard = self.shards[shard_name]
                results.extend(shard.range_query(
                    max(start_id, range_start),
                    min(end_id, range_end)
                ))
        return results

Pros: Efficient range queries, easy to add new ranges
Cons: Hot spots if data isn't evenly distributed (e.g., recent user IDs)

Partition by geographic region. Reduces latency for users in specific regions.

# Geographic sharding
class GeoShardRouter:
    def __init__(self):
        self.region_shards = {
            "us-east": Database("us-east-db"),
            "us-west": Database("us-west-db"),
            "eu-west": Database("eu-west-db"),
            "ap-south": Database("ap-south-db"),
        }

    def get_user_region(self, user):
        # Based on user's country or preference
        country_to_region = {
            "US": "us-east",
            "CA": "us-west",
            "UK": "eu-west",
            "DE": "eu-west",
            "IN": "ap-south",
        }
        return country_to_region.get(user.country, "us-east")

    def get_shard(self, user):
        region = self.get_user_region(user)
        return self.region_shards[region]

Pros: Lower latency, data residency compliance (GDPR)
Cons: Complex cross-region queries, imbalanced load

Use a lookup service to map keys to shards. Most flexible but adds latency.

# Directory-based sharding
class DirectoryShardRouter:
    def __init__(self):
        # Lookup service (could be Redis, separate database, etc.)
        self.directory = redis.Redis()
        self.shards = {
            "shard_1": Database("shard_1"),
            "shard_2": Database("shard_2"),
            "shard_3": Database("shard_3"),
        }

    def get_shard(self, user_id):
        # Look up which shard holds this user
        shard_name = self.directory.get(f"user:{user_id}:shard")

        if shard_name is None:
            # New user - assign to shard with least data
            shard_name = self._assign_to_best_shard(user_id)

        return self.shards[shard_name.decode()]

    def _assign_to_best_shard(self, user_id):
        # Find shard with smallest size
        shard_sizes = {name: shard.size() for name, shard in self.shards.items()}
        best_shard = min(shard_sizes, key=shard_sizes.get)

        # Record mapping
        self.directory.set(f"user:{user_id}:shard", best_shard)
        return best_shard

    def migrate_user(self, user_id, new_shard):
        """Move user to different shard"""
        old_shard = self.get_shard(user_id)
        data = old_shard.get_all_data(user_id)

        self.shards[new_shard].insert_all(user_id, data)
        old_shard.delete(user_id)

        # Update directory
        self.directory.set(f"user:{user_id}:shard", new_shard)

Pros: Flexible, easy to rebalance, supports any sharding logic
Cons: Directory is single point of failure, lookup latency

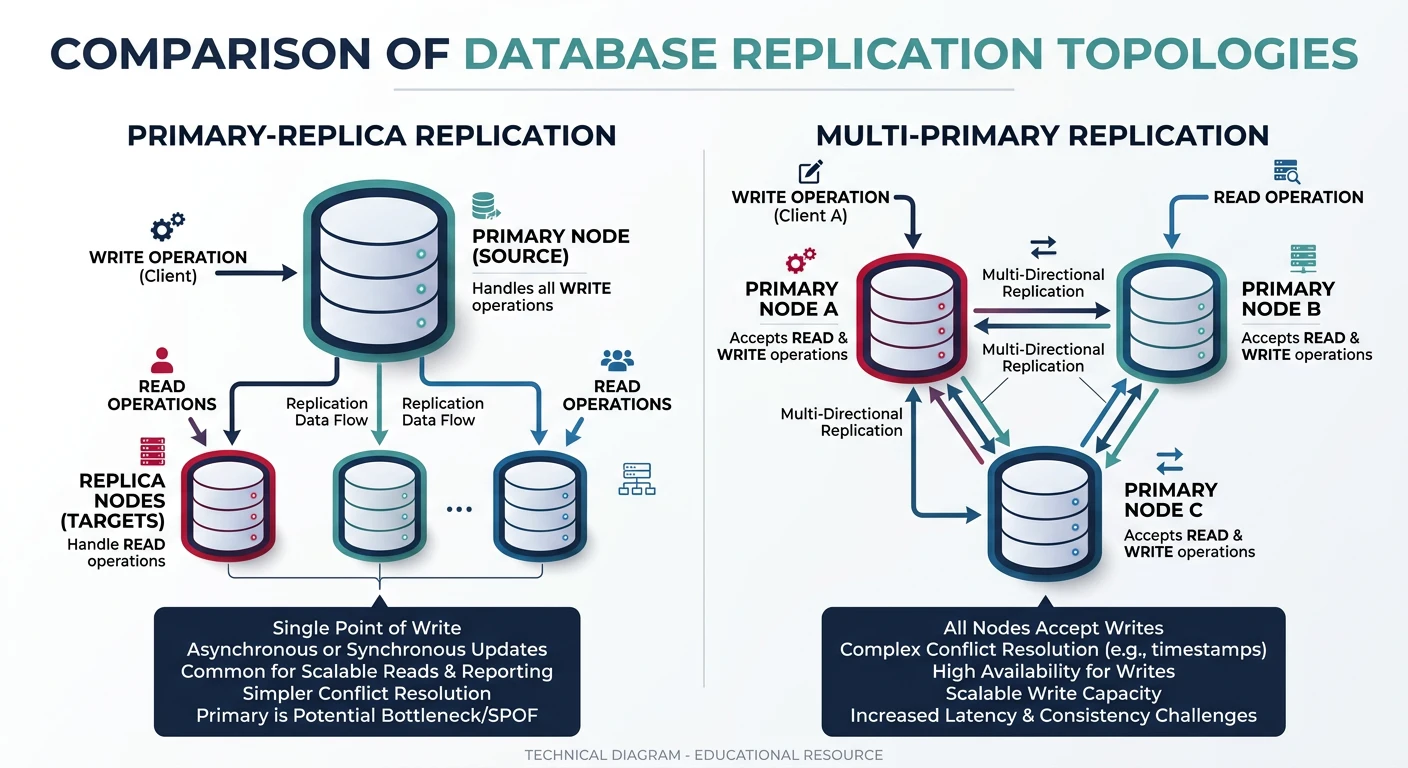

One primary handles all writes; replicas receive copies and serve reads.

# Primary-Replica pattern
class PrimaryReplicaDatabase:
    def __init__(self):
        self.primary = Database("primary")
        self.replicas = [
            Database("replica_1"),
            Database("replica_2"),
            Database("replica_3")
        ]
        self.read_index = 0

    def write(self, key, value):
        # All writes go to primary
        self.primary.write(key, value)
        # Primary replicates to replicas asynchronously

    def read(self, key, consistency="eventual"):
        if consistency == "strong":
            # Read from primary for latest data
            return self.primary.read(key)
        else:
            # Round-robin across replicas
            replica = self.replicas[self.read_index % len(self.replicas)]
            self.read_index += 1
            return replica.read(key)  # May be slightly stale

Pros: Simple, read scaling, automatic failover
Cons: Single write bottleneck, replication lag

Multiple nodes accept writes. Requires conflict resolution.

# Multi-Primary with conflict resolution
class MultiPrimaryDatabase:
    def __init__(self):
        self.nodes = [Database(f"node_{i}") for i in range(3)]

    def write(self, key, value, node_index=0):
        node = self.nodes[node_index]

        # Attach vector clock for conflict detection
        timestamp = time.time()
        node_id = node_index

        record = {
            "value": value,
            "vector_clock": {node_id: timestamp}
        }

        node.write(key, record)
        # Replicate to other nodes asynchronously
        self._replicate(key, record, exclude=node_index)

    def _resolve_conflict(self, record1, record2):
        # Last-Write-Wins (simplest strategy)
        ts1 = max(record1["vector_clock"].values())
        ts2 = max(record2["vector_clock"].values())
        return record1 if ts1 > ts2 else record2

        # Alternative: Merge both values (application-specific)

Pros: Write scaling, no single point of failure
Cons: Conflict resolution complexity, eventual consistency

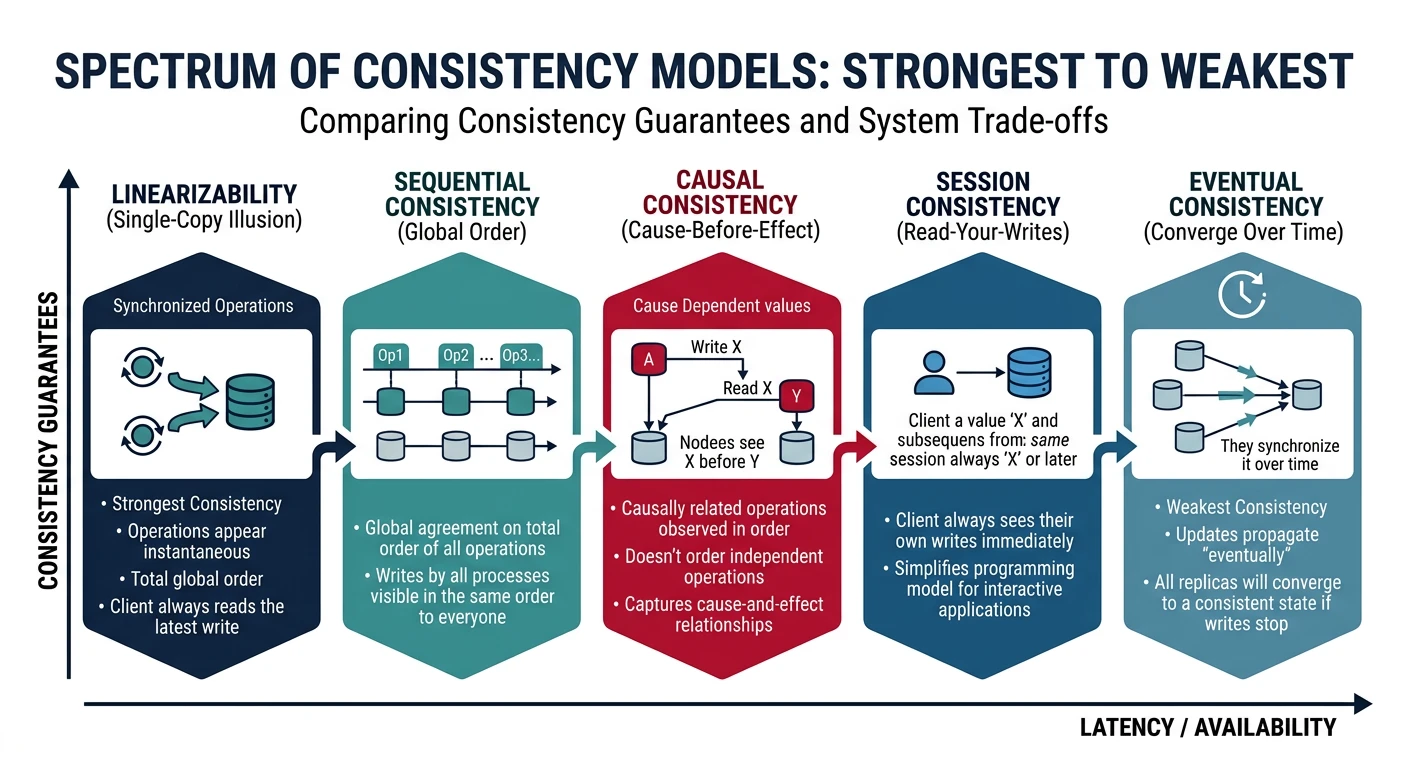

All reads return the most recent write. System appears as single copy.

# Strong consistency (at cost of availability)
# Client always sees latest value

write(x, 1)  # At time T1
# Wait for all replicas to acknowledge
read(x)  # Always returns 1, even from replica

Example: Google Spanner uses synchronized clocks and 2PC for global strong consistency.

If no new updates, all replicas will eventually converge. Reads may return stale data.

# Eventual consistency
write(x, 1)  # At time T1
read(x)  # May return old value for a while
# ...time passes...
read(x)  # Eventually returns 1

Example: Amazon DynamoDB, Cassandra. Good for high availability when stale reads are acceptable.

A user always sees their own writes immediately, even if other users see stale data.

# Read-your-writes implementation
class ReadYourWritesDB:
    def __init__(self):
        self.primary = Database("primary")
        self.replicas = [Database(f"replica_{i}") for i in range(3)]
        # Track last write timestamp per user
        self.user_timestamps = {}

    def write(self, user_id, key, value):
        timestamp = time.time()
        self.primary.write(key, value, timestamp)
        self.user_timestamps[user_id] = timestamp

    def read(self, user_id, key):
        last_write = self.user_timestamps.get(user_id, 0)

        for replica in self.replicas:
            if replica.last_sync_time >= last_write:
                return replica.read(key)

        # Fallback to primary if replicas too stale
        return self.primary.read(key)
