System Design Series Part 7: Message Queues & Event-Driven

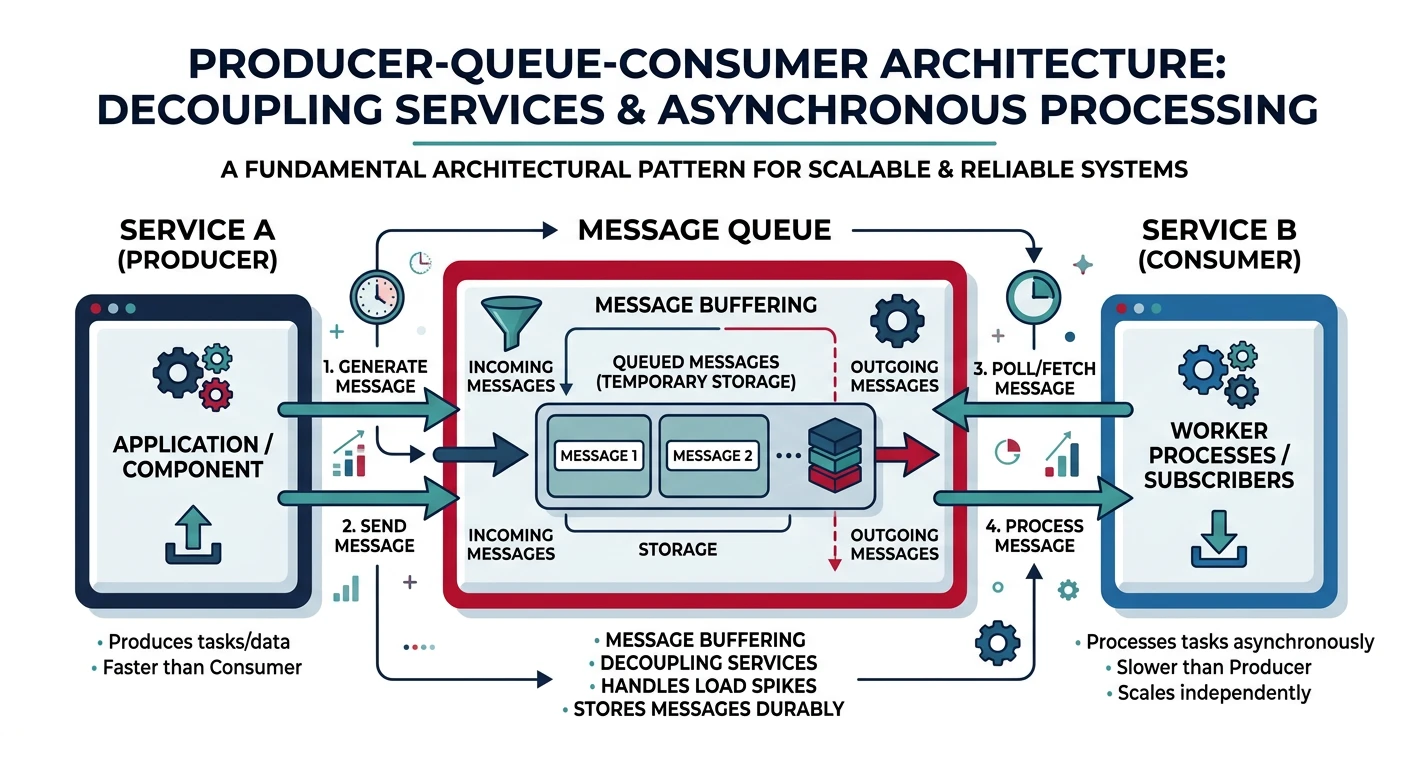

Each message is consumed by exactly one consumer. Multiple consumers can compete for messages to distribute workload.

# Multiple workers compete for messages
# Message goes to only ONE worker

Producer ---> [Queue] ---> Consumer 1
                      ---> Consumer 2
                      ---> Consumer 3

# Each message processed by exactly one consumer
# Great for distributing work across workers

Use cases: Order processing, background jobs, task distribution

Each message is delivered to all subscribed consumers. Publishers don't know about subscribers.

# All subscribers receive every message
                           ---> [Queue 1] ---> Email Service
Producer ---> [Exchange] ---> [Queue 2] ---> SMS Service
                           ---> [Queue 3] ---> Push Notification

# Example: User signup triggers multiple notifications
channel.exchange_declare(exchange='user_events', exchange_type='fanout')

def publish_signup(user):
    channel.basic_publish(
        exchange='user_events',
        routing_key='',  # Ignored for fanout
        body=json.dumps({'event': 'signup', 'user': user})
    )

# Each service creates its own queue bound to exchange

Use cases: Notifications, event broadcasting, logging

Messages are routed to queues based on routing key patterns.

# Route messages based on topic pattern
channel.exchange_declare(exchange='orders', exchange_type='topic')

# Publish with routing key
channel.basic_publish(
    exchange='orders',
    routing_key='order.created.electronics',  # topic pattern
    body=json.dumps(order)
)

# Consumer 1: All order events
channel.queue_bind(exchange='orders', queue='all_orders', routing_key='order.#')

# Consumer 2: Only electronics orders
channel.queue_bind(exchange='orders', queue='electronics', routing_key='order.*.electronics')

# Consumer 3: Only order creation events
channel.queue_bind(exchange='orders', queue='new_orders', routing_key='order.created.*')

# Patterns: * matches one word, # matches zero or more words

Use cases: Event filtering, multi-tenant systems, log aggregation

Messages that fail processing are moved to a separate queue for investigation.

# DLQ Configuration
# Create DLQ
channel.queue_declare(queue='order_queue_dlq', durable=True)

# Create main queue with DLQ routing
channel.queue_declare(
    queue='order_queue',
    durable=True,
    arguments={
        'x-dead-letter-exchange': '',
        'x-dead-letter-routing-key': 'order_queue_dlq',
        'x-message-ttl': 86400000  # 24 hours TTL
    }
)

# Consumer with error handling
def process_order(ch, method, properties, body):
    try:
        order = json.loads(body)
        process(order)
        ch.basic_ack(delivery_tag=method.delivery_tag)
    except Exception as e:
        # Reject message -> goes to DLQ
        ch.basic_nack(delivery_tag=method.delivery_tag, requeue=False)
        log_error(f"Order failed: {e}")

Use cases: Error investigation, retry mechanisms, audit trails

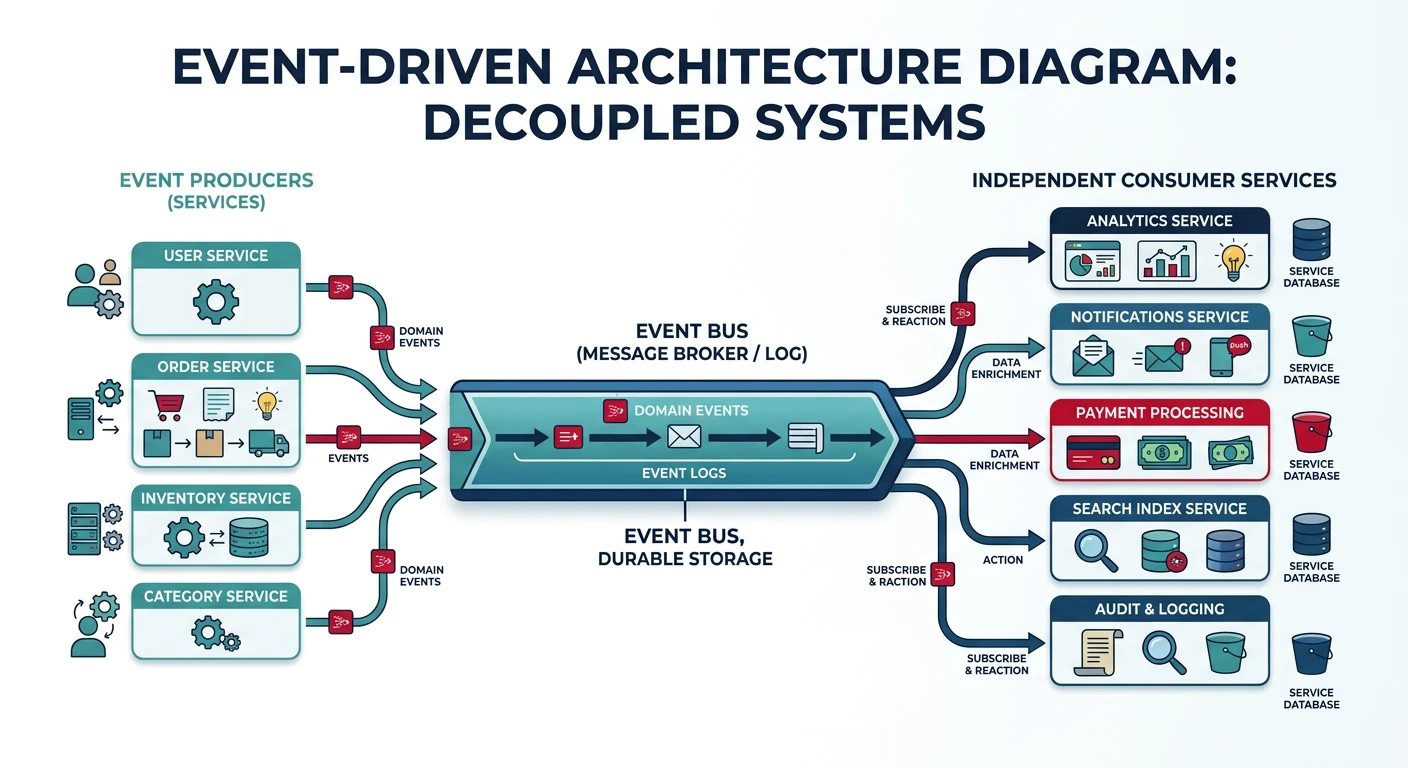

# Event definitions
from dataclasses import dataclass
from datetime import datetime
from typing import Optional
import uuid

@dataclass
class Event:
    event_id: str
    event_type: str
    timestamp: datetime
    correlation_id: Optional[str] = None

@dataclass
class OrderPlaced(Event):
    order_id: str
    user_id: str
    items: list
    total: float

@dataclass
class PaymentProcessed(Event):
    order_id: str
    payment_id: str
    amount: float
    status: str

@dataclass
class InventoryReserved(Event):
    order_id: str
    items: list
    warehouse_id: str

# Event publisher
class EventPublisher:
    def __init__(self, message_queue):
        self.mq = message_queue

    def publish(self, event):
        self.mq.publish(
            topic=event.event_type,
            message={
                'event_id': event.event_id,
                'event_type': event.event_type,
                'timestamp': event.timestamp.isoformat(),
                'data': event.__dict__
            }
        )

# Event handler
class OrderEventHandler:
    def handle(self, event):
        if isinstance(event, OrderPlaced):
            # Trigger inventory reservation
            self.inventory_service.reserve(event.order_id, event.items)
            # Trigger payment processing
            self.payment_service.process(event.order_id, event.total)

Store all state changes as a sequence of events. Current state is derived by replaying events.

# Event Sourcing Example - Bank Account
class BankAccount:
    def __init__(self, account_id):
        self.account_id = account_id
        self.balance = 0
        self.events = []

    # Commands create events
    def deposit(self, amount, timestamp):
        event = DepositEvent(
            account_id=self.account_id,
            amount=amount,
            timestamp=timestamp
        )
        self._apply(event)
        self.events.append(event)

    def withdraw(self, amount, timestamp):
        if amount > self.balance:
            raise InsufficientFundsError()

        event = WithdrawEvent(
            account_id=self.account_id,
            amount=amount,
            timestamp=timestamp
        )
        self._apply(event)
        self.events.append(event)

    # Apply events to update state
    def _apply(self, event):
        if isinstance(event, DepositEvent):
            self.balance += event.amount
        elif isinstance(event, WithdrawEvent):
            self.balance -= event.amount

    # Rebuild state from events
    @classmethod
    def rebuild_from_events(cls, account_id, events):
        account = cls(account_id)
        for event in events:
            account._apply(event)
        return account

# Event Store
class EventStore:
    def __init__(self):
        self.events = {}  # account_id -> [events]

    def save_events(self, aggregate_id, events, expected_version):
        # Optimistic concurrency check
        current_version = len(self.events.get(aggregate_id, []))
        if current_version != expected_version:
            raise ConcurrencyException()

        self.events.setdefault(aggregate_id, []).extend(events)

    def get_events(self, aggregate_id):
        return self.events.get(aggregate_id, [])

Benefits: Complete audit trail, temporal queries, debugging, replay

Separate models for reading (queries) and writing (commands) data.

# CQRS Implementation
# Write Model (Commands) - Handles business logic
class OrderCommandHandler:
    def __init__(self, event_store, event_bus):
        self.event_store = event_store
        self.event_bus = event_bus

    def handle_create_order(self, command):
        # Load aggregate from events
        events = self.event_store.get_events(command.order_id)
        order = Order.rebuild_from_events(events)

        # Execute business logic
        new_events = order.create(command.user_id, command.items)

        # Save new events
        self.event_store.save_events(command.order_id, new_events)

        # Publish events for read model update
        for event in new_events:
            self.event_bus.publish(event)

# Read Model (Queries) - Optimized for reading
class OrderReadModel:
    def __init__(self):
        self.orders = {}  # Denormalized view

    def handle_order_created(self, event):
        self.orders[event.order_id] = {
            'id': event.order_id,
            'user_id': event.user_id,
            'items': event.items,
            'status': 'created',
            'total': sum(item['price'] for item in event.items)
        }

    def handle_order_shipped(self, event):
        self.orders[event.order_id]['status'] = 'shipped'
        self.orders[event.order_id]['shipped_at'] = event.timestamp

    # Fast queries on denormalized data
    def get_user_orders(self, user_id):
        return [o for o in self.orders.values() if o['user_id'] == user_id]

Write messages to an outbox table in the same database transaction as the business data. A separate relay process reads the outbox and publishes to the message broker.

# Transactional Outbox Pattern — full implementation
import json
import uuid
import time

class OrderService:
    """Business logic that needs to publish events atomically."""

    def __init__(self, db):
        self.db = db  # Database connection

    def create_order(self, user_id, items, total):
        order_id = str(uuid.uuid4())

        # SINGLE database transaction — both writes or neither
        with self.db.transaction() as tx:
            # 1. Business data write
            tx.execute(
                "INSERT INTO orders (id, user_id, total, status) "
                "VALUES (%s, %s, %s, 'created')",
                (order_id, user_id, total)
            )
            for item in items:
                tx.execute(
                    "INSERT INTO order_items (order_id, product_id, qty) "
                    "VALUES (%s, %s, %s)",
                    (order_id, item["product_id"], item["qty"])
                )

            # 2. Outbox write (SAME transaction)
            event_payload = json.dumps({
                "order_id": order_id,
                "user_id": user_id,
                "total": total,
                "items": items
            })
            tx.execute(
                "INSERT INTO outbox "
                "(id, aggregate_type, aggregate_id, event_type, payload) "
                "VALUES (%s, 'Order', %s, 'OrderCreated', %s)",
                (str(uuid.uuid4()), order_id, event_payload)
            )

        return order_id

# Outbox table schema:
# CREATE TABLE outbox (
#     id UUID PRIMARY KEY,
#     aggregate_type VARCHAR(255),
#     aggregate_id VARCHAR(255),
#     event_type VARCHAR(255),
#     payload JSONB,
#     created_at TIMESTAMP DEFAULT NOW(),
#     published BOOLEAN DEFAULT FALSE
# );
print("Outbox guarantees: DB write + event are in same transaction")

# Polling Publisher — simple relay that polls the outbox
import time

class OutboxPollingRelay:
    """Polls outbox table and publishes events to message broker."""

    def __init__(self, db, broker, poll_interval=1.0, batch_size=100):
        self.db = db
        self.broker = broker
        self.poll_interval = poll_interval
        self.batch_size = batch_size

    def run(self):
        """Main loop — run as a background thread or separate process."""
        while True:
            published = self.poll_and_publish()
            if published == 0:
                time.sleep(self.poll_interval)

    def poll_and_publish(self):
        rows = self.db.query(
            "SELECT id, event_type, aggregate_type, aggregate_id, payload "
            "FROM outbox WHERE published = FALSE "
            "ORDER BY created_at ASC LIMIT %s",
            (self.batch_size,)
        )

        for row in rows:
            # Publish to broker (topic derived from aggregate type)
            topic = f"{row['aggregate_type']}.{row['event_type']}"
            self.broker.publish(
                topic=topic,
                key=row["aggregate_id"],
                value=row["payload"],
                headers={"outbox_id": row["id"]}
            )

            # Mark as published
            self.db.execute(
                "UPDATE outbox SET published = TRUE WHERE id = %s",
                (row["id"],)
            )

        return len(rows)

print("Polling Publisher: simple, reliable, slightly higher latency")
print("Add index: CREATE INDEX idx_outbox_unpublished ON outbox (published, created_at)")

# Idempotent Consumer — deduplication via processed message tracking
import json

class IdempotentEventHandler:
    """Base class ensuring each message is processed exactly once."""

    def __init__(self, db):
        self.db = db

    def handle(self, message):
        message_id = message["message_id"]

        with self.db.transaction() as tx:
            # Check if already processed (SELECT FOR UPDATE for safety)
            already = tx.query_one(
                "SELECT 1 FROM processed_messages WHERE message_id = %s "
                "FOR UPDATE",
                (message_id,)
            )

            if already:
                print(f"Duplicate message {message_id} — skipping")
                return  # Idempotent: no side effects

            # Process the message (implemented by subclass)
            self._process(message, tx)

            # Record that we processed this message
            tx.execute(
                "INSERT INTO processed_messages (message_id, processed_at) "
                "VALUES (%s, NOW())",
                (message_id,)
            )

    def _process(self, message, tx):
        raise NotImplementedError

class PaymentHandler(IdempotentEventHandler):
    def _process(self, message, tx):
        tx.execute(
            "INSERT INTO payments (order_id, amount, status) "
            "VALUES (%s, %s, 'charged')",
            (message["order_id"], message["total"])
        )

# Clean up old records with TTL
# DELETE FROM processed_messages WHERE processed_at < NOW() - INTERVAL '7 days'
print("Strategies: message_id dedup table, DB unique constraint, or idempotent operations")

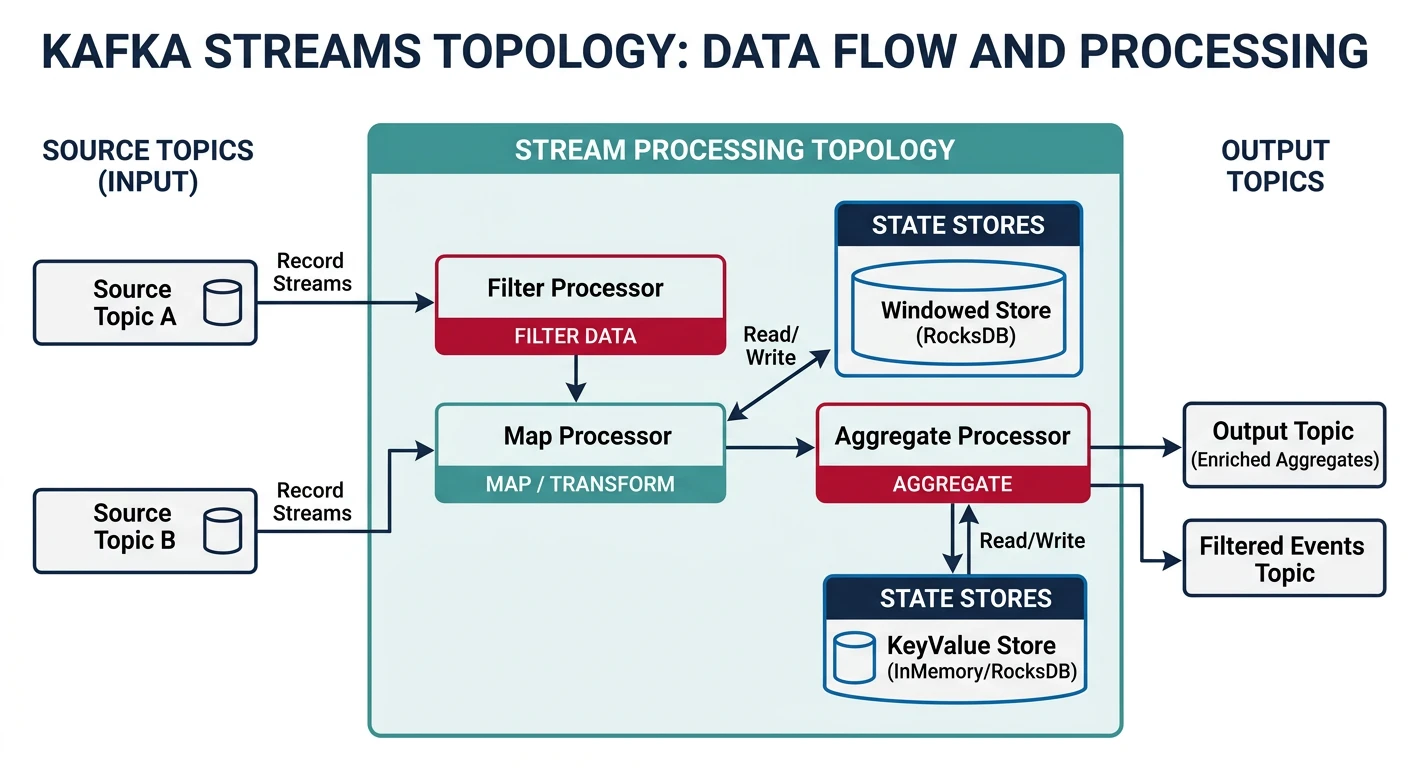

Distributed streaming platform for high-throughput, fault-tolerant messaging.

# Kafka Producer
from kafka import KafkaProducer
import json

producer = KafkaProducer(
    bootstrap_servers=['localhost:9092'],
    value_serializer=lambda v: json.dumps(v).encode('utf-8'),
    acks='all',  # Wait for all replicas
    retries=3
)

def send_event(topic, event):
    future = producer.send(topic, value=event)
    record_metadata = future.get(timeout=10)
    print(f"Sent to {record_metadata.topic} partition {record_metadata.partition}")

send_event('orders', {'order_id': '123', 'status': 'created'})

# Kafka Consumer
from kafka import KafkaConsumer

consumer = KafkaConsumer(
    'orders',
    bootstrap_servers=['localhost:9092'],
    group_id='order-processor',
    auto_offset_reset='earliest',
    enable_auto_commit=False,  # Manual commit for exactly-once
    value_deserializer=lambda m: json.loads(m.decode('utf-8'))
)

for message in consumer:
    print(f"Received: {message.value}")
    process_order(message.value)
    consumer.commit()  # Commit after successful processing

Key Features: Partitions for parallelism, replication for durability, log compaction, exactly-once semantics

Traditional message broker with flexible routing and multiple protocols (AMQP, MQTT, STOMP).

Key Features: Exchange types (direct, fanout, topic, headers), message acknowledgment, dead letter queues, priority queues

Managed messaging services. SQS for queues, SNS for pub/sub.

# AWS SQS
import boto3

sqs = boto3.client('sqs')

# Send message
sqs.send_message(
    QueueUrl='https://sqs.region.amazonaws.com/account/queue-name',
    MessageBody=json.dumps({'order_id': '123'}),
    MessageGroupId='order-group',  # For FIFO queues
    MessageDeduplicationId='unique-id'
)

# Receive and delete
response = sqs.receive_message(
    QueueUrl=queue_url,
    MaxNumberOfMessages=10,
    WaitTimeSeconds=20  # Long polling
)

for message in response.get('Messages', []):
    process(message['Body'])
    sqs.delete_message(
        QueueUrl=queue_url,
        ReceiptHandle=message['ReceiptHandle']
    )
