System Design Series Part 15: Interview Preparation Guide

System Design Interview Overview

Series Navigation: This is Part 15 (Final Part) of the System Design Series. Review Part 14: Authentication & Security first.

System Design Mastery

Your 15-step learning path • Currently on Step 15

15

Interview Preparation

4-step framework, estimation, strategies

You Are Here

System design interviews test your ability to design large-scale distributed systems. Unlike coding interviews that have right or wrong answers, system design is about demonstrating your thought process, making reasonable trade-offs, and communicating effectively.


                        Key Insight: Interviewers care more about HOW you think than the exact solution. There's no perfect design—only designs that make sense for specific requirements and constraints.


The interview is a conversation, not an exam. You're being evaluated on your ability to:

Understand and clarify ambiguous requirements
Break down complex problems into manageable components
Make and justify design decisions with trade-offs
Communicate clearly while thinking through problems
Identify potential issues and bottlenecks

Level Expectations

Level	Expectation	Focus Areas
Junior (0-2 years)	Basic understanding of system components	APIs, databases, caching basics, simple scaling
Mid-Level (3-5 years)	Design moderate complexity systems	Microservices, message queues, sharding, replication
Senior (5+ years)	Design complete large-scale systems	Distributed systems, consistency models, fault tolerance
Staff+ (8+ years)	Architect systems with organizational context	Team structure, cross-system integration, technical strategy

The Interview Framework


                        The 4-Step Framework:
                        Clarify Requirements (3-5 min) - Understand scope, users, and constraints
Back-of-Envelope Estimation (3-5 min) - Calculate scale and capacity
High-Level Design (10-15 min) - Draw system components and data flow
Deep Dive (10-15 min) - Explore specific components in detail



Step 1: Clarifying Requirements

Never jump into designing. Spend the first few minutes asking questions to understand what you're building.

Requirements Checklist

# Functional Requirements Questions
"""
1. Who are the users? (B2B, B2C, internal)
2. What are the core features? (MVP scope)
3. What actions can users take?
4. What data needs to be stored/retrieved?
5. Are there real-time requirements?
6. Mobile, web, or API-only?
"""

# Non-Functional Requirements Questions
"""
1. Scale: How many users? DAU/MAU?
2. Performance: Latency requirements? (p50, p99)
3. Availability: What's acceptable downtime?
4. Consistency: Can we tolerate stale data?
5. Geography: Single region or global?
6. Security: Sensitive data? Compliance needs?
"""

# Example: "Design Twitter"
"""
YOU: "Can you help me understand the scope?"
- Is this the full Twitter or specific features?
- Do we need DMs, search, trending?
- What's the expected user base?
- Read-heavy or write-heavy?

CLARIFIED SCOPE:
- Core features: Post tweets, follow users, home timeline
- 500M DAU, 200M tweets/day
- Timeline latency < 200ms
- Eventually consistent is acceptable
- Global users (multi-region)
"""

Step 2: Back-of-Envelope Estimation

Quick math to understand scale. Don't be too precise—order of magnitude is what matters.

Estimation Cheat Sheet

# Key Numbers to Memorize
"""
Time:
- 1 day = 86,400 seconds ˜ 100K seconds
- 1 month = 2.5M seconds
- 1 year = 30M seconds

Storage:
- ASCII character = 1 byte
- Unicode character = 2-4 bytes
- UUID = 16 bytes
- Unix timestamp = 4 bytes (int32)
- Average tweet = 140 chars ˜ 300 bytes with metadata
- Average image = 200KB-2MB
- Average video = 5MB-50MB per minute

Throughput:
- Single MySQL server = 10K QPS (simple queries)
- Single Redis server = 100K QPS
- Single Kafka broker = 100K messages/sec
"""

# Example: Twitter Scale Estimation
"""
Given: 500M DAU, 200M tweets/day

WRITE LOAD:
- Tweets/sec = 200M / 100K = 2,000 TPS
- Peak (3x average) = 6,000 TPS

READ LOAD (read-heavy):
- Assume 100 timeline views per user per day
- Timeline reads = 500M × 100 = 50B/day
- Reads/sec = 50B / 100K = 500K QPS
- Peak = 1.5M QPS

STORAGE:
- Tweet size = 300 bytes (text + metadata)
- Daily storage = 200M × 300B = 60GB/day
- Annual storage = 60GB × 365 = 22TB/year
- 5 years = 110TB (before replication/indexes)

BANDWIDTH:
- Tweets: 60GB/day ÷ 100K sec = 600KB/sec outgoing
- Timeline (including images):
  - Assume 20 tweets per view, 5 with images
  - Per view = 20 × 300B + 5 × 200KB = 1MB
  - 50B views/day = 50PB/day outgoing
  - Peak bandwidth = 50PB / 100K × 3 = 1.5TB/sec
"""

Step 3: High-Level Design

Draw the main components and how they interact. Start simple, then refine.

HLD Template

# Standard Components to Consider
"""
+-----------------------------------------------------------------+
¦                        CLIENTS                                   ¦
¦              (Web, Mobile, Third-party APIs)                    ¦
+-----------------------------------------------------------------+
                              ¦
                              ?
+-----------------------------------------------------------------+
¦                      LOAD BALANCER                               ¦
¦                  (Route traffic, SSL termination)               ¦
+-----------------------------------------------------------------+
                              ¦
                              ?
+-----------------------------------------------------------------+
¦                      API GATEWAY                                 ¦
¦         (Auth, rate limiting, request routing)                  ¦
+-----------------------------------------------------------------+
                              ¦
          +-------------------+-------------------+
          ?                   ?                   ?
+-----------------+ +-----------------+ +-----------------+
¦  Service A      ¦ ¦  Service B      ¦ ¦  Service C      ¦
¦  (User)         ¦ ¦  (Tweet)        ¦ ¦  (Timeline)     ¦
+-----------------+ +-----------------+ +-----------------+
          ¦                   ¦                   ¦
          +---------------------------------------+
                    ?                   ?
           +---------------+   +---------------+
           ¦    CACHE      ¦   ¦  MESSAGE      ¦
           ¦    (Redis)    ¦   ¦  QUEUE        ¦
           +---------------+   +---------------+
                    ¦                   ¦
                    ?                   ?
           +---------------+   +---------------+
           ¦   DATABASE    ¦   ¦  ASYNC        ¦
           ¦   (Primary)   ¦   ¦  WORKERS      ¦
           +---------------+   +---------------+
"""

# Drawing Tips
"""
1. Start with user ? API ? database (simplest path)
2. Add caching layer for read-heavy paths
3. Add queues for async processing
4. Add CDN for static content
5. Show data flow with arrows
6. Label with technology choices
"""

Step 4: Deep Dive

The interviewer will pick 1-2 areas to explore in detail. Be ready to go deeper.

Common Deep Dive Topics

# Deep Dive Areas
"""
DATABASE SCHEMA:
- Table design, indexes, query patterns
- Sharding key selection
- Read replicas configuration

API DESIGN:
- Endpoint structure (REST/GraphQL)
- Pagination strategy (cursor vs offset)
- Rate limiting approach

CACHING STRATEGY:
- What to cache (hot data, computed results)
- Cache invalidation approach
- Cache-aside vs write-through

SCALING:
- Horizontal vs vertical scaling
- Stateless service design
- Database scaling approach

RELIABILITY:
- Failure scenarios and handling
- Data replication strategy
- Backup and recovery
"""

# Example Deep Dive: Timeline Generation
"""
INTERVIEWER: "Let's dive into how the timeline is generated."

YOU: "There are two main approaches: push (fan-out on write) and
pull (fan-out on read). Let me walk through both..."

PUSH (Fan-out on Write):
- When user tweets, push to all followers' timelines
- Pros: Fast reads (pre-computed)
- Cons: Write amplification for celebrities
- Implementation:
  - User posts tweet ? message queue
  - Workers fetch follower list
  - Write to each follower's timeline cache

PULL (Fan-out on Read):
- On timeline request, fetch from followed users
- Pros: No write amplification
- Cons: Slow reads, N+1 queries
- Implementation:
  - Fetch followed user IDs
  - Query recent tweets from each
  - Merge and sort

HYBRID (Twitter's actual approach):
- Push for users with < 1M followers
- Pull for celebrities at read time
- Cache hot timelines
"""

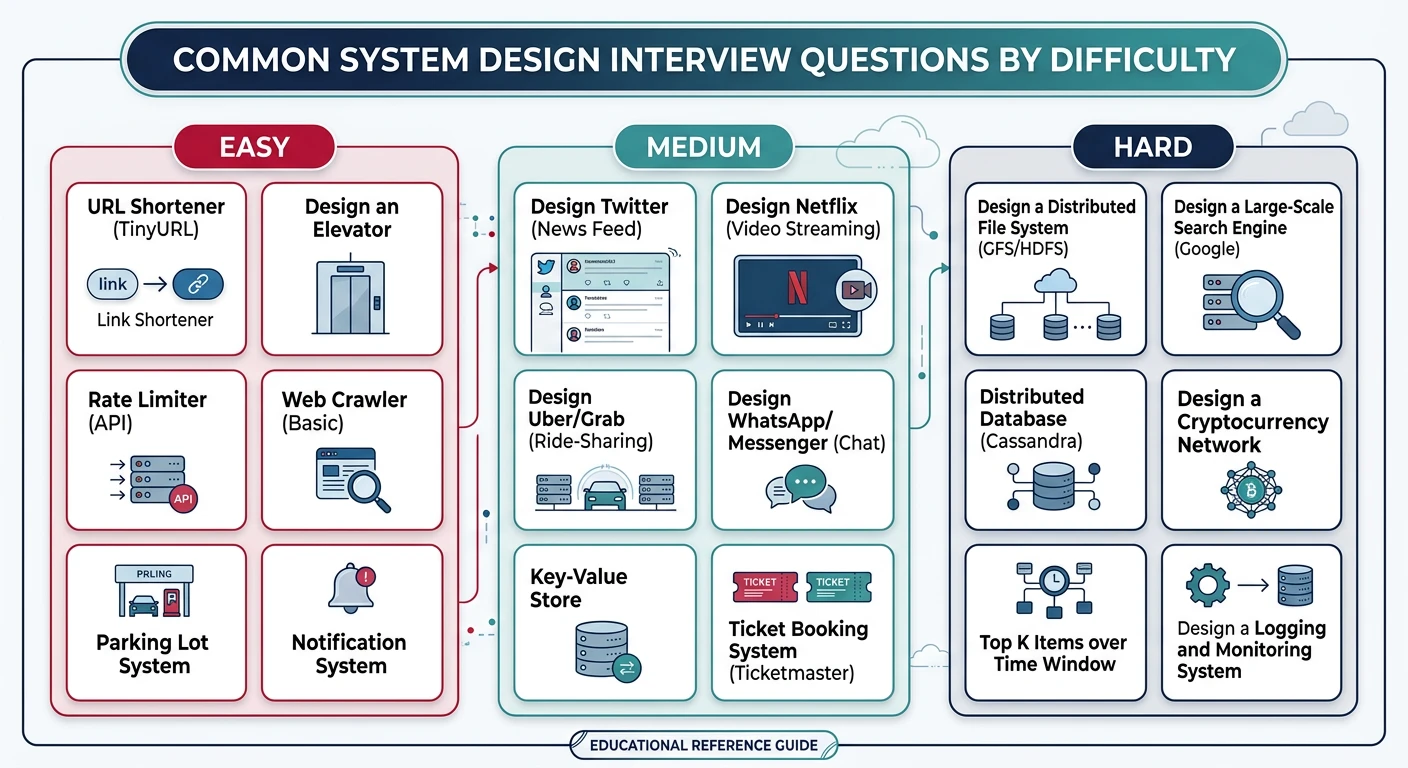

Common Interview Questions

Here are the most frequently asked system design questions, organized by difficulty:

Easy

Design a URL Shortener (like bit.ly)

Key Points: Hashing algorithms, database schema, read-heavy workload, caching, analytics

# Key Design Decisions
"""
1. SHORTENING ALGORITHM:
   - Base62 encoding (a-z, A-Z, 0-9) = 62^7 = 3.5 trillion URLs
   - Use auto-increment ID ? Base62 (simple)
   - Or MD5 hash ? take first 7 chars (collision handling needed)

2. READ VS WRITE:
   - Reads >> Writes (100:1 ratio typical)
   - Cache popular URLs in Redis
   - Reads hit cache first, then database

3. SCALE ESTIMATION (1B URLs/year):
   - Writes: 1B/year = 30 URLs/sec
   - Reads: 30 × 100 = 3,000 QPS (easy for single DB + cache)

4. DATABASE SCHEMA:
   CREATE TABLE urls (
       short_code VARCHAR(7) PRIMARY KEY,
       original_url TEXT NOT NULL,
       user_id INT,
       created_at TIMESTAMP,
       expires_at TIMESTAMP,
       click_count INT DEFAULT 0
   );

5. API DESIGN:
   POST /shorten ? {"short_url": "bit.ly/abc123"}
   GET /{short_code} ? 301 Redirect to original URL
"""

Medium

Design a Chat System (like WhatsApp/Slack)

Key Points: WebSockets, message delivery guarantees, presence, group chat, read receipts

# Key Design Decisions
"""
1. REAL-TIME DELIVERY:
   - WebSocket for persistent connections
   - Each user maintains connection to chat server
   - Server pushes messages instantly

2. MESSAGE DELIVERY GUARANTEES:
   - At-least-once delivery (retry until ACK)
   - Message states: sent ? delivered ? read
   - Client sends ACK, server updates status

3. OFFLINE HANDLING:
   - Store messages in queue if recipient offline
   - Deliver when they reconnect
   - Push notification via APNS/FCM

4. GROUP CHAT SCALING:
   - Fan-out on write for small groups (< 100 members)
   - Fan-out on read for large groups (channels)
   - Cache group membership

5. ARCHITECTURE:
   Client ? WebSocket Gateway ? Chat Service ? Database
                    ?
              Message Queue ? Push Notification Service
                    ?
              Presence Service (online/offline status)
"""

Hard

Design a News Feed (like Facebook/Twitter)

Key Points: Fan-out, ranking algorithms, timeline generation, caching strategy

# Key Design Decisions
"""
1. FAN-OUT STRATEGY:
   Push Model:
   - Write to all followers' feeds on post
   - Fast reads, slow writes
   - Problem: Celebrities with millions of followers

   Pull Model:
   - Fetch from all followed users on read
   - Fast writes, slow reads
   - Problem: Many queries per read

   Hybrid (Recommended):
   - Push for normal users
   - Pull for celebrities (>10K followers)
   - Merge at read time

2. FEED STORAGE:
   - User timeline in Redis sorted set
   - Key: user:{id}:feed
   - Value: post_id, Score: timestamp
   - ZREVRANGE for recent posts

3. RANKING ALGORITHM:
   score = (likes × 2) + (comments × 3) + recency_decay
   - Filter: Spam, blocked users, seen content
   - Personalize: Interest model, engagement history

4. SCALE:
   - 500M DAU × 100 feed views = 50B reads/day
   - Cache hot feeds, pre-compute for active users
   - Shard by user_id
"""

Medium

Design a Notification System

Key Points: Push/email/SMS channels, priority queues, rate limiting, user preferences

# Key Design Decisions
"""
1. MULTI-CHANNEL DELIVERY:
   - Push (iOS/Android), Email, SMS, In-app
   - User preferences per notification type
   - Channel fallback (push failed ? email)

2. ARCHITECTURE:
   Event Source ? Notification Service ? Channel Routers
                                              ?
   +-----------------------------------------------------+
   ¦  Push Service  ¦  Email Service  ¦  SMS Service    ¦
   ¦  (APNS/FCM)    ¦  (SendGrid)     ¦  (Twilio)       ¦
   +-----------------------------------------------------+

3. PRIORITY HANDLING:
   - High: Security alerts, payment confirmations
   - Medium: Social interactions, updates
   - Low: Marketing, recommendations
   - Separate queues per priority level

4. RATE LIMITING:
   - Per-user: Max 10 notifications/hour
   - Per-channel: Respect provider limits
   - Batching: Group similar notifications

5. DEDUPLICATION:
   - Cache recently sent notifications
   - Idempotency key per notification
   - Prevent duplicate sends on retry
"""

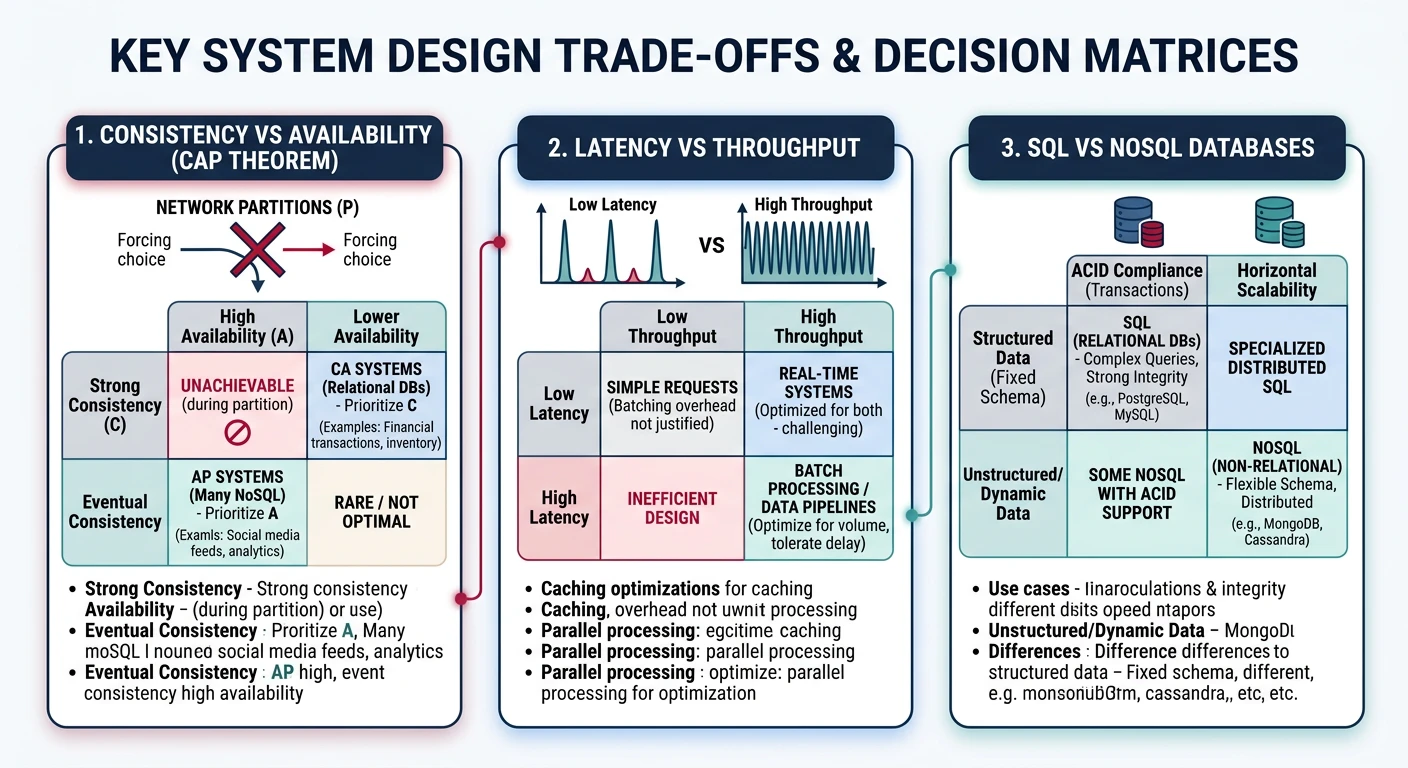

Trade-off Discussions

Every design decision involves trade-offs. Be ready to discuss them explicitly.

SQL vs NoSQL

Factor	SQL (PostgreSQL, MySQL)	NoSQL (MongoDB, Cassandra)
Schema	Fixed schema, migrations required	Flexible schema, evolves easily
Relationships	JOINs are first-class	Denormalize or application joins
Transactions	ACID guaranteed	Limited (varies by product)
Scaling	Vertical, or complex sharding	Horizontal scaling built-in
Use When	Complex queries, strong consistency	High write volume, flexible data

Push vs Pull Architecture

Factor	Push (Fan-out on Write)	Pull (Fan-out on Read)
Latency	Fast reads (pre-computed)	Slower reads (computed on demand)
Write Cost	High (N writes per post)	Low (1 write per post)
Hotspot	Celebrity problem (millions of writes)	Hot content (many reads)
Freshness	Eventually consistent	Always fresh
Use When	Read-heavy, small follower counts	Write-heavy, large follower counts

Mock Design Problems

Practice with these additional problems:

Problem	Difficulty	Key Focus
Design YouTube	Hard	Video transcoding, CDN, recommendation
Design Uber	Hard	Geospatial indexing, matching, real-time
Design Dropbox	Medium	File sync, chunking, deduplication
Design Rate Limiter	Easy	Algorithms, distributed state
Design Typeahead	Medium	Trie, ranking, caching
Design Ticketmaster	Hard	Inventory, concurrency, fairness

Success Strategies


                        Top 10 Tips:
                        Always ask clarifying questions first
Start with requirements, not solutions
Think out loud—explain your reasoning
Draw diagrams as you talk
Acknowledge trade-offs explicitly
Start simple, then iterate
Use real numbers when estimating
Know your fundamentals cold
Practice with a timer
Study real-world systems



Common Mistakes to Avoid

Jumping into solution: Always clarify requirements first
Over-engineering: Start simple, add complexity when needed
Ignoring scale: Design should match the requirements
Not communicating: Silence is bad—think out loud
Single points of failure: Consider reliability
Ignoring trade-offs: Every choice has pros and cons

Study Resources

Engineering Blogs: Netflix, Uber, Airbnb, Meta
Papers: Google (Bigtable, MapReduce, Spanner)
Books: Designing Data-Intensive Applications
Practice: Mock interviews, whiteboard sessions

Series Complete!


                        Congratulations! You've completed the 15-part System Design Series. You now have a comprehensive understanding of system design concepts, from fundamentals to advanced topics and interview preparation.


System Design Interview Worksheet Generator

Structure your system design interview approach with requirements gathering, estimation, design decisions, and analysis. Download as Word, Excel, or PDF.

Draft auto-saved

All data stays in your browser. Nothing is sent to or stored on any server.

Design Problem *

Time Allotted

Functional Requirements *

Non-Functional Requirements *

Back-of-Envelope Estimations

High-Level Design

Deep Dive Topics

Bottlenecks & Mitigations

Author Name

System Design Series Part 15: Interview Preparation Guide

Table of Contents

System Design Interview Overview

System Design Mastery

Introduction to System Design

Scalability Fundamentals

Load Balancing & Caching

Database Design & Sharding

Microservices Architecture

API Design & REST/GraphQL

Message Queues & Event-Driven

CAP Theorem & Consistency

Rate Limiting & Security

Monitoring & Observability

Real-World Case Studies

Low-Level Design Patterns

Distributed Systems Deep Dive

Authentication & Security
