API Development Series Part 7: AWS API Gateway & Lambda

REST APIs vs HTTP APIs

Choosing the Right API Type

AWS API Gateway offers two API types. Understanding their differences is crucial for selecting the right one for your use case.

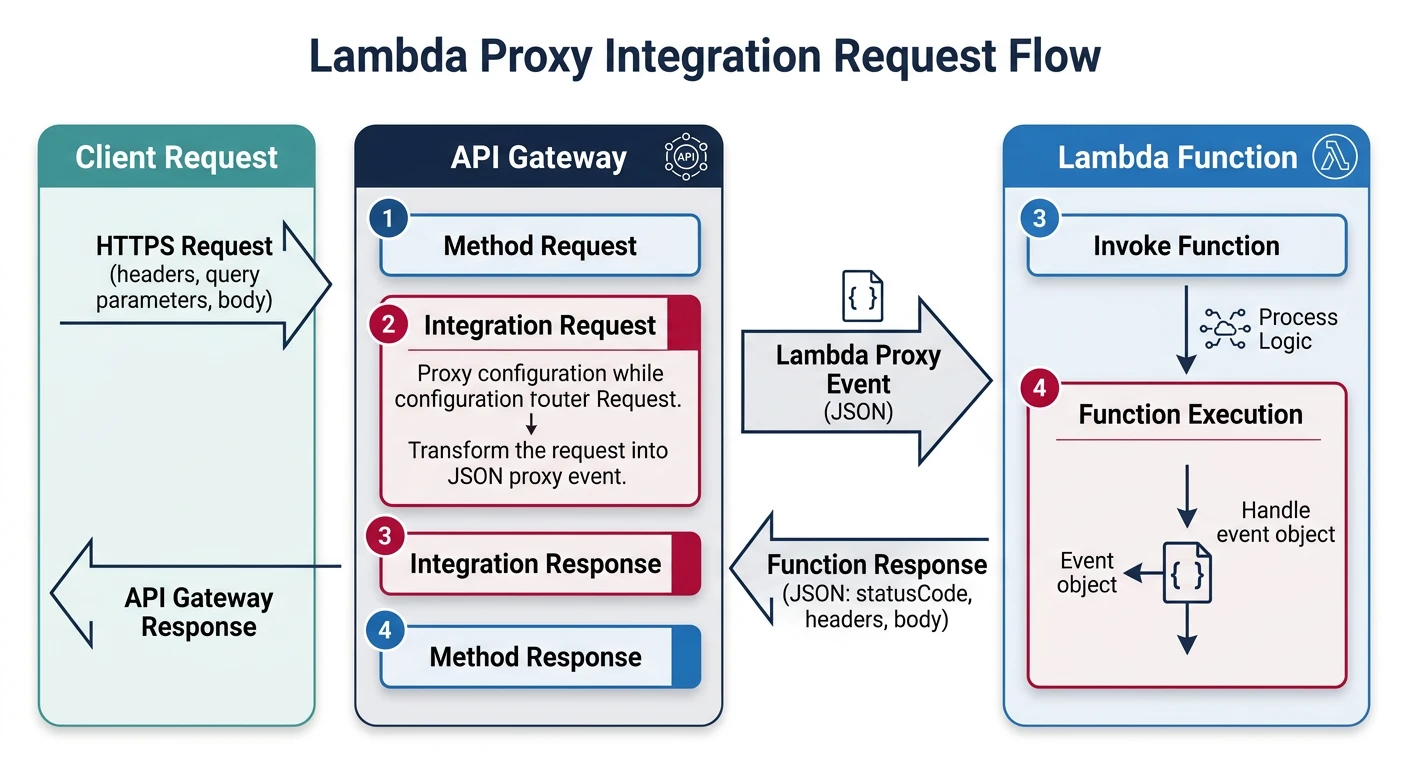

Lambda Proxy Integration

Lambda Handler Pattern

// handler.js - Lambda with proxy integration
exports.handler = async (event) => {
  console.log('Event:', JSON.stringify(event));

  // Extract request details
  const {
    httpMethod,
    path,
    pathParameters,
    queryStringParameters,
    headers,
    body
  } = event;

  try {
    // Route based on method and path
    if (httpMethod === 'GET' && path === '/tasks') {
      return await listTasks(queryStringParameters);
    }

    if (httpMethod === 'POST' && path === '/tasks') {
      return await createTask(JSON.parse(body));
    }

    if (httpMethod === 'GET' && pathParameters?.id) {
      return await getTask(pathParameters.id);
    }

    return response(404, { error: 'Not found' });
  } catch (error) {
    console.error('Error:', error);
    return response(500, {
      type: 'https://api.example.com/errors/internal',
      title: 'Internal Server Error',
      status: 500
    });
  }
};

// Response helper
function response(statusCode, body) {
  return {
    statusCode,
    headers: {
      'Content-Type': 'application/json',
      'Access-Control-Allow-Origin': '*',
      'Access-Control-Allow-Credentials': true
    },
    body: JSON.stringify(body)
  };
}

async function listTasks(query) {
  const { status, limit = 20 } = query || {};
  // Query database...
  return response(200, {
    data: tasks,
    pagination: { hasMore: false }
  });
}

async function createTask(data) {
  // Validate and save...
  return response(201, newTask);
}

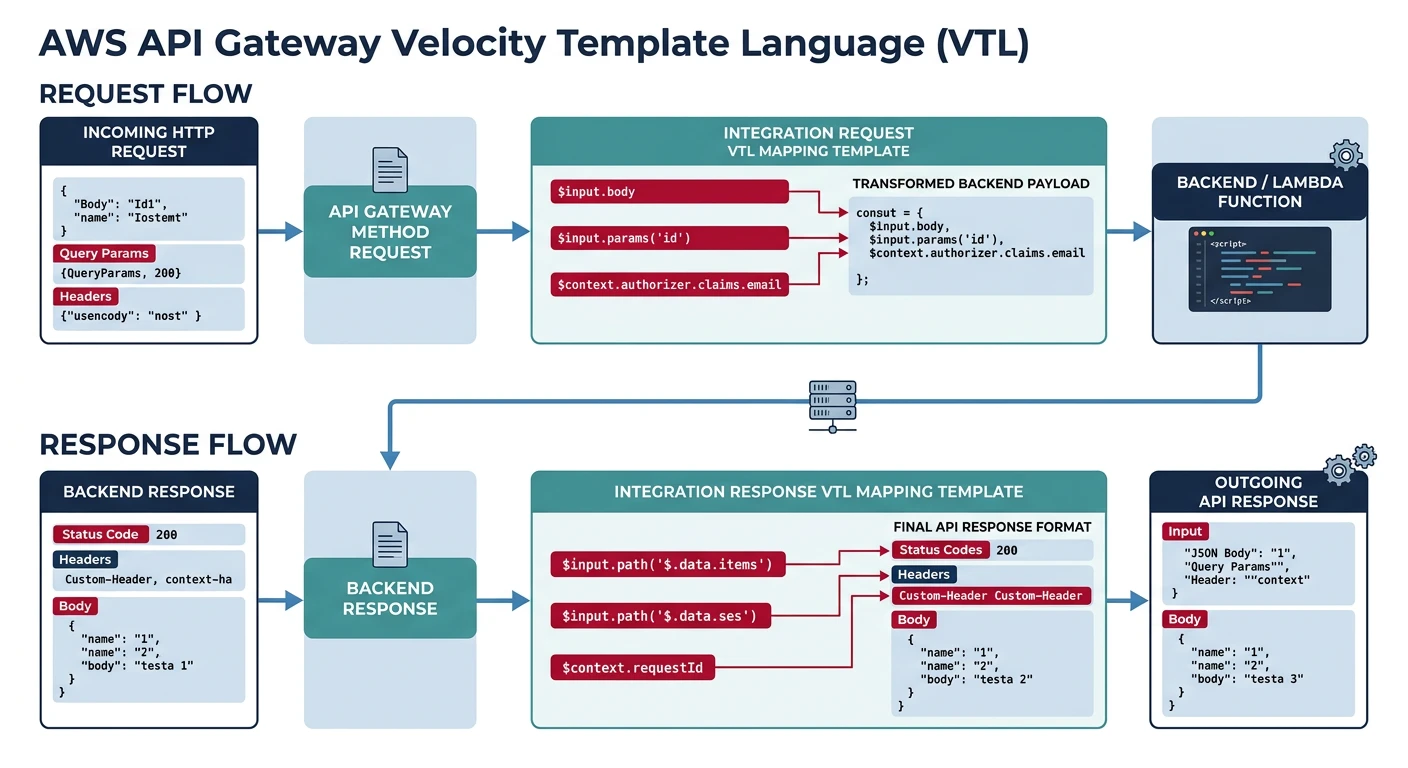

Request/Response Mapping

VTL Mapping Templates (REST API)

// Request mapping template
#set($inputRoot = $input.path('$'))
{
  "id": "$input.params('id')",
  "userId": "$context.authorizer.claims.sub",
  "body": $input.json('$'),
  "timestamp": "$context.requestTime"
}

// Response mapping template
#set($inputRoot = $input.path('$'))
{
  "task": {
    "id": "$inputRoot.id",
    "title": "$inputRoot.title",
    "status": "$inputRoot.status"
  },
  "metadata": {
    "requestId": "$context.requestId"
  }
}

Usage Plans & API Keys

# serverless.yml - Usage plans configuration
resources:
  Resources:
    ApiUsagePlan:
      Type: AWS::ApiGateway::UsagePlan
      Properties:
        UsagePlanName: BasicPlan
        Description: Basic tier usage plan
        ApiStages:
          - ApiId: !Ref ApiGatewayRestApi
            Stage: prod
        Throttle:
          BurstLimit: 100     # Max concurrent requests
          RateLimit: 50       # Requests per second
        Quota:
          Limit: 10000        # Requests per period
          Period: MONTH

    ApiKey:
      Type: AWS::ApiGateway::ApiKey
      Properties:
        Name: BasicApiKey
        Enabled: true

    UsagePlanKey:
      Type: AWS::ApiGateway::UsagePlanKey
      Properties:
        KeyId: !Ref ApiKey
        KeyType: API_KEY
        UsagePlanId: !Ref ApiUsagePlan

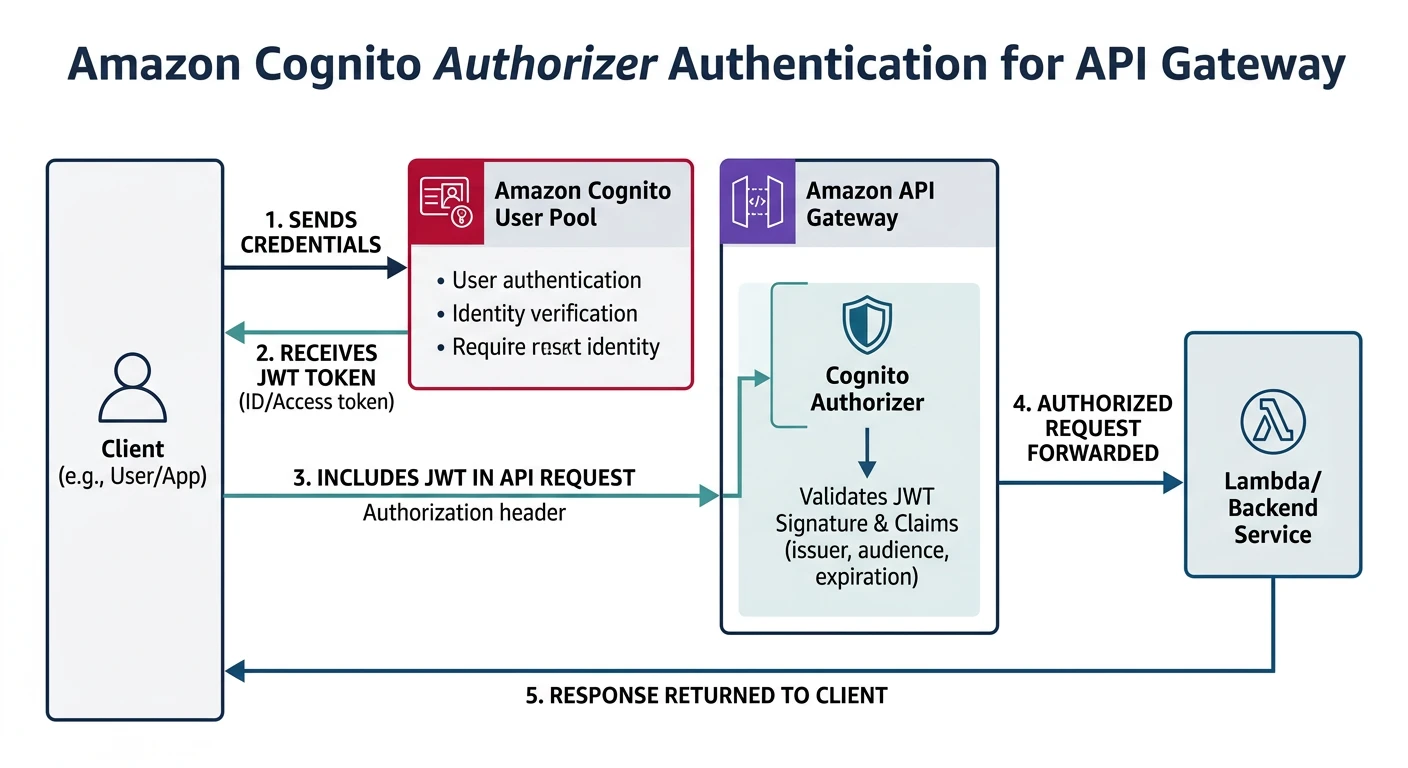

Cognito Authorizers

# serverless.yml - Cognito authorizer
functions:
  getTasks:
    handler: handler.getTasks
    events:
      - http:
          path: /tasks
          method: get
          authorizer:
            type: COGNITO_USER_POOLS
            authorizerId: !Ref CognitoAuthorizer

resources:
  Resources:
    CognitoUserPool:
      Type: AWS::Cognito::UserPool
      Properties:
        UserPoolName: TaskApiUsers
        AutoVerifiedAttributes:
          - email
        Policies:
          PasswordPolicy:
            MinimumLength: 8
            RequireLowercase: true
            RequireNumbers: true

    CognitoUserPoolClient:
      Type: AWS::Cognito::UserPoolClient
      Properties:
        UserPoolId: !Ref CognitoUserPool
        ExplicitAuthFlows:
          - ALLOW_USER_SRP_AUTH
          - ALLOW_REFRESH_TOKEN_AUTH

    CognitoAuthorizer:
      Type: AWS::ApiGateway::Authorizer
      Properties:
        Name: CognitoAuth
        Type: COGNITO_USER_POOLS
        IdentitySource: method.request.header.Authorization
        RestApiId: !Ref ApiGatewayRestApi
        ProviderARNs:
          - !GetAtt CognitoUserPool.Arn

Custom Lambda Authorizer

// authorizer.js - Custom authorizer
exports.handler = async (event) => {
  const token = event.authorizationToken?.replace('Bearer ', '');

  if (!token) {
    throw new Error('Unauthorized');
  }

  try {
    const decoded = jwt.verify(token, process.env.JWT_SECRET);

    return {
      principalId: decoded.sub,
      policyDocument: {
        Version: '2012-10-17',
        Statement: [{
          Action: 'execute-api:Invoke',
          Effect: 'Allow',
          Resource: event.methodArn
        }]
      },
      context: {
        userId: decoded.sub,
        email: decoded.email,
        roles: JSON.stringify(decoded.roles)
      }
    };
  } catch (error) {
    throw new Error('Unauthorized');
  }
};

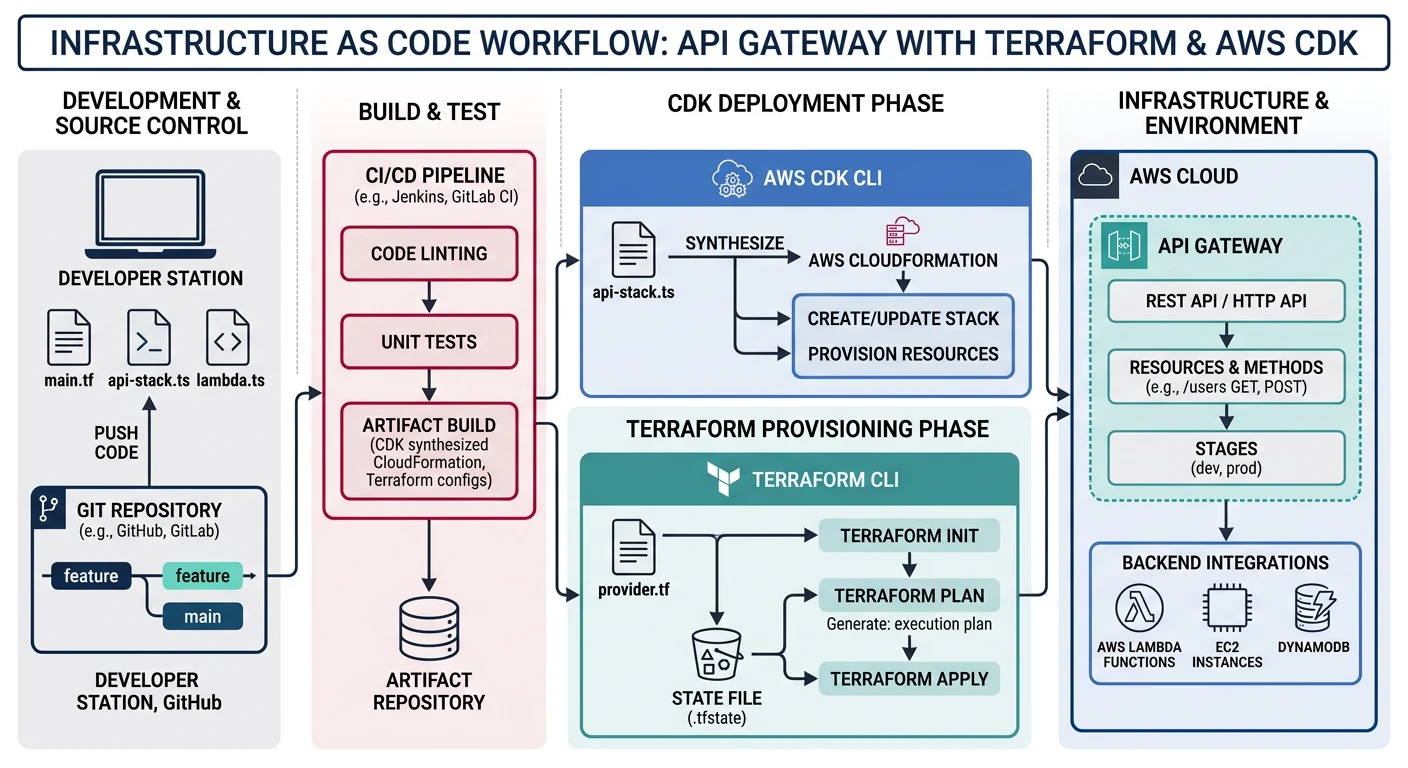

Terraform & CDK

Terraform Example

# api-gateway.tf
resource "aws_apigatewayv2_api" "task_api" {
  name          = "task-api"
  protocol_type = "HTTP"

  cors_configuration {
    allow_origins = ["https://app.example.com"]
    allow_methods = ["GET", "POST", "PUT", "DELETE"]
    allow_headers = ["Content-Type", "Authorization"]
    max_age       = 86400
  }
}

resource "aws_apigatewayv2_integration" "lambda" {
  api_id           = aws_apigatewayv2_api.task_api.id
  integration_type = "AWS_PROXY"
  integration_uri  = aws_lambda_function.task_handler.invoke_arn
}

resource "aws_apigatewayv2_route" "get_tasks" {
  api_id    = aws_apigatewayv2_api.task_api.id
  route_key = "GET /tasks"
  target    = "integrations/${aws_apigatewayv2_integration.lambda.id}"
}

resource "aws_apigatewayv2_stage" "prod" {
  api_id      = aws_apigatewayv2_api.task_api.id
  name        = "prod"
  auto_deploy = true
}

Practice Exercises
