API Development Series Part 11: Versioning & Governance

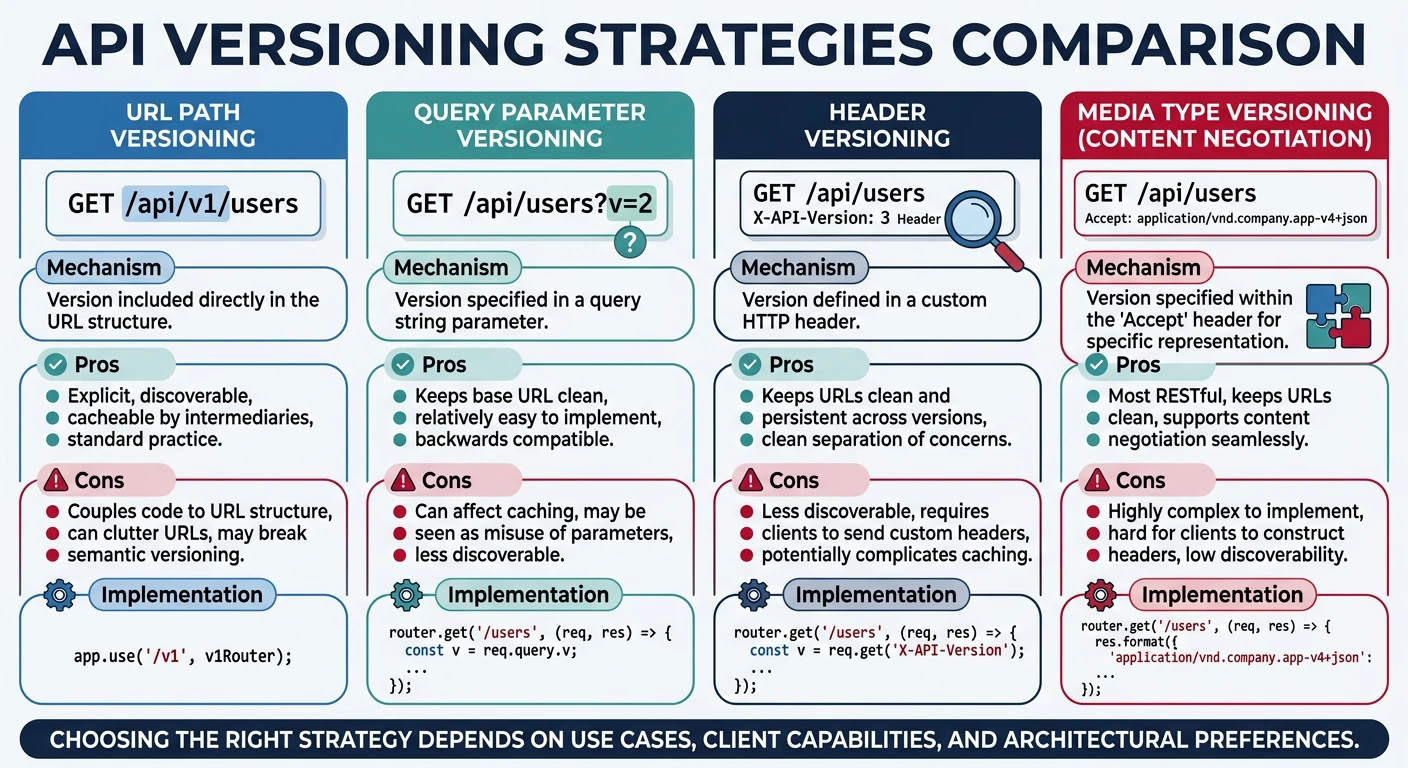

Versioning Strategies

Why Version APIs?

API versioning allows you to evolve your API while maintaining backward compatibility for existing consumers.

// Express.js versioned routing
const express = require('express');
const app = express();

// Version middleware
const versionRouter = (versions) => {
  return (req, res, next) => {
    // Check header first
    let version = req.get('Api-Version');

    // Fall back to URL path
    if (!version) {
      const match = req.path.match(/^\/v(\d+)/);
      version = match ? match[1] : null;
    }

    // Default to latest
    version = version || Object.keys(versions).pop();
    req.apiVersion = version;

    const handler = versions[version];
    if (handler) {
      return handler(req, res, next);
    }

    res.status(400).json({ error: `API version ${version} not supported` });
  };
};

// Version-specific handlers
const usersV1 = require('./routes/v1/users');
const usersV2 = require('./routes/v2/users');

app.use('/users', versionRouter({
  '1': usersV1,
  '2': usersV2
}));

app.listen(3000);

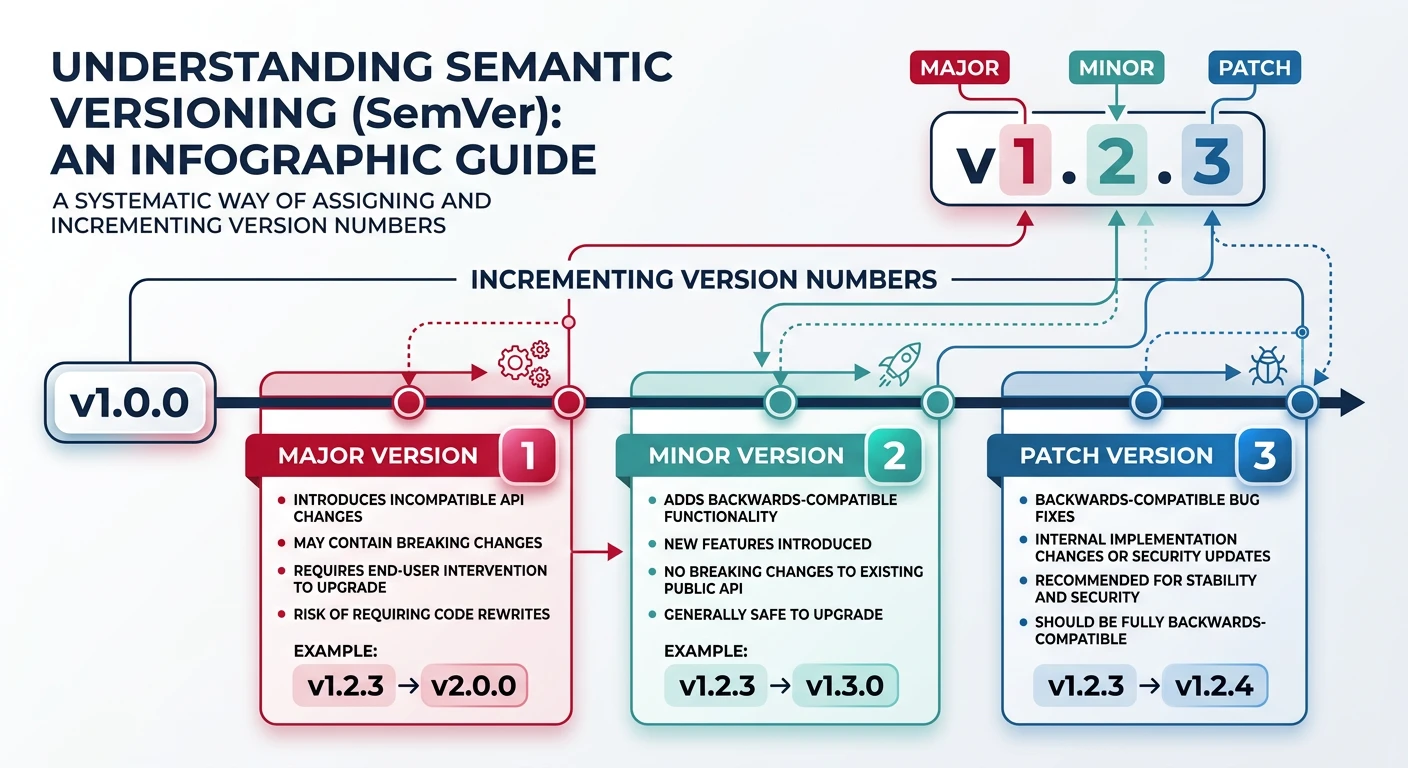

Semantic Versioning

SemVer for APIs

Semantic Versioning (MAJOR.MINOR.PATCH) communicates change impact to consumers.

# OpenAPI with version info
openapi: 3.1.0
info:
  title: Task API
  version: 2.3.1
  x-api-id: task-api
  x-changelog-url: https://api.example.com/changelog

  description: |
    ## Changelog

    ### v2.3.1 (2024-01-15) - Patch
    - Fixed: Task due date timezone handling

    ### v2.3.0 (2024-01-10) - Minor
    - Added: `priority` field to tasks (optional)
    - Added: GET /tasks/search endpoint

    ### v2.0.0 (2024-01-01) - Major
    - Breaking: `dueDate` format changed to ISO 8601
    - Breaking: Removed deprecated /tasks/list endpoint

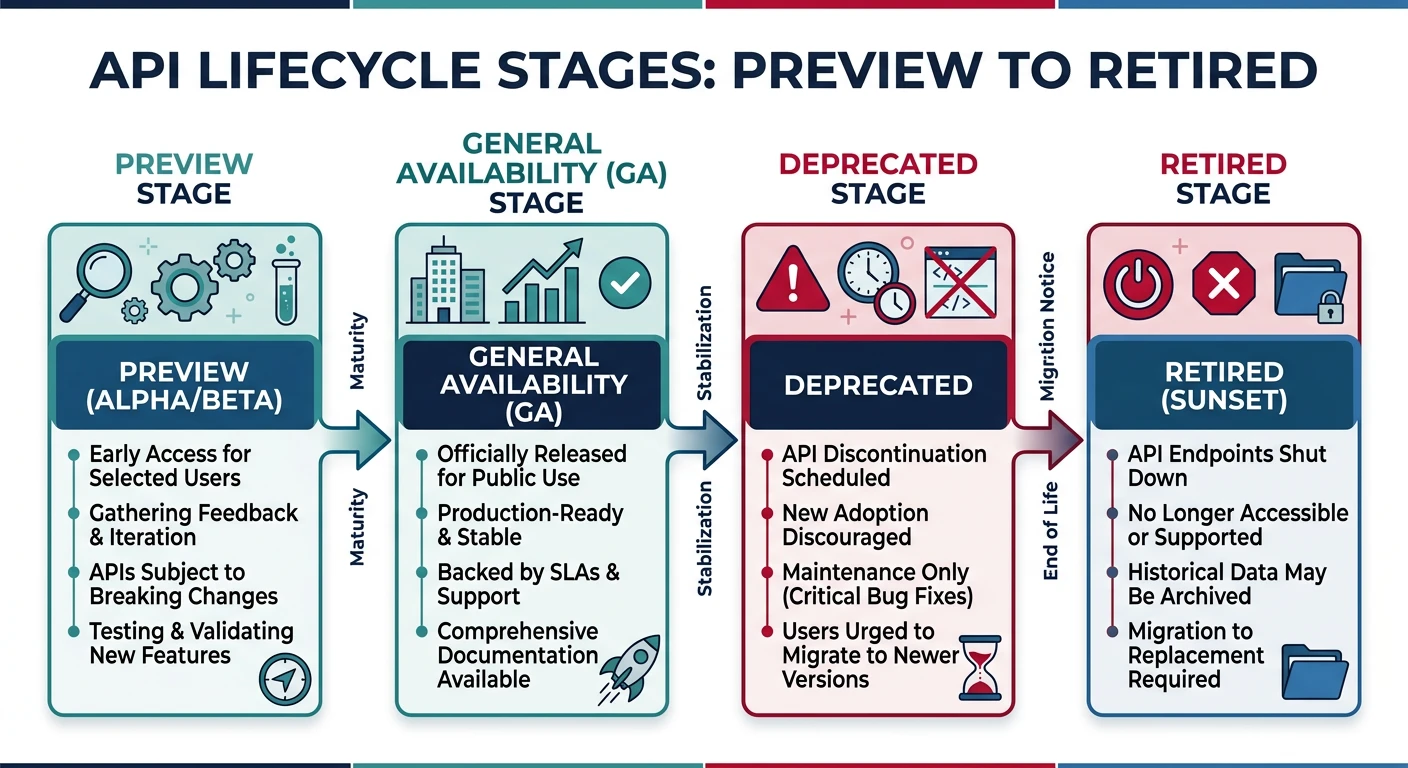

API Lifecycle

Lifecycle Stages

stateDiagram-v2
    [*] --> Preview
    Preview --> Beta: Stabilize API
    Beta --> GA: Production Ready
    GA --> Deprecated: Sunset Announced
    Deprecated --> Retired: End of Life
    Retired --> [*]
    Beta --> Preview: Breaking Changes Found


# OpenAPI lifecycle annotations
paths:
  /tasks:
    get:
      summary: List tasks
      x-maturity: stable

  /tasks/search:
    get:
      summary: Search tasks
      x-maturity: preview
      x-preview-notice: |
        This endpoint is in preview and may change.

  /tasks/list:
    get:
      summary: List tasks (legacy)
      deprecated: true
      x-sunset: "2024-06-01"
      x-replacement: "/tasks"
      description: |
        **Deprecated**: Use GET /tasks instead.
        This endpoint will be retired on 2024-06-01.

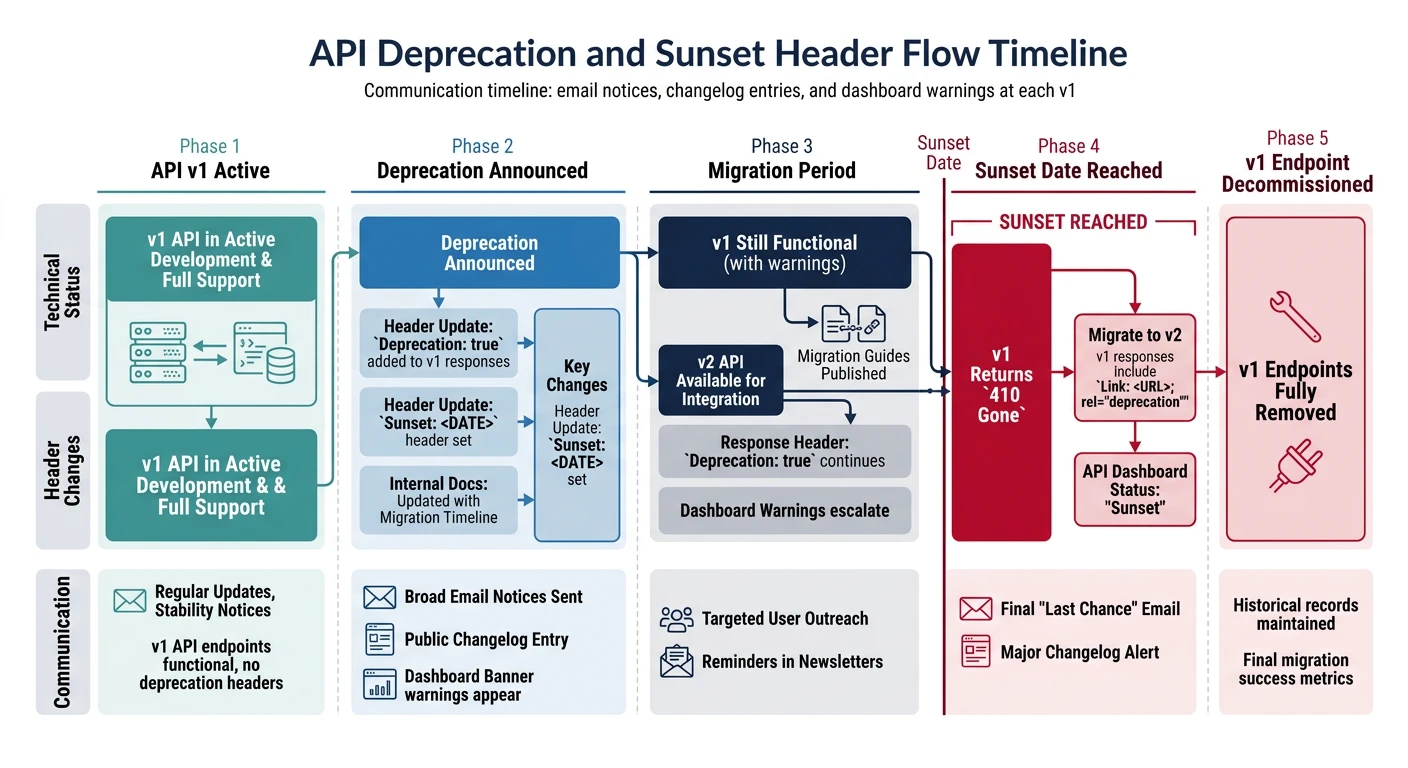

Deprecation Strategies

Deprecation Communication

// Deprecation headers middleware
const deprecationMiddleware = (config) => {
  return (req, res, next) => {
    const endpoint = req.method + ' ' + req.route?.path;
    const deprecation = config[endpoint];

    if (deprecation) {
      // Standard deprecation header (RFC 8594)
      res.set('Deprecation', deprecation.date);
      res.set('Sunset', deprecation.sunset);
      res.set('Link', `<${deprecation.replacement}>; rel="successor-version"`);

      // Warning header
      res.set('Warning', `299 - "Deprecated: Use ${deprecation.replacement}. Sunset: ${deprecation.sunset}"`);

      // Log deprecated endpoint usage
      console.warn(`Deprecated endpoint used: ${endpoint} by ${req.get('X-Client-Id') || 'unknown'}`);
    }

    next();
  };
};

// Configure deprecated endpoints
const deprecations = {
  'GET /api/v1/tasks/list': {
    date: '2024-01-01',
    sunset: '2024-06-01',
    replacement: '/api/v2/tasks'
  }
};

app.use(deprecationMiddleware(deprecations));

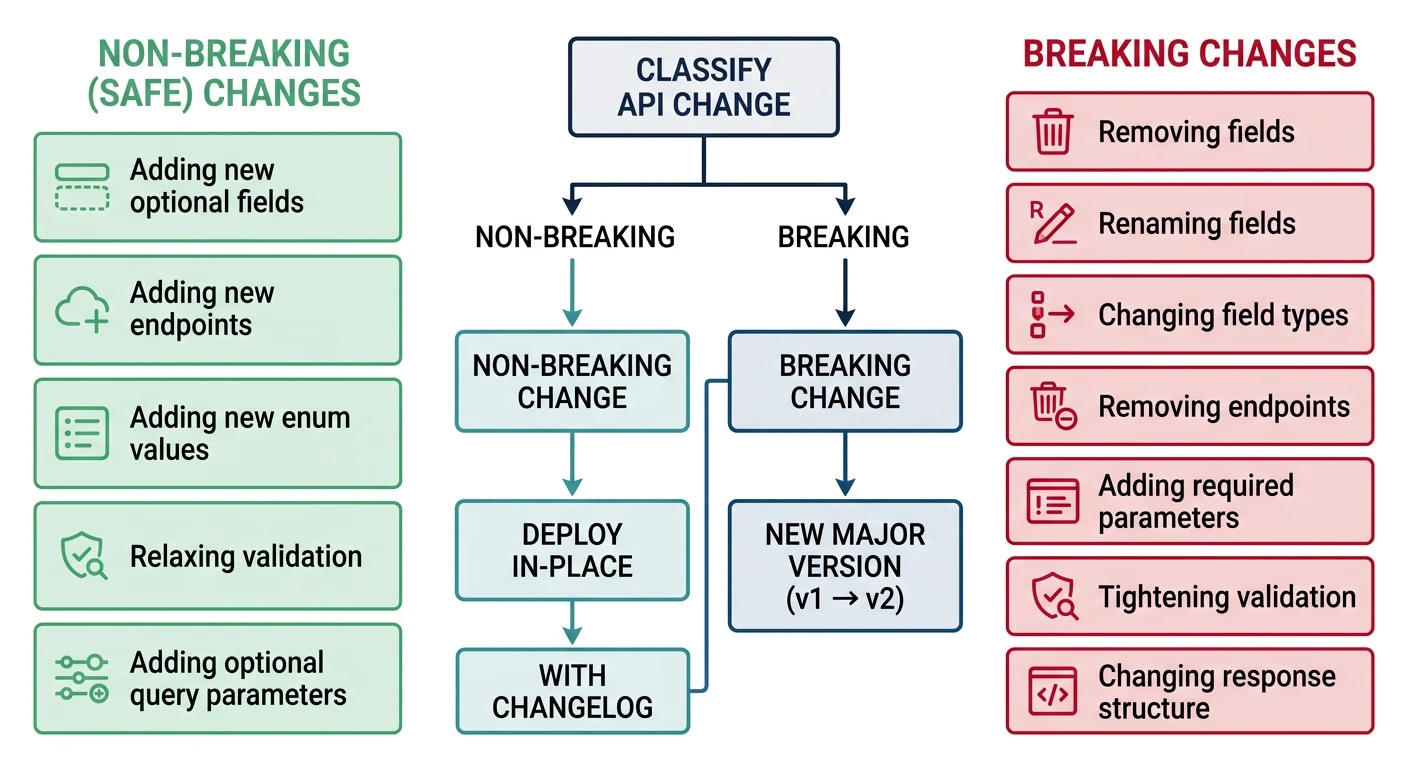

Breaking Changes

What Constitutes a Breaking Change?

Non-Breaking Changes

# Spectral rule for breaking changes
rules:
  breaking-change-removed-endpoint:
    description: Endpoint was removed (breaking change)
    severity: error
    given: "$.paths"
    then:
      function: schema
      functionOptions:
        schema:
          additionalProperties: true  # Allow new endpoints

  breaking-change-required-field:
    description: New required field added (breaking change)
    severity: error
    given: "$.paths.*.*.parameters[?(@.required == true)]"
    then:
      field: x-since-version
      function: truthy

Enterprise Governance

API Governance Framework

# .spectral.yaml - Enterprise API linting rules
extends: spectral:oas
rules:
  # Naming conventions
  path-must-be-lowercase:
    description: Paths must be lowercase
    severity: error
    given: "$.paths"
    then:
      field: "@key"
      function: pattern
      functionOptions:
        match: "^[a-z0-9/-{}]+$"

  # Security requirements
  operation-security-defined:
    description: All operations must have security defined
    severity: error
    given: "$.paths.*[get,post,put,patch,delete]"
    then:
      field: security
      function: truthy

  # Documentation requirements
  operation-description-required:
    description: Operations must have descriptions
    severity: warn
    given: "$.paths.*[get,post,put,patch,delete]"
    then:
      field: description
      function: truthy

  # Error format
  error-response-format:
    description: Error responses must use Problem Details
    severity: error
    given: "$.paths.*.*.responses[?(@property >= 400)]"
    then:
      field: content.application/problem+json
      function: truthy

Practice Exercises
