API Development Series Part 9: GCP API Gateway & Apigee

GCP API Gateway

GCP API Management Options

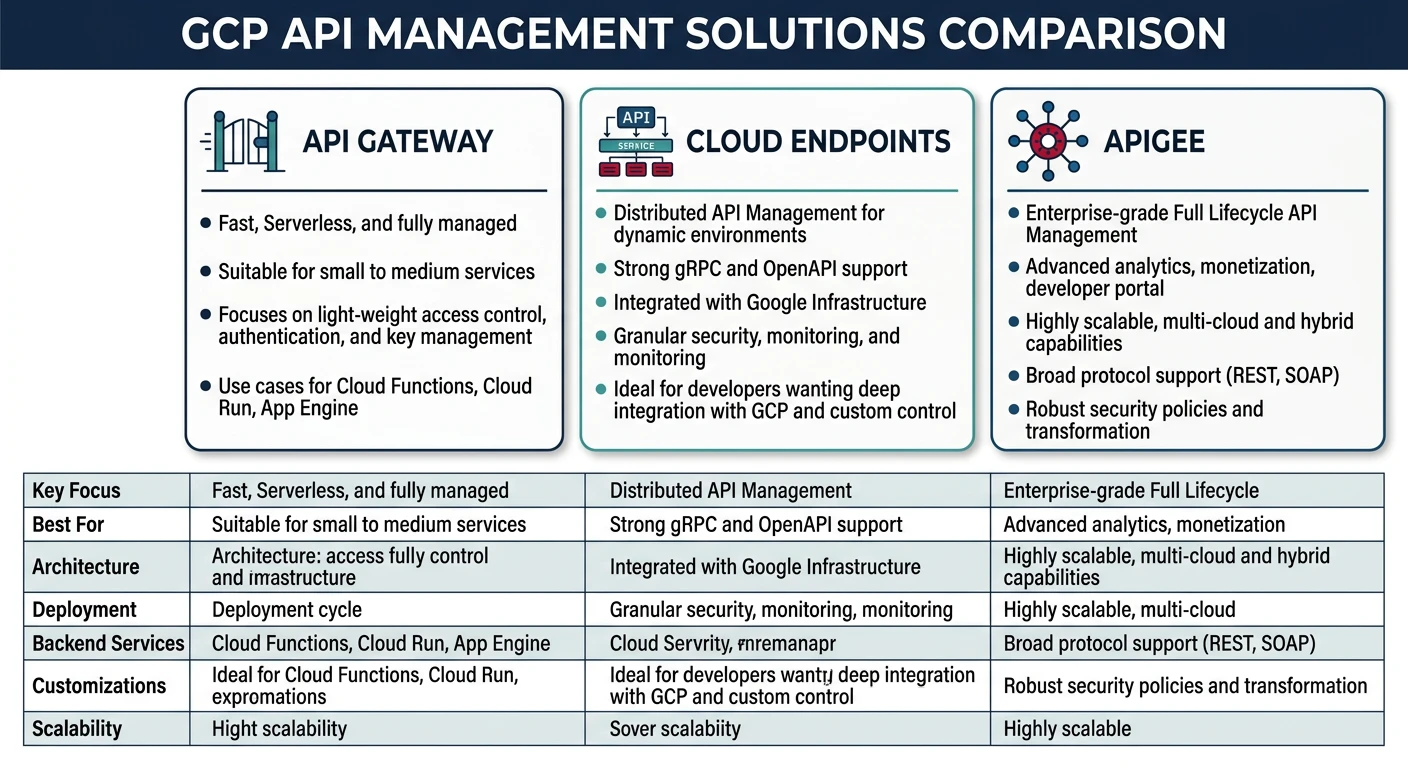

Google Cloud offers multiple API management solutions. Let's compare them to understand when to use each.

API Gateway Setup

# openapi.yaml for GCP API Gateway
swagger: "2.0"
info:
  title: Task API
  version: "1.0.0"
host: "task-api-gateway-xyz.apigateway.myproject.cloud.goog"
schemes:
  - "https"
produces:
  - "application/json"

x-google-backend:
  address: https://us-central1-myproject.cloudfunctions.net/tasks
  deadline: 30.0

paths:
  /tasks:
    get:
      operationId: listTasks
      responses:
        "200":
          description: Success
      security:
        - api_key: []

securityDefinitions:
  api_key:
    type: apiKey
    name: x-api-key
    in: header

# Deploy API Gateway
gcloud api-gateway apis create task-api \
  --project=myproject

gcloud api-gateway api-configs create task-config \
  --api=task-api \
  --openapi-spec=openapi.yaml \
  --project=myproject

gcloud api-gateway gateways create task-gateway \
  --api=task-api \
  --api-config=task-config \
  --location=us-central1 \
  --project=myproject

Cloud Endpoints

Extensible Service Proxy (ESP)

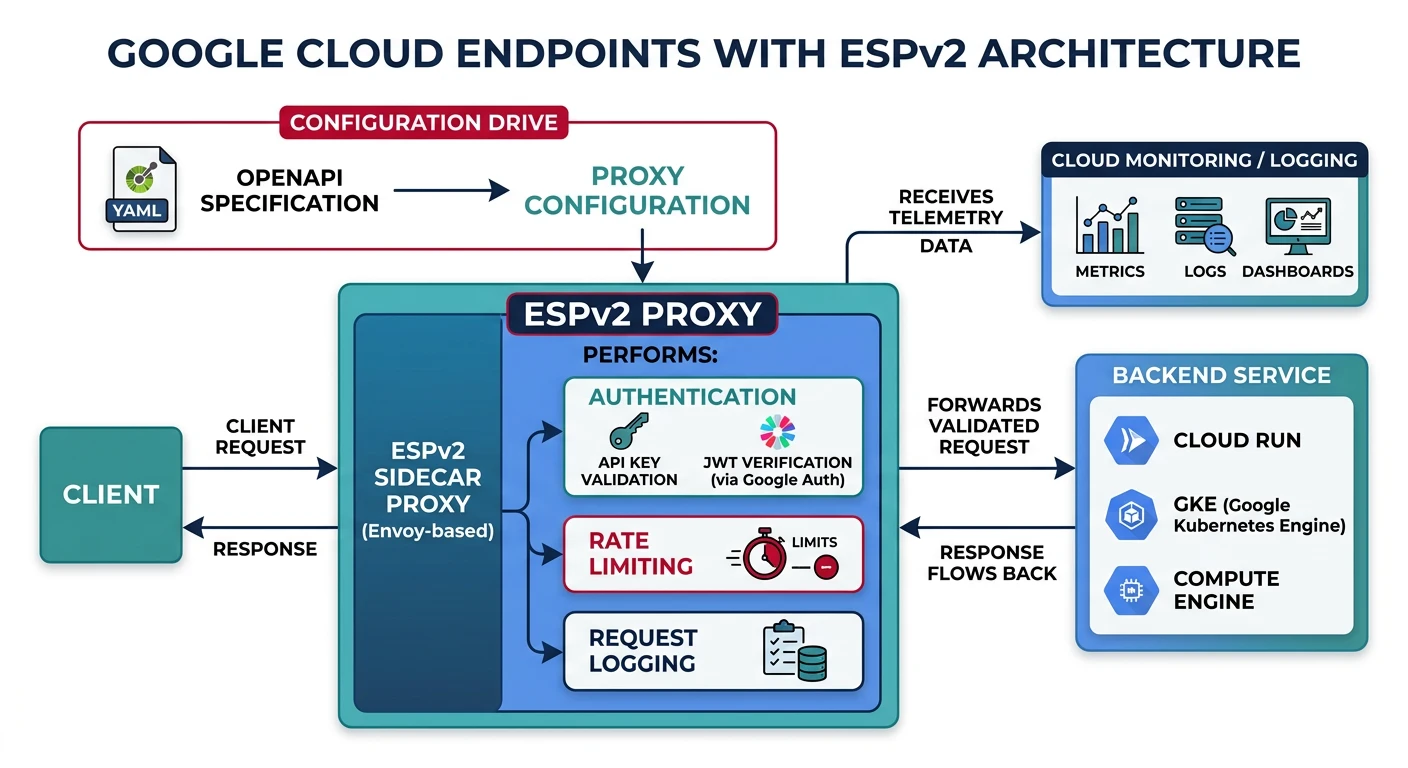

Cloud Endpoints uses ESPv2, an Envoy-based proxy, deployed alongside your backend.

# cloud-run-endpoints.yaml
apiVersion: serving.knative.dev/v1
kind: Service
metadata:
  name: task-service
spec:
  template:
    spec:
      containers:
        # ESPv2 sidecar
        - name: espv2
          image: gcr.io/endpoints-release/endpoints-runtime-serverless:2
          args:
            - "--service=task-api-xyz.apigateway.myproject.cloud.goog"
            - "--rollout_strategy=managed"
            - "--backend=grpc://127.0.0.1:8080"
        # Your application
        - name: app
          image: gcr.io/myproject/task-service:latest
          ports:
            - containerPort: 8080

Apigee Overview

Apigee Architecture

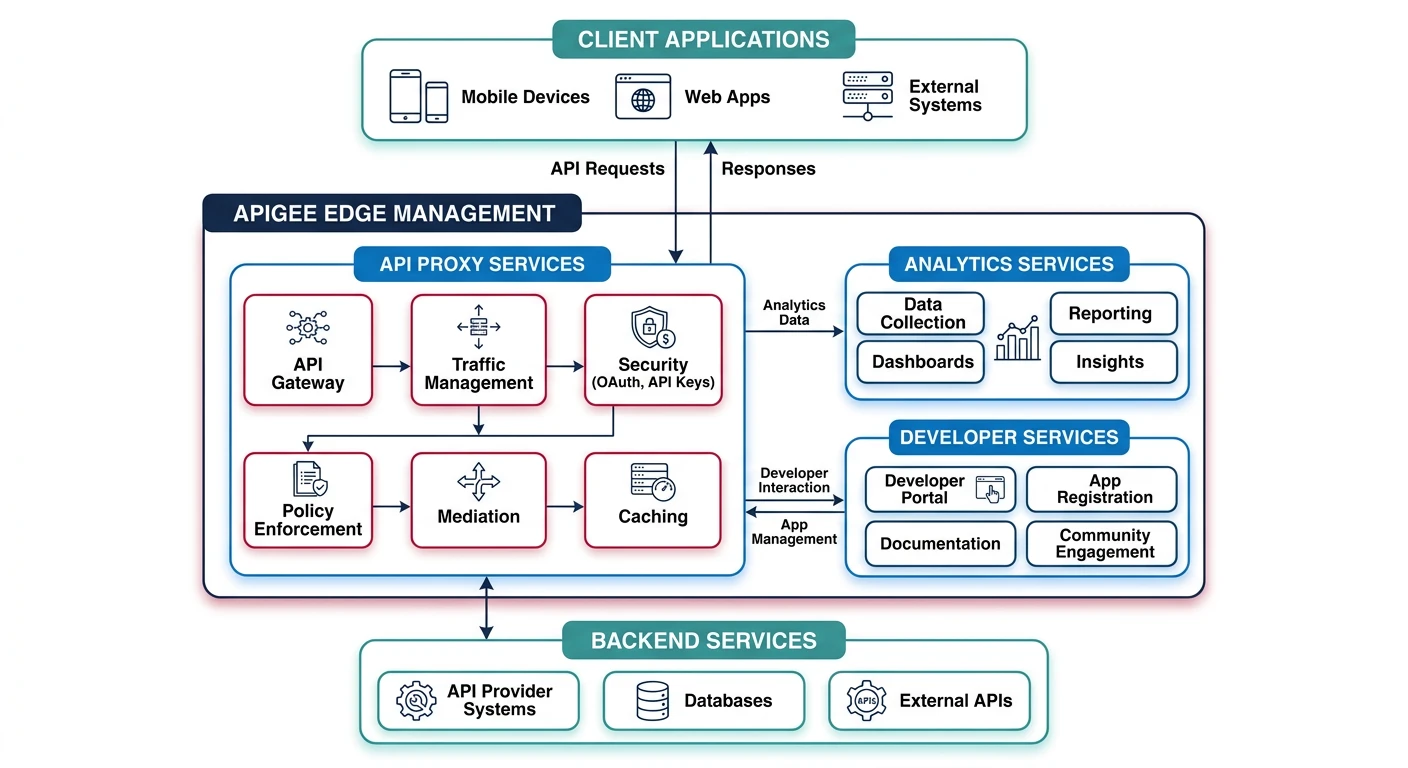

Apigee is Google Cloud's full-featured API management platform for enterprises.

# Create Apigee X organization
gcloud apigee organizations provision \
  --project=myproject \
  --analytics-region=us-east1 \
  --runtime-location=us-east1-b \
  --authorized-network=default

# Create environment
gcloud apigee environments create prod \
  --organization=myproject

# Deploy API proxy
gcloud apigee apis deploy \
  --organization=myproject \
  --environment=prod \
  --api=task-api \
  --revision=1

API Proxy Structure

# Apigee proxy bundle structure
apiproxy/
├── task-api.xml               # Proxy metadata
├── proxies/
│   └── default.xml            # ProxyEndpoint configuration
├── targets/
│   └── default.xml            # TargetEndpoint configuration
├── policies/
│   ├── AM-SetCors.xml         # AssignMessage policy
│   ├── FC-RateLimit.xml       # FlowCallout policy
│   ├── JS-Transform.xml       # JavaScript policy
│   └── VA-ApiKey.xml          # VerifyAPIKey policy
└── resources/
    └── jsc/
        └── transform.js       # JavaScript resource

Apigee Policies

ProxyEndpoint Configuration

<!-- proxies/default.xml -->
<ProxyEndpoint name="default">
    <PreFlow name="PreFlow">
        <Request>
            <Step><Name>VA-VerifyApiKey</Name></Step>
            <Step><Name>FC-RateLimitByKey</Name></Step>
            <Step><Name>AM-RemoveApiKey</Name></Step>
        </Request>
    </PreFlow>

    <Flows>
        <Flow name="GetTasks">
            <Condition>(proxy.pathsuffix MatchesPath "/tasks") and (request.verb = "GET")</Condition>
            <Response>
                <Step><Name>JS-TransformResponse</Name></Step>
            </Response>
        </Flow>
    </Flows>

    <PostFlow name="PostFlow">
        <Response>
            <Step><Name>AM-SetCorsHeaders</Name></Step>
        </Response>
    </PostFlow>

    <HTTPProxyConnection>
        <BasePath>/v1/tasks</BasePath>
        <VirtualHost>secure</VirtualHost>
    </HTTPProxyConnection>

    <RouteRule name="default">
        <TargetEndpoint>default</TargetEndpoint>
    </RouteRule>
</ProxyEndpoint>

Common Apigee Policies

<!-- policies/VA-VerifyApiKey.xml -->
<VerifyAPIKey name="VA-VerifyApiKey">
    <APIKey ref="request.header.x-api-key"/>
</VerifyAPIKey>

<!-- policies/FC-RateLimitByKey.xml -->
<SpikeArrest name="FC-RateLimitByKey">
    <Rate>10ps</Rate>  <!-- 10 per second -->
    <Identifier ref="verifyapikey.VA-VerifyApiKey.client_id"/>
</SpikeArrest>

<!-- policies/AM-SetCorsHeaders.xml -->
<AssignMessage name="AM-SetCorsHeaders">
    <Set>
        <Headers>
            <Header name="Access-Control-Allow-Origin">*</Header>
            <Header name="Access-Control-Allow-Methods">GET, POST, PUT, DELETE</Header>
            <Header name="Access-Control-Allow-Headers">Content-Type, x-api-key</Header>
        </Headers>
    </Set>
    <IgnoreUnresolvedVariables>true</IgnoreUnresolvedVariables>
</AssignMessage>

JavaScript Policy for Transformation

// resources/jsc/transform.js
var response = JSON.parse(context.getVariable('response.content'));

// Transform backend response
var transformed = {
    data: response.items.map(function(item) {
        return {
            id: item.task_id,
            title: item.task_title,
            status: item.is_complete ? 'completed' : 'pending',
            createdAt: new Date(item.created_timestamp).toISOString()
        };
    }),
    meta: {
        total: response.total_count,
        page: response.current_page
    }
};

context.setVariable('response.content', JSON.stringify(transformed));

Developer Portal

Integrated Developer Portal

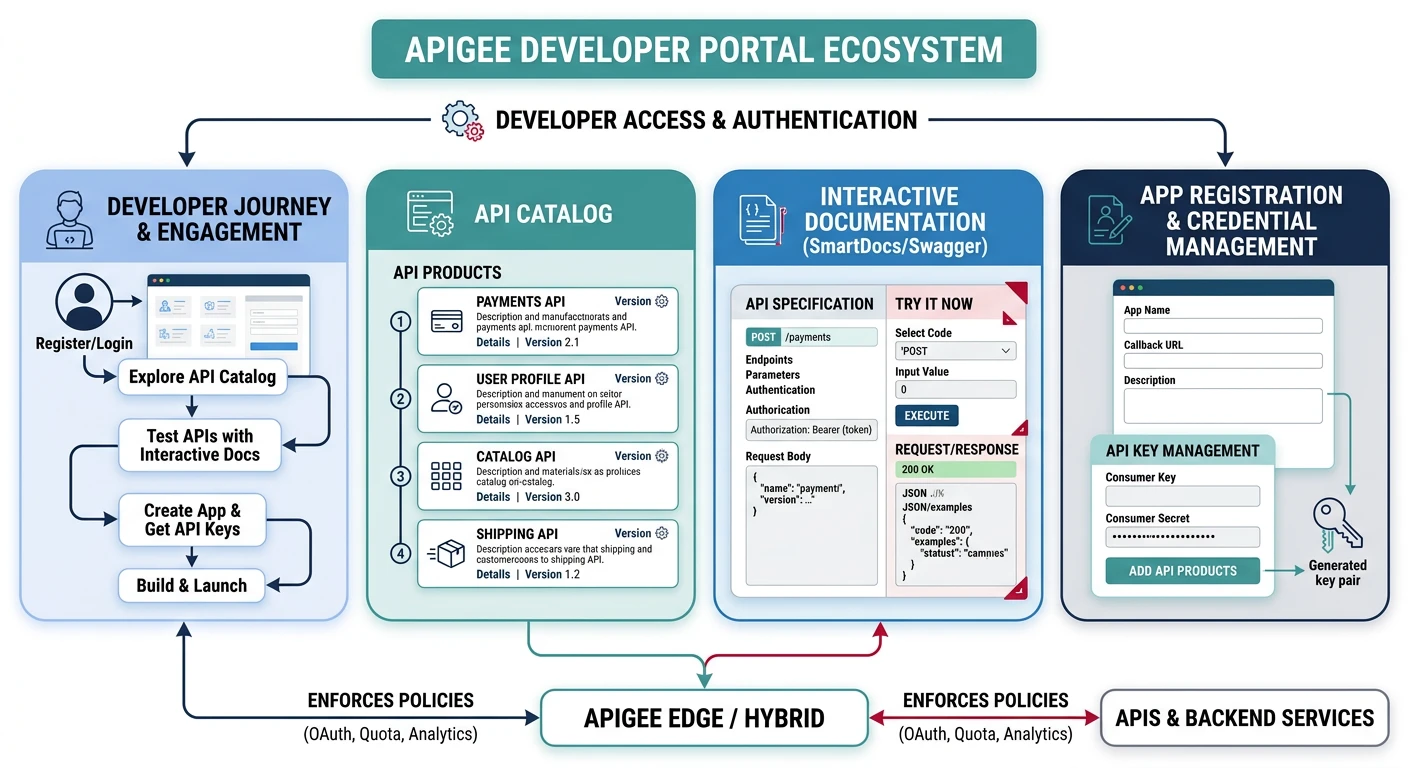

Apigee provides a fully customizable developer portal for API discovery and onboarding.

# Enable developer portal
gcloud apigee portals create my-portal \
  --organization=myproject

# Publish API to portal
gcloud apigee portals api-products create \
  --portal=my-portal \
  --organization=myproject \
  --api-product=task-api-product \
  --display-name="Task API" \
  --description="Manage tasks programmatically"

Analytics & Monetization

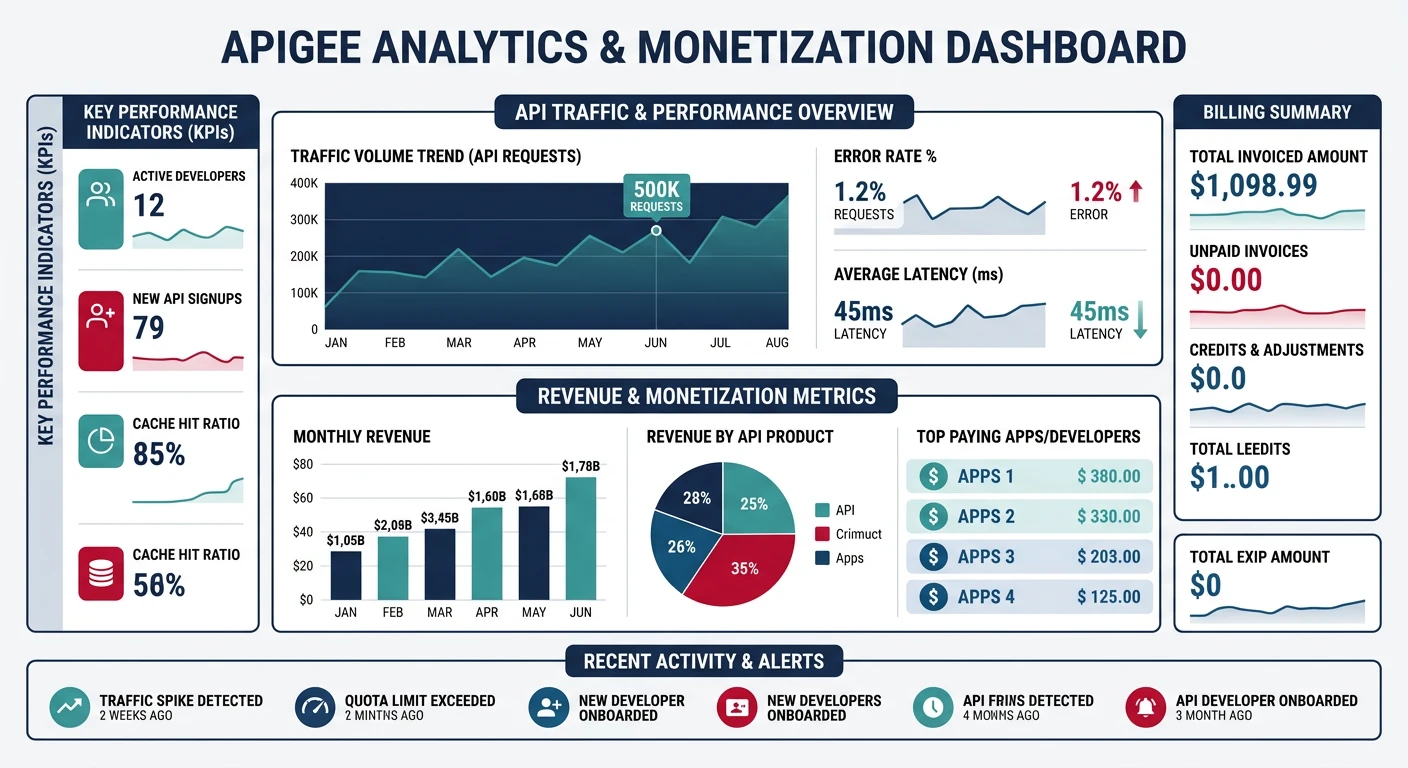

API Analytics

# Query analytics via API
curl -X POST \
  "https://apigee.googleapis.com/v1/organizations/myproject/environments/prod/stats/apiproxy" \
  -H "Authorization: Bearer $(gcloud auth print-access-token)" \
  -H "Content-Type: application/json" \
  -d '{
    "metrics": [
      {"name": "sum(message_count)", "alias": "requests"},
      {"name": "avg(total_response_time)", "alias": "latency_ms"}
    ],
    "dimensions": ["apiproxy", "response_status_code"],
    "timeRange": "last24hours"
  }'

Monetization Plans

// Rate plan configuration
{
  "name": "task-api-standard",
  "displayName": "Standard Plan",
  "billingPeriod": "MONTHLY",
  "currencyCode": "USD",
  "consumptionPricingType": "BANDED_TIERED",
  "consumptionPricingRates": [
    {
      "start": 0,
      "end": 10000,
      "fee": { "currencyCode": "USD", "units": 0 }
    },
    {
      "start": 10001,
      "end": 100000,
      "fee": { "currencyCode": "USD", "nanos": 1000000 }
    },
    {
      "start": 100001,
      "fee": { "currencyCode": "USD", "nanos": 500000 }
    }
  ]
}

Practice Exercises
