Phase 4: Display, Input & Output

VGA Text Mode Deep Dive

Video Memory (0xB8000)

VGA text mode uses memory-mapped I/O. The video buffer lives at physical address 0xB8000, and any writes to this memory instantly appear on screen!

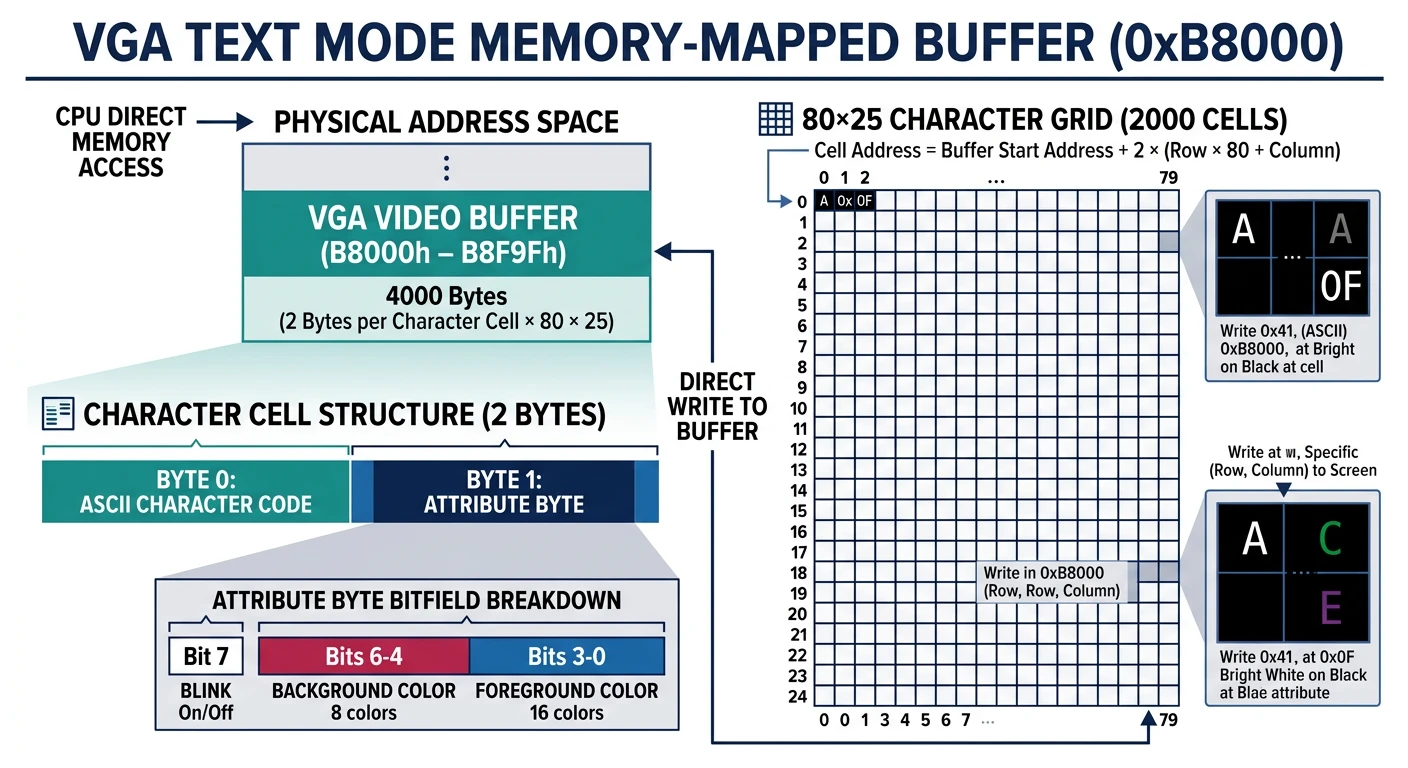

VGA TEXT MODE MEMORY LAYOUT
═══════════════════════════════════════════════════════════════

Address Range: 0xB8000 - 0xB8F9F (80×25×2 = 4000 bytes)

Screen Position → Memory Address:
┌────────────────────────────────────────────────────────────┐
│ (0,0)      (1,0)      (2,0)  ...              (79,0)      │
│ 0xB8000    0xB8002    0xB8004                 0xB809E     │
├────────────────────────────────────────────────────────────┤
│ (0,1)      (1,1)                              (79,1)      │
│ 0xB80A0    0xB80A2                            0xB813E     │
├────────────────────────────────────────────────────────────┤
│            ... (rows 2-23) ...                             │
├────────────────────────────────────────────────────────────┤
│ (0,24)     (1,24)                             (79,24)     │
│ 0xB8F00    0xB8F02                            0xB8F9E     │
└────────────────────────────────────────────────────────────┘

Formula: address = 0xB8000 + (y × 80 + x) × 2

Character Format

Each screen position takes 2 bytes (a word):

CHARACTER CELL FORMAT (2 bytes)
═══════════════════════════════════════════════════════════════

     Byte 1 (Even address)       Byte 0 (Odd address)
   ┌───────────────────────┐   ┌───────────────────────┐
   │    Character Code     │   │  Attribute (Color)    │
   │     (ASCII/CP437)     │   │   FG + BG + Blink     │
   └───────────────────────┘   └───────────────────────┘

   Example: 'A' in white on blue
   Character: 0x41 (ASCII 'A')
   Attribute: 0x1F (white foreground, blue background)

   Full word (little-endian): 0x1F41

/* vga.h - VGA text mode definitions */
#ifndef VGA_H
#define VGA_H

#include <stdint.h>

/* VGA constants */
#define VGA_ADDRESS     0xB8000
#define VGA_WIDTH       80
#define VGA_HEIGHT      25
#define VGA_SIZE        (VGA_WIDTH * VGA_HEIGHT)

/* VGA character structure */
typedef struct {
    uint8_t character;      /* ASCII/CP437 character code */
    uint8_t attribute;      /* Color attribute byte */
} __attribute__((packed)) vga_char_t;

/* Pointer to VGA buffer */
extern volatile vga_char_t* const vga_buffer;

/* Make a VGA entry from character and color */
static inline uint16_t vga_entry(char c, uint8_t color) {
    return (uint16_t)c | ((uint16_t)color << 8);
}

#endif

Colors & Attributes

The attribute byte packs foreground, background, and blink into 8 bits:

ATTRIBUTE BYTE FORMAT
═══════════════════════════════════════════════════════════════

Bit:  7     6  5  4     3     2  1  0
    ┌─────┬────────────┬─────┬────────────┐
    │BLINK│  BG COLOR  │ INT │  FG COLOR  │
    └─────┴────────────┴─────┴────────────┘

BLINK: 1 = Blinking text (or bright background if disabled)
BG:    Background color (0-7, 3 bits)
INT:   Intensity/bright (foreground becomes bright)
FG:    Foreground color (0-7, 3 bits)

STANDARD VGA COLORS (16 total)
═══════════════════════════════════════════════════════════════
 0 = Black           8 = Dark Gray (bright black)
 1 = Blue            9 = Light Blue
 2 = Green          10 = Light Green
 3 = Cyan           11 = Light Cyan
 4 = Red            12 = Light Red
 5 = Magenta        13 = Light Magenta
 6 = Brown          14 = Yellow (bright brown)
 7 = Light Gray     15 = White (bright light gray)

/* vga_colors.h - VGA color definitions */

/* VGA color enumeration */
typedef enum {
    VGA_BLACK         = 0,
    VGA_BLUE          = 1,
    VGA_GREEN         = 2,
    VGA_CYAN          = 3,
    VGA_RED           = 4,
    VGA_MAGENTA       = 5,
    VGA_BROWN         = 6,
    VGA_LIGHT_GREY    = 7,
    VGA_DARK_GREY     = 8,
    VGA_LIGHT_BLUE    = 9,
    VGA_LIGHT_GREEN   = 10,
    VGA_LIGHT_CYAN    = 11,
    VGA_LIGHT_RED     = 12,
    VGA_LIGHT_MAGENTA = 13,
    VGA_YELLOW        = 14,
    VGA_WHITE         = 15
} vga_color_t;

/* Create color attribute from foreground and background */
static inline uint8_t vga_make_color(vga_color_t fg, vga_color_t bg) {
    return (uint8_t)(fg | (bg << 4));
}

/* Common color combinations */
#define COLOR_DEFAULT    vga_make_color(VGA_LIGHT_GREY, VGA_BLACK)
#define COLOR_ERROR      vga_make_color(VGA_LIGHT_RED, VGA_BLACK)
#define COLOR_SUCCESS    vga_make_color(VGA_LIGHT_GREEN, VGA_BLACK)
#define COLOR_WARNING    vga_make_color(VGA_YELLOW, VGA_BLACK)
#define COLOR_INFO       vga_make_color(VGA_LIGHT_CYAN, VGA_BLACK)

Hardware Cursor Control

The blinking hardware cursor is controlled through VGA I/O ports (not memory):

/* vga_cursor.c - Hardware cursor control */

#include "io.h"  /* inb(), outb() functions */

/* VGA CRTC registers */
#define VGA_CRTC_ADDR   0x3D4   /* Index register */
#define VGA_CRTC_DATA   0x3D5   /* Data register */

/* Cursor location registers */
#define VGA_CURSOR_HIGH 0x0E    /* Cursor location high byte */
#define VGA_CURSOR_LOW  0x0F    /* Cursor location low byte */

/* Cursor shape registers */
#define VGA_CURSOR_START 0x0A   /* Cursor start scanline */
#define VGA_CURSOR_END   0x0B   /* Cursor end scanline */

/* Move hardware cursor to (x, y) */
void vga_set_cursor(int x, int y) {
    uint16_t pos = y * VGA_WIDTH + x;

    /* Set cursor position low byte */
    outb(VGA_CRTC_ADDR, VGA_CURSOR_LOW);
    outb(VGA_CRTC_DATA, (uint8_t)(pos & 0xFF));

    /* Set cursor position high byte */
    outb(VGA_CRTC_ADDR, VGA_CURSOR_HIGH);
    outb(VGA_CRTC_DATA, (uint8_t)((pos >> 8) & 0xFF));
}

/* Get current cursor position */
uint16_t vga_get_cursor(void) {
    uint16_t pos = 0;

    outb(VGA_CRTC_ADDR, VGA_CURSOR_LOW);
    pos |= inb(VGA_CRTC_DATA);

    outb(VGA_CRTC_ADDR, VGA_CURSOR_HIGH);
    pos |= ((uint16_t)inb(VGA_CRTC_DATA)) << 8;

    return pos;
}

/* Enable cursor with specified shape (start/end scanlines 0-15) */
void vga_enable_cursor(uint8_t start, uint8_t end) {
    outb(VGA_CRTC_ADDR, VGA_CURSOR_START);
    outb(VGA_CRTC_DATA, (inb(VGA_CRTC_DATA) & 0xC0) | start);

    outb(VGA_CRTC_ADDR, VGA_CURSOR_END);
    outb(VGA_CRTC_DATA, (inb(VGA_CRTC_DATA) & 0xE0) | end);
}

/* Disable cursor (hide it) */
void vga_disable_cursor(void) {
    outb(VGA_CRTC_ADDR, VGA_CURSOR_START);
    outb(VGA_CRTC_DATA, 0x20);  /* Bit 5 disables cursor */
}

Screen Output Functions

Now we'll build a complete terminal-style output system. We'll create layered functions: putc for single characters, puts for strings, and kprintf for formatted output—the foundation of all kernel debugging!

putc Implementation

The putc function is the lowest-level output primitive. It handles every character including special control characters:

CONTROL CHARACTERS FOR TERMINAL OUTPUT
═══════════════════════════════════════════════════════════════

Character     Code    Effect
─────────────────────────────────────────────────────────────
'\n' (LF)     0x0A    Move to start of next line (newline)
'\r' (CR)     0x0D    Move to start of current line
'\t' (TAB)    0x09    Move to next 8-column boundary
'\b' (BS)     0x08    Move cursor back, erase character
'\f' (FF)     0x0C    Clear screen (form feed)
Printable    0x20-7E  Display character at cursor position

/* terminal.c - Complete terminal output implementation */

#include "vga.h"
#include "io.h"
#include <stdint.h>
#include <stdbool.h>

/* Terminal state */
static int term_col = 0;           /* Current column (0-79) */
static int term_row = 0;           /* Current row (0-24) */
static uint8_t term_color = 0x0F;  /* White on black default */

/* VGA buffer pointer */
static volatile vga_char_t* const VGA_BUFFER = (vga_char_t*)VGA_ADDRESS;

/* Forward declarations */
static void terminal_scroll(void);
static void terminal_newline(void);
static void terminal_update_cursor(void);

/* Set terminal color */
void terminal_set_color(uint8_t color) {
    term_color = color;
}

/* Clear the entire screen */
void terminal_clear(void) {
    for (int i = 0; i < VGA_SIZE; i++) {
        VGA_BUFFER[i].character = ' ';
        VGA_BUFFER[i].attribute = term_color;
    }
    term_col = 0;
    term_row = 0;
    terminal_update_cursor();
}

/* Print a single character */
void putc(char c) {
    switch (c) {
        case '\n':  /* Newline - move to next line, column 0 */
            terminal_newline();
            break;

        case '\r':  /* Carriage return - column 0 */
            term_col = 0;
            break;

        case '\t':  /* Tab - advance to next 8-column boundary */
            term_col = (term_col + 8) & ~7;
            if (term_col >= VGA_WIDTH) {
                terminal_newline();
            }
            break;

        case '\b':  /* Backspace - erase previous character */
            if (term_col > 0) {
                term_col--;
                int idx = term_row * VGA_WIDTH + term_col;
                VGA_BUFFER[idx].character = ' ';
                VGA_BUFFER[idx].attribute = term_color;
            }
            break;

        case '\f':  /* Form feed - clear screen */
            terminal_clear();
            break;

        default:    /* Printable character */
            if (c >= ' ' && c <= '~') {
                int idx = term_row * VGA_WIDTH + term_col;
                VGA_BUFFER[idx].character = c;
                VGA_BUFFER[idx].attribute = term_color;
                term_col++;

                if (term_col >= VGA_WIDTH) {
                    terminal_newline();
                }
            }
            break;
    }

    terminal_update_cursor();
}

/* Move to next line, scrolling if necessary */
static void terminal_newline(void) {
    term_col = 0;
    term_row++;

    if (term_row >= VGA_HEIGHT) {
        terminal_scroll();
        term_row = VGA_HEIGHT - 1;
    }
}

/* Update hardware cursor to match terminal position */
static void terminal_update_cursor(void) {
    vga_set_cursor(term_col, term_row);
}

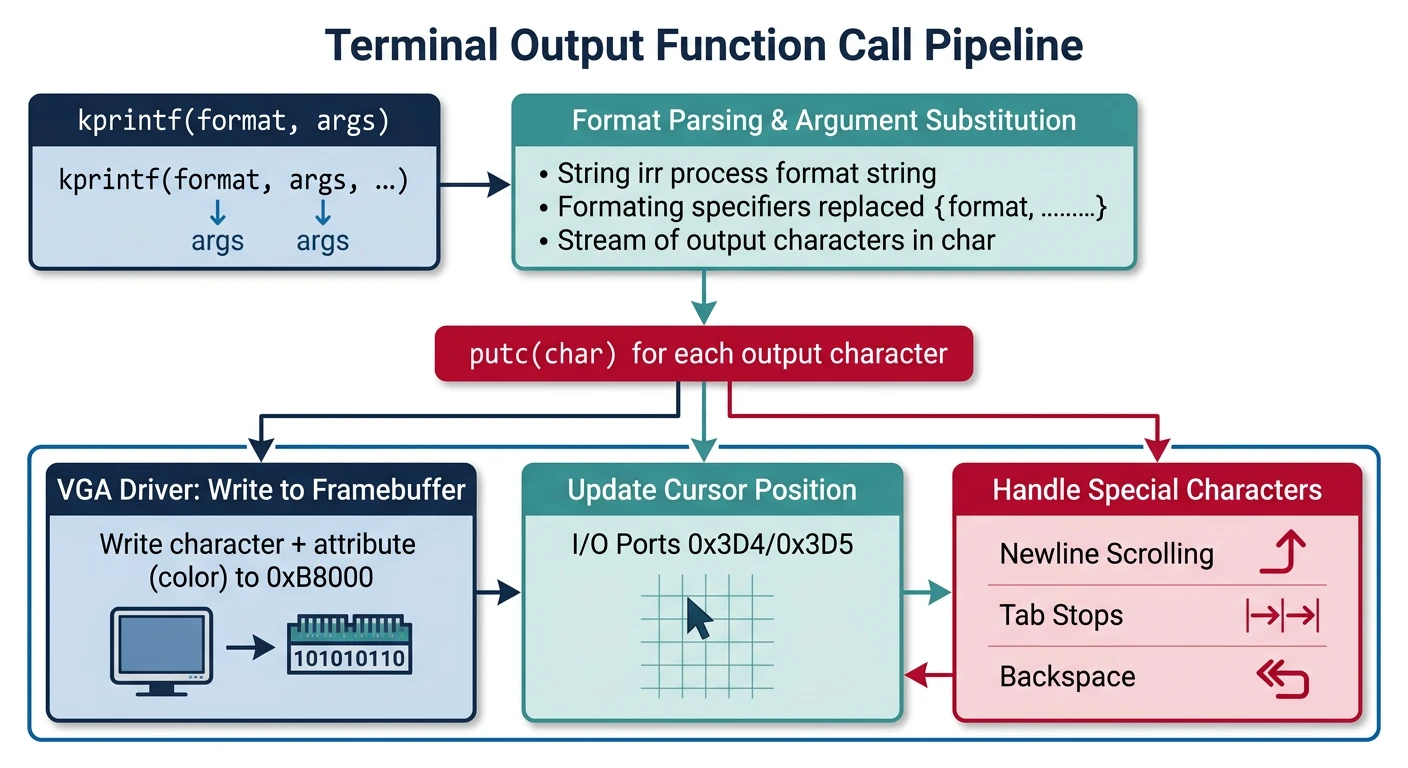

puts Implementation

Building on putc, puts prints entire strings at once:

/* Print a null-terminated string */
void puts(const char* str) {
    while (*str) {
        putc(*str++);
    }
}

/* Print a string with newline */
void puts_nl(const char* str) {
    puts(str);
    putc('\n');
}

/* Print a string at specific position with color */
void puts_at(const char* str, int x, int y, uint8_t color) {
    uint8_t old_color = term_color;
    int old_col = term_col;
    int old_row = term_row;

    term_col = x;
    term_row = y;
    term_color = color;

    puts(str);

    term_color = old_color;
    term_col = old_col;
    term_row = old_row;
    terminal_update_cursor();
}

kprintf Implementation

A kernel-mode printf is essential for debugging. Here's a complete implementation supporting common format specifiers:

KPRINTF FORMAT SPECIFIERS
═══════════════════════════════════════════════════════════════

Specifier   Type               Example           Output
─────────────────────────────────────────────────────────────
%c          char               kprintf("%c", 'A')    A
%s          string             kprintf("%s", "hi")   hi
%d          signed int         kprintf("%d", -42)    -42
%u          unsigned int       kprintf("%u", 42)     42
%x          hex (lowercase)    kprintf("%x", 255)    ff
%X          hex (uppercase)    kprintf("%X", 255)    FF
%p          pointer            kprintf("%p", ptr)    0x00102030
%%          literal %          kprintf("%%")         %

/* kprintf - kernel printf implementation */

#include <stdarg.h>

/* Helper: print unsigned integer in given base */
static void print_uint(unsigned int value, int base, bool uppercase) {
    static const char digits_lower[] = "0123456789abcdef";
    static const char digits_upper[] = "0123456789ABCDEF";
    const char* digits = uppercase ? digits_upper : digits_lower;

    char buffer[32];
    int pos = 0;

    /* Special case for zero */
    if (value == 0) {
        putc('0');
        return;
    }

    /* Build digits in reverse */
    while (value > 0) {
        buffer[pos++] = digits[value % base];
        value /= base;
    }

    /* Print in correct order */
    while (pos > 0) {
        putc(buffer[--pos]);
    }
}

/* Helper: print signed integer */
static void print_int(int value) {
    if (value < 0) {
        putc('-');
        /* Handle INT_MIN edge case */
        if (value == (-2147483647 - 1)) {
            puts("2147483648");
            return;
        }
        value = -value;
    }
    print_uint((unsigned int)value, 10, false);
}

/* Helper: print pointer */
static void print_ptr(void* ptr) {
    puts("0x");
    unsigned long value = (unsigned long)ptr;
    /* Print all 8 hex digits (32-bit pointer) */
    for (int i = 28; i >= 0; i -= 4) {
        int digit = (value >> i) & 0xF;
        putc("0123456789ABCDEF"[digit]);
    }
}

/* Main kprintf implementation */
int kprintf(const char* fmt, ...) {
    va_list args;
    va_start(args, fmt);

    int count = 0;

    while (*fmt) {
        if (*fmt != '%') {
            putc(*fmt++);
            count++;
            continue;
        }

        fmt++;  /* Skip '%' */

        switch (*fmt) {
            case 'c':
                putc((char)va_arg(args, int));
                count++;
                break;

            case 's': {
                const char* s = va_arg(args, const char*);
                while (*s) {
                    putc(*s++);
                    count++;
                }
                break;
            }

            case 'd':
            case 'i':
                print_int(va_arg(args, int));
                count++;
                break;

            case 'u':
                print_uint(va_arg(args, unsigned int), 10, false);
                count++;
                break;

            case 'x':
                print_uint(va_arg(args, unsigned int), 16, false);
                count++;
                break;

            case 'X':
                print_uint(va_arg(args, unsigned int), 16, true);
                count++;
                break;

            case 'p':
                print_ptr(va_arg(args, void*));
                count++;
                break;

            case '%':
                putc('%');
                count++;
                break;

            default:
                /* Unknown specifier - print as-is */
                putc('%');
                putc(*fmt);
                count += 2;
                break;
        }

        fmt++;
    }

    va_end(args);
    return count;
}

Screen Scrolling

When text reaches the bottom of the screen, we need to scroll up. This involves copying memory and clearing the last line:

/* Scroll the screen up by one line */
static void terminal_scroll(void) {
    /* Move lines 1-24 up to positions 0-23 */
    for (int y = 0; y < VGA_HEIGHT - 1; y++) {
        for (int x = 0; x < VGA_WIDTH; x++) {
            int dst = y * VGA_WIDTH + x;
            int src = (y + 1) * VGA_WIDTH + x;
            VGA_BUFFER[dst] = VGA_BUFFER[src];
        }
    }

    /* Clear the last line */
    int last_line = (VGA_HEIGHT - 1) * VGA_WIDTH;
    for (int x = 0; x < VGA_WIDTH; x++) {
        VGA_BUFFER[last_line + x].character = ' ';
        VGA_BUFFER[last_line + x].attribute = term_color;
    }
}

/* Optimized scroll using memcpy (requires memory functions) */
void terminal_scroll_fast(void) {
    /* Move all rows except first up by one row worth of bytes */
    size_t line_bytes = VGA_WIDTH * sizeof(vga_char_t);
    size_t copy_bytes = (VGA_HEIGHT - 1) * line_bytes;

    /* Copy memory up */
    memcpy((void*)VGA_BUFFER,
           (void*)(VGA_BUFFER + VGA_WIDTH),
           copy_bytes);

    /* Clear last line */
    vga_char_t blank = { .character = ' ', .attribute = term_color };
    for (int x = 0; x < VGA_WIDTH; x++) {
        VGA_BUFFER[(VGA_HEIGHT - 1) * VGA_WIDTH + x] = blank;
    }
}

/* kernel.c - Demonstrating terminal functions */

void kernel_main(void) {
    /* Initialize terminal */
    terminal_clear();

    /* Set colors and print welcome message */
    terminal_set_color(vga_make_color(VGA_LIGHT_GREEN, VGA_BLACK));
    puts_nl("MiniOS v0.1 - Display System Demo");

    terminal_set_color(vga_make_color(VGA_WHITE, VGA_BLACK));
    puts("━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━\n\n");

    /* Test kprintf */
    kprintf("Testing kprintf:\n");
    kprintf("  Integer: %d\n", -12345);
    kprintf("  Unsigned: %u\n", 12345);
    kprintf("  Hex: 0x%X\n", 0xDEADBEEF);
    kprintf("  String: %s\n", "Hello, kernel!");
    kprintf("  Pointer: %p\n", (void*)0xB8000);
    kprintf("  Char: '%c'\n", 'X');

    /* Test colors */
    terminal_set_color(vga_make_color(VGA_LIGHT_RED, VGA_BLACK));
    kprintf("\n[ERROR] ");
    terminal_set_color(vga_make_color(VGA_WHITE, VGA_BLACK));
    puts("This is an error message\n");

    terminal_set_color(vga_make_color(VGA_YELLOW, VGA_BLACK));
    kprintf("[WARN]  ");
    terminal_set_color(vga_make_color(VGA_WHITE, VGA_BLACK));
    puts("This is a warning\n");

    terminal_set_color(vga_make_color(VGA_LIGHT_CYAN, VGA_BLACK));
    kprintf("[INFO]  ");
    terminal_set_color(vga_make_color(VGA_WHITE, VGA_BLACK));
    puts("This is informational\n");

    /* Halt */
    for (;;) {
        __asm__ volatile ("hlt");
    }
}

Keyboard Input

Now let's tackle the input side. Reading from a keyboard is more complex than writing to a screen because keyboards generate scan codes that we must translate to characters.

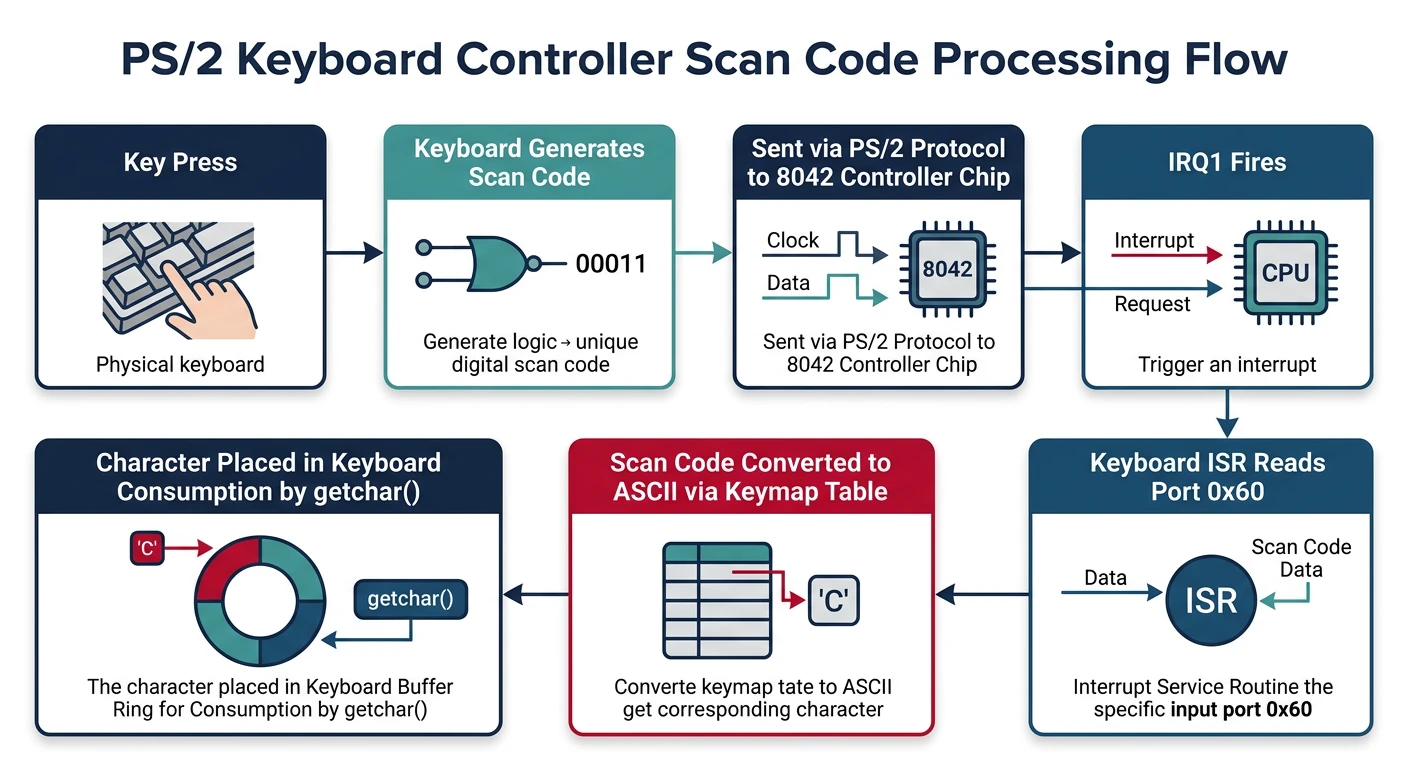

PS/2 Controller

The PS/2 controller (Intel 8042) is the traditional keyboard controller. Even modern PCs emulate it for compatibility. It uses two I/O ports:

PS/2 CONTROLLER PORTS
═══════════════════════════════════════════════════════════════

Port 0x60 - Data Port (R/W)
├── Read:  Get scan code or response from keyboard
└── Write: Send command to keyboard

Port 0x64 - Status/Command Port
├── Read:  Get controller status byte
└── Write: Send command to controller

STATUS REGISTER (Port 0x64, Read)
┌────┬────┬────┬────┬────┬────┬────┬────┐
│Bit7│Bit6│Bit5│Bit4│Bit3│Bit2│Bit1│Bit0│
│PRTY│TMOT│AUX │KLCK│CMD │SYS │IBF │OBF │
└────┴────┴────┴────┴────┴────┴────┴────┘

OBF (Bit 0): Output Buffer Full - data available to read
IBF (Bit 1): Input Buffer Full - controller processing command
SYS (Bit 2): System Flag - 1 after self-test passed
CMD (Bit 3): Command/Data - 1 = last write was command
AUX (Bit 5): Auxiliary Output - 1 = mouse data, 0 = keyboard

/* keyboard.h - PS/2 keyboard interface */
#ifndef KEYBOARD_H
#define KEYBOARD_H

#include <stdint.h>
#include "io.h"

/* PS/2 controller ports */
#define PS2_DATA_PORT    0x60   /* Read/write keyboard data */
#define PS2_STATUS_PORT  0x64   /* Read status register */
#define PS2_COMMAND_PORT 0x64   /* Write commands */

/* Status register bits */
#define PS2_STATUS_OUTPUT_FULL   0x01  /* Can read from port 0x60 */
#define PS2_STATUS_INPUT_FULL    0x02  /* Cannot write yet */
#define PS2_STATUS_SYSTEM        0x04  /* Self-test passed */
#define PS2_STATUS_COMMAND       0x08  /* Last write was command */
#define PS2_STATUS_TIMEOUT       0x40  /* Timeout error */
#define PS2_STATUS_PARITY        0x80  /* Parity error */

/* Wait until we can read from keyboard */
static inline void ps2_wait_output(void) {
    while (!(inb(PS2_STATUS_PORT) & PS2_STATUS_OUTPUT_FULL));
}

/* Wait until we can write to keyboard */
static inline void ps2_wait_input(void) {
    while (inb(PS2_STATUS_PORT) & PS2_STATUS_INPUT_FULL);
}

/* Check if data is available */
static inline int ps2_data_available(void) {
    return inb(PS2_STATUS_PORT) & PS2_STATUS_OUTPUT_FULL;
}

#endif

Scan Codes

Keyboards don't send ASCII characters—they send scan codes representing physical key positions. Every key press generates a "make" code, and every release generates a "break" code:

SCAN CODE SETS
═══════════════════════════════════════════════════════════════

Scan Code Set 1 (XT) - Legacy, what BIOS emulates
Scan Code Set 2 (AT) - Most common native keyboard set
Scan Code Set 3 (PS/2) - Rarely used

SCAN CODE SET 1 EXAMPLES (what we'll use):
┌────────────────────────────────────────────────────────────┐
│ Key      │ Make Code │ Break Code │ Notes                 │
├──────────┼───────────┼────────────┼───────────────────────┤
│ A        │ 0x1E      │ 0x9E       │ Break = Make + 0x80   │
│ Enter    │ 0x1C      │ 0x9C       │                       │
│ Space    │ 0x39      │ 0xB9       │                       │
│ Escape   │ 0x01      │ 0x81       │                       │
│ L-Shift  │ 0x2A      │ 0xAA       │ Modifier key          │
│ L-Ctrl   │ 0x1D      │ 0x9D       │ Modifier key          │
│ Keypad * │ 0xE0 0x37 │ 0xE0 0xB7  │ Extended (2-byte)     │
│ Arrow Up │ 0xE0 0x48 │ 0xE0 0xC8  │ Extended (2-byte)     │
└────────────────────────────────────────────────────────────┘

The 0xE0 prefix indicates extended keys (added with 101-key keyboards)

/* US QWERTY scan code to ASCII mapping (Set 1) */
static const char scancode_ascii[128] = {
    /* 0x00 */  0,   27, '1', '2', '3', '4', '5', '6',
    /* 0x08 */ '7', '8', '9', '0', '-', '=', '\b', '\t',
    /* 0x10 */ 'q', 'w', 'e', 'r', 't', 'y', 'u', 'i',
    /* 0x18 */ 'o', 'p', '[', ']', '\n',   0, 'a', 's',  /* 0 = Ctrl */
    /* 0x20 */ 'd', 'f', 'g', 'h', 'j', 'k', 'l', ';',
    /* 0x28 */'\'', '`',   0,'\\', 'z', 'x', 'c', 'v',  /* 0 = LShift */
    /* 0x30 */ 'b', 'n', 'm', ',', '.', '/',   0, '*',  /* 0 = RShift */
    /* 0x38 */   0, ' ',   0,   0,   0,   0,   0,   0,  /* Alt, Space, Caps, F1-F5 */
    /* 0x40 */   0,   0,   0,   0,   0,   0,   0, '7',  /* F6-F10, NumLock, Scroll, KP7 */
    /* 0x48 */ '8', '9', '-', '4', '5', '6', '+', '1',  /* KP8-9, KP-, KP4-6, KP+, KP1 */
    /* 0x50 */ '2', '3', '0', '.',   0,   0,   0,   0,  /* KP2-3, KP0, KP., ?, ?, F11, F12 */
    /* 0x58-0x7F all zeros for remaining keys */
};

/* Shifted versions (when Shift is held) */
static const char scancode_ascii_shift[128] = {
    /* 0x00 */  0,   27, '!', '@', '#', '$', '%', '^',
    /* 0x08 */ '&', '*', '(', ')', '_', '+', '\b', '\t',
    /* 0x10 */ 'Q', 'W', 'E', 'R', 'T', 'Y', 'U', 'I',
    /* 0x18 */ 'O', 'P', '{', '}', '\n',   0, 'A', 'S',
    /* 0x20 */ 'D', 'F', 'G', 'H', 'J', 'K', 'L', ':',
    /* 0x28 */ '"', '~',   0, '|', 'Z', 'X', 'C', 'V',
    /* 0x30 */ 'B', 'N', 'M', '<', '>', '?',   0, '*',
    /* Rest same as unshifted... */
};

Polling Input

Polling means continuously checking if data is available. It's simple but wasteful—later we'll replace this with interrupts:

/* keyboard.c - Keyboard polling driver */

#include "keyboard.h"

/* Keyboard state */
static int shift_pressed = 0;
static int ctrl_pressed = 0;
static int alt_pressed = 0;
static int caps_lock = 0;

/* Special scan codes */
#define KEY_ESCAPE      0x01
#define KEY_BACKSPACE   0x0E
#define KEY_TAB         0x0F
#define KEY_ENTER       0x1C
#define KEY_CTRL        0x1D
#define KEY_LSHIFT      0x2A
#define KEY_RSHIFT      0x36
#define KEY_ALT         0x38
#define KEY_SPACE       0x39
#define KEY_CAPSLOCK    0x3A
#define KEY_F1          0x3B
#define KEY_F10         0x44
#define KEY_NUMLOCK     0x45
#define KEY_SCROLLLOCK  0x46

/* Read a raw scan code (blocking) */
uint8_t keyboard_read_scancode(void) {
    ps2_wait_output();
    return inb(PS2_DATA_PORT);
}

/* Read a raw scan code (non-blocking, returns 0 if none) */
uint8_t keyboard_read_scancode_nowait(void) {
    if (ps2_data_available()) {
        return inb(PS2_DATA_PORT);
    }
    return 0;
}

/* Get a character (blocking, handles modifiers) */
char keyboard_getchar(void) {
    while (1) {
        uint8_t scancode = keyboard_read_scancode();

        /* Handle key release (break code) */
        if (scancode & 0x80) {
            uint8_t release = scancode & 0x7F;

            if (release == KEY_LSHIFT || release == KEY_RSHIFT) {
                shift_pressed = 0;
            } else if (release == KEY_CTRL) {
                ctrl_pressed = 0;
            } else if (release == KEY_ALT) {
                alt_pressed = 0;
            }
            continue;  /* Keep waiting for a key press */
        }

        /* Handle modifier key presses */
        if (scancode == KEY_LSHIFT || scancode == KEY_RSHIFT) {
            shift_pressed = 1;
            continue;
        }
        if (scancode == KEY_CTRL) {
            ctrl_pressed = 1;
            continue;
        }
        if (scancode == KEY_ALT) {
            alt_pressed = 1;
            continue;
        }
        if (scancode == KEY_CAPSLOCK) {
            caps_lock = !caps_lock;
            continue;
        }

        /* Look up ASCII value */
        char c;
        int use_shift = shift_pressed;

        /* Caps lock affects only letters */
        if (scancode >= 0x10 && scancode <= 0x19) {  /* Q-P */
            use_shift ^= caps_lock;
        } else if (scancode >= 0x1E && scancode <= 0x26) {  /* A-L */
            use_shift ^= caps_lock;
        } else if (scancode >= 0x2C && scancode <= 0x32) {  /* Z-M */
            use_shift ^= caps_lock;
        }

        if (use_shift) {
            c = scancode_ascii_shift[scancode];
        } else {
            c = scancode_ascii[scancode];
        }

        /* Return valid characters */
        if (c != 0) {
            return c;
        }
    }
}

Extended Keys & Special Handling

Modern keyboards have extended keys (arrows, Insert, Delete, etc.) that send multi-byte scan codes starting with 0xE0:

/* Extended key handling */

/* Extended key codes (after 0xE0 prefix) */
#define KEY_EXT_UP       0x48
#define KEY_EXT_DOWN     0x50
#define KEY_EXT_LEFT     0x4B
#define KEY_EXT_RIGHT    0x4D
#define KEY_EXT_INSERT   0x52
#define KEY_EXT_DELETE   0x53
#define KEY_EXT_HOME     0x47
#define KEY_EXT_END      0x4F
#define KEY_EXT_PAGEUP   0x49
#define KEY_EXT_PAGEDOWN 0x51

/* Special key result codes (returned instead of ASCII) */
#define KEYCODE_UP       0x100
#define KEYCODE_DOWN     0x101
#define KEYCODE_LEFT     0x102
#define KEYCODE_RIGHT    0x103
#define KEYCODE_INSERT   0x104
#define KEYCODE_DELETE   0x105
#define KEYCODE_HOME     0x106
#define KEYCODE_END      0x107
#define KEYCODE_PAGEUP   0x108
#define KEYCODE_PAGEDOWN 0x109

/* Get key with extended key support - returns int to allow codes > 255 */
int keyboard_getkey(void) {
    uint8_t scancode = keyboard_read_scancode();

    /* Handle 0xE0 extended keys */
    if (scancode == 0xE0) {
        scancode = keyboard_read_scancode();

        /* Ignore break codes for extended keys */
        if (scancode & 0x80) {
            return 0;
        }

        switch (scancode) {
            case KEY_EXT_UP:       return KEYCODE_UP;
            case KEY_EXT_DOWN:     return KEYCODE_DOWN;
            case KEY_EXT_LEFT:     return KEYCODE_LEFT;
            case KEY_EXT_RIGHT:    return KEYCODE_RIGHT;
            case KEY_EXT_INSERT:   return KEYCODE_INSERT;
            case KEY_EXT_DELETE:   return KEYCODE_DELETE;
            case KEY_EXT_HOME:     return KEYCODE_HOME;
            case KEY_EXT_END:      return KEYCODE_END;
            case KEY_EXT_PAGEUP:   return KEYCODE_PAGEUP;
            case KEY_EXT_PAGEDOWN: return KEYCODE_PAGEDOWN;
            default:               return 0;
        }
    }

    /* Handle regular keys (reuse modifier logic from keyboard_getchar) */
    /* ... same logic as before ... */

    return scancode_ascii[scancode];
}

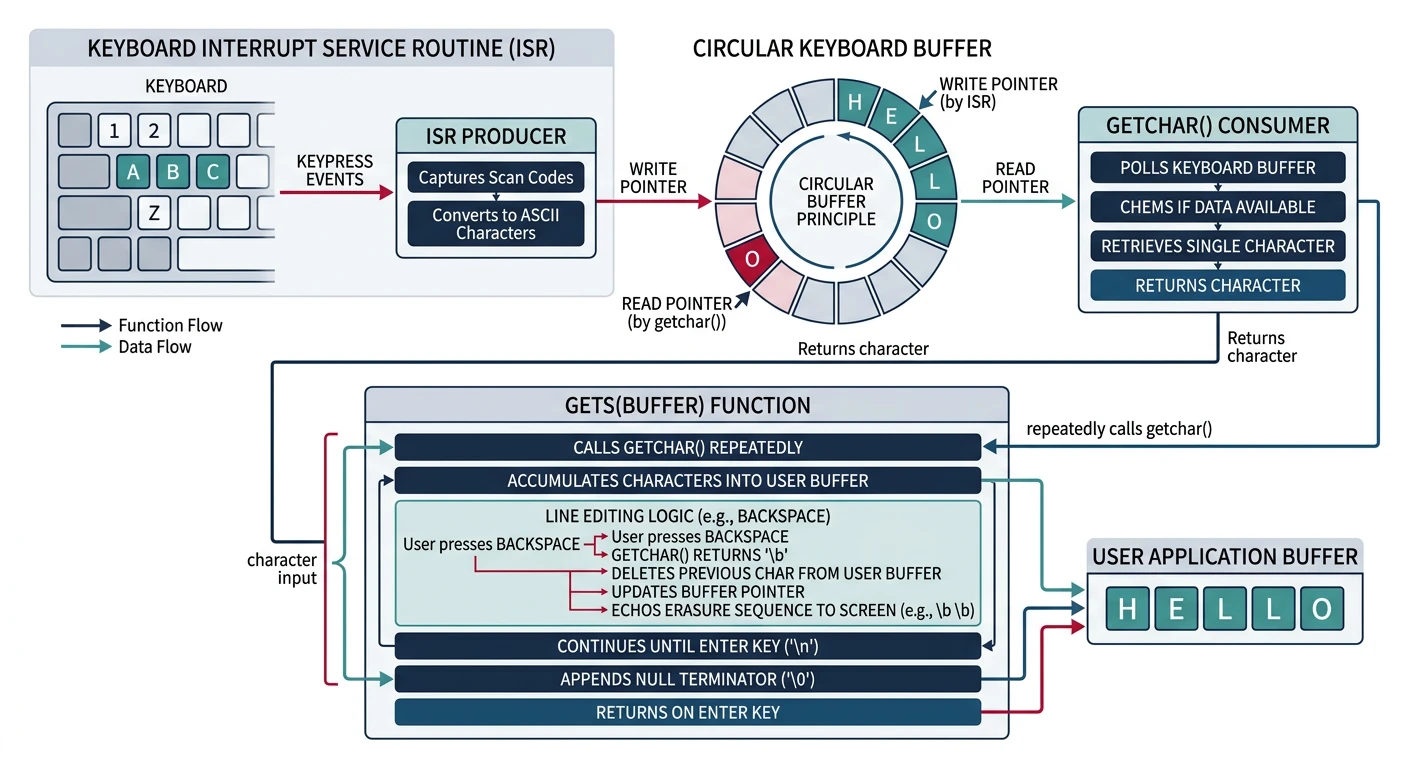

High-Level Input Functions

Let's build user-friendly input functions that combine our keyboard driver with terminal output for proper echoing and line editing.

getchar Implementation

A proper getchar echoes the character to the screen so users see what they're typing:

/* stdio.c - High-level I/O functions */

#include "terminal.h"
#include "keyboard.h"

/* Get a single character with echo */
char getchar(void) {
    char c = keyboard_getchar();

    /* Echo printable characters */
    if (c >= ' ' && c <= '~') {
        putc(c);
    } else if (c == '\n' || c == '\r') {
        putc('\n');
    }

    return c;
}

/* Get a single character without echo (for passwords, etc.) */
char getchar_noecho(void) {
    return keyboard_getchar();
}

/* Check if a key is available (non-blocking) */
int kbhit(void) {
    return ps2_data_available();
}

gets Implementation with Line Editing

A proper line input function needs to handle backspace, display limits, and buffer overflow protection:

/* Read a line of input with editing support */
char* gets(char* buffer, int max_length) {
    int pos = 0;
    max_length--;  /* Reserve space for null terminator */

    while (1) {
        char c = keyboard_getchar();

        if (c == '\n' || c == '\r') {
            /* Enter pressed - complete the line */
            buffer[pos] = '\0';
            putc('\n');
            return buffer;
        }
        else if (c == '\b' || c == 127) {  /* Backspace or DEL */
            if (pos > 0) {
                pos--;
                /* Erase character on screen: back, space, back */
                puts("\b \b");
            }
        }
        else if (c == 0x1B) {  /* Escape - cancel input */
            buffer[0] = '\0';
            putc('\n');
            return NULL;
        }
        else if (c == 0x15) {  /* Ctrl+U - clear line */
            while (pos > 0) {
                pos--;
                puts("\b \b");
            }
        }
        else if (c >= ' ' && c <= '~') {  /* Printable character */
            if (pos < max_length) {
                buffer[pos++] = c;
                putc(c);
            }
            /* Silently ignore if buffer is full */
        }
    }
}

/* Read a line with a prompt */
char* prompt(const char* prompt_str, char* buffer, int max_length) {
    puts(prompt_str);
    return gets(buffer, max_length);
}

/* Read a password (no echo) */
char* getpass(const char* prompt_str, char* buffer, int max_length) {
    puts(prompt_str);

    int pos = 0;
    max_length--;

    while (1) {
        char c = keyboard_getchar();

        if (c == '\n' || c == '\r') {
            buffer[pos] = '\0';
            putc('\n');
            return buffer;
        }
        else if (c == '\b' || c == 127) {
            if (pos > 0) {
                pos--;
                /* No visual feedback for password */
            }
        }
        else if (c >= ' ' && c <= '~') {
            if (pos < max_length) {
                buffer[pos++] = c;
                putc('*');  /* Show asterisk instead of actual char */
            }
        }
    }
}

Complete I/O Header

Here's a complete header file declaring all our I/O functions:

/* stdio.h - Standard I/O declarations */
#ifndef STDIO_H
#define STDIO_H

#include <stdarg.h>
#include <stdint.h>

/* Output functions */
void putc(char c);
void puts(const char* str);
void puts_nl(const char* str);
void puts_at(const char* str, int x, int y, uint8_t color);
int kprintf(const char* fmt, ...);

/* Terminal control */
void terminal_clear(void);
void terminal_set_color(uint8_t color);

/* Input functions */
char getchar(void);
char getchar_noecho(void);
int kbhit(void);
char* gets(char* buf, int maxlen);
char* prompt(const char* prompt, char* buf, int maxlen);
char* getpass(const char* prompt, char* buf, int maxlen);

#endif

What You Can Build

Mini Shell Implementation

Let's build a basic interactive shell that responds to commands:

/* shell.c - Mini shell implementation */

#include "stdio.h"
#include "string.h"  /* We'll need strcmp, etc. */

#define MAX_CMD_LEN 256

/* Simple string comparison (implement yourself or use ours) */
static int str_equal(const char* a, const char* b) {
    while (*a && *b) {
        if (*a++ != *b++) return 0;
    }
    return *a == *b;
}

/* Command handlers */
static void cmd_help(void) {
    puts_nl("Available commands:");
    puts_nl("  help    - Show this help message");
    puts_nl("  clear   - Clear the screen");
    puts_nl("  info    - Display system information");
    puts_nl("  version - Show OS version");
    puts_nl("  color   - Cycle through colors");
    puts_nl("  echo    - Echo text back");
    puts_nl("  reboot  - Restart the system");
}

static void cmd_info(void) {
    puts_nl("System Information:");
    puts_nl("  Architecture: x86 (i386)");
    puts_nl("  Mode: 32-bit Protected Mode");
    kprintf("  VGA Buffer: %p\n", (void*)0xB8000);
    puts_nl("  Display: 80x25 text mode");
}

static void cmd_version(void) {
    terminal_set_color(vga_make_color(VGA_LIGHT_CYAN, VGA_BLACK));
    puts_nl("MiniOS v0.4 - Display & Input");
    terminal_set_color(vga_make_color(VGA_LIGHT_GREY, VGA_BLACK));
    puts_nl("Kernel Development Tutorial - Phase 4");
}

static void cmd_reboot(void) {
    puts_nl("Rebooting...");

    /* Triple fault method - CPU resets */
    /* Load an invalid IDT and trigger interrupt */
    __asm__ volatile (
        "lidt (%0)"
        : : "r" ((void*)0)
    );
    __asm__ volatile ("int $0");
}

/* Color demo */
static void cmd_color(void) {
    const char* names[] = {
        "Black", "Blue", "Green", "Cyan",
        "Red", "Magenta", "Brown", "Light Grey",
        "Dark Grey", "Light Blue", "Light Green", "Light Cyan",
        "Light Red", "Light Magenta", "Yellow", "White"
    };

    puts_nl("VGA Colors:");
    for (int i = 0; i < 16; i++) {
        terminal_set_color(vga_make_color(i, VGA_BLACK));
        kprintf("  %d: %s\n", i, names[i]);
    }
    terminal_set_color(vga_make_color(VGA_LIGHT_GREY, VGA_BLACK));
}

/* Parse and execute command */
static void execute_command(char* cmd) {
    /* Skip leading whitespace */
    while (*cmd == ' ') cmd++;

    /* Empty command */
    if (*cmd == '\0') return;

    /* Match commands */
    if (str_equal(cmd, "help") || str_equal(cmd, "?")) {
        cmd_help();
    }
    else if (str_equal(cmd, "clear") || str_equal(cmd, "cls")) {
        terminal_clear();
    }
    else if (str_equal(cmd, "info")) {
        cmd_info();
    }
    else if (str_equal(cmd, "version") || str_equal(cmd, "ver")) {
        cmd_version();
    }
    else if (str_equal(cmd, "color") || str_equal(cmd, "colors")) {
        cmd_color();
    }
    else if (str_equal(cmd, "reboot")) {
        cmd_reboot();
    }
    else if (cmd[0] == 'e' && cmd[1] == 'c' && cmd[2] == 'h' &&
             cmd[3] == 'o' && cmd[4] == ' ') {
        /* echo command with argument */
        puts_nl(cmd + 5);
    }
    else {
        terminal_set_color(vga_make_color(VGA_LIGHT_RED, VGA_BLACK));
        kprintf("Unknown command: %s\n", cmd);
        terminal_set_color(vga_make_color(VGA_LIGHT_GREY, VGA_BLACK));
        puts_nl("Type 'help' for available commands.");
    }
}

/* Main shell loop */
void shell_run(void) {
    char buffer[MAX_CMD_LEN];

    /* Welcome banner */
    terminal_clear();
    terminal_set_color(vga_make_color(VGA_LIGHT_GREEN, VGA_BLACK));
    puts_nl("╔═══════════════════════════════════════════╗");
    puts_nl("║       MiniOS Shell - Phase 4 Demo         ║");
    puts_nl("║   Type 'help' for available commands      ║");
    puts_nl("╚═══════════════════════════════════════════╝");
    terminal_set_color(vga_make_color(VGA_LIGHT_GREY, VGA_BLACK));
    putc('\n');

    /* Read-Eval-Print Loop */
    while (1) {
        /* Print prompt */
        terminal_set_color(vga_make_color(VGA_LIGHT_CYAN, VGA_BLACK));
        puts("minios");
        terminal_set_color(vga_make_color(VGA_WHITE, VGA_BLACK));
        puts("> ");
        terminal_set_color(vga_make_color(VGA_LIGHT_GREY, VGA_BLACK));

        /* Get input */
        if (gets(buffer, MAX_CMD_LEN) != NULL) {
            execute_command(buffer);
        }
    }
}

/* Kernel entry point */
void kernel_main(void) {
    /* Initialize subsystems */
    terminal_clear();
    vga_enable_cursor(13, 15);  /* Underline cursor */

    /* Run interactive shell */
    shell_run();
}

void cmd_hexdump(uint32_t address, int length) {
    uint8_t* ptr = (uint8_t*)address;

    for (int i = 0; i < length; i += 16) {
        kprintf("%08X: ", address + i);

        /* Hex bytes */
        for (int j = 0; j < 16 && (i + j) < length; j++) {
            kprintf("%02X ", ptr[i + j]);
        }

        puts(" |");

        /* ASCII representation */
        for (int j = 0; j < 16 && (i + j) < length; j++) {
            char c = ptr[i + j];
            putc((c >= 32 && c < 127) ? c : '.');
        }
        puts("|\n");
    }
}
/* Usage: hexdump 0xB8000 256 */

Next Steps

Your kernel can now communicate with users! But there's a fundamental problem: our keyboard input uses polling, constantly checking for keypresses and wasting CPU cycles. And what about handling errors gracefully?

What's Coming in Phase 5: Interrupts

In Phase 5, we'll implement proper interrupt-driven I/O:

• Interrupt Descriptor Table (IDT) – Tell the CPU where to find handler code
• Programmable Interrupt Controllers (PIC) – Configure hardware interrupt routing
• Exception Handlers – Handle division by zero, page faults, etc.
• Keyboard IRQ – Wake up only when a key is actually pressed
• System Timer (PIT) – Implement scheduling and uptime tracking

POLLING vs INTERRUPT-DRIVEN I/O
═══════════════════════════════════════════════════════════════

POLLING (Current - Phase 4):
┌─────────────────────────────────────────────────────────────┐
│  CPU → Check keyboard → No key → Check keyboard → No key → │
│       → Check keyboard → No key → ... → Key! → Process     │
│                                                             │
│  Problem: CPU is 100% busy doing nothing useful!            │
└─────────────────────────────────────────────────────────────┘

INTERRUPT-DRIVEN (Phase 5):
┌─────────────────────────────────────────────────────────────┐
│  CPU → Do useful work → HLT (sleep)                         │
│                           ↑                                 │
│             Key pressed! ─┘  ← Hardware interrupt           │
│                           ↓                                 │
│  CPU → Handle key → Resume work or back to HLT              │
│                                                             │
│  Benefit: CPU only wakes when there's actual work!          │
└─────────────────────────────────────────────────────────────┘
