Phase 8: Processes & User Mode

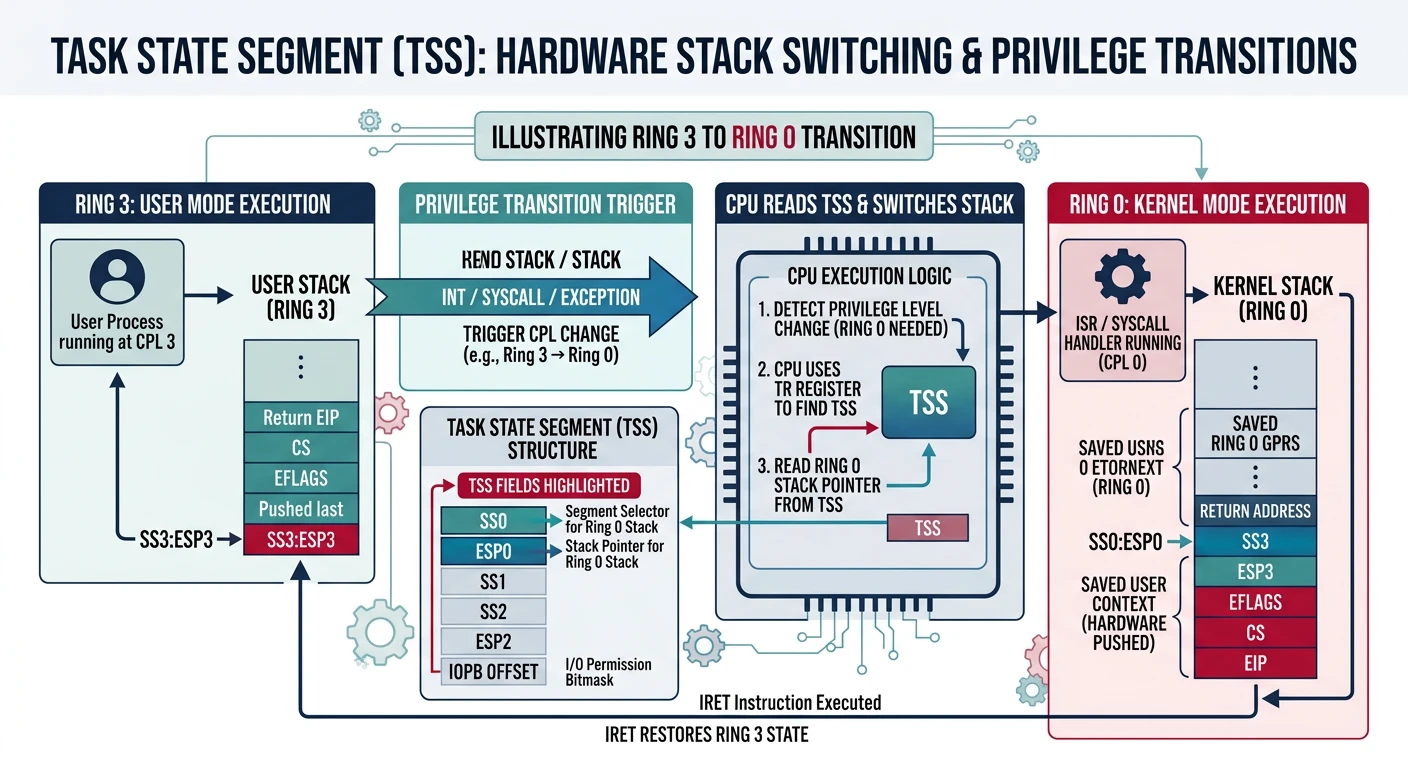

Task State Segment (TSS)

When a user program makes a system call or an interrupt occurs, the CPU needs to switch from Ring 3 (user) to Ring 0 (kernel). But the user's stack is untrusted - we can't use it for kernel operations. The Task State Segment (TSS) tells the CPU where to find the kernel stack for privilege transitions.

┌─────────────────────────────────────────────────────────────────┐
│            TSS AND PRIVILEGE TRANSITION                          │
├─────────────────────────────────────────────────────────────────┤
│                                                                  │
│   USER MODE (Ring 3)              KERNEL MODE (Ring 0)          │
│   ┌────────────────┐              ┌────────────────┐            │
│   │  User Stack    │              │  Kernel Stack  │            │
│   │                │              │                │            │
│   │  ESP = 0x7FFF  │              │  ESP0 from TSS │            │
│   │                │              │                │            │
│   └────────────────┘              └────────────────┘            │
│          │                               ▲                      │
│          │  System Call (int 0x80)      │                       │
│          │  or Interrupt                │                       │
│          └───────────────────────────────┘                      │
│                                                                  │
│   CPU AUTOMATICALLY:                                             │
│   1. Reads SS0:ESP0 from TSS (kernel stack address)             │
│   2. Pushes user SS, ESP, EFLAGS, CS, EIP onto kernel stack     │
│   3. Loads CS:EIP from IDT (interrupt handler)                  │
│   4. Sets CPL = 0 (kernel mode)                                 │
│                                                                  │
│   ┌─────────────────────────────────────────────────────────┐   │
│   │                        TSS                               │   │
│   │  ┌──────────────────────────────────────────────────┐   │   │
│   │  │ ESP0 = 0x200000  ← Kernel stack top              │   │   │
│   │  │ SS0  = 0x10      ← Kernel data segment           │   │   │
│   │  │ ESP1 = 0         ← Ring 1 stack (unused)         │   │   │
│   │  │ SS1  = 0                                         │   │   │
│   │  │ ESP2 = 0         ← Ring 2 stack (unused)         │   │   │
│   │  │ SS2  = 0                                         │   │   │
│   │  │ IOMAP = 104      ← I/O permission bitmap         │   │   │
│   │  └──────────────────────────────────────────────────┘   │   │
│   └─────────────────────────────────────────────────────────┘   │
│                                                                  │
└─────────────────────────────────────────────────────────────────┘

TSS Structure

The TSS is a legacy from Intel's hardware task switching mechanism (rarely used today). For modern software task switching, we only need it to store the kernel stack pointer for privilege transitions.

/* tss.h - Task State Segment Definition */

#ifndef TSS_H
#define TSS_H

#include <stdint.h>

/* Task State Segment (32-bit) */
typedef struct {
    uint32_t prev_tss;    // Previous TSS link (for hardware switching)

    /* Ring 0 stack - ESSENTIAL for privilege transitions */
    uint32_t esp0;        // Stack pointer for ring 0
    uint32_t ss0;         // Stack segment for ring 0

    /* Ring 1 stack (typically unused) */
    uint32_t esp1;
    uint32_t ss1;

    /* Ring 2 stack (typically unused) */
    uint32_t esp2;
    uint32_t ss2;

    uint32_t cr3;         // Page directory base (for hardware switching)

    /* Saved registers (for hardware switching - we don't use these) */
    uint32_t eip;
    uint32_t eflags;
    uint32_t eax, ecx, edx, ebx;
    uint32_t esp, ebp, esi, edi;
    uint32_t es, cs, ss, ds, fs, gs;

    uint32_t ldt;         // LDT selector
    uint16_t trap;        // Debug trap flag
    uint16_t iomap_base;  // I/O permission bitmap offset
} __attribute__((packed)) tss_entry_t;

/* Global TSS instance */
extern tss_entry_t tss;

/* Initialize TSS with kernel stack address */
void tss_init(uint32_t kernel_stack);

/* Update kernel stack in TSS (called during task switch) */
void tss_set_kernel_stack(uint32_t stack);

#endif /* TSS_H */

Setting Up TSS

Setting up the TSS requires three steps: initialize the structure, add a TSS descriptor to the GDT, and load it with the LTR instruction.

/* tss.c - Task State Segment Implementation */

#include "tss.h"
#include "gdt.h"
#include <string.h>

/* Global TSS instance */
tss_entry_t tss __attribute__((aligned(4)));

/* Initialize TSS */
void tss_init(uint32_t kernel_stack) {
    /* Zero out the TSS */
    memset(&tss, 0, sizeof(tss));

    /* Set kernel stack for Ring 0 - THE CRITICAL PART */
    tss.ss0 = KERNEL_DATA_SELECTOR;  // 0x10 - Kernel data segment
    tss.esp0 = kernel_stack;         // Top of kernel stack

    /*
     * Set I/O permission bitmap offset beyond TSS limit
     * This denies all I/O port access from user mode
     * (offset > TSS limit means "no I/O bitmap, deny all")
     */
    tss.iomap_base = sizeof(tss);

    /*
     * Install TSS descriptor in GDT (typically entry 5)
     *
     * TSS Descriptor format:
     * - Base: Address of TSS structure
     * - Limit: sizeof(tss) - 1
     * - Access: 0x89 = Present, DPL 0, TSS (not busy)
     *           0xE9 = Present, DPL 3, TSS (accessible from ring 3)
     * - Flags: 0x00 (byte granularity, 16-bit - though limit is enough)
     */
    gdt_set_gate(5, (uint32_t)&tss, sizeof(tss) - 1, 0xE9, 0x00);

    /*
     * Load TSS register
     * The selector is: index * 8 = 5 * 8 = 0x28
     * We OR with 3 to set RPL=3, making it accessible from user mode
     */
    uint16_t tss_selector = 0x28 | 0x03; // TSS selector with RPL 3

    asm volatile("ltr %0" : : "r"(tss_selector));
}

/* Update kernel stack (called when switching tasks) */
void tss_set_kernel_stack(uint32_t stack) {
    tss.esp0 = stack;
}

GDT with User Segments and TSS

To support user mode, we need to expand our GDT with Ring 3 code and data segments, plus the TSS descriptor:

/* gdt.c - Extended GDT for User Mode */

#include "gdt.h"

/* GDT entries */
gdt_entry_t gdt[6];
gdt_ptr_t gdt_ptr;

void gdt_init(void) {
    gdt_ptr.limit = sizeof(gdt) - 1;
    gdt_ptr.base = (uint32_t)&gdt;

    /* Entry 0: Null descriptor (required) */
    gdt_set_gate(0, 0, 0, 0, 0);

    /* Entry 1: Kernel Code Segment - Selector 0x08 */
    /* Base=0, Limit=4GB, Execute/Read, Ring 0 */
    gdt_set_gate(1, 0, 0xFFFFFFFF, 0x9A, 0xCF);

    /* Entry 2: Kernel Data Segment - Selector 0x10 */
    /* Base=0, Limit=4GB, Read/Write, Ring 0 */
    gdt_set_gate(2, 0, 0xFFFFFFFF, 0x92, 0xCF);

    /* Entry 3: User Code Segment - Selector 0x18 (0x1B with RPL 3) */
    /* Base=0, Limit=4GB, Execute/Read, Ring 3 */
    gdt_set_gate(3, 0, 0xFFFFFFFF, 0xFA, 0xCF);

    /* Entry 4: User Data Segment - Selector 0x20 (0x23 with RPL 3) */
    /* Base=0, Limit=4GB, Read/Write, Ring 3 */
    gdt_set_gate(4, 0, 0xFFFFFFFF, 0xF2, 0xCF);

    /* Entry 5: TSS - Selector 0x28 */
    /* Will be set up by tss_init() */

    /* Load GDT */
    gdt_flush((uint32_t)&gdt_ptr);
}

/*
 * Access byte breakdown:
 *
 * Kernel Code (0x9A): 1 00 1 1010
 *   Present=1, DPL=0, System=1, Type=Execute/Read
 *
 * Kernel Data (0x92): 1 00 1 0010
 *   Present=1, DPL=0, System=1, Type=Read/Write
 *
 * User Code (0xFA): 1 11 1 1010
 *   Present=1, DPL=3, System=1, Type=Execute/Read
 *
 * User Data (0xF2): 1 11 1 0010
 *   Present=1, DPL=3, System=1, Type=Read/Write
 *
 * TSS (0xE9): 1 11 0 1001
 *   Present=1, DPL=3, System=0, Type=TSS (available)
 */

┌─────────────────────────────────────────────────────────────────┐
│                  EXTENDED GDT LAYOUT                             │
├─────────────────────────────────────────────────────────────────┤
│                                                                  │
│   Index    Selector     Description           DPL   Type        │
│   ─────    ────────     ───────────           ───   ────        │
│     0        0x00       Null Descriptor        -    Required    │
│     1        0x08       Kernel Code Segment    0    Exec/Read   │
│     2        0x10       Kernel Data Segment    0    Read/Write  │
│     3        0x18       User Code Segment      3    Exec/Read   │
│     4        0x20       User Data Segment      3    Read/Write  │
│     5        0x28       Task State Segment     3    TSS         │
│                                                                  │
│   When loading segment registers from USER mode:                 │
│   - User Code: CS = 0x1B  (0x18 | 0x03 for RPL=3)              │
│   - User Data: DS = 0x23  (0x20 | 0x03 for RPL=3)              │
│                                                                  │
└─────────────────────────────────────────────────────────────────┘

Context Switching

The context switch is the heart of multitasking. It's the mechanism that saves one process's state and loads another's, creating the illusion that multiple programs run simultaneously.

┌─────────────────────────────────────────────────────────────────┐

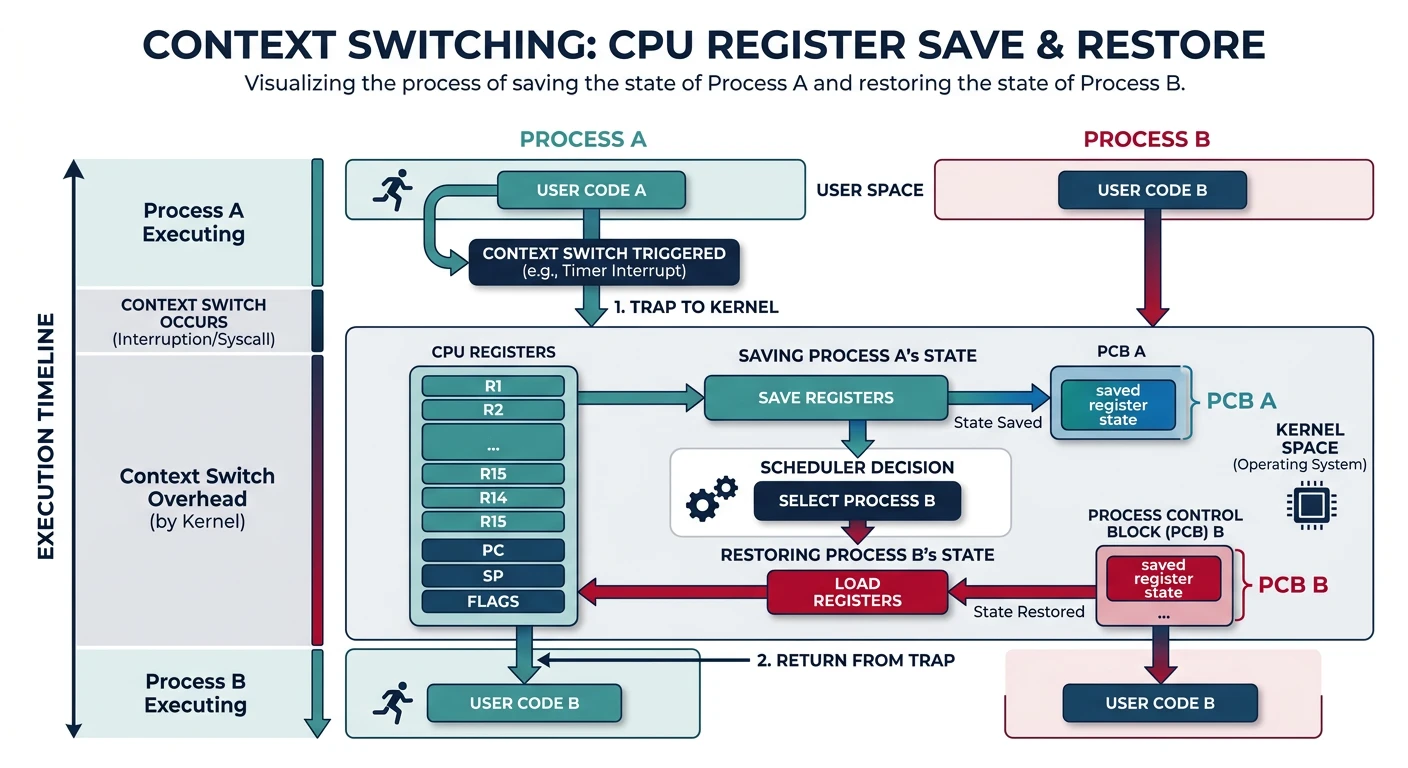

│                   CONTEXT SWITCH FLOW                            │
├─────────────────────────────────────────────────────────────────┤
│                                                                  │
│   TIME ──────────────────────────────────────────────────────▶ │
│                                                                  │
│   PROCESS A      CONTEXT        PROCESS B      CONTEXT          │
│   RUNNING        SWITCH         RUNNING        SWITCH           │
│   ┌─────┐   ┌─────────────┐    ┌─────┐    ┌─────────────┐      │
│   │ A   │──▶│ Save A      │──▶│ B   │──▶│ Save B      │──▶...  │
│   │runs │   │ Load B      │   │runs │   │ Load A      │        │
│   └─────┘   └─────────────┘   └─────┘   └─────────────┘        │
│                                                                  │
│   WHAT GETS SAVED/RESTORED:                                      │
│   ┌──────────────────────────────────────────────────────────┐  │
│   │  • CPU Registers: EAX, EBX, ECX, EDX, ESI, EDI, EBP     │  │
│   │  • Stack Pointer: ESP (crucial for resuming execution)   │  │
│   │  • Instruction Pointer: EIP (where to continue)          │  │
│   │  • Flags: EFLAGS (CPU state flags)                       │  │
│   │  • Segment Registers: CS, DS, ES, FS, GS, SS            │  │
│   │  • Page Directory: CR3 (address space switch)            │  │
│   └──────────────────────────────────────────────────────────┘  │
│                                                                  │
│   TRIGGERED BY:                                                  │
│   • Timer interrupt (preemptive multitasking)                   │
│   • System call (process yields or blocks)                      │
│   • I/O completion (waking a blocked process)                   │
│                                                                  │
└─────────────────────────────────────────────────────────────────┘

Process Control Block (PCB)

The PCB is the kernel's record for each process. It contains everything needed to stop a process mid-execution and resume it later exactly where it left off.

/* process.h - Process Control Block */

#ifndef PROCESS_H
#define PROCESS_H

#include <stdint.h>

/* Process states */
typedef enum {
    PROCESS_STATE_NEW,        // Being created
    PROCESS_STATE_READY,      // Ready to run
    PROCESS_STATE_RUNNING,    // Currently executing
    PROCESS_STATE_BLOCKED,    // Waiting for I/O/event
    PROCESS_STATE_TERMINATED  // Finished execution
} process_state_t;

/* Saved CPU context - matches stack layout from interrupt */
typedef struct {
    /* Pushed by 'pusha' */
    uint32_t edi, esi, ebp, esp_dummy, ebx, edx, ecx, eax;

    /* Pushed by interrupt stub */
    uint32_t int_no, err_code;

    /* Pushed by CPU on interrupt */
    uint32_t eip, cs, eflags, user_esp, user_ss;
} cpu_context_t;

/* Process Control Block */
typedef struct pcb {
    /* Process identification */
    uint32_t pid;             // Unique process ID
    uint32_t parent_pid;      // Parent process ID
    char name[32];            // Process name (for debugging)

    /* Process state */
    process_state_t state;
    int exit_code;            // Exit status (when terminated)

    /* Memory management */
    uint32_t* page_directory; // Virtual address space
    uint32_t kernel_stack;    // Top of kernel stack
    uint32_t user_stack;      // Top of user stack

    /* CPU context saved during switch */
    uint32_t esp;             // Stack pointer (to saved context)
    uint32_t ebp;             // Base pointer
    uint32_t eip;             // Instruction pointer

    /* Scheduling */
    uint32_t priority;        // Higher = more important
    uint32_t time_slice;      // Remaining time in milliseconds
    uint32_t total_time;      // Total CPU time used

    /* File descriptors (simplified) */
    void* files[16];          // Open file handles

    /* Linked list for scheduler queues */
    struct pcb* next;
    struct pcb* prev;
} pcb_t;

/* Process management globals */
extern pcb_t* current_process;  // Currently running process
extern pcb_t* ready_queue;      // List of ready processes
extern uint32_t next_pid;       // Next available PID

/* Process management functions */
pcb_t* process_create(const char* name, void* entry_point, uint32_t priority);
void process_destroy(pcb_t* process);
void process_yield(void);
void process_block(process_state_t reason);
void process_unblock(pcb_t* process);

/* Context switching */
extern void switch_context(uint32_t* old_esp, uint32_t new_esp);

#endif /* PROCESS_H */

Switch Implementation

The actual context switch is elegant: save the current stack pointer, load the new one, and return. Since the return address and all registers are on the stack, we seamlessly resume the new process.

; switch.asm - Low-level context switch
; void switch_context(uint32_t* old_esp, uint32_t new_esp)
;
; Parameters:
;   old_esp: Pointer to where to save current ESP
;   new_esp: The ESP value to switch to

global switch_context
section .text

switch_context:
    ; ========================================
    ; PHASE 1: Save current process context
    ; ========================================

    ; Save callee-saved registers (cdecl convention)
    push ebp
    push ebx
    push esi
    push edi

    ; Get pointer to old_esp (where to save)
    mov eax, [esp + 20]     ; old_esp is at esp+20 (after pushes)

    ; Save current stack pointer
    mov [eax], esp          ; *old_esp = current ESP

    ; ========================================
    ; PHASE 2: Load new process context
    ; ========================================

    ; Get new stack pointer
    mov esp, [esp + 24]     ; new_esp is at esp+24

    ; Restore callee-saved registers from new stack
    pop edi
    pop esi
    pop ebx
    pop ebp

    ; Return pops EIP from new stack, continuing new process
    ret

The C wrapper and process management:

/* process.c - Process Management */

#include "process.h"
#include "pmm.h"
#include "vmm.h"
#include "heap.h"
#include "tss.h"
#include <string.h>

/* Globals */
pcb_t* current_process = NULL;
pcb_t* ready_queue = NULL;
uint32_t next_pid = 1;

/* Kernel stack size per process */
#define KERNEL_STACK_SIZE 4096

/* Create a new process */
pcb_t* process_create(const char* name, void* entry_point, uint32_t priority) {
    /* Allocate PCB */
    pcb_t* proc = (pcb_t*)kmalloc(sizeof(pcb_t));
    if (!proc) return NULL;

    memset(proc, 0, sizeof(pcb_t));

    /* Basic info */
    proc->pid = next_pid++;
    proc->parent_pid = current_process ? current_process->pid : 0;
    strncpy(proc->name, name, sizeof(proc->name) - 1);
    proc->state = PROCESS_STATE_NEW;
    proc->priority = priority;
    proc->time_slice = 100;  // 100ms default time slice

    /* Create address space (clone kernel mappings) */
    proc->page_directory = vmm_create_address_space();
    if (!proc->page_directory) {
        kfree(proc);
        return NULL;
    }

    /* Allocate kernel stack */
    proc->kernel_stack = (uint32_t)kmalloc(KERNEL_STACK_SIZE);
    if (!proc->kernel_stack) {
        vmm_destroy_address_space(proc->page_directory);
        kfree(proc);
        return NULL;
    }
    proc->kernel_stack += KERNEL_STACK_SIZE;  // Stack grows down

    /*
     * Set up initial stack frame
     * When switch_context runs, it will pop these and 'ret' to entry_point
     */
    uint32_t* stack = (uint32_t*)proc->kernel_stack;

    /* Create fake "saved" context on stack */
    *(--stack) = (uint32_t)entry_point;  // Return address (EIP)
    *(--stack) = 0;                       // EBP
    *(--stack) = 0;                       // EBX
    *(--stack) = 0;                       // ESI
    *(--stack) = 0;                       // EDI

    proc->esp = (uint32_t)stack;
    proc->state = PROCESS_STATE_READY;

    /* Add to ready queue */
    if (!ready_queue) {
        ready_queue = proc;
        proc->next = proc;  // Circular list
        proc->prev = proc;
    } else {
        proc->next = ready_queue;
        proc->prev = ready_queue->prev;
        ready_queue->prev->next = proc;
        ready_queue->prev = proc;
    }

    return proc;
}

/* Destroy a process and free resources */
void process_destroy(pcb_t* process) {
    /* Remove from scheduler queue */
    if (process->next == process) {
        /* Only process in queue */
        ready_queue = NULL;
    } else {
        process->prev->next = process->next;
        process->next->prev = process->prev;
        if (ready_queue == process) {
            ready_queue = process->next;
        }
    }

    /* Free resources */
    vmm_destroy_address_space(process->page_directory);
    kfree((void*)(process->kernel_stack - KERNEL_STACK_SIZE));
    kfree(process);
}

/* Voluntarily give up CPU */
void process_yield(void) {
    schedule();  // Pick next process
}

Simple Scheduler

The scheduler decides which process runs next. We'll implement a simple Round-Robin scheduler - each process gets equal time slices in rotation.

┌─────────────────────────────────────────────────────────────────┐
│                    ROUND-ROBIN SCHEDULING                        │
├─────────────────────────────────────────────────────────────────┤
│                                                                  │
│   Ready Queue (circular):                                        │
│                                                                  │
│   ┌─────┐    ┌─────┐    ┌─────┐    ┌─────┐                     │
│   │  A  │───▶│  B  │───▶│  C  │───▶│  D  │───┐                 │
│   └─────┘    └─────┘    └─────┘    └─────┘   │                 │
│       ▲                                      │                  │
│       └──────────────────────────────────────┘                  │
│                                                                  │
│   Timeline:                                                      │
│   ────────────────────────────────────────────────▶             │
│   │   A   │   B   │   C   │   D   │   A   │   B   │...         │
│   └───────┴───────┴───────┴───────┴───────┴───────┘             │
│    10ms    10ms    10ms    10ms    10ms    10ms                  │
│                                                                  │
│   Each process gets equal time quantum (time slice)             │
│   Timer interrupt triggers scheduler at end of quantum          │
│                                                                  │
└─────────────────────────────────────────────────────────────────┘

/* scheduler.c - Round-Robin Scheduler */

#include "process.h"
#include "tss.h"

/* Time slice duration in timer ticks */
#define TIME_QUANTUM_TICKS 10  // ~10ms with 1000Hz timer

static uint32_t ticks_remaining = TIME_QUANTUM_TICKS;

/*
 * Called from timer interrupt handler
 * Decrements time slice and triggers schedule when expired
 */
void scheduler_tick(void) {
    if (current_process == NULL) return;

    ticks_remaining--;
    current_process->total_time++;

    if (ticks_remaining == 0) {
        ticks_remaining = TIME_QUANTUM_TICKS;
        schedule();  // Time's up, switch process
    }
}

/*
 * Pick next process and switch to it
 * Called from:
 *   - Timer interrupt (preemption)
 *   - process_yield() (voluntary)
 *   - process_block() (waiting for I/O)
 */
void schedule(void) {
    if (!current_process || !ready_queue) return;

    pcb_t* old = current_process;
    pcb_t* next = NULL;

    /* Round-Robin: pick next in circular queue */
    if (old->state == PROCESS_STATE_RUNNING) {
        old->state = PROCESS_STATE_READY;
        next = old->next;
    } else {
        /* Old process blocked, skip it */
        next = ready_queue;
    }

    /* Find a READY process */
    pcb_t* start = next;
    do {
        if (next->state == PROCESS_STATE_READY) {
            break;
        }
        next = next->next;
    } while (next != start);

    /* No ready processes? Should not happen (idle process) */
    if (next->state != PROCESS_STATE_READY) {
        return;  // Keep running current or halt
    }

    next->state = PROCESS_STATE_RUNNING;
    current_process = next;
    ticks_remaining = TIME_QUANTUM_TICKS;

    /* Update TSS with new kernel stack */
    tss_set_kernel_stack(next->kernel_stack);

    /* Switch page directory (address space) */
    asm volatile("mov %0, %%cr3" : : "r"(next->page_directory));

    /* Perform the actual context switch */
    switch_context(&old->esp, next->esp);
}

/* Block current process (e.g., waiting for I/O) */
void process_block(process_state_t reason) {
    current_process->state = reason;
    schedule();
}

/* Unblock a process (e.g., I/O complete) */
void process_unblock(pcb_t* process) {
    process->state = PROCESS_STATE_READY;
    /* If higher priority, might want to reschedule immediately */
}

┌─────────────────────────────────────────────────────────────────┐
│            TIMER INTERRUPT → CONTEXT SWITCH                      │
├─────────────────────────────────────────────────────────────────┤
│                                                                  │
│   Process A running                                              │
│   │                                                              │
│   │  ┌───────────────────────┐                                  │
│   │  │  add eax, ebx        │  ← Executing user code            │
│   │  │  mov [esi], eax      │                                   │
│   └──│  ...                 │                                   │
│      └───────────┬──────────┘                                   │
│                  │                                               │
│   TIMER IRQ!     ▼                                               │
│   ┌──────────────────────────────────┐                          │
│   │ 1. CPU pushes SS,ESP,EFLAGS,CS,EIP│  (onto kernel stack)    │
│   │ 2. CPU switches to Ring 0        │                          │
│   │ 3. CPU jumps to IDT[32] handler  │                          │
│   └──────────────────────────────────┘                          │
│                  │                                               │
│                  ▼                                               │
│   ┌──────────────────────────────────┐                          │
│   │ timer_handler:                   │                          │
│   │   pusha                          │  Save all registers      │
│   │   call scheduler_tick            │  Check time slice        │
│   │     → calls schedule()           │  (if expired)            │
│   │       → switch_context()         │  MAGIC HAPPENS HERE      │
│   │                                  │                          │
│   │ Stack now belongs to Process B!  │                          │
│   │   popa                           │  Restore B's registers   │
│   │   iret                           │  Return to Process B     │
│   └──────────────────────────────────┘                          │
│                  │                                               │
│   Process B resuming                                             │
│   │  ┌───────────────────────┐                                  │
│   │  │  xor ecx, ecx        │  ← Process B continues            │
│   └──│  call printf         │    as if nothing happened         │
│      └──────────────────────┘                                   │
│                                                                  │
└─────────────────────────────────────────────────────────────────┘

System Calls

User programs run in Ring 3 with limited privileges - they can't access hardware or kernel memory directly. When a user program needs to read a file, allocate memory, or communicate with the network, it must ask the kernel. System calls are the controlled gateway between user space and kernel space.

┌─────────────────────────────────────────────────────────────────┐
│                    SYSTEM CALL MECHANISM                         │
├─────────────────────────────────────────────────────────────────┤
│                                                                  │
│   USER SPACE (Ring 3)                                           │
│   ┌───────────────────────────────────────────────────────────┐ │
│   │  Application Code                                         │ │
│   │  ──────────────────                                       │ │
│   │  int fd = open("file.txt", O_RDONLY);                    │ │
│   │              │                                            │ │
│   │              ▼                                            │ │
│   │  ┌──────────────────────────────────────────┐            │ │
│   │  │  C Library Wrapper (libc)                │            │ │
│   │  │  ────────────────────────                │            │ │
│   │  │  int open(const char* path, int flags) { │            │ │
│   │  │      return syscall(SYS_OPEN, path, flags);│           │ │
│   │  │  }                                       │            │ │
│   │  └─────────────────────┬────────────────────┘            │ │
│   └────────────────────────│────────────────────────────────┬─┘ │
│   ═════════════════════════│════════════════════════════════│═══ │
│   ┌────────────────────────│────────────────────────────────│─┐ │
│   │                        │  int 0x80                      │ │ │
│   │                        │  or SYSCALL instruction        │ │ │
│   │                        ▼                                │ │ │
│   │  ┌──────────────────────────────────────────┐         │ │ │
│   │  │  Kernel Syscall Handler                  │         │ │ │
│   │  │  ────────────────────────                │         │ │ │
│   │  │  1. Validate arguments (pointers, etc.)  │         │ │ │
│   │  │  2. Execute kernel function              │         │ │ │
│   │  │  3. Return result to user               │         │ │ │
│   │  └──────────────────────────────────────────┘         │ │ │
│   │                                                       │ │ │
│   │  KERNEL SPACE (Ring 0)                               │ │ │
│   └───────────────────────────────────────────────────────┘ │ │
│                                                              │ │
└──────────────────────────────────────────────────────────────┘ │
                                                                  │
   Returns result via EAX register ◀──────────────────────────────┘

System Call Design

We'll use the traditional x86 approach: software interrupt int 0x80. Parameters are passed in registers, and the return value comes back in EAX.

/* syscall.h - System Call Definitions */

#ifndef SYSCALL_H
#define SYSCALL_H

/* System call numbers - keep in sync with user-space headers */
#define SYS_EXIT        0
#define SYS_FORK        1
#define SYS_READ        2
#define SYS_WRITE       3
#define SYS_OPEN        4
#define SYS_CLOSE       5
#define SYS_WAITPID     6
#define SYS_EXEC        7
#define SYS_GETPID      8
#define SYS_SBRK        9   // Heap memory allocation
#define SYS_SLEEP       10
#define SYS_YIELD       11

#define NUM_SYSCALLS    12

/* Error codes (negative return values) */
#define ENOENT          -2   // No such file or directory
#define ENOMEM          -12  // Out of memory
#define EINVAL          -22  // Invalid argument
#define ENOSYS          -38  // Function not implemented

/* Initialize system call handler */
void syscall_init(void);

#endif /* SYSCALL_H */

Handler Implementation

The syscall handler is triggered by int 0x80. It looks up the requested system call in a table and executes the corresponding kernel function.

/* syscall.c - System Call Handler */

#include "syscall.h"
#include "isr.h"
#include "process.h"
#include "vfs.h"
#include "heap.h"
#include <string.h>

/* Forward declarations of syscall handlers */
static int sys_exit(int status);
static int sys_fork(registers_t* regs);
static int sys_read(int fd, void* buf, size_t count);
static int sys_write(int fd, const void* buf, size_t count);
static int sys_open(const char* path, int flags);
static int sys_close(int fd);
static int sys_waitpid(int pid, int* status, int options);
static int sys_exec(const char* path, char* const argv[]);
static int sys_getpid(void);
static void* sys_sbrk(intptr_t increment);
static int sys_sleep(unsigned int seconds);
static int sys_yield(void);

/* Syscall function pointer type */
typedef int (*syscall_handler_t)(void);

/* System call table */
static void* syscall_handlers[NUM_SYSCALLS] = {
    [SYS_EXIT]    = sys_exit,
    [SYS_FORK]    = sys_fork,
    [SYS_READ]    = sys_read,
    [SYS_WRITE]   = sys_write,
    [SYS_OPEN]    = sys_open,
    [SYS_CLOSE]   = sys_close,
    [SYS_WAITPID] = sys_waitpid,
    [SYS_EXEC]    = sys_exec,
    [SYS_GETPID]  = sys_getpid,
    [SYS_SBRK]    = sys_sbrk,
    [SYS_SLEEP]   = sys_sleep,
    [SYS_YIELD]   = sys_yield,
};

/* Main system call dispatcher */
static void syscall_handler(registers_t* regs) {
    /* Syscall number in EAX */
    uint32_t syscall_num = regs->eax;

    /* Validate syscall number */
    if (syscall_num >= NUM_SYSCALLS || !syscall_handlers[syscall_num]) {
        regs->eax = ENOSYS;  // Function not implemented
        return;
    }

    /* Get arguments from registers */
    uint32_t arg1 = regs->ebx;
    uint32_t arg2 = regs->ecx;
    uint32_t arg3 = regs->edx;
    uint32_t arg4 = regs->esi;
    uint32_t arg5 = regs->edi;

    /* Call the handler - different syscalls take different args */
    int result;

    switch (syscall_num) {
        case SYS_EXIT:
            result = sys_exit(arg1);
            break;
        case SYS_FORK:
            result = sys_fork(regs);  // Needs full register state
            break;
        case SYS_READ:
            result = sys_read(arg1, (void*)arg2, arg3);
            break;
        case SYS_WRITE:
            result = sys_write(arg1, (void*)arg2, arg3);
            break;
        case SYS_OPEN:
            result = sys_open((char*)arg1, arg2);
            break;
        case SYS_CLOSE:
            result = sys_close(arg1);
            break;
        case SYS_WAITPID:
            result = sys_waitpid(arg1, (int*)arg2, arg3);
            break;
        case SYS_EXEC:
            result = sys_exec((char*)arg1, (char**)arg2);
            break;
        case SYS_GETPID:
            result = sys_getpid();
            break;
        case SYS_SBRK:
            result = (int)sys_sbrk((intptr_t)arg1);
            break;
        case SYS_SLEEP:
            result = sys_sleep(arg1);
            break;
        case SYS_YIELD:
            result = sys_yield();
            break;
        default:
            result = ENOSYS;
    }

    /* Return value goes in EAX */
    regs->eax = result;
}

/* Install syscall handler */
void syscall_init(void) {
    /*
     * Register int 0x80 handler
     * DPL = 3 so user code can trigger it
     * Type = Trap gate (0xEE) - interrupts stay enabled
     */
    idt_set_gate(0x80, (uint32_t)syscall_stub, 0x08, 0xEE);
}

/*
 * Syscall stub in assembly (in isr.asm)
 * Pushes registers, calls syscall_handler, pops registers, iret
 */

Assembly stub for the syscall entry point:

; syscall_stub in isr.asm
global syscall_stub
extern syscall_handler

syscall_stub:
    ; Save all registers
    pusha
    push ds
    push es
    push fs
    push gs

    ; Load kernel data segment
    mov ax, 0x10
    mov ds, ax
    mov es, ax
    mov fs, ax
    mov gs, ax

    ; Pass pointer to saved registers
    push esp
    call syscall_handler
    add esp, 4

    ; Restore segments
    pop gs
    pop fs
    pop es
    pop ds

    ; Restore registers (EAX modified by handler = return value)
    popa

    ; Return to user mode
    iret

static int validate_user_ptr(void* ptr, size_t size) {
    // Check pointer is in user address range
    if ((uint32_t)ptr < USER_SPACE_START ||
        (uint32_t)ptr + size > USER_SPACE_END) {
        return 0;  // Invalid
    }
    return 1;  // OK
}

Implementing Key System Calls

/* Process-related syscalls */

static int sys_exit(int status) {
    current_process->state = PROCESS_STATE_TERMINATED;
    current_process->exit_code = status;

    /* Wake up parent if it's waiting */
    // TODO: Implement waitpid wakeup

    /* Switch to another process */
    schedule();

    /* Never returns */
    return 0;
}

static int sys_getpid(void) {
    return current_process->pid;
}

static int sys_yield(void) {
    schedule();
    return 0;
}

/* File I/O syscalls */

static int sys_write(int fd, const void* buf, size_t count) {
    /* Validate buffer */
    if (!validate_user_ptr((void*)buf, count)) {
        return EINVAL;
    }

    /* Special case: stdout (fd=1) and stderr (fd=2) */
    if (fd == 1 || fd == 2) {
        /* Write to console */
        const char* str = (const char*)buf;
        for (size_t i = 0; i < count; i++) {
            terminal_putchar(str[i]);
        }
        return count;
    }

    /* Regular file */
    vfs_node_t* node = current_process->files[fd];
    if (!node) return EINVAL;

    return vfs_write(node, 0, count, (uint8_t*)buf);
}

static int sys_read(int fd, void* buf, size_t count) {
    if (!validate_user_ptr(buf, count)) {
        return EINVAL;
    }

    /* Special case: stdin (fd=0) */
    if (fd == 0) {
        /* Read from keyboard buffer */
        char* str = (char*)buf;
        for (size_t i = 0; i < count; i++) {
            str[i] = keyboard_getchar();  // May block
            if (str[i] == '\n') {
                return i + 1;
            }
        }
        return count;
    }

    vfs_node_t* node = current_process->files[fd];
    if (!node) return EINVAL;

    return vfs_read(node, 0, count, (uint8_t*)buf);
}

/* Memory syscall */
static void* sys_sbrk(intptr_t increment) {
    /* Adjust process heap */
    // Simplified: just allocate from kernel heap for now
    if (increment > 0) {
        return kmalloc(increment);
    }
    return (void*)-1;  // Error
}

User-Space API

User programs need a clean interface to make system calls. We provide wrapper functions that set up registers and execute int 0x80.

/* user/syscall.h - User-space syscall wrappers */

#ifndef _USER_SYSCALL_H
#define _USER_SYSCALL_H

/* System call numbers (must match kernel) */
#define SYS_EXIT    0
#define SYS_FORK    1
#define SYS_READ    2
#define SYS_WRITE   3
#define SYS_OPEN    4
#define SYS_CLOSE   5
#define SYS_GETPID  8
#define SYS_YIELD   11

/* Generic syscall macros */

static inline int syscall0(int num) {
    int ret;
    asm volatile(
        "int $0x80"
        : "=a"(ret)
        : "a"(num)
        : "memory"
    );
    return ret;
}

static inline int syscall1(int num, int arg1) {
    int ret;
    asm volatile(
        "int $0x80"
        : "=a"(ret)
        : "a"(num), "b"(arg1)
        : "memory"
    );
    return ret;
}

static inline int syscall2(int num, int arg1, int arg2) {
    int ret;
    asm volatile(
        "int $0x80"
        : "=a"(ret)
        : "a"(num), "b"(arg1), "c"(arg2)
        : "memory"
    );
    return ret;
}

static inline int syscall3(int num, int arg1, int arg2, int arg3) {
    int ret;
    asm volatile(
        "int $0x80"
        : "=a"(ret)
        : "a"(num), "b"(arg1), "c"(arg2), "d"(arg3)
        : "memory"
    );
    return ret;
}

/* User-friendly wrappers */

static inline void exit(int status) {
    syscall1(SYS_EXIT, status);
    while (1) {}  // Should never return
}

static inline int getpid(void) {
    return syscall0(SYS_GETPID);
}

static inline int write(int fd, const void* buf, int count) {
    return syscall3(SYS_WRITE, fd, (int)buf, count);
}

static inline int read(int fd, void* buf, int count) {
    return syscall3(SYS_READ, fd, (int)buf, count);
}

static inline void yield(void) {
    syscall0(SYS_YIELD);
}

/* Simple printf for user space */
static inline void puts(const char* str) {
    int len = 0;
    while (str[len]) len++;
    write(1, str, len);
}

#endif /* _USER_SYSCALL_H */

/* user/hello.c - Simple user program */

#include "syscall.h"

void _start(void) {
    /* This runs in Ring 3! */

    int pid = getpid();

    puts("Hello from user space!\n");
    puts("My PID is: ");

    /* Simple number printing */
    char buf[16];
    int i = 0;
    int tmp = pid;
    do {
        buf[i++] = '0' + (tmp % 10);
        tmp /= 10;
    } while (tmp > 0);

    /* Reverse */
    for (int j = 0; j < i / 2; j++) {
        char t = buf[j];
        buf[j] = buf[i - 1 - j];
        buf[i - 1 - j] = t;
    }
    buf[i++] = '\n';

    write(1, buf, i);

    /* Exit cleanly */
    exit(0);
}

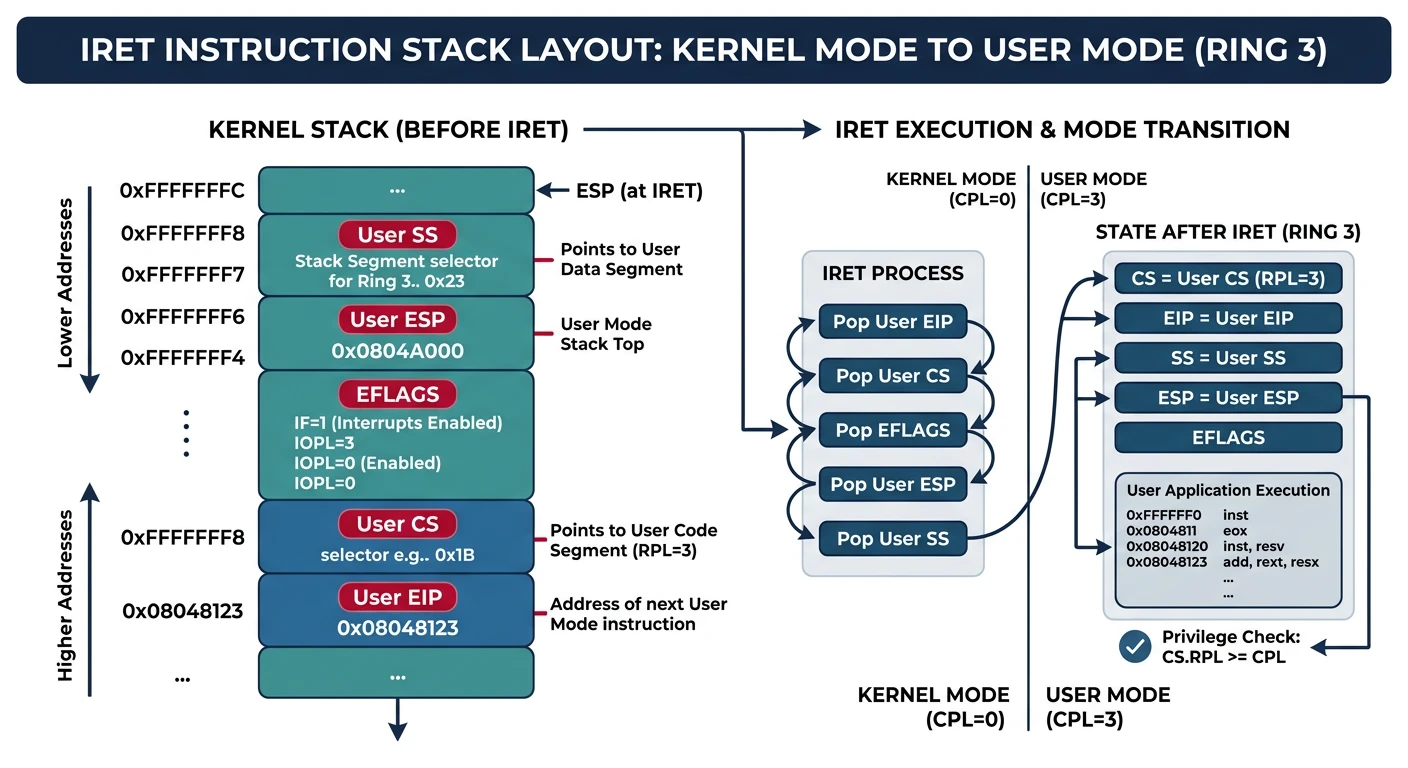

Entering User Mode

The final piece of the process puzzle: actually running user code in Ring 3. This requires careful setup of the GDT user segments, proper stack preparation, and using iret to make the privilege transition.

┌─────────────────────────────────────────────────────────────────┐
│                 ENTERING USER MODE (Ring 3)                      │
├─────────────────────────────────────────────────────────────────┤
│                                                                  │
│   KERNEL (Ring 0)                                               │
│   ┌─────────────────────────────────────────────────────────┐   │
│   │  1. Allocate user stack (at 0x7FFFF000)                 │   │
│   │  2. Load program into user address space                │   │
│   │  3. Set up stack for IRET "return to user"              │   │
│   │                                                         │   │
│   │  Stack Layout for IRET:                                 │   │
│   │  ┌─────────────────┐ ← Current ESP                     │   │
│   │  │   User SS       │ (0x23 - user data + RPL 3)        │   │
│   │  ├─────────────────┤                                    │   │
│   │  │   User ESP      │ (0x7FFFFFF0 - top of user stack)  │   │
│   │  ├─────────────────┤                                    │   │
│   │  │   EFLAGS        │ (0x202 - IF set for interrupts)   │   │
│   │  ├─────────────────┤                                    │   │
│   │  │   User CS       │ (0x1B - user code + RPL 3)        │   │
│   │  ├─────────────────┤                                    │   │
│   │  │   User EIP      │ (entry point of user program)     │   │
│   │  └─────────────────┘                                    │   │
│   │                                                         │   │
│   │  4. Execute IRET instruction                            │   │
│   └─────────────────────────────────────────────────────────┘   │
│                          │                                      │
│                          │ IRET pops all 5 values              │
│                          │ CPU switches to Ring 3              │
│                          ▼                                      │
│   USER (Ring 3)                                                 │
│   ┌─────────────────────────────────────────────────────────┐   │
│   │  User program now executing!                            │   │
│   │  - Cannot access kernel memory                          │   │
│   │  - Cannot execute privileged instructions               │   │
│   │  - Must use syscalls for kernel services                │   │
│   └─────────────────────────────────────────────────────────┘   │
│                                                                  │
└─────────────────────────────────────────────────────────────────┘

Ring 3 Setup

Before we can enter user mode, we need to set up the user address space with proper page mappings and ensure our GDT has user-accessible segments.

/* user_mode.c - Entering User Mode */

#include "process.h"
#include "vmm.h"
#include "tss.h"
#include <stdint.h>

/* User address space layout */
#define USER_STACK_TOP      0x7FFFFFF0   // Just below 2GB
#define USER_STACK_SIZE     0x10000      // 64KB stack
#define USER_STACK_BOTTOM   (USER_STACK_TOP - USER_STACK_SIZE + 16)
#define USER_CODE_START     0x08000000   // 128MB mark
#define USER_HEAP_START     0x10000000   // 256MB mark

/* Segment selectors with RPL 3 */
#define USER_CODE_SELECTOR  0x1B  // GDT[3] (0x18) | RPL 3
#define USER_DATA_SELECTOR  0x23  // GDT[4] (0x20) | RPL 3

/* Setup user address space */
int setup_user_space(pcb_t* proc) {
    /* Create a new page directory (clones kernel mappings) */
    proc->page_directory = vmm_create_address_space();
    if (!proc->page_directory) return -1;

    /* Allocate and map user stack pages */
    for (uint32_t addr = USER_STACK_BOTTOM; addr < USER_STACK_TOP; addr += PAGE_SIZE) {
        /* Allocate physical page */
        uint32_t phys = pmm_alloc_page();
        if (!phys) return -1;

        /* Map with USER access */
        vmm_map_page(proc->page_directory, addr, phys,
                     PAGE_PRESENT | PAGE_RW | PAGE_USER);
    }

    proc->user_stack = USER_STACK_TOP;

    return 0;
}

/*
 * Jump to user mode
 *
 * This is the magic transition from Ring 0 to Ring 3.
 * We use IRET which pops: EIP, CS, EFLAGS, ESP, SS
 * By setting up the stack correctly, we "return" to user code.
 */
void enter_user_mode(uint32_t entry_point, uint32_t user_stack) {
    /* Update TSS with kernel stack for this process */
    tss_set_kernel_stack(current_process->kernel_stack);

    /*
     * Critical: Set up data segments BEFORE iret
     * After iret, we'll be in Ring 3 and can't access Ring 0 segments
     */
    asm volatile(
        "cli\n"                    // Disable interrupts during transition

        /* Load user data segment into DS, ES, FS, GS */
        "mov $0x23, %%ax\n"        // USER_DATA_SELECTOR (0x20 | RPL 3)
        "mov %%ax, %%ds\n"
        "mov %%ax, %%es\n"
        "mov %%ax, %%fs\n"
        "mov %%ax, %%gs\n"

        /* Build IRET stack frame */
        "push $0x23\n"             // User SS (data segment)
        "push %0\n"                // User ESP (stack pointer)

        /* Push EFLAGS with IF (interrupt flag) set */
        "pushf\n"                  // Push current flags
        "pop %%eax\n"              // Get into EAX
        "or $0x200, %%eax\n"       // Set IF bit (enable interrupts)
        "push %%eax\n"             // Push modified flags

        "push $0x1B\n"             // User CS (code segment)
        "push %1\n"                // User EIP (entry point)

        /* IRET pops: EIP, CS, EFLAGS, ESP, SS */
        "iret\n"
        :
        : "r"(user_stack), "r"(entry_point)
        : "eax", "memory"
    );

    /* Should never reach here */
    __builtin_unreachable();
}

Address Space Layout

┌─────────────────────────────────────────────────────────────────┐
│              USER PROCESS ADDRESS SPACE                          │
├─────────────────────────────────────────────────────────────────┤
│                                                                  │
│  0xFFFFFFFF ┌──────────────────────────────────────────────┐    │
│             │            KERNEL SPACE                       │    │
│             │    (Mapped but NOT accessible from Ring 3)   │    │
│             │    Page table entries: no USER flag          │    │
│  0xC0000000 ├──────────────────────────────────────────────┤    │
│             │                                              │    │
│             │     (Unmapped - will fault if accessed)      │    │
│             │                                              │    │
│  0x7FFFFFFF ├──────────────────────────────────────────────┤    │
│             │            USER STACK                        │    │
│             │         ↓ grows downward                     │    │
│  0x7FFF0000 │            (64KB)                            │    │
│             ├──────────────────────────────────────────────┤    │
│             │                                              │    │
│             │     (Available for memory mapping)           │    │
│             │                                              │    │
│  0x10000000 ├──────────────────────────────────────────────┤    │
│             │            USER HEAP                         │    │
│             │         ↑ grows upward                       │    │
│             │        (dynamic, via sbrk)                   │    │
│             ├──────────────────────────────────────────────┤    │
│             │            USER BSS                          │    │
│             │      (Uninitialized global data)             │    │
│             ├──────────────────────────────────────────────┤    │
│             │            USER DATA                         │    │
│             │      (Initialized global data)               │    │
│             ├──────────────────────────────────────────────┤    │
│  0x08000000 │            USER TEXT                         │    │
│             │      (Code - executable, read-only)          │    │
│             │         ← Entry point here                  │    │
│             ├──────────────────────────────────────────────┤    │
│  0x00001000 │     (Reserved - catches NULL pointers)       │    │
│  0x00000000 └──────────────────────────────────────────────┘    │
│                                                                  │
└─────────────────────────────────────────────────────────────────┘

First User Process

Let's put it all together and launch our first user-mode process:

/* init.c - Create and run the first user process */

#include "process.h"
#include "vmm.h"
#include "elf.h"  // We'll implement this in Phase 9

/*
 * For now, we'll embed a simple test program directly in memory.
 * In Phase 9, we'll load proper ELF executables from disk.
 */

/* Simple user program bytecode (assembled) */
static uint8_t user_program[] = {
    /* _start: */
    /* mov eax, 8         ; SYS_GETPID */
    0xB8, 0x08, 0x00, 0x00, 0x00,
    /* int 0x80           ; syscall */
    0xCD, 0x80,

    /* ; Print "Hello!\n" */
    /* mov eax, 3         ; SYS_WRITE */
    0xB8, 0x03, 0x00, 0x00, 0x00,
    /* mov ebx, 1         ; fd = stdout */
    0xBB, 0x01, 0x00, 0x00, 0x00,
    /* mov ecx, msg       ; buffer (we'll patch this) */
    0xB9, 0x30, 0x00, 0x00, 0x08,  // 0x08000030
    /* mov edx, 7         ; length */
    0xBA, 0x07, 0x00, 0x00, 0x00,
    /* int 0x80 */
    0xCD, 0x80,

    /* ; exit(0) */
    /* mov eax, 0         ; SYS_EXIT */
    0xB8, 0x00, 0x00, 0x00, 0x00,
    /* xor ebx, ebx       ; status = 0 */
    0x31, 0xDB,
    /* int 0x80 */
    0xCD, 0x80,

    /* ; loop forever (should never reach) */
    /* jmp $ */
    0xEB, 0xFE,

    /* msg: "Hello!\n" (at offset 0x30) */
    /* padding to align */
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x48, 0x65, 0x6C, 0x6C, 0x6F, 0x21, 0x0A, 0x00  // "Hello!\n\0"
};

/* Create the init process (PID 1) */
void create_init_process(void) {
    /* Create process structure */
    pcb_t* init = (pcb_t*)kmalloc(sizeof(pcb_t));
    memset(init, 0, sizeof(pcb_t));

    init->pid = 1;
    init->parent_pid = 0;  // No parent (we are the first!)
    strcpy(init->name, "init");
    init->priority = 1;

    /* Set up address space */
    if (setup_user_space(init) < 0) {
        kprintf("Failed to create address space for init!\n");
        return;
    }

    /* Copy user program to user address space */
    uint32_t user_entry = USER_CODE_START;  // 0x08000000

    /* Map code pages */
    uint32_t code_pages = (sizeof(user_program) + PAGE_SIZE - 1) / PAGE_SIZE;
    for (uint32_t i = 0; i < code_pages; i++) {
        uint32_t virt = user_entry + i * PAGE_SIZE;
        uint32_t phys = pmm_alloc_page();
        vmm_map_page(init->page_directory, virt, phys,
                     PAGE_PRESENT | PAGE_USER);  // Read-only for code
    }

    /* Switch to init's address space temporarily to copy code */
    uint32_t old_cr3;
    asm volatile("mov %%cr3, %0" : "=r"(old_cr3));
    asm volatile("mov %0, %%cr3" : : "r"(init->page_directory));

    memcpy((void*)user_entry, user_program, sizeof(user_program));

    /* Switch back */
    asm volatile("mov %0, %%cr3" : : "r"(old_cr3));

    /* Allocate kernel stack */
    init->kernel_stack = (uint32_t)kmalloc(4096) + 4096;

    /* Mark as ready */
    init->state = PROCESS_STATE_READY;

    /* Add to scheduler */
    current_process = init;
    ready_queue = init;
    init->next = init;
    init->prev = init;

    kprintf("Created init process (PID %d)\n", init->pid);

    /* Jump to user mode! */
    kprintf("Entering user mode...\n");
    enter_user_mode(user_entry, init->user_stack);
}

/* Kernel entry point modification */
void kernel_main(void) {
    /* ... previous initialization ... */

    kprintf("Initializing TSS...\n");
    tss_init(get_stack_top());

    kprintf("Initializing syscalls...\n");
    syscall_init();

    kprintf("Creating init process...\n");
    create_init_process();

    /* Should never reach here if init runs correctly */
    kprintf("Init process returned? This shouldn't happen!\n");
    while (1) { asm volatile("hlt"); }
}

What You Can Build

Demonstration: Multitasking Demo

Create multiple processes that run "simultaneously" and display their activity:

/* demo_multitask.c - Demonstrate multitasking */

#include "process.h"
#include "terminal.h"

/* Task A: Prints 'A' periodically */
void task_a(void) {
    while (1) {
        terminal_putchar('A');
        /* Simple delay */
        for (volatile int i = 0; i < 1000000; i++);
    }
}

/* Task B: Prints 'B' periodically */
void task_b(void) {
    while (1) {
        terminal_putchar('B');
        for (volatile int i = 0; i < 1000000; i++);
    }
}

/* Task C: Counts and prints numbers */
void task_c(void) {
    int count = 0;
    while (1) {
        kprintf("%d ", count++);
        for (volatile int i = 0; i < 2000000; i++);
    }
}

void demo_multitasking(void) {
    kprintf("\n=== MULTITASKING DEMONSTRATION ===\n");
    kprintf("Watch A, B, and numbers interleave:\n\n");

    /* Create three tasks */
    process_create("task_a", task_a, 1);
    process_create("task_b", task_b, 1);
    process_create("task_c", task_c, 1);

    /* Enable timer interrupts to trigger scheduling */
    asm volatile("sti");

    /* The kernel becomes the idle task */
    while (1) {
        asm volatile("hlt");  // Sleep until next interrupt
    }
}

/*
 * Expected Output (interleaved):
 * === MULTITASKING DEMONSTRATION ===
 * Watch A, B, and numbers interleave:
 *
 * AABB0 1 ABAB2 3 BABA4 5 ABBA6 7 ...
 */

Process List Command

/* cmd_ps.c - Display running processes */

void cmd_ps(void) {
    kprintf("\n");
    kprintf("PID   STATE     PRIORITY  NAME\n");
    kprintf("───── ───────── ──────── ────────────────\n");

    pcb_t* proc = ready_queue;
    if (!proc) {
        kprintf("No processes!\n");
        return;
    }

    /* Traverse circular list */
    do {
        const char* state_str;
        switch (proc->state) {
            case PROCESS_STATE_RUNNING:
                state_str = "RUNNING  ";
                break;
            case PROCESS_STATE_READY:
                state_str = "READY    ";
                break;
            case PROCESS_STATE_BLOCKED:
                state_str = "BLOCKED  ";
                break;
            case PROCESS_STATE_TERMINATED:
                state_str = "ZOMBIE   ";
                break;
            default:
                state_str = "UNKNOWN  ";
        }

        kprintf("%5d %s %8d  %s%s\n",
                proc->pid,
                state_str,
                proc->priority,
                proc->name,
                (proc == current_process) ? " *" : "");

        proc = proc->next;
    } while (proc != ready_queue);

    kprintf("\n* = currently running\n");
}

/*
 * Sample output:
 *
 * PID   STATE     PRIORITY  NAME
 * ───── ───────── ──────── ────────────────
 *     1 RUNNING          1  init *
 *     2 READY            1  task_a
 *     3 READY            1  task_b
 *     4 BLOCKED          1  waiting_io
 *
 * * = currently running
 */

Kill Command

/* cmd_kill.c - Terminate a process */

void cmd_kill(int pid) {
    if (pid <= 0) {
        kprintf("Usage: kill <pid>\n");
        return;
    }

    /* Find process by PID */
    pcb_t* proc = ready_queue;
    do {
        if (proc->pid == pid) {
            if (proc == current_process) {
                kprintf("Cannot kill running process from itself!\n");
                return;
            }

            kprintf("Killing process %d (%s)...\n", pid, proc->name);

            proc->state = PROCESS_STATE_TERMINATED;
            proc->exit_code = -9;  // SIGKILL

            process_destroy(proc);
            kprintf("Process %d terminated.\n", pid);
            return;
        }
        proc = proc->next;
    } while (proc != ready_queue);

    kprintf("Process %d not found.\n", pid);
}

Exercises

/* Hint: Simple priority scheduling */
void schedule_priority(void) {
    pcb_t* highest = NULL;
    pcb_t* proc = ready_queue;

    /* Find highest priority READY process */
    do {
        if (proc->state == PROCESS_STATE_READY) {
            if (!highest || proc->priority > highest->priority) {
                highest = proc;
            }
        }
        proc = proc->next;
    } while (proc != ready_queue);

    if (highest) {
        /* Switch to it */
        // TODO: Implement the switch
    }
}

/* Challenge: Prevent starvation - low priority processes
 * must eventually run. Consider "aging" priorities. */

/* Hint: fork() implementation skeleton */
int sys_fork(registers_t* regs) {
    /* 1. Create new PCB */
    pcb_t* child = kmalloc(sizeof(pcb_t));
    memcpy(child, current_process, sizeof(pcb_t));
    child->pid = next_pid++;
    child->parent_pid = current_process->pid;

    /* 2. Clone address space (copy-on-write is advanced) */
    child->page_directory = clone_address_space(
        current_process->page_directory
    );

    /* 3. Create new kernel stack */
    child->kernel_stack = (uint32_t)kmalloc(4096) + 4096;

    /* 4. Copy current interrupt frame to child's stack */
    // The tricky part: child returns 0, parent returns child PID

    /* 5. Add child to scheduler */
    // ...

    /* Return child PID to parent */
    return child->pid;
}

/* Hint: waitpid() blocks parent until child exits */
int sys_waitpid(int pid, int* status, int options) {
    /* Find the child process */
    pcb_t* child = find_process(pid);
    if (!child || child->parent_pid != current_process->pid) {
        return -EINVAL;  // Not our child
    }

    /* If child already terminated, return immediately */
    if (child->state == PROCESS_STATE_TERMINATED) {
        if (status) {
            // Copy exit code to user space (validate pointer!)
            *status = child->exit_code;
        }
        process_destroy(child);  // Clean up zombie
        return pid;
    }

    /* Otherwise, block until child exits */
    current_process->state = PROCESS_STATE_BLOCKED;
    current_process->waiting_for = pid;  // Add this field to PCB
    schedule();

    /* When we wake up, child has exited */
    // ... retrieve status and clean up
}

/* user/shell.c - Minimal user-mode shell */

void _start(void) {
    char buf[256];
    int len;

    while (1) {
        /* Print prompt */
        write(1, "$ ", 2);

        /* Read command */
        len = read(0, buf, sizeof(buf) - 1);
        if (len <= 0) continue;
        buf[len] = '\0';

        /* Simple command parsing */
        if (strncmp(buf, "exit", 4) == 0) {
            exit(0);
        }
        else if (strncmp(buf, "echo ", 5) == 0) {
            write(1, buf + 5, len - 5);
            write(1, "\n", 1);
        }
        else if (strncmp(buf, "ps", 2) == 0) {
            /* Need a syscall for this! */
            syscall0(SYS_PS);
        }
        else {
            write(1, "Unknown command\n", 16);
        }
    }
}

Next Steps

Congratulations! You now have a true multitasking operating system. Processes can run in isolation, communicate with the kernel via system calls, and share the CPU fairly. But there's one big limitation: we're embedding programs directly in kernel code.

In Phase 9: ELF Loading & Executables, we'll learn to load real compiled programs from disk:

┌─────────────────────────────────────────────────────────────────┐
│                 PHASE 9 PREVIEW: ELF LOADING                     │
├─────────────────────────────────────────────────────────────────┤
│                                                                  │
│   Compiled Program (on disk)         Loaded in Memory           │
│   ┌────────────────────────┐        ┌─────────────────────┐     │
│   │     ELF Header         │        │                     │     │
│   │  ┌──────────────────┐  │        │  User Address Space │     │
│   │  │ e_ident (magic)  │  │        │                     │     │
│   │  │ e_type (EXEC)    │  │        │  ┌───────────────┐  │     │
│   │  │ e_machine (386)  │  │──────▶│  │ .text (code)  │  │     │
│   │  │ e_entry (start)  │  │        │  │  @ 0x08000000 │  │     │
│   │  └──────────────────┘  │        │  └───────────────┘  │     │
│   │                        │        │  ┌───────────────┐  │     │
│   │  Program Headers       │        │  │ .data         │  │     │
│   │  ┌──────────────────┐  │        │  │ .bss          │  │     │
│   │  │ PT_LOAD (text)   │  │──────▶│  │  @ 0x08100000 │  │     │
│   │  │ PT_LOAD (data)   │  │        │  └───────────────┘  │     │
│   │  │ PT_INTERP (ld)   │  │        │                     │     │
│   │  └──────────────────┘  │        │  ┌───────────────┐  │     │
│   │                        │        │  │ Stack         │  │     │
│   │  Section Data          │        │  │  @ 0x7FFF0000 │  │     │
│   │  ┌──────────────────┐  │        │  └───────────────┘  │     │
│   │  │ .text bytes...   │  │        │                     │     │
│   │  │ .data bytes...   │  │        │  Jump to e_entry!   │     │
│   │  │ .rodata bytes... │  │        └─────────────────────┘     │
│   │  └──────────────────┘  │                                    │
│   └────────────────────────┘                                    │
│                                                                  │
│   You'll be able to:                                            │
│   • Parse ELF headers and program headers                       │
│   • Allocate and map memory segments                            │
│   • Load code and data from file                                │
│   • Run real compiled C programs!                               │
│                                                                  │
└─────────────────────────────────────────────────────────────────┘

With processes and user mode complete, you have a foundation for a real operating system. Users can run multiple programs safely isolated from each other and from the kernel. Next, we'll add the ability to load and run actual executable files!
