Phase 7: Disk Access & Filesystems

ATA Disk Driver

ATA/IDE Overview

ATA (AT Attachment), also called IDE, is the classic interface for hard drives. Modern systems use SATA or NVMe, but ATA is simple to program and still supported in emulators—perfect for learning.

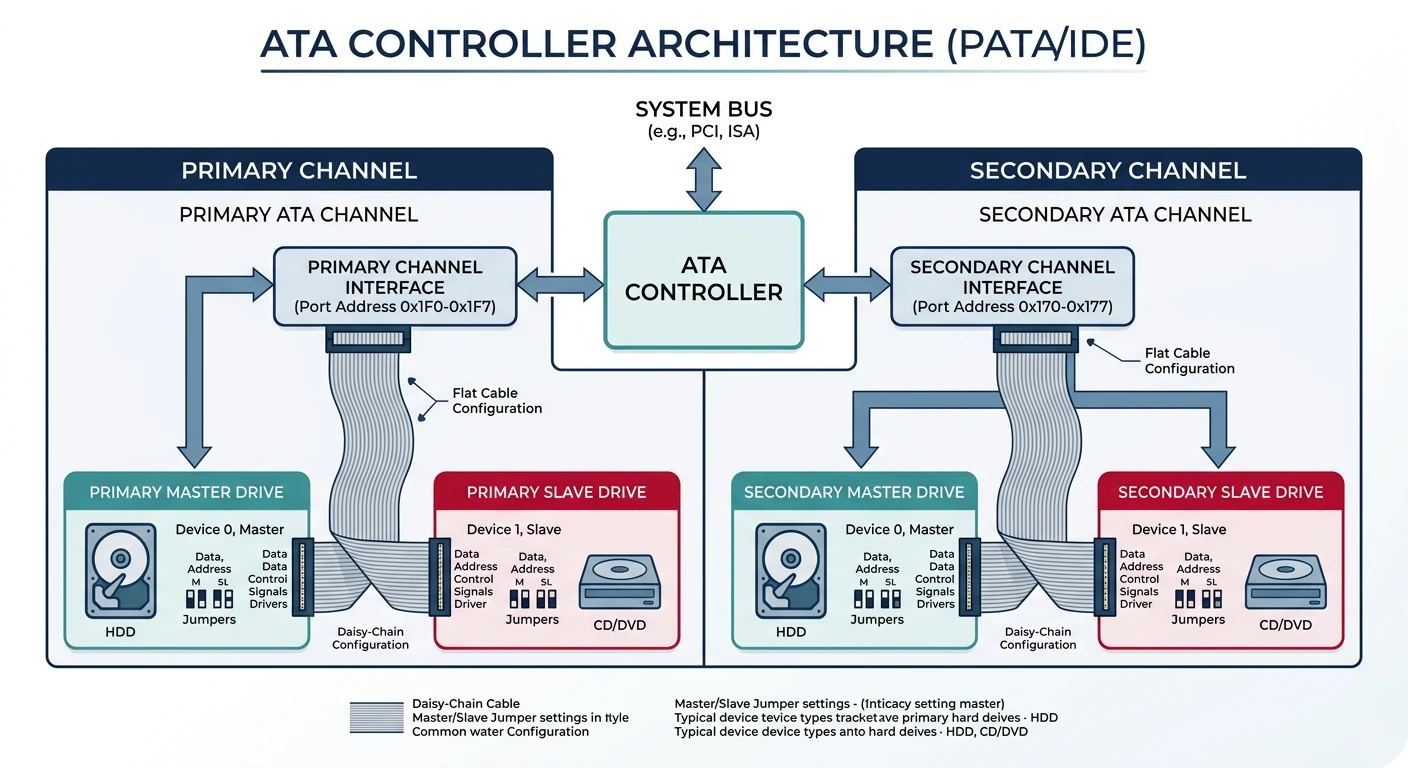

ATA CONTROLLER ARCHITECTURE
═══════════════════════════════════════════════════════════════

                    ┌─────────────────────────────────────┐
                    │          ATA Controller             │
                    │  (Usually on motherboard chipset)   │
                    └──────────────┬──────────────────────┘
                                   │
           ┌───────────────────────┼───────────────────────┐
           │                       │                       │
   ┌───────▼───────┐       ┌───────▼───────┐       Addresses:
   │   PRIMARY     │       │  SECONDARY    │
   │   CHANNEL     │       │   CHANNEL     │
   │   0x1F0-0x1F7 │       │   0x170-0x177 │
   │   IRQ 14      │       │   IRQ 15      │
   └───────┬───────┘       └───────┬───────┘
           │                       │
   ┌───────┴───────┐       ┌───────┴───────┐
   │               │       │               │
┌──▼──┐         ┌──▼──┐ ┌──▼──┐         ┌──▼──┐
│MASTER│        │SLAVE│ │MASTER│        │SLAVE│
│ hda │         │ hdb│ │ hdc │         │ hdd │
└─────┘         └─────┘ └─────┘         └─────┘

Total: Up to 4 drives (2 channels × 2 drives/channel)

ATA register ports:

PIO Mode

PIO (Programmed I/O) mode is the simplest way to transfer data: the CPU reads/writes each word directly. It's slow but requires no DMA setup—ideal for bootloaders and simple kernels.

/* ata.h - ATA PIO driver definitions */

#define ATA_PRIMARY_IO      0x1F0
#define ATA_PRIMARY_CTRL    0x3F6
#define ATA_SECONDARY_IO    0x170
#define ATA_SECONDARY_CTRL  0x376

/* ATA Commands */
#define ATA_CMD_READ_PIO        0x20
#define ATA_CMD_READ_PIO_EXT    0x24  /* 48-bit LBA */
#define ATA_CMD_WRITE_PIO       0x30
#define ATA_CMD_WRITE_PIO_EXT   0x34
#define ATA_CMD_CACHE_FLUSH     0xE7
#define ATA_CMD_IDENTIFY        0xEC

/* Status register bits */
#define ATA_SR_BSY      0x80    /* Busy */
#define ATA_SR_DRDY     0x40    /* Drive ready */
#define ATA_SR_DF       0x20    /* Drive fault */
#define ATA_SR_DSC      0x10    /* Drive seek complete */
#define ATA_SR_DRQ      0x08    /* Data request ready */
#define ATA_SR_CORR     0x04    /* Corrected data */
#define ATA_SR_IDX      0x02    /* Index */
#define ATA_SR_ERR      0x01    /* Error */

/* Drive/Head register bits */
#define ATA_DRIVE_MASTER    0x00
#define ATA_DRIVE_SLAVE     0x10
#define ATA_MODE_LBA        0xE0    /* LBA mode + bits 4-7 of LBA */

/* ata.c - ATA PIO read sector (complete implementation) */

#include "io.h"
#include "ata.h"

/**
 * Wait for drive to be ready (BSY clear)
 */
static void ata_wait_bsy(uint16_t io_base) {
    while (inb(io_base + 7) & ATA_SR_BSY);
}

/**
 * Wait for data to be ready (DRQ set)
 */
static void ata_wait_drq(uint16_t io_base) {
    while (!(inb(io_base + 7) & ATA_SR_DRQ));
}

/**
 * Check for drive errors
 * @return 0 if no error, error code otherwise
 */
static int ata_check_error(uint16_t io_base) {
    uint8_t status = inb(io_base + 7);
    if (status & ATA_SR_ERR) {
        return inb(io_base + 1);  /* Return error register */
    }
    if (status & ATA_SR_DF) {
        return -1;  /* Drive fault */
    }
    return 0;
}

/**
 * Read a single sector using PIO mode
 * @param lba     Logical block address (28-bit)
 * @param buffer  512-byte buffer for data
 */
void ata_read_sector(uint32_t lba, uint8_t* buffer) {
    uint16_t io_base = ATA_PRIMARY_IO;

    /* Wait for drive not busy */
    ata_wait_bsy(io_base);

    /* Select drive (master) and set LBA mode with bits 24-27 */
    outb(io_base + 6, ATA_MODE_LBA | ATA_DRIVE_MASTER |
                      ((lba >> 24) & 0x0F));

    /* Set sector count = 1 */
    outb(io_base + 2, 1);

    /* Set LBA address (bits 0-23) */
    outb(io_base + 3, lba & 0xFF);          /* LBA low */
    outb(io_base + 4, (lba >> 8) & 0xFF);   /* LBA mid */
    outb(io_base + 5, (lba >> 16) & 0xFF);  /* LBA high */

    /* Send READ SECTORS command */
    outb(io_base + 7, ATA_CMD_READ_PIO);

    /* Wait for data ready */
    ata_wait_drq(io_base);

    /* Check for errors */
    if (ata_check_error(io_base)) {
        kprintf("ATA: Read error at LBA %d\n", lba);
        return;
    }

    /* Read 256 words (512 bytes) */
    for (int i = 0; i < 256; i++) {
        uint16_t data = inw(io_base);         /* Read 16 bits */
        buffer[i * 2] = data & 0xFF;          /* Low byte */
        buffer[i * 2 + 1] = (data >> 8);      /* High byte */
    }
}

Read/Write Operations

For writing, the process is similar but we send data to the drive:

/**
 * Write a single sector using PIO mode
 * @param lba     Logical block address (28-bit)
 * @param buffer  512-byte buffer of data to write
 */
void ata_write_sector(uint32_t lba, const uint8_t* buffer) {
    uint16_t io_base = ATA_PRIMARY_IO;

    /* Wait for drive not busy */
    ata_wait_bsy(io_base);

    /* Select drive and set LBA mode */
    outb(io_base + 6, ATA_MODE_LBA | ATA_DRIVE_MASTER |
                      ((lba >> 24) & 0x0F));

    /* Set sector count = 1 */
    outb(io_base + 2, 1);

    /* Set LBA address */
    outb(io_base + 3, lba & 0xFF);
    outb(io_base + 4, (lba >> 8) & 0xFF);
    outb(io_base + 5, (lba >> 16) & 0xFF);

    /* Send WRITE SECTORS command */
    outb(io_base + 7, ATA_CMD_WRITE_PIO);

    /* Wait for drive ready to receive data */
    ata_wait_drq(io_base);

    /* Write 256 words (512 bytes) */
    for (int i = 0; i < 256; i++) {
        uint16_t data = buffer[i * 2] | (buffer[i * 2 + 1] << 8);
        outw(io_base, data);
    }

    /* Flush cache to ensure data is written */
    outb(io_base + 7, ATA_CMD_CACHE_FLUSH);
    ata_wait_bsy(io_base);
}

/**
 * Identify drive - get drive information
 * @param buffer  512-byte buffer for IDENTIFY data
 * @return 0 on success, -1 if no drive
 */
int ata_identify(uint8_t* buffer) {
    uint16_t io_base = ATA_PRIMARY_IO;

    /* Select master drive */
    outb(io_base + 6, ATA_MODE_LBA | ATA_DRIVE_MASTER);

    /* Zero out sector count and LBA registers */
    outb(io_base + 2, 0);
    outb(io_base + 3, 0);
    outb(io_base + 4, 0);
    outb(io_base + 5, 0);

    /* Send IDENTIFY command */
    outb(io_base + 7, ATA_CMD_IDENTIFY);

    /* Check if drive exists */
    if (inb(io_base + 7) == 0) {
        return -1;  /* No drive */
    }

    /* Wait for BSY to clear */
    ata_wait_bsy(io_base);

    /* Check for ATAPI or SATA by examining LBA mid/high */
    if (inb(io_base + 4) != 0 || inb(io_base + 5) != 0) {
        return -1;  /* Not ATA drive */
    }

    /* Wait for DRQ or error */
    while (1) {
        uint8_t status = inb(io_base + 7);
        if (status & ATA_SR_ERR) return -1;
        if (status & ATA_SR_DRQ) break;
    }

    /* Read IDENTIFY data */
    for (int i = 0; i < 256; i++) {
        uint16_t data = inw(io_base);
        buffer[i * 2] = data & 0xFF;
        buffer[i * 2 + 1] = (data >> 8);
    }

    return 0;
}

/**
 * Initialize ATA driver and detect drives
 */
void ata_init(void) {
    uint8_t identify[512];

    kprintf("ATA: Detecting drives...\n");

    if (ata_identify(identify) == 0) {
        /* Extract drive info from IDENTIFY data */
        uint32_t sectors = *(uint32_t*)&identify[120];  /* Total LBA28 sectors */
        uint32_t size_mb = sectors / 2048;              /* 512 bytes × 2048 = 1 MB */

        /* Model string is at offset 54, 40 bytes, swapped */
        char model[41];
        for (int i = 0; i < 40; i += 2) {
            model[i] = identify[54 + i + 1];
            model[i + 1] = identify[54 + i];
        }
        model[40] = '\0';

        kprintf("ATA: Primary Master: %s (%d MB)\n", model, size_mb);
    } else {
        kprintf("ATA: No drive detected on Primary Master\n");
    }
}

Partition Tables

Before filesystems, we need to understand how disks are divided. Partition tables split a physical disk into logical sections, each with its own filesystem.

MBR Partitions

The Master Boot Record (MBR) partitioning scheme dates back to IBM PC DOS. It lives in sector 0 and supports up to 4 primary partitions (or 3 primary + 1 extended with logical partitions inside).

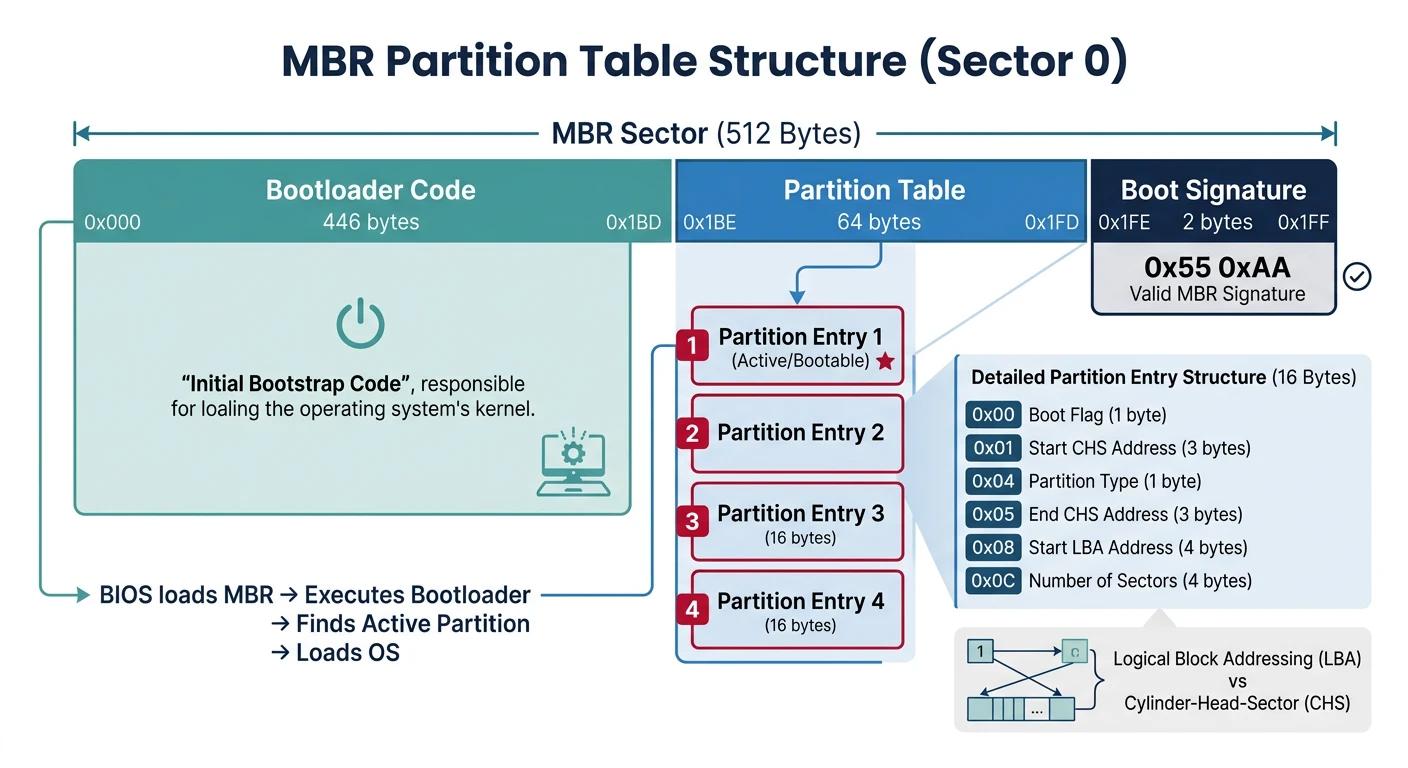

MBR STRUCTURE (SECTOR 0)
═══════════════════════════════════════════════════════════════

Offset   Size    Description
──────   ────    ────────────────────────────────
0x000    446     Bootloader code (Stage 1)
0x1BE    16      Partition Entry 1
0x1CE    16      Partition Entry 2
0x1DE    16      Partition Entry 3
0x1EE    16      Partition Entry 4
0x1FE    2       Boot signature (0x55, 0xAA)
──────   ────
         512 bytes total

PARTITION ENTRY (16 bytes each):
┌────────┬──────────────────────────────────────────┐
│ Offset │ Field                                    │
├────────┼──────────────────────────────────────────┤
│  0x00  │ Boot flag (0x80 = bootable)             │
│  0x01  │ Starting CHS (3 bytes) - legacy         │
│  0x04  │ Partition type (0x0B = FAT32, etc.)     │
│  0x05  │ Ending CHS (3 bytes) - legacy           │
│  0x08  │ Starting LBA (4 bytes) - USE THIS       │
│  0x0C  │ Sector count (4 bytes)                  │
└────────┴──────────────────────────────────────────┘

/* partition.h - MBR partition handling */

/* Common partition types */
#define PART_TYPE_EMPTY     0x00
#define PART_TYPE_FAT12     0x01
#define PART_TYPE_FAT16_S   0x04    /* <32 MB */
#define PART_TYPE_EXTENDED  0x05
#define PART_TYPE_FAT16_L   0x06    /* >32 MB */
#define PART_TYPE_NTFS      0x07
#define PART_TYPE_FAT32     0x0B
#define PART_TYPE_FAT32_LBA 0x0C
#define PART_TYPE_FAT16_LBA 0x0E
#define PART_TYPE_LINUX     0x83
#define PART_TYPE_LINUX_LVM 0x8E

typedef struct {
    uint8_t  boot_flag;
    uint8_t  start_chs[3];
    uint8_t  type;
    uint8_t  end_chs[3];
    uint32_t start_lba;
    uint32_t sector_count;
} __attribute__((packed)) partition_entry_t;

typedef struct {
    uint8_t bootcode[446];
    partition_entry_t partitions[4];
    uint16_t signature;
} __attribute__((packed)) mbr_t;

/**
 * Read and parse MBR
 */
int mbr_parse(block_device_t* dev) {
    uint8_t sector[512];

    if (dev->read(dev, 0, 1, sector) != 0) {
        return -1;
    }

    mbr_t* mbr = (mbr_t*)sector;

    /* Verify boot signature */
    if (mbr->signature != 0xAA55) {
        kprintf("MBR: Invalid signature\n");
        return -1;
    }

    kprintf("MBR: Found partition table\n");

    for (int i = 0; i < 4; i++) {
        partition_entry_t* p = &mbr->partitions[i];
        if (p->type != PART_TYPE_EMPTY) {
            kprintf("  Partition %d: type=0x%02X, start=%d, size=%d sectors\n",
                    i + 1, p->type, p->start_lba, p->sector_count);
        }
    }

    return 0;
}

GPT Partitions

GPT (GUID Partition Table) is the modern replacement for MBR, required for UEFI boot and disks > 2 TB. It uses GUIDs (128-bit identifiers) for partition types.

GPT LAYOUT
═══════════════════════════════════════════════════════════════

LBA 0:     Protective MBR (for legacy BIOS compatibility)
LBA 1:     Primary GPT Header
LBA 2-33:  Partition Entries (128 entries × 128 bytes = 16 KB)
           ...
           (Partition data)
           ...
LBA -33:   Backup Partition Entries
LBA -1:    Backup GPT Header

GPT HEADER (92 bytes):
┌─────────────────────────────────────────────────────────────┐
│ Signature: "EFI PART" (8 bytes)                            │
│ Revision: 0x00010000 (4 bytes)                             │
│ Header Size: 92 (4 bytes)                                  │
│ CRC32 of header (4 bytes)                                  │
│ Reserved (4 bytes)                                         │
│ Current LBA (8 bytes)                                      │
│ Backup LBA (8 bytes)                                       │
│ First usable LBA (8 bytes)                                 │
│ Last usable LBA (8 bytes)                                  │
│ Disk GUID (16 bytes)                                       │
│ Partition entry start LBA (8 bytes)                        │
│ Number of partition entries (4 bytes)                      │
│ Size of partition entry (4 bytes) - usually 128            │
│ CRC32 of partition array (4 bytes)                         │
└─────────────────────────────────────────────────────────────┘

PARTITION ENTRY (128 bytes):
┌─────────────────────────────────────────────────────────────┐
│ Partition Type GUID (16 bytes)                             │
│ Unique Partition GUID (16 bytes)                           │
│ First LBA (8 bytes)                                        │
│ Last LBA (8 bytes)                                         │
│ Attributes (8 bytes)                                       │
│ Partition Name (72 bytes) - UTF-16LE                       │
└─────────────────────────────────────────────────────────────┘

FAT Filesystem

FAT Overview

FAT (File Allocation Table) is the most widely-supported filesystem. Designed by Microsoft in 1977, it's simple enough to implement in a weekend yet used everywhere: USB drives, SD cards, UEFI boot partitions.

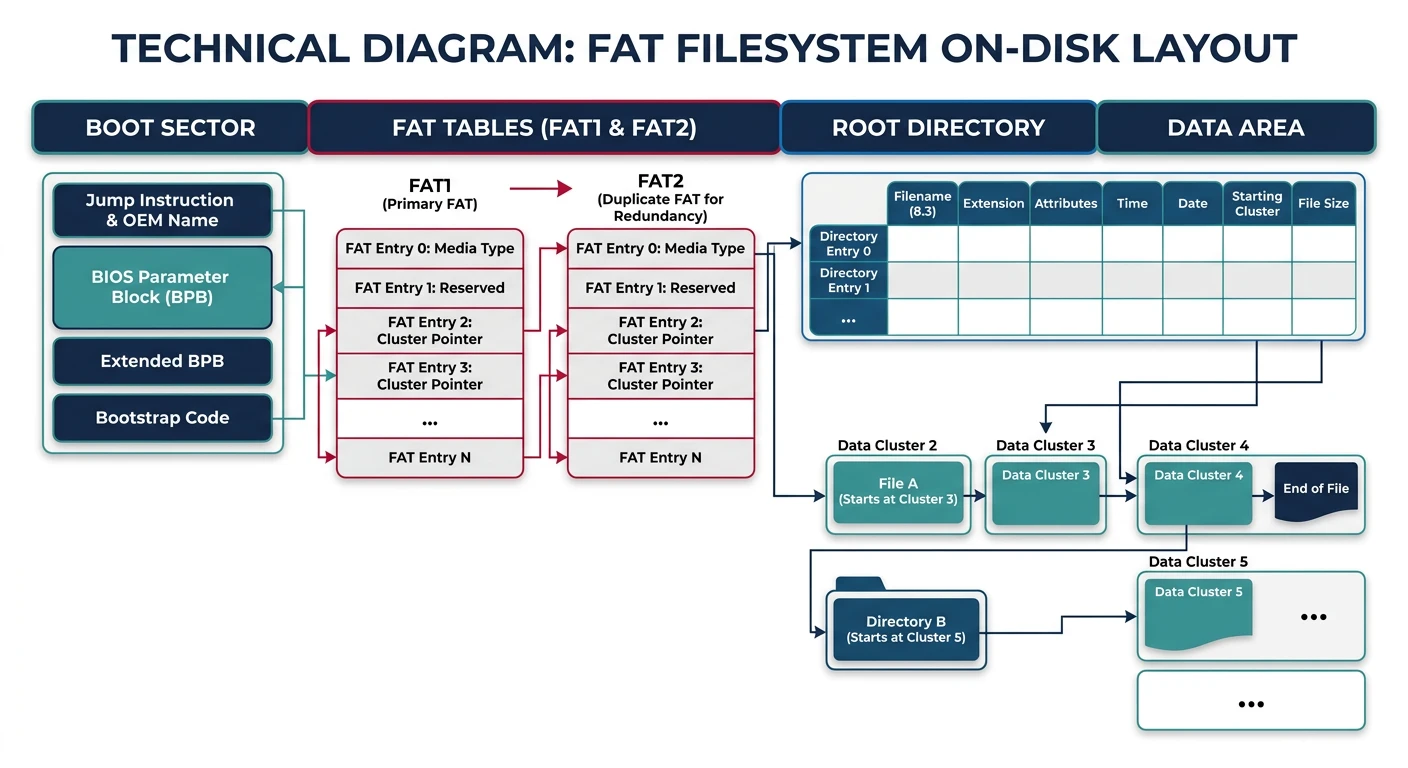

FAT FILESYSTEM LAYOUT
═══════════════════════════════════════════════════════════════

┌──────────────────────────────────────────────────────────────┐
│                    BOOT SECTOR (1 sector)                    │
│  BPB (BIOS Parameter Block) + Boot code                     │
├──────────────────────────────────────────────────────────────┤
│                    RESERVED SECTORS                          │
│  (Usually 1 for FAT12/16, 32 for FAT32)                     │
├──────────────────────────────────────────────────────────────┤
│                    FAT #1 (File Allocation Table)            │
│  Linked list of clusters - one entry per cluster            │
├──────────────────────────────────────────────────────────────┤
│                    FAT #2 (Backup copy)                      │
│  Usually identical to FAT #1                                │
├──────────────────────────────────────────────────────────────┤
│                    ROOT DIRECTORY (FAT12/16 only)            │
│  Fixed size at fixed location                               │
├──────────────────────────────────────────────────────────────┤
│                    DATA AREA                                 │
│  Clusters containing files and directories                  │
│  (FAT32 root directory is here too)                         │
└──────────────────────────────────────────────────────────────┘

FAT VARIANTS:
┌─────────┬───────────────┬─────────────┬───────────────────┐
│ Variant │ Cluster Entry │ Max Size    │ Use Case          │
├─────────┼───────────────┼─────────────┼───────────────────┤
│ FAT12   │ 12 bits       │ 16 MB       │ Floppy disks      │
│ FAT16   │ 16 bits       │ 2 GB        │ Small drives      │
│ FAT32   │ 28 bits*      │ 2 TB        │ USB, SD cards     │
└─────────┴───────────────┴─────────────┴───────────────────┘
* FAT32 uses only 28 bits; top 4 bits reserved

Boot Sector

The BIOS Parameter Block (BPB) in sector 0 describes the filesystem geometry:

/* fat.h - FAT16/32 structures */

/* FAT16 Boot Sector (BIOS Parameter Block) */
typedef struct {
    uint8_t  jmp[3];              /* Jump instruction to boot code */
    uint8_t  oem_name[8];         /* OEM identifier */
    uint16_t bytes_per_sector;    /* Usually 512 */
    uint8_t  sectors_per_cluster; /* 1, 2, 4, 8, 16, 32, 64, or 128 */
    uint16_t reserved_sectors;    /* Sectors before first FAT */
    uint8_t  fat_count;           /* Number of FATs (usually 2) */
    uint16_t root_entry_count;    /* FAT12/16: max root entries */
    uint16_t total_sectors_16;    /* Total sectors (if < 65536) */
    uint8_t  media_type;          /* Media descriptor (0xF8 = HDD) */
    uint16_t fat_size_16;         /* Sectors per FAT (FAT12/16) */
    uint16_t sectors_per_track;   /* For CHS geometry */
    uint16_t head_count;          /* For CHS geometry */
    uint32_t hidden_sectors;      /* Sectors before partition */
    uint32_t total_sectors_32;    /* Total sectors (if >= 65536) */

    /* Extended Boot Record (FAT16) */
    uint8_t  drive_number;        /* BIOS drive number */
    uint8_t  reserved;
    uint8_t  boot_signature;      /* 0x29 if following fields valid */
    uint32_t volume_id;           /* Volume serial number */
    uint8_t  volume_label[11];    /* Volume name */
    uint8_t  fs_type[8];          /* "FAT16   " */
} __attribute__((packed)) fat16_boot_t;

/* FAT32 Extended Boot Record */
typedef struct {
    /* First 36 bytes same as FAT16 */
    uint8_t  jmp[3];
    uint8_t  oem_name[8];
    uint16_t bytes_per_sector;
    uint8_t  sectors_per_cluster;
    uint16_t reserved_sectors;
    uint8_t  fat_count;
    uint16_t root_entry_count;    /* Must be 0 for FAT32 */
    uint16_t total_sectors_16;
    uint8_t  media_type;
    uint16_t fat_size_16;         /* Must be 0 for FAT32 */
    uint16_t sectors_per_track;
    uint16_t head_count;
    uint32_t hidden_sectors;
    uint32_t total_sectors_32;

    /* FAT32 specific */
    uint32_t fat_size_32;         /* Sectors per FAT (FAT32) */
    uint16_t ext_flags;
    uint16_t fs_version;
    uint32_t root_cluster;        /* First cluster of root dir */
    uint16_t fs_info;             /* FSInfo sector number */
    uint16_t backup_boot;         /* Backup boot sector */
    uint8_t  reserved[12];
    uint8_t  drive_number;
    uint8_t  reserved2;
    uint8_t  boot_signature;
    uint32_t volume_id;
    uint8_t  volume_label[11];
    uint8_t  fs_type[8];          /* "FAT32   " */
} __attribute__((packed)) fat32_boot_t;

FAT Table

The File Allocation Table is essentially a linked list of clusters. Each entry either points to the next cluster in a chain, or marks end-of-file, bad cluster, etc.

FAT TABLE: CLUSTER CHAIN EXAMPLE
═══════════════════════════════════════════════════════════════

Cluster:  2     3     4     5     6     7     8     9    10
Entry:  [ 3 ] [ 4 ] [EOF] [ 7 ] [FREE] [ 8 ] [EOF] [FREE] [BAD]
          │     │           │           │
          └──→──┘           └─────→─────┘

File "README.TXT" (3 clusters): 2 → 3 → 4 → EOF
File "DATA.BIN" (2 clusters):   5 → 7 → 8 → EOF

SPECIAL FAT ENTRY VALUES:
┌──────────────┬───────────────┬───────────────┬────────────────┐
│ Meaning      │ FAT12         │ FAT16         │ FAT32          │
├──────────────┼───────────────┼───────────────┼────────────────┤
│ Free cluster │ 0x000         │ 0x0000        │ 0x00000000     │
│ Reserved     │ 0x001         │ 0x0001        │ 0x00000001     │
│ Bad cluster  │ 0xFF7         │ 0xFFF7        │ 0x0FFFFFF7     │
│ End of chain │ 0xFF8-0xFFF   │ 0xFFF8-0xFFFF │ 0x0FFFFFF8+    │
└──────────────┴───────────────┴───────────────┴────────────────┘

/* fat.c - FAT table operations */

/**
 * FAT driver context
 */
typedef struct {
    block_device_t* device;
    fat32_boot_t bpb;
    uint32_t fat_start_lba;     /* LBA of first FAT */
    uint32_t data_start_lba;    /* LBA of first data cluster */
    uint32_t root_dir_lba;      /* LBA of root directory */
    uint32_t total_clusters;
    uint8_t  fat_type;          /* 12, 16, or 32 */
} fat_fs_t;

/**
 * Read a FAT entry (get next cluster in chain)
 */
uint32_t fat_get_entry(fat_fs_t* fs, uint32_t cluster) {
    uint32_t fat_offset;
    uint32_t fat_sector;
    uint32_t entry_offset;
    uint8_t sector[512];

    if (fs->fat_type == 32) {
        fat_offset = cluster * 4;
    } else if (fs->fat_type == 16) {
        fat_offset = cluster * 2;
    } else {  /* FAT12 */
        fat_offset = cluster + (cluster / 2);  /* cluster * 1.5 */
    }

    fat_sector = fs->fat_start_lba + (fat_offset / 512);
    entry_offset = fat_offset % 512;

    /* Read FAT sector */
    fs->device->read(fs->device, fat_sector, 1, sector);

    if (fs->fat_type == 32) {
        return (*(uint32_t*)§or[entry_offset]) & 0x0FFFFFFF;
    } else if (fs->fat_type == 16) {
        return *(uint16_t*)§or[entry_offset];
    } else {  /* FAT12 */
        uint16_t val = *(uint16_t*)§or[entry_offset];
        if (cluster & 1) {
            return val >> 4;      /* Odd cluster: high 12 bits */
        } else {
            return val & 0x0FFF;  /* Even cluster: low 12 bits */
        }
    }
}

/**
 * Check if cluster marks end of chain
 */
int fat_is_eof(fat_fs_t* fs, uint32_t cluster) {
    if (fs->fat_type == 32) return cluster >= 0x0FFFFFF8;
    if (fs->fat_type == 16) return cluster >= 0xFFF8;
    return cluster >= 0xFF8;  /* FAT12 */
}

/**
 * Convert cluster number to LBA
 */
uint32_t fat_cluster_to_lba(fat_fs_t* fs, uint32_t cluster) {
    return fs->data_start_lba +
           (cluster - 2) * fs->bpb.sectors_per_cluster;
}

Directory Entries

Directories are files containing 32-byte entries. Each entry describes a file or subdirectory.

/* FAT Directory Entry (32 bytes) */
typedef struct {
    uint8_t  name[8];           /* 8.3 filename (space padded) */
    uint8_t  ext[3];            /* Extension */
    uint8_t  attr;              /* Attributes */
    uint8_t  reserved;          /* Windows NT: lowercase flags */
    uint8_t  create_time_ms;    /* Creation time (ms) */
    uint16_t create_time;       /* Creation time */
    uint16_t create_date;       /* Creation date */
    uint16_t access_date;       /* Last access date */
    uint16_t cluster_high;      /* High 16 bits of cluster (FAT32) */
    uint16_t modify_time;       /* Last modification time */
    uint16_t modify_date;       /* Last modification date */
    uint16_t cluster_low;       /* Low 16 bits of starting cluster */
    uint32_t file_size;         /* File size in bytes */
} __attribute__((packed)) fat_dir_entry_t;

/* Attribute flags */
#define FAT_ATTR_READ_ONLY  0x01
#define FAT_ATTR_HIDDEN     0x02
#define FAT_ATTR_SYSTEM     0x04
#define FAT_ATTR_VOLUME_ID  0x08   /* Volume label entry */
#define FAT_ATTR_DIRECTORY  0x10
#define FAT_ATTR_ARCHIVE    0x20
#define FAT_ATTR_LFN        0x0F   /* Long filename entry */

/* Special first-byte values */
#define FAT_ENTRY_FREE      0xE5   /* Deleted entry */
#define FAT_ENTRY_END       0x00   /* End of directory */
#define FAT_ENTRY_KANJI     0x05   /* Actually 0xE5 (Kanji) */

/**
 * Get starting cluster from directory entry
 */
uint32_t fat_entry_cluster(fat_dir_entry_t* entry) {
    return ((uint32_t)entry->cluster_high << 16) | entry->cluster_low;
}

/**
 * Parse 8.3 filename from directory entry
 */
void fat_parse_filename(fat_dir_entry_t* entry, char* out) {
    int i, j = 0;

    /* Copy name (remove trailing spaces) */
    for (i = 0; i < 8 && entry->name[i] != ' '; i++) {
        out[j++] = entry->name[i];
    }

    /* Add dot and extension if present */
    if (entry->ext[0] != ' ') {
        out[j++] = '.';
        for (i = 0; i < 3 && entry->ext[i] != ' '; i++) {
            out[j++] = entry->ext[i];
        }
    }

    out[j] = '\0';
}

File Operations

/**
 * List directory contents
 */
void fat_list_directory(fat_fs_t* fs, uint32_t cluster) {
    uint8_t sector[512];
    fat_dir_entry_t* entries;
    char filename[13];

    uint32_t lba = fat_cluster_to_lba(fs, cluster);

    /* Read directory cluster */
    for (int s = 0; s < fs->bpb.sectors_per_cluster; s++) {
        fs->device->read(fs->device, lba + s, 1, sector);
        entries = (fat_dir_entry_t*)sector;

        for (int i = 0; i < 16; i++) {  /* 16 entries per sector */
            if (entries[i].name[0] == FAT_ENTRY_END) {
                return;  /* End of directory */
            }
            if (entries[i].name[0] == FAT_ENTRY_FREE) {
                continue;  /* Deleted entry */
            }
            if (entries[i].attr == FAT_ATTR_LFN) {
                continue;  /* Long filename (skip for now) */
            }
            if (entries[i].attr & FAT_ATTR_VOLUME_ID) {
                continue;  /* Volume label */
            }

            fat_parse_filename(&entries[i], filename);

            if (entries[i].attr & FAT_ATTR_DIRECTORY) {
                kprintf("  <DIR>  %s\n", filename);
            } else {
                kprintf("  %8d  %s\n", entries[i].file_size, filename);
            }
        }
    }

    /* Follow cluster chain for larger directories */
    uint32_t next = fat_get_entry(fs, cluster);
    if (!fat_is_eof(fs, next)) {
        fat_list_directory(fs, next);
    }
}

/**
 * Find file in directory by name
 * @return Starting cluster, or 0 if not found
 */
uint32_t fat_find_file(fat_fs_t* fs, uint32_t dir_cluster,
                       const char* name) {
    uint8_t sector[512];
    fat_dir_entry_t* entries;
    char filename[13];
    uint32_t cluster = dir_cluster;

    while (!fat_is_eof(fs, cluster)) {
        uint32_t lba = fat_cluster_to_lba(fs, cluster);

        for (int s = 0; s < fs->bpb.sectors_per_cluster; s++) {
            fs->device->read(fs->device, lba + s, 1, sector);
            entries = (fat_dir_entry_t*)sector;

            for (int i = 0; i < 16; i++) {
                if (entries[i].name[0] == FAT_ENTRY_END) {
                    return 0;  /* Not found */
                }
                if (entries[i].name[0] == FAT_ENTRY_FREE) {
                    continue;
                }
                if (entries[i].attr == FAT_ATTR_LFN) {
                    continue;
                }

                fat_parse_filename(&entries[i], filename);

                /* Case-insensitive compare */
                if (strcasecmp(filename, name) == 0) {
                    return fat_entry_cluster(&entries[i]);
                }
            }
        }

        cluster = fat_get_entry(fs, cluster);
    }

    return 0;  /* Not found */
}

/**
 * Read file contents into buffer
 */
int fat_read_file(fat_fs_t* fs, uint32_t cluster,
                  uint8_t* buffer, uint32_t size) {
    uint32_t bytes_read = 0;
    uint32_t cluster_size = fs->bpb.sectors_per_cluster * 512;

    while (!fat_is_eof(fs, cluster) && bytes_read < size) {
        uint32_t lba = fat_cluster_to_lba(fs, cluster);
        uint32_t to_read = (size - bytes_read < cluster_size) ?
                           (size - bytes_read) : cluster_size;

        /* Read cluster (may be multiple sectors) */
        for (int s = 0; s < fs->bpb.sectors_per_cluster; s++) {
            fs->device->read(fs->device, lba + s, 1,
                           buffer + bytes_read + s * 512);
        }

        bytes_read += cluster_size;
        cluster = fat_get_entry(fs, cluster);
    }

    return bytes_read;
}

Virtual File System (VFS)

VFS Design

The Virtual File System provides a common interface for all filesystems. Programs use the same open(), read(), write() calls whether accessing FAT, ext2, or network files.

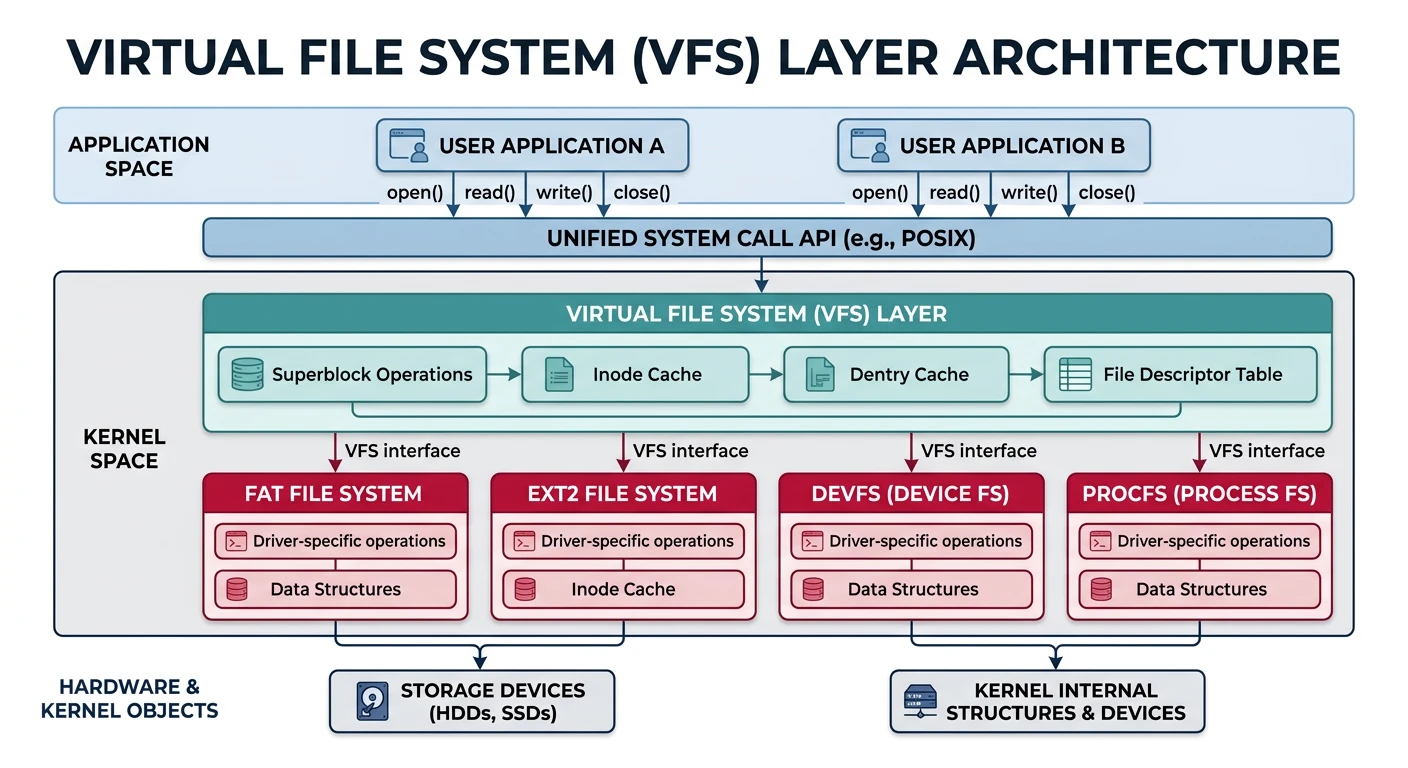

VFS ABSTRACTION LAYER
═══════════════════════════════════════════════════════════════

APPLICATION
    │
    │   open("/mnt/usb/file.txt", O_RDONLY)
    │
    ▼
╔═══════════════════════════════════════════════════════════╗
║                       VFS LAYER                            ║
║                                                            ║
║   Path resolution:  "/" → root_fs                         ║
║                     "/mnt/usb" → mounted FAT              ║
║                                                            ║
║   File descriptors:  fd 0 = stdin (tty)                   ║
║                      fd 1 = stdout (tty)                  ║
║                      fd 3 = /mnt/usb/file.txt (FAT)       ║
║                                                            ║
║   Unified operations:                                      ║
║     vfs_open(), vfs_read(), vfs_write(), vfs_close()      ║
║     vfs_mkdir(), vfs_readdir(), vfs_stat()                ║
╚════════════════════════════════════════════════════════════╝
    │           │           │           │
    ▼           ▼           ▼           ▼
┌───────┐  ┌───────┐  ┌───────┐  ┌───────┐
│  FAT  │  │ ext2  │  │ devfs │  │ procfs│
│driver │  │driver │  │(devices)│ │(/proc)│
└───────┘  └───────┘  └───────┘  └───────┘

/* vfs.h - Virtual File System interface */

#define VFS_NAME_MAX    256
#define VFS_PATH_MAX    4096

/* File types */
#define VFS_FILE        0x01
#define VFS_DIRECTORY   0x02
#define VFS_CHARDEVICE  0x03
#define VFS_BLOCKDEVICE 0x04
#define VFS_PIPE        0x05
#define VFS_SYMLINK     0x06
#define VFS_MOUNTPOINT  0x08

/* Forward declarations */
struct vfs_node;
struct dirent;

/* VFS operation function types */
typedef uint32_t (*read_fn)(struct vfs_node*, uint32_t off,
                            uint32_t size, uint8_t* buf);
typedef uint32_t (*write_fn)(struct vfs_node*, uint32_t off,
                             uint32_t size, const uint8_t* buf);
typedef void (*open_fn)(struct vfs_node*);
typedef void (*close_fn)(struct vfs_node*);
typedef struct dirent* (*readdir_fn)(struct vfs_node*, uint32_t index);
typedef struct vfs_node* (*finddir_fn)(struct vfs_node*, const char* name);

/* VFS Node - represents a file or directory in the tree */
typedef struct vfs_node {
    char name[VFS_NAME_MAX];    /* Node name */
    uint32_t mask;              /* Permissions */
    uint32_t uid;               /* Owning user */
    uint32_t gid;               /* Owning group */
    uint32_t flags;             /* Node type flags */
    uint32_t inode;             /* Filesystem-specific inode */
    uint32_t length;            /* Size in bytes */
    uint32_t impl;              /* Implementation-specific data */

    /* Operations - set by filesystem driver */
    read_fn    read;
    write_fn   write;
    open_fn    open;
    close_fn   close;
    readdir_fn readdir;
    finddir_fn finddir;

    struct vfs_node* ptr;       /* For mountpoints/symlinks */
} vfs_node_t;

/* Directory entry returned by readdir */
typedef struct dirent {
    char name[VFS_NAME_MAX];
    uint32_t ino;               /* Inode number */
} dirent_t;

/* The root of the filesystem tree */
extern vfs_node_t* vfs_root;

/* VFS API */
vfs_node_t* vfs_open(const char* path, uint32_t flags);
void vfs_close(vfs_node_t* node);
uint32_t vfs_read(vfs_node_t* node, uint32_t off, uint32_t size, uint8_t* buf);
uint32_t vfs_write(vfs_node_t* node, uint32_t off, uint32_t size, const uint8_t* buf);
dirent_t* vfs_readdir(vfs_node_t* node, uint32_t index);
vfs_node_t* vfs_finddir(vfs_node_t* node, const char* name);

VFS Nodes

/* vfs.c - VFS implementation */

#include "vfs.h"
#include <string.h>

vfs_node_t* vfs_root = NULL;

/**
 * Read from a file
 */
uint32_t vfs_read(vfs_node_t* node, uint32_t offset,
                  uint32_t size, uint8_t* buffer) {
    if (node && node->read) {
        return node->read(node, offset, size, buffer);
    }
    return 0;
}

/**
 * Write to a file
 */
uint32_t vfs_write(vfs_node_t* node, uint32_t offset,
                   uint32_t size, const uint8_t* buffer) {
    if (node && node->write) {
        return node->write(node, offset, size, buffer);
    }
    return 0;
}

/**
 * Open a file (increment refcount, etc.)
 */
void vfs_open(vfs_node_t* node) {
    if (node && node->open) {
        node->open(node);
    }
}

/**
 * Close a file
 */
void vfs_close(vfs_node_t* node) {
    if (node && node->close) {
        node->close(node);
    }
}

/**
 * Read directory entry at index
 */
dirent_t* vfs_readdir(vfs_node_t* node, uint32_t index) {
    /* Check this is actually a directory */
    if (node && (node->flags & 0x7) == VFS_DIRECTORY && node->readdir) {
        return node->readdir(node, index);
    }
    return NULL;
}

/**
 * Find file in directory by name
 */
vfs_node_t* vfs_finddir(vfs_node_t* node, const char* name) {
    if (node && (node->flags & 0x7) == VFS_DIRECTORY && node->finddir) {
        return node->finddir(node, name);
    }
    return NULL;
}

/**
 * Resolve a path to a VFS node
 * e.g., "/home/user/file.txt" → vfs_node_t*
 */
vfs_node_t* vfs_namei(const char* path) {
    if (!path || path[0] != '/') {
        return NULL;  /* Must be absolute path */
    }

    vfs_node_t* node = vfs_root;
    char component[VFS_NAME_MAX];
    int i = 1;  /* Skip leading slash */

    while (path[i]) {
        /* Extract path component */
        int j = 0;
        while (path[i] && path[i] != '/') {
            component[j++] = path[i++];
        }
        component[j] = '\0';

        if (j == 0) {
            i++;  /* Skip consecutive slashes */
            continue;
        }

        /* Handle . and .. */
        if (strcmp(component, ".") == 0) {
            if (path[i]) i++;
            continue;
        }
        /* TODO: handle ".." by tracking parent */

        /* Look up component in current directory */
        node = vfs_finddir(node, component);
        if (!node) {
            return NULL;  /* Not found */
        }

        /* Follow mount points */
        if (node->flags & VFS_MOUNTPOINT) {
            node = node->ptr;
        }

        if (path[i]) i++;  /* Skip slash */
    }

    return node;
}

Mounting

Mounting attaches a filesystem to a directory in the tree. The mount point becomes the root of the mounted filesystem.

/* Mount table */
typedef struct mount_point {
    char path[VFS_PATH_MAX];
    vfs_node_t* node;           /* Covering node (mount point) */
    vfs_node_t* root;           /* Root of mounted filesystem */
    struct mount_point* next;
} mount_point_t;

static mount_point_t* mount_table = NULL;

/**
 * Mount a filesystem
 * @param path      Mount point (must exist as directory)
 * @param fs_root   Root node of filesystem to mount
 */
int vfs_mount(const char* path, vfs_node_t* fs_root) {
    /* Find mount point directory */
    vfs_node_t* mount_node = vfs_namei(path);
    if (!mount_node || !(mount_node->flags & VFS_DIRECTORY)) {
        return -1;  /* Mount point must be existing directory */
    }

    /* Create mount entry */
    mount_point_t* mp = kmalloc(sizeof(mount_point_t));
    strcpy(mp->path, path);
    mp->node = mount_node;
    mp->root = fs_root;
    mp->next = mount_table;
    mount_table = mp;

    /* Mark node as mount point */
    mount_node->flags |= VFS_MOUNTPOINT;
    mount_node->ptr = fs_root;

    kprintf("VFS: Mounted filesystem at %s\n", path);
    return 0;
}

/**
 * Unmount a filesystem
 */
int vfs_unmount(const char* path) {
    mount_point_t** pp = &mount_table;

    while (*pp) {
        if (strcmp((*pp)->path, path) == 0) {
            mount_point_t* mp = *pp;

            /* Clear mount point flag */
            mp->node->flags &= ~VFS_MOUNTPOINT;
            mp->node->ptr = NULL;

            /* Remove from list */
            *pp = mp->next;
            kfree(mp);

            kprintf("VFS: Unmounted %s\n", path);
            return 0;
        }
        pp = &(*pp)->next;
    }

    return -1;  /* Not mounted */
}

void fs_init(void) {
    /* Initialize ATA driver */
    ata_init();

    /* Initialize VFS with a simple root */
    vfs_root = initrd_init();  /* Initial ramdisk as root */

    /* Parse MBR on first ATA drive */
    mbr_parse(&ata_device);

    /* Mount FAT partition */
    fat_fs_t* fat = fat_init(&ata_device, partition_start);
    if (fat) {
        vfs_mount("/mnt/disk", fat->root);
    }

    /* Now we can access files! */
    vfs_node_t* file = vfs_namei("/mnt/disk/README.TXT");
    if (file) {
        char buffer[512];
        uint32_t bytes = vfs_read(file, 0, 511, buffer);
        buffer[bytes] = '\0';
        kprintf("File contents:\n%s\n", buffer);
    }
}

What You Can Build

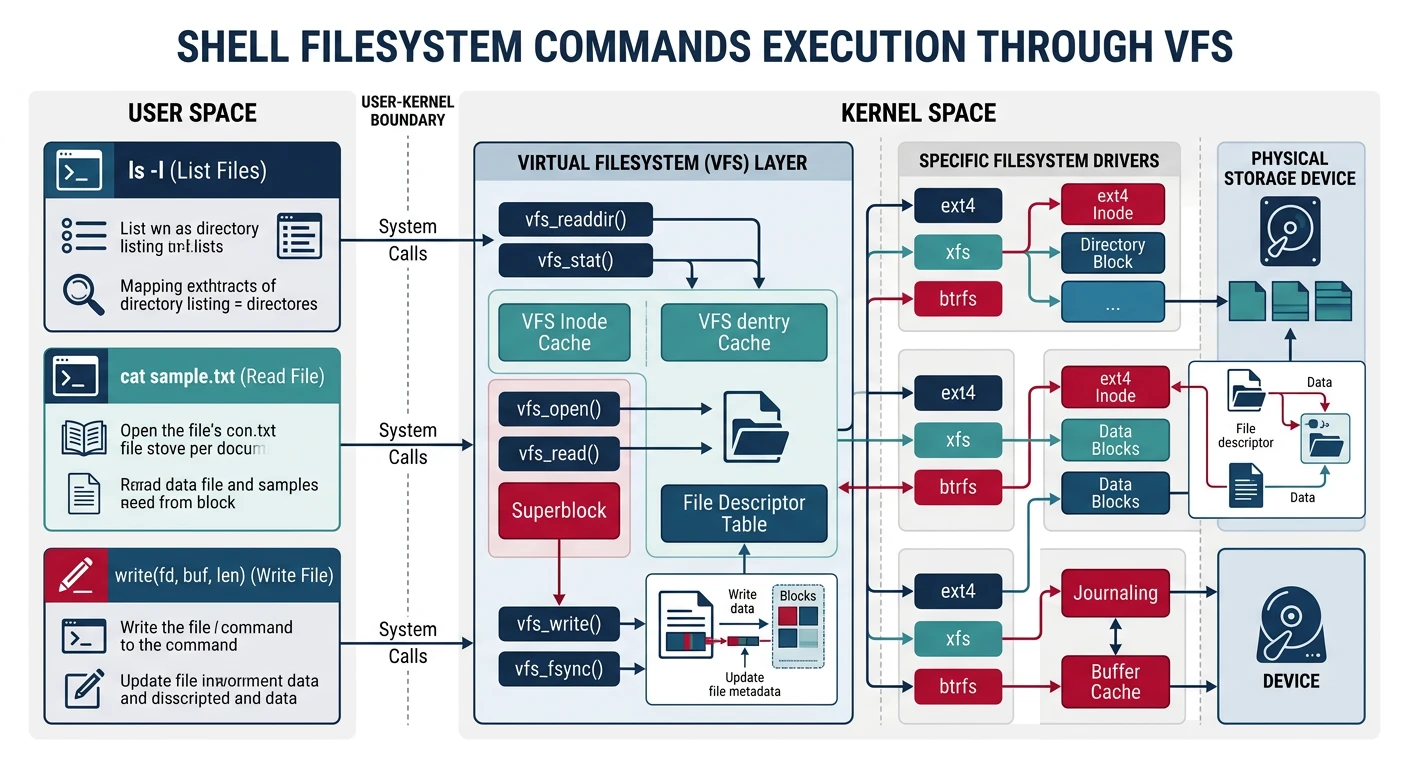

Project: File Browser Shell Commands

Add these commands to your shell:

/* shell_fs.c - Filesystem shell commands */

/**
 * ls - List directory contents
 */
void cmd_ls(const char* path) {
    if (!path) path = ".";

    vfs_node_t* dir = vfs_namei(path);
    if (!dir) {
        kprintf("ls: cannot access '%s': No such file or directory\n", path);
        return;
    }

    if ((dir->flags & 0x7) != VFS_DIRECTORY) {
        kprintf("ls: '%s': Not a directory\n", path);
        return;
    }

    kprintf("Contents of %s:\n", path);
    kprintf("%-12s %8s  %s\n", "TYPE", "SIZE", "NAME");
    kprintf("%-12s %8s  %s\n", "----", "----", "----");

    uint32_t index = 0;
    dirent_t* entry;
    while ((entry = vfs_readdir(dir, index++))) {
        vfs_node_t* child = vfs_finddir(dir, entry->name);
        const char* type = "???";

        if (child) {
            switch (child->flags & 0x7) {
                case VFS_FILE:       type = "FILE"; break;
                case VFS_DIRECTORY:  type = "DIR"; break;
                case VFS_CHARDEVICE: type = "CHAR"; break;
                case VFS_BLOCKDEVICE:type = "BLOCK"; break;
            }
        }

        kprintf("%-12s %8d  %s\n", type,
                child ? child->length : 0,
                entry->name);
    }
}

/**
 * cat - Display file contents
 */
void cmd_cat(const char* path) {
    if (!path) {
        kprintf("Usage: cat <filename>\n");
        return;
    }

    vfs_node_t* file = vfs_namei(path);
    if (!file) {
        kprintf("cat: '%s': No such file\n", path);
        return;
    }

    if ((file->flags & 0x7) != VFS_FILE) {
        kprintf("cat: '%s': Not a regular file\n", path);
        return;
    }

    uint8_t* buffer = kmalloc(file->length + 1);
    uint32_t bytes = vfs_read(file, 0, file->length, buffer);
    buffer[bytes] = '\0';

    kprintf("%s", buffer);
    if (bytes > 0 && buffer[bytes-1] != '\n') {
        kprintf("\n");
    }

    kfree(buffer);
}

/**
 * hexdump - Display file in hex
 */
void cmd_hexdump(const char* path) {
    vfs_node_t* file = vfs_namei(path);
    if (!file) {
        kprintf("hexdump: '%s': No such file\n", path);
        return;
    }

    uint8_t buffer[256];
    uint32_t offset = 0;
    uint32_t bytes;

    while (offset < file->length && offset < 256) {
        bytes = vfs_read(file, offset, 16, buffer);
        if (bytes == 0) break;

        kprintf("%08X: ", offset);

        /* Hex bytes */
        for (int i = 0; i < 16; i++) {
            if (i < bytes) {
                kprintf("%02X ", buffer[i]);
            } else {
                kprintf("   ");
            }
            if (i == 7) kprintf(" ");
        }

        /* ASCII */
        kprintf(" |");
        for (int i = 0; i < bytes; i++) {
            char c = buffer[i];
            kprintf("%c", (c >= 32 && c < 127) ? c : '.');
        }
        kprintf("|\n");

        offset += bytes;
    }
}

Exercises

Next Steps

With memory and files working, it's time for the big one: processes. In Phase 8, we'll implement task switching, system calls, and user mode so programs can run independently.

PHASE 8 PREVIEW: PROCESSES & USER MODE
═══════════════════════════════════════════════════════════════

Your kernel can now:
  ✓ Read/write disk sectors (ATA driver)
  ✓ Navigate FAT filesystem
  ✓ Access files through VFS abstraction
  ✓ Mount multiple filesystems

Next, you'll build:
  ┌─────────────────────────────────────────────────────────┐
  │                   PROCESS MANAGEMENT                    │
  └─────────────────────────────────────────────────────────┘

  ┌──────────────────────────────────────────────────────────┐
  │   KERNEL SPACE (Ring 0)                                  │
  │                                                          │
  │   ┌─────────────┐  ┌─────────────┐  ┌─────────────┐    │
  │   │  Scheduler  │  │   Memory    │  │   File      │    │
  │   │  (picks     │  │   Manager   │  │   System    │    │
  │   │   next task)│  │  (per-proc) │  │   (VFS)     │    │
  │   └──────┬──────┘  └──────┬──────┘  └──────┬──────┘    │
  │          │                │                │            │
  │   ┌──────▼────────────────▼────────────────▼──────┐    │
  │   │           SYSTEM CALL INTERFACE               │    │
  │   │    fork(), exec(), read(), write(), exit()    │    │
  │   └──────────────────────┬────────────────────────┘    │
  ╠══════════════════════════╪════════════════════════════╣
  │   USER SPACE (Ring 3)    │                            │
  │                          ▼                            │
  │   ┌──────────┐  ┌──────────┐  ┌──────────┐          │
  │   │ Process  │  │ Process  │  │ Process  │          │
  │   │   PID 1  │  │   PID 2  │  │   PID 3  │          │
  │   │  (init)  │  │  (shell) │  │   (app)  │          │
  │   └──────────┘  └──────────┘  └──────────┘          │
  └──────────────────────────────────────────────────────┘

You'll implement:
• Process Control Block (PCB) - task state
• Context switching - save/restore registers
• System calls - int 0x80 or syscall instruction
• User mode - Ring 3 with memory protection
• fork() / exec() / exit() / wait()
