x86 Assembly Series Part 5: NASM Syntax, Directives & Macros

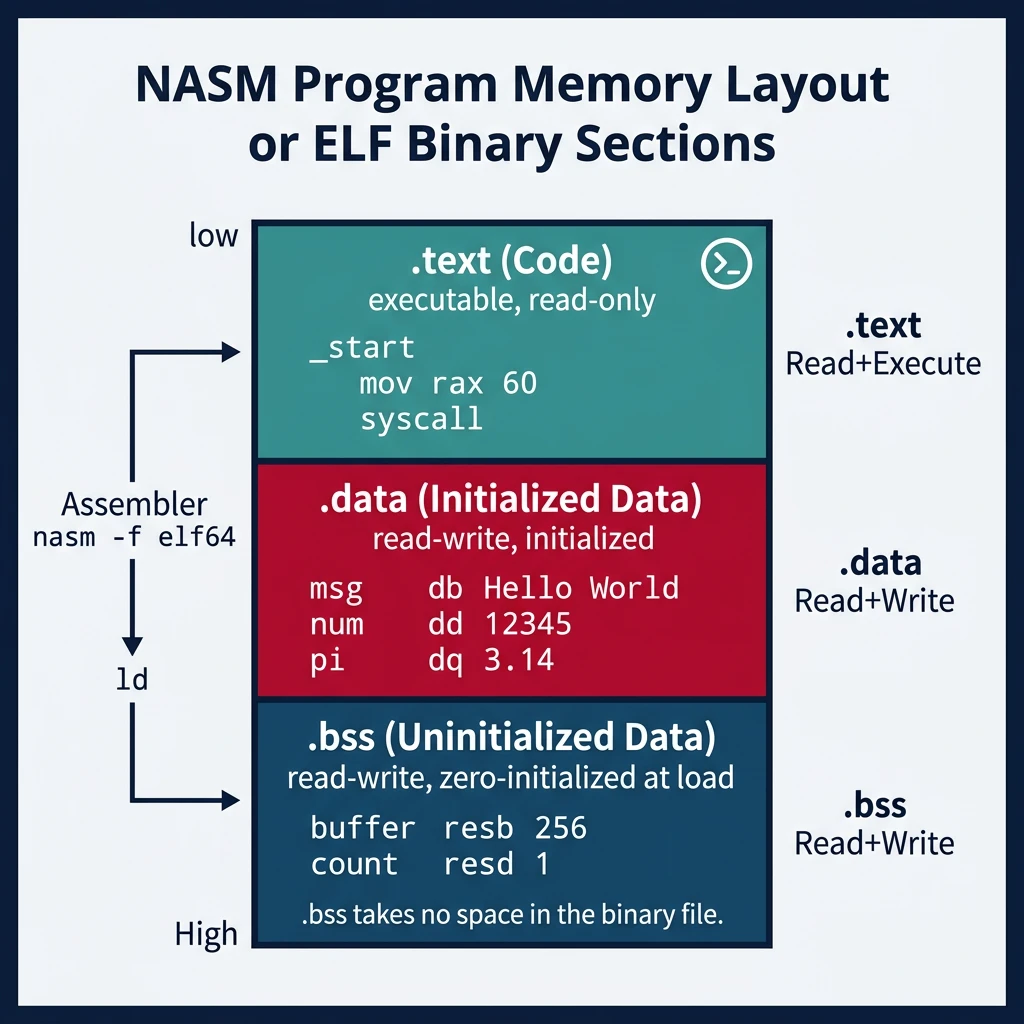

Sections

.text Section (Code)

section .text
    global _start

_start:
    ; Executable code goes here
    mov rax, 60     ; exit syscall
    xor rdi, rdi    ; return 0
    syscall

nasm -f elf64 exit.asm -o exit.o
ld exit.o -o exit
./exit

nasm -f macho64 exit.asm -o exit.o
ld -macos_version_min 10.13 -e _main -static exit.o -o exit

nasm -f win64 exit.asm -o exit.obj
link /subsystem:console /entry:_start exit.obj /out:exit.exe

.data Section (Initialized Data)

section .data
    msg     db  "Hello, World!", 10    ; String with newline
    len     equ $ - msg                 ; Calculate length
    num     dd  12345                   ; 32-bit integer
    pi      dq  3.14159                 ; 64-bit float

.bss Section (Uninitialized Data)

section .bss
    buffer  resb 256    ; Reserve 256 bytes
    count   resd 1      ; Reserve 1 dword (4 bytes)
    array   resq 100    ; Reserve 100 qwords (800 bytes)

Data Directives

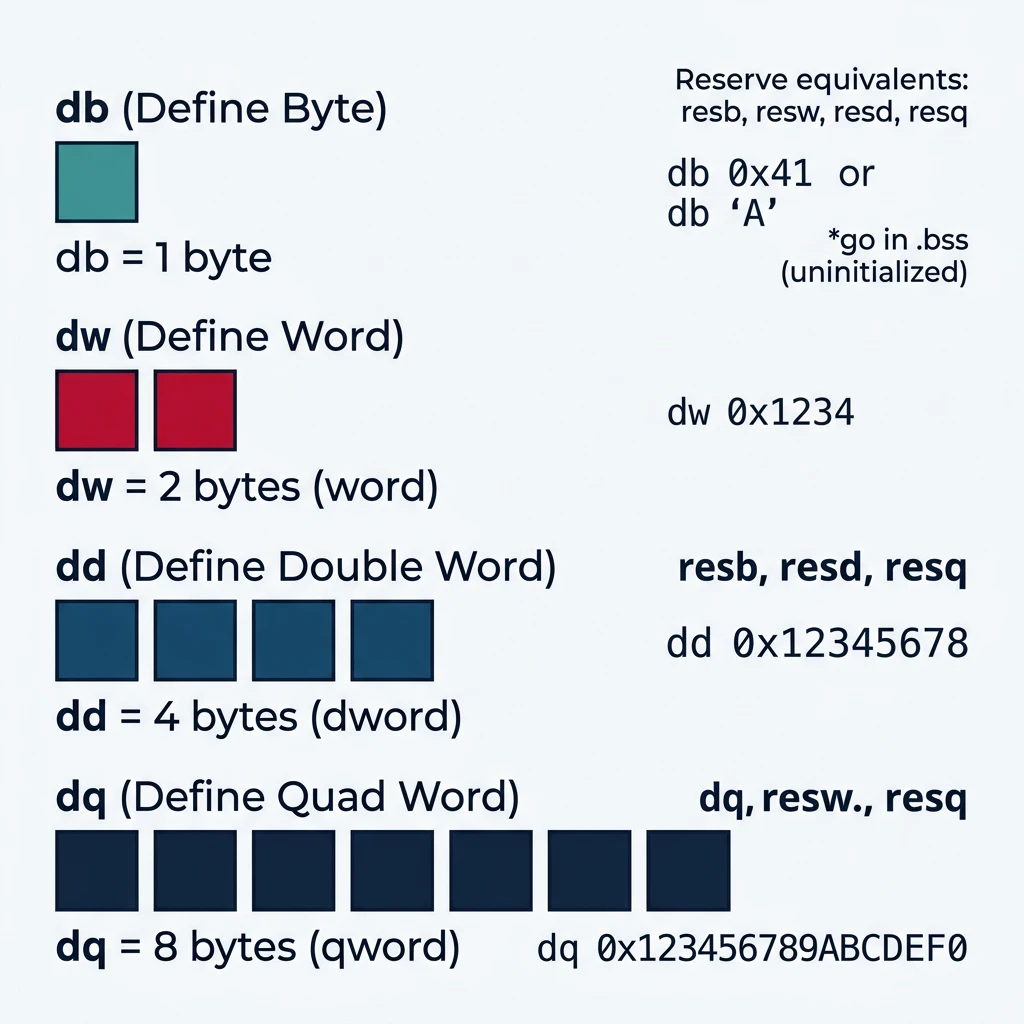

Define Data (db, dw, dd, dq)

Reserve Space (resb, resw, resd, resq)

Reserve directives allocate uninitialized space in the .bss section:

section .bss
    buffer resb 256       ; Reserve 256 bytes
    count  resd 1         ; Reserve 1 dword (4 bytes)
    array  resq 100       ; Reserve 100 qwords (800 bytes)
    flags  resw 16        ; Reserve 16 words (32 bytes)

; .bss is NOT stored in the executable file!
; The OS zeros this memory when loading the program

; Calculating sizes
struc Point
    .x: resd 1
    .y: resd 1
endstruc

section .bss
    points resb Point_size * 100  ; Array of 100 Point structures
    ; Point_size is automatically defined by NASM

Labels, Scope & Symbols

Global Labels

; Global labels are visible to the linker
global _start              ; Export symbol (visible to linker)
global my_function         ; Another exported symbol

extern printf              ; Import symbol from another object
extern malloc

_start:                    ; Define the label
    call my_function
    ; ...

my_function:
    push rbp
    ; ...
    ret

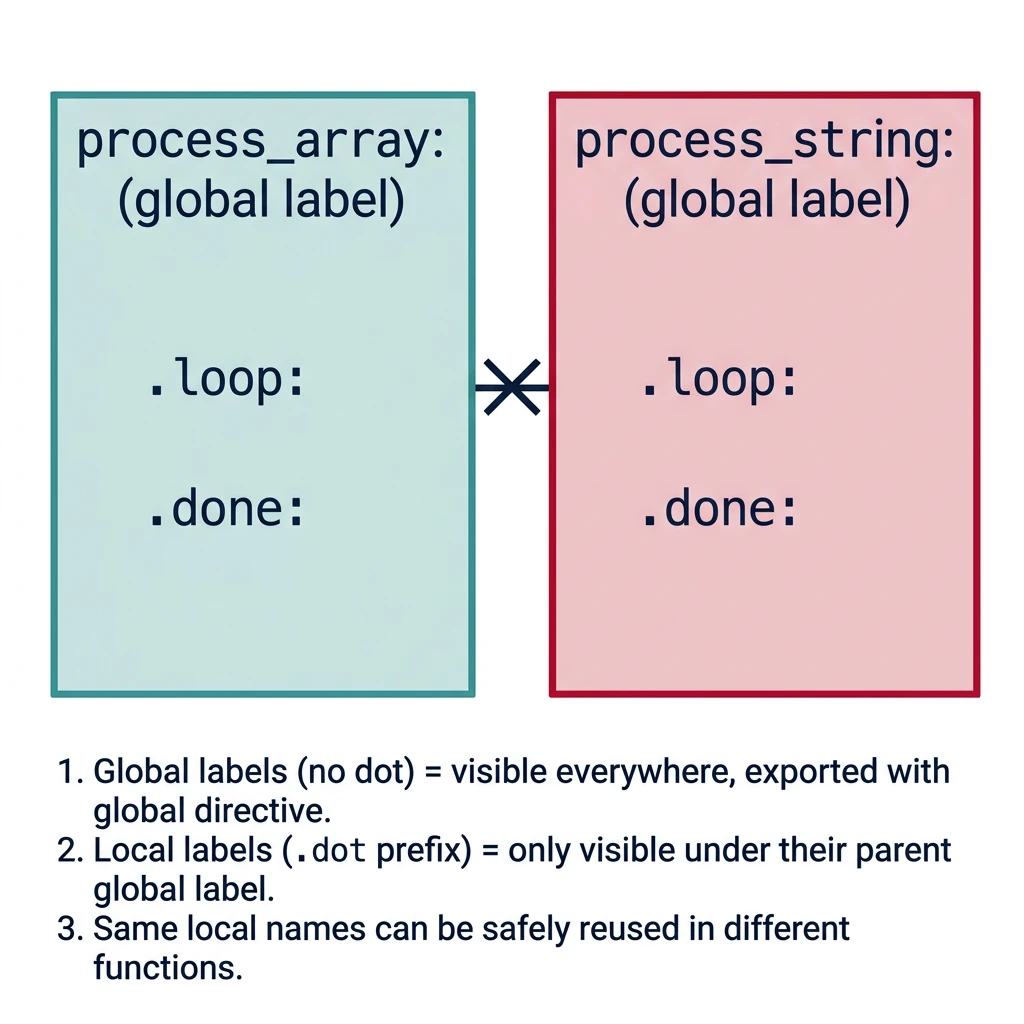

Local Labels (Dot Prefix)

; Local labels start with a dot and belong to the previous global label
process_array:
    xor rcx, rcx           ; i = 0
.loop:                     ; Local to process_array
    cmp rcx, rax
    jge .done              ; Jump to process_array.done
    ; Process element...
    inc rcx
    jmp .loop
.done:
    ret

process_string:
    ; Can reuse .loop and .done names!
.loop:                     ; Local to process_string (different from above)
    ; ...
.done:
    ret

Anonymous Labels ($$ and $)

; $ = current address, $$ = section start
section .text
message db "Hello", 0
msg_len equ $ - message    ; Length calculation

; Boot sector example
times 510 - ($ - $$) db 0  ; Pad to 510 bytes
dw 0xAA55                  ; Boot signature

Symbol Visibility for Shared Libraries

; Control symbol visibility for dynamic linking
global public_api:function           ; Visible, typed as function
global internal_helper:function hidden ; Hidden from dynamic linker

; In ELF output, you can also use:
global my_data:data

; What labels are accessible where?
func_a:
    jmp .loop    ; Valid - same function
func_a.loop:
    jmp func_b.loop  ; Valid - fully qualified name
    ret

func_b:
    jmp .loop    ; Valid - different .loop
.loop:
    ret

Constants & Equates

EQU — Assemble-Time Constants

; EQU creates a constant that cannot be changed later
BUFFER_SIZE equ 4096
MAX_ITEMS   equ 100
NULL        equ 0

; EQU with expressions
HEADER_SIZE equ 16
DATA_OFFSET equ HEADER_SIZE + 4

; System call numbers
SYS_READ    equ 0
SYS_WRITE   equ 1
SYS_EXIT    equ 60

; Use them like constants
mov rax, SYS_WRITE
mov rdi, BUFFER_SIZE

%define — Preprocessor Macros

; %define creates text substitution (like C #define)
%define STDIN  0
%define STDOUT 1
%define STDERR 2

; Can include expressions
%define KB(n) ((n) * 1024)
%define MB(n) ((n) * 1024 * 1024)

mov rax, KB(4)         ; Expands to ((4) * 1024) = 4096

; String constants
%define NEWLINE 10
%define GREETING "Hello, World!", NEWLINE, 0

; How GREETING expands:
; When you write:   db GREETING
; NASM substitutes: db "Hello, World!", 10, 0
;
; This produces 15 bytes in memory:
;   48 65 6C 6C 6F 2C 20 57 6F 72 6C 64 21  ("Hello, World!")
;   0A                                         (10 = newline '\n')
;   00                                         (0 = null terminator)
;
; The comma-separated list works because db accepts multiple values:
;   db "text", byte, byte  →  string bytes followed by individual bytes
;
; This is a common pattern for defining printable C-style strings:
;   %define CR    13       ; Carriage return '\r'
;   %define LF    10       ; Line feed '\n'
;   %define CRLF  CR, LF   ; Windows-style line ending
;   %define NULL  0        ; Null terminator
;
; Usage in .data section:
;   section .data
;       msg db GREETING           ; "Hello, World!\n\0" (15 bytes)
;       err db "Error", CRLF, 0   ; "Error\r\n\0" (8 bytes)

EQU vs %define

Macros

Single-Line Macros (%define)

; Simple text substitution
%define EXIT_SUCCESS 0
%define EXIT_FAILURE 1

; Parametric macros
%define SYSCALL(n) mov rax, n
%define ALIGN16(x) (((x) + 15) & ~15)

SYSCALL(60)              ; Expands to: mov rax, 60
mov rdi, ALIGN16(13)     ; Expands to: mov rdi, (((13) + 15) & ~15) = 16

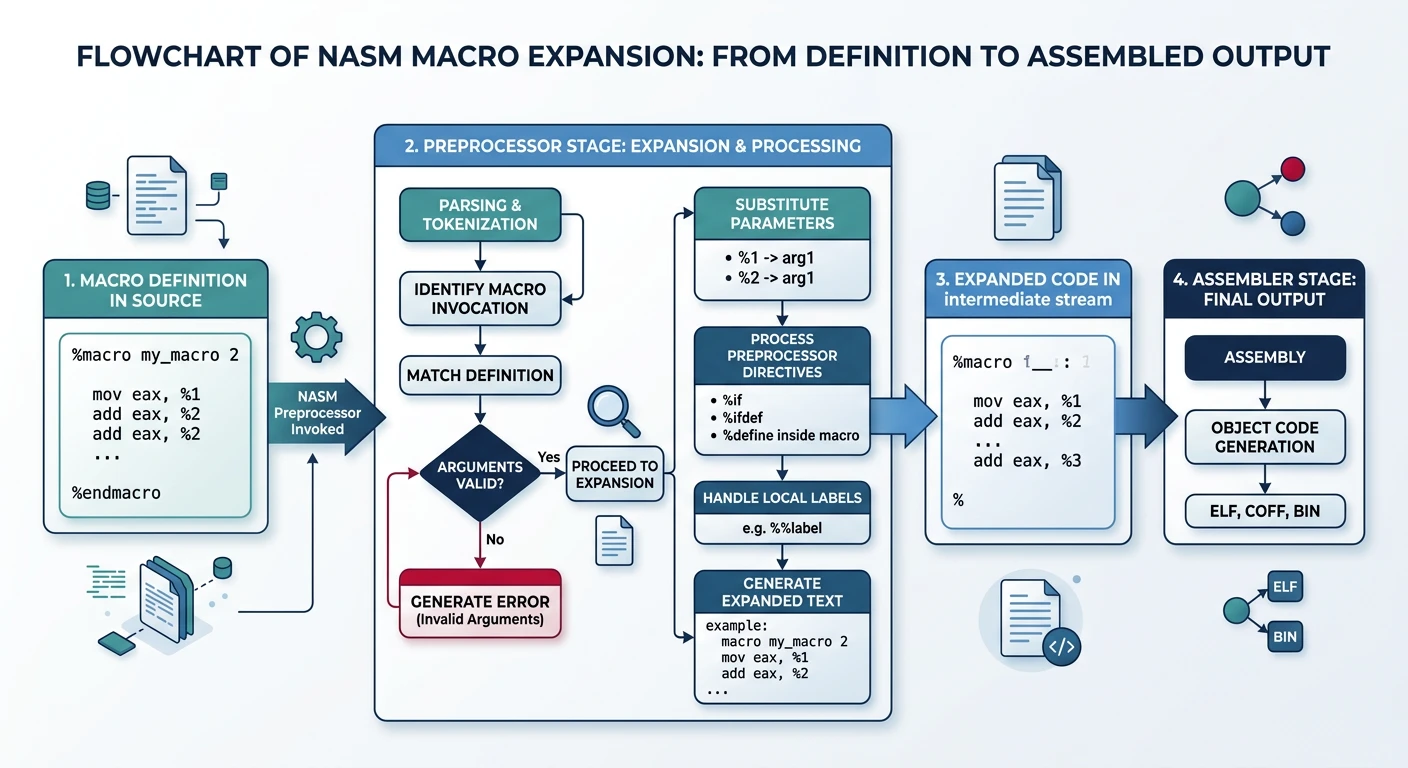

Multi-Line Macros (%macro / %endmacro)

; Basic multi-line macro: syscall wrapper
%macro exit 1              ; Name 'exit', takes 1 parameter
    mov rax, 60            ; sys_exit
    mov rdi, %1            ; First parameter
    syscall
%endmacro

; Usage
exit 0                     ; Expands to: mov rax, 60 / mov rdi, 0 / syscall
exit EXIT_FAILURE          ; Works with constants too

Macro with Multiple Parameters

; Write string to file descriptor
%macro write 3             ; fd, buffer, length
    mov rax, 1             ; sys_write
    mov rdi, %1            ; fd
    mov rsi, %2            ; buffer
    mov rdx, %3            ; length
    syscall
%endmacro

; Usage
write STDOUT, message, msg_len
write 2, error_msg, err_len  ; Write to stderr

Local Labels in Macros

; Use %%label for labels local to each macro expansion
%macro repeat_char 2       ; char, count
    mov rcx, %2
%%loop:
    mov al, %1
    ; ... print character ...
    loop %%loop            ; Each expansion gets unique %%loop
%endmacro

; Multiple uses don't conflict:
repeat_char 'A', 5         ; %%loop becomes ..@1.loop
repeat_char 'B', 3         ; %%loop becomes ..@2.loop

Macro Overloading

; Same name, different parameter counts
%macro print 1             ; print buffer (null-terminated)
    mov rsi, %1
    ; ... calculate length and print ...
%endmacro

%macro print 2             ; print buffer, length
    mov rsi, %1
    mov rdx, %2
    ; ... print ...
%endmacro

; NASM selects based on argument count
print message              ; Calls 1-parameter version
print buffer, 100          ; Calls 2-parameter version

; Create macros for function prologue/epilogue
%macro prologue 1          ; local_bytes
    push rbp
    mov rbp, rsp
    sub rsp, %1            ; Reserve stack space
%endmacro

%macro epilogue 0
    leave                  ; mov rsp, rbp; pop rbp
    ret
%endmacro

; Usage:
my_function:
    prologue 32            ; Reserve 32 bytes
    ; ... function body ...
    epilogue

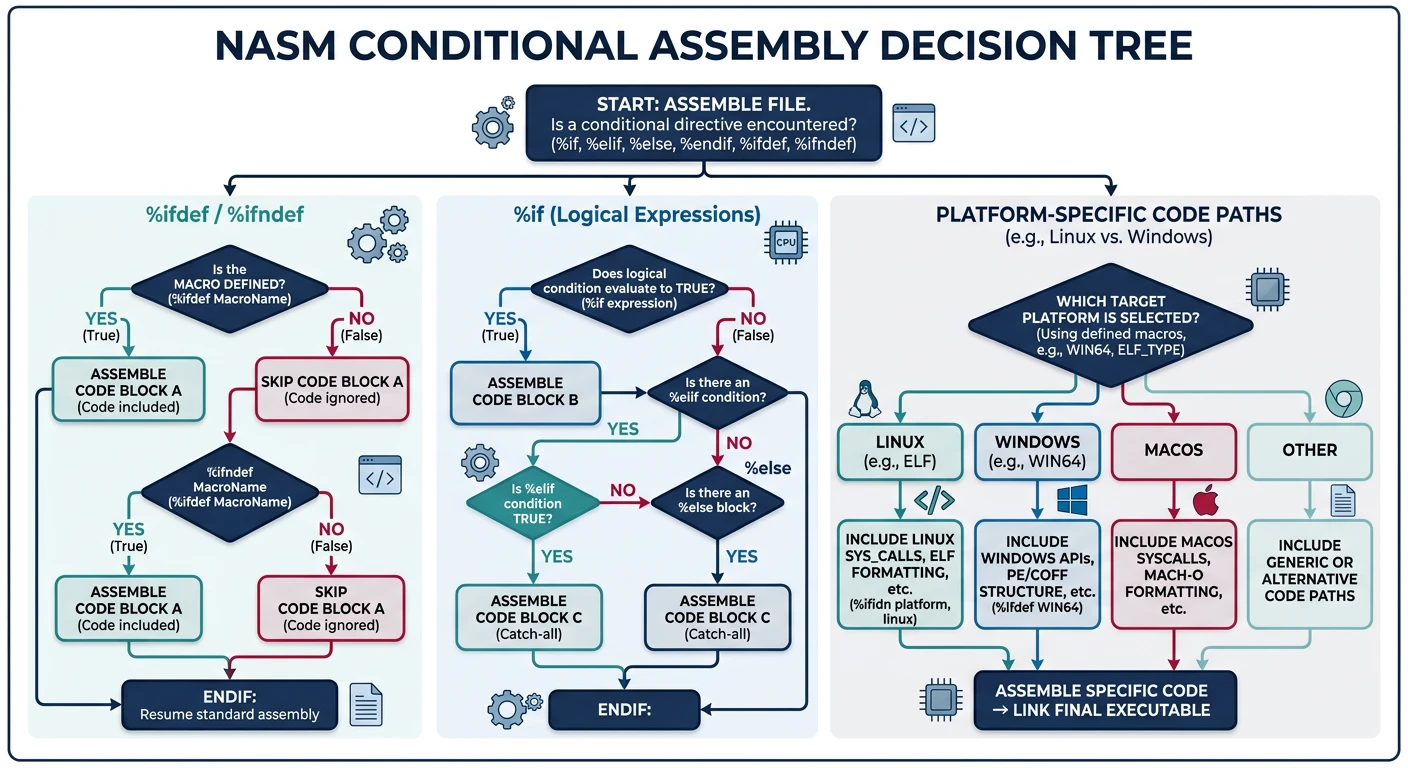

Conditional Assembly

Conditionally include or exclude code at assembly time, useful for multi-platform or debug/release builds.

%if / %elif / %else / %endif

; Compile-time conditionals based on expressions
%define TARGET_BITS 64

%if TARGET_BITS == 64
    mov rax, [rbx]         ; 64-bit code
%elif TARGET_BITS == 32
    mov eax, [ebx]         ; 32-bit code
%else
    %error "Unsupported target"
%endif

%ifdef / %ifndef (Check if Defined)

; Check if a symbol is defined
%define DEBUG 1

%ifdef DEBUG
    ; Include debug output
    call debug_print
    call dump_registers
%endif

%ifndef RELEASE
    ; Extra checks for non-release builds
    call validate_input
%endif

; Can also use command line: nasm -DDEBUG program.asm

Platform-Specific Code

; Assemble different code for Linux vs Windows
%ifdef LINUX
    %define SYS_WRITE 1
    %define SYS_EXIT 60
%elifdef WINDOWS
    ; Windows uses different approach (WinAPI)
    extern WriteFile
    extern ExitProcess
%else
    %error "Define LINUX or WINDOWS"
%endif

; Build: nasm -DLINUX -f elf64 program.asm
;    or: nasm -DWINDOWS -f win64 program.asm

%ifid / %ifnum / %ifstr (Type Checking)

; Check argument types in macros
%macro safe_mov 2
    %ifnum %2
        mov %1, %2              ; Immediate value
    %else
        lea %1, [%2]            ; Memory reference (assume address)
    %endif
%endmacro

safe_mov rax, 42             ; Expands to: mov rax, 42
safe_mov rax, my_buffer      ; Expands to: lea rax, [my_buffer]

Repetition: %rep / %endrep

; Generate repeated code or data
%assign i 0
%rep 10
    db i                       ; Generates: db 0, db 1, ..., db 9
    %assign i i+1
%endrep

; Unrolled loop
%rep 4
    add rax, [rsi]
    add rsi, 8
%endrep

Producing ELF Binaries

NASM Output Formats (-f)

Complete Build Example (Linux)

# Simple standalone program
nasm -f elf64 hello.asm -o hello.o
ld hello.o -o hello
./hello

# With debug symbols
nasm -f elf64 -g -F dwarf hello.asm -o hello.o
ld hello.o -o hello
gdb ./hello

# Linking with libc
nasm -f elf64 program.asm -o program.o
gcc program.o -o program -no-pie  # Use GCC to link with C runtime

# Or with ld (specify C library path)
ld -dynamic-linker /lib64/ld-linux-x86-64.so.2 \
   -lc program.o -o program

Complete Build Example (Windows)

# Windows with MSVC linker
nasm -f win64 hello_win.asm -o hello_win.obj
link /SUBSYSTEM:CONSOLE /ENTRY:main hello_win.obj kernel32.lib

# Windows with GoLink (simpler)
nasm -f win64 hello_win.asm -o hello_win.obj
golink /console /entry main hello_win.obj kernel32.dll

Complete Build Example (macOS)

# Simple standalone program (Intel Mac or Rosetta 2 on Apple Silicon)
nasm -f macho64 hello.asm -o hello.o
ld -macos_version_min 10.13 -e _main -static hello.o -o hello
./hello

# On Apple Silicon — verify Rosetta is running your binary
file hello              # Should show: Mach-O 64-bit executable x86_64
arch -x86_64 ./hello    # Force x86_64 execution explicitly

# With debug symbols (use lldb on macOS, not gdb)
nasm -f macho64 -g hello.asm -o hello.o
ld -macos_version_min 10.13 -e _main -static hello.o -o hello
lldb ./hello

# Linking with libc (use _main as entry, gcc handles C runtime)
nasm -f macho64 program.asm -o program.o
gcc program.o -o program       # GCC/Clang links with libc automatically
# Note: macOS gcc is actually Clang — no -no-pie needed

# Disassemble with macOS-native tools
otool -t -v hello               # Disassemble .text section
otool -l hello                  # Show load commands (Mach-O segments)
nm hello                        # List symbols

Apple Silicon Makefile (Rosetta 2)

# Makefile for macOS (Intel & Apple Silicon via Rosetta 2)
ASM      = nasm
ASMFLAGS = -f macho64
LD       = ld
LDFLAGS  = -macos_version_min 10.13 -e _main -static

SRC = hello.asm
OBJ = $(SRC:.asm=.o)
BIN = hello

all: $(BIN)

$(BIN): $(OBJ)
	$(LD) $(LDFLAGS) $(OBJ) -o $(BIN)

%.o: %.asm
	$(ASM) $(ASMFLAGS) $< -o $@

debug: ASMFLAGS += -g
debug: clean all
	lldb ./$(BIN)

disasm: $(BIN)
	otool -t -v $(BIN)

ndisasm: $(OBJ)
	ndisasm -b 64 $(OBJ)

clean:
	rm -f $(OBJ) $(BIN)

.PHONY: all clean debug disasm ndisasm

Listing Files and Debugging

# Generate listing file (shows assembled bytes)
nasm -f elf64 -l listing.lst program.asm

# Listing file shows:
# Line   Address   Machine Code    Source
#   10   00000000  B802000000      mov eax, 2
#   11   00000005  48C7C102000000  mov rcx, 2

# Generate map file (symbol addresses)
ld -Map=program.map program.o -o program

# Linux standalone (no libc)
nasm -f elf64 prog.asm -o prog.o && ld prog.o -o prog

# Linux with libc
nasm -f elf64 prog.asm -o prog.o && gcc prog.o -o prog -no-pie

# Linux shared library
nasm -f elf64 -DPIC lib.asm -o lib.o
gcc -shared lib.o -o libmylib.so

# Boot sector (raw binary)
nasm -f bin boot.asm -o boot.bin
qemu-system-x86_64 -drive format=raw,file=boot.bin

# Debug build
nasm -f elf64 -g -F dwarf prog.asm -o prog.o
ld prog.o -o prog && gdb ./prog
