x86 Assembly Series Part 8: Stack Operations & Calling Conventions

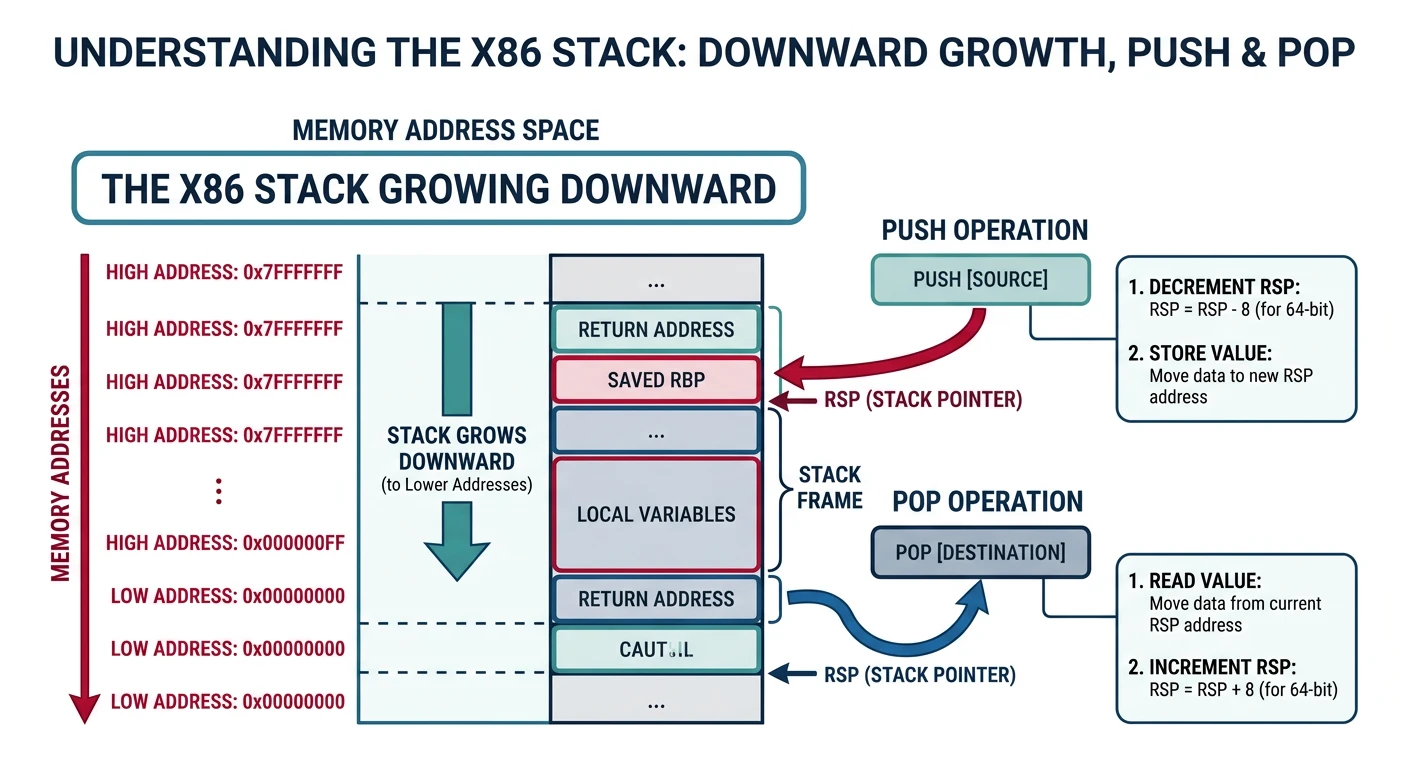

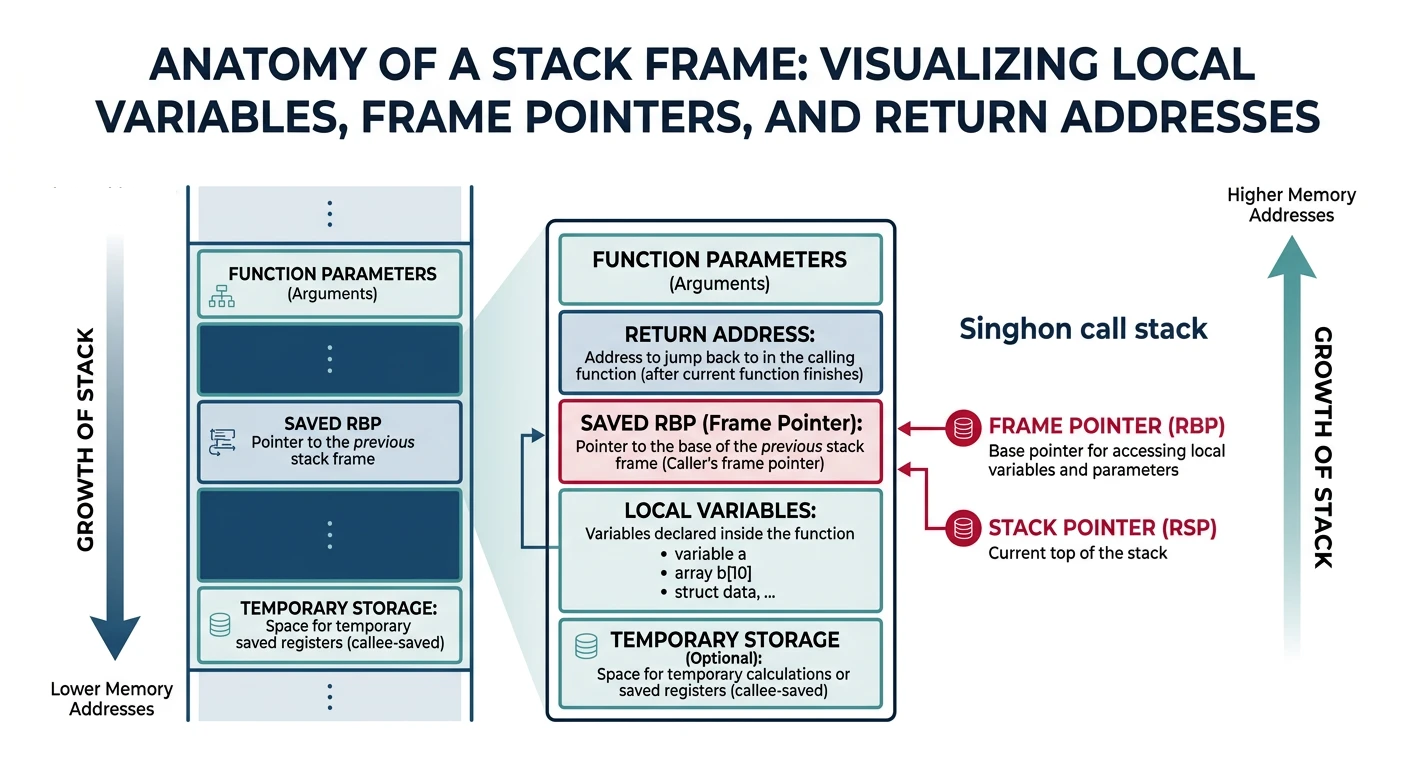

Stack Frames

Function Prologue

; Standard prologue (with frame pointer)
my_function:
    push rbp            ; Save caller's frame pointer
    mov rbp, rsp        ; Establish new frame pointer
    sub rsp, 32         ; Allocate local variables + alignment

    ; Function body...

Function Epilogue

    ; End of function body...
    mov rsp, rbp        ; Deallocate locals
    pop rbp             ; Restore caller's frame pointer
    ret                 ; Return to caller

; Or use LEAVE instruction:
    leave               ; Equivalent to: mov rsp,rbp + pop rbp
    ret

System V AMD64 ABI (Linux/macOS)

Parameter Passing

Return Values

Functions return values in registers based on type:

; Integer return (up to 64 bits)
my_int_func:
    mov rax, 42         ; Return value in RAX
    ret

; 128-bit integer return
my_128bit_func:
    mov rax, low_part   ; Low 64 bits in RAX
    mov rdx, high_part  ; High 64 bits in RDX
    ret

; Floating-point return
my_float_func:
    movsd xmm0, [my_double]  ; Return double in XMM0
    ret

; Struct return (small structs)
; Structs ≤ 16 bytes returned in RAX:RDX
; Larger structs: caller passes hidden pointer as first arg
return_large_struct:
    ; RDI contains hidden pointer to return buffer
    mov [rdi], rax      ; Store struct data
    mov [rdi+8], rbx
    mov rax, rdi        ; Return the pointer in RAX
    ret

Callee-Saved Registers

If your function uses callee-saved registers, you must preserve their values:

; Function that uses callee-saved registers
process_data:
    ; Save registers we'll use
    push rbx            ; Must preserve
    push r12            ; Must preserve
    push r13            ; Must preserve

    ; Now safe to use RBX, R12, R13
    mov rbx, rdi        ; Save parameter
    mov r12, rsi
    xor r13, r13        ; Counter

.loop:
    ; ... processing ...
    inc r13
    cmp r13, r12
    jl .loop

    mov rax, r13        ; Return value

    ; Restore in reverse order!
    pop r13
    pop r12
    pop rbx
    ret

Windows x64 Calling Convention

Shadow Space (Home Space)

; Calling a Windows function
sub rsp, 40             ; 32 bytes shadow + 8 for alignment
mov rcx, param1         ; First parameter
mov rdx, param2         ; Second parameter
call SomeFunction
add rsp, 40             ; Clean up

Parameter Passing

Windows x64 uses a four-register calling convention:

; Call Windows API: MessageBoxA(hWnd, lpText, lpCaption, uType)
extern MessageBoxA

section .data
    msg db "Hello, Windows!", 0
    title db "My App", 0

section .text
main:
    sub rsp, 40             ; Shadow space (32) + alignment (8) = 40

    xor ecx, ecx            ; hWnd = NULL
    lea rdx, [msg]          ; lpText
    lea r8, [title]         ; lpCaption
    mov r9d, 0              ; uType = MB_OK
    call MessageBoxA

    add rsp, 40
    ret

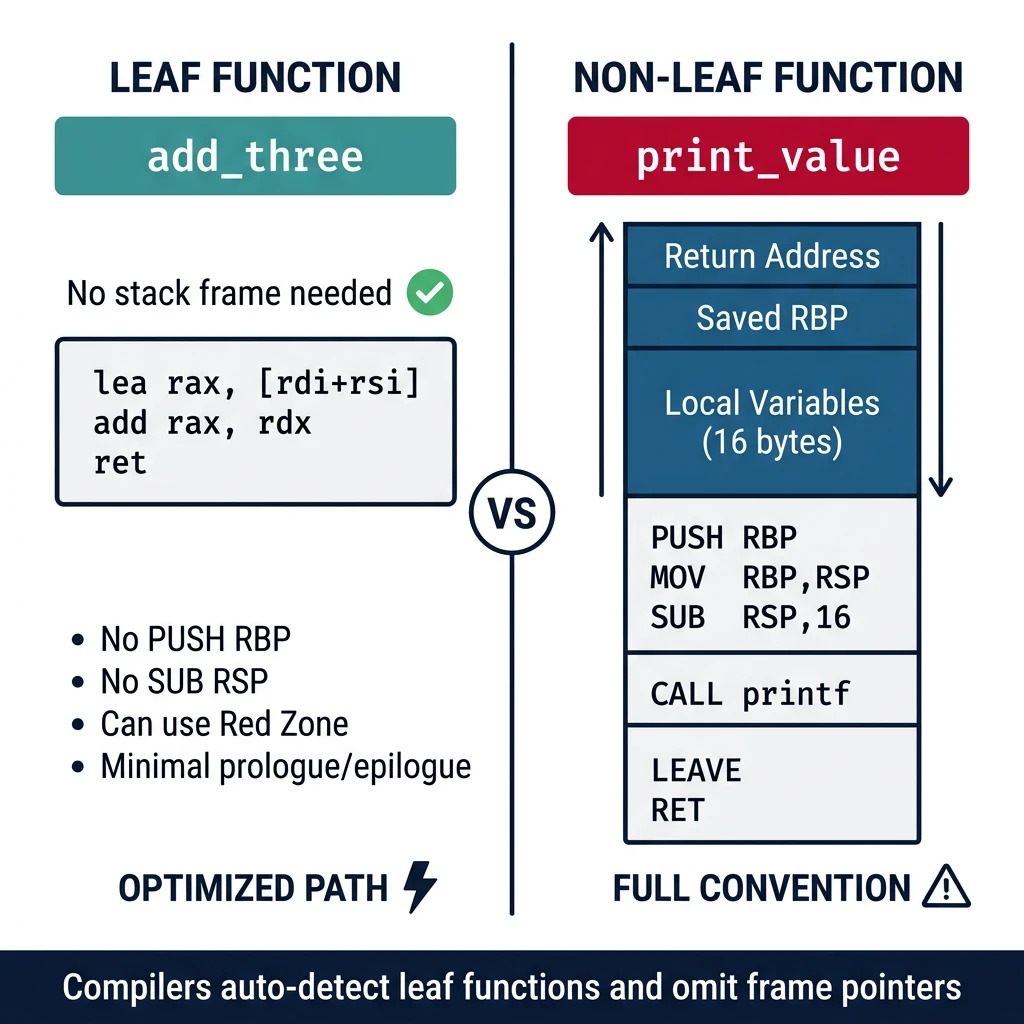

Leaf Functions

A leaf function is one that doesn't call other functions. These can be heavily optimized:

• No need to set up a stack frame
• No need for frame pointer (RBP)
• Can use red zone on System V
• Minimal prologue/epilogue

; Non-leaf function (calls printf)
; Must follow full convention
print_value:
    push rbp
    mov rbp, rsp
    sub rsp, 16         ; Alignment + locals

    mov rsi, rdi        ; Arg for printf
    lea rdi, [fmt]
    xor eax, eax        ; 0 vector args
    call printf

    leave
    ret

; Leaf function (optimized, no calls)
; Can skip frame setup entirely
add_three:
    lea rax, [rdi + rsi]    ; rax = a + b
    add rax, rdx            ; rax += c
    ret                     ; No prologue/epilogue needed!

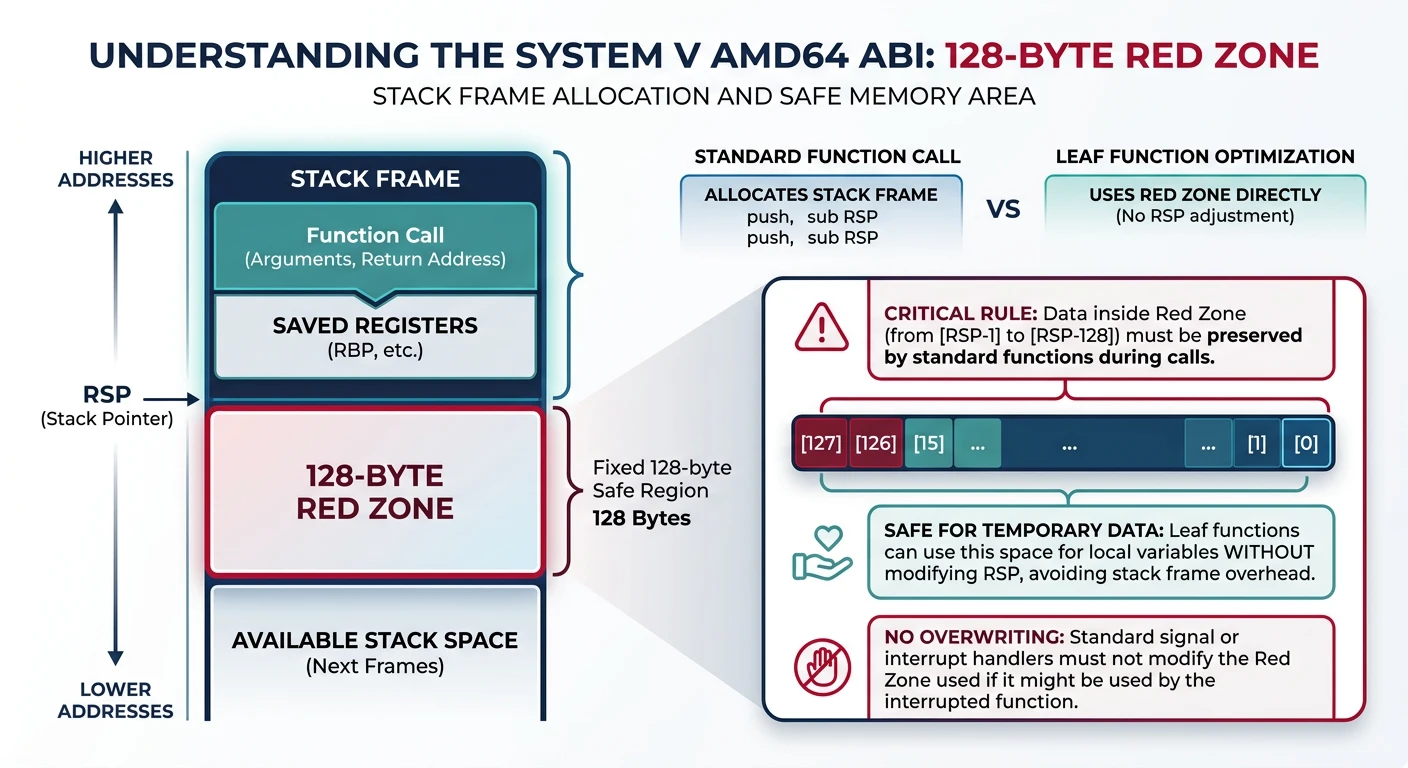

Red Zone (System V)

The red zone is a 128-byte area below RSP that leaf functions can use without adjusting RSP. It's "protected" from signal handlers and interrupts.

Stack Layout with Red Zone:

        │             │
        ├─────────────┤
        │ Return Addr │ ← RSP points here
        ├─────────────┤
        │             │
        │  Red Zone   │ ← 128 bytes, usable without SUB RSP
        │  (128 bytes)│
        │             │
        ├─────────────┤
        │ Danger Zone │ ← Below red zone, may be clobbered
        └─────────────┘

Using the Red Zone

; Leaf function using red zone (System V only!)
compute_hash:
    ; No stack frame needed - use red zone for locals
    mov [rsp - 8], rbx      ; Save RBX in red zone
    mov [rsp - 16], r12     ; Save R12 in red zone

    ; Use RBX and R12 freely...
    mov rbx, rdi
    xor r12, r12

    ; ... computation ...

    ; Restore and return
    mov rbx, [rsp - 8]
    mov r12, [rsp - 16]
    ret

; Cross-platform compatible function
multiply_add:
    ; Works on both Linux and Windows
    ; Linux: args in RDI, RSI, RDX
    ; Windows: args in RCX, RDX, R8
%ifdef WINDOWS
    mov rax, rcx
    imul rax, rdx
    add rax, r8
%else
    mov rax, rdi
    imul rax, rsi
    add rax, rdx
%endif
    ret
