x86 Assembly Series Part 21: Complete Emulator & Simulator Guide

QEMU — General-Purpose Emulator

Installation & Basics

# Install QEMU (Ubuntu/Debian)
sudo apt install qemu-system-x86 qemu-utils

# Install QEMU (Windows - use MSYS2 or official installer)
# Download from: https://www.qemu.org/download/

# Basic invocation for boot sector
qemu-system-x86_64 -drive format=raw,file=boot.bin

# With debugging enabled (-s: GDB on :1234, -S: freeze at startup)
qemu-system-x86_64 -drive format=raw,file=boot.bin -s -S

# Run 32-bit system
qemu-system-i386 -drive format=raw,file=boot.bin

# Run with floppy drive emulation
qemu-system-i386 -fda boot.bin

# Run kernel with multiboot
qemu-system-i386 -kernel kernel.bin

GDB Remote Debugging

# Terminal 1: Start QEMU with GDB stub
qemu-system-x86_64 -drive format=raw,file=boot.bin -s -S

# Terminal 2: Connect GDB
gdb
(gdb) target remote localhost:1234
(gdb) set architecture i8086    # For 16-bit real mode
(gdb) break *0x7c00             # Break at boot sector load address
(gdb) continue
(gdb) x/20i $eip                # Disassemble 20 instructions
(gdb) info registers            # View all registers
(gdb) stepi                     # Single-step instruction

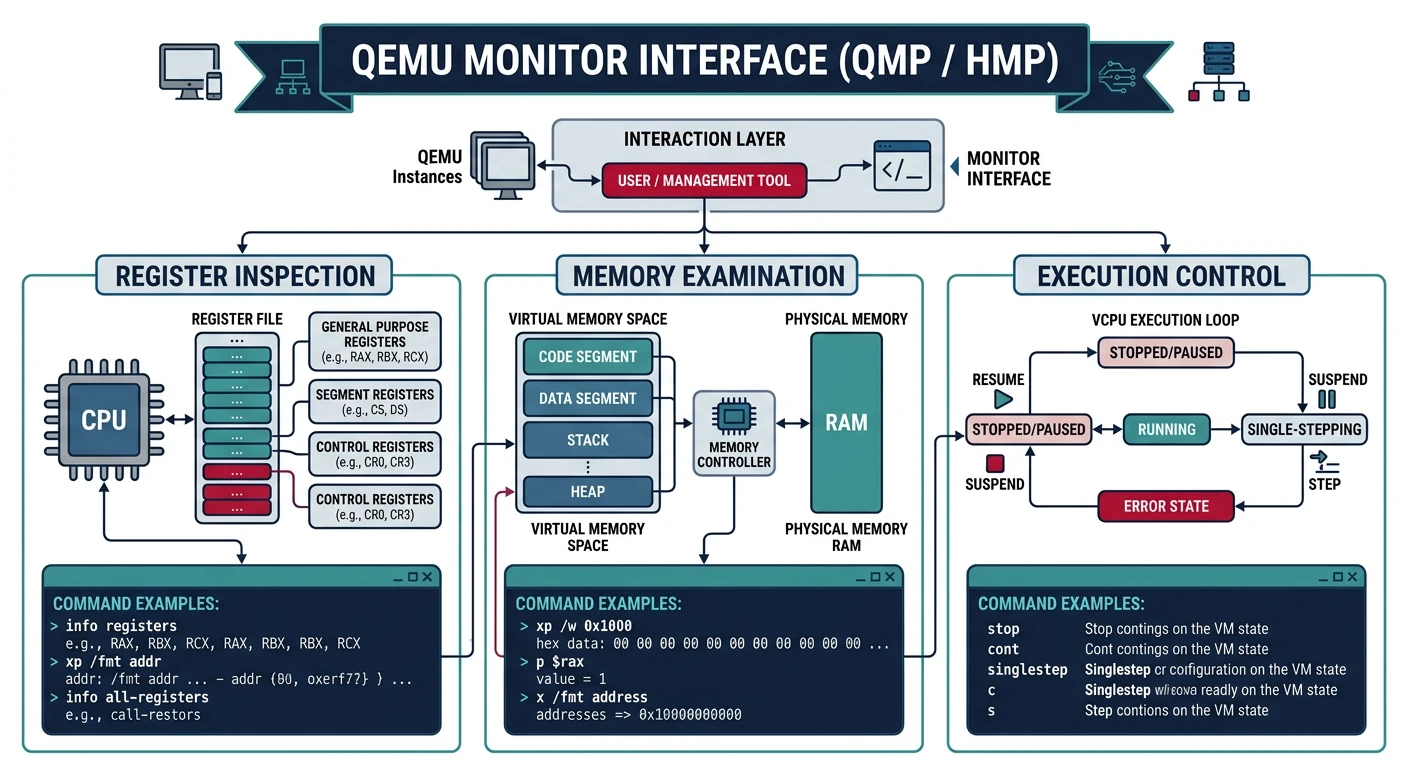

QEMU Monitor Commands

Press Ctrl+Alt+2 to access the QEMU monitor (or use -monitor stdio):

# Common monitor commands
info registers       # Display CPU registers
info cpus           # Show CPU state
info mem            # Show virtual memory mappings
info tlb            # Show TLB entries
xp /20xw 0x7c00     # Examine physical memory (20 words at 0x7c00)
x /20i 0x7c00       # Disassemble from address
memsave 0 0x100000 dump.bin   # Save memory to file
stop                # Pause emulation
cont                # Continue emulation
system_reset        # Reset the system
quit                # Exit QEMU

Disk Images & Hardware Configuration

# Create disk images
qemu-img create -f raw disk.img 512M        # Raw format
qemu-img create -f qcow2 disk.qcow2 10G     # QCOW2 (sparse, snapshots)

# Memory and CPU configuration
qemu-system-x86_64 -m 512M -smp 2 -drive format=raw,file=boot.bin

# Enable hardware acceleration (Linux KVM)
qemu-system-x86_64 -enable-kvm -m 2G -drive format=raw,file=boot.bin

# Serial output to terminal
qemu-system-i386 -nographic -serial mon:stdio -drive format=raw,file=boot.bin

# Network configuration
qemu-system-x86_64 -netdev user,id=net0 -device e1000,netdev=net0

Bochs — Instruction-Accurate Emulator

Installation & Configuration

# Install Bochs (Ubuntu/Debian)
sudo apt install bochs bochs-x bochsbios

# Bochs configuration file: bochsrc.txt
megs: 32
romimage: file=/usr/share/bochs/BIOS-bochs-latest
vgaromimage: file=/usr/share/bochs/VGABIOS-lgpl-latest
floppya: 1_44=boot.bin, status=inserted
boot: floppy
log: bochs.log
mouse: enabled=0

# Run Bochs
bochs -f bochsrc.txt

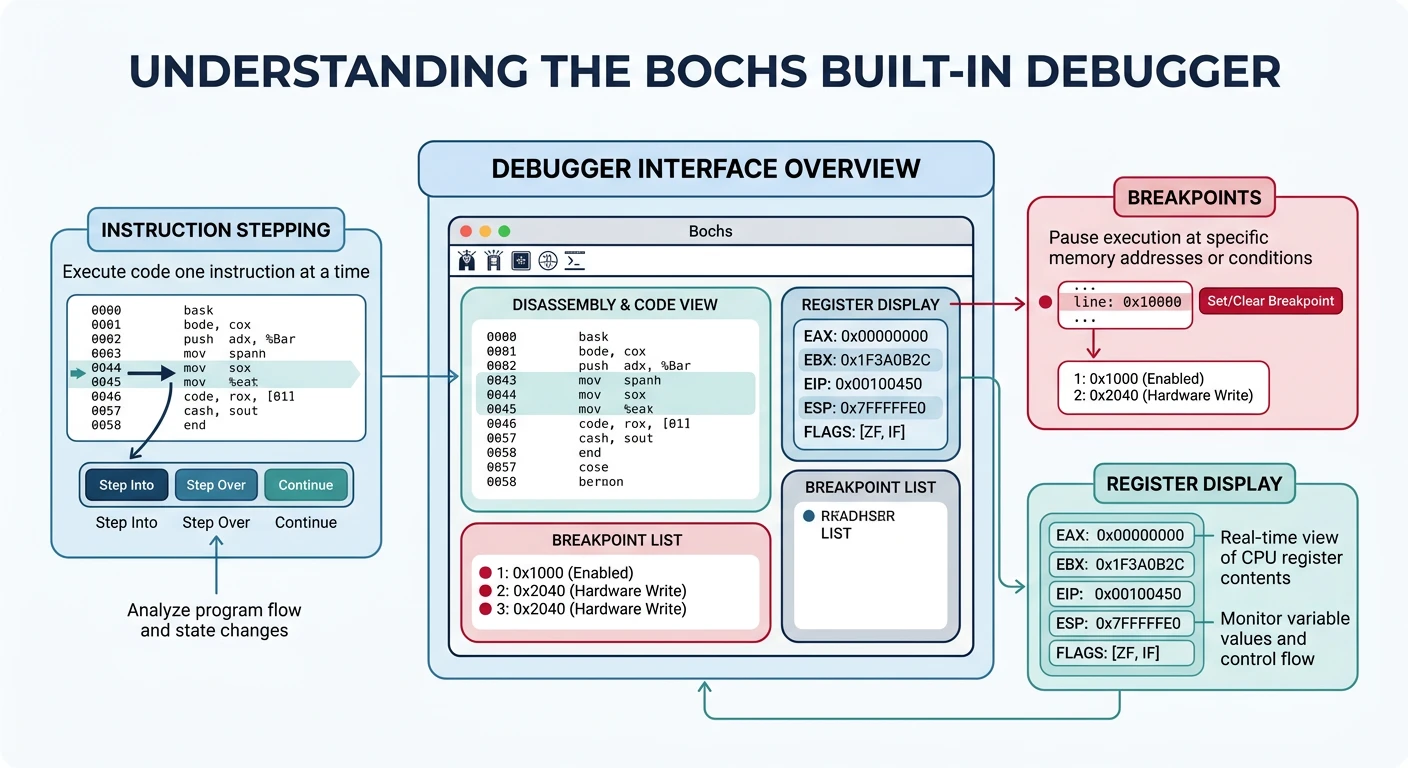

Built-in Debugger

Bochs has a powerful integrated debugger. Compile with --enable-debugger or use bochs-dbg:

# Bochs debugger commands
b 0x7c00            # Set breakpoint at address
c                   # Continue execution
s                   # Single step
n                   # Step over (next)
r                   # Show registers
sreg                # Show segment registers
creg                # Show control registers
u 0x7c00 0x7c20     # Disassemble range
x /40bx 0x7c00      # Examine 40 bytes at address
xp /20 0x7c00       # Examine physical memory
trace-on            # Enable instruction trace
watch read 0x7c00   # Watch memory reads
watch write 0x7c00  # Watch memory writes
info break          # List breakpoints
del 1               # Delete breakpoint 1
q                   # Quit

gem5 — CPU Research Simulator

Architecture & Installation

# Clone gem5 repository
git clone https://gem5.googlesource.com/public/gem5
cd gem5

# Install dependencies (Ubuntu)
sudo apt install build-essential git m4 scons zlib1g-dev \
    libprotobuf-dev protobuf-compiler libgoogle-perftools-dev

# Build gem5 for x86 (takes 30+ minutes)
scons build/X86/gem5.opt -j$(nproc)

# Run simple x86 simulation
./build/X86/gem5.opt configs/example/se.py --cmd=tests/test-progs/hello/bin/x86/linux/hello

Simulation Modes

• SE (Syscall Emulation): Run user-space binaries without OS
• FS (Full System): Boot complete operating system

# gem5 configuration script example
import m5
from m5.objects import *

system = System()
system.clk_domain = SrcClockDomain()
system.clk_domain.clock = '1GHz'
system.mem_mode = 'timing'
system.mem_ranges = [AddrRange('512MB')]

# Create CPU
system.cpu = TimingSimpleCPU()

# Memory system
system.membus = SystemXBar()
system.cpu.icache_port = system.membus.cpu_side_ports
system.cpu.dcache_port = system.membus.cpu_side_ports

# Run simulation
root = Root(full_system=False, system=system)
m5.instantiate()
m5.simulate()

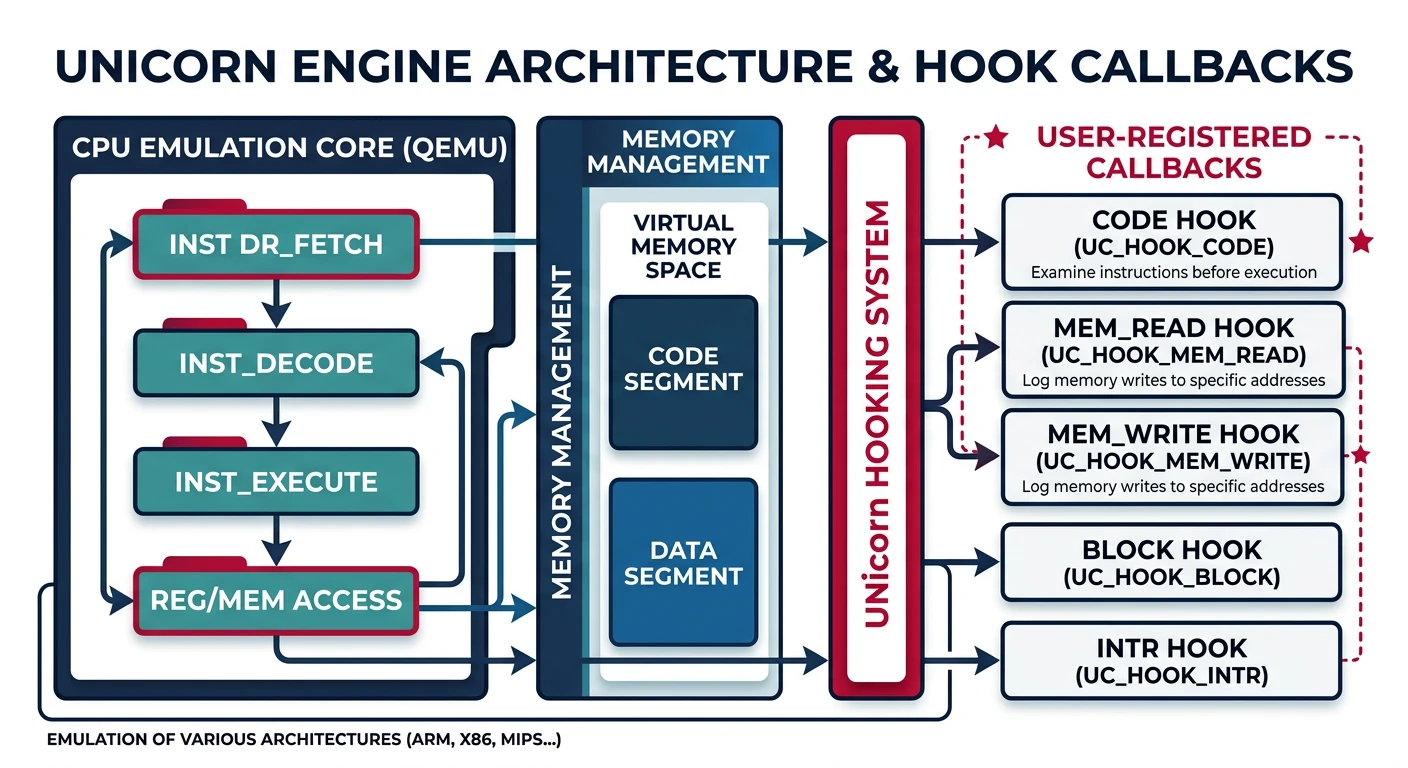

Unicorn Engine — Security Framework

Installation & Basic Usage

# Install Unicorn (Python bindings)
pip install unicorn

# Install Unicorn (system libraries)
sudo apt install libunicorn-dev

# Python example: Emulate x86 code
from unicorn import *
from unicorn.x86_const import *

# Machine code: INC ECX; DEC EDX
X86_CODE32 = b"\x41\x4a"

# Memory address where emulation starts
ADDRESS = 0x1000000

# Initialize emulator in x86-32 mode
mu = Uc(UC_ARCH_X86, UC_MODE_32)

# Map 2MB memory for this emulation
mu.mem_map(ADDRESS, 2 * 1024 * 1024)

# Write machine code to memory
mu.mem_write(ADDRESS, X86_CODE32)

# Initialize registers
mu.reg_write(UC_X86_REG_ECX, 0x1234)
mu.reg_write(UC_X86_REG_EDX, 0x7890)

# Emulate code
mu.emu_start(ADDRESS, ADDRESS + len(X86_CODE32))

# Read registers after emulation
print("ECX = 0x%x" % mu.reg_read(UC_X86_REG_ECX))  # 0x1235
print("EDX = 0x%x" % mu.reg_read(UC_X86_REG_EDX))  # 0x788f

Shellcode Analysis

# Emulate shellcode with hooks
from unicorn import *
from unicorn.x86_const import *

def hook_code(uc, address, size, user_data):
    print(">>> Executing at 0x%x, instruction size = %d" % (address, size))

def hook_mem_access(uc, access, address, size, value, user_data):
    if access == UC_MEM_WRITE:
        print(">>> Memory WRITE at 0x%x, size = %d, value = 0x%x" % (address, size, value))
    else:
        print(">>> Memory READ at 0x%x, size = %d" % (address, size))

# Initialize emulator in x86-64 mode
mu = Uc(UC_ARCH_X86, UC_MODE_64)
mu.mem_map(0x1000, 0x4000)

# Load shellcode
shellcode = b"\x48\x31\xc0\x48\x89\xc7\x48\x89\xc6\x48\x89\xc2"
mu.mem_write(0x1000, shellcode)

# Set up stack
mu.reg_write(UC_X86_REG_RSP, 0x3000)

# Add hooks
mu.hook_add(UC_HOOK_CODE, hook_code)
mu.hook_add(UC_HOOK_MEM_READ | UC_HOOK_MEM_WRITE, hook_mem_access)

# Emulate
try:
    mu.emu_start(0x1000, 0x1000 + len(shellcode))
except UcError as e:
    print("Error: %s" % e)

Valgrind — Memory Debugger

Memcheck for Assembly

# Install Valgrind
sudo apt install valgrind

# Run program with Memcheck
valgrind --leak-check=full ./my_asm_program

# Track origins of uninitialized values
valgrind --track-origins=yes ./my_asm_program

# Generate detailed suppressions
valgrind --gen-suppressions=all ./my_asm_program

# Check for invalid memory access
valgrind --tool=memcheck --trace-children=yes ./my_program

Assembly-Specific Usage

; Example: Code that Valgrind will catch
section .data
    buffer: times 10 db 0

section .text
global _start
_start:
    ; Valgrind catches: reading uninitialized memory
    mov eax, [buffer + 20]    ; Read beyond allocated buffer!

    ; Valgrind catches: memory leak if we exit without freeing
    mov eax, 12               ; sys_brk
    xor ebx, ebx
    int 0x80

    ; Exit
    mov eax, 1
    xor ebx, ebx
    int 0x80

nasm -f elf32 valgrind_test.asm -o valgrind_test.o
ld -m elf_i386 valgrind_test.o -o valgrind_test
valgrind ./valgrind_test

# macOS dropped 32-bit support in Catalina (10.15)
# Use a Linux Docker container or VM instead

# In WSL2:
nasm -f elf32 valgrind_test.asm -o valgrind_test.o
ld -m elf_i386 valgrind_test.o -o valgrind_test

# Valgrind output example
==12345== Invalid read of size 4
==12345==    at 0x401000: _start (program.asm:10)
==12345==  Address 0x404014 is 0 bytes after a block of size 10 alloc'd
==12345==    at 0x401000: _start (program.asm:6)

# Other Valgrind tools
valgrind --tool=cachegrind ./program   # Cache profiling
valgrind --tool=callgrind ./program    # Call graph profiling
valgrind --tool=helgrind ./program     # Thread error detection

DOSBox — Real-Mode & DOS Emulator

Real-Mode Testing

# Install DOSBox
sudo apt install dosbox

# Run DOSBox
dosbox

# Mount directory as C: drive
MOUNT C /path/to/asm/programs
C:

# Assemble and run COM file (NASM in DOSBox or pre-assembled)
program.com

; hello.asm - 16-bit DOS COM program
org 100h

section .text
    mov ah, 09h           ; DOS print string function
    mov dx, message       ; Address of string
    int 21h               ; Call DOS interrupt

    mov ax, 4C00h         ; DOS exit function
    int 21h               ; Exit with code 0

section .data
    message db 'Hello from real mode!$'

# Assemble for DOS COM format (on Linux)
nasm -f bin hello.asm -o hello.com

# Copy to DOSBox directory and run
# In DOSBox: hello.com

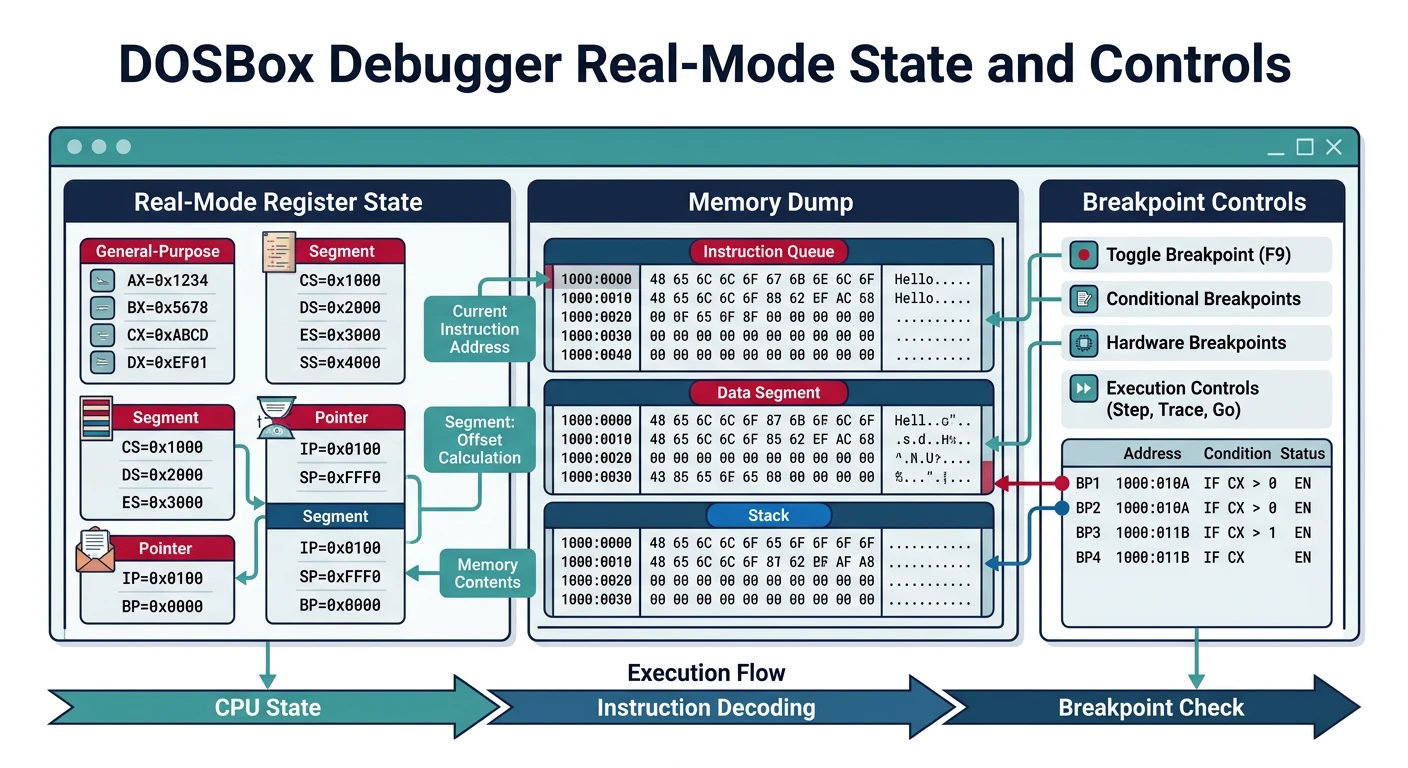

DOSBox Debug Commands

Use DOSBox-X or DOSBox with debug build for built-in debugger:

# DOSBox debugger commands (press Alt+Pause)
bp 0100           # Breakpoint at CS:0100
bpint 21          # Break on INT 21h
r                 # Display registers
d 0100            # Dump memory at offset 0100
u 0100            # Unassemble at offset 0100
t                 # Trace (single step)
p                 # Proceed (step over INT/CALL)
g                 # Go (continue execution)
sm 0100 48        # Set memory byte at 0100 to 0x48
sr ax 1234        # Set AX register to 0x1234
log               # Toggle logging
memdump 0 FFFF    # Dump memory range

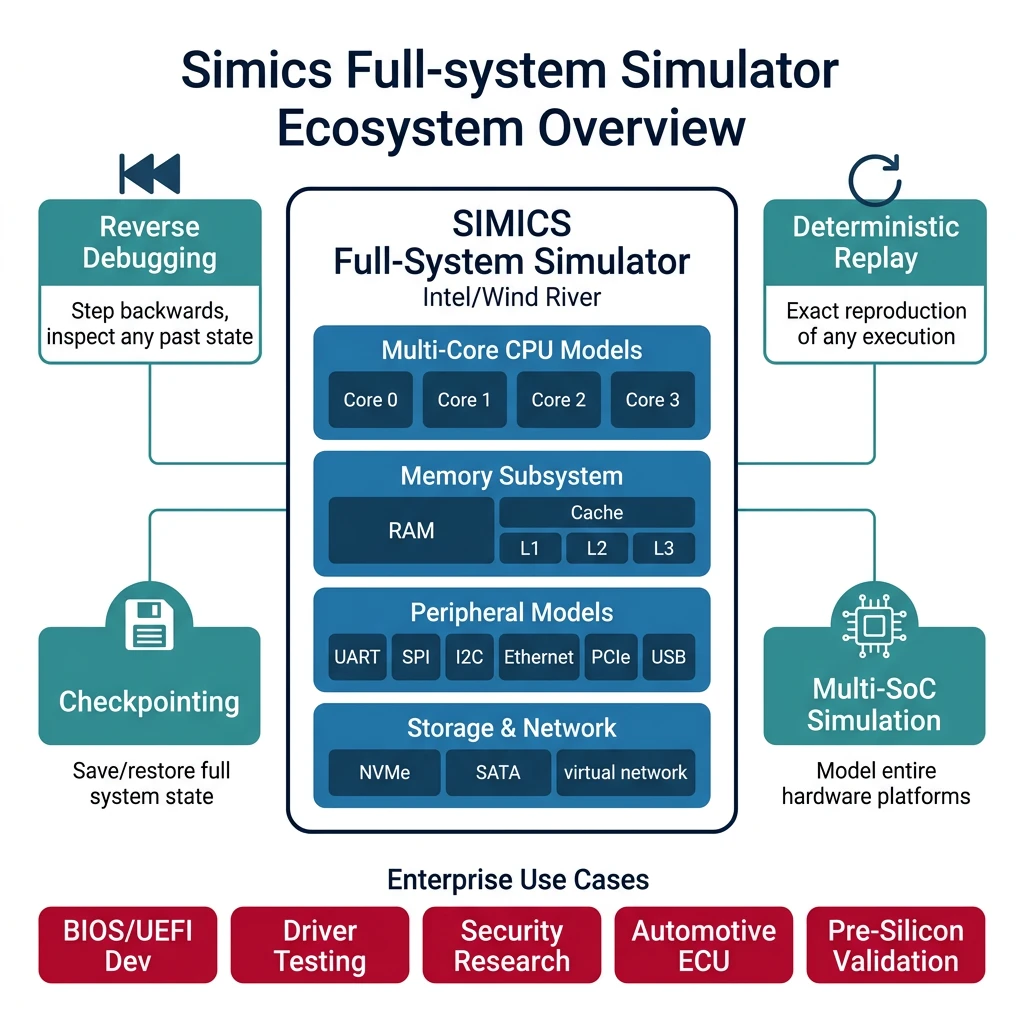

Simics — Enterprise Full-System Simulator

Overview

• Full-system simulation: CPU, memory, peripherals, network
• Deterministic execution: Exact reproducibility of bugs
• Reverse debugging: Step backwards in time
• Checkpoint/restore: Save and reload system state
• Multi-core support: Simulate complex SoCs

Enterprise Features

# Simics CLI example (simplified)
# Note: Actual Simics requires commercial license

# Load target configuration
simics> run-command-file targets/x86-simple/x86-simple.simics

# Set breakpoint on memory access
simics> break-mem 0x7c00 -r -w

# Run simulation
simics> run

# Time travel debugging
simics> reverse
simics> backstep

# Create checkpoint
simics> save-persistent-state checkpoint1

# Memory inspection
simics> x 0x7c00 100

# Register inspection
simics> print-cpu-registers

Alternatives for hobbyists:

• Free: QEMU + GDB provides most debugging features
• Academic: gem5 offers similar depth for research
• Commercial: Synopsys Virtualizer, Cadence Palladium

Decision Matrix: Which Tool to Use?
