x86 Assembly Series Part 9: Control Flow Instructions

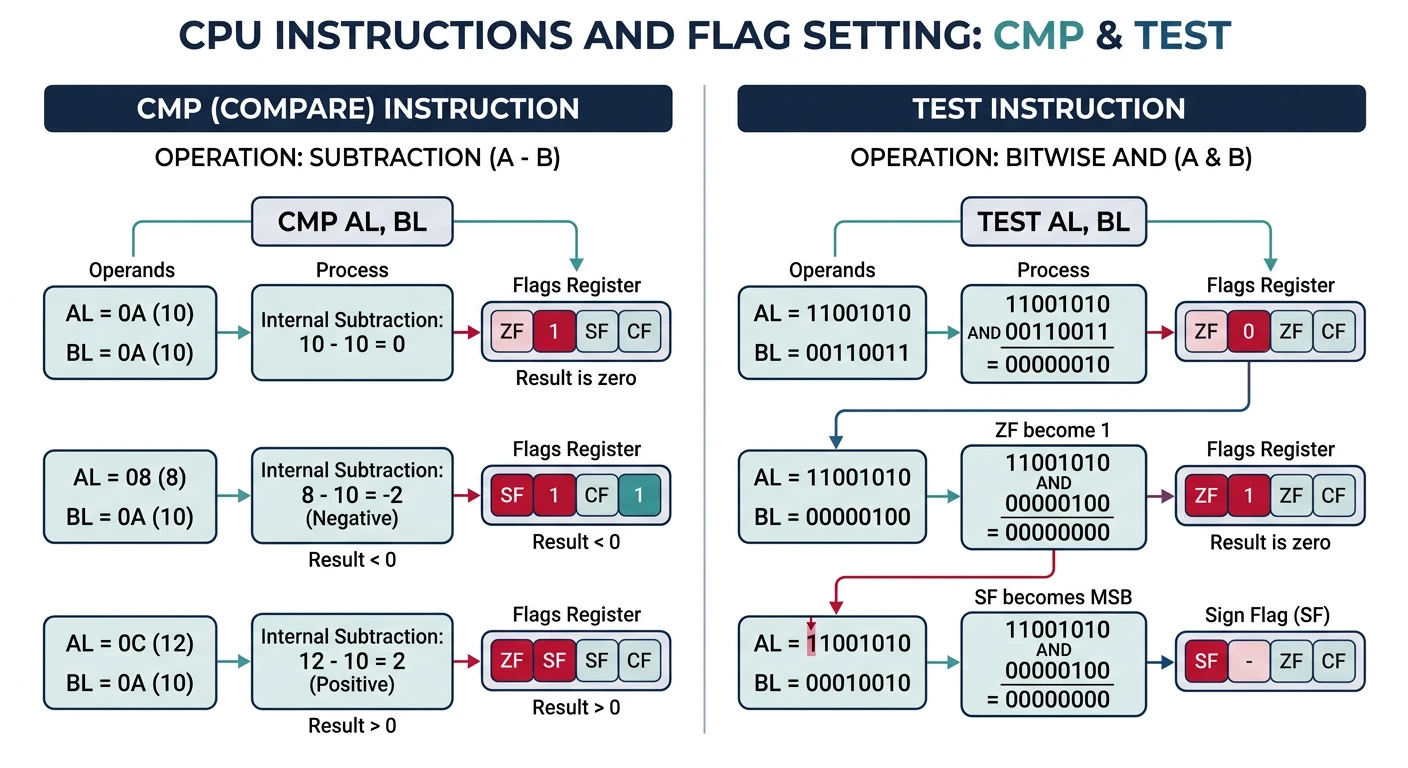

CMP & TEST Instructions

cmp rax, rbx        ; Set flags based on RAX - RBX
cmp rax, 10         ; Compare RAX to immediate

test rax, rax       ; Is RAX zero? (sets ZF if RAX==0)
test rax, 1         ; Is bit 0 set? (check odd/even)

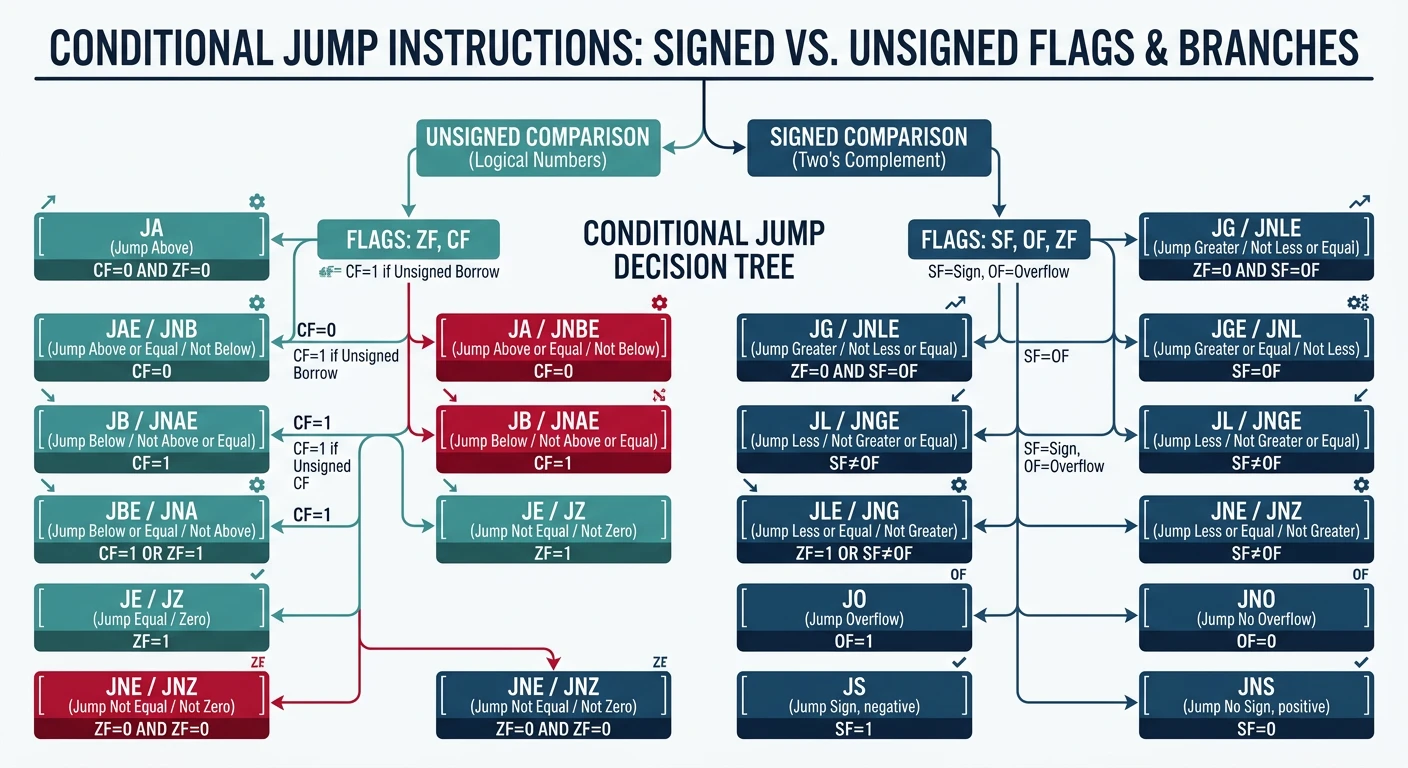

Conditional Jumps

Signed Comparisons

Unsigned Comparisons

Flag-Based Jumps

These jumps test individual CPU flags directly:

; Check for negative result
    sub rax, rbx
    js .handle_negative     ; Jump if result is negative (SF=1)
    ; ... positive path ...
.handle_negative:
    neg rax                 ; Make it positive

; Check for overflow in addition
    add eax, ebx
    jo .overflow_error      ; Signed overflow occurred!
    ; ... continue normally ...
.overflow_error:
    ; Handle overflow...

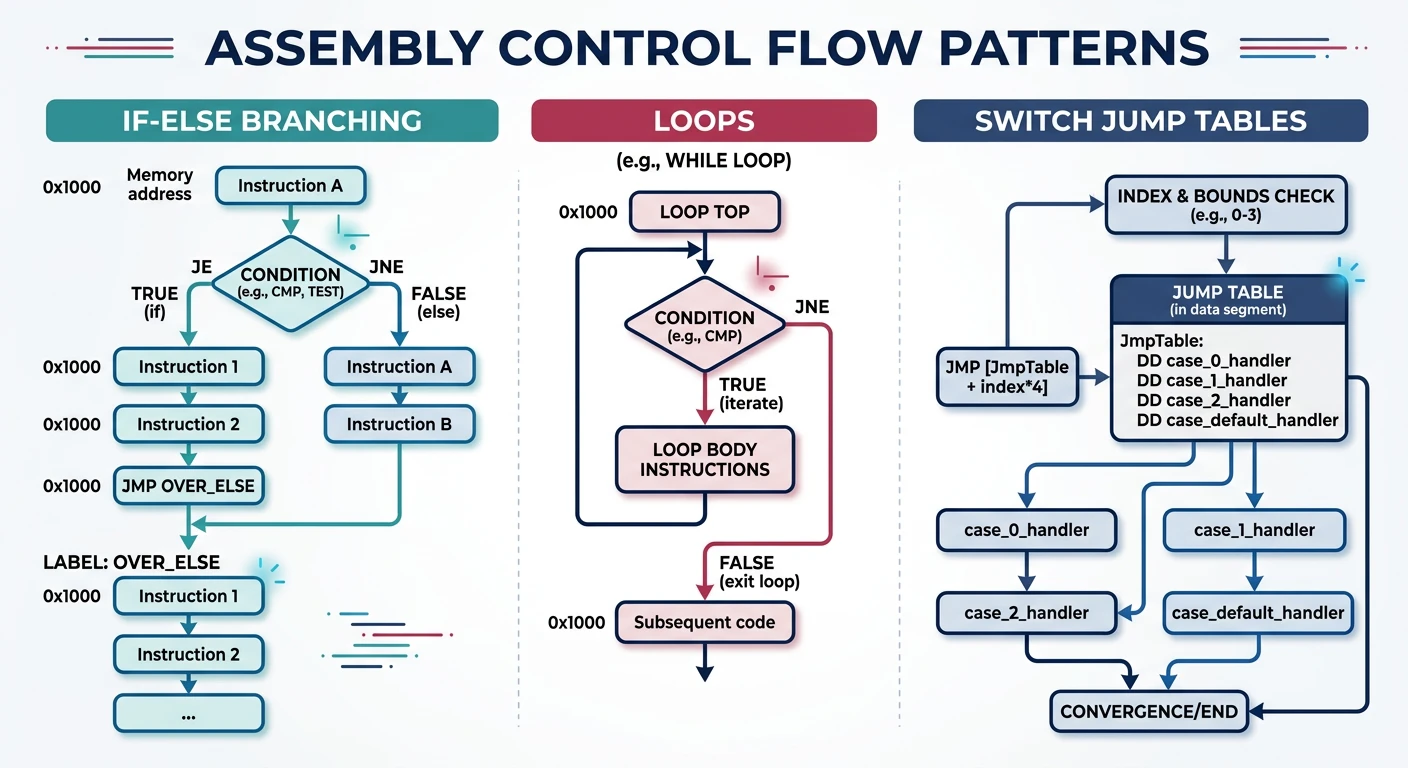

Common Control Flow Patterns

If/Else in Assembly

; C: if (rax == 10) { rbx = 1; } else { rbx = 0; }
    cmp rax, 10
    jne .else
    mov rbx, 1
    jmp .endif
.else:
    mov rbx, 0
.endif:

Switch / Jump Tables

For switch statements with dense, sequential cases, jump tables are much faster than chained if-else:

section .data
; Jump table: array of code addresses
jump_table:
    dq .case_0
    dq .case_1
    dq .case_2
    dq .case_3

section .text
; RDI contains switch value (0-3)
my_switch:
    ; Bounds check first!
    cmp rdi, 3
    ja .default             ; If > 3, go to default

    ; Load address from jump table and jump
    lea rax, [rel jump_table]
    jmp [rax + rdi*8]       ; Jump to case handler

.case_0:
    mov rax, 100
    jmp .end_switch
.case_1:
    mov rax, 200
    jmp .end_switch
.case_2:
    mov rax, 300
    jmp .end_switch
.case_3:
    mov rax, 400
    jmp .end_switch
.default:
    mov rax, -1
.end_switch:
    ret

For/While Loops

; C: for (int i = 0; i < 10; i++) { sum += array[i]; }
    xor ecx, ecx        ; i = 0
    xor eax, eax        ; sum = 0
.loop:
    cmp ecx, 10
    jge .done           ; if i >= 10, exit
    add eax, [array + rcx*4]
    inc ecx
    jmp .loop
.done:

LOOP Instructions

The LOOP family decrements RCX/ECX and jumps if non-zero:

; Sum array using LOOP (simple but slow!)
    lea rsi, [array]
    mov rcx, 10             ; Loop count
    xor eax, eax            ; sum = 0
.sum_loop:
    add eax, [rsi]
    add rsi, 4
    loop .sum_loop          ; Decrement RCX, jump if != 0

; LOOPE example: Count leading zeros in array
    lea rsi, [array]
    mov rcx, 10
    xor eax, eax
.count_zeros:
    cmp dword [rsi], 0      ; Sets ZF if element is 0
    jne .done_counting
    inc eax                 ; Count this zero
    add rsi, 4
    loope .count_zeros      ; Continue while ZF=1 and RCX>0
.done_counting:

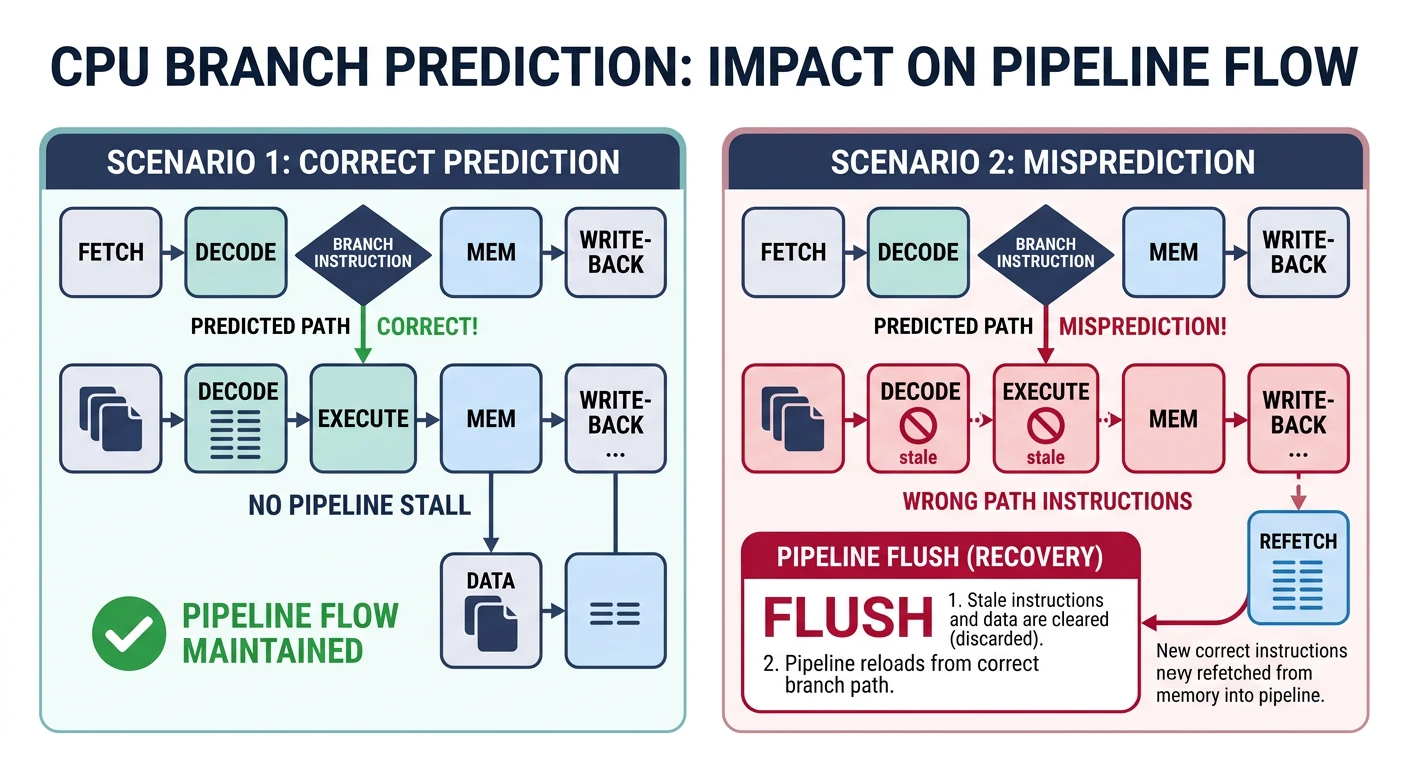

Branch Prediction

Modern CPUs predict branch outcomes to keep the pipeline full. A misprediction flushes the pipeline—costing 15-20 cycles!

Branch Prediction Pipeline Impact:

Correct Prediction (typical):
  Fetch → Decode → Execute → Retire
    T1     T2       T3        T4      (seamless flow)

Misprediction (costly!):
  Fetch → Decode → Execute → WRONG! → Flush → Refetch
    T1     T2       T3         T4       T5-T20  (15-20 cycles lost)

Branch Prediction Tips

• Favor predictable branches: Loops are highly predictable (taken until exit)
• Avoid data-dependent branches: if (array[i] > 50) is hard to predict
• Use CMOV: Conditional moves don't branch at all
• Sort data when possible: Sorted data makes comparisons predictable

; Unpredictable branch (random data)
    cmp byte [rsi], 128
    jg .greater             ; 50% taken - hard to predict!
    inc r8                  ; Count <= 128
    jmp .next
.greater:
    inc r9                  ; Count > 128
.next:

; Hint: Use sorted data!
; If array is sorted, branch becomes 100% predictable:
; All values < 128 first, then all > 128

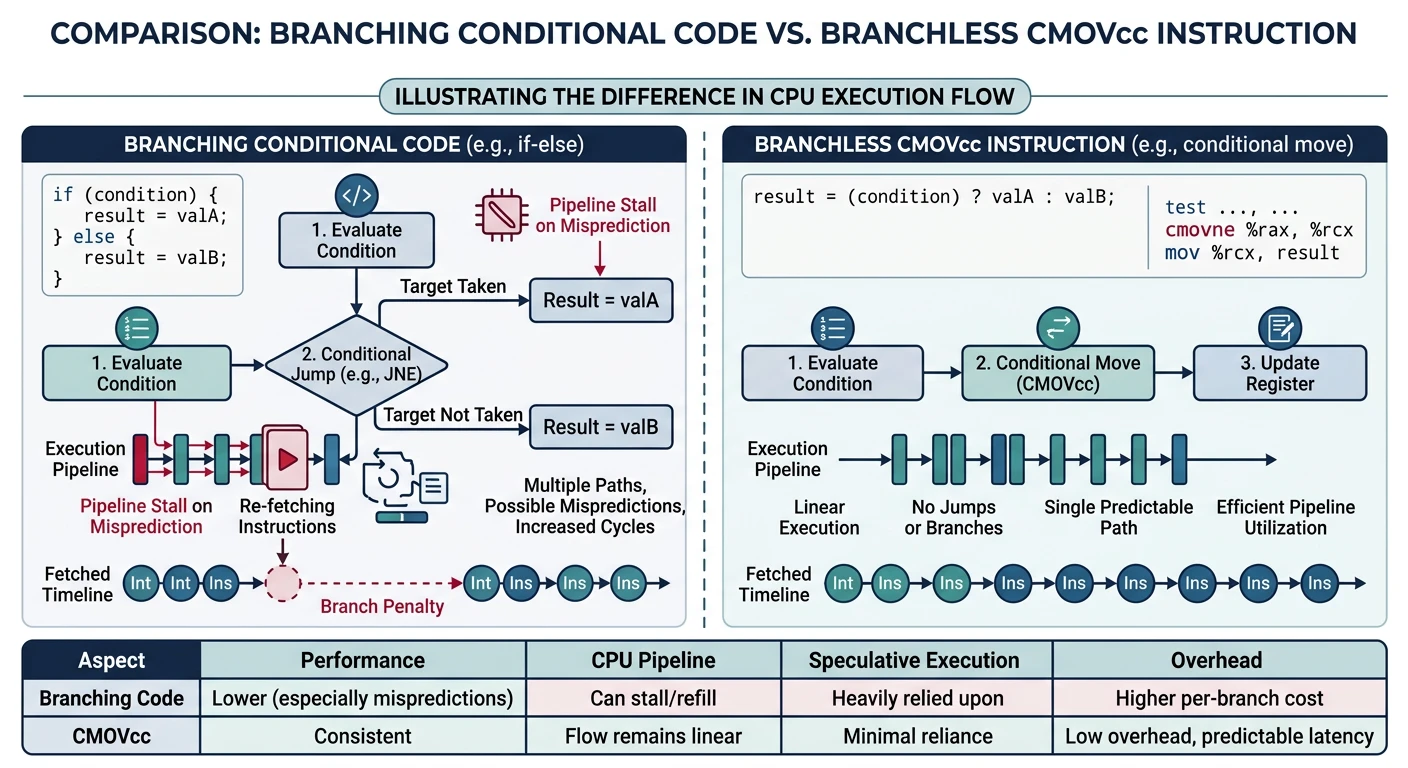

CMOVcc (Branchless Conditional Move)

CMOV moves data only if the condition is true—no branching, no misprediction penalty!

; Traditional branch (can mispredict)
    cmp rax, rbx
    jle .else
    mov rcx, rax            ; if (rax > rbx) rcx = rax
    jmp .endif
.else:
    mov rcx, rbx            ; else rcx = rbx
.endif:

; Branchless with CMOV (no misprediction possible!)
    cmp rax, rbx
    mov rcx, rbx            ; Assume rcx = rbx
    cmovg rcx, rax          ; If rax > rbx, override with rax

CMOVcc Variants

When to Use CMOV vs Branch

; CMOV is best when:
; 1. Branch is unpredictable (random data)
; 2. Both paths are simple (just a move)

; Branch is best when:
; 1. Branch is predictable (loops, sorted data)
; 2. One path has expensive computation

; Example: Compute absolute value
; CMOV version (always good):
    mov rbx, rax
    neg rax                 ; rax = -rax
    test rbx, rbx
    cmovs rax, rbx          ; If original was negative, use negated

; Alternative using AND (also branchless):
    mov rbx, rax
    sar rbx, 63             ; All 1s if negative, all 0s if positive
    xor rax, rbx            ; Flip bits if negative
    sub rax, rbx            ; Add 1 if negative (two's complement magic)

; min(rdi, rsi) -> rax
min_func:
    cmp rdi, rsi
    mov rax, rsi            ; Assume rsi is smaller
    cmovl rax, rdi          ; If rdi < rsi, use rdi
    ret

; max(rdi, rsi) -> rax
max_func:
    cmp rdi, rsi
    mov rax, rdi            ; Assume rdi is larger
    cmovl rax, rsi          ; If rdi < rsi, use rsi instead
    ret
