x86 Assembly Series Part 20: Kernel Assembly Components

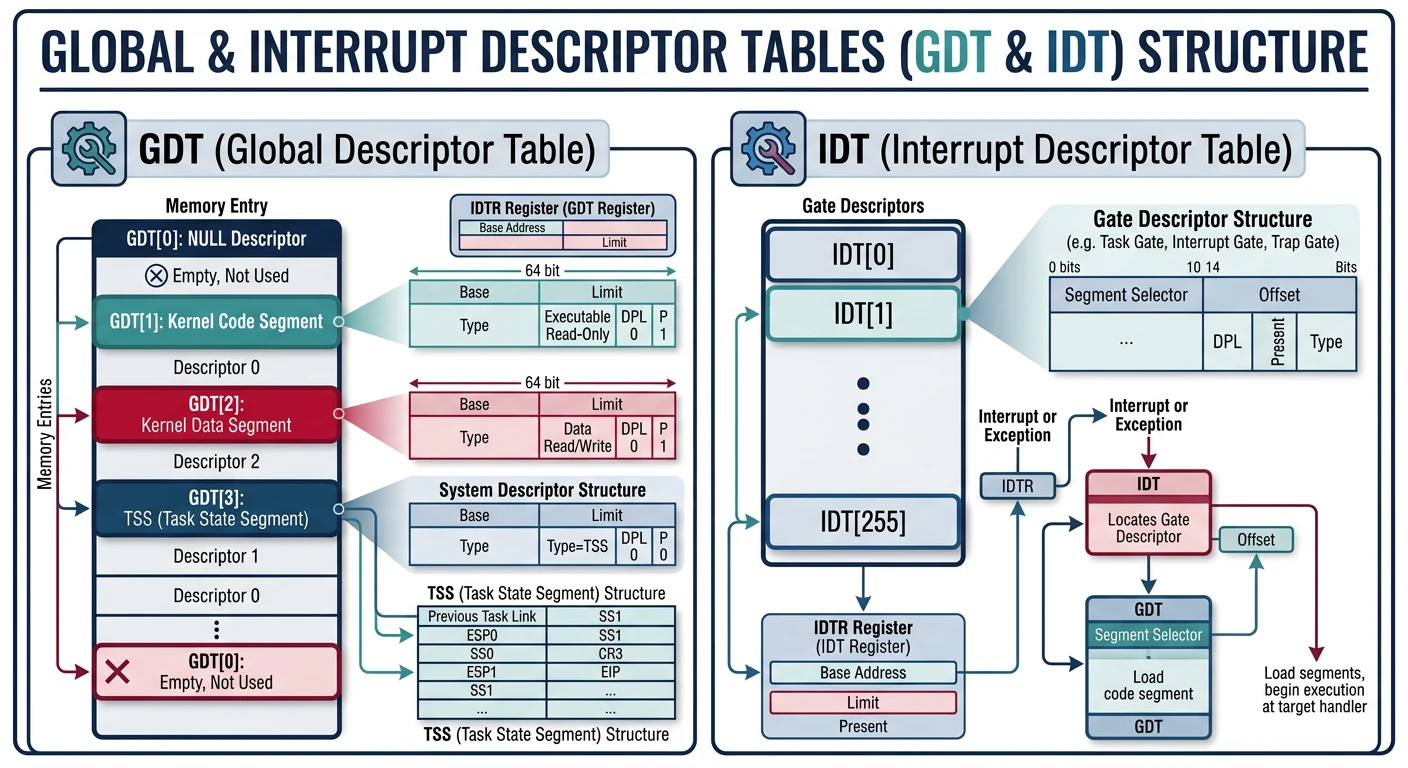

GDT & IDT Setup

The Global Descriptor Table (GDT) defines memory segments, while the Interrupt Descriptor Table (IDT) routes interrupts to handlers. Both are essential kernel structures.

64-bit GDT Structure

section .data
align 16
gdt64:
    .null:    dq 0                          ; Null descriptor (required)

    .code:    dw 0xFFFF                      ; Limit 0:15
              dw 0                           ; Base 0:15
              db 0                           ; Base 16:23
              db 10011010b                   ; Access: Present, Ring 0, Code, Exec, Read
              db 10101111b                   ; Flags: Gran, Long mode, Limit 16:19
              db 0                           ; Base 24:31

    .data:    dw 0xFFFF
              dw 0
              db 0
              db 10010010b                   ; Access: Present, Ring 0, Data, Write
              db 10101111b
              db 0

    .user_code:                              ; Ring 3 code segment
              dw 0xFFFF
              dw 0
              db 0
              db 11111010b                   ; DPL=3, Code
              db 10101111b
              db 0

    .user_data:
              dw 0xFFFF
              dw 0
              db 0
              db 11110010b                   ; DPL=3, Data
              db 10101111b
              db 0

    .tss:                                    ; Task State Segment descriptor
              dw tss_size - 1                ; Limit
              dw 0                           ; Base will be filled at runtime
              db 0
              db 10001001b                   ; Present, 64-bit TSS
              db 0
              db 0
              dq 0                           ; High 32 bits of base (64-bit)

gdt64_ptr:
    dw $ - gdt64 - 1                         ; GDT size - 1
    dq gdt64                                 ; GDT address

; Segment selectors (offset into GDT)
KERNEL_CODE equ 0x08    ; gdt64.code
KERNEL_DATA equ 0x10    ; gdt64.data
USER_CODE   equ 0x1B    ; gdt64.user_code | RPL 3
USER_DATA   equ 0x23    ; gdt64.user_data | RPL 3
TSS_SEL     equ 0x28    ; gdt64.tss

64-bit IDT Entry Structure

IDT Gate Descriptor (16 bytes in 64-bit mode):

┌───────────────┬───────────────┐
│ Offset 0:15   │ Selector      │  Bytes 0-3
├───────────────┼───────────────┤
│ IST  │ Type  │ Offset 16:31  │  Bytes 4-7
├───────────────┴───────────────┤
│         Offset 32:63          │  Bytes 8-11
├───────────────────────────────┤
│           Reserved            │  Bytes 12-15
└───────────────────────────────┘

Type field (byte 5):
  Bit 7:      Present (1=valid)
  Bits 5-6:   DPL (ring level to call from)
  Bits 0-3:   Type (0xE=64-bit interrupt, 0xF=64-bit trap)

; IDT setup with NASM macros
section .data

; Macro to create IDT entry
%macro IDT_ENTRY 1
    dw (%1) & 0xFFFF            ; Offset 0:15
    dw KERNEL_CODE              ; Selector
    db 0                        ; IST (0 = no stack switching)
    db 10001110b                ; Present, Ring 0, Interrupt Gate
    dw ((%1) >> 16) & 0xFFFF    ; Offset 16:31
    dd (%1) >> 32               ; Offset 32:63
    dd 0                        ; Reserved
%endmacro

align 16
idt64:
    IDT_ENTRY isr0              ; 0: Divide Error
    IDT_ENTRY isr1              ; 1: Debug
    IDT_ENTRY isr2              ; 2: NMI
    IDT_ENTRY isr3              ; 3: Breakpoint
    ; ... entries 4-31 for exceptions ...
    IDT_ENTRY irq0              ; 32: Timer (IRQ0)
    IDT_ENTRY irq1              ; 33: Keyboard (IRQ1)
    ; ... more IRQ handlers ...
idt64_end:

idt64_ptr:
    dw idt64_end - idt64 - 1    ; IDT size - 1
    dq idt64                    ; IDT address

section .text
load_gdt_idt:
    lgdt [gdt64_ptr]
    lidt [idt64_ptr]

    ; Reload CS with far return
    push KERNEL_CODE
    lea rax, [rel .reload_cs]
    push rax
    retfq
.reload_cs:
    ; Reload data segments
    mov ax, KERNEL_DATA
    mov ds, ax
    mov es, ax
    mov fs, ax
    mov gs, ax
    mov ss, ax
    ret

Interrupt Service Routines

; Common ISR stub - saves context and calls C handler
isr_common_stub:
    ; Push all general-purpose registers
    push rax
    push rbx
    push rcx
    push rdx
    push rsi
    push rdi
    push rbp
    push r8
    push r9
    push r10
    push r11
    push r12
    push r13
    push r14
    push r15

    ; Call C interrupt handler
    mov rdi, rsp            ; Pass stack frame pointer
    call interrupt_handler

    ; Restore registers
    pop r15
    pop r14
    pop r13
    pop r12
    pop r11
    pop r10
    pop r9
    pop r8
    pop rbp
    pop rdi
    pop rsi
    pop rdx
    pop rcx
    pop rbx
    pop rax

    add rsp, 16             ; Remove error code and ISR number
    iretq                   ; Return from interrupt

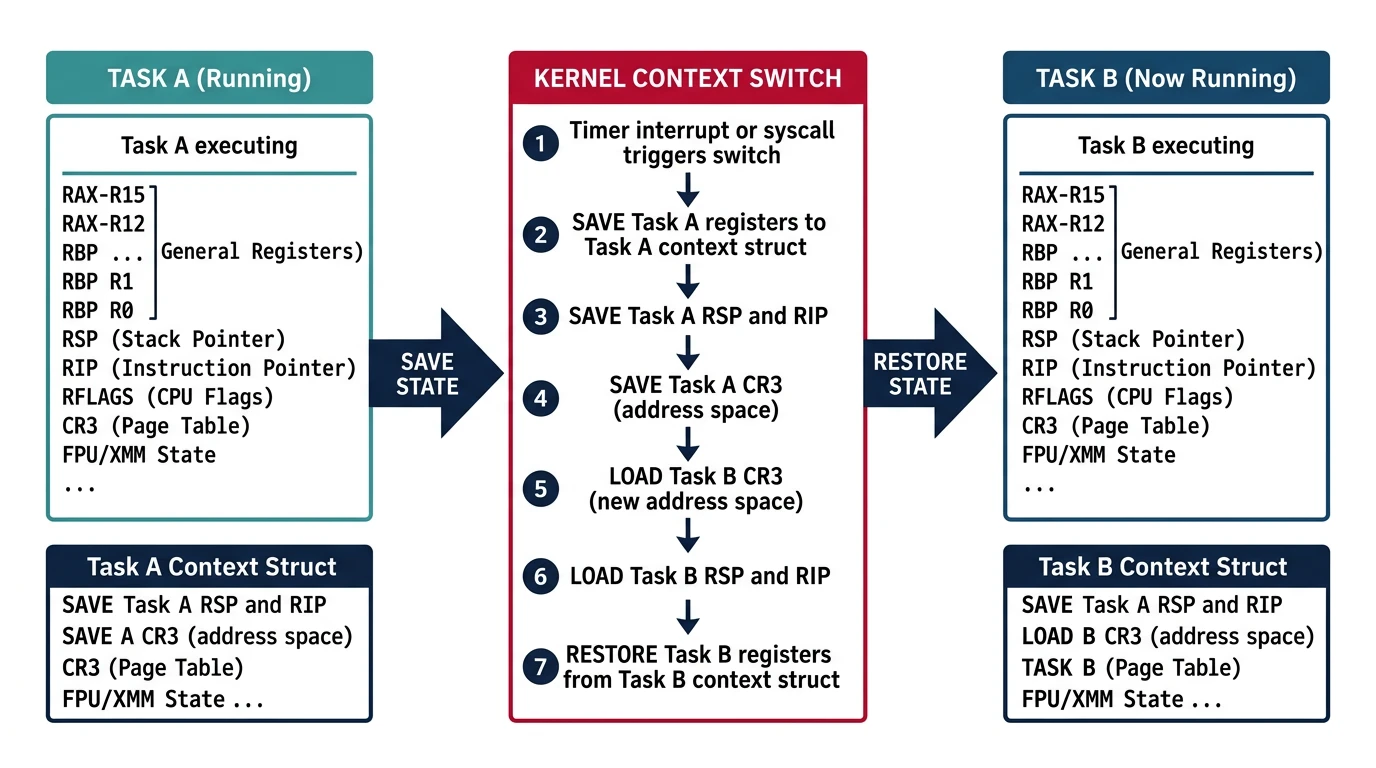

Context Switching

Context switching saves one task's CPU state and restores another's. It's the mechanism that enables multitasking—like pausing a video, switching to a browser, then resuming exactly where you left off.

Task State (what we save/restore):

┌────────────────────────────────┐
│ General Purpose Registers    │  RAX-R15, RBP
├────────────────────────────────┤
│ Stack Pointer (RSP)          │  Task's stack location
├────────────────────────────────┤
│ Instruction Pointer (RIP)    │  Where to resume
├────────────────────────────────┤
│ RFLAGS                       │  CPU flags
├────────────────────────────────┤
│ CR3                          │  Page table base (address space)
├────────────────────────────────┤
│ FPU/SSE State                │  XMM0-XMM15 (optional)
└────────────────────────────────┘

; Context structure
struc context
    .rax    resq 1
    .rbx    resq 1
    .rcx    resq 1
    .rdx    resq 1
    .rsi    resq 1
    .rdi    resq 1
    .rbp    resq 1
    .r8     resq 1
    .r9     resq 1
    .r10    resq 1
    .r11    resq 1
    .r12    resq 1
    .r13    resq 1
    .r14    resq 1
    .r15    resq 1
    .rip    resq 1
    .rflags resq 1
    .rsp    resq 1
    .cr3    resq 1
endstruc

; void switch_context(context* old, context* new)
; RDI = pointer to current task's context (save here)
; RSI = pointer to next task's context (restore from here)
global switch_context
switch_context:
    ; Save current task's registers
    mov [rdi + context.rax], rax
    mov [rdi + context.rbx], rbx
    mov [rdi + context.rcx], rcx
    mov [rdi + context.rdx], rdx
    mov [rdi + context.rsi], rsi
    mov [rdi + context.rdi], rdi
    mov [rdi + context.rbp], rbp
    mov [rdi + context.r8],  r8
    mov [rdi + context.r9],  r9
    mov [rdi + context.r10], r10
    mov [rdi + context.r11], r11
    mov [rdi + context.r12], r12
    mov [rdi + context.r13], r13
    mov [rdi + context.r14], r14
    mov [rdi + context.r15], r15

    ; Save stack pointer and return address
    mov [rdi + context.rsp], rsp
    mov rax, [rsp]                  ; Return address
    mov [rdi + context.rip], rax

    ; Save flags
    pushfq
    pop qword [rdi + context.rflags]

    ; Save CR3 (page table)
    mov rax, cr3
    mov [rdi + context.cr3], rax

    ; === Now restore new task ===

    ; Switch address space (if different)
    mov rax, [rsi + context.cr3]
    mov cr3, rax                    ; TLB flush happens here

    ; Restore registers
    mov rax, [rsi + context.rax]
    mov rbx, [rsi + context.rbx]
    mov rcx, [rsi + context.rcx]
    mov rdx, [rsi + context.rdx]
    mov rbp, [rsi + context.rbp]
    mov r8,  [rsi + context.r8]
    mov r9,  [rsi + context.r9]
    mov r10, [rsi + context.r10]
    mov r11, [rsi + context.r11]
    mov r12, [rsi + context.r12]
    mov r13, [rsi + context.r13]
    mov r14, [rsi + context.r14]
    mov r15, [rsi + context.r15]

    ; Restore flags
    push qword [rsi + context.rflags]
    popfq

    ; Switch stack and jump to new task
    mov rsp, [rsi + context.rsp]
    mov rdi, [rsi + context.rdi]    ; Restore RDI last
    push qword [rsi + context.rip]  ; Push return address
    mov rsi, [rsi + context.rsi]    ; Restore RSI last
    ret                             ; "Return" to new task

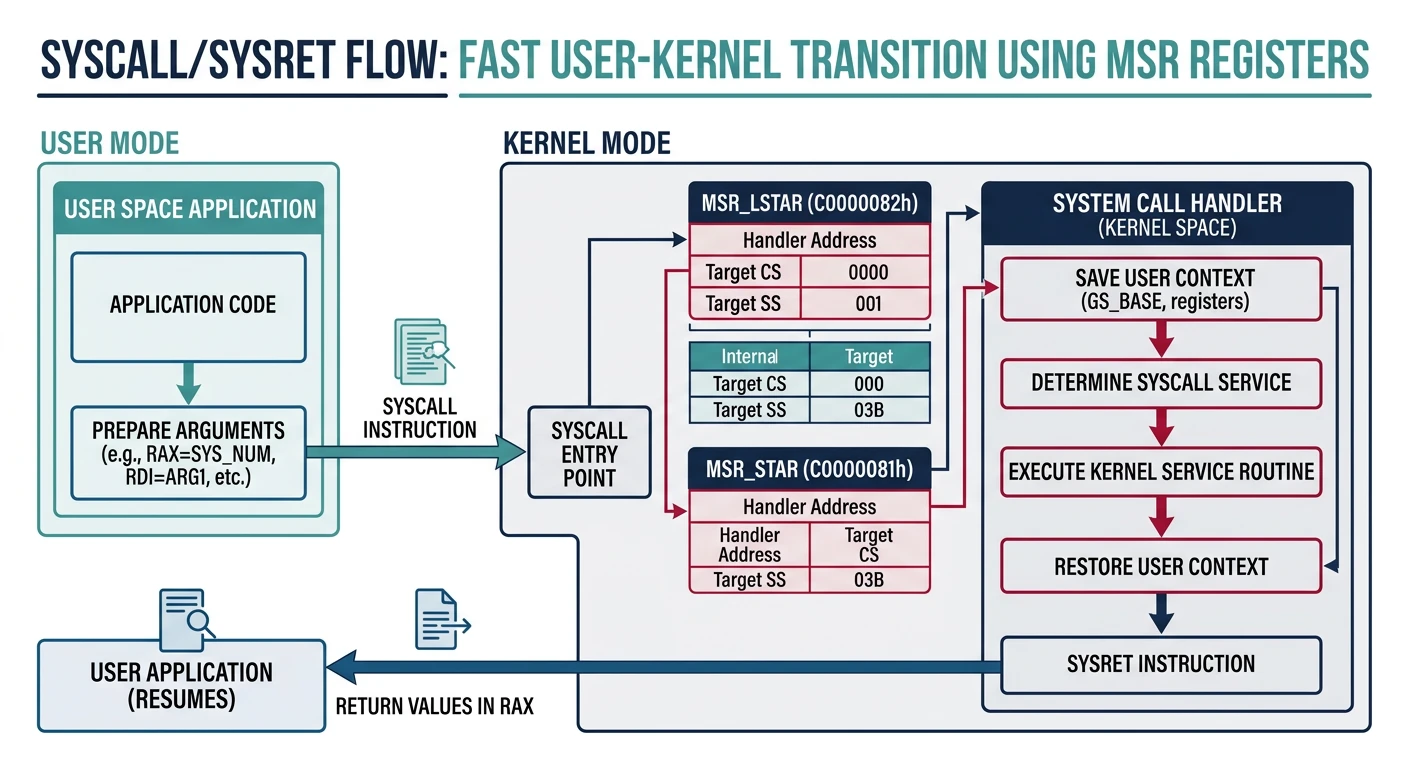

Syscall Entry Point

The SYSCALL instruction provides fast user→kernel transitions without the overhead of interrupt gates. It's the modern way for applications to request kernel services.

MSR Configuration

; Setup SYSCALL/SYSRET mechanism
; Must be done in kernel initialization

MSR_EFER    equ 0xC0000080    ; Extended Feature Enable Register
MSR_STAR    equ 0xC0000081    ; Segment selectors for SYSCALL/SYSRET
MSR_LSTAR   equ 0xC0000082    ; RIP for SYSCALL (64-bit)
MSR_SFMASK  equ 0xC0000084    ; RFLAGS mask for SYSCALL

setup_syscall:
    ; Enable SYSCALL/SYSRET in EFER
    mov ecx, MSR_EFER
    rdmsr
    or eax, 1                  ; Set SCE (Syscall Enable) bit
    wrmsr

    ; STAR: Set segment selectors
    ; Bits 32-47: SYSCALL CS/SS (kernel segments)
    ; Bits 48-63: SYSRET CS/SS (user segments)
    mov ecx, MSR_STAR
    xor eax, eax
    mov edx, (KERNEL_CODE) | ((USER_CODE - 16) << 16)
    ; Note: SYSRET loads CS from STAR[48:63]+16, SS from STAR[48:63]+8
    wrmsr

    ; LSTAR: Entry point for SYSCALL
    mov ecx, MSR_LSTAR
    mov rax, syscall_entry
    mov rdx, rax
    shr rdx, 32
    wrmsr

    ; SFMASK: Clear these flags on SYSCALL
    mov ecx, MSR_SFMASK
    mov eax, 0x200             ; Clear IF (disable interrupts)
    xor edx, edx
    wrmsr
    ret

Syscall Handler

; Syscall entry point (RIP loaded from LSTAR MSR)
; On entry:
;   RCX = user RIP (return address)
;   R11 = user RFLAGS
;   RAX = syscall number
;   RDI, RSI, RDX, R10, R8, R9 = arguments

syscall_entry:
    ; CRITICAL: We're on user stack! Switch to kernel stack first.
    swapgs                      ; Swap GS.base with KernelGSBase MSR
    mov [gs:USER_RSP], rsp      ; Save user RSP in per-CPU data
    mov rsp, [gs:KERNEL_RSP]    ; Load kernel stack

    ; Push user context for SYSRET
    push rcx                    ; User RIP
    push r11                    ; User RFLAGS
    push qword [gs:USER_RSP]    ; User RSP

    ; Re-enable interrupts (cleared by SYSCALL)
    sti

    ; Bounds check syscall number
    cmp rax, SYSCALL_MAX
    ja .invalid_syscall

    ; Call handler: syscall_table[rax](rdi, rsi, rdx, r10, r8, r9)
    mov rcx, r10                ; Adjust: syscall uses R10 for arg4
    call [syscall_table + rax * 8]

.return_to_user:
    cli                         ; Disable interrupts for SYSRET

    ; Restore user context
    pop rsp                     ; User RSP
    pop r11                     ; User RFLAGS
    pop rcx                     ; User RIP

    swapgs                      ; Restore user GS.base
    sysretq                     ; Return to user mode

.invalid_syscall:
    mov rax, -1                 ; Return -EINVAL
    jmp .return_to_user

section .data
syscall_table:
    dq sys_read                 ; 0
    dq sys_write                ; 1
    dq sys_open                 ; 2
    ; ... more syscall handlers ...
SYSCALL_MAX equ ($ - syscall_table) / 8 - 1

Memory Operations

Hand-optimized memory operations are kernel essentials. These functions are called millions of times—every cycle counts.

memcpy - Fast Memory Copy

; void* memcpy(void* dest, const void* src, size_t n)
; RDI = dest, RSI = src, RDX = count
; Returns: original dest in RAX
global memcpy
memcpy:
    mov rax, rdi            ; Return value = dest
    mov rcx, rdx            ; Count

    ; Copy 8 bytes at a time
    shr rcx, 3              ; RCX = count / 8
    rep movsq               ; Copy qwords

    ; Copy remaining bytes (0-7)
    mov rcx, rdx
    and rcx, 7              ; RCX = count % 8
    rep movsb               ; Copy remaining bytes

    ret

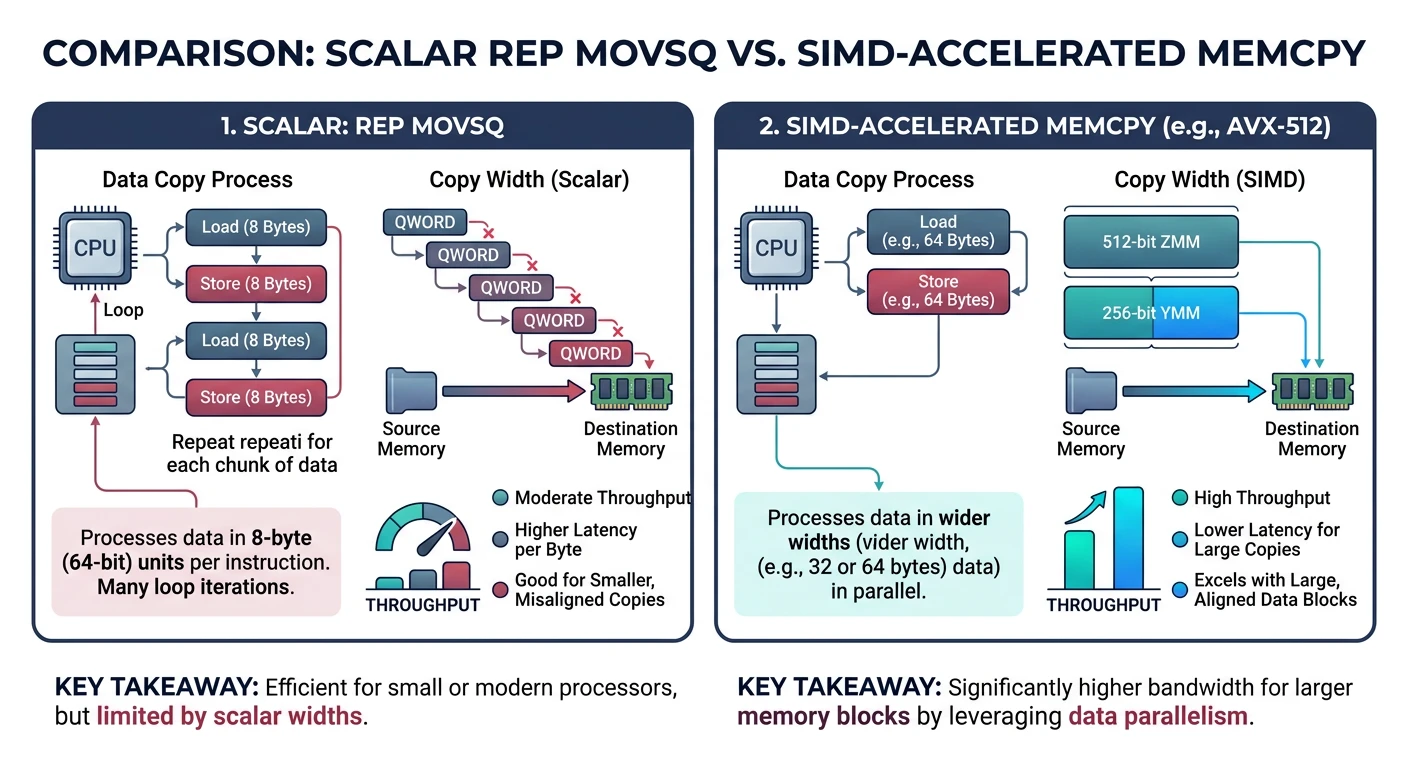

; SIMD-optimized memcpy for large blocks
memcpy_simd:
    mov rax, rdi
    cmp rdx, 128
    jb memcpy               ; Fall back for small copies

    ; Align destination to 16 bytes
.align_loop:
    test rdi, 15
    jz .aligned
    movsb
    dec rdx
    jmp .align_loop

.aligned:
    mov rcx, rdx
    shr rcx, 7              ; 128 bytes per iteration

.simd_loop:
    movdqa xmm0, [rsi]
    movdqa xmm1, [rsi + 16]
    movdqa xmm2, [rsi + 32]
    movdqa xmm3, [rsi + 48]
    movdqa xmm4, [rsi + 64]
    movdqa xmm5, [rsi + 80]
    movdqa xmm6, [rsi + 96]
    movdqa xmm7, [rsi + 112]

    movdqa [rdi], xmm0
    movdqa [rdi + 16], xmm1
    movdqa [rdi + 32], xmm2
    movdqa [rdi + 48], xmm3
    movdqa [rdi + 64], xmm4
    movdqa [rdi + 80], xmm5
    movdqa [rdi + 96], xmm6
    movdqa [rdi + 112], xmm7

    add rsi, 128
    add rdi, 128
    dec rcx
    jnz .simd_loop

    ; Handle remainder
    and rdx, 127
    mov rcx, rdx
    rep movsb
    ret

memset - Fill Memory

; void* memset(void* dest, int c, size_t n)
; RDI = dest, RSI = value (byte), RDX = count
; Returns: original dest in RAX
global memset
memset:
    mov rax, rdi            ; Save dest for return
    mov r8, rdi             ; Backup dest

    ; Broadcast byte to all 8 bytes of RAX
    movzx eax, sil          ; AL = byte value
    mov ah, al              ; AX = byte repeated
    mov rcx, rax
    shl rcx, 16
    or rax, rcx             ; EAX = byte * 4
    mov rcx, rax
    shl rcx, 32
    or rax, rcx             ; RAX = byte * 8

    ; Fill 8 bytes at a time
    mov rcx, rdx
    shr rcx, 3
    rep stosq

    ; Fill remaining bytes
    mov rcx, rdx
    and rcx, 7
    rep stosb

    mov rax, r8             ; Return original dest
    ret

memcmp - Compare Memory

; int memcmp(const void* s1, const void* s2, size_t n)
; Returns: 0 if equal, <0 if s10 if s1>s2
global memcmp
memcmp:
    xor eax, eax
    test rdx, rdx
    jz .done                ; n=0, return 0

    mov rcx, rdx
    repe cmpsb              ; Compare until mismatch or done

    je .done                ; All equal

    ; Found difference at [rsi-1] vs [rdi-1]
    movzx eax, byte [rdi - 1]
    movzx ecx, byte [rsi - 1]
    sub eax, ecx

.done:
    ret

Spinlocks & Atomics

In a multi-core system, spinlocks protect shared data from concurrent access. A spinlock "spins" (busy-waits) until it can acquire exclusive access—like waiting at a single-person bathroom door.

The LOCK Prefix

; Atomic operations with LOCK prefix
lock inc qword [counter]    ; Atomic increment
lock dec qword [counter]    ; Atomic decrement
lock add qword [val], 10    ; Atomic add
lock xadd [val], rax        ; Atomic exchange-add (returns old value)
lock cmpxchg [ptr], rbx     ; Compare-and-swap (if [ptr]==rax, [ptr]=rbx)
lock bts [bitmap], rax      ; Atomic bit test and set

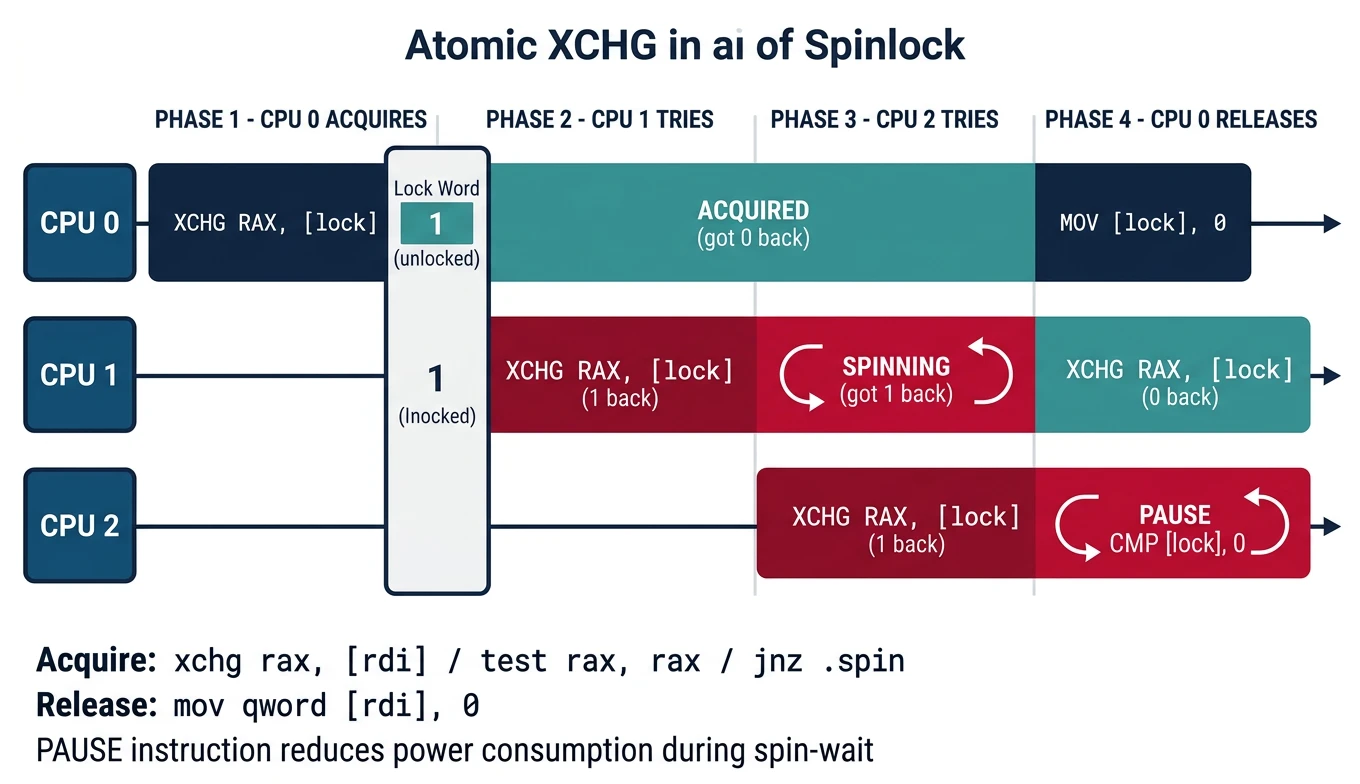

Simple Spinlock Implementation

; Spinlock structure: 0 = unlocked, 1 = locked
section .data
    my_lock dq 0

section .text

; void spin_lock(uint64_t* lock)
; RDI = pointer to lock
global spin_lock
spin_lock:
    mov rax, 1
.try_acquire:
    xchg rax, [rdi]         ; Atomically swap 1 with lock
    test rax, rax           ; Was it 0 (unlocked)?
    jnz .spin               ; No → someone else holds it
    ret                     ; Yes → we acquired the lock!

.spin:
    pause                   ; CPU hint: we're spinning (saves power)
    cmp qword [rdi], 0      ; Check without LOCK (read is atomic)
    jne .spin               ; Still locked, keep spinning
    jmp .try_acquire        ; Looks free, try to acquire

; void spin_unlock(uint64_t* lock)
; RDI = pointer to lock
global spin_unlock
spin_unlock:
    mov qword [rdi], 0      ; Release lock (simple store is atomic)
    ret

Ticket Spinlock (Fair)

Simple spinlocks can starve some CPUs. Ticket locks ensure first-come-first-served ordering:

; Ticket lock: 2x 32-bit counters
; Low 32 bits: "now serving" (head)
; High 32 bits: "take a number" (tail)
section .data
ticket_lock: dq 0           ; head=0, tail=0

section .text

; void ticket_lock_acquire(uint64_t* lock)
global ticket_lock_acquire
ticket_lock_acquire:
    mov eax, 1
    lock xadd [rdi + 4], eax    ; Atomically get ticket (tail++)
    ; EAX = our ticket number

.wait:
    cmp [rdi], eax              ; Is it our turn? (head == ticket)
    je .acquired
    pause
    jmp .wait

.acquired:
    ret

; void ticket_lock_release(uint64_t* lock)
global ticket_lock_release
ticket_lock_release:
    lock inc dword [rdi]        ; head++ (next customer)
    ret

// C signature:
int atomic_cas(uint64_t* ptr, uint64_t expected, uint64_t desired);
// RDI = ptr, RSI = expected, RDX = desired
