Complete Protocols Master Part 15: Authentication Protocols

OAuth 2.0: Authorization Framework

OAuth 2.0 is THE authorization standard for APIs. It lets users grant apps limited access without sharing credentials. "Log in with Google" uses OAuth.

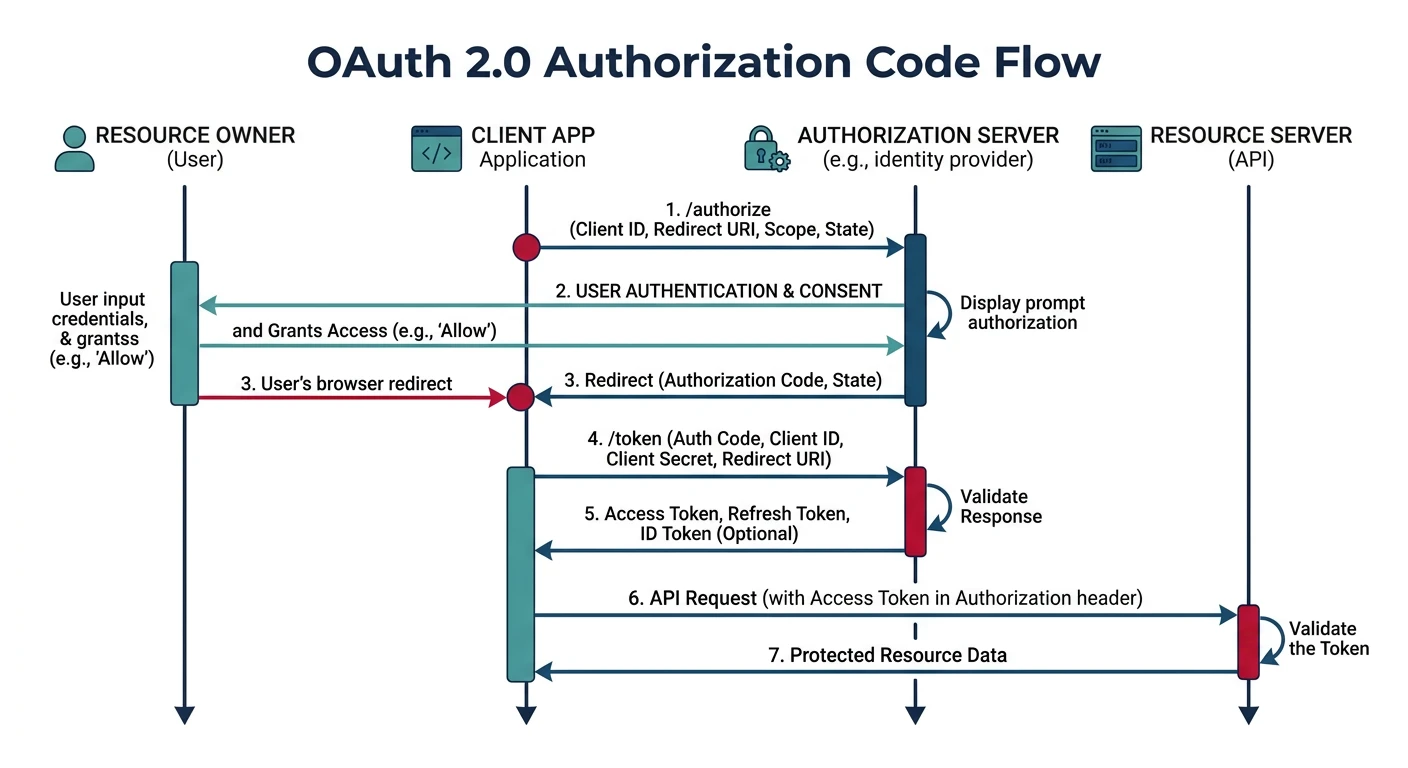

sequenceDiagram
    participant U as User Browser
    participant A as Application
    participant AS as Authorization Server
    participant RS as Resource Server

    U->>A: Click Login
    A->>AS: Redirect with client_id, scope, redirect_uri
    U->>AS: Authenticate and Grant Permission
    AS->>A: Authorization Code via redirect

    A->>AS: Exchange Code + client_secret
    Note right of A: Server-to-server request
    AS->>A: Access Token + Refresh Token

    A->>RS: API Request + Access Token
    RS->>A: Protected Resource Data


OAuth 2.0 Roles:

1. RESOURCE OWNER
   The user who owns the data
   Example: You

2. CLIENT
   The application wanting access
   Example: Third-party photo app

3. AUTHORIZATION SERVER
   Issues tokens after user consent
   Example: Google's auth server

4. RESOURCE SERVER
   Hosts the protected data
   Example: Google Photos API

Flow:
User → "I want to use PhotoApp"
PhotoApp → "Please authorize at Google"
User → Google: "Yes, allow read-only photos"
Google → PhotoApp: "Here's an access token"
PhotoApp → Google Photos API: "Token: xyz, get photos"
API → PhotoApp: "Here are the photos"

OAuth 2.0 Grant Types:

1. AUTHORIZATION CODE (most secure)
   Best for: Server-side web apps
   Flow: Code exchanged for token server-side

2. AUTHORIZATION CODE + PKCE
   Best for: Mobile apps, SPAs
   Flow: Code + code_verifier for security
   PKCE = Proof Key for Code Exchange

3. CLIENT CREDENTIALS
   Best for: Machine-to-machine (no user)
   Flow: App authenticates directly

4. DEVICE CODE
   Best for: TVs, CLI tools (no browser)
   Flow: User authorizes on separate device

5. IMPLICIT (deprecated)
   Was for: SPAs (replaced by PKCE)
   Issue: Token in URL fragment

# Authorization Code Flow with PKCE

# Step 1: Generate code verifier and challenge
code_verifier="random-43-to-128-character-string"
code_challenge=$(echo -n "$code_verifier" | sha256sum | cut -d' ' -f1 | xxd -r -p | base64 -w0 | tr '+/' '-_' | tr -d '=')

# Step 2: Redirect user to authorization
https://auth.example.com/authorize?
  client_id=my-app&
  response_type=code&
  redirect_uri=https://myapp.com/callback&
  scope=read:photos&
  state=random-csrf-token&
  code_challenge=$code_challenge&
  code_challenge_method=S256

# Step 3: User logs in and consents
# Redirected back with authorization code

# Step 4: Exchange code for tokens (server-side)
curl -X POST https://auth.example.com/token \
  -d "grant_type=authorization_code" \
  -d "code=AUTHORIZATION_CODE" \
  -d "redirect_uri=https://myapp.com/callback" \
  -d "client_id=my-app" \
  -d "code_verifier=$code_verifier"

# Response:
{
  "access_token": "eyJhbGciOiJSUzI1NiIs...",
  "token_type": "Bearer",
  "expires_in": 3600,
  "refresh_token": "dGhpcyBpcyBhIHJlZnJlc2g..."
}

# OAuth 2.0 Client Credentials Flow (Python)

import requests
import base64

def client_credentials_flow():
    """Machine-to-machine authentication"""

    client_id = "my-service"
    client_secret = "super-secret"
    token_url = "https://auth.example.com/token"

    # Request access token
    response = requests.post(
        token_url,
        data={
            "grant_type": "client_credentials",
            "scope": "api:read api:write"
        },
        auth=(client_id, client_secret)
    )

    tokens = response.json()
    access_token = tokens["access_token"]

    print(f"Access Token: {access_token[:50]}...")
    print(f"Expires in: {tokens['expires_in']} seconds")

    # Use token to call API
    api_response = requests.get(
        "https://api.example.com/data",
        headers={"Authorization": f"Bearer {access_token}"}
    )

    return api_response.json()

# Token structure (JWT)
print("""
JWT Structure:
HEADER.PAYLOAD.SIGNATURE

Header: {"alg": "RS256", "typ": "JWT"}
Payload: {
  "iss": "https://auth.example.com",
  "sub": "user123",
  "aud": "api.example.com",
  "exp": 1735689600,
  "scope": "read:photos"
}
Signature: RSASHA256(header + payload, private_key)
""")

OpenID Connect: Identity Layer

OpenID Connect (OIDC) adds authentication to OAuth 2.0. It provides an ID Token that proves who the user is—not just what they can access.

OIDC = OAuth 2.0 + Identity

What OIDC Adds:
• ID Token (JWT proving identity)
• UserInfo endpoint
• Standard claims (name, email, picture)
• Discovery endpoint

Tokens in OIDC:
• Access Token: API authorization (same as OAuth)
• ID Token: User identity (NEW in OIDC)
• Refresh Token: Get new tokens (same as OAuth)

ID Token Claims:
{
  "iss": "https://accounts.google.com",
  "sub": "110169484474386276334",  // Unique user ID
  "aud": "my-client-id",
  "exp": 1735689600,
  "iat": 1735686000,
  "name": "Jane Doe",
  "email": "jane@example.com",
  "picture": "https://..."
}

# OIDC Discovery Endpoint

curl https://accounts.google.com/.well-known/openid-configuration

# Returns:
{
  "issuer": "https://accounts.google.com",
  "authorization_endpoint": "https://accounts.google.com/o/oauth2/v2/auth",
  "token_endpoint": "https://oauth2.googleapis.com/token",
  "userinfo_endpoint": "https://openidconnect.googleapis.com/v1/userinfo",
  "jwks_uri": "https://www.googleapis.com/oauth2/v3/certs",
  "scopes_supported": ["openid", "email", "profile"],
  "response_types_supported": ["code", "token", "id_token"],
  "claims_supported": ["sub", "name", "email", "picture"]
}

# OIDC Authentication (Python with Authlib)

def oidc_example():
    """Demonstrate OIDC authentication"""

    print("OIDC Authentication Flow")
    print("=" * 50)

    print("""
    # Flask OIDC Example

    from authlib.integrations.flask_client import OAuth

    oauth = OAuth(app)
    oauth.register(
        name='google',
        client_id='your-client-id',
        client_secret='your-client-secret',
        server_metadata_url='https://accounts.google.com/.well-known/openid-configuration',
        client_kwargs={'scope': 'openid email profile'}
    )

    @app.route('/login')
    def login():
        redirect_uri = url_for('callback', _external=True)
        return oauth.google.authorize_redirect(redirect_uri)

    @app.route('/callback')
    def callback():
        token = oauth.google.authorize_access_token()

        # ID Token contains user identity
        id_token = token['id_token']
        userinfo = token['userinfo']

        # Now you know WHO the user is
        user_id = userinfo['sub']
        email = userinfo['email']
        name = userinfo['name']

        return f'Hello {name}!'
    """)

    print("\nKey OIDC Scopes:")
    print("• openid: Required, returns ID token")
    print("• profile: Name, picture, etc.")
    print("• email: Email address")
    print("• address: Physical address")
    print("• phone: Phone number")

oidc_example()

SAML 2.0: Enterprise SSO

SAML (Security Assertion Markup Language) is the enterprise standard for Single Sign-On. XML-based, mature, used by most corporate identity providers.

SAML 2.0 Components:

1. IDENTITY PROVIDER (IdP)
   • Authenticates users
   • Issues SAML assertions
   • Examples: Okta, Azure AD, ADFS

2. SERVICE PROVIDER (SP)
   • Your application
   • Trusts the IdP
   • Consumes assertions

3. SAML ASSERTION
   • XML document proving identity
   • Contains attributes (email, groups)
   • Digitally signed by IdP

SAML Flows:
• SP-Initiated: User starts at app, redirected to IdP
• IdP-Initiated: User starts at IdP portal

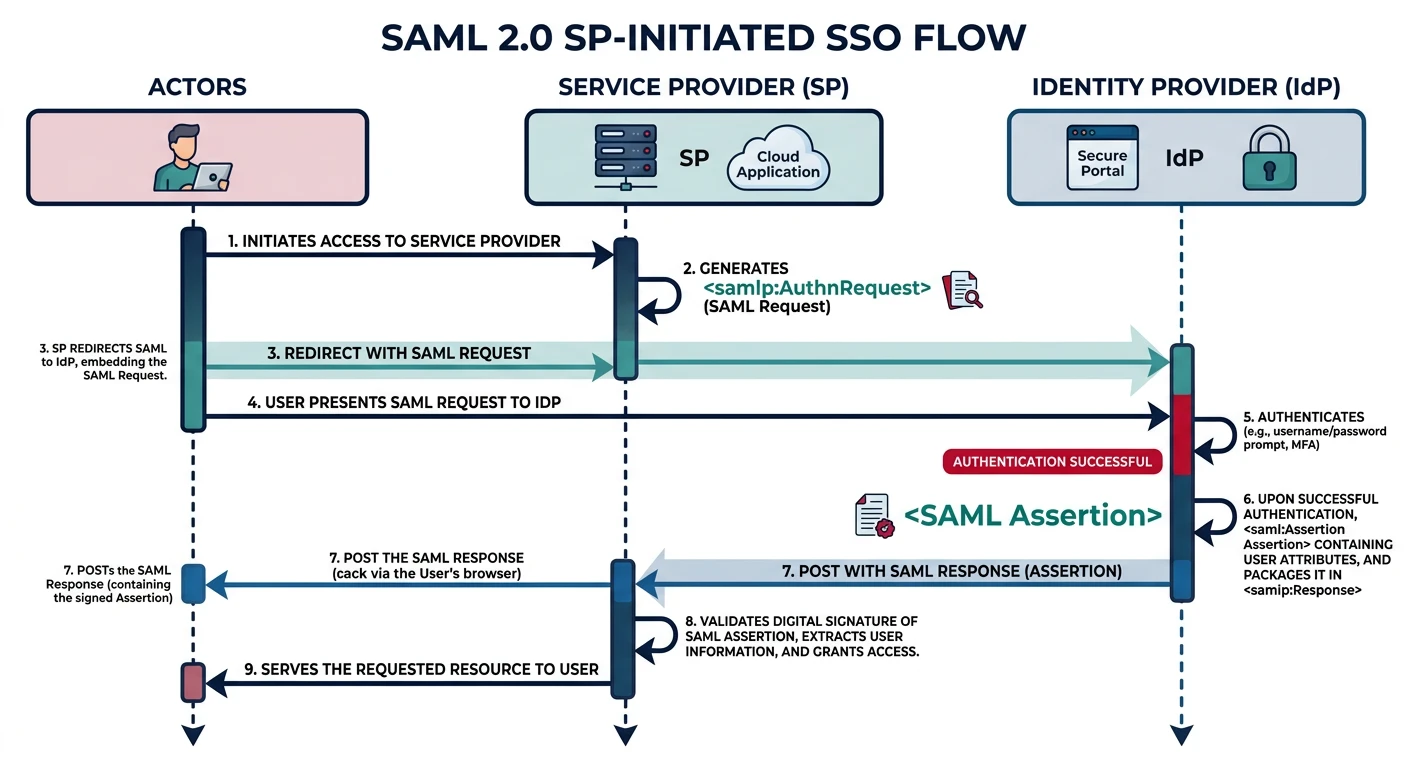

SP-Initiated Flow:
User → SP: "Access app"
SP → User: "Redirect to IdP"
User → IdP: "Login page"
User → IdP: "Credentials"
IdP → User: "SAML Response (redirect to SP)"
User → SP: "Here's SAML Response"
SP → User: "Authenticated! Welcome"

# SAML Response Structure (simplified)

<samlp:Response>
  <Issuer>https://idp.example.com</Issuer>
  <Status>
    <StatusCode Value="urn:oasis:names:tc:SAML:2.0:status:Success"/>
  </Status>

  <Assertion>
    <Issuer>https://idp.example.com</Issuer>

    <Subject>
      <NameID>user@example.com</NameID>
    </Subject>

    <Conditions NotBefore="2026-01-31T00:00:00Z"
                NotOnOrAfter="2026-01-31T00:05:00Z">
      <AudienceRestriction>
        <Audience>https://sp.example.com</Audience>
      </AudienceRestriction>
    </Conditions>

    <AttributeStatement>
      <Attribute Name="email">
        <AttributeValue>user@example.com</AttributeValue>
      </Attribute>
      <Attribute Name="groups">
        <AttributeValue>admin</AttributeValue>
        <AttributeValue>developers</AttributeValue>
      </Attribute>
    </AttributeStatement>

    <Signature>...</Signature>
  </Assertion>
</samlp:Response>

# SAML Service Provider (Python with python-saml)

def saml_sp_example():
    """Demonstrate SAML Service Provider"""

    print("SAML Service Provider Configuration")
    print("=" * 50)

    print("""
    # Flask SAML Example (using python3-saml)

    from onelogin.saml2.auth import OneLogin_Saml2_Auth

    @app.route('/saml/login')
    def saml_login():
        req = prepare_flask_request(request)
        auth = OneLogin_Saml2_Auth(req, custom_base_path=SAML_PATH)
        return redirect(auth.login())

    @app.route('/saml/acs', methods=['POST'])
    def saml_acs():
        # Assertion Consumer Service - receives SAML Response
        req = prepare_flask_request(request)
        auth = OneLogin_Saml2_Auth(req, custom_base_path=SAML_PATH)

        auth.process_response()
        errors = auth.get_errors()

        if not errors:
            # Authentication successful
            attributes = auth.get_attributes()
            name_id = auth.get_nameid()

            user_email = attributes.get('email', [None])[0]
            user_groups = attributes.get('groups', [])

            # Create session
            session['user'] = {
                'email': user_email,
                'groups': user_groups
            }

            return redirect('/dashboard')
        else:
            return f'SAML Error: {errors}', 400
    """)

    print("\nSAML Metadata Exchange:")
    print("• SP publishes metadata (entity ID, ACS URL, cert)")
    print("• IdP publishes metadata (SSO URL, signing cert)")
    print("• Both import each other's metadata")

saml_sp_example()

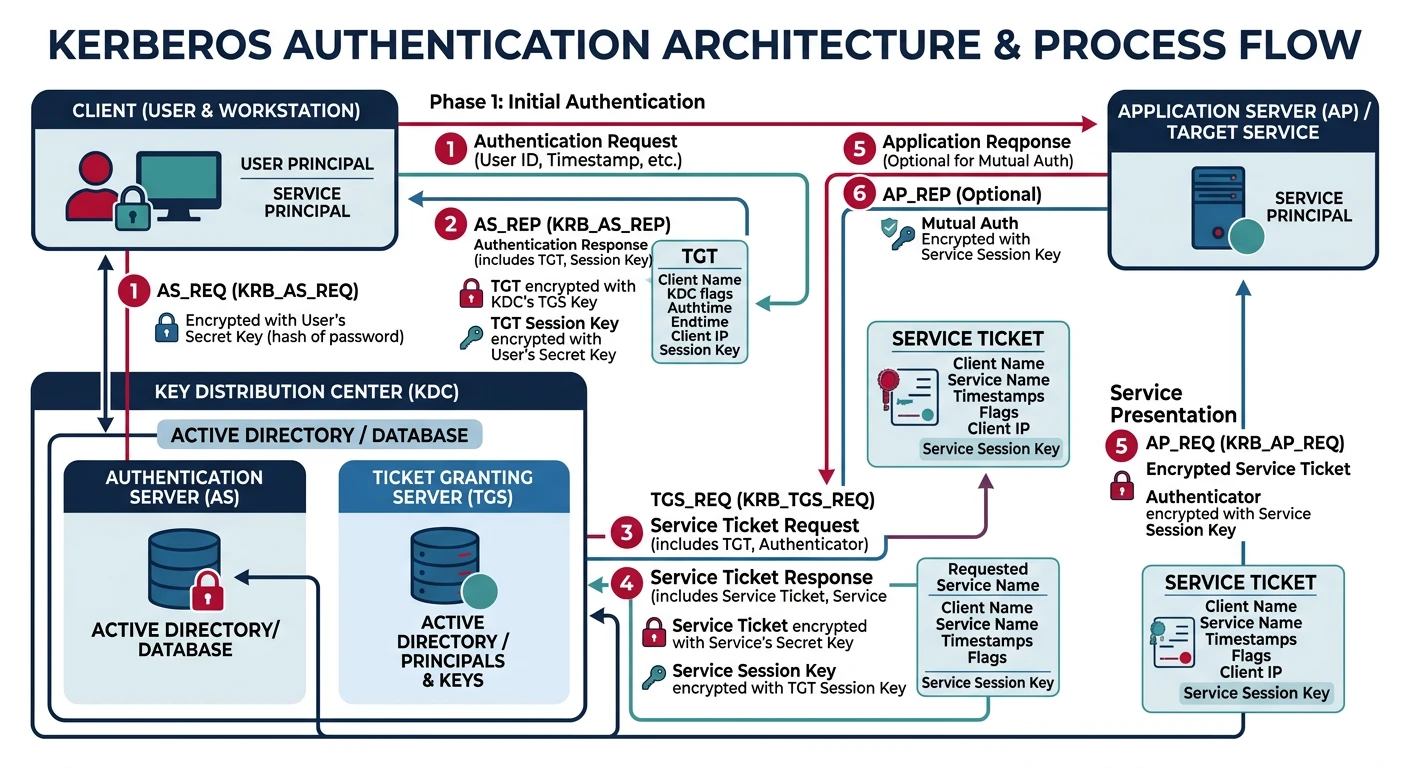

Kerberos: Network Authentication

Kerberos is the authentication backbone of Active Directory. Uses tickets instead of passwords—users authenticate once, get tickets for services.

Kerberos Components:

1. KDC (Key Distribution Center)
   • Authentication Server (AS)
   • Ticket Granting Server (TGS)
   • Holds all secrets

2. TICKETS
   • TGT (Ticket Granting Ticket): Proves identity
   • Service Ticket: Grants access to specific service

3. PRINCIPALS
   • Users: user@REALM.COM
   • Services: HTTP/web.realm.com@REALM.COM

Kerberos Authentication:
User → AS: "I'm alice, want TGT"
AS → User: "Here's TGT (encrypted)"
User → TGS: "TGT, want ticket for fileserver"
TGS → User: "Here's service ticket"
User → FileServer: "Service ticket"
FileServer → User: "Access granted"

Key Concept: User password NEVER sent over network

# Kerberos ticket management (Linux)

# Initialize (get TGT)
kinit alice@EXAMPLE.COM
# Enter password (locally hashed, not sent)

# List tickets
klist
# Ticket cache: FILE:/tmp/krb5cc_1000
# Default principal: alice@EXAMPLE.COM
#
# Valid starting       Expires              Service principal
# 01/31/2026 09:00    01/31/2026 19:00     krbtgt/EXAMPLE.COM@EXAMPLE.COM

# Get service ticket (automatic when accessing service)
curl --negotiate -u : http://web.example.com/

# Destroy tickets (logout)
kdestroy

# Check keytab (for service accounts)
klist -k /etc/krb5.keytab

# Kerberos authentication in Python

def kerberos_example():
    """Kerberos authentication demonstration"""

    print("Kerberos in Python")
    print("=" * 50)

    print("""
    # Using requests-kerberos

    import requests
    from requests_kerberos import HTTPKerberosAuth

    # Auto-use cached TGT
    response = requests.get(
        'https://api.example.com/data',
        auth=HTTPKerberosAuth()
    )

    # For SPNEGO (HTTP Negotiate)
    from requests_kerberos import HTTPKerberosAuth, OPTIONAL

    response = requests.get(
        'https://api.example.com/data',
        auth=HTTPKerberosAuth(mutual_authentication=OPTIONAL)
    )
    """)

    print("\nKerberos vs Password Auth:")
    print("• Kerberos: Ticket-based, password never leaves client")
    print("• Password: Sent to server (even if encrypted)")
    print("• Kerberos: Mutual auth (server proves identity too)")
    print("• Kerberos: Time-limited tickets, auto-expire")

kerberos_example()

LDAP: Directory Services

LDAP (Lightweight Directory Access Protocol) stores and retrieves identity data. It's not strictly an authentication protocol—it's the database that backs authentication.

LDAP Concepts:

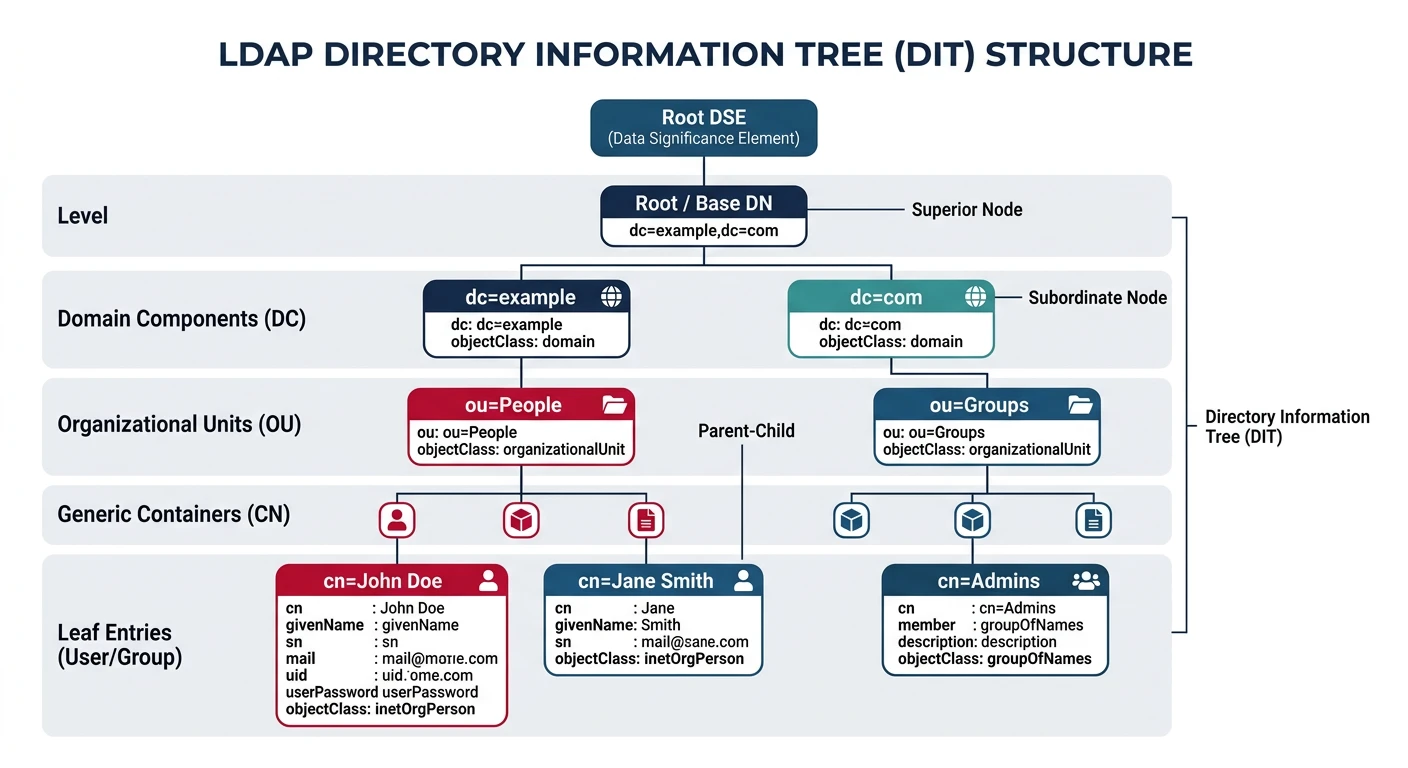

1. DIRECTORY TREE (DIT)
   Hierarchical structure
   dc=example,dc=com (domain)
    └── ou=People
         └── uid=alice
         └── uid=bob
    └── ou=Groups
         └── cn=developers

2. DISTINGUISHED NAME (DN)
   Unique identifier for entry
   uid=alice,ou=People,dc=example,dc=com

3. ATTRIBUTES
   cn: Common Name
   uid: User ID
   mail: Email
   userPassword: Hashed password
   memberOf: Group membership

4. OPERATIONS
   • Bind: Authenticate
   • Search: Query
   • Add/Modify/Delete: CRUD

# LDAP queries with ldapsearch

# Anonymous search (if allowed)
ldapsearch -x -H ldap://ldap.example.com \
  -b "dc=example,dc=com" "(uid=alice)"

# Authenticated search
ldapsearch -x -H ldap://ldap.example.com \
  -D "cn=admin,dc=example,dc=com" -W \
  -b "ou=People,dc=example,dc=com" "(objectClass=person)"

# Search specific attributes
ldapsearch -x -H ldap://ldap.example.com \
  -b "dc=example,dc=com" "(uid=alice)" cn mail memberOf

# Test authentication (bind)
ldapwhoami -x -H ldap://ldap.example.com \
  -D "uid=alice,ou=People,dc=example,dc=com" -W

# LDAP authentication in Python

import ldap3

def ldap_auth(username, password):
    """Authenticate user against LDAP"""

    server = ldap3.Server('ldap://ldap.example.com', get_info=ldap3.ALL)
    user_dn = f"uid={username},ou=People,dc=example,dc=com"

    try:
        conn = ldap3.Connection(server, user_dn, password, auto_bind=True)
        print(f"✅ Authentication successful for {username}")

        # Search for user attributes
        conn.search(
            user_dn,
            '(objectClass=person)',
            attributes=['cn', 'mail', 'memberOf']
        )

        if conn.entries:
            user = conn.entries[0]
            print(f"   Name: {user.cn}")
            print(f"   Email: {user.mail}")
            print(f"   Groups: {user.memberOf}")

        conn.unbind()
        return True

    except ldap3.core.exceptions.LDAPBindError:
        print(f"❌ Authentication failed for {username}")
        return False

# Example
# ldap_auth('alice', 'password123')

Protocol Comparison

OIDC vs SAML:

OIDC (Modern):
✅ JSON/JWT (lightweight)
✅ Mobile-friendly
✅ REST APIs
✅ Modern IdPs (Auth0, Okta)
✅ Easier to implement

SAML (Enterprise):
✅ Mature, battle-tested
✅ Wide enterprise support
✅ Complex attribute mapping
✅ Legacy system integration
❌ XML (verbose)
❌ Complex to implement

Choose OIDC for:
• New applications
• Mobile apps
• API-first architecture
• Consumer applications

Choose SAML for:
• Enterprise with existing SAML IdP
• Legacy system integration
• Complex attribute requirements
• Regulatory compliance

Summary & Next Steps
