Complete Protocols Master Part 18: Cloud Protocols

AWS Protocols

AWS uses Signature Version 4 (SigV4) for API authentication. Every request is cryptographically signed using your access key—no tokens, no passwords in transit.

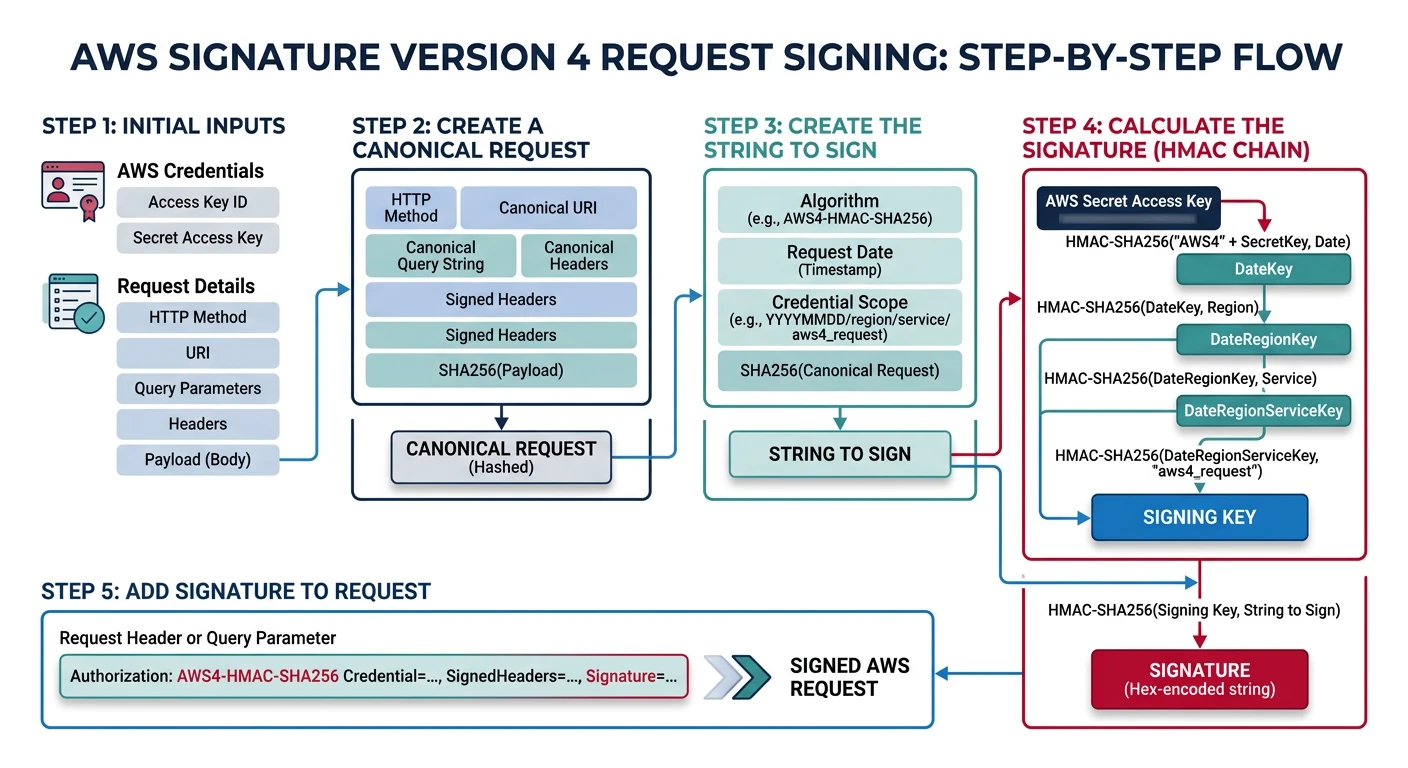

AWS SigV4 Signing Process:

1. CREATE CANONICAL REQUEST
   HTTPMethod + '\n' +
   CanonicalURI + '\n' +
   CanonicalQueryString + '\n' +
   CanonicalHeaders + '\n' +
   SignedHeaders + '\n' +
   HashedPayload

2. CREATE STRING TO SIGN
   Algorithm + '\n' +
   RequestDateTime + '\n' +
   CredentialScope + '\n' +
   HashedCanonicalRequest

3. CALCULATE SIGNATURE
   DateKey = HMAC-SHA256("AWS4" + SecretKey, Date)
   RegionKey = HMAC-SHA256(DateKey, Region)
   ServiceKey = HMAC-SHA256(RegionKey, Service)
   SigningKey = HMAC-SHA256(ServiceKey, "aws4_request")
   Signature = HMAC-SHA256(SigningKey, StringToSign)

4. ADD TO REQUEST
   Authorization: AWS4-HMAC-SHA256
     Credential=AKIAIOSFODNN7EXAMPLE/20260131/us-east-1/s3/aws4_request,
     SignedHeaders=host;x-amz-date,
     Signature=calculated_signature

# AWS CLI uses SigV4 automatically

# List S3 buckets (CLI handles signing)
aws s3 ls

# Debug to see signed request
aws s3 ls --debug 2>&1 | grep "Authorization:"

# Presigned URL (time-limited signed URL)
aws s3 presign s3://my-bucket/file.pdf --expires-in 3600

# Assume role (temporary credentials)
aws sts assume-role \
  --role-arn arn:aws:iam::123456789012:role/MyRole \
  --role-session-name my-session

# AWS API calls with boto3

import boto3
from botocore.auth import SigV4Auth
from botocore.awsrequest import AWSRequest
import requests

def aws_api_example():
    """Demonstrate AWS API patterns"""

    # SDK handles SigV4 automatically
    s3 = boto3.client('s3')

    # List buckets
    response = s3.list_buckets()
    for bucket in response['Buckets']:
        print(f"Bucket: {bucket['Name']}")

    # Generate presigned URL
    url = s3.generate_presigned_url(
        'get_object',
        Params={'Bucket': 'my-bucket', 'Key': 'file.pdf'},
        ExpiresIn=3600
    )
    print(f"Presigned URL: {url}")

def manual_sigv4_example():
    """Manual SigV4 signing (for understanding)"""

    print("""
    # Manual SigV4 (rarely needed, SDK does this)

    from botocore.auth import SigV4Auth
    from botocore.awsrequest import AWSRequest
    from botocore.credentials import Credentials

    credentials = Credentials(
        access_key='AKIAIOSFODNN7EXAMPLE',
        secret_key='wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY'
    )

    request = AWSRequest(
        method='GET',
        url='https://s3.us-east-1.amazonaws.com/my-bucket',
        headers={'Host': 's3.us-east-1.amazonaws.com'}
    )

    SigV4Auth(credentials, 's3', 'us-east-1').add_auth(request)

    # Now request.headers contains Authorization
    """)

# IAM role for EC2 (no hardcoded credentials)
print("""
EC2 Instance Profile (Best Practice):
• EC2 instance assumes IAM role
• Credentials auto-rotate
• No keys in code or env vars

# boto3 auto-discovers credentials:
# 1. Environment variables
# 2. Shared credentials file
# 3. IAM role (EC2/Lambda/ECS)
""")

AWS Service Protocols:

S3:
• REST API over HTTPS
• Path-style: s3.amazonaws.com/bucket/key
• Virtual-hosted: bucket.s3.amazonaws.com/key
• Transfer Acceleration: bucket.s3-accelerate.amazonaws.com

DynamoDB:
• HTTPS POST with JSON
• x-amz-target: DynamoDB_20120810.GetItem

SQS:
• REST or Query API
• Long polling: WaitTimeSeconds=20

Lambda:
• Invoke: POST /functions/{name}/invocations
• Async: X-Amz-Invocation-Type: Event

API Gateway:
• REST API or HTTP API
• WebSocket API supported

Azure Protocols

Azure uses OAuth 2.0 bearer tokens from Azure AD. Managed identities eliminate the need for credentials in code—Azure automatically provides tokens.

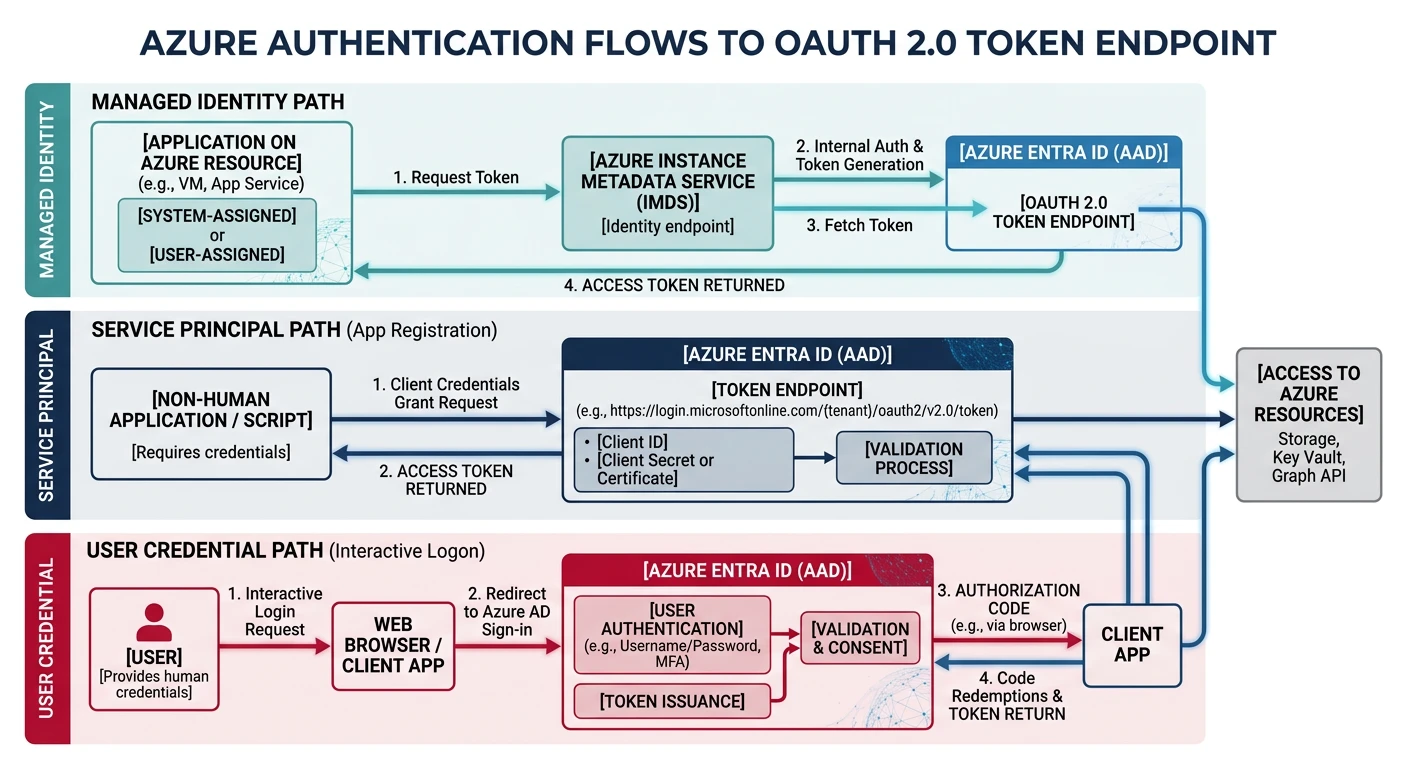

Azure Authentication Options:

1. SERVICE PRINCIPAL (App Registration)
   • Client credentials flow
   • App ID + Secret/Certificate
   • For automation, CI/CD

2. MANAGED IDENTITY (Recommended)
   • System-assigned: tied to resource
   • User-assigned: reusable across resources
   • No secrets to manage!

3. USER AUTHENTICATION
   • Interactive login
   • Device code flow
   • For development

Token Endpoint:
POST https://login.microsoftonline.com/{tenant}/oauth2/v2.0/token
Content-Type: application/x-www-form-urlencoded

client_id={app-id}&
scope=https://management.azure.com/.default&
client_secret={secret}&
grant_type=client_credentials

# Azure CLI authentication

# Login interactively
az login

# Login with service principal
az login --service-principal \
  -u "app-id" \
  -p "secret" \
  --tenant "tenant-id"

# Get access token (for API calls)
az account get-access-token --resource https://management.azure.com/

# Managed identity (on Azure VM/App Service)
curl -H "Metadata: true" \
  "http://169.254.169.254/metadata/identity/oauth2/token?api-version=2018-02-01&resource=https://management.azure.com/"

# Azure API with Python

from azure.identity import DefaultAzureCredential, ManagedIdentityCredential
from azure.storage.blob import BlobServiceClient

def azure_api_example():
    """Demonstrate Azure API patterns"""

    # DefaultAzureCredential tries multiple methods:
    # 1. Environment variables
    # 2. Managed Identity
    # 3. Azure CLI
    # 4. Visual Studio Code
    credential = DefaultAzureCredential()

    # Use with Blob Storage
    blob_service = BlobServiceClient(
        account_url="https://mystorageaccount.blob.core.windows.net",
        credential=credential
    )

    # List containers
    for container in blob_service.list_containers():
        print(f"Container: {container['name']}")

def managed_identity_example():
    """Managed Identity on Azure resources"""

    print("""
    # On Azure VM/App Service/Function

    from azure.identity import ManagedIdentityCredential

    # System-assigned identity
    credential = ManagedIdentityCredential()

    # User-assigned identity
    credential = ManagedIdentityCredential(
        client_id="user-assigned-client-id"
    )

    # Get token for specific resource
    token = credential.get_token("https://vault.azure.net/.default")
    print(f"Token: {token.token[:50]}...")

    # Use with Key Vault
    from azure.keyvault.secrets import SecretClient

    client = SecretClient(
        vault_url="https://my-vault.vault.azure.net",
        credential=credential
    )

    secret = client.get_secret("my-secret")
    """)

azure_api_example()

Azure ARM REST API:

Base URL: https://management.azure.com

List resource groups:
GET /subscriptions/{subscriptionId}/resourcegroups?api-version=2021-04-01
Authorization: Bearer {token}

Create storage account:
PUT /subscriptions/{subId}/resourceGroups/{rg}/providers/Microsoft.Storage/storageAccounts/{name}?api-version=2021-08-01
Authorization: Bearer {token}
Content-Type: application/json
{
  "location": "eastus",
  "sku": {"name": "Standard_LRS"},
  "kind": "StorageV2"
}

API Versions:
• Each resource type has versioned API
• Always specify api-version parameter

GCP Protocols

GCP uses OAuth 2.0 with service accounts. Service account keys are JSON files, but Workload Identity (like Azure Managed Identity) is preferred.

GCP Authentication Methods:

1. SERVICE ACCOUNT KEY (JSON file)
   • Download from Console
   • Set GOOGLE_APPLICATION_CREDENTIALS
   • Rotate regularly (security risk)

2. WORKLOAD IDENTITY (Recommended)
   • No keys to manage
   • For GKE, Cloud Run, Cloud Functions
   • Maps Kubernetes SA to GCP SA

3. USER CREDENTIALS
   • gcloud auth login
   • For development only

4. METADATA SERVER (on GCP)
   • Auto-available on GCE, GKE
   • curl metadata.google.internal/...

Application Default Credentials (ADC):
1. GOOGLE_APPLICATION_CREDENTIALS env var
2. gcloud auth application-default credentials
3. Metadata server (on GCP)

# GCP gcloud authentication

# Login (user)
gcloud auth login

# Application Default Credentials (for SDKs)
gcloud auth application-default login

# Activate service account
gcloud auth activate-service-account \
  --key-file=service-account.json

# Get access token
gcloud auth print-access-token

# Impersonate service account
gcloud auth print-access-token \
  --impersonate-service-account=sa@project.iam.gserviceaccount.com

# GCP API with Python

from google.cloud import storage
from google.auth import default

def gcp_api_example():
    """Demonstrate GCP API patterns"""

    # ADC auto-discovery
    credentials, project = default()
    print(f"Using project: {project}")

    # Cloud Storage
    client = storage.Client()

    # List buckets
    for bucket in client.list_buckets():
        print(f"Bucket: {bucket.name}")

def service_account_example():
    """Service account usage patterns"""

    print("""
    # With key file (less secure)

    from google.oauth2 import service_account

    credentials = service_account.Credentials.from_service_account_file(
        'service-account.json',
        scopes=['https://www.googleapis.com/auth/cloud-platform']
    )

    client = storage.Client(credentials=credentials)

    # With Workload Identity (on GKE)
    # Kubernetes ServiceAccount mapped to GCP ServiceAccount
    # ADC automatically picks up credentials

    client = storage.Client()  # Just works!
    """)

def gcp_rest_api():
    """Direct REST API call"""

    print("""
    # GCP REST API (rarely needed with SDK)

    import google.auth
    import google.auth.transport.requests

    credentials, project = google.auth.default()
    auth_req = google.auth.transport.requests.Request()
    credentials.refresh(auth_req)

    headers = {
        'Authorization': f'Bearer {credentials.token}'
    }

    # List buckets
    response = requests.get(
        f'https://storage.googleapis.com/storage/v1/b?project={project}',
        headers=headers
    )
    """)

gcp_api_example()

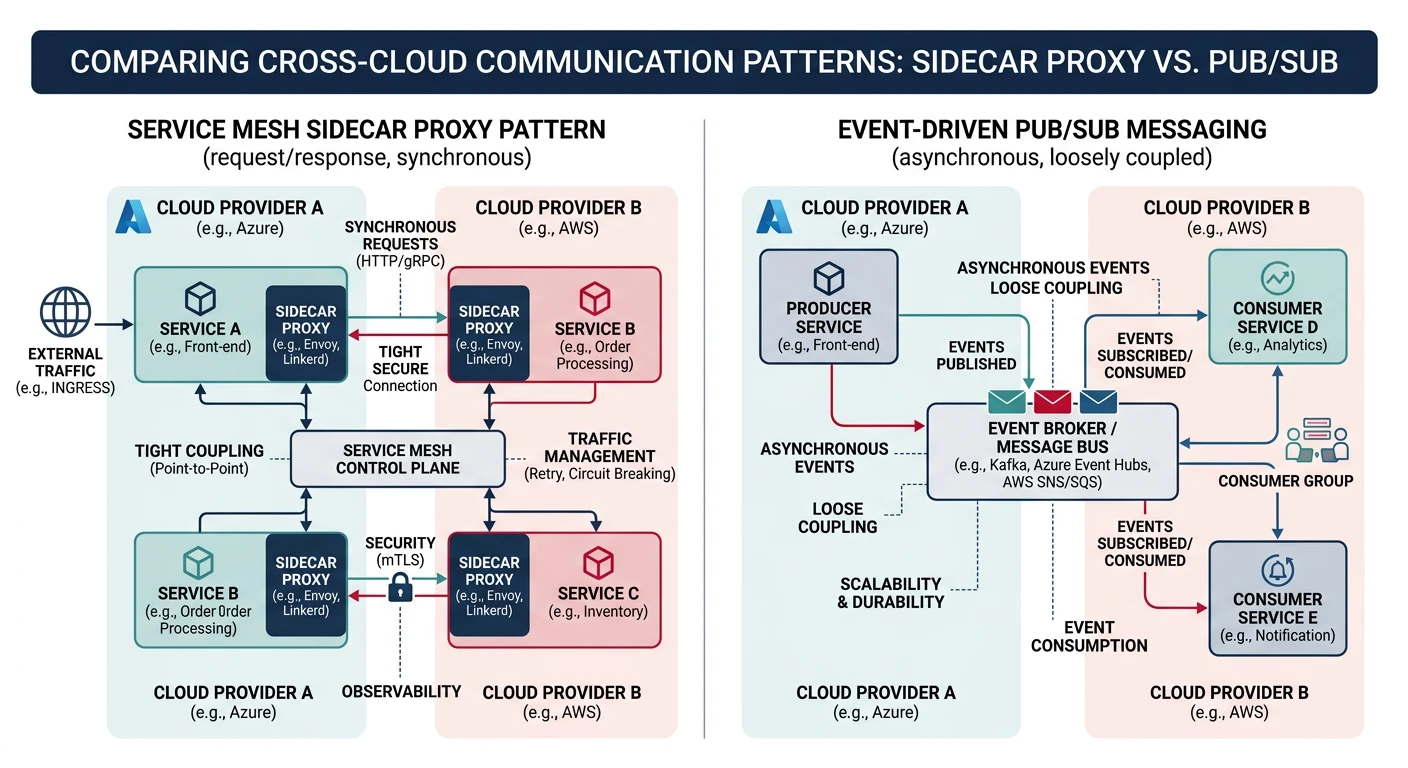

Cloud-Native Patterns

Beyond provider-specific APIs, cloud-native applications use common patterns for service communication: service mesh, message queues, and event-driven architectures.

Service Mesh (Istio, Linkerd):

Without Service Mesh:
[Service A] → HTTP → [Service B]
• No encryption
• No retry logic
• No observability

With Service Mesh:
[Service A] → [Sidecar] → mTLS → [Sidecar] → [Service B]
• Automatic mTLS
• Retries, timeouts
• Distributed tracing
• Traffic management

AWS App Mesh / Azure Service Mesh / GCP Anthos:
• Managed service mesh
• Integrated with cloud IAM

Cloud Event Services:

AWS:
• SNS: Pub/sub topics
• SQS: Message queues
• EventBridge: Event bus
• Kinesis: Streaming

Azure:
• Service Bus: Enterprise messaging
• Event Grid: Event routing
• Event Hubs: Streaming

GCP:
• Pub/Sub: Messaging and streaming
• Cloud Tasks: Task queues

Pattern: Event-Driven Architecture
[Producer] → [Event Bus] → [Consumer 1]
                        → [Consumer 2]
                        → [Consumer 3]

# Multi-cloud pattern: Abstraction layer

class CloudStorage:
    """Abstract cloud storage operations"""

    def __init__(self, provider: str):
        self.provider = provider

        if provider == 'aws':
            import boto3
            self.client = boto3.client('s3')
        elif provider == 'azure':
            from azure.storage.blob import BlobServiceClient
            from azure.identity import DefaultAzureCredential
            self.client = BlobServiceClient(
                account_url="...",
                credential=DefaultAzureCredential()
            )
        elif provider == 'gcp':
            from google.cloud import storage
            self.client = storage.Client()

    def upload(self, bucket: str, key: str, data: bytes):
        if self.provider == 'aws':
            self.client.put_object(Bucket=bucket, Key=key, Body=data)
        elif self.provider == 'azure':
            blob = self.client.get_blob_client(bucket, key)
            blob.upload_blob(data)
        elif self.provider == 'gcp':
            bucket_obj = self.client.bucket(bucket)
            blob = bucket_obj.blob(key)
            blob.upload_from_string(data)

# Usage
# storage = CloudStorage(os.environ.get('CLOUD_PROVIDER', 'aws'))
# storage.upload('my-bucket', 'file.txt', b'Hello')
