Complete Protocols Master Part 10: File Transfer Protocols

FTP: File Transfer Protocol (Legacy)

FTP (RFC 959, 1985) is the original file transfer protocol. It's simple but fundamentally insecure—credentials and data are transmitted in plain text.

FTP Security Problems:

1. CREDENTIALS IN PLAIN TEXT
   USER alice
   PASS secret123    ← Anyone can sniff this!

2. DATA IN PLAIN TEXT
   All transferred files visible to eavesdroppers

3. ACTIVE MODE FIREWALL ISSUES
   Server connects BACK to client (problematic with NAT)

4. NO DATA INTEGRITY
   No checksums, no verification

DO NOT USE FTP for:
• Anything with credentials
• Sensitive data
• Production systems
• Internet-facing servers

Only acceptable use: Anonymous public downloads
(And even then, use HTTPS instead)

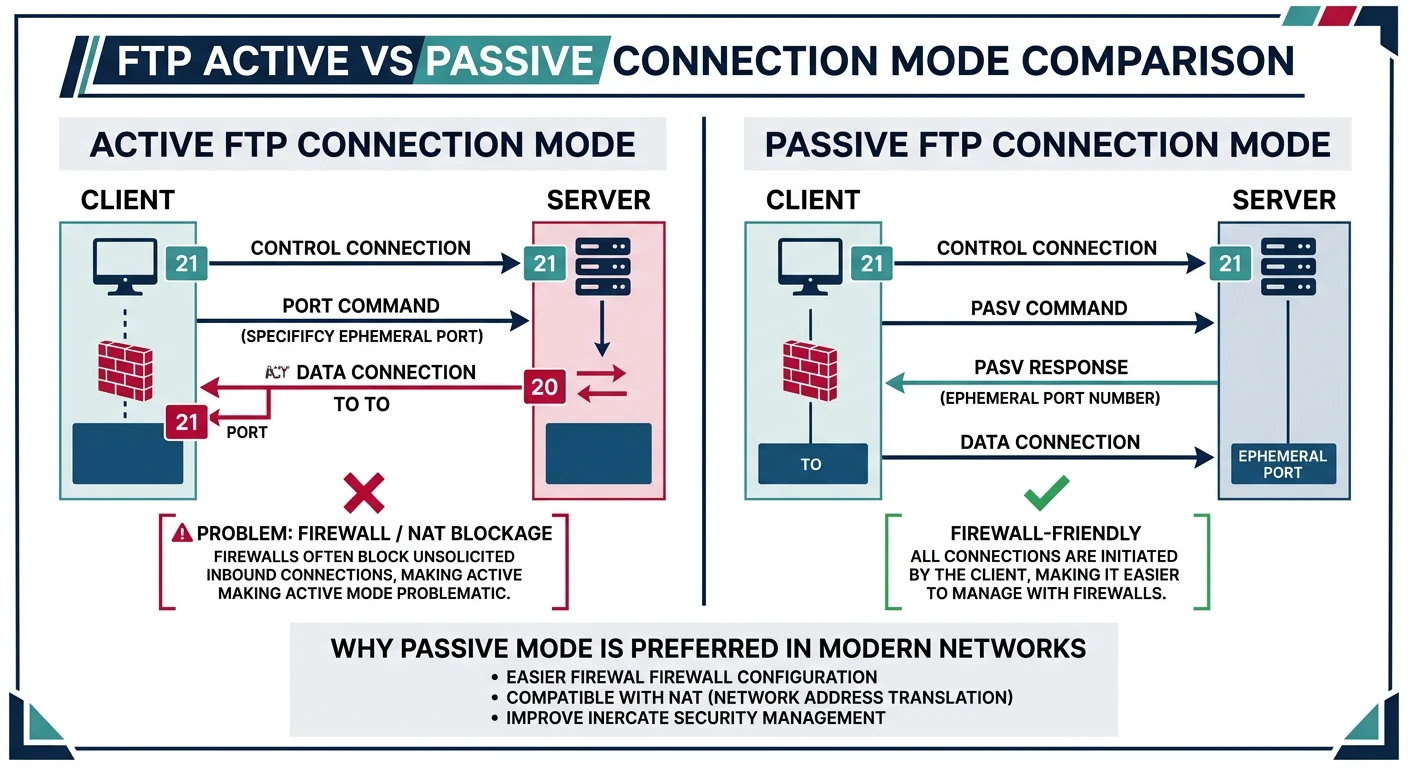

FTP Connection Modes:

ACTIVE MODE (Original):
1. Client connects to server port 21 (control)
2. Client sends PORT command with its IP:port
3. Server connects FROM port 20 TO client's port

   Problem: Server → Client connection blocked by NAT/firewalls

PASSIVE MODE (Modern):
1. Client connects to server port 21 (control)
2. Client sends PASV command
3. Server returns IP:port for data connection
4. Client connects TO that port

   Solution: All connections initiated by client (firewall-friendly)

Commands:
USER username    - Login username
PASS password    - Login password
CWD /path        - Change directory
PWD              - Print working directory
LIST             - List files
RETR file        - Download file
STOR file        - Upload file
DELE file        - Delete file
QUIT             - Disconnect

# FTP client example (educational only - use SFTP in practice!)
from ftplib import FTP

def demonstrate_ftp_commands():
    """Show FTP command structure"""

    print("FTP Command Flow:")
    print("=" * 50)

    commands = [
        ("USER anonymous", "Login with username"),
        ("PASS email@example.com", "Password (visible!)"),
        ("PWD", "Print working directory"),
        ("PASV", "Enter passive mode"),
        ("LIST", "List directory contents"),
        ("CWD /pub", "Change directory"),
        ("TYPE I", "Binary transfer mode"),
        ("RETR file.zip", "Download file"),
        ("STOR upload.txt", "Upload file"),
        ("QUIT", "Disconnect"),
    ]

    for cmd, desc in commands:
        print(f"  {cmd:25} - {desc}")

    print("\nPython FTP example:")
    print("""
    from ftplib import FTP

    ftp = FTP('ftp.example.com')
    ftp.login('user', 'password')  # ⚠️ Sent in plain text!

    ftp.cwd('/files')
    ftp.nlst()  # List files

    with open('local.txt', 'wb') as f:
        ftp.retrbinary('RETR remote.txt', f.write)

    ftp.quit()
    """)
    print("\n⚠️ WARNING: Use SFTP instead for any real use case!")

demonstrate_ftp_commands()

FTPS: FTP over TLS

FTPS adds TLS encryption to FTP. It's better than plain FTP but still carries FTP's complexity (multiple ports, active/passive modes).

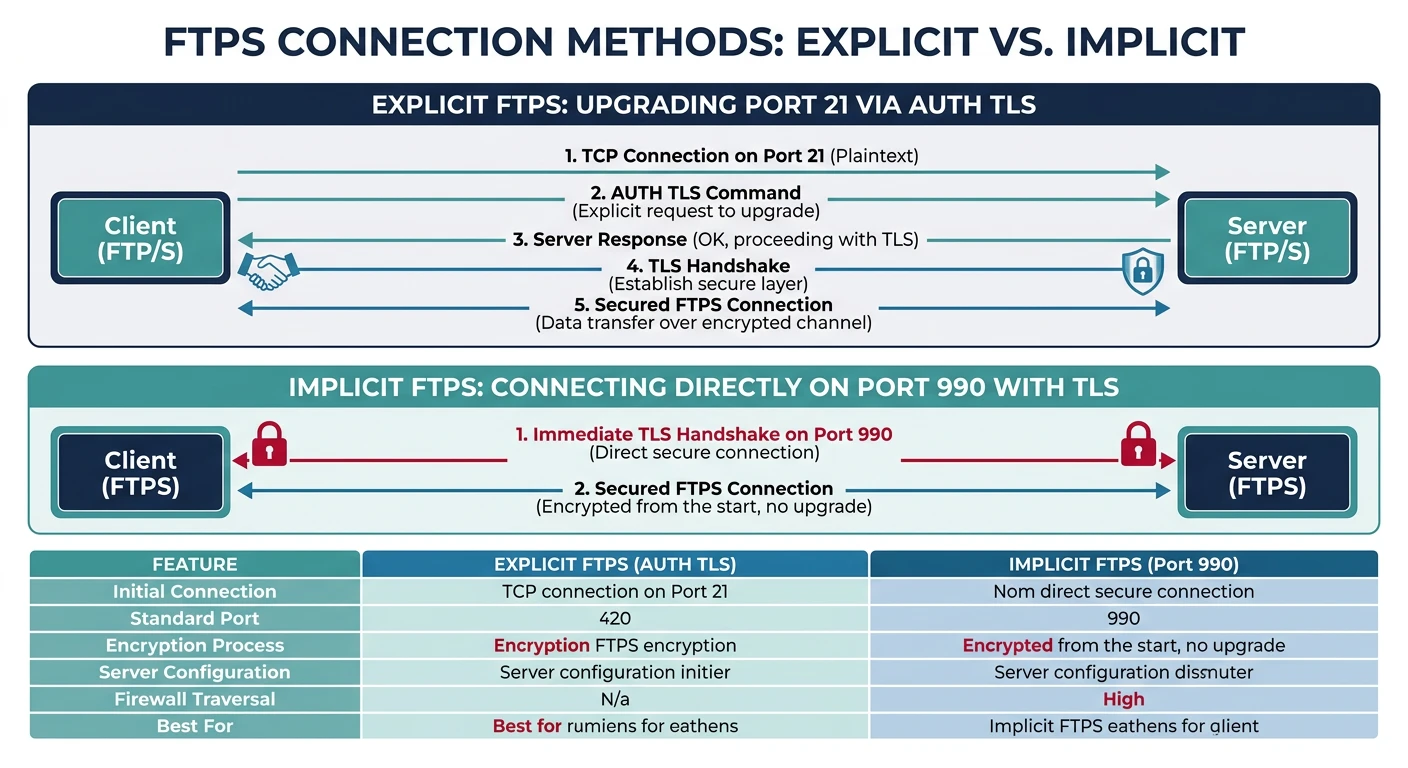

FTPS Variants:

EXPLICIT FTPS (FTPES):
• Connect to port 21
• Issue AUTH TLS command
• Upgrade connection to TLS
• More firewall-friendly

IMPLICIT FTPS:
• Connect to port 990 (already TLS)
• No upgrade needed
• Older method, less common

Example Explicit FTPS:
C: [Connect to port 21]
S: 220 FTP Server Ready
C: AUTH TLS
S: 234 Proceeding with TLS handshake
[TLS handshake]
C: USER alice
S: 331 Password required
C: PASS secret
S: 230 Logged in

When to use FTPS:
• Legacy systems that require FTP compatibility
• Existing FTP infrastructure
• When SFTP is not available

# FTPS example
from ftplib import FTP_TLS

def demonstrate_ftps():
    """Show FTPS connection"""

    print("FTPS (FTP over TLS) Example:")
    print("=" * 50)

    print("""
    from ftplib import FTP_TLS

    # Explicit FTPS (port 21, upgrade to TLS)
    ftps = FTP_TLS('ftp.example.com')
    ftps.login('user', 'password')
    ftps.prot_p()  # Enable data channel encryption

    ftps.nlst()
    ftps.quit()

    # Implicit FTPS (port 990, TLS from start)
    ftps = FTP_TLS()
    ftps.connect('ftp.example.com', 990)
    ftps.login('user', 'password')
    ftps.prot_p()
    """)

    print("\nFTPS Ports:")
    print("  21  - Control (explicit, upgrades to TLS)")
    print("  990 - Control (implicit, TLS from start)")
    print("  989 - Data (implicit)")
    print("\n✅ Better than FTP, but SFTP is simpler")

demonstrate_ftps()

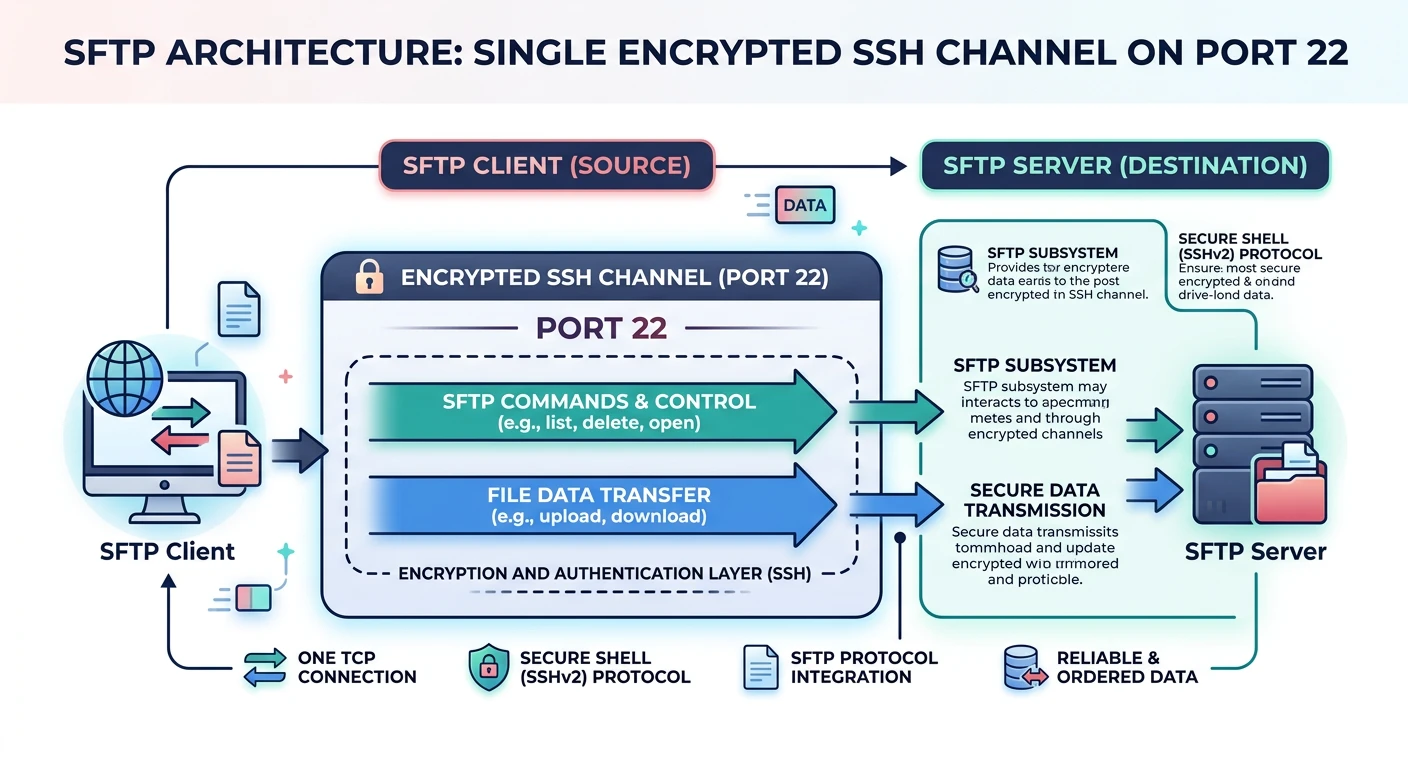

SFTP: SSH File Transfer Protocol

SFTP runs over SSH (port 22), providing strong encryption, authentication, and integrity. It's the modern standard for secure file transfer.

SFTP Advantages:

1. SINGLE PORT (22)
   No active/passive mode complexity
   Firewall-friendly

2. STRONG AUTHENTICATION
   Password, SSH keys, certificates
   Multi-factor support

3. FULL ENCRYPTION
   Data and commands encrypted
   Cannot be sniffed

4. DATA INTEGRITY
   Built-in checksums

5. RICH OPERATIONS
   Rename, chmod, chown, symlinks
   Resume interrupted transfers

SFTP Commands:
cd /path         - Change remote directory
lcd /path        - Change local directory
ls               - List remote files
lls              - List local files
get file         - Download
put file         - Upload
rm file          - Delete
mkdir dir        - Create directory
chmod 755 file   - Change permissions

# SFTP command-line examples

# Interactive session
sftp user@server.example.com
sftp> ls
sftp> cd /data
sftp> get report.csv
sftp> put local-file.txt
sftp> exit

# Non-interactive (batch mode)
sftp user@server <<EOF
cd /data
get report.csv
put upload.txt
exit
EOF

# Using SSH key (no password)
sftp -i ~/.ssh/mykey user@server

# Specify port
sftp -P 2222 user@server

# Download specific file
sftp user@server:/path/to/file.txt ./local/

# SFTP with Python (paramiko library)
import os

def demonstrate_sftp():
    """Show SFTP operations with paramiko"""

    print("SFTP with Python (paramiko)")
    print("=" * 50)

    print("""
    import paramiko

    # Create SSH client
    ssh = paramiko.SSHClient()
    ssh.set_missing_host_key_policy(paramiko.AutoAddPolicy())

    # Connect with password
    ssh.connect('server.example.com',
                username='user',
                password='password')

    # Or connect with key
    ssh.connect('server.example.com',
                username='user',
                key_filename='/path/to/key')

    # Open SFTP session
    sftp = ssh.open_sftp()

    # List directory
    for item in sftp.listdir('/data'):
        print(item)

    # Download file
    sftp.get('/remote/file.txt', '/local/file.txt')

    # Upload file
    sftp.put('/local/upload.txt', '/remote/upload.txt')

    # File operations
    sftp.chmod('/remote/script.sh', 0o755)
    sftp.rename('/remote/old.txt', '/remote/new.txt')

    # Stat file (get info)
    info = sftp.stat('/remote/file.txt')
    print(f"Size: {info.st_size}")

    sftp.close()
    ssh.close()
    """)

    print("\nInstall: pip install paramiko")

demonstrate_sftp()

SCP: Secure Copy

SCP (Secure Copy Protocol) is a simpler alternative to SFTP for quick file copies. It uses SSH for transport but has fewer features.

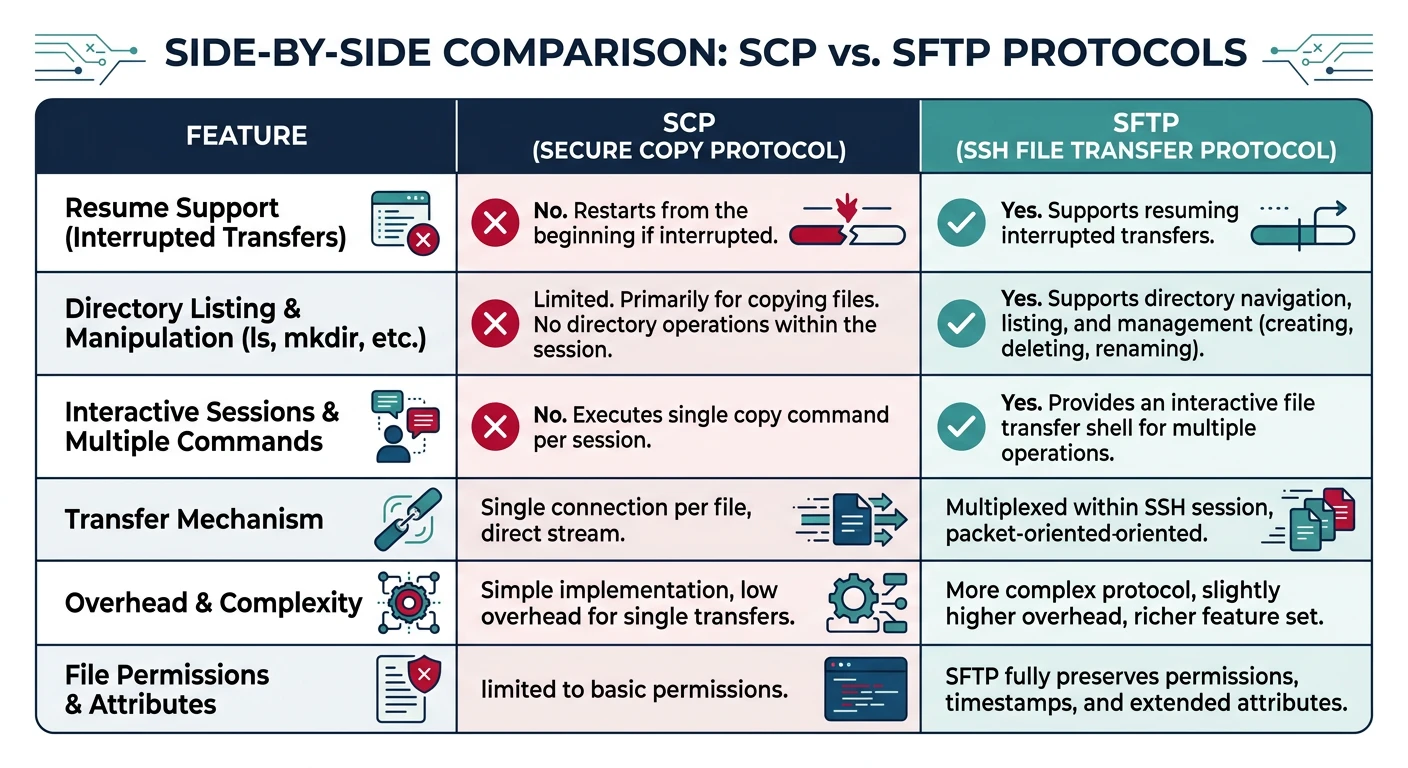

SCP vs SFTP:

SCP:
✅ Simple, one-liner copies
✅ Fast (minimal protocol overhead)
❌ No directory listing
❌ No resume
❌ No rename/delete
❌ Deprecated in OpenSSH 9.0 (use SFTP)

SFTP:
✅ Full file management
✅ Resume interrupted transfers
✅ Interactive session
✅ Actively maintained
❌ Slightly more overhead

Modern Recommendation:
• Use SFTP for everything
• SCP only for backward compatibility
• rsync for large/incremental transfers

# SCP command examples

# Copy local file to remote
scp file.txt user@server:/path/

# Copy remote file to local
scp user@server:/path/file.txt ./local/

# Copy directory recursively
scp -r local-dir/ user@server:/path/

# Specify SSH key
scp -i ~/.ssh/mykey file.txt user@server:/path/

# Specify port
scp -P 2222 file.txt user@server:/path/

# Preserve permissions and timestamps
scp -p file.txt user@server:/path/

# Copy between two remote hosts
scp user1@server1:/file user2@server2:/path/

# Limit bandwidth (KB/s)
scp -l 1000 large-file.zip user@server:/path/

rsync: Efficient Synchronization

rsync is the gold standard for efficient file synchronization. It only transfers differences, making it perfect for backups and large directory sync.

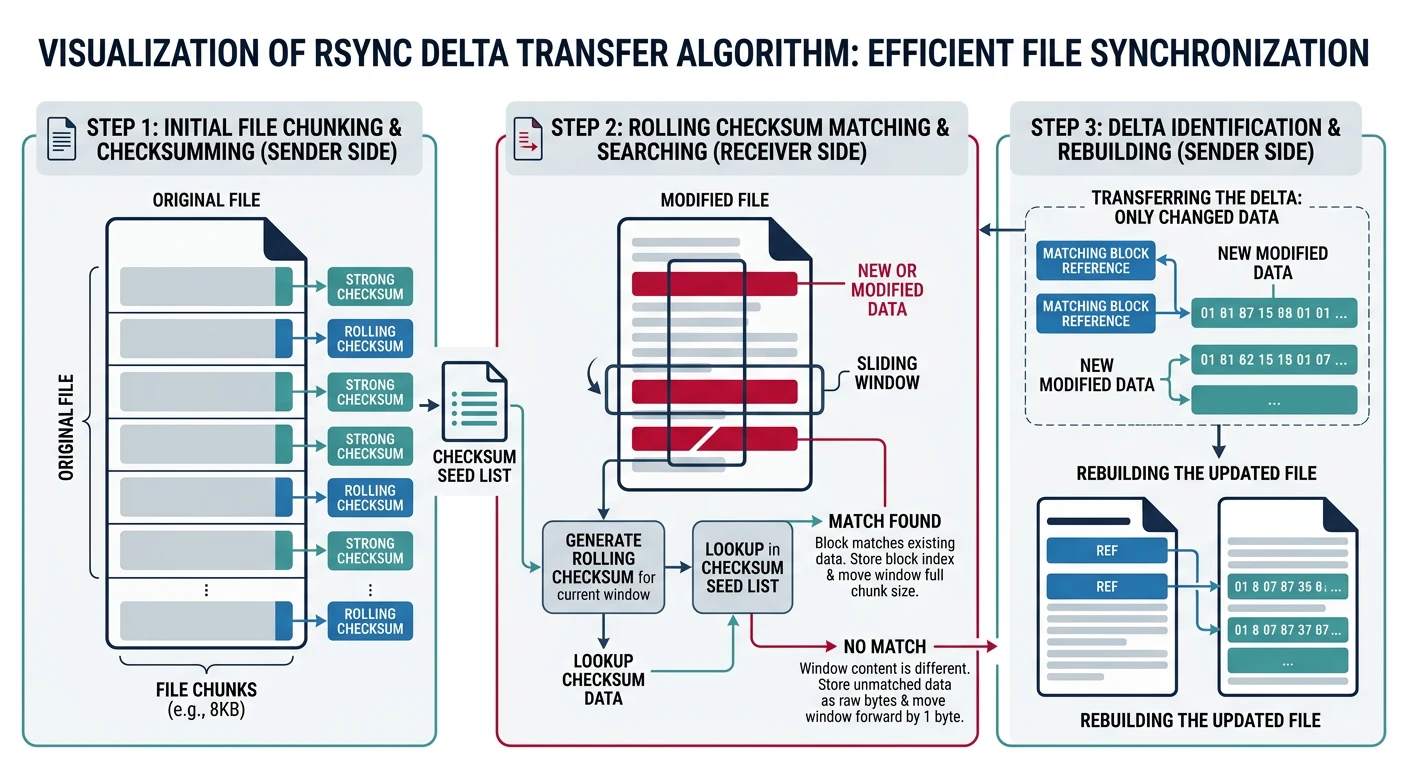

rsync Delta Algorithm:

1. Source splits file into chunks
2. Calculates rolling checksum for each chunk
3. Sends checksums to destination
4. Destination checks which chunks already exist
5. Only missing/changed chunks transferred

Example:
100MB file, 1MB changed → Only ~1MB transferred!

Key Features:
• Incremental transfer (only changes)
• Compression during transfer
• Preserve permissions, timestamps, symlinks
• Delete files not in source (--delete)
• Dry-run mode (--dry-run)
• Progress display (--progress)
• Bandwidth limiting (--bwlimit)

# rsync command examples

# Basic sync (local)
rsync -av source/ destination/

# Remote sync over SSH
rsync -av local-dir/ user@server:/remote/dir/

# Common options
rsync -avz --progress source/ dest/
#  -a = archive (preserve everything)
#  -v = verbose
#  -z = compress during transfer
#  --progress = show progress

# Mirror with delete (dangerous!)
rsync -av --delete source/ dest/

# Dry run (see what would happen)
rsync -av --dry-run source/ dest/

# Exclude patterns
rsync -av --exclude='*.log' --exclude='.git' source/ dest/

# Include/exclude from file
rsync -av --exclude-from='exclude.txt' source/ dest/

# Bandwidth limit (KB/s)
rsync -av --bwlimit=1000 source/ dest/

# Backup with timestamp
rsync -av --backup --suffix=".$(date +%Y%m%d)" source/ dest/

# Resume partial transfer
rsync -av --partial --progress large-file.zip user@server:/path/

# rsync automation example
import subprocess
import datetime

def rsync_backup(source, dest, options=None):
    """Run rsync backup with standard options"""

    default_opts = [
        '-av',           # Archive mode, verbose
        '--progress',    # Show progress
        '--delete',      # Mirror source (remove extra files)
        '--exclude=.git',
        '--exclude=node_modules',
        '--exclude=__pycache__',
    ]

    opts = default_opts + (options or [])

    cmd = ['rsync'] + opts + [source, dest]

    print(f"Running: {' '.join(cmd)}")
    print("=" * 50)

    # In real use, run subprocess
    # subprocess.run(cmd, check=True)

    return cmd

# Examples
print("rsync Backup Examples")
print("=" * 50)

# Local backup
print("\n1. Local backup:")
rsync_backup('/home/user/projects/', '/backup/projects/')

# Remote backup
print("\n2. Remote backup:")
rsync_backup('/home/user/data/', 'user@backup-server:/backups/data/')

# With bandwidth limit
print("\n3. Limited bandwidth:")
rsync_backup('/home/user/large/',
             'user@server:/remote/',
             ['--bwlimit=5000'])  # 5 MB/s

Modern Alternatives

Modern File Transfer Options:

1. CLOUD STORAGE APIs
   • AWS S3: aws s3 cp, aws s3 sync
   • Azure Blob: azcopy
   • GCP Cloud Storage: gsutil

2. HTTPS + REST APIs
   • cURL for downloads
   • Presigned URLs for secure sharing
   • Resumable uploads

3. RCLONE (Multi-cloud sync)
   • Supports 40+ cloud providers
   • rsync-like interface
   • Encryption support

4. WEB-BASED TRANSFERS
   • Magic Wormhole (encrypted peer-to-peer)
   • Croc (peer-to-peer)
   • FilePizza (WebRTC)

Example AWS S3:
aws s3 cp file.txt s3://bucket/path/
aws s3 sync local-dir/ s3://bucket/prefix/
aws s3 presign s3://bucket/file.txt --expires-in 3600

Example rclone:
rclone sync /local/path remote:bucket/path
rclone copy remote1:path remote2:path

# Modern file transfer examples
import hashlib

def generate_checksum(filepath):
    """Generate SHA256 checksum for verification"""
    sha256 = hashlib.sha256()

    # Simulate file read
    content = b"Sample file content for checksum demo"
    sha256.update(content)

    return sha256.hexdigest()

def demonstrate_modern_transfers():
    """Show modern transfer methods"""

    print("Modern File Transfer Methods")
    print("=" * 50)

    print("""
    # 1. AWS S3
    aws s3 cp file.txt s3://mybucket/
    aws s3 sync ./data/ s3://mybucket/data/

    # 2. Azure Blob
    azcopy copy 'file.txt' 'https://account.blob.core.windows.net/container/'

    # 3. rclone (multi-cloud)
    rclone copy /local/path gdrive:backup/
    rclone sync /local/path s3:bucket/prefix

    # 4. Magic Wormhole (encrypted peer-to-peer)
    # Sender:
    wormhole send file.txt
    # Receiver:
    wormhole receive 7-crossword-clock

    # 5. Python requests (HTTP upload)
    import requests
    with open('file.txt', 'rb') as f:
        requests.post('https://api.example.com/upload', files={'file': f})
    """)

    # Checksum verification
    checksum = generate_checksum("example.txt")
    print(f"\nVerification checksum: {checksum[:32]}...")

demonstrate_modern_transfers()

Hands-On Exercises

# Practice commands

# SFTP interactive session
sftp user@server
# ls, cd, get, put, exit

# SCP quick copy
scp file.txt user@server:/path/

# rsync directory sync
rsync -avz --progress local/ user@server:/remote/

# rsync dry-run (see what would change)
rsync -av --dry-run --delete source/ dest/

Summary & Next Steps
