Complete Protocols Master Part 12: Streaming Protocols

RTMP: Real-Time Messaging Protocol

RTMP was created by Adobe for Flash. While Flash is dead, RTMP lives on as the de facto standard for stream ingest—OBS, encoders, and streaming platforms all speak RTMP.

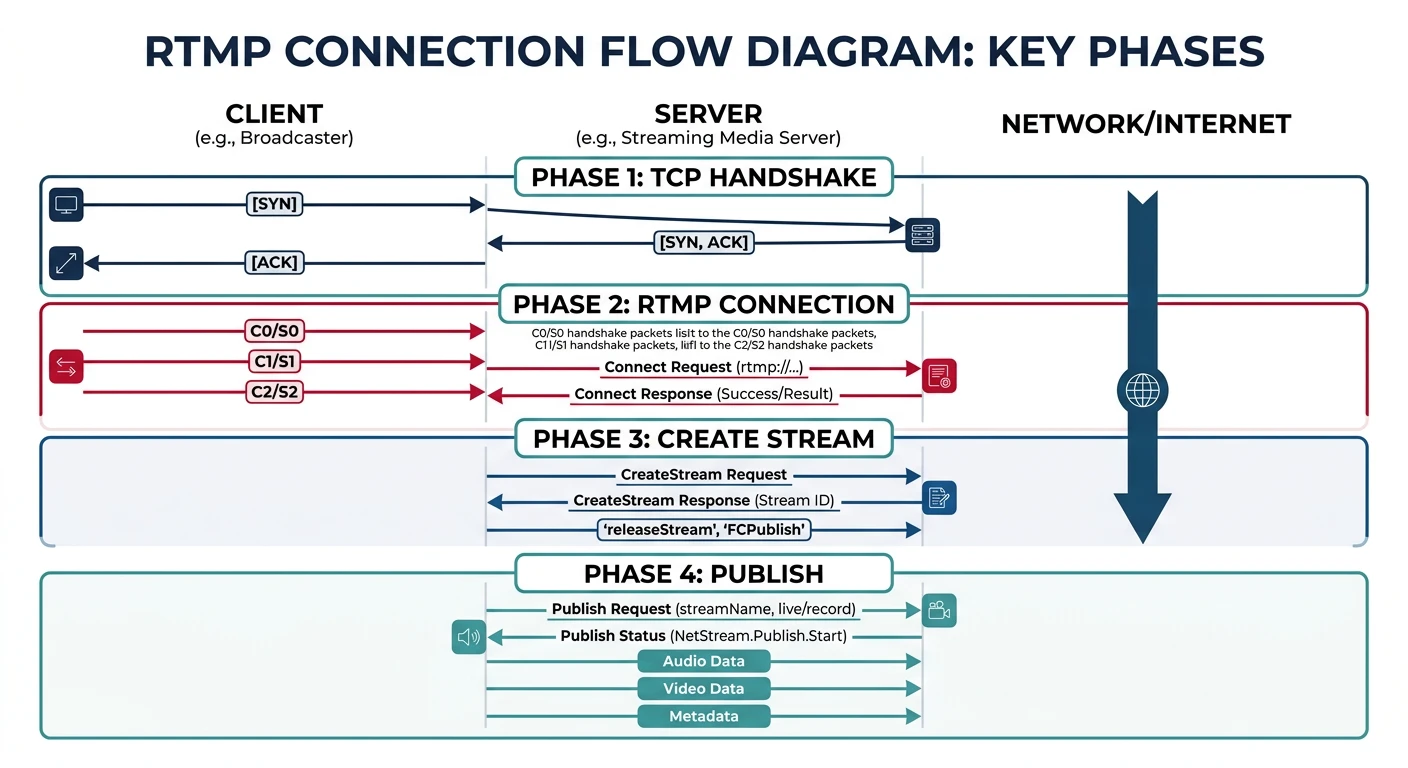

RTMP Connection:

1. TCP HANDSHAKE
   Client → Server: C0 + C1 (version + random)
   Server → Client: S0 + S1 + S2
   Client → Server: C2

2. CONNECT
   Client: connect('rtmp://server/app')
   Server: result (success)

3. CREATE STREAM
   Client: createStream()
   Server: result (stream_id)

4. PUBLISH (for streaming)
   Client: publish('stream_key', 'live')
   Server: onStatus('NetStream.Publish.Start')

5. SEND DATA
   Client: audio/video chunks
   (Continues until disconnect)

RTMP URL Format:
rtmp://server.com/app/stream_key
• server.com - Server address
• app - Application name
• stream_key - Unique stream identifier

# RTMP streaming examples

# OBS Settings:
# Server: rtmp://live.twitch.tv/app
# Stream Key: live_xxxxx_yyyyy

# FFmpeg RTMP stream to server
ffmpeg -i input.mp4 \
    -c:v libx264 -preset veryfast \
    -maxrate 3000k -bufsize 6000k \
    -c:a aac -b:a 128k \
    -f flv rtmp://server.com/app/stream_key

# Receive RTMP and save to file
ffmpeg -i rtmp://server.com/app/stream_key \
    -c copy output.mp4

# RTMP to HLS conversion (live)
ffmpeg -i rtmp://server.com/app/stream_key \
    -c:v copy -c:a copy \
    -f hls -hls_time 4 -hls_list_size 5 \
    /var/www/stream/playlist.m3u8

SRT vs RTMP:

SRT Advantages:
• UDP-based (lower latency)
• Built-in encryption (AES)
• Error correction (ARQ)
• Better over unreliable networks
• Open source (Haivision)

When to use SRT:
• Contribution links over internet
• Remote production
• When RTMP has packet loss issues

SRT Example:
ffmpeg -i input.mp4 \
    -c:v libx264 -f mpegts \
    'srt://server.com:9000?streamid=mystream'

# Receive SRT
ffmpeg -i 'srt://server.com:9000?mode=caller' \
    -c copy output.ts

HLS: HTTP Live Streaming

HLS (Apple, 2009) is the most widely supported streaming format. It segments video into small chunks delivered over HTTP, enabling CDN caching and adaptive bitrate switching.

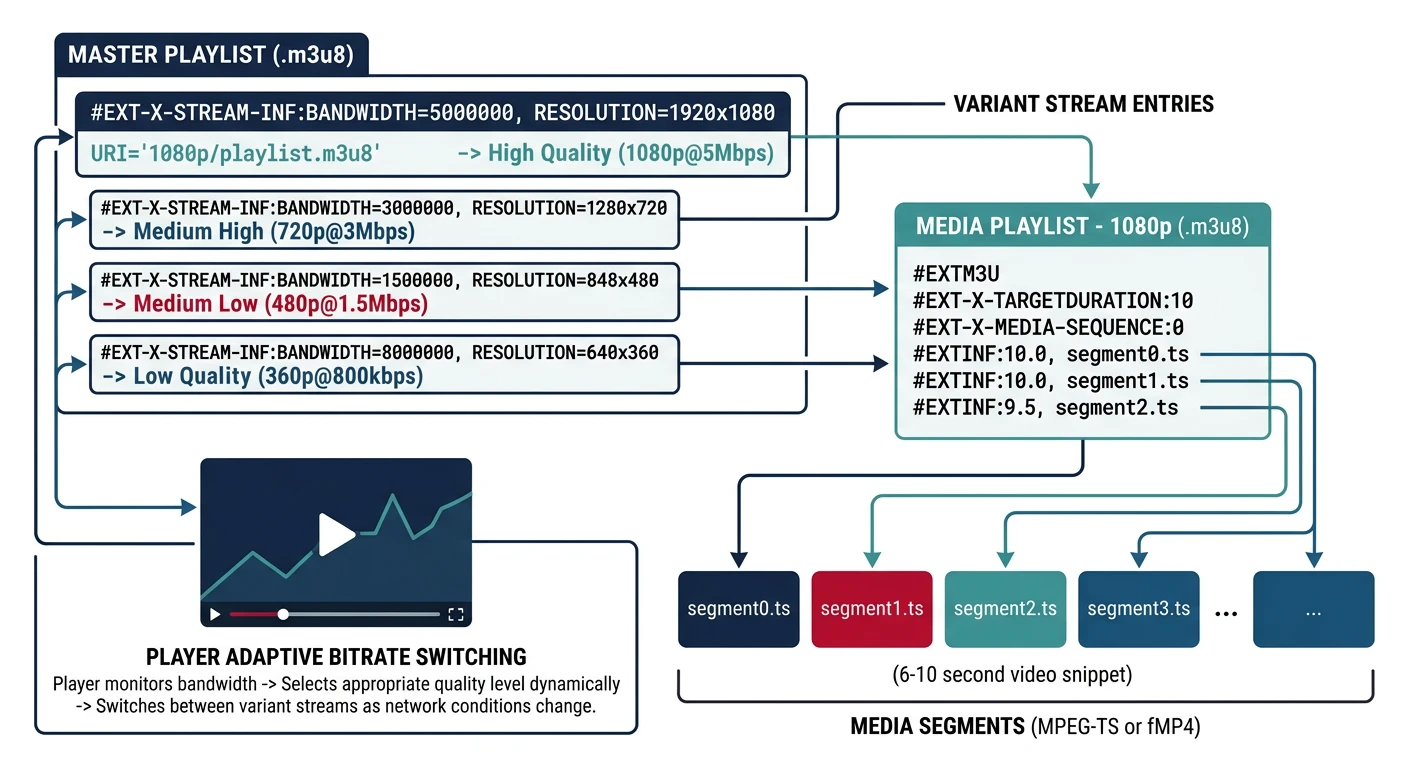

HLS Directory Structure:

stream/
├── master.m3u8          # Master playlist (quality selector)
├── 1080p/
│   ├── playlist.m3u8    # Media playlist (segment list)
│   ├── segment000.ts    # Video chunk (4-10 seconds)
│   ├── segment001.ts
│   └── segment002.ts
├── 720p/
│   ├── playlist.m3u8
│   └── *.ts
├── 480p/
│   ├── playlist.m3u8
│   └── *.ts
└── audio/
    ├── playlist.m3u8
    └── *.aac

Player Flow:
1. Fetch master.m3u8
2. Select quality based on bandwidth
3. Fetch media playlist for that quality
4. Download and play segments sequentially
5. Switch quality if bandwidth changes

# Master playlist (master.m3u8)

#EXTM3U
#EXT-X-VERSION:3

#EXT-X-STREAM-INF:BANDWIDTH=800000,RESOLUTION=640x360
360p/playlist.m3u8

#EXT-X-STREAM-INF:BANDWIDTH=1400000,RESOLUTION=842x480
480p/playlist.m3u8

#EXT-X-STREAM-INF:BANDWIDTH=2800000,RESOLUTION=1280x720
720p/playlist.m3u8

#EXT-X-STREAM-INF:BANDWIDTH=5000000,RESOLUTION=1920x1080
1080p/playlist.m3u8

# Media playlist (720p/playlist.m3u8)

#EXTM3U
#EXT-X-VERSION:3
#EXT-X-TARGETDURATION:6
#EXT-X-MEDIA-SEQUENCE:0

#EXTINF:6.000,
segment000.ts
#EXTINF:6.000,
segment001.ts
#EXTINF:6.000,
segment002.ts
#EXTINF:4.500,
segment003.ts

# For VOD, add at end:
#EXT-X-ENDLIST

# For live, playlist updates as new segments added

# Create HLS from video file

ffmpeg -i input.mp4 \
    -c:v libx264 -crf 21 -preset veryfast \
    -c:a aac -b:a 128k \
    -hls_time 6 \
    -hls_list_size 0 \
    -hls_segment_filename "segment%03d.ts" \
    playlist.m3u8

# Multi-bitrate HLS (adaptive)
ffmpeg -i input.mp4 \
    -filter_complex "[0:v]split=3[v1][v2][v3];\
        [v1]scale=1280:720[v1out];\
        [v2]scale=854:480[v2out];\
        [v3]scale=640:360[v3out]" \
    -map "[v1out]" -c:v:0 libx264 -b:v:0 2800k \
    -map "[v2out]" -c:v:1 libx264 -b:v:1 1400k \
    -map "[v3out]" -c:v:2 libx264 -b:v:2 800k \
    -map 0:a -c:a aac -b:a 128k \
    -f hls -hls_time 6 \
    -master_pl_name master.m3u8 \
    -var_stream_map "v:0,a:0 v:1,a:1 v:2,a:2" \
    stream_%v/playlist.m3u8

DASH: Dynamic Adaptive Streaming over HTTP

MPEG-DASH is the international standard for adaptive streaming. Unlike HLS (Apple proprietary), DASH is codec-agnostic and widely adopted on non-Apple platforms.

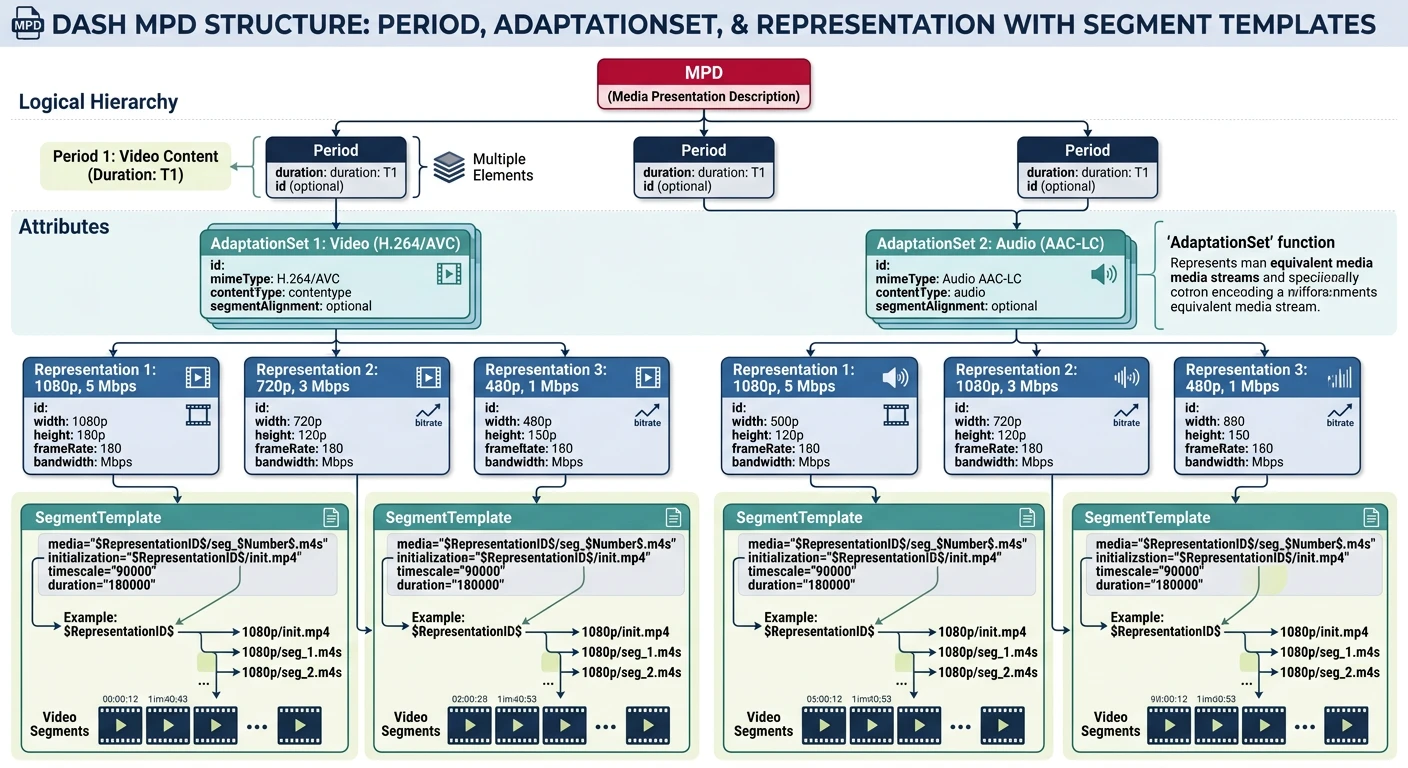

<!-- DASH MPD (Media Presentation Description) -->
<?xml version="1.0"?>
<MPD xmlns="urn:mpeg:dash:schema:mpd:2011"
     type="static"
     mediaPresentationDuration="PT1H30M"
     minBufferTime="PT2S">

    <Period>
        <AdaptationSet mimeType="video/mp4" segmentAlignment="true">
            <!-- 1080p -->
            <Representation id="1080p" bandwidth="5000000"
                            width="1920" height="1080">
                <SegmentTemplate media="1080p_$Number$.m4s"
                                 initialization="1080p_init.mp4"
                                 duration="6000" timescale="1000"/>
            </Representation>

            <!-- 720p -->
            <Representation id="720p" bandwidth="2800000"
                            width="1280" height="720">
                <SegmentTemplate media="720p_$Number$.m4s"
                                 initialization="720p_init.mp4"
                                 duration="6000" timescale="1000"/>
            </Representation>
        </AdaptationSet>

        <AdaptationSet mimeType="audio/mp4">
            <Representation id="audio" bandwidth="128000">
                <SegmentTemplate media="audio_$Number$.m4s"
                                 initialization="audio_init.mp4"
                                 duration="6000" timescale="1000"/>
            </Representation>
        </AdaptationSet>
    </Period>
</MPD>

# Create DASH content with FFmpeg

# Single quality
ffmpeg -i input.mp4 \
    -c:v libx264 -c:a aac \
    -f dash \
    -seg_duration 6 \
    output.mpd

# Multi-bitrate DASH
ffmpeg -i input.mp4 \
    -map 0:v -map 0:v -map 0:v -map 0:a \
    -c:v libx264 -c:a aac \
    -b:v:0 5000k -s:v:0 1920x1080 \
    -b:v:1 2800k -s:v:1 1280x720 \
    -b:v:2 1400k -s:v:2 854x480 \
    -b:a 128k \
    -f dash \
    -adaptation_sets "id=0,streams=v id=1,streams=a" \
    output.mpd

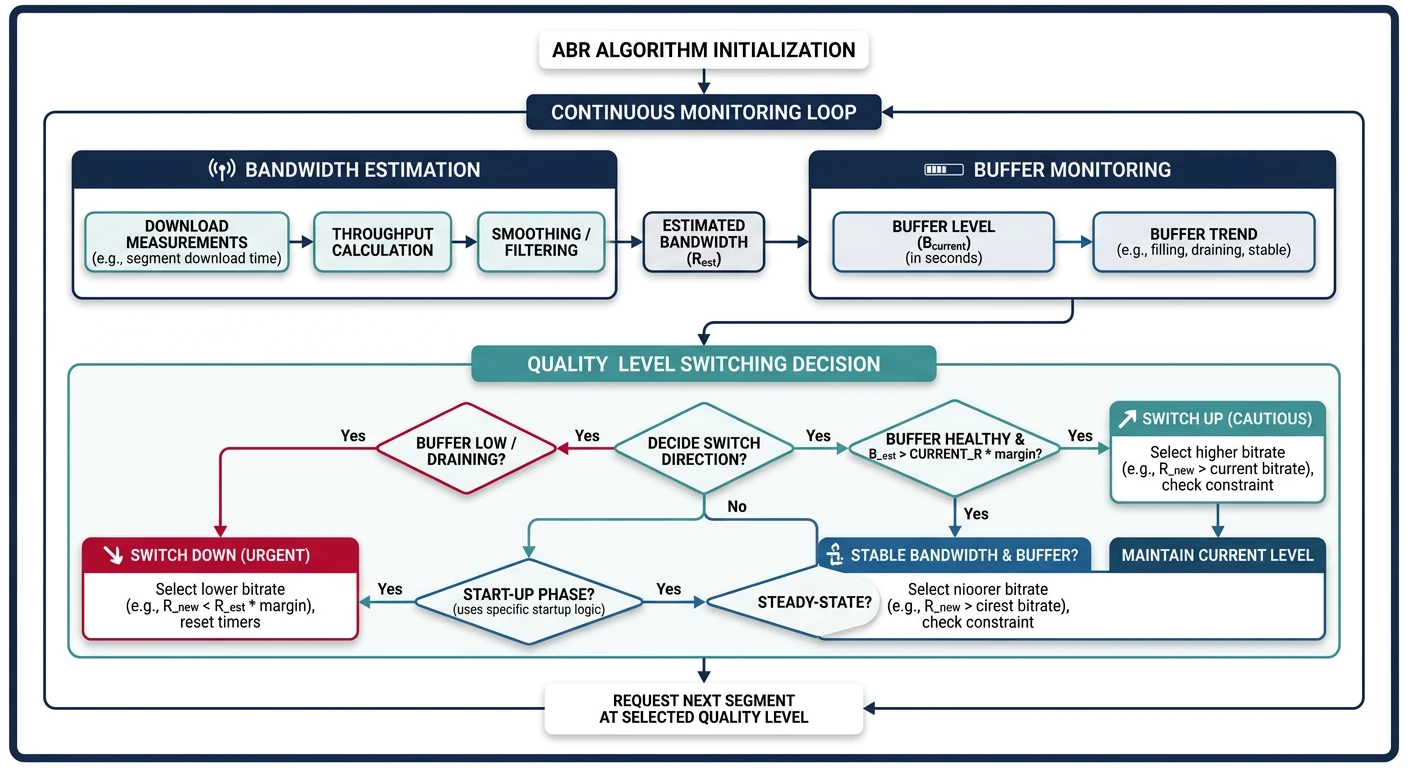

Adaptive Bitrate Streaming (ABR)

ABR algorithms automatically switch video quality based on network conditions. This ensures smooth playback—high quality when bandwidth allows, lower quality to prevent buffering.

ABR Decision Factors:

1. BANDWIDTH ESTIMATION
   • Measure download speed of recent segments
   • Weighted average (recent segments matter more)

2. BUFFER LEVEL
   • How many seconds in buffer?
   • Low buffer → safer (lower quality)
   • High buffer → can try higher quality

3. QUALITY SWITCHING
   • Switch up: Conservative (need consistent bandwidth)
   • Switch down: Aggressive (prevent rebuffer)

ABR Strategies:
• Rate-based: Switch based on throughput
• Buffer-based: Switch based on buffer level
• Hybrid: Combine both signals

Example Logic:
if buffer < 5s:
    select_lowest_quality()
elif throughput > 1.5 * current_bitrate:
    try_higher_quality()
elif throughput < 0.8 * current_bitrate:
    switch_lower_quality()

# Simple ABR algorithm simulation

def simple_abr_algorithm():
    """Demonstrate ABR quality selection"""

    # Available quality levels
    qualities = [
        {"name": "360p", "bitrate": 800_000},
        {"name": "480p", "bitrate": 1_400_000},
        {"name": "720p", "bitrate": 2_800_000},
        {"name": "1080p", "bitrate": 5_000_000},
    ]

    def select_quality(throughput_bps, buffer_seconds, current_quality_idx):
        """Select quality based on throughput and buffer"""

        # Safety margin (don't use 100% of bandwidth)
        safe_throughput = throughput_bps * 0.8

        # If buffer is critical, go to lowest
        if buffer_seconds < 3:
            print(f"  ⚠️ Critical buffer ({buffer_seconds}s) - lowest quality")
            return 0

        # Find highest quality we can sustain
        selected = 0
        for i, q in enumerate(qualities):
            if q["bitrate"] < safe_throughput:
                selected = i

        # Switching logic
        if selected > current_quality_idx:
            # Only switch up if buffer healthy
            if buffer_seconds > 10:
                print(f"  ↑ Buffer healthy ({buffer_seconds}s) - upgrading")
                return selected
            else:
                print(f"  → Buffer moderate - staying at current")
                return current_quality_idx
        elif selected < current_quality_idx:
            print(f"  ↓ Bandwidth dropped - downgrading")
            return selected

        return current_quality_idx

    print("ABR Algorithm Simulation")
    print("=" * 50)

    # Simulate scenarios
    scenarios = [
        (5_000_000, 15, 2),  # Good bandwidth, healthy buffer
        (1_000_000, 8, 2),   # Bandwidth dropped
        (3_000_000, 2, 1),   # Critical buffer
        (4_000_000, 20, 1),  # Bandwidth recovered
    ]

    for throughput, buffer, current in scenarios:
        print(f"\nThroughput: {throughput/1_000_000:.1f} Mbps, "
              f"Buffer: {buffer}s, Current: {qualities[current]['name']}")
        new_idx = select_quality(throughput, buffer, current)
        print(f"  Selected: {qualities[new_idx]['name']}")

simple_abr_algorithm()

CDN Delivery

CDNs (Content Delivery Networks) cache streaming content at edge locations worldwide. This reduces latency, handles traffic spikes, and enables global reach.

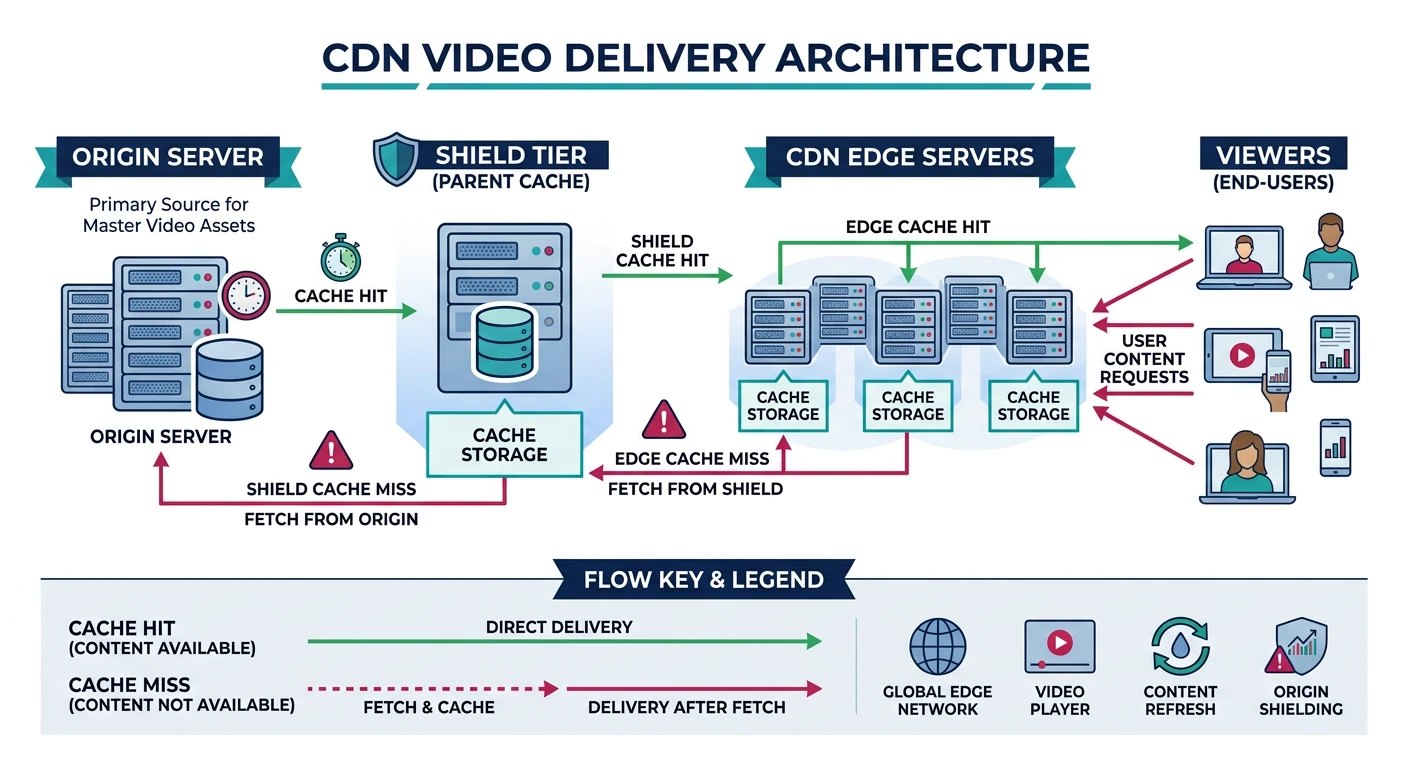

CDN Video Delivery:

ORIGIN → SHIELD → EDGE → VIEWER

1. ORIGIN SERVER
   • Source of truth
   • Generates HLS/DASH
   • Only 1 location

2. SHIELD (Mid-tier)
   • Reduces origin load
   • First cache layer
   • Few locations (1-3)

3. EDGE SERVERS
   • Close to viewers
   • Final cache layer
   • 100+ locations globally

Cache Logic:
1. Viewer requests segment001.ts
2. Edge: Cache miss → ask Shield
3. Shield: Cache miss → ask Origin
4. Origin returns segment
5. Shield caches + returns
6. Edge caches + returns
7. Next viewer request → Edge hit!

CDN Providers for Video:
• CloudFront (AWS)
• Fastly
• Cloudflare Stream
• Akamai
• Azure CDN

# CloudFront + HLS example

# 1. Upload HLS to S3
aws s3 sync ./stream/ s3://my-video-bucket/stream/

# 2. Create CloudFront distribution
# Origin: my-video-bucket.s3.amazonaws.com
# Cache Policy: CachingOptimized

# 3. Access via CDN
# https://d1234567890.cloudfront.net/stream/master.m3u8

# Cache Headers for HLS
# Manifest: Cache-Control: max-age=2 (live) or max-age=31536000 (VOD)
# Segments: Cache-Control: max-age=31536000 (immutable)

# Nginx config for HLS
location /hls/ {
    types {
        application/vnd.apple.mpegurl m3u8;
        video/mp2t ts;
    }
    root /var/www/stream;
    add_header Cache-Control "max-age=31536000";
}

location ~ \.m3u8$ {
    add_header Cache-Control "max-age=2";  # Short cache for live manifest
}

FFmpeg Streaming Pipeline

FFmpeg is the Swiss Army knife of video processing. Here are practical commands for building a complete streaming pipeline.

# Complete HLS streaming pipeline

# 1. RTMP Ingest to HLS (live streaming)
ffmpeg -listen 1 -i rtmp://0.0.0.0:1935/live/stream \
    -c:v libx264 -preset veryfast -tune zerolatency \
    -c:a aac -b:a 128k \
    -f hls \
    -hls_time 4 \
    -hls_list_size 10 \
    -hls_flags delete_segments \
    /var/www/stream/live.m3u8

# 2. Multi-bitrate encoding (ABR ladder)
ffmpeg -i rtmp://localhost/live/stream \
    -filter_complex "[0:v]split=3[v1][v2][v3];\
        [v1]scale=1280:720[v720];\
        [v2]scale=854:480[v480];\
        [v3]scale=640:360[v360]" \
    -map "[v720]" -c:v:0 libx264 -b:v:0 2800k -maxrate:v:0 3000k -bufsize:v:0 6000k \
    -map "[v480]" -c:v:1 libx264 -b:v:1 1400k -maxrate:v:1 1500k -bufsize:v:1 3000k \
    -map "[v360]" -c:v:2 libx264 -b:v:2 800k -maxrate:v:2 900k -bufsize:v:2 1800k \
    -map 0:a -c:a aac -b:a 128k -ac 2 \
    -f hls -hls_time 4 -hls_list_size 10 \
    -master_pl_name master.m3u8 \
    -var_stream_map "v:0,a:0,name:720p v:1,a:1,name:480p v:2,a:2,name:360p" \
    stream_%v.m3u8

# Python streaming helper

import subprocess
import os

def create_hls_stream(input_file, output_dir, qualities=None):
    """Create multi-bitrate HLS from video file"""

    if qualities is None:
        qualities = [
            {"name": "720p", "scale": "1280:720", "bitrate": "2800k"},
            {"name": "480p", "scale": "854:480", "bitrate": "1400k"},
            {"name": "360p", "scale": "640:360", "bitrate": "800k"},
        ]

    os.makedirs(output_dir, exist_ok=True)

    # Build filter complex
    splits = len(qualities)
    filter_parts = [f"[0:v]split={splits}" + "".join(f"[v{i}]" for i in range(splits))]

    for i, q in enumerate(qualities):
        filter_parts.append(f"[v{i}]scale={q['scale']}[v{q['name']}]")

    filter_complex = ";".join(filter_parts)

    # Build command
    cmd = ["ffmpeg", "-i", input_file, "-filter_complex", filter_complex]

    # Add outputs
    var_stream_map = []
    for i, q in enumerate(qualities):
        cmd.extend([
            "-map", f"[v{q['name']}]",
            f"-c:v:{i}", "libx264",
            f"-b:v:{i}", q["bitrate"],
        ])
        var_stream_map.append(f"v:{i},a:0,name:{q['name']}")

    cmd.extend([
        "-map", "0:a", "-c:a", "aac", "-b:a", "128k",
        "-f", "hls",
        "-hls_time", "6",
        "-master_pl_name", "master.m3u8",
        "-var_stream_map", " ".join(var_stream_map),
        f"{output_dir}/stream_%v.m3u8"
    ])

    print("Generated FFmpeg command:")
    print(" ".join(cmd))
    return cmd

# Example usage
print("HLS Creation Example")
print("=" * 50)
create_hls_stream("input.mp4", "/var/www/hls")

Summary & Next Steps
